2ABNTSP1026MID

Manufacturer:SHENZHEN SYNERGY DIGITAL CO., LTD. Product Name:MID Model:SP1026 IMPORTANT NOTI CES This pac kage may contain plastic bags or other materials th at pose a haz ar d to children. Be sure to dispose of all pac king materials after opening. To avoi d damaging th e screen, do not touch it with excessive for ce or with any object other th an your finger. For bes t response, make sure your hands ar e clean befor e using th e touch Screen contr ol s. To avoid damage and data corruption, do not remove a memor y car d while data is being written to or read fr om th e car d. As an example, do not remove a car d while pla ying a video or music fi le stor ed on th e car d. The available menu it ems ar e dependent on th e unit. All illustr ations ar e for refer ence only. The batter y used in th is table t may present a fire or chemic al burn if misused. Don’t heat or incinerate the table t. Don’t leave it in a place subject to dir ect sunlight, or in a car with windows clo sed. Don’t connect t o a power source fr om another manufac tu rer. This may result in th e risk of fire or electric shock. Be especially cautious with applic ations th at request ac cess to many functions or to a significant amount of y our data. You ar e responsible for th e results of applications installed on your table t. The Table t’s “mass stor age mode” is compatible with many operating systems including: Windows® XP, Vis ta, 7 or higher and Mac O S or Lin ux. For recycling or disposal in for mation about this product, please contact your lo cal auth orities or th e Electr onics Industries Alliance: www.eiae.or g. SKYTEX is not responsible for any lo ss or damages incurr ed fr om your ac cess to thir d party content, Apps, or services and expressly disclaims all warranties of any kind. Company Trademarks SKYTEX lo go is trademarks of SKYTEX TECHNOLOGY INC. Androi d is a tr ademark of Google Inc. Use of th is tr ademark is subject to Google Permissio ns. HDMI, th e HDMI lo go ar e trademarks or regis tered tr ademarks of HDMI Licensing, LL C. All other trademarks and lo gos ar e property of th eir respective owners unless indic ated otherwise. 1 Customer Use Only: Enter th e model number of your table t and sa ve for future reference. Model #: _______________________________________ Serial #: ________________________________________ FCC Compliance 2 This tablet complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This tablet may not cause harmful interference, and (2) This tablet must accept any interference received, including interference that may cause undesired operation. Note: This tablet has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This tablet genera tes, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this tablet does cause harmful interference to radio or television reception, which can be determined by turning the tablet off and on, the user is encouraged to attempt to correct the interference by one of the following measures: • Reorient or relocate the receiving an tenna. • Increase the separation between the tablet and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio / TV technician for help Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules. Do not make any changes or modifications to the tablet unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop using the tablet. and (2) this device must accept any interference received, including interference that may cause undesired operation. following two conditions: (1) This device may not cause harmful interference, This device complies with part 15 of the FCC Rules. Operation is subject to the manufacturer could void your authority to operate this equipment. Caution: Any changes or modi?cations to this device not explicitly approved by SAFETY NOTICES 1. Read:and retain these instructions for future reference. 2.Warnings:on the product and User Guide instructions should always be adhered to. 3.Cleaning:Do not use liquid cleaners or aerosol cleaners. Use a damp soft cloth for cleaning. 4. Adapters:Use UL certified adapters recommended by SKYTEX. Other adapters may be hazardous or void your warranty. 5.Moisture & Water: Do not use nearwater such as near bath tub, kitchen sink, laundry tub, or swimming pool. 6. Ventilation:Should there be slots and openings in the tabl et, they areprovided for ventilation to ensure reliable operation of and protection from overheating. These openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. 7. Power Sources: This tablet should be operated from the type of power source indicated on the rating label. Consult your product dealer or our website for more information. For products intended to operate from battery power or other sources, refer to the operating instructions. 8. Overloading: Do not overload wall outlets, extension c ords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 9. Object and Liquid Entry: Never put objects of any kind on to or into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 10. Servicing:Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage …

Text truncated - open the document above for the full version.

SHENZHEN SYNERGY DIGITAL CO., LTD Address: 5/F, Block 5, Runheng lndustrial park, Fuyuan 1st Road, Fuyong, Baoan, Shenzhen, 518103, China Tel: 0755-29082198 Fax: 0755-29072808 2015-09-15 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2ABNTSP1026 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Geng GuoQing / Engineer Contact information / address : 5/F, Block 5, Runheng lndustrial park, Fuyuan 1st Road, Fuyong, Baoan, Shenzhen, 518103, China Tel: 0755-29082198Fax: 0755-29072808

SHENZHEN SYNERGY DIGITAL CO., LTD Address: 5/F, Block 5, Runheng lndustrial park, Fuyuan 1st Road, Fuyong, Baoan, Shenzhen, 518103, China Tel: 0755-29082198 Fax: 0755-29072808 Date: 2015-09-17 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2ABNTSP1026 To Whom It May Concern: This letter is to ascertain that SHENZHEN SYNERGY DIGITAL CO., LTD Product MID has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s name / title : Geng GuoQing / Engineer Contact information / address : 5/F, Block 5, Runheng lndustrial park, Fuyuan 1st Road, Fuyong, Baoan, Shenzhen, 518103, China Tel: 0755-29082198Fax: 0755-29072808

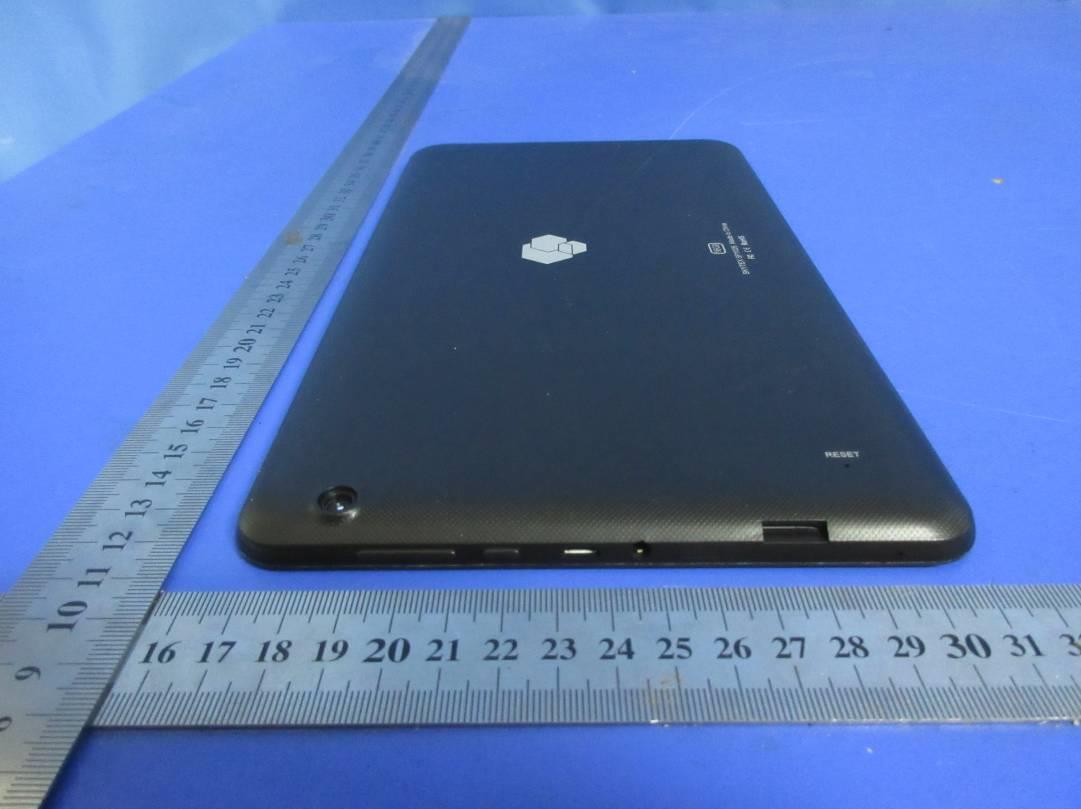

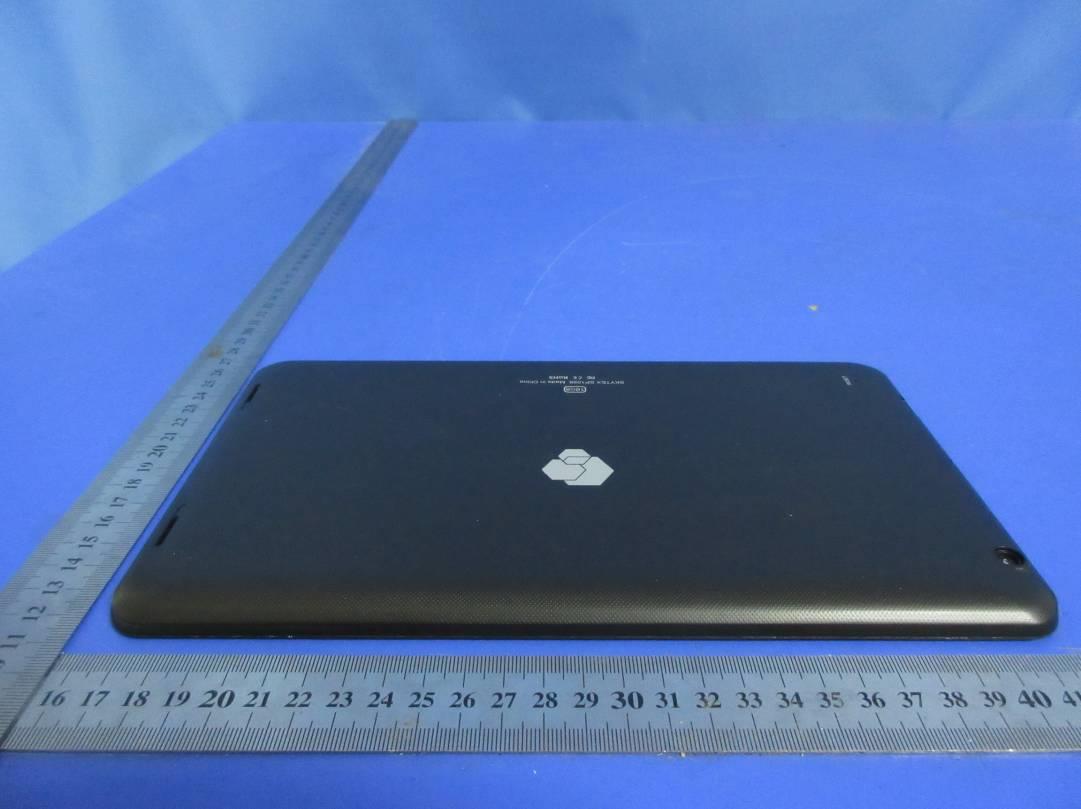

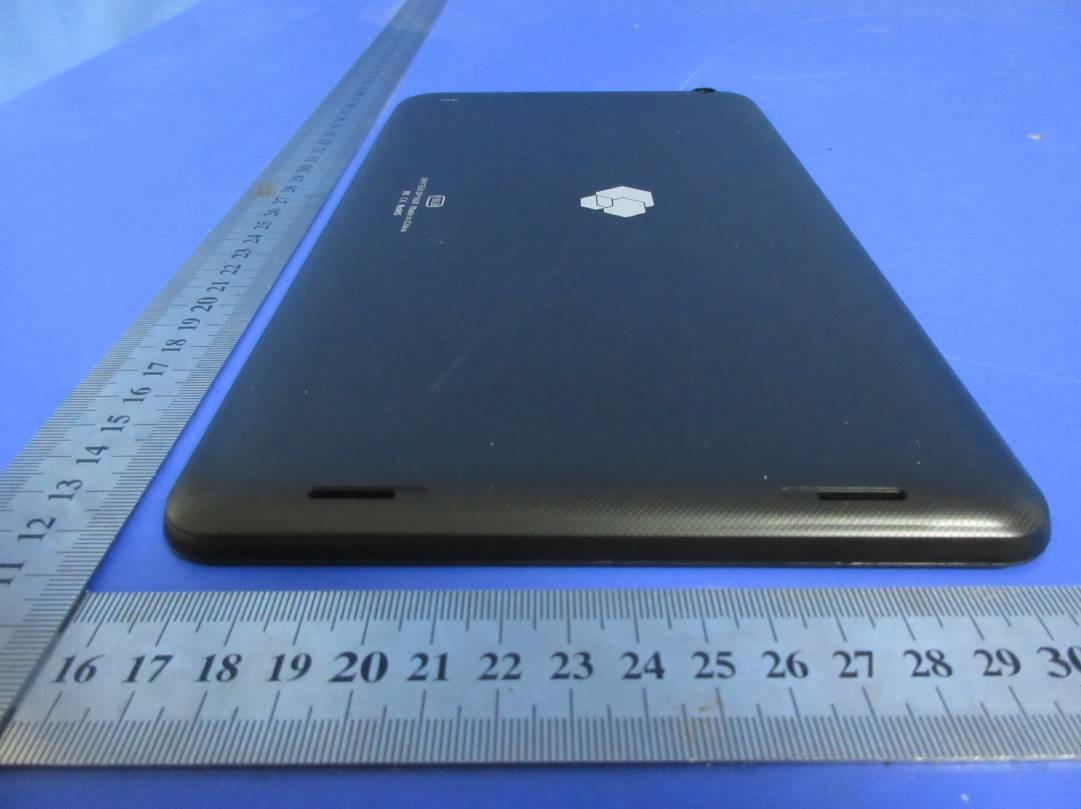

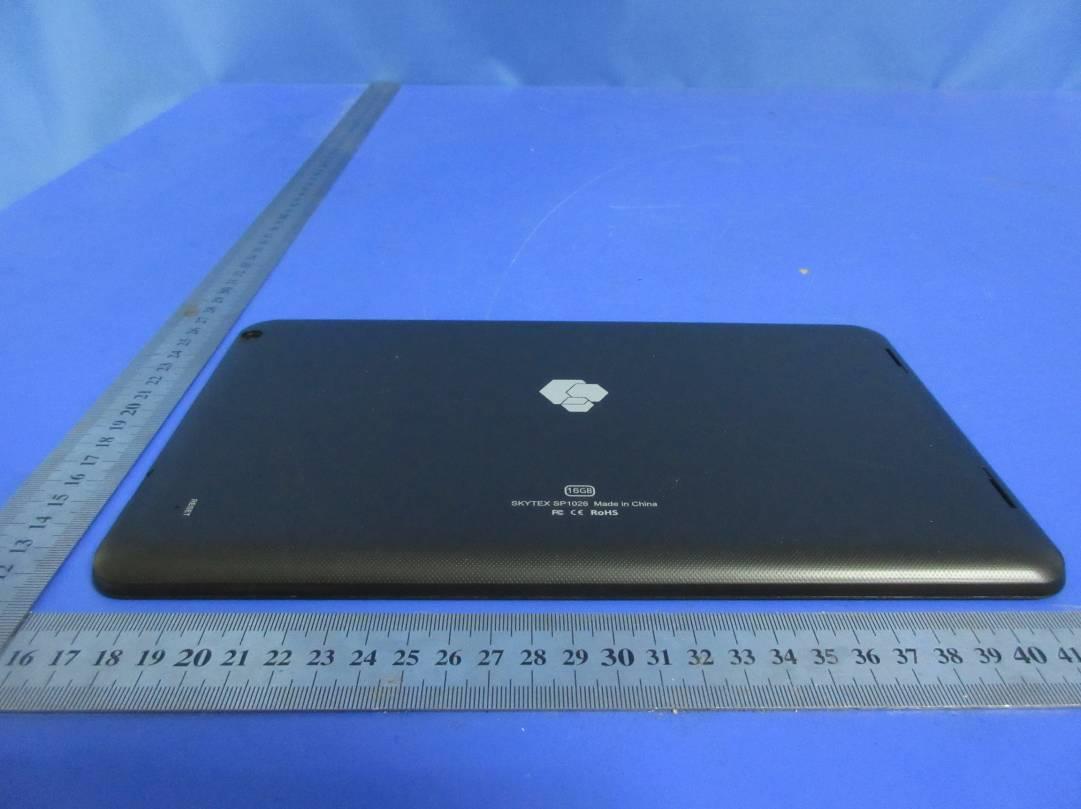

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ABNTSP1026 Report No.: LCS1508311746E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ABNTSP1026 Report No.: LCS1508311746E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ABNTSP1026 Report No.: LCS1508311746E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ABNTSP1026 Report No.: LCS1508311746E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID:2ABNTSP1026 Report No.: LCS1508311746E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size:L:6cm*W:4cm Label location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ABNTSP1026 Report No.: LCS1508311746E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ABNTSP1026 Report No.: LCS1508311746E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Fig.4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABNTSP1026 Report No.: LCS1508311746E ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 FCC RF Exposure Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Portable Device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v05r02 FCC Part 2 §2.1093 Evaluation method According to KDB447498 D01 General RF Exposure Guidance v05r01Section 4.3.1 Standalone SAR test exclusion considerations:“ Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABNTSP1026 Report No.: LCS1508311746E ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Conducted Power Results Bluetooth Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) BT V3.0 GFSK 00 2402 3.912 39 2441 3.988 78 2480 4.336 π/4-DQPSK 00 2402 3.093 39 2441 3.236 78 2480 3.513 8-DPSK 00 2402 3.089 39 2441 3.217 78 2480 3.489 BT V4.0 GFSK 00 2402 -3.426 19 2440 -3.342 39 2480 -3.505 WIFI 802.11b 1 2412 5.77 6 2437 6.54 11 2462 6.40 802.11g 1 2412 5.95 6 2437 5.93 11 2462 6.05 802.11n-HT20 1 2412 6.06 6 2437 6.29 11 2462 6.10 802.11n-HT40 3 2422 5.29 6 2437 5.41 9 2452 5.05 Manufacturing tolerance Bluetooth BT V3.0-GFSK (Peak) Channel Channel 00 Channel 40 Channel 78 Target (dBm) 4.0 4.0 4.0 Tolerance ±(dB) 0.5 0.5 0.5 BT V3.0-π/4-DQPSK (Peak) Channel Channel 00 Channel 40 Channel 78 Target (dBm) 3.5 3.5 3.5 Tolerance ±(dB) 0.5 0.5 0.5 BT V3.0-8-DPSK(Peak) Channel Channel 00 Channel 40 Channel 78 Target (dBm) 3.5 3.5 3.5 Tolerance ±(dB) 0.5 0.5 0.5 BT V4.0-GFSK(Peak) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABNTSP1026 Report No.: LCS1508311746E ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Channel Channel 00 Channel 19 Channel 39 Target (dBm) -3.5 -3.5 -3.5 Tolerance ±(dB) 0.5 0.5 0.5 WIFI 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 6.1 6.1 6.1 Tolerance ±(dB) 0.5 0.5 0.5 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 6.0 6.0 6.0 Tolerance ±(dB) 0.5 0.5 0.5 802.11n (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 6.0 6.0 6.0 Tolerance ±(dB) 0.5 0.5 0.5 802.11n (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 5.0 5.0 5.0 Tolerance ±(dB) 0.5 0.5 0.5 Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 4.5 2.8184 0.9<3.0 Yes WIFI 2.450 5 6.6 4.5709 1.4<3.0 Yes .......................END OF REPORT......................... Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the un controlled RF Exposure and S AR Ex clusion Threshold per KDB 447498 v05r02. Simultaneous transmission As BT and WLAN modular share same antenna, so BT and WLAN modular cannot transmit simultaneous.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABNTSP1026 Report No.: LCS1508311746E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 44 FCC TEST REPORT FOR SHENZHEN SYNERGY DIGITAL CO., LTD MID Model No.: SP1026 Prepared for : SHENZHEN SYNERGY DIGITAL CO., LTD Address : 5/F, Block 5, Runheng lndustrial park, Fuyuan 1st Road, Fuyong, Baoan, Shenzhen, 518103, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : August 31, 2015 Number of tested samples : 1 Serial number : Prototype Date of Test : August 31, 2015 – September 15, 2015 Date of Report : September 15, 2015 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABNTSP1026 Report No.: LCS1508311746E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 44 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247): 2014 Report Reference No. ............... : LCS1508311746E Date of Issue ................................. : September 15, 2015 Testing Laboratory Name .......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : SHENZHEN SYNERGY DIGITAL CO., LTD Address ......................................... : 5/F, Block 5, Runheng lndustrial park, Fuyuan 1st Road, Fuyong, Baoan, Shenzhen, 518103, China Test Specification Standard ........................................ : FCC CFR 47 PART 15 C(15.247): 2014 Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................ : MID Trade Mark ................................... : SKYTEX Model/ Type reference .................. : SP1026 Ratings .......................................... : DC 3.7V by battery Adapter parameter: Input:AC 100~240V, 50/60Hz, 0.65A; Output: DC 5V, 2A Result ......................................... : Positive Compiled by: Supervised by: Approved by: Jacky Li/ File administrators Glin Lu/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABNTSP1026 Report No.: LCS1508311746E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 44 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1508311746E September 15, 2015 Date of issue Type / Model........................... : SP1026 EUT......................................... : MID Applicant............................... : SHENZHEN SYNERGY DIGITAL CO., LTD Address.................................. : 5/F, Block 5, Runheng lndustrial park, Fuyuan 1st Road, Fuyong, Baoan, Shenzhen, 518103, China Telephone............................... : 0755-29082198 Fax.......................................... : 0755-29072808 Manufacturer........................ : SHENZHEN SYNERGY DIGITAL CO., LTD Address................................... : 5/F, Block 5, Runheng lndustrial park, Fuyuan 1st Road, Fuyong, Baoan, Shenzhen, 518103, China Telephone............................... : 0755-29082198 Fax.......................................... : 0755-29072808 Factory................................... : SHENZHEN SYNERGY DIGITAL CO., LTD Address................................... : 5/F, Block 5, Runheng lndustrial park, Fuyuan 1st Road, Fuyong, Baoan, Shenzhen, 518103, China Telephone............................... : 0755-29082198 Fax.......................................... : 0755-29072808 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABNTSP1026 Report No.: LCS1508311746E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 44 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ................................................................................................... 5 1.1 Description of Device (EUT) ........................................................................................................... 5 1.2 Support equipment List ..................................................................................................................... 5 1.3 External I/O Cable ............................................................................................................................. 5 1.4 Description of Test Facility ............................................................................................................... 6 1.5 Statement of The Measurement Uncertainty .......................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ABNTSP1026 Report No.: LCS1508311746E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ABNTSP1026 Report No.: LCS1508311746E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 1.2. Photo of Line Conducted Emissions Measurement
