2ABNX-DMW7GSM Mobile Phone

GSM Mobile Phone Brand Name: D-Mobiel Model Name: DMW7 FCC ID: 2ABNX-DMW7 Page 2 Thank you for purchasing this mobile. For the best performance, we recommend that you read the manual carefully. CONTACTS ............................................................................. 3 MESSAGE............................................................................... 4 CALL LOGS ............................................................................. 7 SETTINGS .............................................................................. 9 MULTIMEDIA ......................................................................... 13 STK .................................................................................... 15 GAME .................................................................................. 15 PROFILES ............................................................................. 16 ALARM ................................................................................. 17 TOOLS ................................................................................. 17 AUDIO .................................................................................. 20 SHORTCUT SETTINGS ............................................................ 21 Page 3 Contacts You have 2 phonebooks in this mobile phone: SIM card and the mobile. The mobile can store 300 phone numbers and the SIM card‟s capacity depends on its type. I In standby mode, enter a number, press the call key pieces to make a call, press the OK key to save If „To SIM 1/2‟ is selected, users can edit name and number. If „To phone‟ is selected, the user can edit the name, mobile number, home number, e-mail address, image, ringtone, caller groups Into the phone book list, the list on the left displays a small icon indicates that the record exists SIM card or mobile phone, the right is the record of the name and number information. Standby mode, press the right soft key to enter into the Page 4 address book or from the menu Into the address book, do the following: [New]: Create a record to phone or SIM [Delete multiple]: Choose one or more records to delete [Import/Export]: Copy/Import/Export records to T-Card or phone [Others] [Memory status]: Query the current SIM card and mobile phone storage capacity. Message The Messaging function is a network service. Sending and receiving Text/MMS can only be used if the service is proposed by your network operator. You can send ordinary Text messages. The SMS is sent to the Text messages center in the network firstly, and then to the target user. If the receiver‟s mobile is power off or cannot receive messages, the network will store the message temporarily and the store duration is determined by the user Page 5 configuration and the service provider. I The message will be directly stored in the SIM card if the capacity is not full. A blinking icon at the head row of the main screen will be displayed if the capacity is full. Messages unread If the Text message has been sent to the receiver, a beep will sound. (If the tone for Text messages and message report are activated). [Write message] [New SMS]  Send: Enter the appropriate number of the recipient or from the phonebook add  Insert template: to the content of the message currently being edited into the common language  Add contact info: Insert the contact person  Add phiz: emoticons into the meaning of the representative  Save as draft: will save the information to Drafts  Exit: Exit message Page 6 [Inbox] Reply: reply to SMS to each other. Delete: Delete short message Call: choose a voice call or a call to the sender IP calls Lock: lock cannot be deleted Move: Move the message to SIM or phone Copy: Copy the message to SIM or phone Mark: single marker or markers in whole or in text messages stored in SIM1/SIM2, mark or unmark after delete records Sort: In accordance with time / contact / theme / message type sort Add sender to: Add the sender to contacts Delete repeated number: choose to delete the same number of records. Add to blacklist: Add the sender to blacklist [Outbox]: Reading or processing stored in the Outbox of the SIM card message. [Drafts]Reading or processing stored in the Drafts of the SIM Page 7 card message [Sentbox]: read and process the mail stored in the SIM card has been sent information [Security inbox] View the message which is locked [Templates]: Use the function of templates [Voice mail server]: use the function of voice mail server Call logs You can view your recent call situation. [Missed calls]: Show all missed calls list, select a view after a missed call occurred the date and time, phone number and times. [Dialed calls] Show all dialed calls list, select a view after a dialed calls occurred in the date and time, phone number and times. [Received calls]: Show all answered the phone list, select a view after a phone that has the date and time of occurrence, telephone number, frequency, [Rejected calls] Show all refused to answer the phone list, Page 8 select a view after a missed call occurred the date and time, phone number and times. Press the OK softkey to enter the options menu can be more than the number of call records in the following: Details: View the current record date, time, type. Call: Call the current number. Save: You can save the current record to the phone or SIM card Write message: send the current record of SMS or MMS Add to contacts: the number of the record the name added to the existing record which Add to blacklist: the current record to reject a call which Delete: Delete the currently selected record Delete all: Delete all call records [Delete all]: Delete all call records [Call times]: Last time zero starting time for last call statistics, a total of dialed calls, received calls, all calls total, all the time can also be zero. Page 9 Settings Phone settings [Date & time]  Set time: set the phone to display the time  Set date: set the phone to display the date  Time format: S…

Text truncated - open the document above for the full version.

D-Mobile Ltd. 6 The Island, Wraysbury, Middlesex, TW19 5AS, UK Date: Jan. 03, 2014 Statement We, D-Mobile Ltd. states that our device, FCC ID: 2ABNX-DMW7, has no space to put the label except the battery compartment of this device. It is visible to the users as they purchase the products and install the battery. Regards, Company: D-Mobile Ltd. Contact Person: Yaron Ivry Title: Purchasing Manager

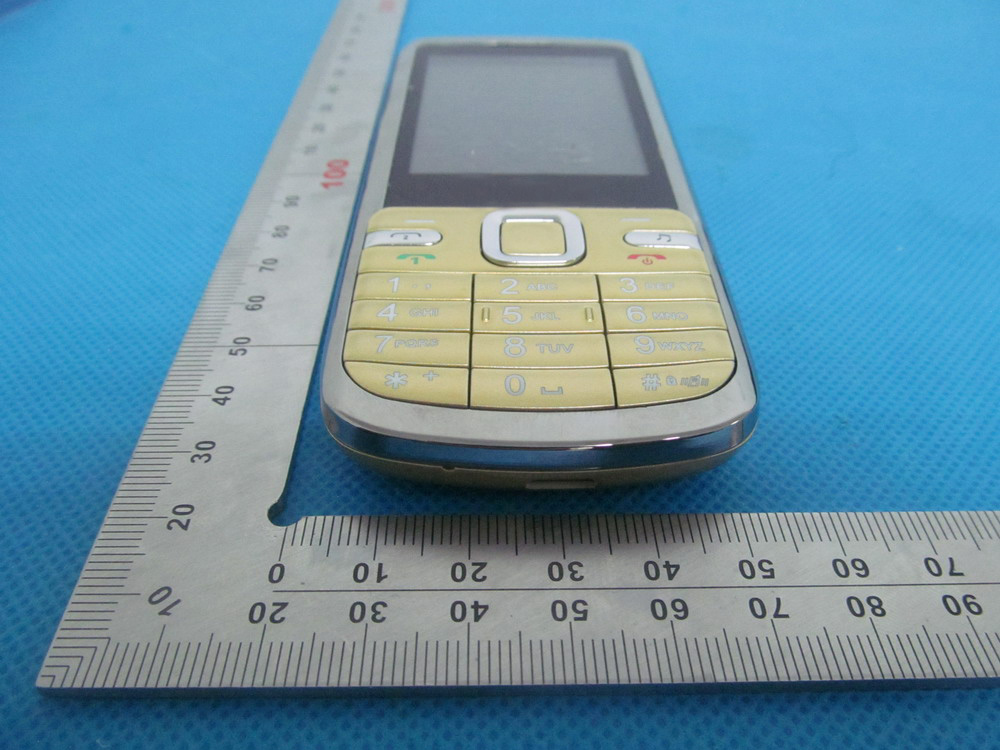

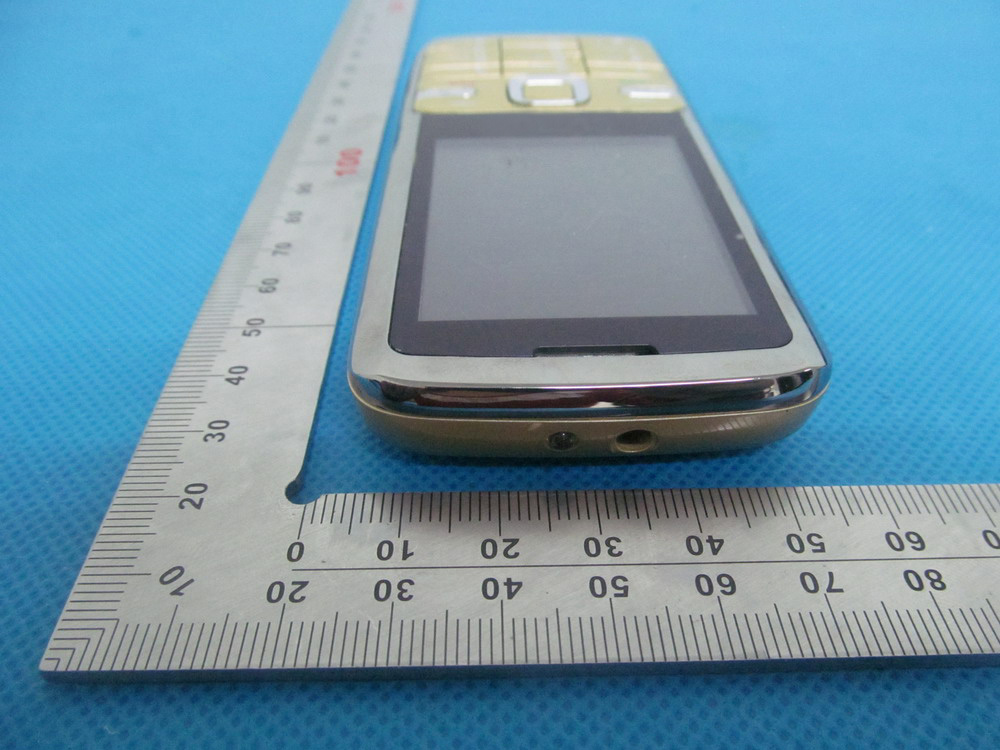

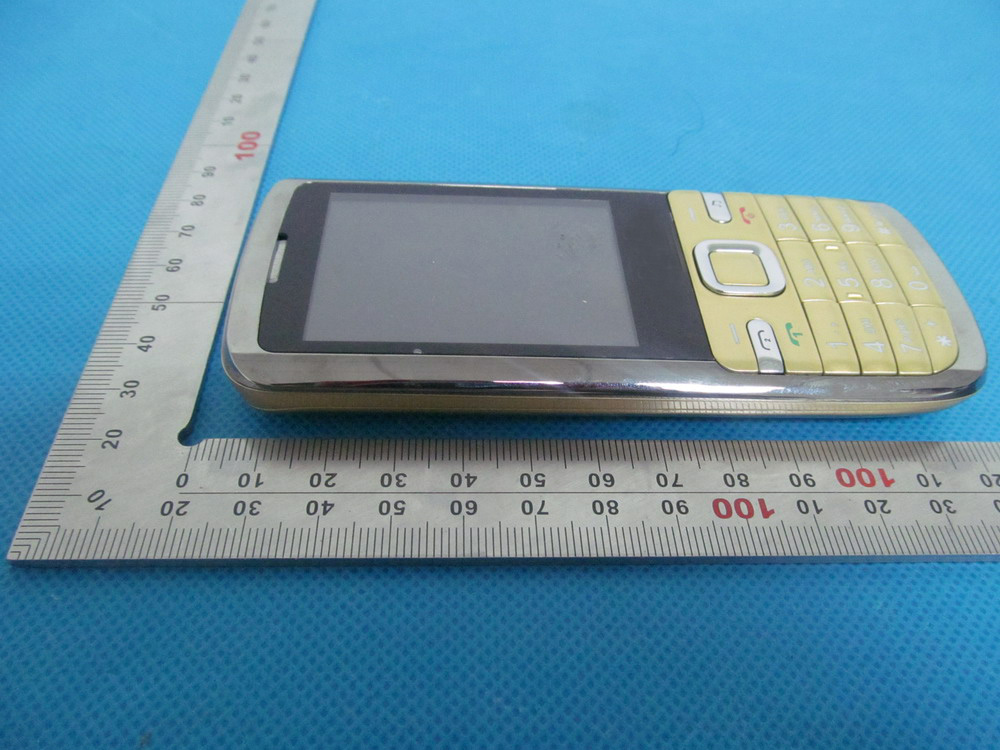

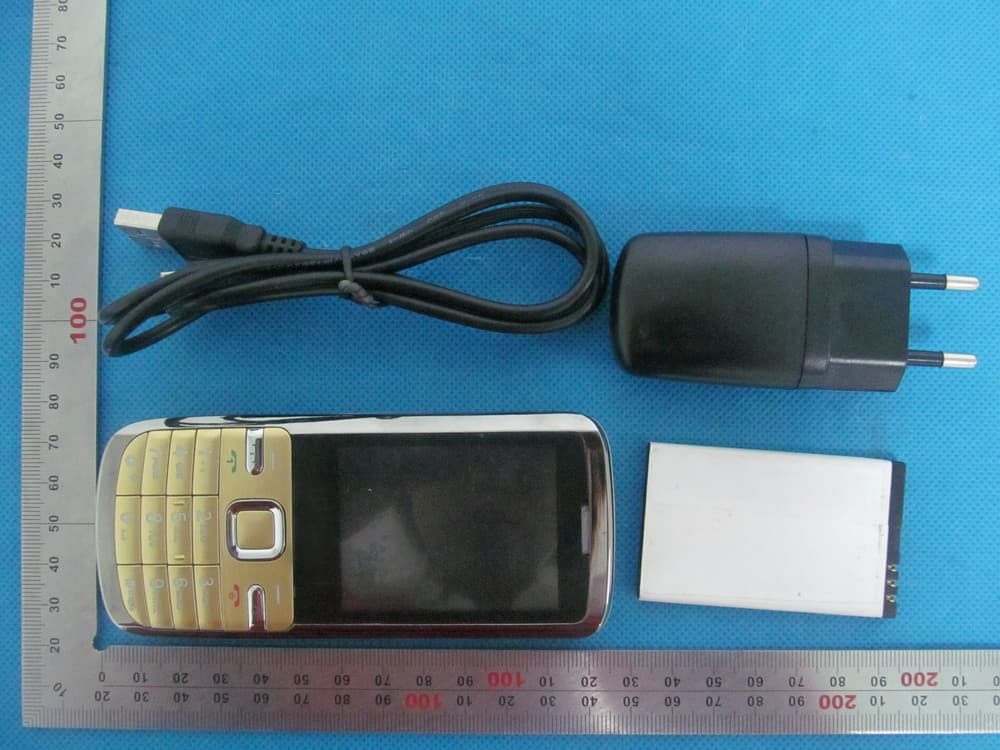

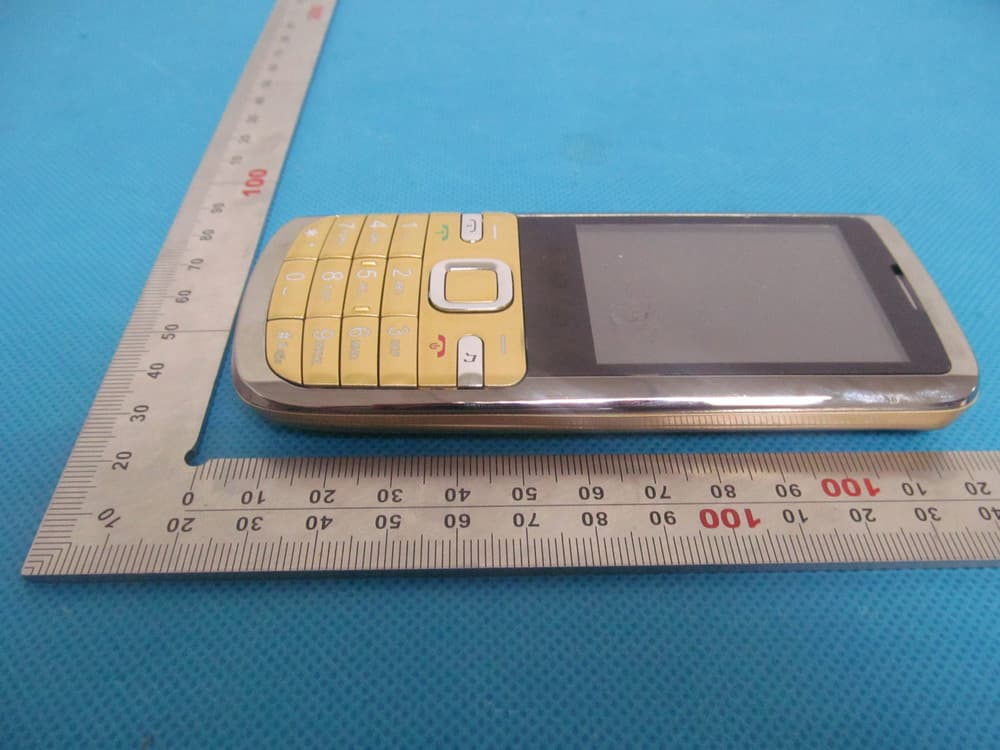

External Photos All VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location GSM Mobile Phone Model: DMW7 Trade Name: D-Mobile FCC ID: 2ABNX-DMW7

Internal Photos OPEN VIEW OF EUT‐1 GSM Antenna OPEN VIEW OF EUT‐2 OPEN VIEW OF EUT‐3 INTERNAL VIEW OF EUT‐1 INTERNAL VIEW OF EUT‐2 BT Antenna

Report No.:AGC00068131206FH01 Page 1 of 107 SAR Test Report Report No.: AGC00068131206FH01 FCC ID : 2ABNX-DMW7 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : GSM Mobile Phone BRAND NAME : D-Mobile MODEL NAME : DMW7 CLIENT : D-Mobile Ltd. DATE OF ISSUE : Dec.24, 2013 STANDARD(S) : IEEE Std. 1528:2003 47CFR § 2.1093 IEEE/ANSI C95.1 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.:AGC00068131206FH01 Page 2 of 107 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec.24, 2013 Valid Original Report The test plans were performed in accordance with IEEE Std. 1528:2003; 47CFR § 2.1093; IEEE/ANSI C95.1 and the following specific FCC Test Procedures: gKDB 447498 D01 General RF Exposure Guidance v05r01 gKDB 648474 D04 SAR Handsets Multi Xmiter and Ant v01 gKDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01 Report No.:AGC00068131206FH01 Page 3 of 107 Test Report Certification Applicant Name D-Mobile Ltd. Applicant Address 6 The Island, Wraysbury, Middlesex, TW19 5AS, UK Manufacturer Name Kingtech Telecom (Shenzhen) Co., Ltd. Manufacturer Address Floor 3, Building A, No.3, Road 1 of Shangxue Dengxinkeng Industry Park,Bantian Street, Longgang District, Shenzhen City, PRC Product Designation GSM Mobile Phone Brand Name D-Mobile Model Name DMW7 Different Description N/A EUT Voltage DC3.7V by battery Applicable Standard IEEE Std. 1528:2003 47CFR § 2.1093 IEEE/ANSI C95.1 Test Date Dec.24, 2013 Performed Location Attestation of Global Compliance(Shenzhen) Co., Ltd. 2 F, Building 2, No.1-No.4, Chaxi Sanwei Technical Industrial Park, Gushu, Xixiang Street, Bao'an District, Shenzhen, China Report Template AGCRT-US-2.5G/SAR (2013-03-01) Tested By Eric Zhou Dec.24, 2013 Checked By Angela Li Dec.24, 2013 Authorized By Solger Zhang Dec.24, 2013 Report No.:AGC00068131206FH01 Page 4 of 107 TABLE OF CONTENTS 1. SUMMARY OF MAXIMUM SAR VALUE ......................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................... 6 2.1. EUT DESCRIPTION......................................................................................................................................... 6 2.2. TEST PROCEDURE ......................................................................................................................................... 8 2.3. TEST ENVIRONMENT ...................................................................................................................................... 8 2.4. TEST CONFIGURATION AND SETTING ................................................................................................................ 9 3. SAR MEASUREMENT SYSTEM ...................................................................................................................... 10 3.1. SPECIFIC ABSORPTION RATE (SAR) .............................................................................................................. 10 3.2. SAR MEASUREMENT PROCEDURE ................................................................................................................ 11 3.3. COMOSAR SYSTEM DESCRIPTION .............................................................................................................. 12 3.4. COMOSAR E-FIELD PROBE ........................................................................................................................ 14 3.5. ISOTROPIC E-FIELD PROBE SPECIFICATION ................................................................................................... 14 3.6. ROBOT ........................................................................................................................................................ 14 3.7. VIDEO POSITIONING SYSTEM ........................................................................................................................ 15 3.8. DEVICE HOLDER .......................................................................................................................................... 15 3.9. SAM TWIN PHANTOM ................................................................................................................................... 16 4. TISSUE SIMULATING LIQUID ......................................................................................................................... 17 4.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID..................................................................................... 17 4.2. TISSUE CALIBRATION RESULT ....................................................................................................................... 18 4.3. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS ............................................................... 19 5. SAR MEASUREMENT PROCEDURE ............................................................................................................ 20 5.1. SAR SYSTEM VALIDATION PROCEDURES ....................................................................................................... 20 5.2. SAR SYSTEM VALIDATION ............................................................................................................................ 21 6. EUT TEST POSITION ...................................................................................................................................... 23 6.1. DEFINE TWO IMAGINARY LINES ON THE HANDSET ........................................................................................... 23 6.2. CHEEK POSITION ......................................................................................................................................... 24 6.3. TITLE POSI…

Text truncated - open the document above for the full version.

Report No.:AGC00068131206FH01 Page 68 of 107 APPENDIX C. TEST SETUP PHOTOGRAPHS &EUT PHOTOGRAPHS Test Setup Photographs LEFT-CHECK TOUCH LEFT-TILT 15 0 Report No.:AGC00068131206FH01 Page 69 of 107 RIGHT-CHECK TOUCH RIGHT-TILT 15 0 Report No.:AGC00068131206FH01 Page 70 of 107 Body Back 5mm Body Front 5mm 5mm Report No.:AGC00068131206FH01 Page 71 of 107 DEPTH OF THE LIQUID IN THE PHANTOM—ZOOM IN Note：The position used in the measurement were according to IEEE 1528-2003 Report No.:AGC00068131206FH01 Page 72 of 107 EUT PHOTOGRAPHS All VIEW OF EUT TOP VIEW OF EUT Report No.:AGC00068131206FH01 Page 73 of 107 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.:AGC00068131206FH01 Page 74 of 107 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.:AGC00068131206FH01 Page 75 of 107 RIGHT VIEW OF EUT OPEN VIEW OF EUT-1 GSM Antenna Report No.:AGC00068131206FH01 Page 76 of 107 OPEN VIEW OF EUT-2 OPEN VIEW OF EUT-3 Report No.:AGC00068131206FH01 Page 77 of 107 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna

Report No.:AGC00068131206FH01 Page 78 of 107 APPENDIX D. PROBE CALIBRATION DATA Report No.:AGC00068131206FH01 Page 79 of 107 Report No.:AGC00068131206FH01 Page 80 of 107 Report No.:AGC00068131206FH01 Page 81 of 107 Report No.:AGC00068131206FH01 Page 82 of 107 Report No.:AGC00068131206FH01 Page 83 of 107 Report No.:AGC00068131206FH01 Page 84 of 107 Report No.:AGC00068131206FH01 Page 85 of 107 Report No.:AGC00068131206FH01 Page 86 of 107 Report No.:AGC00068131206FH01 Page 87 of 107 Report No.:AGC00068131206FH01 Page 88 of 107 APPENDIX E. DIPOLE CALIBRATION DATA Report No.:AGC00068131206FH01 Page 89 of 107 Report No.:AGC00068131206FH01 Page 90 of 107 Report No.:AGC00068131206FH01 Page 91 of 107 Report No.:AGC00068131206FH01 Page 92 of 107 Report No.:AGC00068131206FH01 Page 93 of 107 Report No.:AGC00068131206FH01 Page 94 of 107 Report No.:AGC00068131206FH01 Page 95 of 107 Report No.:AGC00068131206FH01 Page 96 of 107 Report No.:AGC00068131206FH01 Page 97 of 107 Report No.:AGC00068131206FH01 Page 98 of 107 Report No.:AGC00068131206FH01 Page 99 of 107 Report No.:AGC00068131206FH01 Page 100 of 107 Report No.:AGC00068131206FH01 Page 101 of 107 Report No.:AGC00068131206FH01 Page 102 of 107 Report No.:AGC00068131206FH01 Page 103 of 107 Report No.:AGC00068131206FH01 Page 104 of 107 Report No.:AGC00068131206FH01 Page 105 of 107 Report No.:AGC00068131206FH01 Page 106 of 107 Report No.:AGC00068131206FH01 Page 107 of 107

Report No.: AGC00068131206FE02 Page 1 of 60 FCC Test Report Report No.: AGC00068131206FE02 FCC ID : 2ABNX-DMW7 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : GSM Mobile Phone BRAND NAME : D-Mobile MODEL NAME : DMW7 CLIENT : D-Mobile Ltd. DATE OF ISSUE : Jan. 02, 2014 STANDARD(S) : FCC Part 22H & 24E Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00068131206FE02 Page 2 of 60 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jan. 02, 2014 Valid Original Report Report No.: AGC00068131206FE02 Page 3 of 60 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................. 7 1.1 PRODUCT DESCRIPTION ................................................................................................................................ 7 1.2 RELATED SUBMITTAL(S) / GRANT (S) ............................................................................................................ 8 1.3 TEST METHODOLOGY ..................................................................................................................................... 9 1.4 TEST FACILITY .................................................................................................................................................. 9 1.5 MEASUREMENT INSTRUMENTS .................................................................................................................... 9 1.6 SPECIAL ACCESSORIES ................................................................................................................................. 9 1.7 EQUIPMENT MODIFICATIONS ......................................................................................................................... 9 2. SYSTEM TEST CONFIGURATION .................................................................................................... 10 2.1 EUT CONFIGURATION ................................................................................................................................... 10 2.2 EUT EXERCISE ............................................................................................................................................... 10 2.3 GENERAL TECHNICAL REQUIREMENTS ..................................................................................................... 10 2.4 CONFIGURATION OF EUT SYSTEM ............................................................................................................. 11 3. SUMMARY OF TEST RESULTS ........................................................................................................ 12 4. DESCRIPTION OF TEST MODES ..................................................................................................... 12 5. OUTPUT POWER .............................................................................................................................. 13 5.1 CONDUCTED OUTPUT POWER .................................................................................................................... 13 5.2 RADIATED OUTPUT POWER ......................................................................................................................... 16 6. PEAK-TO-AVERAGE RATIO ............................................................................................................. 20 6.1 MEASUREMENT METHOD ............................................................................................................................. 20 6.2 PROVISIONS APPLICABLE ............................................................................................................................ 20 6.3 MEASUREMENT RESULT .............................................................................................................................. 21 7. SPURIOUS EMISSION....................................................................................................................... 22 7.1 CONDUCTED SPURIOUS EMISSION ............................................................................................................ 22 7.2 RADIATED SPURIOUS EMISSION ................................................................................................................. 24 8. MAINS CONDUCTED EMISSION ...................................................................................................... 28 Report No.: AGC00068131206FE02 Page 4 of 60 8.1 MEASUREMENT METHOD ............................................................................................................................. 28 8.2 PROVISIONS APPLICABLE ............................................................................................................................ 28 8.3 MEASUREMENT RESULT .............................................................................................................................. 29 9. FREQUENCY STABILITY .................................................................................................................. 31 9.1 MEASUREMENT METHOD ............................................................................................................................. 31 9.2 PROVISIONS APPLICABLE ............................................................................................................................ 31 9.3 MEASUREMENT RESULT (WORST TEST) ................................................................................................... 32 10. OCCUPIED BANDWIDTH ................................................................................................................ 34 10.1 MEASUREMENT METHOD ........................................................................................................................... 34…

Text truncated - open the document above for the full version.

Te s t Setup Photos CONDUCTED EMISSION RADIATED SPURIOUS EMISSION
