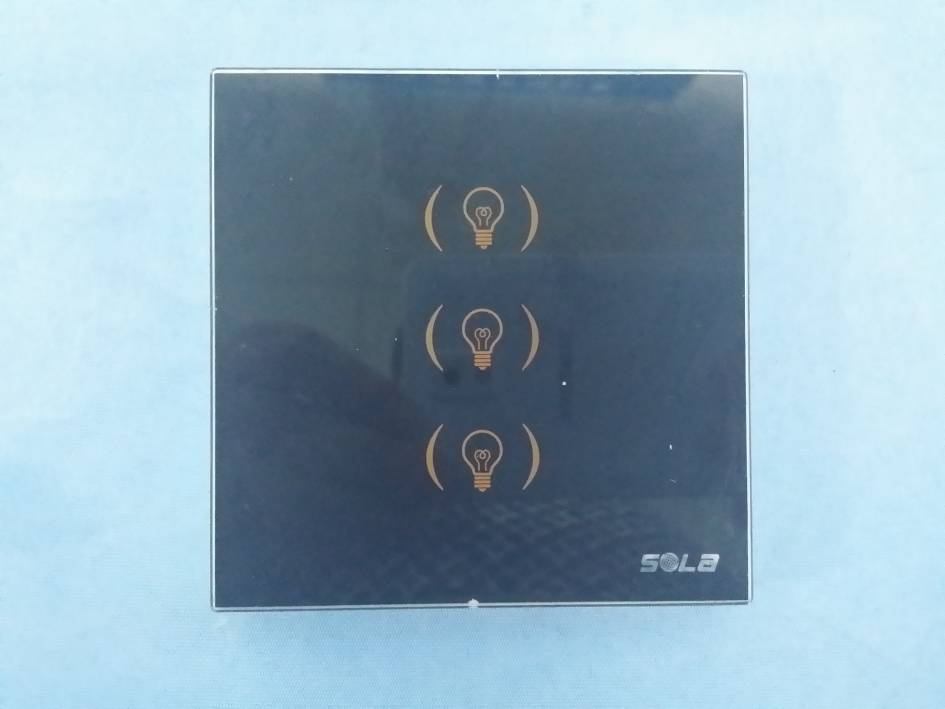

Touch Intelligent Switch Manual TECHNOLOGY CREATES FUTURE, INTELLIGENT MAKES LIFE BETTER Intelligent Switch Manual Dear customers, thank you for choosing our products, in order to facilitate your installation and usage, please read the instruction carefully in advance. Sola is specialized in intelligent key switch for family which has high anti destroyed capability, high reliability, high stability, and can realize the intelligent control of home appliances. Main characteristics: √ Z-wave control system adopt wireless communication technology, without breaking the wall, without wire, and with mutual response mode, can easily realize the switch control of home appliances. √ Capacitive touch screen, applicable to energy-saving lamp, fluorescent lamp, incandescent lamp and other lamps. √ Strong anti destroyed ability, high reliability, high stability √ Ultra low standby power consumption: ≤ 100MW √ Single maximum load power 800W (dimming 300W) √ Backlit display Applicable to the two-wire connection (must layout zero line) Main functions: One，touch function Capacitive touch screen panel can realize on and off by a touch, this function is quite similar with traditional switch function; switch state can remember, namely the power switch automatically on, the state will be the same as last state. Two, the wireless connection function Through the bidirectional response mode, can realize the switch associated operation, after the association work, can realize the linkage control among switches. Three, system control function Can be matched with Sola smart host, realize system control function. Four, SLLTD-150F dimming function Can adjust the incandescent lamp which controlled by dimming. Similarly, this function can be realized by wireless control. After dimming, brightness values can remember, the next light on, can keep the last brightness values. Scope of application SLLTS-150F、SLLTS-250F、SLLTS-350F: applicable to various lighting control switch, such as incandescent lamps, fluorescent lamps, energy-saving lamps, spotlight etc.. SLLTD-150F：applicable to incandescent lamp, no transformers spotlight and other resistive load lights. Product wiring diagram One position touch Two position touch switch /SLLTS-150F switch/SLLTS-250F Three position touch switch /SLLTS-350F Product wiring diagram One position touch dimming switch/ SLLTD-150F Instruction SOLA intelligent switch must be used with the SOLA host, for related operation methods and functions setting, please refer to the SOLA host manual. Not dimming switch SLLTS-150F SLLTS-250F SLLTS-350F Short press the switch to open and close the lamps, Long press the switch to add devices. One way dimming switch SLLTD-150F Short press the middle switch to open and close the lamps, Long press the middle switch to add devices. Long press the first or last switch to dimming Two way dimming switch SLLTD-250F Short press either the middle switch to open and close the lamps, Long press either the middle switch to add devices. Long press either the first or last switch to dimming Technical parameters Working voltage 180～250VAC Standby power consumption ≤100mw Radio frequency 908.42MHz Wireless transmission power ～10dbm The wireless receiving sensitivity ≤-105dbm The maximum load power 800W（The maximum load current≤4A），dimming load≤300W（Resistance, such as incandescent lamp） The minimum load power 5W（applicable to the single wire connection, two-wire system without this restriction, the dimming load should be more than 10W） Adapt to insert box size 77X77X38mm Temperature 0-60°C Relative humidity ≤80%（non-condensing） Size (height * width * thickness) 86mm×86mm×37mm Weight 160g \ Notes: 1. Hire a professional electrician to install or remove switch for you, but, you must cut off the power supply in advance. 2. Cannot be installed in the open air, washroom, bathroom or other damp environment. 3. The sum of each switch load cannot be greater than the total power. 4. The lamp will flash when the switch power on again. 5. In order to work, the dimming way of dimming switch must be connected with load. 6. If the lamp slightly flicker, we suggest to adjust (slightly increase) lamp power. 7. We suggest to use energy saving lamps which produced by regular factory (such as: Philips, Foshan illumination, Opple, Osland, GE). For fluorescent lamp, we recommend to use electronic rectifier. Warranties Two-year warranty since the date of purchase; during the warranty period, SOLA products used in normal circumstances, if the problem occurs (does not contain artificial damage), can be free repaired or replaced according to purchase invoices from local dealers. 1 During the warranty period, for quality problem, can be free repaired in the first year, in the second years, only charge part of the fault parts. 2 Without SOLA company or local customer center permits, unauthorized dissemble SOLA product components, we would not bear free warranty liability. Note: SolaTechnology Inc. has the final right of interpretation for above clauses. SolaTechnology Inc. Add：4900 California Ave Tower B-210 Bakersfield, CA 93309 Tel：661-377-1871 Website：wwww.solaiot.com FCC NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  …

Text truncated - open the document above for the full version.

1. Block Diagram of Three Position Touch Switch Hardware Structure and Function FCC ID: 2ABOB-350F AC Mains Control Signal The RF Unit’s crystal oscillator frequency is 32.000MHz. RF Unit (U2) (ZM2102) Oscillator 32.000MHz Antenna AC/DC Module Load Relay (K1, K2, K3) (YX206F-S-112DM) Switch (S1, S2, S3) (TSC100)

Sola Technology Inc. FCC ID NO.: 2ABOB-350F POWER OF ATTORNEY 2014-10-10 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen Exact Standard Testing Technology Co., Ltd. (Ronnie Liu) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Exact Standard Testing Technology Co., Ltd. (Ronnie Liu) on our behalf shall have the same effect as acts of our own. This authorization expires on DEC. 31, 2014. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Sola Technology Inc. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, ..................... Jun Tao Wu President Tel: + 1-661 377 1871 Fax: + 1-661 377 1871

Page 1 of 1 Global United Technology Service Co., Ltd Test Lab Attestation Letter Date of Test: Oct. 17, 2014 Applicant Name: Sola Technology Inc. FCC ID: 2ABOB-350F Name of Engineer Performing Test: (Shenzhen Exact Standard Testing Technology Co., Ltd.) David He Statement of Compliance: (Global United Technology Service Co., Ltd declares that this Unit has been tested in accordance with the test method identified in this test report and that we observed it being tested. It also declares that the Unit complies with the relevant limits. All instrumentation and accessories used to test this unit for compliance to the indicated test method are calibrated regularly in accordance with ISO 17025:2005 requirements by laboratories accredited by A2LA, NVLAP, or ACLAS for the measurement parameters. The measurements were made at: Global United Technology Service Co., Ltd 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Test Lab Witness- Rick. Xu Signature of Test Lab Witness: Full Name, Typed: Rick. Xu Title of Witness: Manager Email Address: [email protected] Phone No.: 86-755-2779 8480 Company Stamp:

Page 19 of 24 FCC ID: 2ABOB-350F Shenzhen Exact Standard Testing Technology Co., Ltd. REPORT NO.: ESTSZ131201227F APPENDIX A - EUT PHOTOGRAPHS EUT - Top View EUT - Bottom View

FCC ID Label Sample for FCC ID: 2ABOB-350F This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

The proposed Label Location on EUT Proposed FCC ID Label Location (FCC ID: 2ABOB-350F)

Page 22 of 27 FCC ID: 2ABOB-350F Shenzhen Exact Standard Testing Technology Co., Ltd. REPORT NO.: ESTSZ131201227F EUT - Inside View EUT - Inside View Page 23 of 27 FCC ID: 2ABOB-350F Shenzhen Exact Standard Testing Technology Co., Ltd. REPORT NO.: ESTSZ131201227F EUT - Inside View EUT - Inside View Antenna in the Red Block Page 24 of 27 FCC ID: 2ABOB-350F Shenzhen Exact Standard Testing Technology Co., Ltd. REPORT NO.: ESTSZ131201227F EUT - Inside View EUT - Inside View Page 25 of 27 FCC ID: 2ABOB-350F Shenzhen Exact Standard Testing Technology Co., Ltd. REPORT NO.: ESTSZ131201227F EUT - Inside View

APPLICANT: Sola Technology Inc. FCC ID: 2ABOB-350F The theory of Three Position Touch Switch (Model: SLLTS-350F): 1, RF Unit (Part Name: U2, Model Name: ZM2102): Short Press SW 1, 2 or 3 switch and give a voltage signal to RF Unit, RF unit can manage relay’s on-off. Long Press SW 1, 2 or 3 switch and give a voltage signal to RF Unit, after signal is processing by RF unit, it can transmit an order to the other device. And, it can receive the order from other device to manage relay’s on-off. The Crystal frequency is 32.000MHz. 2, AC/DC Module: AC/DC Module can provide state current for RF Unit. 3, Relay (Part Name: K1, K2, K3, Model Name: YX206F-S-112DM): Receive the order from RF unit to switch the load circuit. 4, Antenna is on the PCB. The antenna gain is 0dBi. 5, Switch (Part Name: S1, S2, S3, Model Name: TSC100) is a touch Switch. Note: The unit frequency is 908.42MHz, 1 Channel. The unit’s RF output power is 1.5mW. The modulation provided by ZW0201 (U1), and type is frequency modulation. It used the FSK technique.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 13-Nov-2013 Sheet of File: C:\Users\Administr ator\Desktop\MyDesign.ddb Drawn By: RESETN 2 P0.0/ADC0/ZEROX 14 P0.1/ADC1/TRIAC 13 P1.0/ADC2/TXD 15 P1.1/ADC3/RXD 10 P1.2/MISO 7 P1.3/MOSI 9 P1.4/SCK 8 P1.5 5 P1.6/PWM/INT0 4 P1.7/INT1 3 GND 18 GND 17 GND 12 GND 6 GND 1 RF 19 VCC 11 VPP 16 U2ZM2102 C31uF C40.1uF R14k7 INT0 C55.6pF VCC33 MOSIMISOSCKE_CS VCC33 TXDRXDRA2RA1RESETINT1 R34k7R44k7R54k7 L23.6uH L13.6uH D3LED-W R12470R RA2RA1TXD RA2E_CS D2LED-W R11470R D1LED-W R10470R VCC33 SCK 123456 Z-Wave ISP VCC33 RESETMISOMOSISCK GND 1 VO 2 VIN 3 VO 4 U1HT7533 C10.1uF VCC VCC33 INT0 RA1 INT1 Q3 S8050 Q4 S8050 Q2 S8050 RA2-OUTRA1-OUT RA1-OUTRXD-OUT TXD-OUTRA2-OUT ANT1 TXD-OUT C65.6pF 1 S1CON1 1 S2CON1 1 S3CON1 VCC33 C111uF C1010pF C91uF R82kR92kR72k VCC R24k7 RXD Q1 S8050 RXD-OUT R62k C810pF C20.1uF C71uF 123456 J1CON6 RS1200RRS2200RRS3200R C1210pF VCC33VCC33 OUT 1 VDD 2 SYNC 3 CS 4 GND 5 CR 6 U3TS01S OUT 1 VDD 2 SYNC 3 CS 4 GND 5 CR 6 U4TS01S OUT 1 VDD 2 SYNC 3 CS 4 GND 5 CR 6 U5TS01S R132M C1312pF R142MR152M C1412pFC1512pF 55 44 33 22 11 D D C C B B A A TitleSize Document Number Rev Date: Sheet of EU ZM A4 12 Monday, February 19, 2007 Emdrupvej 26DK-2100 CopenhagenDenmark Zensys A/S <Variant Name>TitleSize Document Number Rev Date: Sheet of EU ZM A4 12 Monday, February 19, 2007 Emdrupvej 26DK-2100 CopenhagenDenmark Zensys A/S <Variant Name>TitleSize Document Number Rev Date: Sheet of EU ZM 2 102 Z-Wave Module A4 12 Monday, February 19, 2007 Emdrupvej 26DK-2100 CopenhagenDenmark Zensys A/S <Variant Name> ZM 2 102 Z-Wave Module Confidential This document is the property of Zensys A/S. The data containedherein, in whole or in part, may not be duplicated, used or disclosedoutside the recipient for any purpose other than to conduct technicalevaluation. This restriction does not limit the recipient's right touse information contained in the data if it is obtained from anothersource without restriction. Drawn by: SDH Schematics: Layout Constrains 1:2:3:4:5:6:7: C10 is connected to U1 pin 13C8 is connected to U1 pin 15Locate all decoupling caps as close the U1 as possibleC9 is connected to U1 pin 14 and 16C11 is connected to U1 pin 11 and 12 8: The trace from U3 to U1 and from U3 to EP18 must be 50ohm 9: Place 2 vias from C7 to Layer 3Place 2 vias from C15 to Layer 3Place 2 vias from L4 to Layer 3 PCB1PCB, ZM2102280100482PCB1PCB, ZM2102 Z-Wave Module, PCB1, Rev2 280100482DOC1Schematic, ZM 2 102 954012900DOC1Schematic, ZM 2 102 Z-Wave Module, PCB1, Rev2 954012900 SchematicPage 2 Z-Wave 55 44 33 22 11 D D C C B B A A INT1_NSCKMOSIMISOTRIACZEROXRXDINT0_NP1.5 RESET_N ZEROXTRIACTXDRXDMISOMOSISCKP1.5INT0_NINT1_N RESET_NTXD VCC VCC AVDD_I VCC VCC AVDD_I AVDD_I AVDD_I AVDD_I TitleSize Document Number Rev Date: Sheet of EU ZM 22 Monday, February 19, 2007 Emdrupvej 26DK-2100 CopenhagenDenmark Zensys A/S TitleSize Document Number Rev Date: Sheet of EU ZM 22 Monday, February 19, 2007 Emdrupvej 26DK-2100 CopenhagenDenmark Zensys A/S TitleSize Document Number Rev Date: Sheet of EU ZM 2 102 Z-Wave Module 22 Monday, February 19, 2007 Emdrupvej 26DK-2100 CopenhagenDenmark Zensys A/S Confidential Decoupling Caps 50ohm trace C833nFC833nF U3 908.42 MHz OUT 3 IN 1 GND 2 GND 4 EP161mmEP161mm C151uFC151uF U1 ZW0201_0301 U1 ZW0201_0301 DVDD 14 DVDD 12 P1.1/ADC3/RXD 17 P1.0/ADC2/TXD 18 RF_IO 29 RF_IND 30 TX_IND 28 TEST_N 2 XCO2 22 XCO1 23 P0.1/ADC1/TRIAC 19 VSS 32 AVDD_RF 27 AVDD_SY 26 RESET_N 3 P0.0/ADC0/ZEROX 20 P1.7/INT1 4 P1.6/PWM/INT0 5 P1.5 6 P1.4/SCK 7 P1.3/MOSI 9 P1.2/MISO 10 SUPP 15 DVDD_IO 11 IDDQ_N 1 VSS 8 DVDD 16 VSS 21 AVDD_CO 24 VSS 25 AVDD_IF 31 MAIN 13 EP_GND 0 C17 100nF C17 100nF EP11mmEP11mmEP171mmEP171mm C1033nFC1033nF C1133nFC1133nF C18 47pF C18 47pF EP41mmEP41mmEP21mmEP21mmEP71mmEP71mm C622pFC622pF EP61mmEP61mm X132MHzX132MHz 1 3 EP111mmEP111mm L3 13nHL3 13nH EP81mmEP81mmEP121mmEP121mm C20 100nF C20 100nF EP131mmEP131mmEP151mmEP151mm C933nFC933nF C524pFC524pFC71uFC71uF EP91mmEP91mm L1 3.3nH L1 3.3nH EP141mmEP141mm EP181mmEP181mm C19 47pF C19 47pF EP31mmEP31mmEP51mmEP51mmEP101mmEP101mm C16.8pFC16.8pF L4 1000R@100MHz L4 1000R@100MHz 1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2014/3/27Sheet of File:E:\lxg\..\AC220-JOD3-5.0（NO.）.SchD RXD TXD RA1 RA2 K1 YX206F-S-112DM VCC ACOUT1 RA1VINACL Vin 1 GND 2 Vout 3 U2 78L05 C7 0.1uF + C8 100uF/25V VCC+5V K2 YX206F-S-112DM VCC ACOUT2 K3 YX206F-S-112DM VCC ACOUT3 TXD RA2 VINACL VINACL +5V 1 J4 CON1 1 J5 CON1 1 J3 CON1 1 2 3 4 5 6 JP1 CON6 D4A BAT54C D5B BAT54C D5A BAT54C D1 1N4007 L1 1mH L2 1mH /280mA C2 4.7uF/250V C3 4.7uF/250V D2 UF2007 D3 HER107 C4 0.1uF R1 12k %1 R2 2k %1 C5 25V/10uF C6 100uF/25V VCC C1 0.1uF/275V RV1 7D471K L3 100uH VINACL VINACN S 7 S 8 BP 1 FB 2 D 4 S 5 S 6 U1 LNK304-SO8C F1 250V/500mA R3 3.3k 1 J1 CON1 1 J2 CON1 D6 1N4007 (LowESR)(LowESR) (SMD_BOTTOM)
