2ABOD-GX1Smart helmet light

Manufacturer：Jiangyin Kryon Import And Export Co., Ltd. Product Name：Smart helmete light Model NO：GX1 Activating: Activate before operation (only for the first operation) Method: Insert the activation bar to the mini-USB interface It is activated successfully when the centre indicator of the UP system turns blue Smart power off/on 3 seconds later after the ignition switch is on, the UP system starts successfully when the blue light in the center turns blue. 10 seconds after the ignition switch is off, all the lights are off and the UP system automatically shuts down. The UP system goes to sleep when the helmet is motionless. And the UP system awakes when vibration occurs after the ignition switch is on. Press left turn Left yellow light flashes Press right turn Right yellow light flashes Brake Both sides red light on Press left turn and brake Left yellow light flashes, and right red light on Press right turn and brake Right yellow light flashes and left red light on Press left & right and left turn in order changing the status of the rider’s running light Constant on Flashes off It is valid when all operations are done within 3 seconds. Brake, then press left & right and left turn in order Switch off or switch on all indication lights It is valid when all operations are done within 3 seconds. Low power warning The centre red light flashes (left & right turn and brake light don’t work), all indication lights are off when power is lower. Warn to charge as soon as possible Charging The centre red light is constantly on, the red lamp becomes green and is constantly on when it is fully charged Matching, only used for added equipment Brake and then insert the activation bar into the mini-USB interface, it means matching is successful when the centre green light becomes blue; it can normally operate when the activation bar is drawn out. Close to the transmitter as possible during the matching Electrical parameters： Smart helmete light Transmitting frequency 433MHZ Weight 39g Size (mm) 47*44*16.5 Effective range 5m Transmitter operating voltage (external power supply) 12V Transmitter peak current 39ma Transmitter Standby Current 0ma Wiring Quick Connection Card Receptor Receiver charging voltage 5v Receiver Power Built-in lithium battery The maximum power consumption of the receiver 60mah Receiver Standby Current 0.19ma Weight 78.5g Size (mm) 380*45.5*23 Waterproof Rating IPX3（Can withstand rain） positive cable of brake GND Output of motorcycle Ignition 12V+ positive cable of left turn light Transmitter Black Green/yellow Light blue Orange Green positive cable of right turn light Matters needing attention： Emitter when installation should pay attention to waterproof。 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. JIANGYIN KRYON IMPORT AND EXPORT CO.,LTD, declares that this Radio-Frequency peripheral is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

S Jiangyin Kryon Import And Export Co., Ltd. Add: No.23 Xiyuan Road, Changjing Town, Jiangyin City, Jiangsu, China Tel: 0510-86317003 Fax: 0510-86317006 2014-01-06 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2ABOD-GX1 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : HUAYUE YANG / General Manager Contact information / address : No.23 Xiyuan Road, Changjing Town, Jiangyin City, Jiangsu, China Tel: 0510-86317003 Fax: 0510-86317006 E-Mail: [email protected]

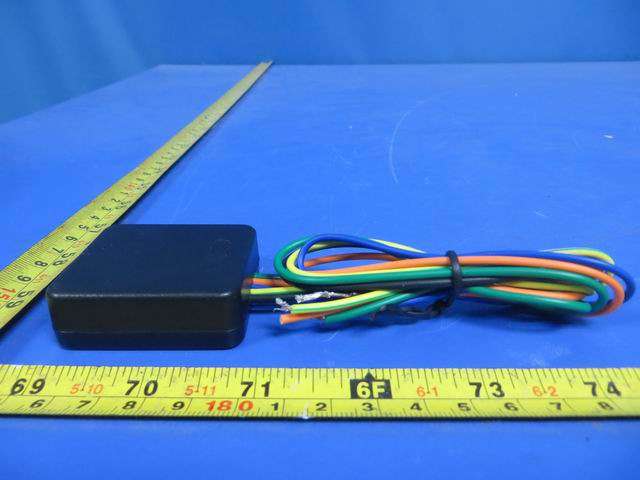

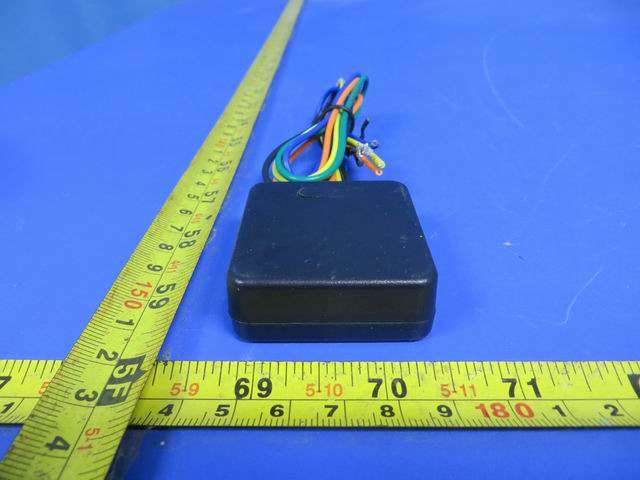

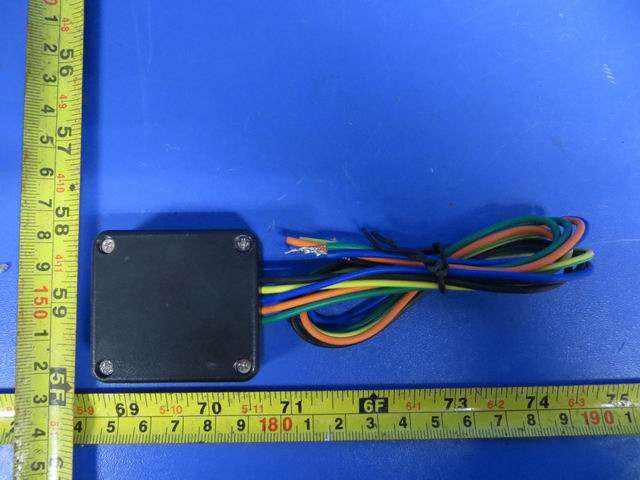

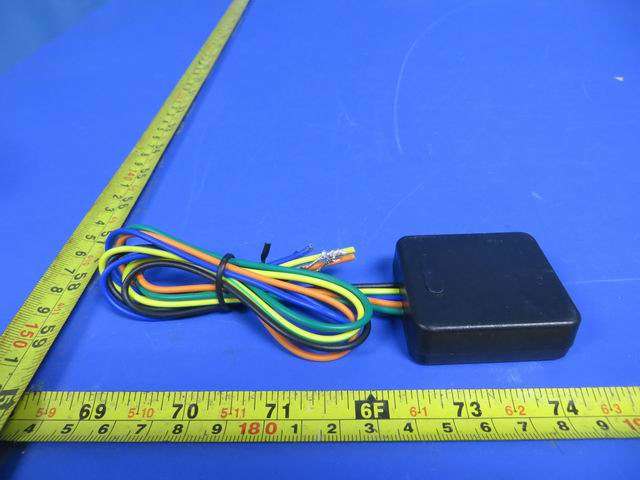

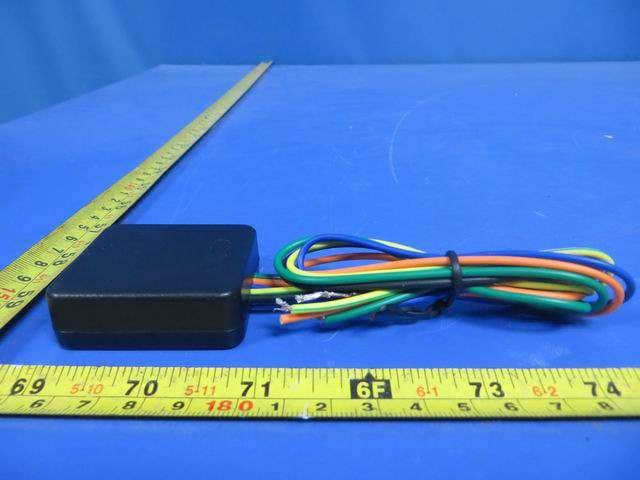

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABOD-GX1 Report No.: LCS131224137F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABOD-GX1 Report No.: LCS131224137F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABOD-GX1 Report No.: LCS131224137F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ABOD-GX1 Report No.: LCS131224137F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L2.5cm*W1.6cm Material: Tagboard Glue: adhesive sticker Font color: Black Label color: White Jiangyin Kryon Import And Export Co., Ltd. Smart helmet lightr Model No.: GX1 FCC ID: 2ABOD-GX1 Made in china Label Location Made in China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABOD-GX1 Report No.: LCS131224137F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABOD-GX1 Report No.: LCS131224137F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Fig.4 Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABOD-GX1 Report No.: LCS131224137F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 26 FCC TEST REPORT For Jiangyin Kryon Import And Export Co., Ltd. Smart helmet light Model No.: GX1 Prepared for : Jiangyin Kryon Import And Export Co., Ltd. Address : No.23 Xiyuan Road, Changjing, Town, Jiangyin City, Jiangsu Provice, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : December 24, 2013 Number of tested samples : 1 Serial number : Prototype Date of Test : December 24, 2013– January 06, 2014 Date of Report : January 06, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABOD-GX1 Report No.: LCS131224137F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 26 FCC TEST REPORT FCC CFR 47 PART 15 C(15.231): 2012 Report Reference No. .............. : LCS131224137F Date of Issue ................................ : January 06, 2014 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Jiangyin Kryon Import And Export Co., Ltd. Address ........................................ : No.23 Xiyuan Road, Changjing, Town, Jiangyin City, Jiangsu Provice, China Test Specification Standard ....................................... : FCC CFR 47 PART 15 Subpart C : 2012, ANSI C63.4-2003 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Smart helmet light Trade Mark .................................. : N/A Model/ Type reference ................. : GX1 Ratings ......................................... : DC 12V by Battery Result ......................................... : Positive Compiled by: Supervised by: Approved by: Tree Zhan/ File administrators Fox Zhang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABOD-GX1 Report No.: LCS131224137F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 26 FCC--TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS131224137F January 06, 2014 Date of issue Type / Model........................... : GX1 EUT......................................... : Smart helmet light Applicant............................... : Jiangyin Kryon Import And Export Co., Ltd. Address.................................. : No.23 Xiyuan Road, Changjing, Town, Jiangyin City, Jiangsu Provice, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Jiangyin Kryon Import And Export Co., Ltd. Address................................... : No.23 Xiyuan Road, Changjing, Town, Jiangyin City, Jiangsu Provice, China Telephone............................... : / Fax.......................................... : / Factory................................... : Jiangyin Kryon Import And Export Co., Ltd. Address................................... : No.23 Xiyuan Road, Changjing, Town, Jiangyin City, Jiangsu Provice, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABOD-GX1 Report No.: LCS131224137F This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 26 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 5 1.2. OBJECTIVE ............................................................................................................................................................ 5 1.3. ENVIRONMENTAL CONDITIONS............................................................................................................................. 5 1.4. HOST SYSTEM CONFIGURATION LIST AND DETAILS ............................................................................................. 6 1.5. EXTERNAL I/O PORT ............................................................................................................................................. 6 1.6. EUT OPERATION .................................................................................................................................................. 6 …
