2ABOZTSM-50092.4G wireless mouse

2.4G wireless mouse manual Model TSM-5009 This RF wireless & optical mouse uses a newly developed RF wireless technology with 2.4GHz frequency. Specially designed for notebook users, it allows wireless freedom like never before. Mouse & Dongle 1. Left button 2. Right button 3. Scroll wheel 4. Battery cover 5. Power button 6. Dongle(Receiver) 7. Sensor 8. Smoother Product Features 1． Radio frequency2409~2476MHz, allows 360 degrees range of motion. 2． Automatic sleep function - The power turns off if left idle for 5 minutes. Thus, it saves power and prolongs battery life. Systems Compatibility Win XP/ Win VISTA/ Win7/Win8 No drivers needed 1 2 3 4 5 6 7 8 Battery Installation 1． Uses two AAA alkaline batteries. 2． Press the “Batteries replace button” to open the battery cover. (Please see the reference picture below). 3． Insert the batteries correctly according to the polarity marks on the battery grooves. 4． Push the battery cover forward; when you hear a “click”, the battery cover is locked successfully Dongle Installation 1． For a notebook computer, insert the receiver in one of the USB ports. 2． For a desktop PC, insert the receiver into a front USB port. If the port is too far from your workspace, use a hub or a USB cable to connect your receiver. Warnings 1． If you have more than 5 feet between the mouse & receiver, the mouse will not work. 2． Please remove the batteries if the mouse will not be used for an extended period of time. 3． This mouse has an automatic power save mode. Press any button or scroll the wheel to wake the mouse up when in sleep mode. 4． The optical mouse will not work well on glass, any reflective surface or a 3D mouse pad. FCC NOTE： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS OR CHANGE TO THIS EQUIPMENT. SUCH MODIFICATIONS OR CHANGE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

TOPSUN (CHINA) INDUSTRY CO.,LTD. Date: January 21,2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ABOZTSM-5009. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Block Diagram Operational Description SCH.pdf BlockDiagram.pdf CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, TOPSUN (CHINA) INDUSTRY CO.,LTD. ................................................ Signature Billy zhang /Manager ................................................ Typed name and Title

TOPSUN (CHINA) INDUSTRY CO.,LTD. FCC ID: 2ABOZTSM-5009 POWER OF ATTORNEY Date: January 21,2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on January 20,2015. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, TOPSUN (CHINA) INDUSTRY CO.,LTD are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, TOPSUN (CHINA) INDUSTRY CO.,LTD. ........................................................................... Signature Billy zhang /Manager ................................................................................. Typed name and Title

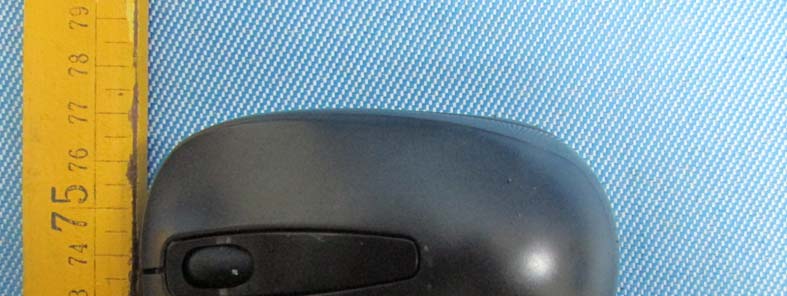

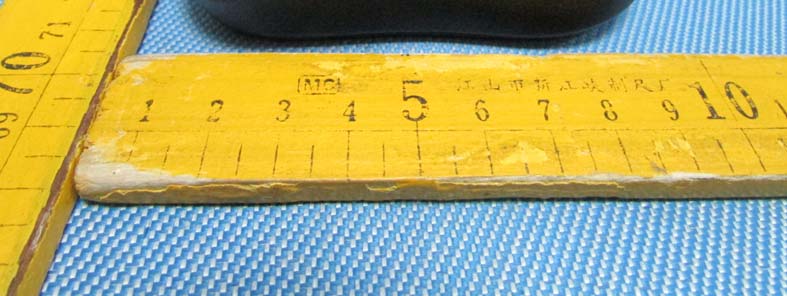

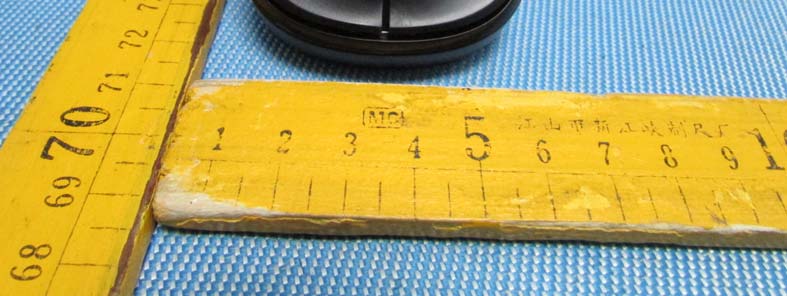

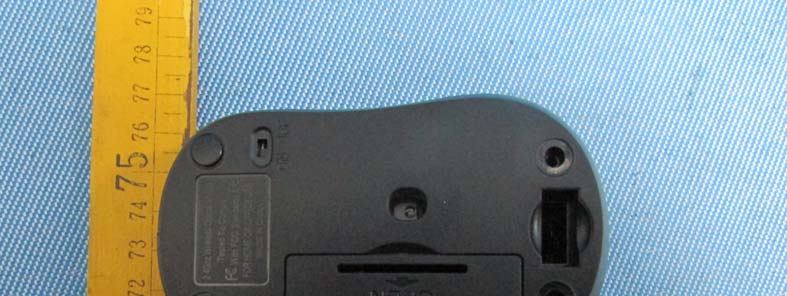

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn TSM-5009 - Photographs EUT - Appearance View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC Label Location for model: TSM-5009 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. FCC ID: 2ABOZTSM- 5009 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device

FCC Label Sample for model: TSM-5001, TSM-5002, TSM-5003, TSM-5004, TSM-5005, TSM-5006, TSM-5007, TSM-5008, TSM-5009, TSM-5010, TSM-5011, TSM-5012, TSM-5013, TSM-5014, TSM-5015, TSM-5016, TSM-5017, TSM-5018, TSM-5019, TSM-5020. FCC ID: 2ABOZTSM-5009 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn TSM-5009 - Open View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn ANT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 25 Reference No. .................... : WTD14S0110459E FCC ID ................................ : 2ABOZ TSM-5009 Applicant ............................ : TOPSUN (CHINA) INDUSTRY CO.,LTD. Address .............................. : 2nd Floor 2nd Blg The First Fuqiao Industrial Zone Qiaotou Village, Fuyong Town, Shenzhen,Guangdong Manufacturer .................... : The same as above. Address .............................. : The same as above. Product Name .................... : 2.4G wireless mouse Model No. ........................... : TSM-5001, TSM-5002, TSM-5003, TSM-5004, TSM-5005, TSM-5006, TSM-5007, TSM-5008, TSM-5009, TSM-5010, TSM-5011, TSM-5012, TSM-5013, TSM-5014, TSM-5015, TSM-5016, TSM-5017, TSM-5018, TSM-5019, TSM-5020 Standards ........................... : FCC CFR47 Part 15 Section 15.249: 2012 Date of Receipt sample .... : Jan.06,2014 Date of Test ........................ : Jan.13~16, 2014 Date of Issue ...................... : Feb.20,2014 Test Result ......................... : Pass * *Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Testing location: The same as above Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Zero Zhou / Project Engineer Philo Zhong / Manager Reference No.: WTD14S0110459E Page 2 of 25 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Outside of Band Emission 15.249 15.205 15.209 PASS 20dB Bandwidth 15:215(c) PASS Conducted Emissions 15.207 N/A Radiated Emission 15.249(a) 15.209 15.205(a) PASS Antenna Requirement 15.203 PASS Reference No.: WTD14S0110459E Page 3 of 25 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................... 2 3 CONTENTS .............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................... 4 4.1 GENERAL DESCRIPTION OF E.U.T. ............................................................................................................. 4 4.2 DETAILS OF E.U.T........................................................................................................................................ 4 4.3 TEST FACILITY .............................................................................................................................................. 4 4.4 TEST LOCATION ............................................................................................................................................ 4 4.4.1 Test Mode ................................................................................................................................................... 4 5 EQUIPMENT USED DURING TEST .................................................................................................................... 5 5.1 EQUIPMENTS LIST ........................................................................................................................................ 5 5.2 MEASUREMENT UNCERTAINTY .................................................................................................................... 5 5.3 TEST EQUIPMENT CALIBRATION .................................................................................................................. 5 6 RADIATION EMISSION TEST .............................................................................................................................. 6 6.1 EUT OPERATION: ........................................................................................................................................ 6 6.2 TEST SETUP ................................................................................................................................................. 7 6.3 SPECTRUM ANALYZER SETUP ..................................................................................................................... 8 6.4 TEST PROCEDURE ....................................................................................................................................... 9 6.5 CORRECTED AMPLITUDE & MARGIN CALCULATION .................................................................................... 9 6.6 RADIATED EMISSIONS TEST RESULT ........................................................................................................... 9 6.7 RADIATED EMISSION DATA ........................................................................................................................ 10 7 OUTSIDE OF BAND EMISSION ......................................................................................................................... 13 8 20 DB BANDWIDTH MEASUREMENT ............................................................................................................. 15 8.1 TEST PROCEDURE: .................................................................................................................................... 15 8.2 TEST RESULT: .............................................................................................…

Text truncated - open the document above for the full version.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn TSM-5009 - Photographs of Setup Radiation Emission below 30MHz Radiation Emission From 30MHz-1GHz Reference No.: WTD14S0110459E Page 19 of 25 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Radiation Emission Above 1GHz
