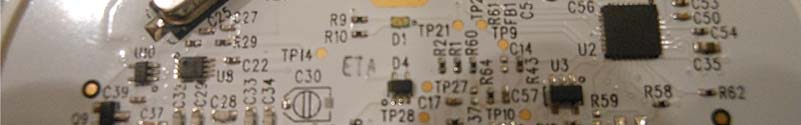

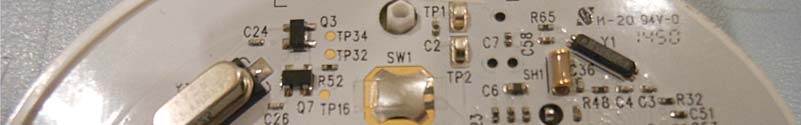

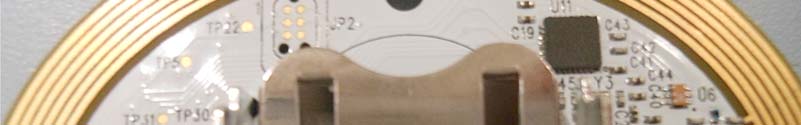

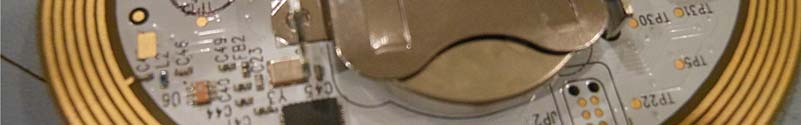

2ABPCSN2Water sensor node for wireless sensor network for detecting water leaks

Product Manual Version 1.0 1 WELCOME TO Wally allows you to monitor the moisture, temperature and humidity levels throughout your entire home. We are excited that you have decided to protect your home with Wally. YOUR SYSTEM INCLUDES: Hub x 1 Sensor x 6 Model: 810-00008 Model: 810-00011 Ethernet cord x 1 Power cord x 1 These pieces are all you need to get started. If you wish to purchase additional Hubs or sensors, visit www.wallyhome.com/buy. 2 Compatibility: Wallyhome is compatible with Internet Explorer 10+ and the most recent versions of Chrome, Firefox and Safari. To download the most recent version of your browser, visit www.wallyhome.com/unsupported Requirements: This Requirements Policy is part of the Terms of Use between you and SNUPI (the “Terms”). Capitalized terms used in this Requirements Policy have the meaning given in the Terms. 1. Wally is intended for indoor use only. 2. Wally should be used in temperatures ranging from 0°F to 140°F. Prolonged exposure of Wally to extreme temperatures will degrade its performance and lifespan. 3. Wally requires a working DSL/cable modem, or LAN-based, always-on, high-speed Internet connection in your home that is positioned to communicate reliably with the Wally DEVICES. If your modem is not a modem/router combination, you should install a router between your modem and your computer, to share the Internet connection with your Wally Hub. Visit www.wallyhome.com/support/ for a solution to limited access to Ethernet ports. 4. Wally requires that you establish an account at https://my.wallyhome.com/ 5. Some Wally functionality requires mobile clients, such as a supported phone or tablet. 6. Wally requires an Ethernet or WiFi (if supported – check the online FAQ at http://www.wallyhome.com/help/does-my-hub-support-wifi/) connection to your router or other Internet connection. 7. Wally must be connected directly to a 120v grounded wall outlet. 3 To Begin: Open a web browser on your computer and go to https://my.wallyhome.com/. You will be presented with the following page: Click on the “Create an Account” button. Enter in your information and then continue by clicking the “Create an Account” button. 4 Set Up Alert List Add any additional contacts that you would like alerted should Wally detect a hazard or conditions that require maintenance. You have the option to designate contacts as “Primary” or “Emergency.” Primary contacts: may be alerted via email, text or push notification for both urgent and preventative care. Emergency contacts will only receive text messages if a sensor detects moisture. 5 Plan of Attack Next, you will have the opportunity to “Plan Your Attack.” On this set-up page, you will be able to designate where each sensor will go within your home. Simply click on the icon of each area where you’d like to place a sensor and then use the drop down menus to designate the floor and room for each sensor. Use this page to plan where each of your sensors will be placed in your home. Simply click on one of the tiles and then customize the floor in specific room to make the reading applicable to your home. Finish by clicking the orange “Add to My Locations” button. This will add the tile to the right column titled “My Locations” Once you have added all locations to “My Locations”, click the brown “Continue” button to finish planning your attack 6 Connect Your Hub Now that you have planned your attack, you are ready to connect your Hub to your network. Ethernet Installation Click on the “Wired” tab and follow the step-by-step instructions. WiFi Installation Click on the “Wireless” tab and follow the step-by-step instructions. 7 WiFi Installation (cont’d) Once you’ve connected to the Wally Network, a screen will pop up and prompt you to connect to your Hub’s WiFi network. Click the orange “Connect to WiFi network” button. On the following two screens select the home WiFi network you want to connect your Hub to and the password for this network. After you click the orange “Connect” button, your hub will disconnect from your computer and attempt to connect to the home WiFi network. Re-connect your computer to your home WiFi network. If your hub has successfully connected to your WiFi network, both hub lights will become solid orange. If this does not happen and the hub lights return to alternately flashing blue, the hub has not connected to your home WiFi network and you will need to press the button on the back of your hub and re-attempt the process. If you continue to be unsuccessful, try some of the tips in the troubleshooting section of the support page (http://www.wallyhome.com/support/) or contact customer service ([email protected]). After your computer is connected to your home network and both of the hub lig hts are solid orange, click the orange “Continue” button to complete installing your hub. 8 9 Successful Hub Installation Once you have completed either the wired or wireless installation, you will see the following screen. At this point, you may con tinue installation on a mobile device. If you prefer not to move to a mobile device, simply press the button labeled “Continue” and proceed as directed. If you prefer to continue on a mobile device please skip to page 10 to learn how to acc ess your account on a mobile device and continue installing sensors. 10 Once you have established your plan of attack and connected your Hub, you will need to activate all of your sensors. Each grey tile represents an inactive sensor on your dashboard. Activate your Sensors To activate a sensor, click on the “Activate This Sensor” link. Once you click this button, you will be directed to the “Activate a Sensor” page. 11 SIGNOUT NEED HELP ? Activate a sensor for Dishwasher To activate a sensor, press and hold the button until the light turns off and then realease. The sensor will flash quickly for a minute. Cancel Animation Press the button on the sensor so that the lighted ring stays illuminated for one second and then continues to flash …

Text truncated - open the document above for the full version.

5 86.965 53.973 13.83 4 14 2.2 26.6 2.9 8.0 4 C L 19 NOTES: (UNLESS OTHERWISE SPECIFIED) 1. SEE SUPPLIED DATA FILE FOR COMPLETE NOMINAL PART GEOMETRY. FILE NAME = 432-00020_REV01.IGS OR 432-00020_REV01.STEP. 2. ALL NON-DIMENSION FEATURES TO BE 0.10 TO 3D CAD FILE. 3. PART PROPERTIES: MATERIAL: BAYBLEND FR3010 PC/ABS, Kingfa JH960-6300 UV C9W-S0143, OR EQUIVALENT (FINAL RESIN SELECTION MUST BE APPROVED BY SYNAPSEAND SNUPI. MATERIAL MUST BE UL RECOGNITION 94 V-0 (1.5MM) ANTIMONY-, CHLORINE-, AND BROMINE- FREE FLAME RETARDANT ONLY. COLOR: S-29903 MB 4% WHITE VOLUME: CU MM PART FINISH: 4 CAVITY-FORMED SURFACES (A-SURFACES): SPI-A3 UNLESS OTHERWISE NOTED. 5 CORE-FORMED SURFACES (B-SURFACES): SPI-B2 UNLESS OTHERWISE NOTED. 6. PARTING LINE MISMATCH NOT TO EXCEED 0.05. 7. GATE TRIM TO BE FLUSH OR RECESSED. 8. FLASH NOT TO EXCEED 0.05. 9. EJECTOR PINS TO BE FLUSH TO 0.10 BELOW SURFACE. 10. APPEARANCE SURFACES TO BE FREE OF MOLD RELEASE, SINKS, GATE MARKS, EJECTOR MARKS, SCRATCHES, AND OTHER COSMETIC DEFECTS INLCLUDING, BUT NOT LIMITED TO, BLUSH, SPLAY, INCLUDED PARTICLES, BURN MARKS, AND SIMILAR IMPERFECTIONS. MUST ADHERE TO THE SNUPI TECHNOLOGIES SPECIFICATION FOR COSMETIC INSPECTION 760-00005 REV 01 11. MOLD TO BE PROPERTY OF SNUPI; SNUPI NAME, APPROPRIATE PART NUMBER AND FABRICATION DATE SHALL BE MACHINED OR STAMPED INTO SIDE OF MOLD. 12. LOCATIONS OF EJECTOR PINS, PARTING LINES, GATES, CAVITY NUMBERS, MOLD DATE INDICATORS AND OVERALL MOLD DESIGN TO BE APPROVED BY SYNAPSE PRIOR TO MOLD FABRICATION. 13 MOLD IN PART NUMBER, CAVITY NUMBER (IF TOOLS IS TO HAVE MULTIPLE CAVITIES), AND MANUFACTURE DATE (WEEK/YEAR, WW/YY) IN SPECIFIED LOCATION. TEXT SHOULD BE FLUSH OR SUB-FLUSH WITH MAIN SURFACE, OR PROUD OF SURFACE IN A HEIGHT LOW ENOUGH TO PREVENT SINK. 14 GATE LOCATED HERE. 15. TO QUALIFY TOOLING, PERFORM A TEN HOUR RUN WITH TEN SAMPLES TAKEN EVERY HOUR; 100 SAMPLES REQUIRED WITH A 1.30 CpK VALUE ON ALL STATISTICAL/QC DIMENSIONS (SAMPLE QUANTITIES SPLIT EVENLY BETWEEN CAVITIES IF APPLICABLE). IF QUALIFICATION IS SUCCESSFUL, SAMPLES MAY BE TRANSFERRED INTO INVENTORY. 16. STATISTICAL/QC INSPECTION REQUIRED ON DIMENSIONS SURROUNDED BY . 17. ALL DIMENSIONS TO BE INCLUDED IN FIRST ARTICLE INSPECTION (FAI) REGISTER. MINIMUM FAI INSPECTION IS 10 ARTICLES PER CAVITY OR 33 ARTICLES TOTAL (WHICHEVER IS GREATER). MORE ARTICLES MAY BE REQUIRED AS DICTATED BY A QA DEPARTMENT. FAI MEASUREMENTS TAKEN MUST BE WITHIN SPECIFIED TOLERANCES. 18. DIMENSIONS MARKED WITH T ARE TO BE TUNED FOR DESIRED FIT AND FUNCTION. SHOULD START WITH STEEL-SAFE CONDITION. 19. FCC NOTE SHOULD GO IN THIS LOCATION AS SHOWN, FONT NEXA BOOK 8 PT. FONT FCC MARKING PARAMETERS ARE AS FOLLOWS: MACHINE NAME - OPTICAL FIBER LASER ENGRAVING• MACHINE POWER - 70w• THE OPERATION RATIO OF POWER - 80%• MARKING SPEED - 300MM/S• MARKING TIMES - FOUR TIMES• FILLING DENSITY - 0.01MM• REVISIONS ZONEREVDESCRIPTIONDATEAPPROVED -01NEW PART WITH FCC ID AND IC ID2015-02-18MWS D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 DRAWN CHECKED DESIGNED DATE NAME TITLE: SIZE B DWG. NO. REV SHEET 1 OF 2SCALE: 1:1 UNLESS OTHERWISE SPECIFIED: 01 M. STILLMAN2014-05-22 BACK CLAMSHELL - DUAL BAND, NODE 432-00020 2014-03-13B.RICHMOND INTERPRET GEOMETRIC TOLERANCING PER: ASME Y14.5-2009 THIRD ANGLE PROJECTION PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SNUPI TECHNOLOGIES. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF SNUPI TECHNOLOGIESIS PROHIBITED. DIMENSIONS ARE IN MM TOLERANCES: ONE PLACE DECIMAL (.X) .50 TWO PLACE DECIMAL (.XX) .25 THREE PLACE DECIMAL (.XXX) .100 ANGLE ONE PLACE DECIMAL (.X ) 2 ANGLE TWO PLACE DECIMAL (.XX) .50 1415 NE 45th Street SEATTLE, WA 98105 PHONE: 206-673-2707 www.wallyhome.com 54.000 2X 27.500 2X 1.000 29.000 - DRAFT 3X 4.79 - DRAFT 3X 3.288 D D C 13 DATE LOCATION 13 P/N, REV, AND CAVITY NUMBER LOCATION B A3 A2 A1 0 3X 5.50 0.975 SECTION D-D SCALE 2 : 1 T 0.2 A A R0.000 MAX TYP. 3X 3.288 CIRCUMSCRIBED HEXAGON - DRAFT DETAIL C SCALE 3 : 1 SCALE 2:1 0.100AB D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 TITLE: SIZE B DWG. NO. REV SHEET 2 OF 2SCALE: 1:1 432-00020 01 BACK CLAMSHELL - DUAL BAND, NODE 1415 NE 45th Street SEATTLE, WA 98105 PHONE: 206-673-2707 www.wallyhome.com

The output power of this product is below the threshold requiring RF exposure evaluation. This device is exempt from RF Exposure review.

This report contains a total of 27 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. SNUPI Technologies TEST REPORT FOR Water Sensor Node Model: 810-00011 Tested To The Following Standards: FCC Part 15 Subpart C § 15.247 Report No.: 96653-16 Date of issue: February 17, 2015 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of EMC testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Page 2 of 27 Report No.: 96653-16 TABLE OF CONTENTS Administrative Information ........................................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Software Versions ...................................................................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Modifications During Testing ..................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 6 FCC Part 15 Subpart C .................................................................................................................................................... 7 15.247(a)(2) -6dB Occupied Bandwidth .................................................................................................................... 7 15.247(b)(3) Maximum Power Output .................................................................................................................... 11 15.247(d) Radiated Spurious Emissions and Band Edge .......................................................................................... 15 15. 247(e) Power Spectral Density .......................................................................................................................... 22 Supplemental Information .......................................................................................................................................... 26 Measurement Uncertainty ...................................................................................................................................... 26 Emissions Test Details .............................................................................................................................................. 26 Page 3 of 27 Report No.: 96653-16 ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: SNUPI Technologies 4512 University Way NE Seattle, WA 98105 Dianne Dudley CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Representative: Patrick Vilbrandt Project Number: 96653 Customer Reference Number: 1095 DATE OF EQUIPMENT RECEIPT: January 27, 2015 DATE(S) OF TESTING: January 27-29, 2015 Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4 of 27 Report No.: 96653-16 Test Facility Information Our laboratories are configured to effectively test a wide variety of product types. CKC utilizes first class test equipment, anechoic chambers, data acquisition and information services to create accurate, repeatable and affordable test results. TEST LOCATION(S): CKC Laboratories, Inc. 22116 23rd Drive S.E., Suite A Bothell, WA 98021-4413 Software Versions CKC Laboratories Proprietary Software Version EMITest Emissions 5.00.14 Immunity 5.00.07 Site Registration & Accreditation Information Location CB # TAIWAN CANADA FCC JAPAN Bothell US0081 SL2-IN-E-1145R 3082C-1 318736 A-0148 Page 5 of 27 Report No.: 96653-16 SUMMARY OF RESULTS Standard / Specification: FCC Part 15 Subpart C § 15.247 Test Procedure Description Modifications* Results 15.247(a)(2) -6dB Occupied Bandwidth NA Pass 15.247(b)(3) Maximum Power Output NA Pass 15.247(d) Radiated Spurious Emissions and Band Edge NA Pass 15.247(e) Power Spectral Density NA Pass NA = Not applicable Modifications* During Testing This list is a summary of the modifications made to the equipment d…
