2ABPI-SCS1PWireless Remote

Wireless SMART1+™ Remote Operating Instructions P/N 1123159 Rev. A P/N 1123159 Rev.A Wireless SMART1+™ Components Item Part # Description 1. 1123160 SMART1+™ Replacement Transmitter (Agriculture/Grain Trailers) 2. 1123161 SMART1+™ Replacement Transmitter (Construction/Dump Bodies) 1 1 NOTICE Do not power SMART1+™ or any Shur-Co ® wire- less system with battery charger alone, as this will likely cause system abnormalities and/or system malfunction. Instead, use a 12-volt truck/automobile battery to provide power to trailer. ! 2 Wireless SMART1+™ Programming & Operating Instructions P/N 1123159 Rev. A 2 The transmitter (remote) will power up when the lid is opened. The remote will power down when the lid is closed or when the lid is left open three minutes after the last button is pushed. POWER UP/DOWN After power-up, the fi rst channel will be immediately active and the indicator light for this channel will be fl ashing. The Open/On and Close/Off buttons are operational for the indicated active channel. While either the Open or Close button is pressed, the indicator light for the active channel will fl ash faster, indicating a command is being transmitted on the active channel. The Select button will cycle between enabled channels. Each channel on the remote can be set to operate in either Mo- mentary Mode or Express Mode. STANDARD OPERATION FLASHING LIGHT INDICATES ACTIVE CHANNEL NOTE: See Channel Confi guration section for instructions on how to set the operating mode for each channel. Momentary mode: While the remote is in Momentary Mode, the Open or Close button must be held while the system is operating. The EXPRESS MODE indicator light will not be on when the remote is in Momentary Mode. Express mode: While the remote is in Express Mode, the Open or Close button can be pressed and released. The system will continue to operate until it is fully opened or closed. The system can be stopped at any time by pressing any button on the remote, or closing the remote lid. The EXPRESS MODE indicator light will be on when the remote is in Express Mode. EXPRESS MODE INDICATOR LIGHT P/N 1123159 Rev.A Wireless SMART1+™ Programming & Operating Instructions - continued 3 The receiver will accept and respond to signals from up to fi ve remotes. The receiver will not respond to signals from remotes that have not been paired to it. NOTE: Only SMART1+™ remotes will function with SMART1+™ receivers. The original SMARTtransmitter ® cannot be used. PAIRING (INTRODUCING) REMOTE(S) TO RECEIVER 2. Check to be sure the receiver is connected to a 12-volt power supply. The receiver must be connected to power to be pro- grammed. If a battery disconnect switch is installed, make sure it is turned on. 1. Remove the solenoid cover from the receiver assembly, pull- ing gently on the cover to prevent damage to wires that are connected to the cover. Follow instructions below to pair remote(s) to receiver: RED LED LIGHT PROGRAMMING BUTTON NOTE: Remotes are typically paired to their receivers at the factory if a remote is shipped with a receiver. Single SMART1+™ remote: 6a1. On the remote, press the Open/On button fi ve times. The red light on the receiver will fl ash after each button press. The red light will fl ash twice after receiving the last signal, indicating it has been successfully programmed. 6a2. Verify that the remote and receiver are operating correctly, then refasten the solenoid cover. NOTE: Read the following steps in their entirety before proceeding. Programing must be completed within 20 seconds. The receiver will exit program mode after 20 seconds, whether o r not it has received fi ve Open/On button signals from the remote. 3. The receiver can learn to recognize up to fi ve remotes. Gather all of the remotes to be introduced to the receiver. Open the remote lid(s) to activate. 4. Set the remote(s) to the appropriate channel (Tarp System, Front Hopper, etc.). 5. Press and hold the blue programming button on the receiver for fi ve seconds. The red light will start fl ashing to indicate that it is in programming mode. Release the programming button. The red light will now turn off. Multiple SMART1+™ remotes: 6b1. Press the Open/On button on the fi rst remote. The red light will fl ash after receiving the signal. 6b2. Repeat the above step for each remote being used. 6b3. The receiver will accept up to fi ve signals. Press the Open/ On button additional times on the last remote being pro- grammed to achieve a total of fi ve signals. The red light on the receiver will fl ash twice after the last (fi fth) signal, indicating it has been successfully programmed (see pro- gramming example). 6b4. Verify that each remote and receiver are operating correctly, then refasten the solenoid cover. P/N 1123159 Rev. A 4 Programming & Operating Instructions - continued Receiver programming example: In this example, the receiver controls the front hopper motor. The task is to program the hopper receiver to recognize three remotes. 1. Remove the solenoid cover and turn on the three remotes. 2. Set all three remotes to the Front Hopper channel. 3. Press and hold the blue programming button on the receiver for fi ve seconds. The red light on the receiver will fl ash to indicate it has entered Programming Mode. Release the programming button. The light will now turn off. 4. Press the Open/On button on the fi rst remote. The red LED on the receiver will fl ash to indicate that it has received a signal and memory slot #1 has been fi lled. 5. Press the Open/On button on the second remote. The red light on the receiver will fl ash to indicate that is has received a signal and memory slot #2 has been fi lled. 6. Press the Open/On button on the third remote. The red light on the receiver will fl ash to indicate that it has received a signal and memory slot #3 has been fi lled. 7. Press the Open/On button on the third remote again. The red light on the receiver will fl ash to indicate that it has received a signal and memory slot #…

Text truncated - open the document above for the full version.

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Request for Confidentiality Date: 2014 JULY 24 Subject: Confidentiality Request for: FCC ID: 2ABPI-SCS1P, IC: 11681A-SCS1P Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Test Setup Photos Shur-Co, LLC has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 1 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ ____Nic Johnson, NCEE Labs_________ (Signature/Title 2 ) (Print name) 1 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

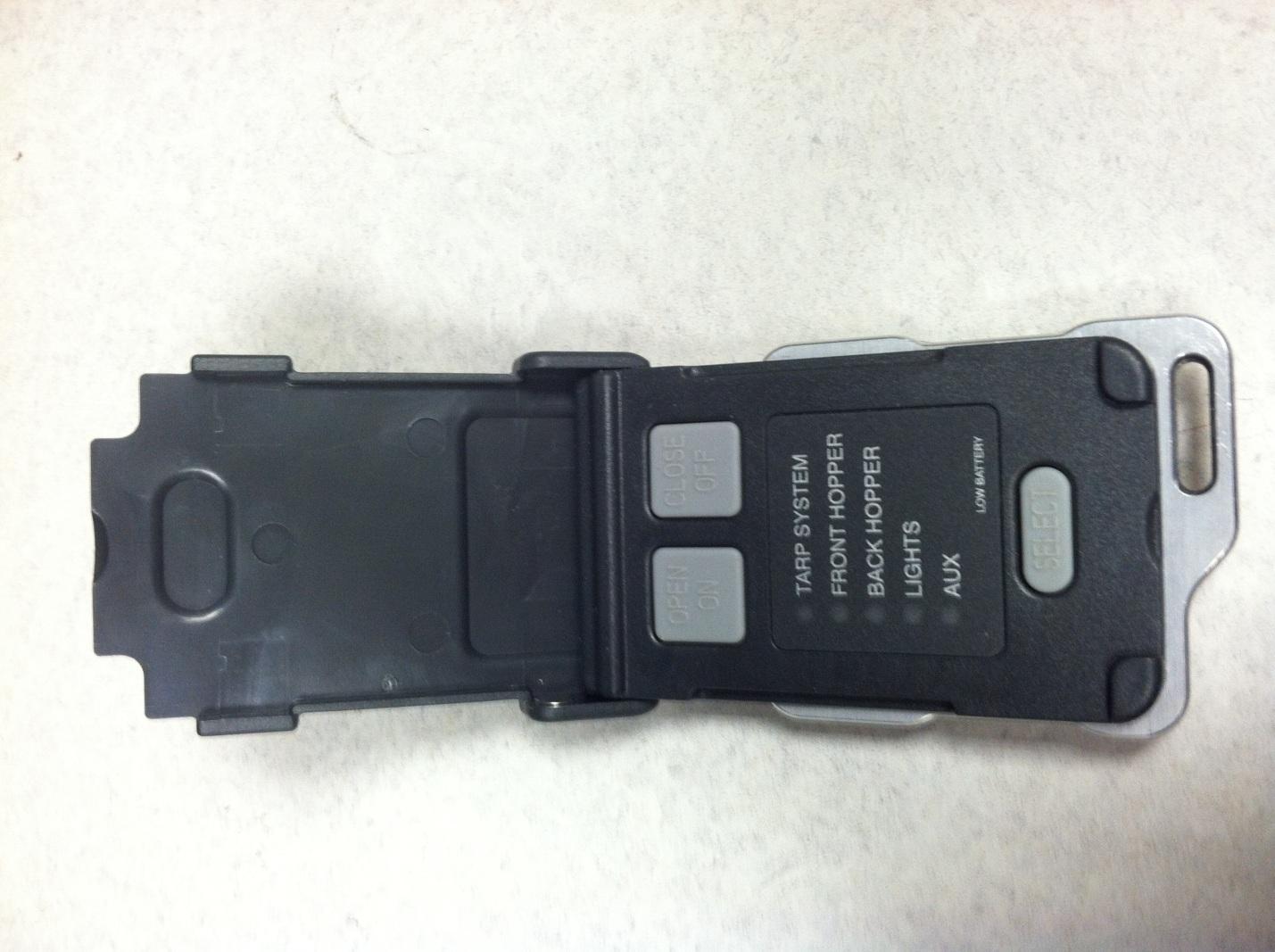

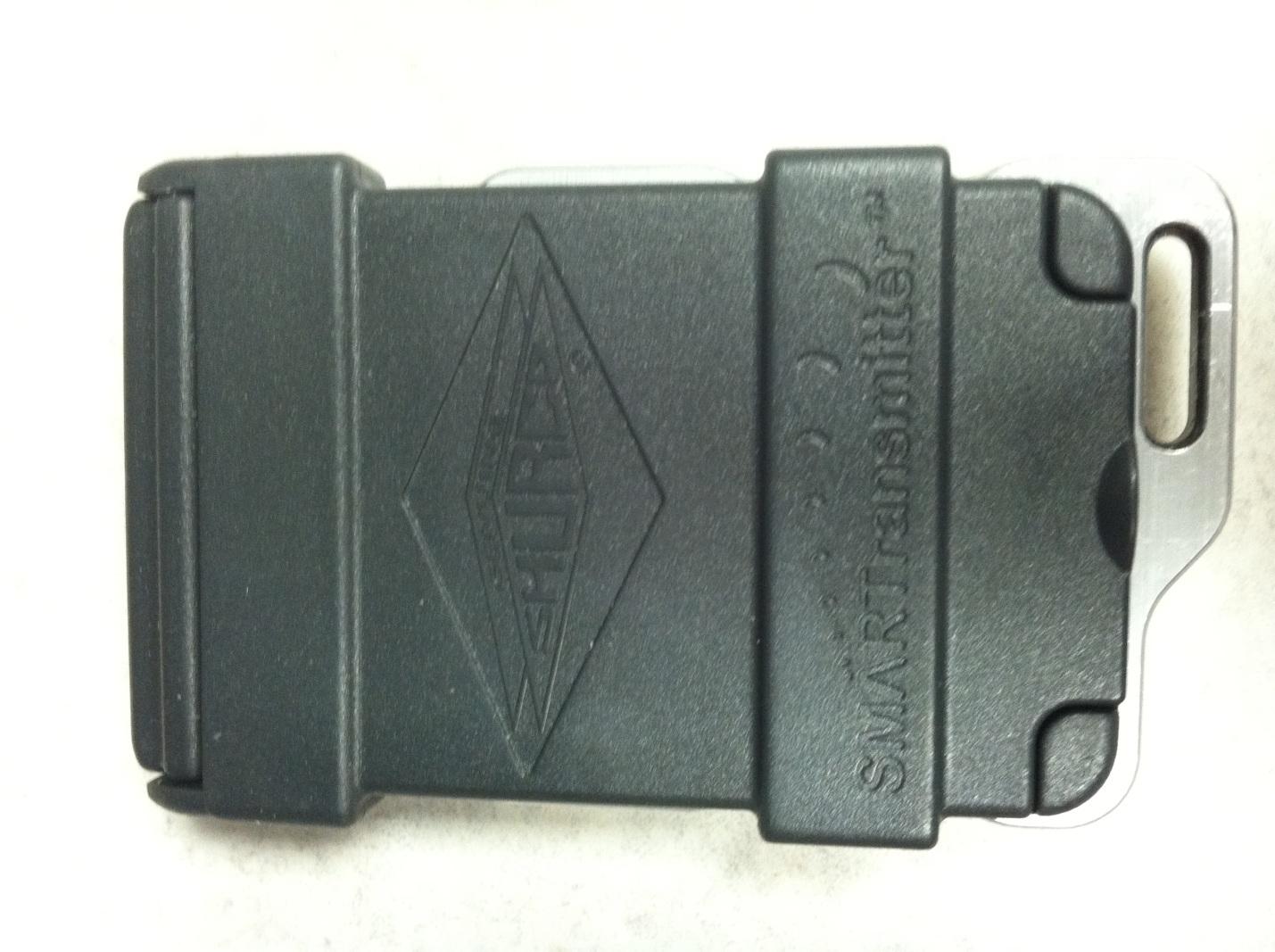

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 ExternalPhotos Manufacturer: Shur-Co, LLC FCC ID: 2ABPI-SCS1P IC: 11681A-SCS1P Figure 1 - Back Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Figure 2 - Front Open Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Figure 3 - Front Closed

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Label Location Manufacturer: Shur-Co, LLC FCC ID: 2ABPI-SCS1P IC: 11681A-SCS1P Figure 1 – Label Location Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Figure 2 - Label image

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Internal Photos Manufacturer: Shur-Co, LLC FCC ID: 2ABPI-SCS1P IC: 11681A-SCS1P Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238

The Nebraska Center for Excellence in Electronics (NCEE) authorizes the above named company to reproduce this report provided it is reproduced in its entirety for use by the company’s employees only. Any use that a third party makes of this report, or any reliance on or decisions made based on it, are the responsibility of such third parties. NCEE accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. NCEE is a FCC and Industry Canada registered lab. FCC #100875, IC #4294 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Amended Test Report Includes NCEE Labs test report R20140103-21A and its amendment in full Company: Shur-Co, LLC 2309 Shur-Lok, St. Yankton, SD 57078-0713 Product: SMART1PLUS FCC ID: 2ABPI-SCS1P IC : 11681A-SCS1P Test Report No: R20140103-21B Approved By: _______________________ Nic S. Johnson, NCE Technical Manager iNARTE Certified EMC Engineer #EMC-003337-NE DATE: 11 August 2014 Total Pages: 20 NCEE Labs R20140103-21B FCC ID: 2ABPI-SCS1P IC: 11681A-SCS1P Page 2 of 21 1.0 Summary of test results 2.0 Description 2.1 Equipment under test 2.2 Laboratory description 2.3 Description of test modes 2.4 Applied standards 2.5 Description of support units 2.6 Configuration of system under test 3.0 Test equipment used 4.0 Detailed Results 4.1 Unique antenna requirement 4.2 Radiated Emissions 4.3 Conducted AC Mains Emissions 4.4 Bandwidth 4.5 Maximum peak output power 4.6 Power spectral density (PSD) 4.7 Bandedges Appendix A – Test photos Appendix B – Sample calculation Table of figures Figure 1 - Radiated Emissions Test Setup ........................................................................... 9 Figure 2 - Radiated Emissions Plot ................................................................................... 10 Figure 3 - Period = 1.22ms ................................................................................................ 12 Figure 4 – Maximum Pulse Width = 0.860 ms ................................................................. 13 Figure 5 - 99% Occupied Bandwidth ................................................................................ 16 Figure 6 – Power Measurement Test Setup ....................................................................... 17 Figure 7 - Radiated Emissions Test Setup ......................................................................... 19 Figure 8 - Radiated Emissions Test Setup ......................................................................... 19 NCEE Labs R20140103-21B FCC ID: 2ABPI-SCS1P IC: 11681A-SCS1P Page 3 of 21 1.0 Summary of test results The EUT has been tested according to the following specifications: APPLIED STANDARDS: FCC Part 15, Subpart C Standard Section Test Type and Limit Result Remark 15.203 Unique Antenna Requirement N/A N/A 15.207 Conducted Emissions N/A N/A 15.209 Radiated Emissions Pass Meets the requirement of the limit. 15.231(a) Minimum Bandwidth, Limit: 1085 MHz Pass Meets the requirement of the limit. 15.231(a) Transmitter Radiated Emissions, Limit: Table 15.209 Pass Meets the requirement of the limit. 1.1 Reason for Amendment Duty cycle factor was corrected. The table under Section 1.0 was corrected. The standards in Section 2.4 were corrected. Section 4.2.2(g) was updated to include clarification that all 3 axis were tested. NCEE Labs R20140103-21B FCC ID: 2ABPI-SCS1P IC: 11681A-SCS1P Page 4 of 21 2.0 Description 2.1 Equipment under test The Equipment Under Test (EUT) was a SMART1PLUS key fob. It is used to remotely operate the doors on trucks. EUT Received Date: 10 April 2014 EUT Tested Date: 10 May 2014, 12 Aug 2014 (5sec. timeout only) NOTE: 1. For more detailed features description, please refer to the manufacturer's specifications or User's Manual. 2.2 Laboratory description All testing was performed at the NCEE Lincoln facility, which is a FCC and IC registered lab. This site has been fully described in previously submitted reports. Laboratory environmental conditions varied slightly throughout the tests: Relative humidity of 22  4% Temperature of 23  3 Celsius 2.3 Description of test modes Channel Frequency 1 433.92 MHz PRODUCT Key Fob MODEL NCEETEST 1 (assigned) POWER INPUT 3 VDC (2*1.5 VDC AAA) MODULATION TYPE OOK (On-off keying) FREQUENCY RANGE 433.92 MHz NUMBER OF CHANNELS 1 MAXIMUM OUTPUT POWER -13.66 dBm EIRP 81.57 dBμV/m at 3m ANTENNA TYPE PCB Trace Antenna SERIAL NUMBER OF TEST UNIT NCEETEST 1 (assigned) POWER SUPPLY Battery only, no recharging. NCEE Labs R20140103-21B FCC ID: 2ABPI-SCS1P IC: 11681A-SCS1P Page 5 of 21 2.4 Applied standards The EUT is a digital transmission device operating at 433.92 MHz. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: 1. FCC Part 15, Subpart c (15.231) using; ANSI/IEEE C63.4:2009 ANSI/IEEE C63.10:2009 2. Industry Canada, RSS 210, Issue 8, Category I Equipment All test items have been performed and recorded as per the above standards. 2.5 Description of support units None 2.6 Configuration of system under test The EUT was powered by 3VDC (2*1.5 VDC AAA batteries) for all the tests and had no auxiliary devices. It was tested by itself. The EUT was programmed by the manufacturer to transmit continually for testing purposes only. The EUT was modified by the manufacturer to test with the device continuously transmitting a series of 1’s and 0’s, for testing purposes. NCEE Labs R20140103-21B FCC ID: 2ABPI-SCS1P IC: 11681A-SCS1P Page 6 of 21 3.0 Test equipment used DESCRIPTION AND MANUFACTURER MODEL NO. SERIAL NO. LAST CALIBRATION DATE Rohde & Schwarz Test Receiver ESIB26 100037 21 Jan 2014 EMCO Biconilog Antenna 3142B 1647 07 Aug 2013 EMCO Horn Antenna 3115 6416 14 Jan 2014 Rohde & Schwarz Preamplifier TS-PR18 NCEEPAHF20 26 Mar 2014* *Internal characterization NCEE Labs R…
