2ABQNFSPWRPWireless Charging Pad

Specification:  Product name: Wireless Charging Pad / 無線充電  Model name: AXW05-DTXN1  Input: DC 5V / 2A (Micro USB)  Dimension (mm): 185.4(L) x 116(W) x 20(H)  Weight: 250g  Built for WPC1.1 Compliance Feature:  Wireless charging, no more fuss about cables  Compatible to WPC Qi-enabled devices  Smart LED indicator  Steady and firm stand, built for all shapes of handheld smart devices  Elevated design and rubber footing, protecting against wet and slippery surface  Protections: FOD (Foreign Object Detection), UVLO (Under Voltage lock out), CLP (Current Limit Protection)  High efficiency, Low radiation, Low standby power consumption All Trademarks belong their respective owners. Manual: 1. Plug Micro USB connector into the power transmitting plate’s input port. 2. Plug USB connector to a USB charger (USB charger is not included in the package, 5V with 2A or higher output current is recommended). 3. Ensure no metal objects or any other objects on the power transmitting plate. 4. Place your Qi enabled device on the plate with the device’s Qi receiver aligned to the allocated area marked on the energy transmitting plate. 5. LED indicator: Red On – charge device Green On – charge complete Red Flash – fault Note: Green LED goes on when charge is completed only if wireless receiver has the built-in function to feedback to wireless transmitting plate. If not, charging process will stop automatically when battery is fully charged without Green LED turned on. 6. Temperature rising is normal during charging process Add illustration drawings Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Taiwan 警語。 第十二條→經型式認證合格之低功率射頻電機，非經許可，公司，商號或使用者 均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條→低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有 干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合 法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

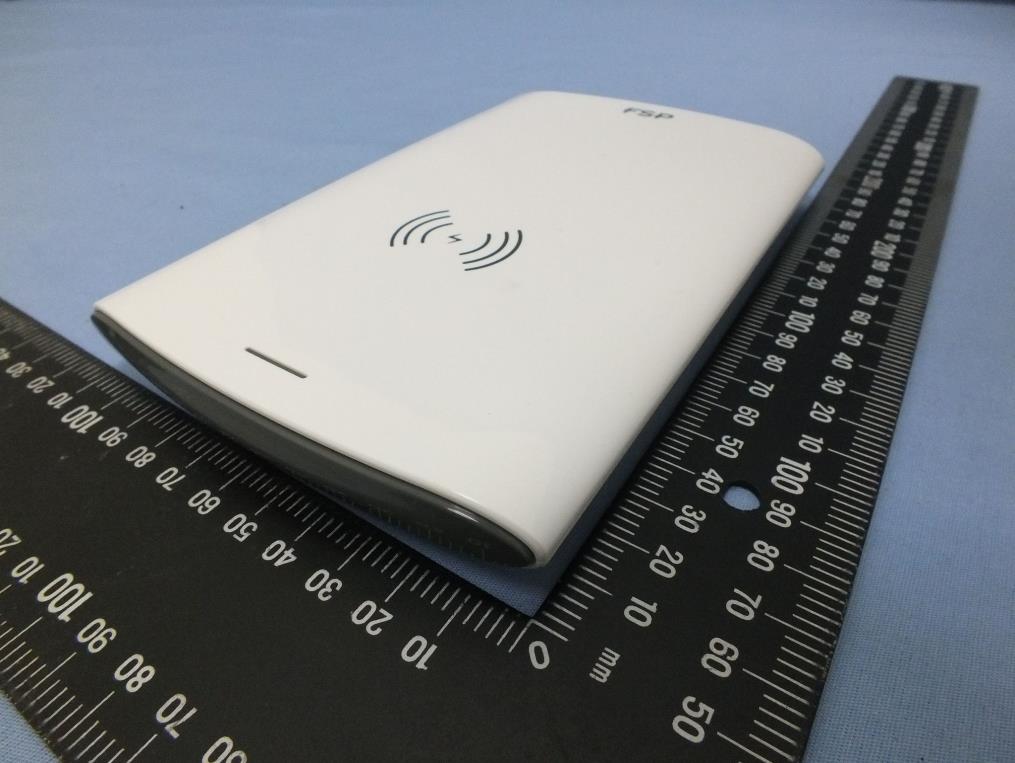

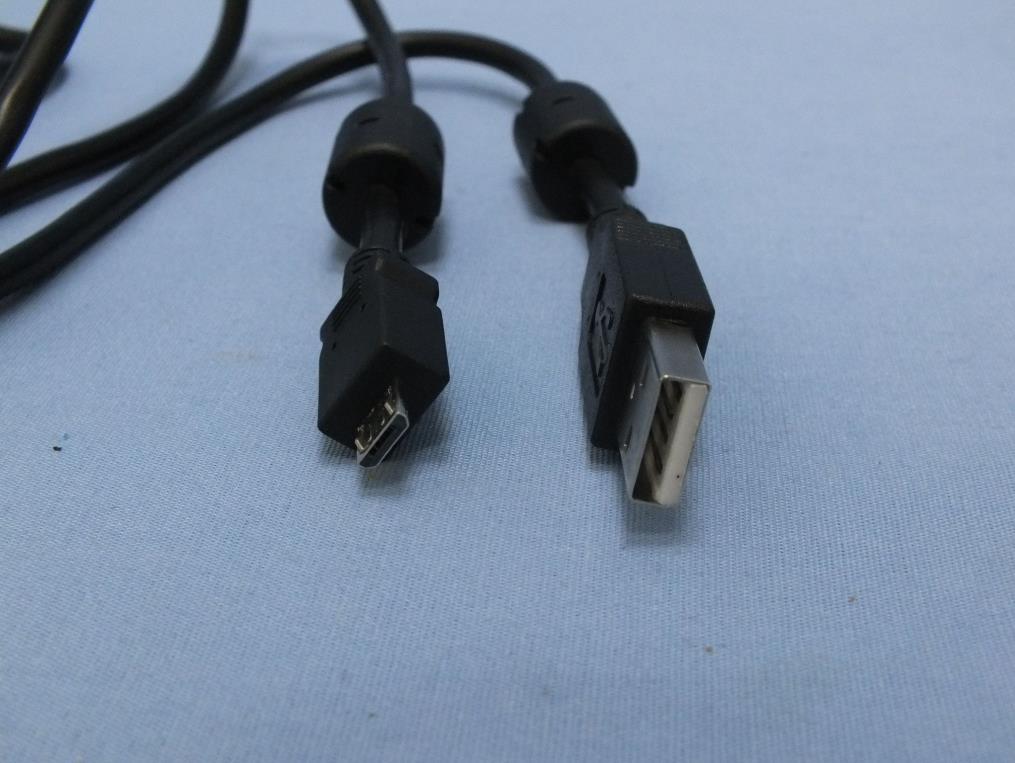

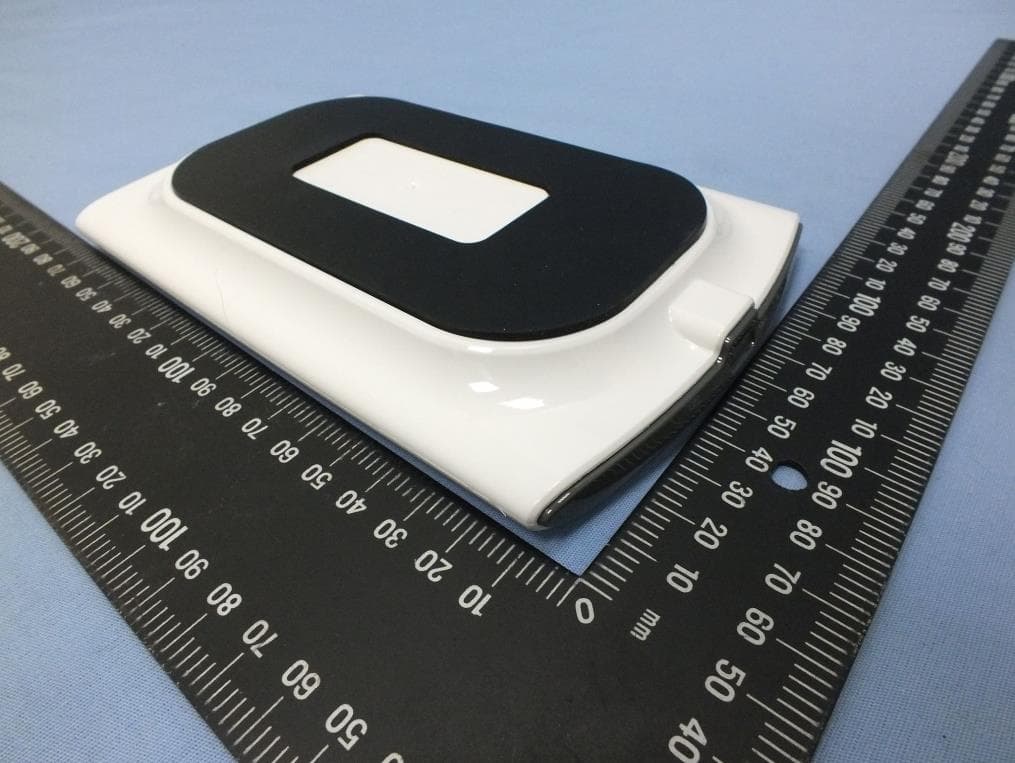

Project No.: EP411603 Page No. : 1 of 10 Photographs of EUT Project No.: EP411603 Page No. : 2 of 10 Project No.: EP411603 Page No. : 3 of 10

Project No.: EP411603 Page No. : 4 of 10 Project No.: EP411603 Page No. : 5 of 10 Project No.: EP411603 Page No. : 6 of 10 Project No.: EP411603 Page No. : 7 of 10 Project No.: EP411603 Page No. : 8 of 10 Project No.: EP411603 Page No. : 9 of 10 Project No.: EP411603 Page No. : 10 of 10

Report No.: FA411603 Page : 1 of 7 Report Version: Rev. 02 FCC RF Exposure Report FCC ID : 2ABQNFSPWRP Equipment : Wireless Charging Pad Model No. : FSPW05-DTXN1 (please refer to item 1.1.1 for more detail) Brand Name : FSP (please refer to item 1.1.1 for more detail) Applicant : FSP GROUP INC Address : 22 JIANGUO E RD TAOYUAN CITY, 330 TAIWAN Standard : 47 CFR FCC Part 2.1091 Received Date : Jan. 16, 2014 Tested Date : Feb. 11 ~ Feb. 13, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA411603 Page : 2 of 7 Report Version: Rev. 02 Table of Contents 1 RF EXPOSURE ...................................................................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 5 1.2 THE EQUIPMENT LIST ......................................................................................................................... 5 1.3 TEST SETUP ......................................................................................................................................... 6 1.4 MPE EVALUATION RESULTS .............................................................................................................. 6 2 TEST LABORATORY INFORMATION ................................................................................................. 7 Report No.: FA411603 Page : 3 of 7 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FA411603 Rev. 01 Initial issue Mar. 04, 2014 FA411603 Rev. 02 1. Add General Description (page 4). 2. Modified product name (page 1). Mar. 05, 2014 Report No.: FA411603 Page : 4 of 7 Report Version: Rev. 02 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description FSP FSPW05-DTXN1 Wireless Charging Pad Marketing Purpose Amacrox AXW05-DTXN1 Wireless Charging Pad  All models are electrically identical, different model names are for marketing purpose.  The above models, model FSPW05-DTXN1 was selected as a representative one for the final test and only its data was recorded in this report. Report No.: FA411603 Page : 5 of 7 Report Version: Rev. 02 2 RF EXPOSURE Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. According to KDB 680106 D01 RF Exposure Wireless Charging Apps, RF exposure evaluation should be conducted assuming a user separation distance of 10 cm for devices designed for typical desktop applications. E and H field strength measurements or numerical modelling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 10 cm measured from the center of the probe(s) to the edge of the device 2.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW /cm 2 ) Averaging Time (minutes) 0.3 ~ 3.0 614 1.63 (100)* 30 3.0 ~ 30 824/f 2.19/f (180/f 2 )* 30 30 ~ 300 27.5 0.073 0.2 30 300~1500 - - f/1500 30 1500~100000 - - 1.0 30 Note: f: Frequency in MHz *= Plane-wave equipment power density 2.2 THE EQUIPMENT LIST Test Site 966 chamber 2 / (03CH02-WS) Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until B-Field Probe Narda Safety Test Solutions GmbH B-Field Probe 100 cm 2 M-0652 Jun. 17, 2013 Jun. 16, 2014 Exposure Level Teste Narda Safety Test Solutions GmbH ELT-400 N-0210 Jun. 26, 2013 Jun. 25, 2014 Probe EF Narda Safety Test Solutions GmbH 0391 E-Field D-0667 Jun. 24, 2013 Jun. 23, 2014 Broadband Field Meter Narda Safety Test Solutions GmbH NBM-550 E-0847 Jun. 07, 2013 Jun. 06, 2014 Note: Calibration Interval of instruments listed above is one year. Report No.: FA411603 Page : 6 of 7 Report Version: Rev. 02 2.3 TEST SETUP 2.4 MPE EVALUATION RESULTS Electric Field Strength Measurement Measured Side Distance (cm) Measured Value (V/m) 30 % of Limit (V/m) Limit (V/m) A 10 0.57 184.2 614 B 10 0.75 184.2 614 C 10 0.61 184.2 614 D 10 0.71 184.2 614 E 10 1.58 184.2 614 Magnetic Field Strength Measurement Measured Side Distance (cm) Measured Value (A/m) 30 % of Limit (A/m) Limit (A/m) A 10 0.292 0.489 1.63 B 10 0.054 0.489 1.63 C 10 0.288 0.489 1.63 D 10 0.292 0.489 1.63 E 10 0.234 0.489 1.63 Note: This test configuration is charging under <1% battery status of cellphone. Report No.: FA411603 Page : 7 of 7 Report Version: Rev. 02 3 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Tel: 886-2-2601-1640 Tel: …

Text truncated - open the document above for the full version.

Report No.: FR411603 Page : 1 of 26 Report Version: Rev. 02 FCC Test Report FCC ID : 2ABQNFSPWRP Equipment : Wireless Charging Pad Model No. : FSPW05-DTXN1 (please refer to item 1.1.1 for more detail) Brand Name : FSP (please refer to item 1.1.1 for more detail) Applicant : FSP GROUP INC Address : 22 JIANGUO E RD TAOYUAN CITY, 330 TAIWAN Standard : 47 CFR FCC Part 15.209 Received Date : Jan. 16, 2014 Tested Date : Feb. 11 ~ Feb. 13, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR411603 Page : 2 of 26 Report Version: Rev. 02 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 6 1.3 Test Setup Chart .................................................................................................................................... 6 1.4 The Equipment List ................................................................................................................................ 7 1.5 Test Standards ....................................................................................................................................... 8 1.6 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION ....................................................................................................................... 9 2.1 Testing Condition ................................................................................................................................... 9 2.2 The Worst Test Modes and Channel Details ......................................................................................... 9 3 TRANSMITTER TEST RESULTS ........................................................................................................ 10 3.1 Conducted Emissions ........................................................................................................................... 10 3.2 Radiated Emissions .............................................................................................................................. 15 4 TEST LABORATORY INFORMATION ............................................................................................... 26 Report No.: FR411603 Page : 3 of 26 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FR411603 Rev. 01 Initial issue Mar. 04, 2014 FR411603 Rev. 02 Modified product name (page 1, 5). Mar. 05, 2014 Report No.: FR411603 Page : 4 of 26 Report Version: Rev. 02 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.276MHz 42.05 (Margin 8.89dB) - AV Pass 15.209 Radiated Emissions [dBuV/m at 3m]: 35.82MHz 34.00 (Margin 6.00dB) - QP Pass Report No.: FR411603 Page : 5 of 26 Report Version: Rev. 02 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description FSP FSPW05-DTXN1 Wireless Charging Pad Marketing Purpose Amacrox AXW05-DTXN1 Wireless Charging Pad  All models are electrically identical, different model names are for marketing purpose.  The above models, model FSPW05-DTXN1 was selected as a representative one for the final test and only its data was recorded in this report. 1.1.2 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Modulation 0.110 – 0.205 ASK 1.1.3 Antenna Details Ant. No. Type Gain (dBi) Connector Remark 1 Coil antenna - --- --- 1.1.4 EUT Operational Condition Type of power supply 5Vdc from AC adapter 1.1.5 Accessories Accessories No. Equipment Description 1 USB Cable 1.2m shielded with 2 cores Report No.: FR411603 Page : 6 of 26 Report Version: Rev. 02 1.2 Local Support Equipment List Support Equipment List No. Equipment Brand Model S/N FCC ID Signal cable / Length (m) 1 Cellphone SAMSUNG GT-N7100 --- A3LGTN7100 --- 2 Wireless Tag pqi PB-114 --- --- --- 3 AC Adapter Flextronics Sales & Marketing (A-P) Ltd. A1401 --- --- --- 4 AC Adapter FSP GROUP INC. FSP010-D WDA1 --- --- --- Note: No.3~4 were supplied by applicant. 1.3 Test Setup Chart Test Setup Diagram_AC Adapter 1 (model: A1401) Test Setup Diagram_AC Adapter 2 (model: FSP010-DWDA1) NOTE: Wireless tag is installed to cellphone to enable wireless charging function of cellphone. Report No.: FR411603 Page : 7 of 26 Report Version: Rev. 02 1.4 The Equipment List Test Item Conducted Emission Test Site Conduction room 1 / (CO01-WS) Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until EMC Receiver R&S ESCS 30 100169 Oct. 15, 2013 Oct. 14, 2014 LISN SCHWARZBECK MESS-ELEKTRONIK Schwarzbeck 8127 8127-667 Nov. 23, 2013 Nov. 22, 2014 LISN (Support Unit) SCHWARZBECK MESS-ELEKTRONIK Schwarzbeck 8127 8127-666 Dec. 04, 2013 Dec. 03, 2014 RF Cable-CON Woken CFD200-NL CFD200-NL-001 Apr. 24, 2013 Apr. 23, 2014 50 ohm terminal (Support Unit) NA 50 04 Apr. 22, 2013 Apr. 21, 2014 Note: Calibration Interval of instruments listed above is one year. Test Item Radiated Emission Test Site 966 chamber 2 / (03CH02-WS) Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Spectrum Analyzer R…

Text truncated - open the document above for the full version.

Report No.: FR411603 Page: : 1 of 6 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test_AC Adapter 1 (model: A1401) Report No.: FR411603 Page: : 2 of 6 Report Version: Rev. 01 Conducted Emission Test_AC Adapter 2 (model: FSP010-DWDA1) Report No.: FR411603 Page: : 3 of 6 Report Version: Rev. 01 Radiated Emission Test_AC Adapter 1 (model: A1401) Report No.: FR411603 Page: : 4 of 6 Report Version: Rev. 01 Radiated Emission Test_AC Adapter 2 (model: FSP010-DWDA1) Report No.: FR411603 Page: : 5 of 6 Report Version: Rev. 01 RF Exposure Test_ Electric Field Strength Report No.: FR411603 Page: : 6 of 6 Report Version: Rev. 01 RF Exposure Test_ Magnetic Field Strength
