2ABQZHW8301Car Entertainment System

FCC Warning Statement 2 3 4-5 6 7 8 9-10 11 12 12-13 14-17 18 19-20 21 01 FCC Warning Statement 02 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the eq uipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reaso nable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in a ccordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installati on. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the rece iver is connected. ‐ Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must be located for operating in conjunction with any other antenna or transmitter. 03 04 05 06 3 4 6710 11 12 13 14 15 16 19 . AMS Button Play/Pause IR AUX-IN MIC Real Time Clock 07 COPY DEL OPEN 08 09 10 11 12 13 14 15 16 17 18 19 20 21

Statement We Hopwell Electronics Hereby Declare that The product Car Entertainment System, models no. HW-8301, BMWX-4768, IV-7.3BT, IV-7.4BTV, ICBM-9778, ICBM-9722BT, BMWX-4764BT are all identical in interior structure, electrical circuits and components, and just model names and Trade mark are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Dated this Feb 17, 2014 By: Kenny Ke Signature Printed Title: Manager On behalf of : Hopwell Electronics Telephone: 852-35680369

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Hopwell Electronics (Feb 17, 2014) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ Hopwell Electronics _____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description: Car Entertainment System, model name: HW-8301, BMWX-4768, IV-7.3BT, IV-7.4BTV, ICBM-9778, ICBM-9722BT, BMWX-4764BT, FCC ID: 2ABQZHW8301) We affirm that between SIEMIC and ____ Hopwell Electronics ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Client’s name / title : Kenny Ke, Manager Contact information / address: RM 1507, Tower A, Viking Technology & Business Centre, 93 Ta Chuen Ping St, Kwai Chung, Hong Kong

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Hopwell Electronics Feb 17, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ABQZHW8301 We hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Kenny Ke, Manager Contact information / address: RM 1507, Tower A, Viking Technology & Business Centre, 93 Ta Chuen Ping St, Kwai Chung, Hong Kong

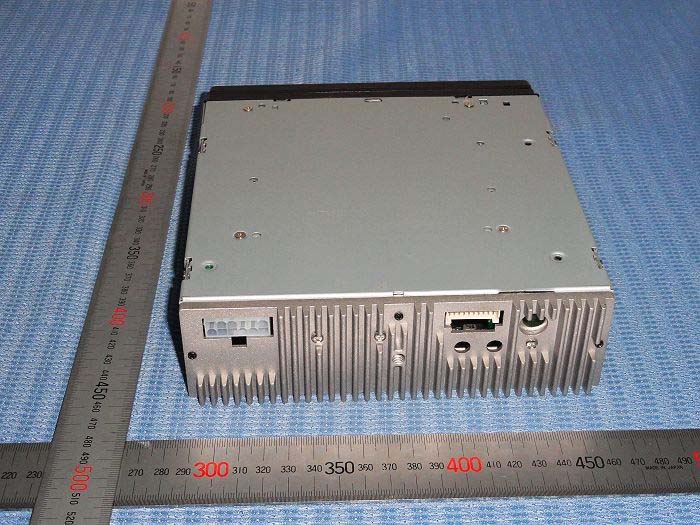

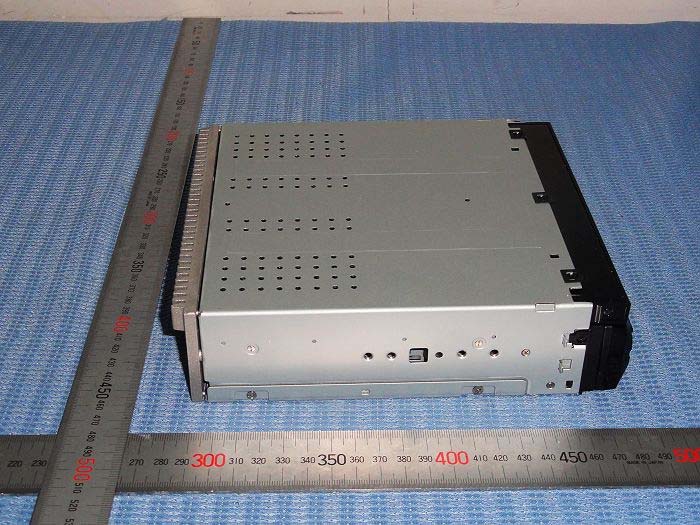

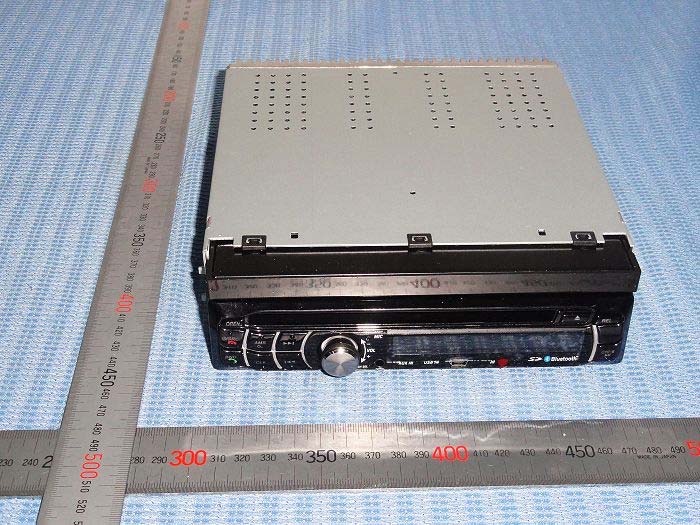

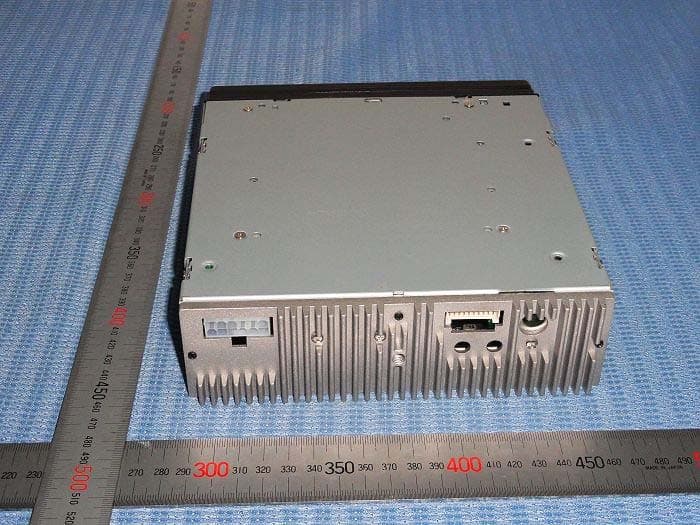

Photo for the EUT Photo for the EUT Photo for the EUT

Car Entertainment System Model: HW-8301 FCC ID: 2ABQZHW8301 Rating: DC12V, 10A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Hopwell Electronics

FCC ID Label Location

Photo for the EUT Photo for the EUT Photo for the EUT Photo for the EUT Photo for the EUT Photo for the EUT Photo for the EUT Photo for the EUT Photo for the EUT Photo for the EUT Photo for the EUT Photo for the EUT Photo for the EUT

Maximum Permissible Exposure FCCID：2ABQZHW8301 Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m 2 ) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit GFSK Mode Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.585 1.67 1.469 0.00046 1 Compiles Л/4DQPSK Mode Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.585 0.66 1.164 0.00037 1 Compiles 8DPSK Mode Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.585 0.94 1.242 0.00039 1 Compiles

Radiated Emission Test Setup:
