2ABR9-ADSS-1000X band pulse radar for wind farms

1 Laufer Wind -10 Commerce Park North Suite 12, Bedford, NH, USA 03110 -Sales and Service: (212)792-3912 Aircraft Detection Sight Solution Doppler Radar System Product Manual Date Revision Detail Author 5-31-13 1 Initial Release RP 6-7-13 2 Electrical Specs Update RP 1-20-14 3 Mechanical Specs Update MC The information contained in this manual is proprietary to Laufer Wind LLC. It is not acceptable to copy, reproduce, republish, post, transmit, or distribute any material from this manual except as may be expressly permitted in writing by Laufer Wind. 2 Laufer Wind -10 Commerce Park North Suite 12, Bedford, NH, USA 03110 -Sales and Service: (212)792-3912 Table of Contents 1. Manufacturer .................................................................................................................................................................... 3 2. Safety Information ......................................................................................................................................................... 3 2.1 Warning Label and Safety Marking Explanation ........................................................................................ 3 2.2 General Safety Instructions ................................................................................................................................. 4 3. Radar Description and Specifications ..................................................................................................................... 5 3.1 Electrical Specifications ........................................................................................................................................ 5 3.2 Control Signal and Electrical Connections .................................................................................................... 5 3.3 Mechanical Specifications .................................................................................................................................... 6 3.4 Environmental Specifications ............................................................................................................................ 6 4. Maintenance ..................................................................................................................................................................... 6 5. Operating Instructions ................................................................................................................................................. 6 5.1 Power and Ethernet Connections ..................................................................................................................... 6 5.2 Radar Operation ...................................................................................................................................................... 8 5.2.1 Radar Control GUI Operation Procedure ............................................................................................... 8 3 Laufer Wind -10 Commerce Park North Suite 12, Bedford, NH, USA 03110 -Sales and Service: (212)792-3912 1. Manufacturer Laufer Wind LLC 10 Commerce Park North Suite 12 Bedford NH USA 03110 Sales and Service (212) 792-3912 2. Safety Information The purpose of this manual is to provide safety and operating information for persons using the Laufer Wind Pulse Doppler Radar. The Pulse Doppler Radar is designed to operate unattended for long periods of time. Periodic maintenance or service should only be performed by Laufer Wind- approved service personnel. The following symbols and terms may be found on the product or used in this manual. 2.1 Warning Label and Safety Marking Explanation This symbol indicates general warning or caution. This symbol indicates the present of high voltages in or around the unit. This symbol indicates the present of microwave or rf radiation in or around the unit. This symbol indicates the present of x-radiation in or around the unit. This symbol indicates the present of rotating equipment in or around the unit. This symbol indicates the present of magnets in or around the unit. This symbol indicates a protective earth ground connection point. This symbol indicates read user manual before operating or servicing. 4 Laufer Wind -10 Commerce Park North Suite 12, Bedford, NH, USA 03110 -Sales and Service: (212)792-3912 2.2 General Safety Instructions READ SAFETY INSTRUCTIONS Servicing: This radar product is not customer serviceable. Laufer Wind and their authorized agents only are permitted to carry out repairs. Product Usage: This radar product is designed to use within the Aircraft Detection Sight Solution System, which restricts access to authorized competent personnel. Environmental: This radar product is IPX0, and chemical/solvents, cleaning agents and other liquids must not be used. Input Parameters: This radar product must be operated with the input parameters stated in the product limitation in this manual. End of Life Disposal: This radar product contains components that require special disposal. Make sure the unit is properly disposed of at the end of its service life and in accordance with local regulations. Lifting Instructions: This radar product is heavy (~125 lbs for the radar housing, plus another ~ 96 lbs for the radome mounting ring and radome.) Only users that are knowledgeable and capable of lifting such weight safely should attempt to lift or move the radar assembly. The Pulse Doppler Radar housing should only be lifted by mounting bars provided on either side of the housing. Safety Protection Impairment: This radar product is designed to operate safely with its control computer and communication links to the radar in an active (operational) state. Electrical power should be turned off to the Pulse Doppler Radar if the control computer or communications links become inoperable. A service call should be placed with Laufer Wind, to insure user safety. RISK OF ELECTRICAL SHOCK High Voltage Warning: Dangerous voltages are present wit…

Text truncated - open the document above for the full version.

January 30,2014 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Re: We, Laufer Wind LLC hereby authorized Intertek Testing Services to act as our agent for the purpose of preparing application for FCC ID number 2ABR9ADSS-1000 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is January 30, 2014The limited agency agreement expires on January 30, 2015 unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Eric Laufer President Laufer Wind 270 Lafayette Street Suite 1402 New York, NY 10012 212 792-3912

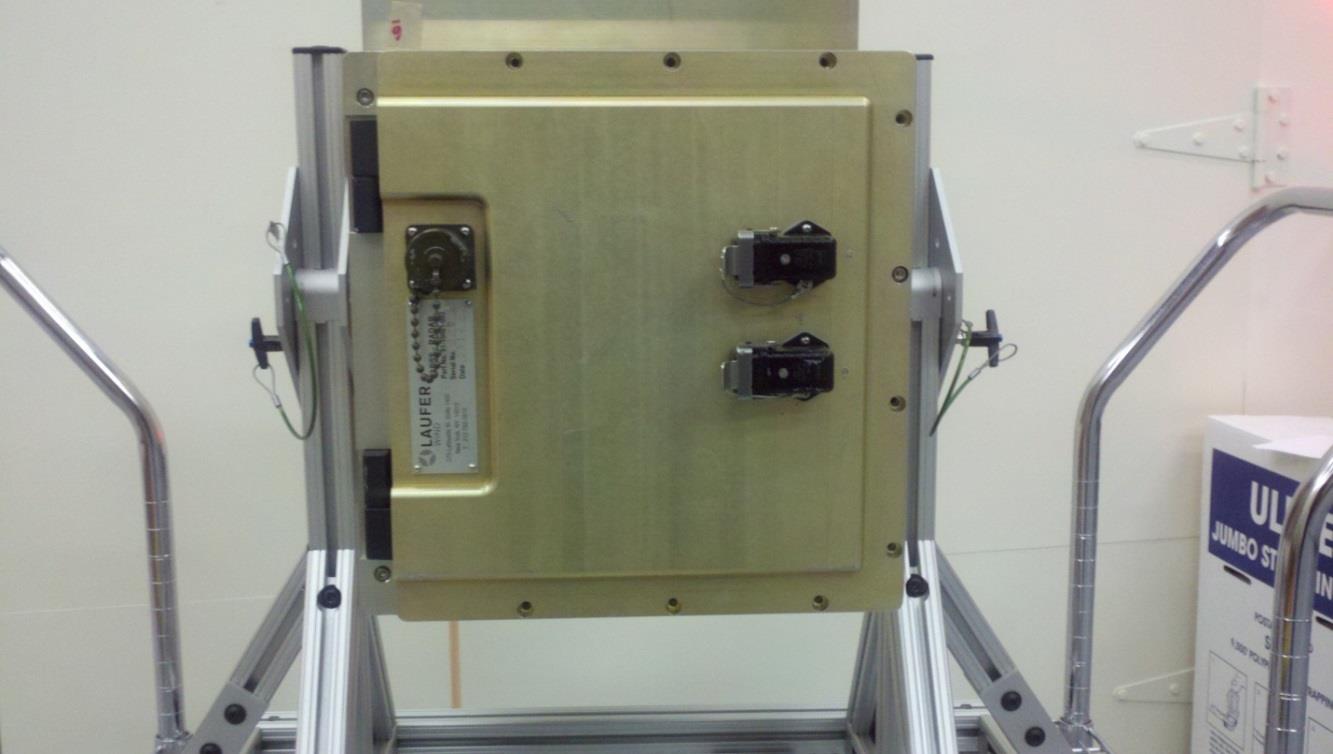

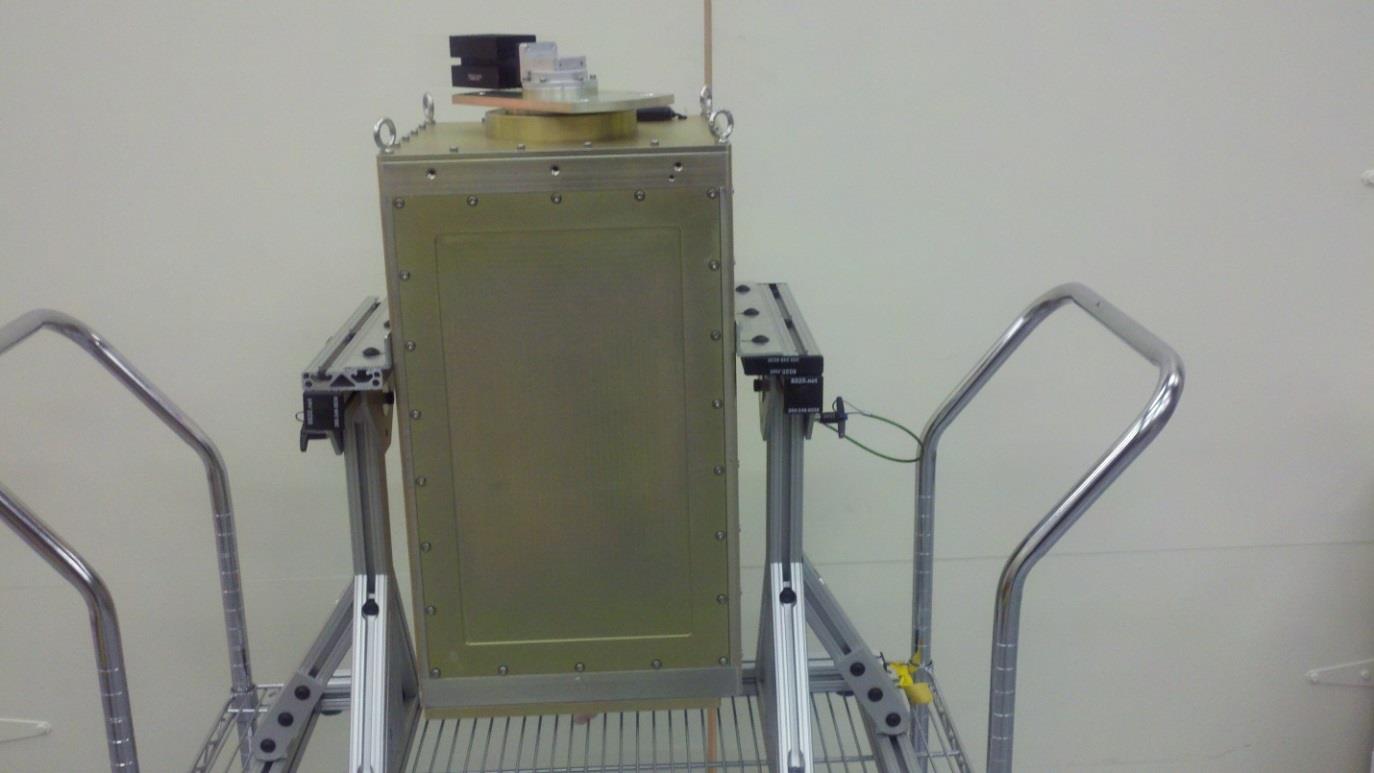

External Photos 2ABR9

Label and location

Proprietary Information 1 Pulse Modulator Power supply DAQ RIC Chassis Filters Chassis and Electronic Modules Photo Proprietary Information 2 Pulse Modulator Chassis Pulse Modulator Circuit board Pulse Modulator Components Proprietary Information 3 Waveguide Deck Components

1 Laufer Wind - 10 Commerce Park North Suite 12, Bedford, NH, USA 03110 -Sales and Service: (212)792-3912 Proprietary Information 1. Operational Description The electrical specifications for the Laufer Wind Pulse Doppler Radar are summarized in Table 1. The radar uses a commercially-available magnetron to generate X-band microwave power. 1 The peak radar microwave power is 16.1 kW (maximum) at pulse duration of 500 nsec at 9.4 GHz nominal frequency. The microwave pulse recurrent frequency is nominally 2000 pulses per second, for an average microwave power 16.1 W (maximum). The average power dissipated by the radar is less than 300W. Table 1. Radar Electrical Specifications Description Specifications AC input voltage 100-240 VAC, single phase, neutral with ground AC line frequency 50/60 Hz nominal AC input power 550VA/500W (maximum) Microwave peak power 16.1 kW (maximum) Microwave pulse duration 500 nanoseconds Microwave pulse recurrent frequency 2000 pulses per second Microwave average power 16.1 W A(maximum) Microwave frequency 9.4 GHz nominal (X-Band) 2. Electrical and Control Signal Connections The Pulse Doppler Radar is operated and controlled by a Central Controller computer through its graphical user interface (GUI). A CAT/6 (shielded) Ethernet communication cable connects the Radar to the Central Controller computer (typically a laptop). T he Figure 1 block diagram shows how the Pulse Doppler Radar and Central Controller computer are connected via a CAT/6 (shielded) Ethernet communication cable. The Radar is connected to a single-phase (line-neutral- ground)100-240V AC power source through connector P1. Figure 1. Block diagram showing AC power and Ethernet connections needed to operate the Pulse Doppler Radar with a Central Controller computer. The radar chassis is a metal enclosure that serves as both a ground plane and faraday cage. This helps minimize electro-magnetic interference (EMI) from the radar. 1 Magnetron model MG4010, E2V Corporation, Chelmsford, England. 2 Laufer Wind - 10 Commerce Park North Suite 12, Bedford, NH, USA 03110 -Sales and Service: (212)792-3912 Proprietary Information 3. Pulse Magnetron Radar Operation The Pulse Doppler Radar operates with input ac power between 100- 230VAC. The ac power is converted to +24 V dc through an ac-dc converter power supply internal to the radar. The +24V power bus is then conditioned to provide +5V and +12V bias power to the various radar sub- assemblies. A magnetron is used to develop the requisite microwave power. The magnetron is a self-starting power oscillator device that operates at approximately 5.8kV peak voltage and 5 A peak current, at 500 nsec pulse duration at 2000 Hz pulse recurrent frequency. A pulse modulator circuit is used to convert +24V dc to the necessary high voltage power pulses to properly drive the magnetron microwave source. No attempt is made to modulate or stabilize the output microwave power pulse. 3. Antenna Description and Spurious Radiation Suppression The radar antenna is a waveguide-fed, horn antenna that measures approximately 48.6 inches by 6 inches deep by 6 inches high. Figure 2 illustrates the Pulse Doppler Radar assembly drawing with its antenna. The antenna is driven through approximately 12 inches of WR-90 waveguide that effectively eliminates any spurious radiation below 6.7 GHz. The ground shielding provided by the radar chassis, along with the high Q nature of the antenna suppresses any high frequency spurious radiation above 9.5 GHz. Figure 2. Pulse Doppler Radar assembly drawing.

Laufer Wind Radar Antenna Azimuth 1.9 degrees Elevation 20 degrees Gain 28dB Frequency 9.41 GHz +/- 50 MHz

ITEM NO.PART NUMBERDESCRIPTIONQTY. 180-00016-0011 1.1 42-00033-001Flange, Radar Frame Top1 1.2 42-00031-001Corner Rail, Radar4 1.3 42-00033-002Flange, Radar Frame Bottom1 1.4 42-00032-002Panel, Cold Wall Left1 1.5 42-00032-003Panel, Cold Wall Right1 1.6 42-00032-001Panel, Side Wall1 1.7 42-00052-001Bottom Panel, Radar Frame1 280-00002-002Antenna Deck1 2.1 42-00014-002Housing, Bearing Support 1 2.2 61814_2RZ2 2.3 CR 80x100x10 CRW1 R2 2.4 42-00015-002SPACER, ANTENNA MAIN GEAR1 2.5 42-00004-002Plate, Radar Top1 2.6 42-00001-003 Spindle, Bearing Shaft, M65 x 2 Thread 1 2.7 80-00014-001Gear - Magnet Assembly1 2.7.1 54-00003-001 Gear, Helical 6.988OD x 2.500 Bore x 6.788PD, Delrin 500 1 2.7.2 SBHCSCREW 0.138- 32x0.375-HX-N 1 2.8 42-00029-001Plate, Spindle, Antenna Mount1 2.9 53-59652-001Nut, Lock, Type ZM65, M65 x 2.01 2.1 25-200001-002Rotary Joint, WR-901 2.11 42-00030-001Key, 1/8 x1/8 x .70 L1 2.12 59-00013-001ORING, FLANGE SEAL1 2.13 40-00007-001Shim, .375od x .208id x .005 thick1 2.14 92185A5401 380-00018-001 (COTS RF)Waveguide Deck1 3.1 25-30005-001 X Band Circulator (Alphatron Electronics BJC1649) 1 3.2 25-30002- 001corrected mb Coupler, WR90, 10.8 - 12.2 GHz, Connecticut Microwave Corp. #CM542.0003 1 3.3 18-00001-002Flann Microwave #163361 3.4 25-12004-002 H-Plane, WR90 x 1.64 x 1.44 x 90 deg, Choke/Cover 2 3.5 25-30001-001 Limiter, WR90, 9.3-9.5GHz (e2v Technologies #B3LT1610) 1 3.6 25-11003-004 E-Plane, WR90 x 180 DEG Offset, COVER/COVER 1 3.7 25-30003-001mbReactel Inc #5W8-9410-X60F1 3.8 25-30006-001WR-90 SMA-F (Pasternack PE9804)1 3.9 41-00001-001Collar, Rotary Joint Alignment1 3.1 25-00008-001WR90 Blank Flange1 3.11 42-00037-001Support, Waveguide2 3.12 42-00036-001Plate, Waveguide Deck1 3.13 42-00038-001Support Rail, Waveguide Deck1 3.14 42-00038-002Support Rail, Waveguide Deck2 3.15 42-00038-003Support Rail, Waveguide Deck1 3.16 42-00037-002Support, Circulator1 3.17 25-30007-001SMA Female Isolator 7 to 12.4 GHz1 3.18 80-00019-002Bracket Assembly, Hall Effect Sensor1 3.18.1 80-00019-001Bracket, Hall Effect Sensor1 3.18.1.1 40-00006-001Bracket, Hall Effect Sensor1 3.18.1.2 FHS-440-16 Self-Clinching Threaded Stud - Type FHS 4-40 Thread 2 3.18.2 42-00054-001Bracket, Sensor Norcross1 3.18.3 OPB770TZ1 3.18.4 90257A0052 3.19 42-00037-003Spacer, Waveguide Support2 3.2 flann mating connector 1 3.20.1 flann 11 3.20.2 Flann 21 3.20.3 flann31 3.20.4 flann42 3.21 RF-IF COTS Assy (040913) RF-IF COTS Assy - Active Doubler1 3.21.1 RFSP2TA0612G Absorptive 2-18GHz Coaxial SP2T Switch 1 3.21.2 1055064-1SMA Right Angle Plug to Jack2 3.21.3 RLNA10G11G Narrow Band Low Noise Amp 10.7- 11.7GHz 1 3.21.4 RFSP3TA0218BSP3T PIN Diode Switch1 3.21.5 1053635-1SMA Straight Plug to Plug Adapter4 3.21.6 25-30006-001WR-90 SMA-F (Pasternack PE9804)2 3.21.7 40-00016-001Bracket - RF Deck Module1 3.21.7.1 Sheet- 3.21.8 25-30007-001SMA Female Isolator 7 to 12.4 GHz1 3.21.9 M8-0412LZ Marki Double Balance Mixer M8- 0412LZ 1 3.21.10 FB-0785Bandpass Filter 7.25-8.45GHz1 3.21.11132171SMA M-F Straight Adapter1 3.21.12 ADA-0306P SMA FEMALE AMPLIFIER FREQUENCY DOUBLER (Marki) 1 3.21.13 CCSMA18-MM-141-4 Crystek SMA Semi Ridig Cable .141 dia 1 3.21.14 CCSMA18-MM-141-6 Crystek SMA Semi Ridig Cable .141 dia 1 3.22 1055064-1SMA Right Angle Plug to Jack2 3.23 1053635-1SMA Straight Plug to Plug Adapter1 3.24132171SMA M-F Straight Adapter1 3.25132339 SMA Right Angle Plug to Plug Adapter 1 3.26 94150A3355 3.27 92290A1404 3.28 92290A1546 3.29 91792A1631 3.3 92290A1682 3.31 92196A1542 3.32 92949A1463 3.33 92185A1634 3.34 92196A0521 480-00013-0011 4.1 42-00027-001Housing, Pulse Modulator1 4.2 25-20003-002 revised mb 2 4.3 80-00017-0011 4.3.1 20-00002-0021 4.3.2 50-57-9402 molex2 4.3.3 2-87456-21 4.3.4 93505A4324 4.4 42-00009-002Support, Magnetron2 4.5 20A 3-pin CONEC 303W3 Socket CONEC 13K1A17131 4.6 17-10010-001 Conn, D-Sub 15, Socket, Solder Cup, TE Connectivity C-5-747909 1 4.7 15 Pin Backshell2 4.8 88-00002-0011 4.8.1 LWG_PWM_Rev21 4.8.2 17-10018-0012 4.8.3 17-10019-0011 4.8.4 17-10020-0011 4.8.5 17-10021-0011 4.8.6 Transformer2 4.8.7 STW15NK90K (TO- 247) 8 4.9 03-09-10323 4.1 59-00008-0012 4.11 901-9209a_Rev-k1 4.12 42-00025-002 Heat Spreader, Pulse Modulator MosFETs 2 4.13 42-00027-003 Cover Pulse Modulator Housing, Magnetron Cavity 1 4.14 42-00027-002 Cover Pulse Modulator Housing, Power Supply Cavity 1 4.15 80-00022-001Equipment Safety Lanyard1 4.15.1 42-00045-001Lanyard Anchor1 4.15.2 59-00014-001 Split Ring, .68OD x .57ID McMasterCarr 90905A652 1 4.16 HS418-ND (7721- 7PPSG) Insulating Shoulder Washer1 4.17 93505A43210 4.18 92710A216 Jack Screw 4-40 M/F, 3/16 Hex x 1/4" Thread, McMaster Carr #92710A216 4 4.19 92185A0791 4.2 92949A0772 4.21 92949A1081 4.22 92949A1061 4.23 91841A0071 4.24 92949A1482 4.25 92949A1461 4.26 92095A1831 580-00015-001 Power Supply Module1 5.1 42-00035-001Housing, Power Supply1 5.2 88-00008-001Power Regulator Board1 5.2.1 LWG_Power_V21 5.2.2 17-10022-0011 5.2.3 17-10003-0011 5.3 59-00008-0012 5.4 80-00022-001Equipment Safety Lanyard1 5.4.1 42-00045-001Lanyard Anchor1 5.4.2 59-00014-001 Split Ring, .68OD x .57ID McMasterCarr 90905A652 1 5.5 LCC250-24U-4P1 5.6 42-00065-001Heat Sink, Power Supply1 5.7 Thermal Pad (.040 thk)1 5.8 92949A0771 6 80-00020-001 ( mod 072913) 1 6.1 42-00041-001 (072513)Backplane PCB Mounting Shield1 6.2 42-00042-001Standoff, Backplane5 6.3 1059465-12 6.4 42-00043-001 Connector Housing, Backplane RF Blind Mate 1 6.5 Backplane mod 072913 1 6.5.1 Backplane Board Rev 080813 1 6.5.2 PCN10-44P- 2.54DSA(72) (modified 050912)) 1 6.5.3 85042-03851 6.5.4 IPL1-110-01-X-S-K1 6.5.5 IPL1-106-01-X-D-K1 6.5.6 IPL1-106-01-X-S-K1 6.5.7 IPL1-105-01-X-D-K1 6.5.8 3-641215-51 6.6 SBHCSCREW 0.112- 40x0.25-HX-N 2 780-00021-002 Motor & Driver Assembly, Oriental Motor 1 7.1 21-00004-001 Oriental Motor, BLHM230KC-GFS / GFS2G20 1 7.2 54-00004-001 Gear, Helical w/ Hub, 1.331OD x 0.300 Bore x 1.293PD, 303SS 1 7.3 42-00044-003Bracket, Mount, Oriental Motor1 7.4 42-00044-002Bracket, Motor Mount1 7.5 20-00003-0011 7.…

Text truncated - open the document above for the full version.

Proprietary Information 1 Radar Block Diagram Radar Interface Control (RIC) Pulse Modulator (PM) Data Acquisition (DAQ) Radar Processor (RPS) Power Supply (PS) Chassis Waveguide Deck (WGD) RF Module (RF) Proprietary Information 2 Radar Interface Control (RIC) Schematic Proprietary Information 3 Data Acquisition (DAQ) Schematic Proprietary Information 4 Pulse Modulator (PM) Schematic Proprietary Information 5 Power Supply (PS) Schematic Proprietary Information 6 Waveguide Deck (WGD) Schematic Proprietary Information 7 Radar Power Supply (RPS) Schematic Proprietary Information 8 Chassis (CHS) Schematic Proprietary Information 9 RF Module (RF) Schematic Proprietary Information 10 Back Plane (BP) Schematic
