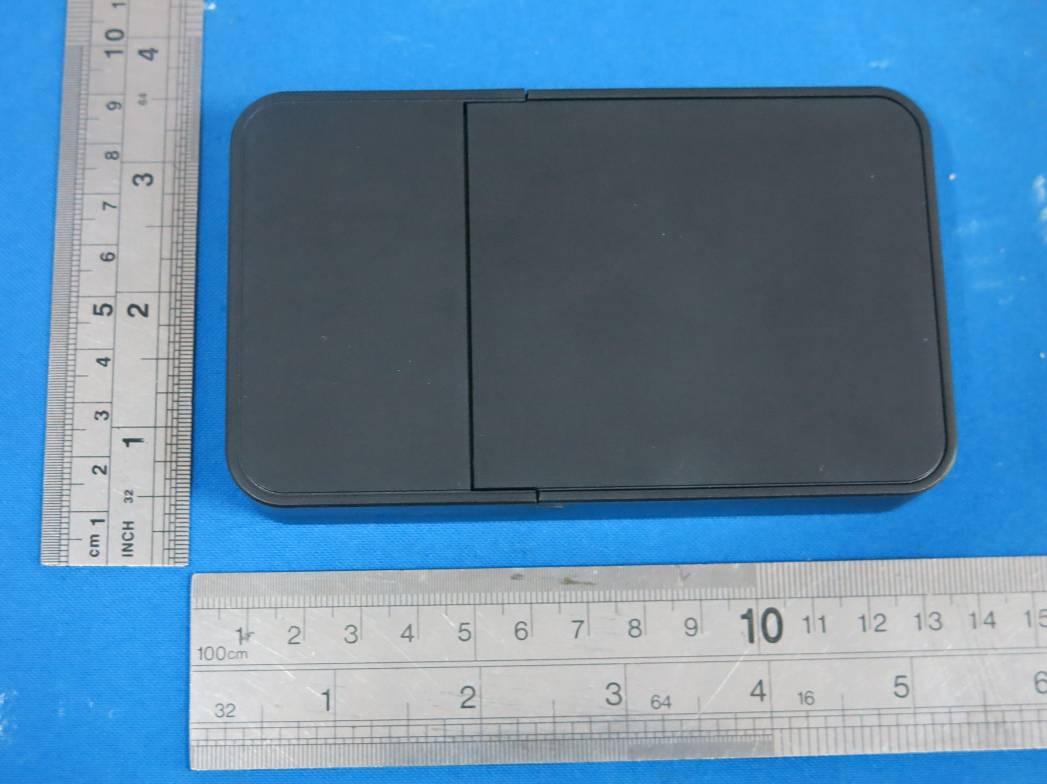

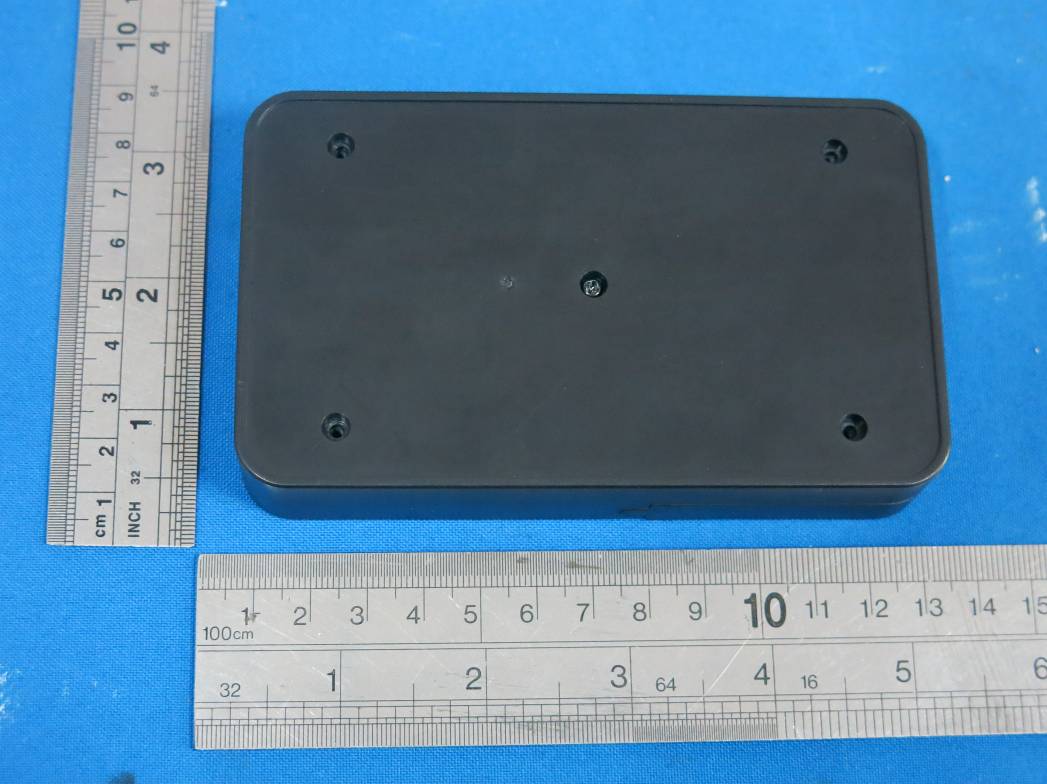

2ABRF-HL2065Superior Indoor/Outdoor Speakers

1 / 5 The Superior Indoor/Outdoor Speakers User’s Manual Safety Instructions This product is specially designed based on the full attention to safety; in order to make sure the accident‐free operation, please abide the guidelines listed below: z Always position the unit on a stable and level surface. Unstable surface can cause the unit to topple and fall, resulting in possible damage or injury z Do not drop, unpack, open, beat, curve or burn the unit z Avoid using the unit nearby basins or sinks where it may come in contact with water z Do not place anything with water on the top of the unit, such as vase, glass, pot, and do not place candles or other flames/heat sources on the Speakers’ surfaces well z Protect the using of the unit from any heating devices (such as radiator, heating installation, cooking stove or other heating devices) z Regardless of what reasons cause the unit damage, please ask for the maintenance personnel to repair z If you want to clean the system, turn the unit off and unplug the power cable from the outlet first. z Set the volume properly to prevent injury to the unit and your personal health Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use there turn and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling Product overview Thank you for purchasing The Superior Indoor/Outdoor Speakers. Our Speakers will bring you a new found freedom from wires while delivering an incredible sound. The Superior Indoor/Outdoor Speakers is compatible with all devices enabled with a 3.5 mm ear phone slot... which is currently a lot of devices! Make sure to read through the following directions, fully charge your device and you should be up and running in no time. Package contents z Transmitter x 1 z Superior Indoor/Outdoor Speakers x 2 z Power adapter x 2 z 3.5 mm Male/Male Aux cable x 1 z Aux to RCA adapter x 1 z User Manual x 1 If any of these were missing or damaged, please visit our website to obtain replacement. Compatibility z All devices that have a standard 3.5mm earphone jack, including iPhones, iPads, iPods, most smart phones, laptops, tablets , MP3 players, PSP, mobile phones, etc. Meet the Superior Indoor/Outdoor Speakers Before learning your Superior Indoor/Outdoor Speakers, take a moment to look it over and familiarize yourself with its features. 2 / 5 The Transmitter The Speakers (1) Connection Indicator (2) Power / Pair (3) Cradle (4) USB Charging Port (5) Aux in (6) DC in (1) Connection Indicator (2) Power / Pair (3) Volume – (4) Volume + (5) Charging Indicator (6) Seal Cap (7) L/R Channel Switch (8) DC in 3 / 5 Getting Started We know you are excited to experience your new Superior Indoor/Outdoor Speakers. These two easy steps will get you up and running quickly. Step 1: Power and Charge It Connect your Superior Indoor/Outdoor Speakers Transmitter to an outlet using the included 5V,2Apower adapter. Now the Transmitter is ready. Connect the Speakers to an outlet using the included 12V, 2A power adapter with split cable. It can charge two Speakerss at the same time. The charging indicator on the Speakers will stay on during charging and will go out when it is fully charged. Step 2: Connect it • Pair Press the power button on the Transmitter, the connection indicator will flash slowly, and then press the power button on the Speakers, it will pair automatically. The connection indicator on the Transmitter and Speakers will become solid. • Connect to your device The Transmitter of Superior Indoor/Outdoor Speakers can be connected to any device that has aheadphone jack or line out using the included aux cable. Just connect your device to the Transmitter with supplied Aux cable, and you all set. • Using the Aux to RCA adapter. Connect the aux cable to the yellow slot on the adapter, now it can connect to any device with RCA audio output, like Televisions, DVD players and some classic game console. Operation Details Power On/Power Off • Transmitter: Press the power button to turn on the Transmitter of Superior Indoor/Outdoor Speakers. The connection indicator will light up to signify the unit is on and ready to be paired. • Speakers: Press the power button to turn the Speakers on. The connection Indicator on the Speakers will light up to signify the unit is on. Press the power button again to turn off the Speakers and the Indicator will also go out. Please note, always make sure to first turn on the Transmitter unit before turning on the Speakers Speaker Controls • Press the Power/Pair button to turn the Speakers on/off. • Pressing the + and ‐ buttons will increase or decrease the volume on the individual speakers. Please note that this will not affect the volume levels on the connected device. To protect your hearing, the default volume level is set to 50% when it is powered on. • Set the L/R Channel Remove the seal cap at the back of the Speakers, using the L/R channel switch to change the sound channel of the Speakers. Speakers Placement The 2 individual Speakers can be set anywhere you like. Approximate range is 100ft away from the Transmitter (open area). The Superior Indoor/Outdoor Speakers use a 2.4 GHz signal so you're free to put the Speakers where you like! 4 / 5 Charging Connect the Speakers to an outlet using the included 12V, 2A power adapter with split cable. It can charge two Speakerssat the same time. The power indicator on Speakers will on during charging and goes out when it has reached a complete charge (Approx. 4 hours). Note: if the unit has not been used in the past 7 days please charge for 30 minutes before using the Superior Indoor/Outdoor Speakers. Low Power Alarm …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Hammacher Schlemmer (2014-02-12) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Hammacher Schlemmer hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Superior Indoor/Outdoor Speakers (M/N: HL2065) FCC ID: 2ABRF-HL2065 We affirm that between SIEMIC and _ Hammacher Schlemmer _ , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Signature Peter Roberts 2014-02-12 Tel: 847-581-8214 Hammacher Schlemmer 9307 N. Milwaukee Niles, IL 60714, USA

Label Location on EUT

Model Number : HL2065 Input : DC 12V,2A Output : 10w x 2 Li-ion battery DC 7.4V 4000mA FCC ID : 2ABRF-HL2065 Made in China Model Number : HL2065 Input : DC 12V,2A Output : 10w x 2 Li-ion battery DC 7.4V 4000mA FCC ID : 2ABRF-HL2065 Made in China Model Number : HL2065 Input : DC 5V,2A FCC ID : 2ABRF-HL2065 Made in China Model Number : HL2065 Input : DC 12V,2A Output : 10w x 2 Li-ion battery DC 7.4V 4000mA FCC ID : 2ABRF-HL2065 Made in China Model Number : HL2065 Input : DC 5V,2A FCC ID : 2ABRF-HL2065 Made in China

Antenna

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID：2ABRF-HL2065 EUT Specification EUT Superior Indoor/Outdoor Speakers Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 3.14dBm(2.061mW) Antenna gain (Max) 2 dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m ) Magnetic Field Strength(A/m ) Power Density(mW/cm 2 ) Averag e Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Test Channel Channel Frequency (MHz) Output Peak power (mW) Antenna Gain (dBi) Power density at 20cm (mW/ cm2 ) Power density Limits (mW/cm 2 ) Lowest 2405 2.061 2 0.000649885 1 Middle 2438 1.683 2 0.000530692 1 Highest 2478 1.303 2 0.000410868 1 Signature: Peter Roberts 2014-02-12 Tel: 847-581-8214 Hammacher Schlemmer 9307 N. Milwaukee Niles, IL 60714, USA

TRF No. FCC 15.247/A Page 1 of 44 Report No.: KAD131223047ERev1.0 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Superior Indoor/Outdoor Speakers MODEL No.: HL2065 TRADE MARK: N/A FCC ID: 2ABRF-HL2065 REPORT NO: KAD131223047E ISSUE DATE: February 12, 2014 Prepared for Hammacher Schlemmer 9307 N. Milwaukee Niles, IL 60714, USA Prepared by DONGGUAN EMTEK CO., LTD. No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 TRF No. FCC 15.247/A Page 2 of 44 Report No.: KAD131223047E Rev1.0 VERIFICATION OF COMPLIANCE Applicant: Hammacher Schlemmer 9307 N. Milwaukee Niles, IL 60714, USA Manufacturer: ECORE TECHNOLOGY COMPANY LIMITED North of Bingang East Road, Huahu Development Zone, Ezhou, Hubei, China Product Description: Superior Indoor/Outdoor Speakers Trade Mark: N/A Model Number: HL2065 File Number: KAD130829075E Date of Test: December 23, 2013 to January 20, 2014 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247(2013). The test results of this report relate only to the tested sample identified in this report. Approved By Sam Lv / Q.A. Manager DONGGUAN EMTEK CO., LTD. TRF No. FCC 15.247/A Page 3 of 44 Report No.: KAD131223047E Rev1.0 Modified History Rev. Summary Date of Rev. Report No. V1.0 Original Report 2014-02-12 KAD131223047E TRF No. FCC 15.247/A Page 4 of 44 Report No.: KAD131223047E Rev1.0 Table of Contents 1. GENERAL INFORMATION ....................................................................................... 6 1.1 PRODUCT DESCRIPTION............................................................................................................... 6 1.2 RELATED SUBMITTAL(S) / GRANT (S)............................................................................................ 6 1.3 TEST METHODOLOGY.................................................................................................................. 6 1.4 SPECIAL ACCESSORIES................................................................................................................ 6 1.5 EQUIPMENT MODIFICATIONS........................................................................................................ 6 1.6 TEST FACILITY............................................................................................................................. 7 2. SYSTEM TEST CONFIGURATION ........................................................................... 8 2.1 EUT CONFIGURATION.................................................................................................................. 8 2.2 EUT EXERCISE............................................................................................................................ 8 2.3 TEST PROCEDURE....................................................................................................................... 8 2.4 LIMITATION.................................................................................................................................. 8 2.5 CONFIGURATION OF TESTED SYSTEM........................................................................................ 12 3. SUMMARY OF TEST RESULTS ............................................................................. 13 4. DESCRIPTION OF TEST MODES........................................................................... 13 5. CONDUCTED EMISSIONS TEST ........................................................................... 14 5.1 MEASUREMENT PROCEDURE: .................................................................................................... 14 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 14 5.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 14 5.4 MEASUREMENT RESULT: ............................................................................................................ 14 5.5 CONDUCTED MEASUREMENT PHOTOS: ...................................................................................... 17 6. RADIATED EMISSION TEST .................................................................................. 18 6.1 MEASUREMENT PROCEDURE..................................................................................................... 18 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 19 6.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 20 6.4 MEASUREMENT RESULT............................................................................................................. 20 6.5 RADIATED MEASUREMENT PHOTOS:........................................................................................... 26 7. CHANNEL SEPARATION TEST ............................................................................. 27 7.1 MEASUREMENT PROCEDURE..................................................................................................... 27 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 27 7.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 27 7.4 MEASUREMENT RESULTS:.......................................................................................................... 27 8. 20DB BANDWIDTH TEST ....................................................................................... 28 8.1 MEA…

Text truncated - open the document above for the full version.
