2ABRGHPA250BHepa Console Bluetooth Air Purifier

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS AIR PURIFIER When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all instructions before operating the air purifier. 2. Place air purifier where it is not easily knocked over by persons in the household. 3. Always turn the air purifier controls OFF and unplug from the wall outlet when not in use. 4. To disconnect the air purifier, make sure the unit is powered OF F, then grip the plug and pull it from the wall outlet. Never pull by the cord. 5. Do not use any product with a damaged cord or plug, or if product malfunctions, is dropped or damaged in any manner. Keep the cord away from heated surfaces. 6. Do not use air purifier outdoors. 7. Never use air purifier unless it is fully assembled. 8. Do not run power cord under carpets and do not cover with throw rugs. Arrange cord so that it will not be tripped over. BLUETOOTH ® SMART AIR PURIFIER TRUE HEPA ALLERGEN REMOVER For Models: HPA250 Series The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kaz USA, Inc. is under license. Other trademarks and trade names are those of their respective owners. 9. Do not use air cleaner where combustible gases or vapors are present. 10. Do not expose the air purifier to rain, or use near water, in a bathroom, laundry area or other damp location. 11. The air purifier must be used in its upright position. 12. Do not allow foreign objects to enter ventilation or exhaust opening as this may cause electric shock or damage to the air purifier. Do not block air outlets or intakes. 13. Locate air purifier near the outlet and avoid using an extension cord. 14. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature. 15. A loose fit between the AC outlet (recep- tacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet. 16. Do not sit, stand or place heavy objects on the air purifier. 17. Disconnect power supply before servicing. 18. SAVE THESE INSTRUCTIONS. WARNING: To Reduce The Risk of Fire or Electric Shock, Do Not Use This Air Purifier With Any Solid-State Speed Control Device. The Honeywell Trademark is used by Kaz USA, Inc. under license from Honeywell International Inc. Honeywell International Inc. makes no representation or warranties with respect to this product. 23 HPA250 series Type R A A R Odor Reducing Pre-Filter or R A A R Household Gas & Odor Reducing Pre-Filter Front Grille YOUR AIR PURIFIERSET-UP • Select a firm, level and flat location. • When operating, large volumes of air are drawn toward the air purifier. Surrounding areas should be cleaned and/or vacuumed frequently to prevent build-up of dust and other contaminants. This may also help prolong the life of the filter. If the unit is placed on a light colored carpet, a small mat or rug should be used underneath to prevent permanent staining. This is especially important in homes with contami- nation from smoking, fireplaces, or where candles are burned. • Ensure the front of the unit faces away from the closest wall or furniture. • Ensure no grilles are blocked. The True HEPA Filters and Odor Reducing Pre-Filter are supplied within the air purifier. New air purifiers have their filters wrapped to ensure purity, and are labeled to help identify the proper replacement filter. (Type R A A R True HEPA Filter; Type R A A R Odor Reducing Pre-Filter or R A A R Household Gas & Odor Reducing Pre-Filter) • Before using your new air purifier you must remove the wrappers covering the filters and Pre-Filter. Make sure the air purifier is OFF and unplugged. Press the two hand symbols () on the front grille to release it from the unit and pull the grille toward you to remove it (see Fig. 2). Grasp the sides of the filter frame near its top end and pull outward. Repeat for the second filter. • Remove protective wrap from the filters (including the Pre-Filter) that have been supplied with your air purifier. • Place the HEPA filters into the air purifier housing. Ensure that the removal “pull” tabs are facing outward (this will facilitate filter removal later). Place the Pre-Filter on top of the HEPA filters. Tuck the edges of the Pre-Filter into the tabs that are located around the edges of where the HEPA filters are inserted. This will hold the Pre-Filter securely in place. • Replace the front grille by placing the tabs on the bottom of the grille into the slot(s) on the unit. Gently push the top of the grille into place by pressing on the hand symbols () to secure in place. Control Panel Type R A A R True HEPA Filters HOW YOUR AIR PURIFIER WORKS This model air purifier incorporates a 2-stage cleaning system to help clean the air that passes through the filter in the unit (Fig. 1). Stage 1: Odor Reducing Pre-Filter Stage 2: True HEPA Filter that captures particles as small as 0.3 microns or larger 2 Filter(s) Odor Reducing Pre-Filter STAGE 1 STAGE 2 Fig. 1 INSTALL TRUE HEPA FILTERS AND ODOR REDUCING PRE-FILTER Fig. 2 Filters: 45 Using the VOC Function: TAP the blue VOC Sensor (Fig. 8) for automatic operation based on VOC (Volatile Organic Compounds) sensed in the air. When the VOC Sensor mode is selected, the upper left indicator light will illuminate blue to indicate that the unit is running in automatic VOC Sensing mode. The lower right indicator will illuminate green, orange, or red depending on the level of VOCs detected in the room by the sensor. Green = Low level of VOCs detected, air purifier will operate in the lowest setting,…

Text truncated - open the document above for the full version.

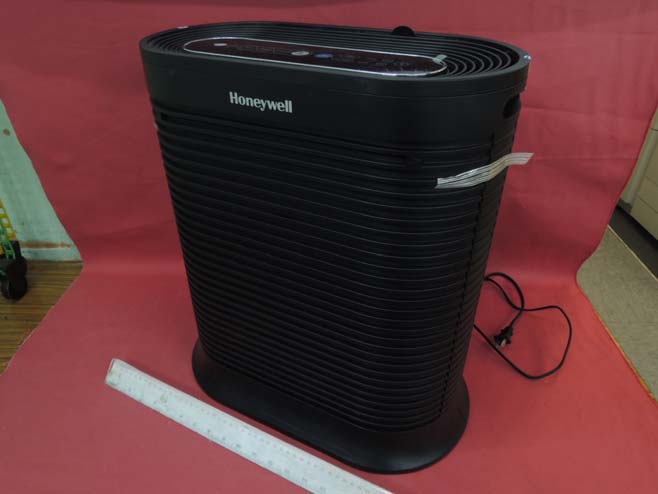

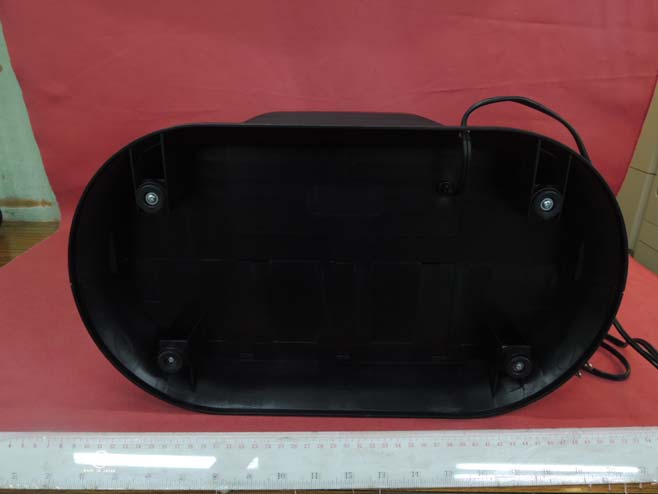

INTERTEK TESTING SERVICE Report No.: 13110894HKG-001 FCC ID: 2ABRGHPA250B Equipment Photographs Model : HPA250B (External) INTERTEK TESTING SERVICE Report No.: 13110894HKG-001 FCC ID: 2ABRGHPA250B Equipment Photographs Model : HPA250B (External)

FCC ID : 2ABRGHPA250B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. HPA250B FCC Label Revised on Jan 28, 2014 Size: 85 x 45 mm P/N: 30LB250BXB0 HPA250B FCC Label FCC ID : XXXHPA250B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (3) In addition, for scanning receivers shall have a label permanently affixed to the product, and this label shall be readily visible to the purchaser at the time of purchase. The label shall read as follows: WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW.

INTERTEK TESTING SERVICE Report No.: 13110894HKG-001 FCC ID: 2ABRGHPA250B Equipment Photographs Model : HPA250B (Internal) INTERTEK TESTING SERVICE Report No.: 13110894HKG-001 FCC ID: 2ABRGHPA250B Equipment Photographs Model : HPA250B (Internal) INTERTEK TESTING SERVICE Report No.: 13110894HKG-001 FCC ID: 2ABRGHPA250B Equipment Photographs Model : HPA250B (Internal) INTERTEK TESTING SERVICE Report No.: 13110894HKG-001 FCC ID: 2ABRGHPA250B Equipment Photographs Model : HPA250B (Internal) INTERTEK TESTING SERVICE Report No.: 13110894HKG-001 FCC ID: 2ABRGHPA250B Equipment Photographs Model : HPA250B (Internal) INTERTEK TESTING SERVICE Report No.: 13110894HKG-001 FCC ID: 2ABRGHPA250B Equipment Photographs Model : HPA250B (Internal) INTERTEK TESTING SERVICE Report No.: 13110894HKG-001 FCC ID: 2ABRGHPA250B Equipment Photographs Model : HPA250B (Internal) INTERTEK TESTING SERVICE Report No.: 13110894HKG-001 FCC ID: 2ABRGHPA250B Equipment Photographs Model : HPA250B (Internal) INTERTEK TESTING SERVICE Report No.: 13110894HKG-001 FCC ID: 2ABRGHPA250B Equipment Photographs Model : HPA250B (Internal)

Analysis Report Report No.: 13110894HKG-001 The Equipment Under Test (EUT) is a Air Cleaner, equipped with Bluetooth 4.0. The EUT operates in the frequency range 2402MHz to 2480MHz (40 channels with 2 MHz spacing). The EUT is powered by 120VAC. At the same time the power on LED (blue colour) on the panel of the unit will be lighted. It can be controlled by Smartphone via Bluetooth communication. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 89.4dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 92.4dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.521mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.521mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 13110894HKG-001 Kaz USA, Inc. Application For Certification (Original Grant) (FCC ID: 2ABRGHPA250B) Transceiver Prepared and Checked by: Approved by: Signed On File Josie Yao Assistant Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: January 27, 2014 INTERTEK TESTING SERVICES Report No.: 13110894HKG-001 FCC ID: 2ABRGHPA250B i GENERAL INFORMATION Kaz USA, Inc. BRAND NAME: Honeywell, MODEL: HPA250B FCC ID: 2ABRGHPA250B Grantee: Kaz USA, Inc. Grantee Address: 250 Turnpike Road, Southborough, MA 01772 Contact Person: Michael Singleton Tel: +1 508 480 7091 Fax: +1 508 460 8063 e-mail: N/A Manufacturer: N/A Manufacturer Address: N/A Brand Name: Honeywell Model: HPA250B Type of EUT: Transceiver Description of EUT: Hepa Console Bluetooth Air Purifier Serial Number: N/A FCC ID: 2ABRGHPA250B Date of Sample Submitted: November 25, 2013 Date of Test: January 6, 2014 to January 17, 2014 Report No.: 13110894HKG-001 Report Date: January 27, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 13110894HKG-001 FCC ID: 2ABRGHPA250B ii SUMMARY OF TEST RESULT Kaz USA, Inc. BRAND NAME: Honeywell, MODEL: HPA250B FCC ID: 2ABRGHPA250B TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.249 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 13110894HKG-001 FCC ID: 2ABRGHPA250B iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 3.4Conducted Emission Configuration Photograph........................................................ 4 3.5 Conducted Emission Data.................................................................................. 4 4.0 Equipment Photographs ..................................................................................... 9 5.0 Product Labelling ................................................................................................ 9 6.0 Technical Specifications ..................................................................................... 9 7.0 Instruction Manual.............................................................................................. 9 8.0 Miscellaneous Information ............................................................................... 10 8.1 Measured Bandwidth / RF Output Signal.......................................................... 10 8.2 Discussion of Pulse Desensitization ................................................................. 13 8.3 Calculation of Average Factor .......................................................................... 13 8.4 Emissions Test Procedures ............................................................................. 14 9.0 Equipment List .................................................................................................. 16 INTERTEK TESTING SERVICES Report No.: 13110894HKG-001 FCC ID: 2ABRGHPA250B 1 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Air Cleaner, equipped with Bluetooth 4.0. The EUT operates in the frequency range 2402MHz to 2480MHz (40 channels with 2 MHz spacing). The EUT is powered by 120VAC. At the same time the power on LED (blue colour) on the panel of the unit will be lighted. It can be controlled by Smartphone via Bluetooth communication. Antenna Type: Internal, Integral For electronic filing, the …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13110894HKG-001 FCC ID: 2ABRGHPA250B Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : HPA250B 13110894HKG-001 INTERTEK TESTING SERVICE Report No: 13110894HKG-001 FCC ID: 2ABRGHPA250B Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : HPA250B 13110894HKG-001

INTERTEK TESTING SERVICE Report No: 13110894HKG-001 FCC ID: 2ABRGHPA250B i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model : HPA250B INTERTEK TESTING SERVICE Report No: 13110894HKG-001 FCC ID: 2ABRGHPA250B ii Configuration Photographs Worst-Case Line-Conducted Emissions (Back View) Model : HPA250B INTERTEK TESTING SERVICE Report No: 13110894HKG-001 FCC ID: 2ABRGHPA250B iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model : HPA250B
