2ABRL10021371transmitter

Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 5 Functional Description / User Manual R A D I O S W I T C H Issue Date 20140509 VITECTOR Page 1/8 Description RADIOSWITCH made by Vitector is a pneumatic switch that sends a radio signal to the receiving unit upon activation. The small radio transmitter unit and the pneumatic switch are packaged within the DW 3S-200 case while the receiver is built into a NEMA4 case. For easy connection to a control unit it is equipped with a NCC (normally closed contact) relay and NOC (normally open contact) relay outputs. Radio Transmitter DW TR – 200 Technical Specifications DW TR - 200 General specifications Frequency band 433 MHz, modulated frequency Coding Fixed codes, 65,000 different codes available Protection class NEMA 4 Temperature range -4 °F to +140 °F Transmitting range Up to 330 ft Battery Lithium CR2032, 3,0 V, 220 mAh, replacable Battery Lifetime up to 75,000 activations, max. 4 years Status LED Green R A D I O S W I T C H Issue Date 20140509 VITECTOR Page 2/8 Receiver Unit RSW-DW-R 433MHz NCC/NOC Technical Specifications RSW-DW-R 433MHz NCC/NOC General specifications Receiving channels 2 Response time Minimum 35 ms (without radio interference) Protection class NEMA 4 Case material ABS transparent grey, PA6 GF30, TPE Dimensions 2.95 x 1.57 x 0.51 inch without wiring Connection 4-core connection wire LIYY 4x0,14² Length 3.28 ft Cable head 1.97 inch dismantled, twisted and tinned isolation stripped 0.2 inch Brown: +24V( AC/DC) White: 0V (Ground) Green/Yellow: NOC relay output Green/Black: NCC Relay output Current drawn max. 30 mA Signal output Status OK Status Crash / Error NCC (Normally closed) NOC (normally open) Closed Open Open Closed Status LED green Programming button Green status LED grey-transparent plastic cover Wiring: Brown: +24 V White: 0V Green/Yellow: NOC relay output Green/Black: NCC relay output Antenna R A D I O S W I T C H Issue Date 20140509 VITECTOR Page 3/8 Factory Default Setting Transmitter with fixed code, receiver non- programmed, upon switching on the receiver the status LED is permanently green, receiver has to be programmed before first use. When receiving a signal from any compatible transmitter, the status LED flashes briefly before going back to green permanently. Programming One (1) Transmitter: Press programming button for 3 seconds, LED flashes slowly. Now activate the DW switch within 5 minutes. Upon receiving the DW signal, the receiver LED rapidly flashes 8 times while the code is being saved and then the LED flashes slowly. Press button for 3 seconds*. After that, the LED goes off. Two (2) Transmitters: Press programming button for 3 seconds, LED flashes slowly. Now activate the first DW switch within 5 minutes. Upon receiving the DW signal, the receiver LED rapidly flashes 8 times while the code is being saved and then the LED flashes slowly. Now activate the second DW switch within 5 minutes. Upon receiving the DW signal, the receiver LED again will rapidly flashes 8 times while the code is being saved. After that, the LED goes off. *Note: Any longer than 3 seconds and the Receiver will require reprogramming. Delete Programming or Re-Program Pressing the programming button for 3 seconds deletes the currently saved code from memory and the receiver can be re-programmed as described above. Low Battery If the battery voltage drops below a certain value, the transmitter’s LED flashes twice (instead of once) and battery replacement should be considered. Additionally, if the battery is not replaced the receiver’s LED will flash from now on. If the voltage drops below a critical level, the receiver LED will flash slower indicating that the relay gate is no longer being set. R A D I O S W I T C H Issue Date 20140509 VITECTOR Page 4/8 Status LED Conditions Transmitter LED Activity LED Description Off idle Flashes once activation signal is being transmitted. System OK Flashes twice Activation signal is being transmitted with reduced power, battery is low. Replace battery! Flashes 3 x Activation signal is being transmitted with heavily reduced power, better is nearly empty, no relay activation Replace battery immediately! Receiver LED Activity LED Description Off idle Flashing steadily Ready for being programmed Rapidly flashes 8 x Transmitter code is being saved Flashes once Relay gate is being set. System OK Flashes permanently Relay gate is being set. Transmitter battery low, consider replacing Blinking permanently Relay gate is not being set. Transmitter battery very low, Replace immediately R A D I O S W I T C H Ausgabestand 20140509 VITECTOR GmbH Seite 5/8 Beschreibung Der RADIOSWITCH von Vitector ist ein Druckwellenschalter welcher bei Betätigung ein Signal über eine Funkstrecke an eine Empfangseinheit schickt. Die kleine Sendereinheit ist mit dem Druckwellenschalter in dem Gehäuse des DW 3S-200 verbaut. Die Empfangseinheit ist in einem IP65 Gehäuse verbaut und kann direkt an eine Steuerung angeschlossen werden. Zu diesem Zweck ist die Empfangseinheit mit einem NCC (Öffner) oder NOC (Schließer) Relais ausgestattet. Sendereinheit DW TR – 200 433 Technische Daten Sendereinheit DW TR - 200 Allgemeine technische Daten Frequenzband 433 MHz, Frequenzmoduliert Codierung Fest codiert, 65.000 verschiedene SenderCodes möglich Schutzart IP 65 Einsatztemperatur -20 °C - +60 °C Reichweite im freien Feld ca. 100m Batterie Lithium-Ion CR2, 3,0 V, 850 mAh, austauschbar Anzeige LED Grün Transparenter Deckel Austauschbare Batterie Grüne Status LED Schlauchanschluss R A D I O S W I T C H Ausgabestand 20140509 VITECTOR GmbH Seite 6/8 Empfängereinheit RSW-R 433MHz NCC/ NOC Technische Daten RSW-R 433MHz NCC/ NOC Allgemeine technische Daten Empfangskanaele 2 Reaktionszeit Minimum 35 ms (ohne Interferenzen) Schutzklasse Gehaeuse IP65 Gehaeusematerial ABS transparent grau, PA6 GF30, TPE Abmessungen 2.95 x 1.57 x 0.51 inch…

Text truncated - open the document above for the full version.

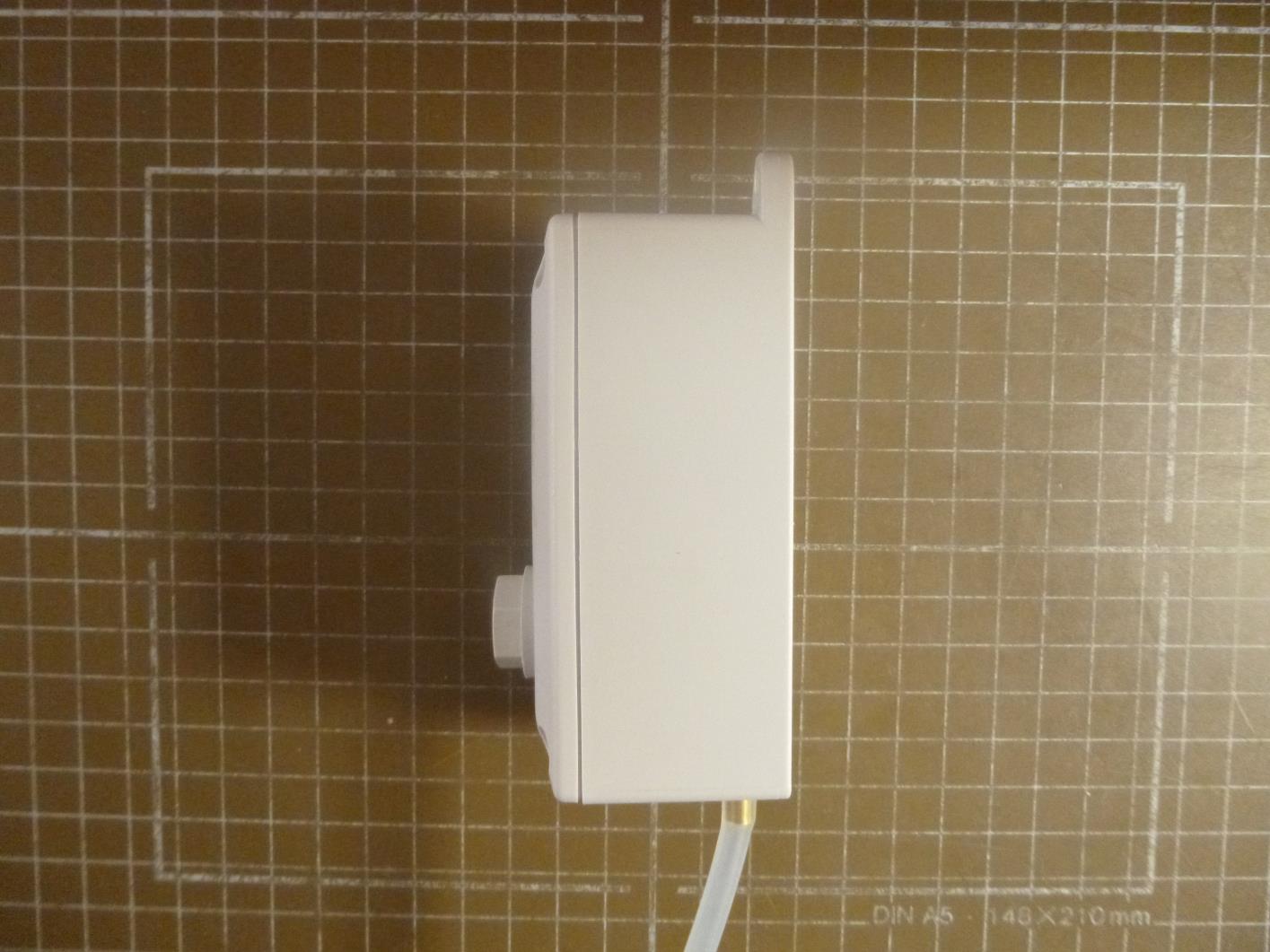

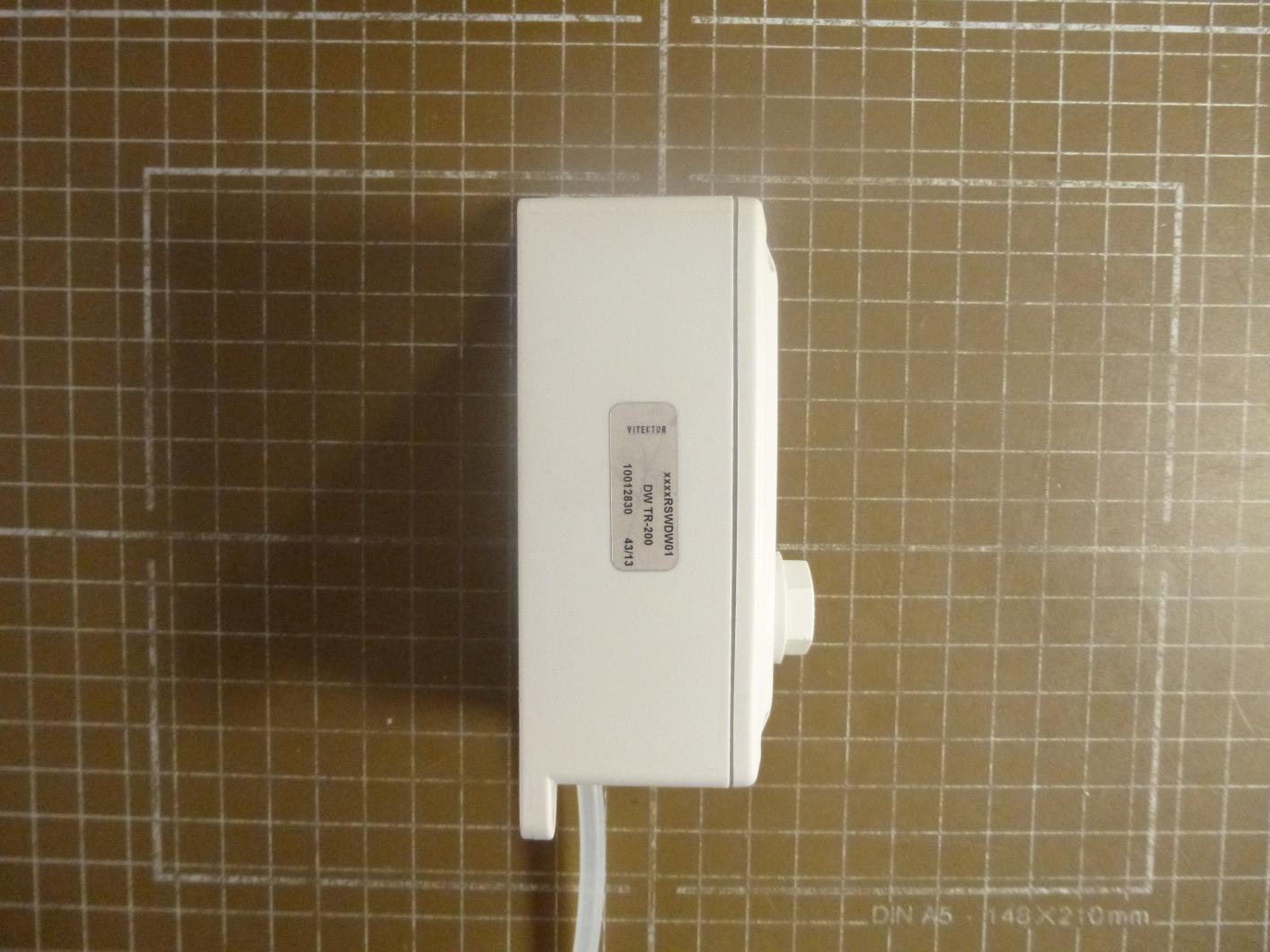

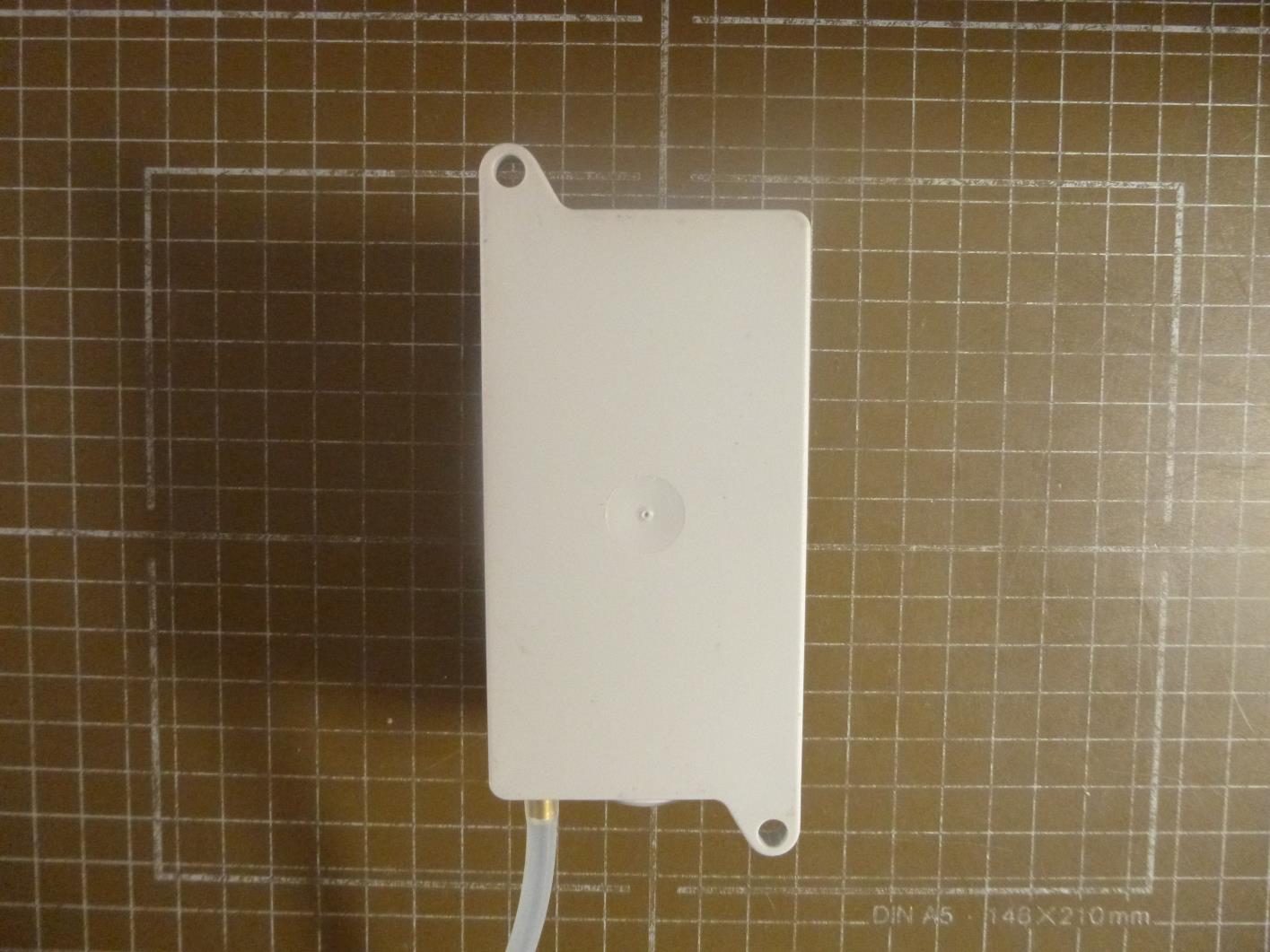

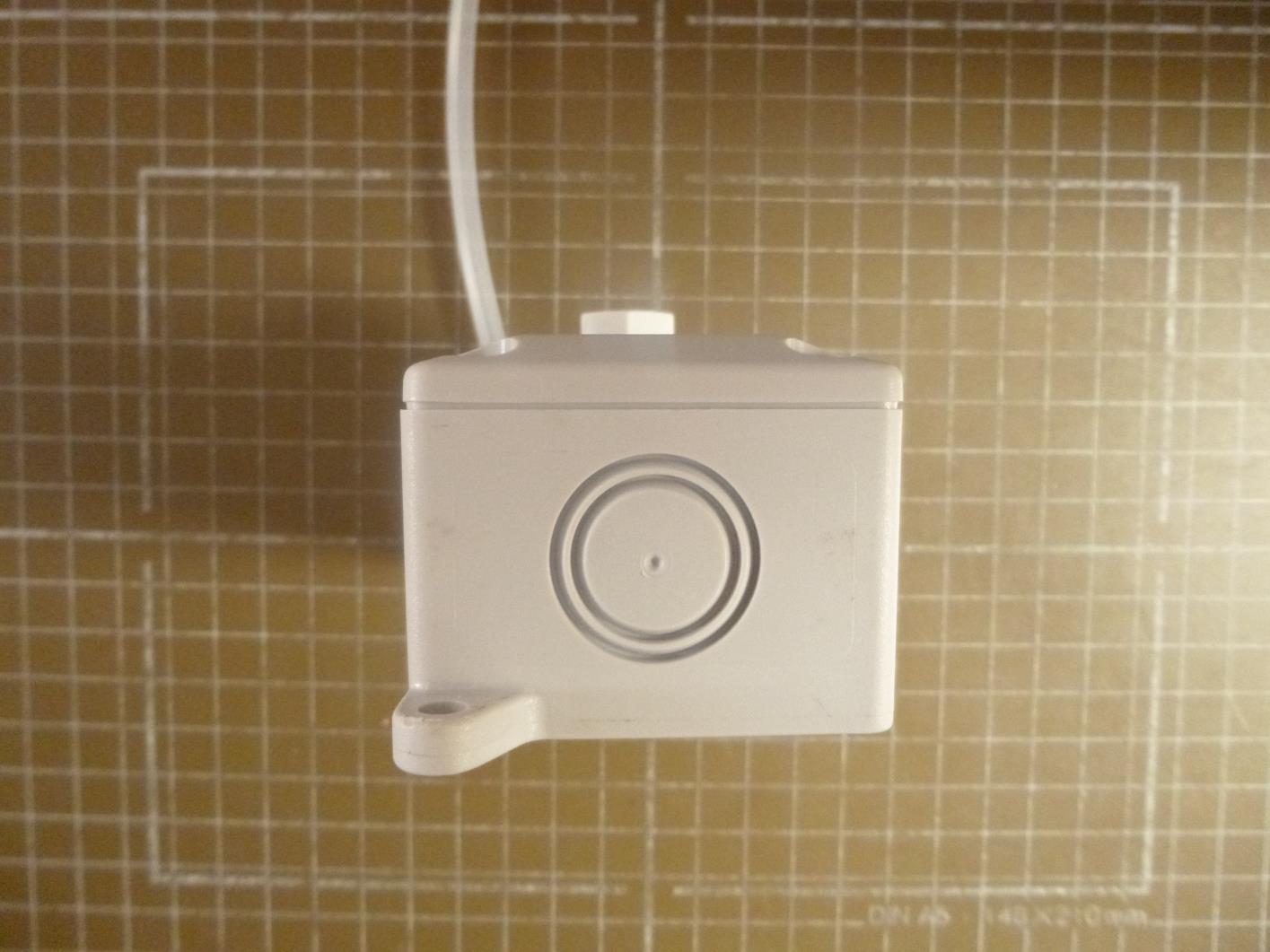

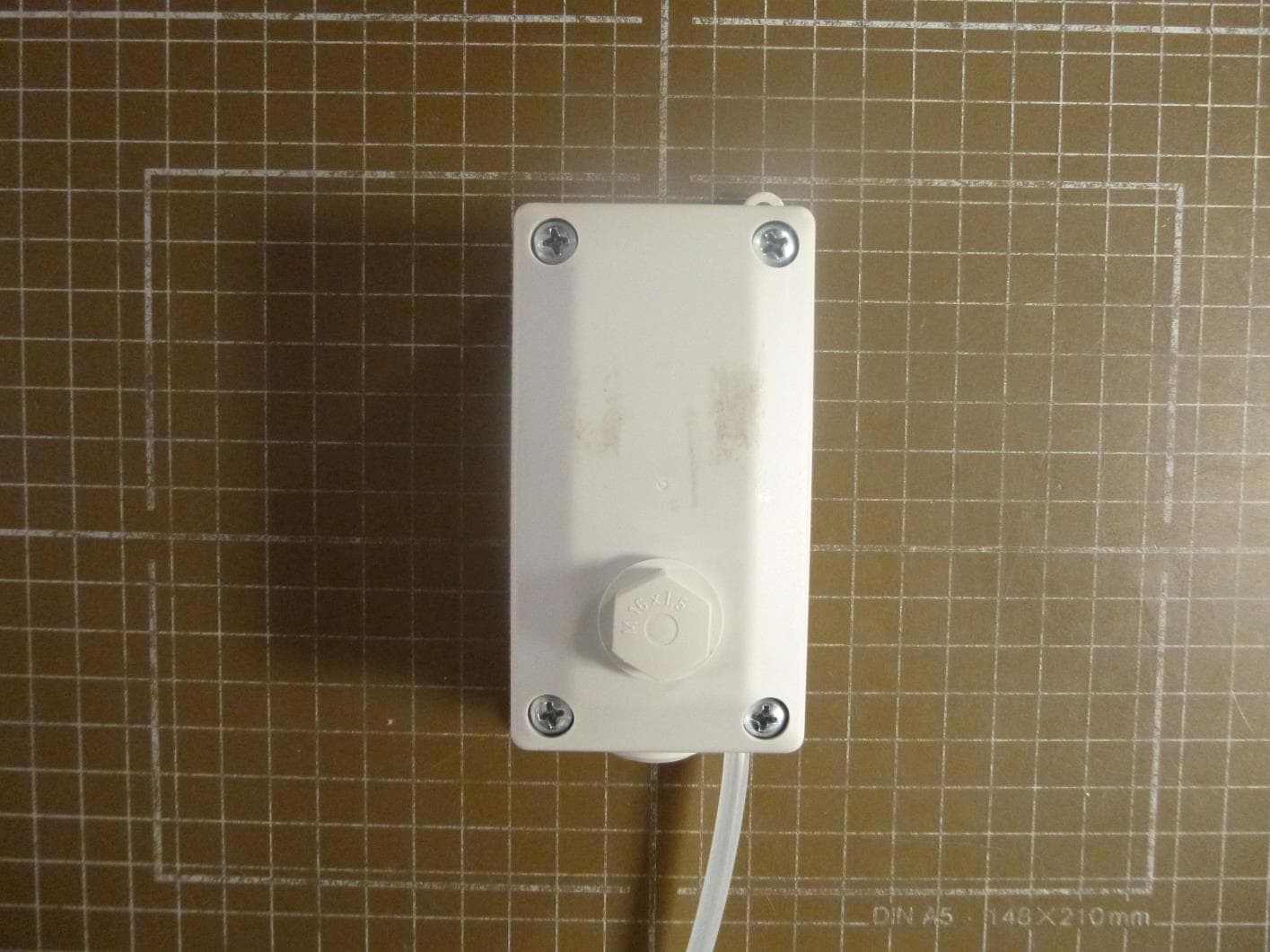

Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 1 External Photographs Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920

Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 4 Label Sample Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Label sample and label location

Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 2 Internal Photographs Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920

Test report no. 14009109 Page 1 of 33 EUT: DW TR-200, 433 MHz FCC ID: 2ABRL10021371 Date of issue: 2014-04-23 Date: 2014-02-24 Vers. no. 2.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Test Report acc. to FCC Title 47 CFR Part 15 relating to FRABA Inc. DW TR-200, 433 MHz Title 47 - Telecommunication Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators Measurement Procedure: ANSI C63.4-2009 Test report no. 14009109 Page 2 of 33 EUT: DW TR-200, 433 MHz FCC ID: 2ABRL10021371 Date of issue: 2014-04-23 Date: 2014-02-24 Vers. no. 2.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Manufacturer’s details Manufacturer FRABA Inc. Manufacturer’s grantee code 2ABRL Manufacturer’s address FRABA Inc. 1800 East State Street Suite 148 Hamilton. NJ 08609-2020 USA Phone: 001-609-689-5062 Fax: 001-609-750-8703 [email protected] Relevant standard used 47 CFR Part 15C - Intentional Radiators ANSI C63.4-2009 Test Report prepared by Technical engineer Ralf Trepper m. dudde hochfrequenz-technik (laboratory) Rottland 5a 51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax: +49 2207 968920 Email: [email protected] Equipment Under Test (EUT) Equipment category Transmitter Trade name RADIOSWITCH Type designation DW TR-200, 433 MHz Serial no. --- Variants --- Test report no. 14009109 Page 3 of 33 EUT: DW TR-200, 433 MHz FCC ID: 2ABRL10021371 Date of issue: 2014-04-23 Date: 2014-02-24 Vers. no. 2.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 1. Test result summary Clause Requirements headline Test result Report page number 8.1 Antenna requirement Pass Fail N.t.* 9 8.2 Conducted limits Pass Fail N.t.* 10 to 12 8.3 Restricted bands of operation Pass Fail N.t.* 13 to 15 8.4 Radiated emission limits, general requirements Pass Fail N.t.* 16 to 21 8.5 Periodic operation characteristics Pass Fail N.t.* 22 to 23 8.6 Fundamental frequencies / Field strength limits Pass Fail N.t.* 24 to 29 8.7 Bandwidth (20 dB) Pass Fail N.t.* 30 to 31 * Not tested The equipment passed the conducted tests Yes No Signature: ............................. Signature: ...................................... (Technician) (Laboratory-Manager) Test report no. 14009109 Page 4 of 33 EUT: DW TR-200, 433 MHz FCC ID: 2ABRL10021371 Date of issue: 2014-04-23 Date: 2014-02-24 Vers. no. 2.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Table of contents 1. Test result summary .......................................................................................................................................... 3 2. Introduction ...................................................................................................................................................... 5 3. Testing laboratory ............................................................................................................................................ 5 4. Applicant .......................................................................................................................................................... 6 5. Product and product documentation ................................................................................................................ 6 6. Conclusions, observations and comments ........................................................................................................ 7 7. Operational description ...................................................................................................................................... 8 8.1 Antenna requirement ....................................................................................................................................... 9 8.1.1 Regulation ............................................................................................................................................. 9 8.1.2 Result .................................................................................................................................................... 9 8.2 Conducted limits ............................................................................................................................................ 10 8.2.1 Regulation ............................................................................................................................................. 10 8.1.2 Test equipment ...................................................................................................................................... 11 8.2.3 Test procedures ..................................................................................................................................... 11 8.2.4 Result .................................................................................................................................................... 12 8.3 Restricted bands of operation ........................................................................................................................... 13 8.3.1 Regulation ............................................................................................................................................. 13 8.3.2 Result .................................................................................................................................................... 15 8.4 Radiated emission limits, general requirements ................................................................................................ 16 8.4.1 Regulation ............................................................................................................................................. 16 8.4.2 Test equipment ..........................................................................................................…

Text truncated - open the document above for the full version.

Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 3 Occupied Bandwidth Plot Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 20 dB bandwidth Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 99 % bandwidth

Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 11 Transmission Times Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 (2) A transmitter activated automatically shall cease transmission within 5 seconds after activation. Worst case transmission time: 2.0928 sec!

Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 6 Test Setup Photographs Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920
