2ABS4-WHD0070Wireless Display Module

User Manual Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure). The following information must be indicated on the host device of this module; [for FCC] Contains Transmitter Module FCC ID: 2ABS4-WHD0070 or Contains FCC ID: 2ABS4-WHD0070 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. *If it is difficult to describe this statement on the host product due to the size, please describe in the User's manual. [for IC] Contains Transmitter Module IC: 11745A-WHD0070 or Contains IC: 11745A-WHD0070 The following statements must be described on the user manual of the host device of this module; [for FCC] FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. 5.15-5.25GHz band is restricted to indoor operations only. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. [for IC] This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. This radio transmitter (IC: 11745A-WHD0070) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio (IC: 11745A-WHD0070) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. Antenna model Antenna type 2.4G gain (dBi)5G gain (dBi) Cable length (mm) WHD0070-A300 PIFA 0.49 1.77 300 WHD0070-A400 PIFA 0.34 1.09 400 WHD0070-A500 PIFA -0.76 1.09 500 5.15-5.25GHz band is restricted to indoor operations only. La bande 5 150-5 250 MHz est restreints à une utilisation à l’intérieur. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps.

Photo Top Top without Shield Photo Bottom

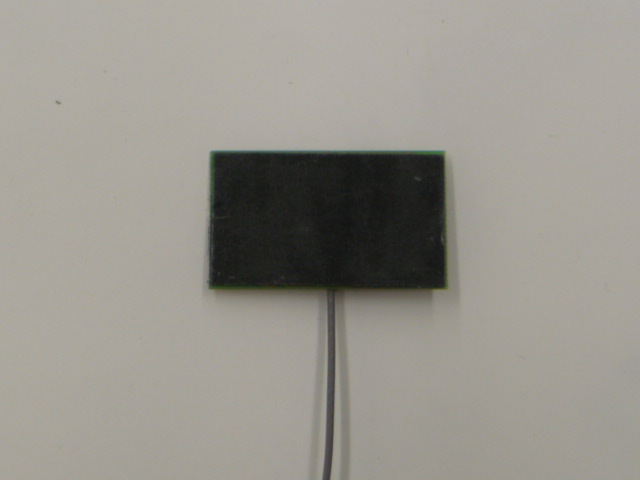

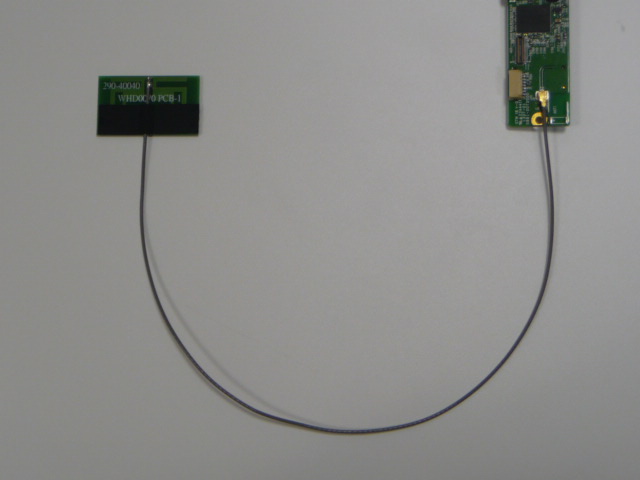

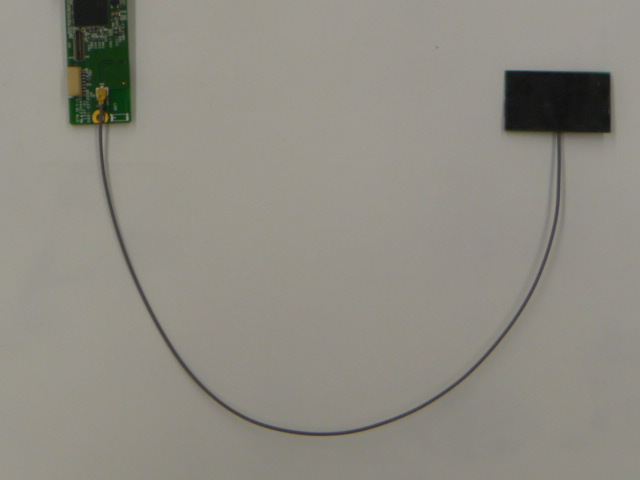

Photo Module with antenna top Module with antenna bottom Photo Antenna top Antenna bottom

V6 1510-0N7R000 Paper / Other Label(安規/認證) V1New 2013/09/14 V2 2013/09/18 V3 2014/02/13 V4“Model name”“name” 2014/02/21 V5“Model ”“Model No” 2014/02/25 V6Display modulemM 2014/02/25 PART NO. DRAFTER PART NAME MODEL NO. MATERIAL 材質 代號 Product Unit Kim_Li 50#白色特多龍(亮面) WHD0070-D103(RoHS) Notes: 1.供應商:求精 2.被貼物材質: 隔離罩 3.尺寸:20*17mm(0.5R*4) 4.Color: black 100% 102.02.25 5 mm 007-AB0284 R0.5*4 007-AB0284 P/N:TZ91681 Hitachi Maxell,Ltd. Wireless Display Module Model No.: WHD0070-D103 IC:11745A-WHD0070 FCC ID: 2ABS4-WHD0070 Made in China W52 20 mm 1.5 mm 1 mm 17 mm 3 mm ※黏貼示意圖50% 007-AB0284 P/N:TZ91681 Hitachi Maxell,Ltd. Wireless Display Module Model No.: WHD0070-D103 IC:11745A-WHD0070 FCC ID: 2ABS4-WHD0070 Made in China W52

Photo Top Top without Shield Photo Bottom

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applica nt: H itachi M axell, Ltd . T ype of Equipment : Miracast Module M odel No. : W HD0070-D103 FCC ID: 2ABS4-W HD0070 H itachi M ax ell, Ltd. declares that M odel : M iracast M odule complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “WHD0070-D103“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 20.24 mW (M aximum peak output power) G = 1.50 Numerical Antenna gain; equal 1.77 dBi r =20.0 cm For: W HD0070-D103S = 0.00605 mW/cm 2 No. : 10068267S-I RF Ex posure / SAR Statement

Test report No. : 10068267S-I Page : 2 of 107 Issued date : February 19, 2014 FCC ID : 2ABS4-WHD0070 Revised date : February 28, 2014 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10068267S-I Revision Test report No. Date Page revised Contents - (Original) 10068267S-I February 19, 2014 - - 1 10068267S-I February 28, 2014 38,41,50 Addition of description (Duty factor) Test report No. : 10068267S-I Page : 3 of 107 Issued date : February 19, 2014 FCC ID : 2ABS4-WHD0070 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 6 SECTION 4: Operation of E.U.T. during testing ................................................................. 9 SECTION 5: Conducted emission ...................................................................................... 11 SECTION 6: Radiated emission ......................................................................................... 12 SECTION 7: Antenna terminal conducted tests ................................................................ 14 Contents of APPENDIXES ................................................................................................... 15 APPENDIX 1: Data of Radio tests ...................................................................................... 16 APPENDIX 2: Test instruments ....................................................................................... 103 APPENDIX 3: Photographs of test setup ......................................................................... 105 Test report No. : 10068267S-I Page : 4 of 107 Issued date : February 19, 2014 FCC ID : 2ABS4-WHD0070 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Hitachi Maxell, Ltd. Address : 292 Yoshida-cho, Totsuka-ku, Yokohama-shi, Kanagawa, 244-0817 Japan Telephone Number : +81 50 3152 1784 Facsimile Number : +81 45 866 5936 Contact Person : Hiroyuki Urata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless Display Module Model Number : WHD0070-D103 Serial Number : Refer to 4.2 in this report. Rating : DC5V Country of Mass-production : China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : November 5, 2013 Modification of EUT : No modification by the test lab. 2.2 Product description Model: WHD0070-D103 (referred to as the EUT in this report) is a Wireless Display Module. Clock frequency(ies) in the system : 19.2MHz, 20MHz Test report No. : 10068267S-I Page : 5 of 107 Issued date : February 19, 2014 FCC ID : 2ABS4-WHD0070 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radio specification: Equipment type : Transceiver Frequency of operation *1) : 2.4GHz: 2412-2462MHz (IEEE 802.11b, 11g, 11n (HT20)) 2422-2452MHz (IEEE 802.11n (HT40)) 5GHz (W52): 5180-5240MHz (IEEE 802.11a, 11n (HT20)) 5190-5230MHz (IEEE 802.11n (HT40)) 5GHz (W58): 5745-5825MHz (IEEE 802.11a, 11n (HT20)) 5755-5795MHz (IEEE 802.11n (HT40)) Bandwidth : 20MHz (IEEE 802.11a/b/g/n), 40MHz (IEEE 802.11n) Channel spacing : 5MHz (2.4GHz), 20MHz (IEEE 802.11a, 11n (HT20, 5GHz)), 40MHz (IEEE 802.11n (HT40, 5GHz)) Type of modulation : DSSS, OFDM Antenna type *2) : PCB Antenna Antenna connector type : U.FL ITU code : D1D, G1D Operation temperature range : 0 to +40 deg.C *1) Refer to the test report 10068267S-H for FCC 15.247. * The EUT does not perform simultaneous transmission of 2.4GHz and 5GHz Wireless LAN. *2) The EUT has 3-type of antenna. One of the antennas is connected to the product. No. Antenna Brand Antenna model Antenna type 2.4G gain (dBi) 5G gain (dBi) Cable length (mm) Remark 1 Hitachi WHD0070-A300 PIFA 0.49 1.77 300 - 2 Hitachi WHD0070-A400 PIFA 0.34 1.09 400 - 3 Hitachi WHD0070-A500 PIFA -0.76 1.09 500 - The testing has been performed using WHD0070-A300 which has the highest antenna gain. FCC 15.31 (e) / 212 The RF Module has its own regulator. The RF Module is constantly provided voltage (DC3.3V, DC1.2V, DC1.8V) through the regulator regardless of input voltage. Therefore, this EUT complies with the requirement. FCC 15.203 / 212 The EUT has a unique coupling/antenna connector (U.FL). Therefore the equipment complies with the requirement. Test report No. : 10068267S-I Page : 6 of 107 Issued date : February 19, 2014 FCC ID : 2ABS4-WHD0070 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart E: 2013, final revised on September 30, 2013 and effective October 30, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart E Unlicensed National Information Infrastructure Devices Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.407 General technical requirements 3.2 Procedures & Results Item Test Procedure *1) Specification RemarksDeviation Worst Margin Results Conducted emission ANSI C63.4:2009 7. AC powerline conducted emission measurements FCC 15.407 (b)(6) & 15.207 - N/A 28.0dB Freq.: 0.34671MHz Detection: QP Phase: N Mode: Tx 5180MHz, IEEE 80…

Text truncated - open the document above for the full version.

Test report No. : 10005707S-A Page : 21 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Front Side Test report No. : 10068267S-I 105 of 107 Test report No. : 10005707S-A Page : 22 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front Rear (below 1GHz) Rear (above 1GHz) Test report No. : 10068267S-I 106 of 107 Test report No. : 10005707S-A Page : 23 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position Module Antenna X-axis X-axis Y-axis Y-axis Z-axis Z-axis END OF REPORT Test report No. : 10068267S-I 107 of 107
