2ABSD-VXE780Bluetooth Stereo Headset

VOXOA Wireless In-Ear Stereo Sports Earphones Bluetooth 4.0, NFC, aptX User’s manual (model VXE780) Contents
Brief introduction......................................................1
Before use..............................................................1 1. Overview..................................................................1 2. Charging the earphones..................................................2



Getting started........................................................3 1. Turning on/off the earphones..............................................3 2. Wearing the earphones..................................................................3 3. Pairing/connecting................................................................4 1) Pairing earphones with Bluetooth mobile device via Bluetooth...4 2) Pairing earphones with Bluetooth mobile device via NFC............5 3) Pairing earphones with multi devices via Bluetooth ................6 4. Making a call with the earphones.....................................6 5. Playing music..............................................................9 6. LED indicator ..........................................................10 7. Factory Reset ............................................................10



Care and maintenance..............................................11



FAQs....................................................................11



Specification...........................................................12 Thank you for purchasing VOXOA Wireless In-Ear Stereo Sports Earphones (VXE780). Please read this user’s manual carefully before use. Enjoy, share and repeat.
Brief introduction VXE780 is a pair of In-Ear Bluetooth stereo earphones, and it supports NFC technology for one touch pairing and connecting. With aptX technology, you can enjoy CD-quality music wireless with your mobile devices; when you answer a call, the music stops automatically. It is perfectly designed for people on the go.
Before use 1. Overview 1 1 Cover of charging jack 6 NFC area 2 Micro USB charging jack 7 LED indicator 3 :volume up/previous song 8 Microphone 4 : Multi-functions button 9 Big/middle/small eartips 5 : volume down/next song 10 Stabilizer 2. Charging for earphones The earphones come with a built-in rechargeable battery, it is recommended to charge the battery fully for the first time. When the earphones are low in power, the earphones emit prompt tones every 5 minutes and the red LED flashes. It is time to recharge the battery of the earphones. The way of charging as following: Using USB cable 1. Open the cover of the charging jack (the right earphone), and plug the USB charging cable, stop when you can’t push any further (don’t force it). 2. Plug another side of cable to the USB port of PC/Mac/USB charger. Red light on: Charging. Red light off: Finish charging. 3. It takes about 2 hours to finish charging. Remarks: 1) The battery is recyclable. 2) Batteries (battery pack or batteries installed) shall not be exposed to excessive heat place, such as sunshine, fire or the like. 2
Getting started 1. Turning on/off the earphones Functions Operation Prompt tone Turning on Press and hold about 4 seconds until blue LED flashes Four rising tones Turning off Press and hold about 4 seconds until red LED flashes Four fall tones Remark: To save power, the earphones will turn off automatically if they are not connected to a Bluetooth device for more than 5 minutes. 2. Wearing the earphones a. Put the stabilizer into the earphones and rotate to the suitable position as shown below: 3 b. Choose suitable size eartips according to your ear and wear as following shown: c. Set up the cord management clips to get better wearing as following shown: 3. Pairing/connecting 1) Pairing earphones with Bluetooth mobile device via Bluetooth Prior to using the earphones for the first time, you have to pair it with a Bluetooth-enabled mobile device. The pairing procedures are subject to different models of mobile devices. Please refer to your mobile device user’s manual for further information. The general pairing procedures are as follows: 1) Keep your earphones turned off and within 1 meter of mobile device; 2) Press and hold about 8 seconds until the red and blue LED flash alternately, the earphones enter into pairing mode; 4 3) Activate your mobile device’s Bluetooth function and search for Bluetooth devices within range, select “VOXOA Earphone 78X” from the list of devices shown (enter password “0000 ” if the earphones prompt); 4) After successful connecting, blue LED of earphones flashes twice every 4 seconds Remarks:  Pairing mode will last 2 minutes, the earphones will back to standby mode if the pairing failure.  If the pairing is not successful, turn off the earphones and repeat the steps as above.  Every time the earphones is turned on, it will connect to last connected device automatically. The earphones can remember 8 previously paired devices, when the number of paired devices exceeds 8, the first one will be replaced. 2) Pairing earphones with a Bluetooth mobile device via NFC VXE780 support NFC technology, it can quickly connect with Bluetooth mobile device via NFC. The general pairing procedures are as follows: 1) Please activate the Bluetooth and NFC function of mobile device; 2) Pairing and connecting with mobile device. Please refer to following pictures: 5 Remarks:  Please keep the NFC area of mobile device and earphones within 1 centimeter until the red and blue LED of earphones flash alternately (It may take 3 seconds to make the first pairing).  The earphones will disconnect when the NFC area of mobile device and earphones touch each other again. 3) Pairing earphones with multi devices via Bluetooth The earphones can connect with two Bluetooth mobile devices at the same time. The general pairing procedures are as follows: 1) Pairing the earphones with device one 2) Turn on the earphones to enter into pairing mode a…

Text truncated - open the document above for the full version.

FEBRUARY 11, 2014 Federal Communications Commission Authorization and Evaluation Division FCC ID: 2ABSD-VXE780 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name：Dp Deng Company name: VOXOA Inc. Tel/Fax.：+1 866-526-8918 VOXOA Inc. 5500 Stewart Ave Ste 108, Fremont, CA 94538 Tel 1-866-526-8918 Fax 1-866-526-8918 [email protected] www.voxoa.com

Declaration Product Name:Bluetooth Stereo Headset Model: VXE780 FCC ID: 2ABSD-VXE780 We declare that the product applied FCC ID item, the label will be permanently pasted on the product

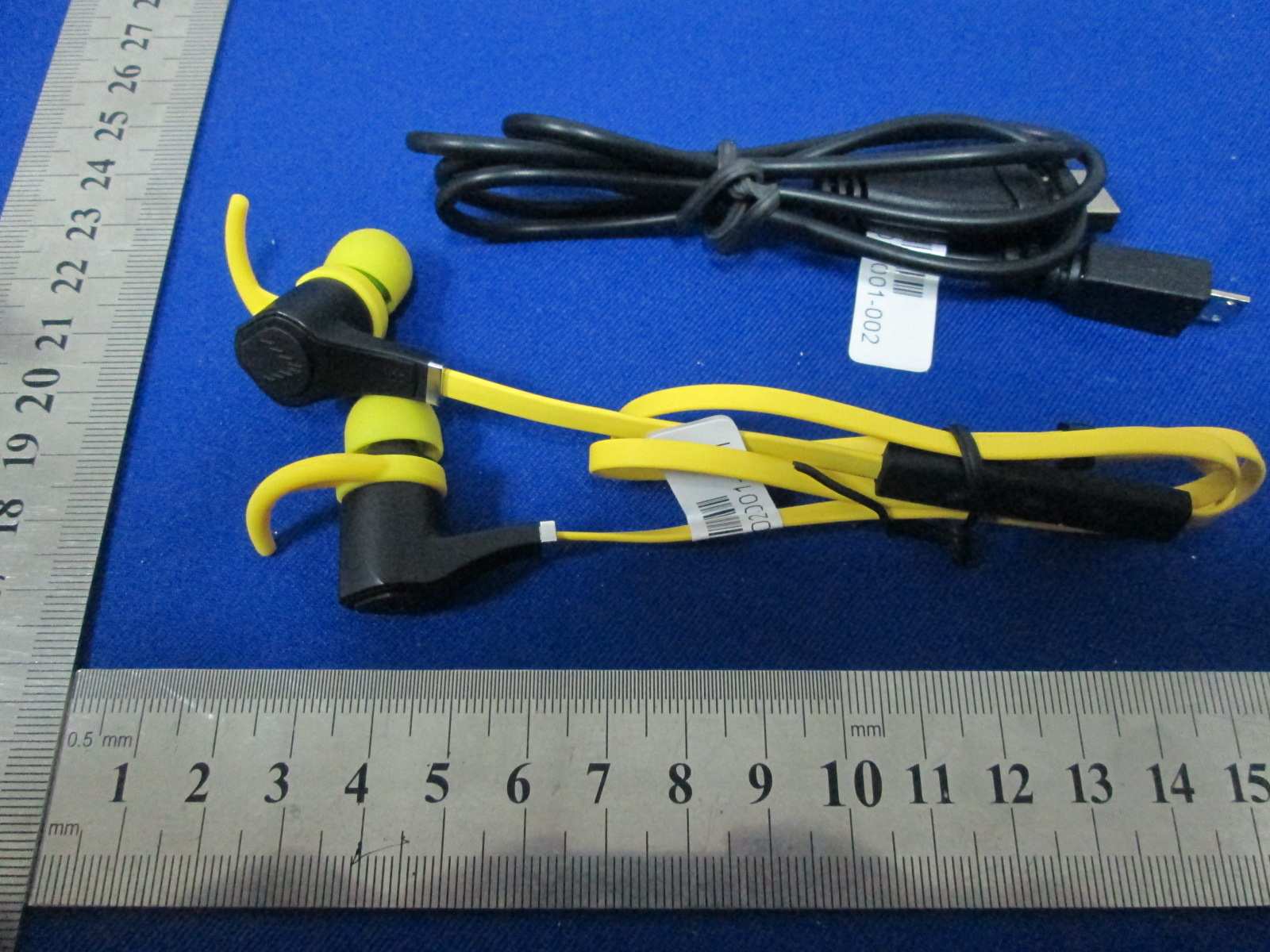

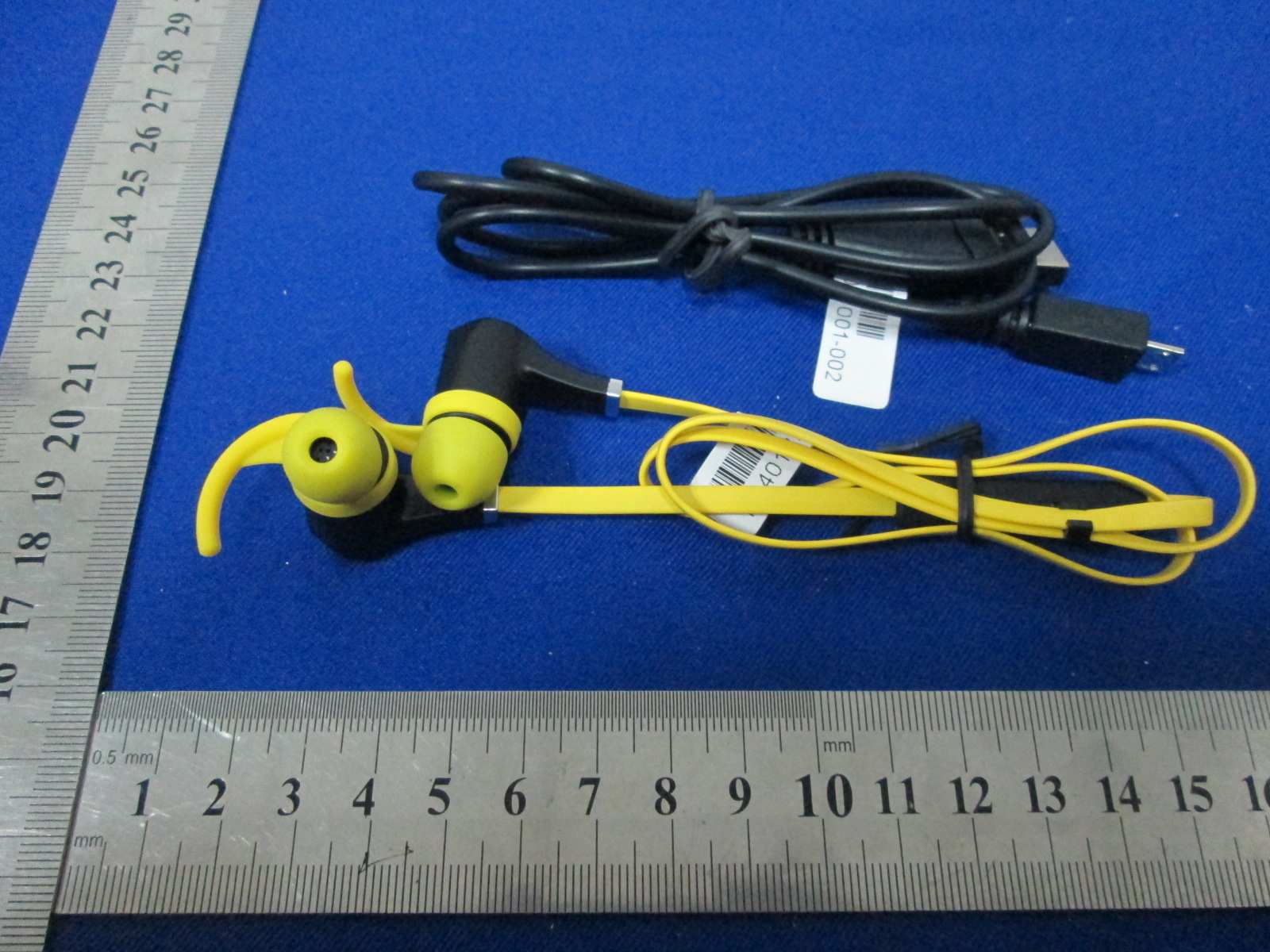

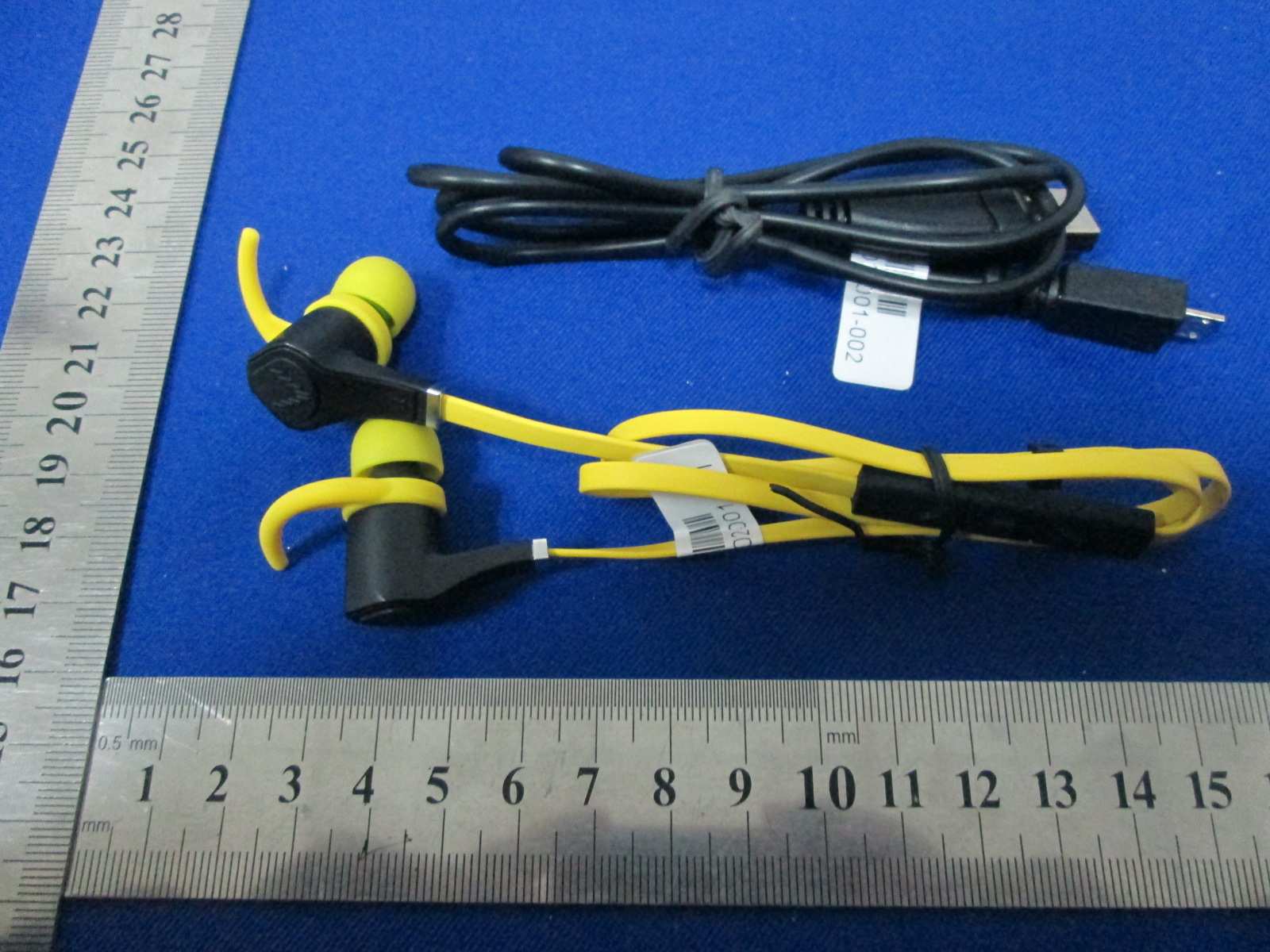

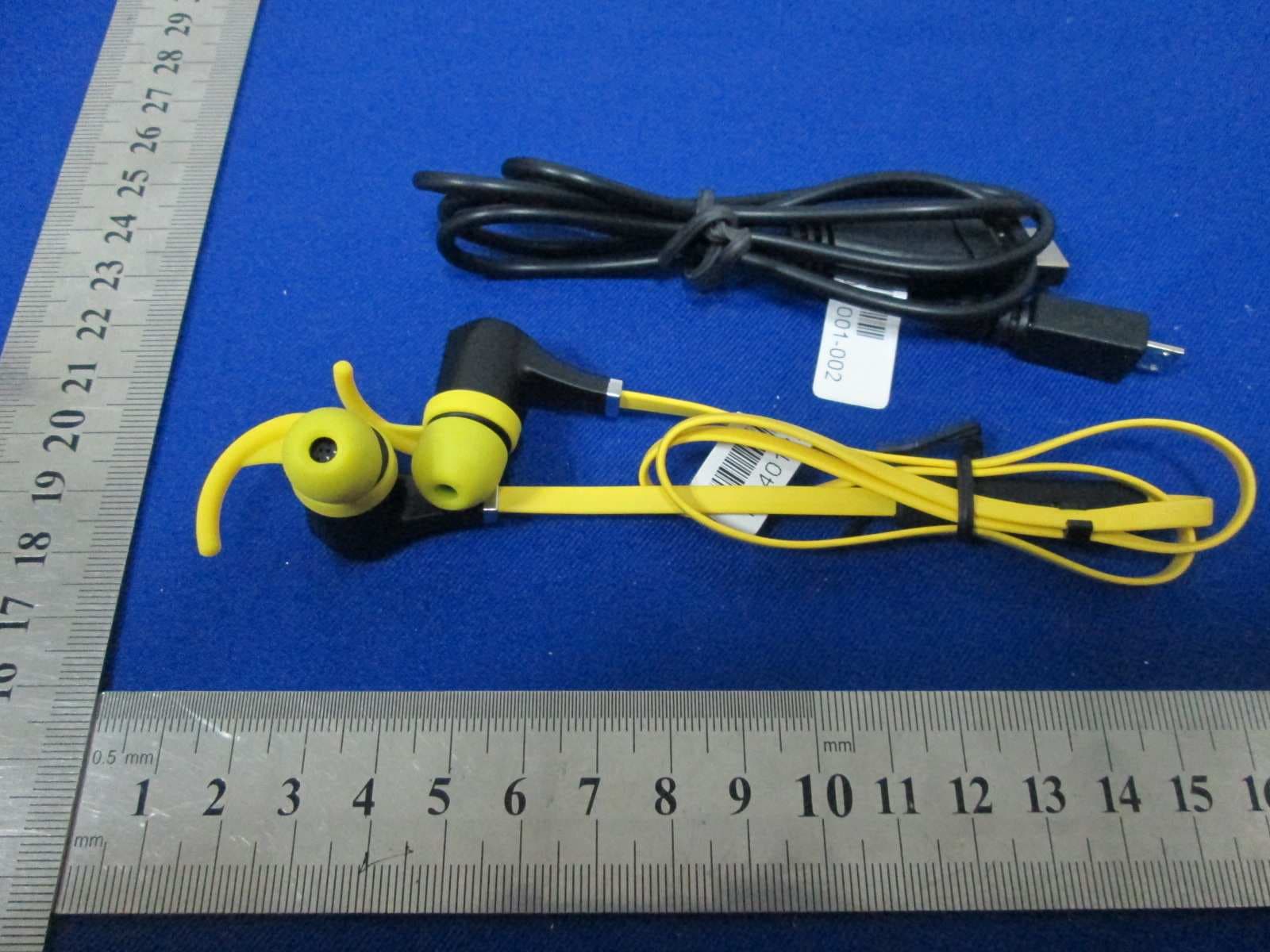

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 2 Report Version 1 Test Report No.: RF140127N007 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 2 Report Version 1 Test Report No.: RF140127N007

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 5 Report Version 1 Test Report No.:RF140127N007 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 5 Report Version 1 Test Report No.:RF140127N007 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 5 Report Version 1 Test Report No.:RF140127N007 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 5 Report Version 1 Test Report No.:RF140127N007 BT ANT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 5 of 5 Report Version 1 Test Report No.:RF140127N007 NFC ANT

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 41 Report Version 1 Test Report No.: RF140127N007 TEST REPORT Applicant VOXOA Inc. Address 5500 Stewart Ave, Ste 108, Fremont, CA 94538, USA Manufacturer or Supplier Zhongshan K-mate General Electronics Co., Ltd Address Fuwan Industrial Zone, Fuwan South Road, Sunwen East Road, East District, Zhongshan, China Product Bluetooth Stereo Headset Brand Name VOXOA Model VXE780 Additional Model & Model Difference N/A Date of tests Dec. 02 ~ Dec. 16, 2013 The submitted sample of the above equipment has been tested according to the requirements of the following standards: FCC Part 15, Subpart C, Section 15.249(2012-10) CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Venless Long Project Engineer / EMC Department Approved by Glyn He Supervisor / EMC Department This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 41 Report Version 1 Test Report No.: RF140127N007 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 4 1 SUMMARY OF TEST RESULTS.................................................................................................... 5 2 MEASUREMENT UNCERTAINTY................................................................................................. 5 3 GENERAL INFORMATION ............................................................................................................ 6 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................... 6 3.2 DESCRIPTION OF TEST MODES ............................................................................................. 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 9 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................... 9 4 TEST TYPES AND RESULTS...................................................................................................... 10 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................................... 10 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................................... 10 4.1.2 TEST INSTRUMENTS ......................................................................................................... 10 4.1.3 TEST PROCEDURES ...........................................................................................................11 4.1.4 DEVIATION FROM TEST STANDARD .................................................................................11 4.1.5 TEST SETUP ....................................................................................................................... 12 4.1.6 EUT OPERATING CONDITIONS ......................................................................................... 12 4.1.7 TEST RESULTS ................................................................................................................... 13 4.2 RADIATED EMISSION MEASUREMENT ................................................................................ 15 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.......................................................... 15 4.2.2 TEST INSTRUMENTS ......................................................................................................... 16 4.2.3 TEST PROCEDURES .......................................................................................................... 17 4.2.4 DEVIATION FROM TEST STANDARD ................................................................................ 18 4.2.5 TEST SETUP ....................................................................................................................... 18 4.2.6 EUT OPERATING CONDITIONS ......................................................................................... 18 4.2.7 TEST RESULTS ................................................................................................................... 19 4.3 20dB BANDWIDTH MEASUREMENT...................................................................................... 32 4.3.1 LIMITS OF 20dB BANDWIDTH MEASUREMENT.............................................................. 32 4.3.…

Text truncated - open the document above for the full version.

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 2 Report Version 1 Test Report No.: RF140127N007 SET-UP FOR CONDUCTED EMISSION TEST Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 2 Report Version 1 Test Report No.: RF140127N007 SET-UP FOR RADIATED EMISSION TEST Frequency Range< 30MHz~1GHz > Frequency Range< Above 1GHz >
