2ABSOA1144V2SEARCHGPS 2 (Bluetooth Low Energy Watch with GPS Receiver)

SELECT UP DOWN LIGHT Quick Start Guide HOW IT ALL WORKS The Rip Curl SearchGPS2 Watch and Search App are a revolutionary way to track your surfing and other activities. You can now re-live your top speed, distance travelled, wave count and session time. Track your other activities from surf to snow, run to swim, as your watch connects to satellites orbiting the earth. * Watch may need charging before first use. GPS will not work indoors. One Touch Auto-Set Set the tide data for your local break or 1,400 other tide locations with the One Touch Auto-Set function. Hold SELECT in time-mode to perform GPS Auto-Set. GPS will not work indoors SETTING THE TIDE & TIME 18_SearchGPS_2_QuickStartGuide.indd 1-34/5/18 1:54 pm 1 SELECT UP DOWN LIGHT Quick Start Guide HOW IT ALL WORKS The Rip Curl SearchGPS2 Watch and Search App are a revolutionary way to track your surfing and other activities. You can now re-live your top speed, distance travelled, wave count and session time. Track your other activities from surf to snow, run to swim, as your watch connects to satellites orbiting the earth. * Watch may need charging before first use. GPS will not work indoors. One Touch Auto-Set Set the tide data for your local break or 1,400 other tide locations with the One Touch Auto-Set function. Hold SELECT in time-mode to perform GPS Auto-Set. GPS will not work indoors SETTING THE TIDE & TIME 18_SearchGPS_2_QuickStartGuide.indd 1-34/5/18 1:54 pm Instruction Manual SELECT UP DOWN LIGHT Quick Start Guide HOW IT ALL WORKS The Rip Curl SearchGPS2 Watch and Search App are a revolutionary way to track your surfing and other activities. You can now re-live your top speed, distance travelled, wave count and session time. Track your other activities from surf to snow, run to swim, as your watch connects to satellites orbiting the earth. * Watch may need charging before first use. GPS will not work indoors. One Touch Auto-Set Set the tide data for your local break or 1,400 other tide locations with the One Touch Auto-Set function. Hold SELECT in time-mode to perform GPS Auto-Set. GPS will not work indoors SETTING THE TIDE & TIME 18_SearchGPS_2_QuickStartGuide.indd 1-34/5/18 1:54 pm SELECT UP DOWN LIGHT Quick Start Guide HOW IT ALL WORKS The Rip Curl SearchGPS2 Watch and Search App are a revolutionary way to track your surfing and other activities. You can now re-live your top speed, distance travelled, wave count and session time. Track your other activities from surf to snow, run to swim, as your watch connects to satellites orbiting the earth. * Watch may need charging before first use. GPS will not work indoors. One Touch Auto-Set Set the tide data for your local break or 1,400 other tide locations with the One Touch Auto-Set function. Hold SELECT in time-mode to perform GPS Auto-Set. GPS will not work indoors SETTING THE TIDE & TIME 18_SearchGPS_2_QuickStartGuide.indd 1-34/5/18 1:54 pm WATCH FEATURES 19 Timer. 19 Alarm. 19 Light. 19 Battery check. SETTINGS 20 Changing user preferences MAINTENANCE 21 Charging your watch. 22 Updating your watch firmware. 22 Caring for your watch. TECH SPECIFICATIONS WARRANTY SERVICE AND SUPPORT WELCOME TO THE SEARCH 03 How it all works. GETTING STARTED 04 Watch navigation. 05 Setting the tide & time. TRACK YOUR SURF 08 Start surfing. 09 End your surf. SYNC YOUR SURF 10 System requirements. 13 iPhone App Sync. 14 Desktop App Sync. TIDE 15 Reading the tide. 18 Manual tide set. CONTENTS Rip Curl SearchGPS 2 Instruction Manual 2 Rip Curl SearchGPS 2 Instruction Manual HOW IT ALL WORKS The Rip Curl SearchGPS2 Watch and Search App are a revolutionary way to track your surfing and other activities. You can now re-live your top speed, distance travelled, wave count and session time. Track your other activities from surf to snow, run to swim, as your watch connects to satellites orbiting the earth. WELCOME TO THE SEARCH 3 Rip Curl SearchGPS 2 Instruction Manual WATCH NAVIGATION GETTING STARTED The Rip Curl SearchGPS 2 watch has three buttons. SELECT - Provides access to the highlighted feature. UP - Moves the selection upward. DOWN - Moves the selection downward. LIGHT - Press both UP and DOWN buttons together to activate light. 4 Rip Curl SearchGPS 2 Instruction Manual One Touch Auto-Set Set tide data for your local break or 1,400 other tide locations with the One Touch Auto-Set function. Hold the SELECT button in time-mode to perform GPS Auto-Set. GETTING STARTED SETTING THE TIME AND TIDE 5 Rip Curl SearchGPS 2 Instruction Manual Setting the DST (Daylight Savings Time) Once the satellite has fixed your location (1-5 minutes) you will be prompted to select DST (Daylight Savings Time) on or off. Your tide and time are now set GETTING STARTED SETTING THE TIME AND TIDE 6 Rip Curl SearchGPS 2 Instruction Manual Manual time set To manually set the time navigate to: MENU > SETTINGS > TIME / TIDE SET > MANUAL TIME SET. Setting date format To adjust date format navigate to: MENU > SETTINGS > DATE FORMAT > SELECT. Setting time format (12 hr / 24 hr) To adjust the time format navigate to: MENU > SETTINGS > TIME FORMAT > SELECT. Manual tide set To manually set the tide navigate to: MENU > SETTINGS > TIME / TIDE SET > MANUAL TIME SET. Destinations are categorised by region. Eg; PACIFIC > AUSTRALIA > VICTORIA > BELLS BEACH GETTING STARTED SETTING THE TIME AND TIDE 7 SURF COMP GO TRACK LAST Rip Curl SearchGPS 2 Instruction Manual Go Surf Press SELECT and navigate to MENU > TRACK > GO SURF. Once the satellite has fixed your location (1-5 minutes) you will be prompted to START SURFING. Press SELECT to begin tracking your surf. When tracking a surf your watch will display TOP SPEED, WAVE COUNT, DISTANCE TRAVELED, & GPS CO-ORDINATES Go Track Press SELECT and navigate to MENU > TRACK > GO TRACK. Once the satellite has fixed your location (1-5 minutes) you will be prompted to START TRACKING. Press SELECT to begin tracking your activity. When tracking an activity your watch will display CURRENT SPEED, AVERA…

Text truncated - open the document above for the full version.

Rip Curl Pty Ltd. Address: 101 Surf Coast Hwy Torquay Vic Australia Tel: +61352610000 Email: [email protected] Date: 2022-12-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Rip Curl Pty Ltd. hereby declare that the RF chip, model NRF52840, installed in our product SEARCHGPS 2 (Bluetooth Low Energy Watch with GPS Receiver), Model:A1144,FCC ID:2ABSOA1144V2,which supports BDR (GFSK), EDR (π/4-DQPSK, 8DPSK), BLE 1M and BLE 2M functions, Bluetooth Mesh, NFC,Thread and Zigbee. But for marketing purpose, this chip will not support/enable BDR (GFSK), EDR (π/4-DQPSK, 8DPSK)，Bluetooth Mesh, NFC,Thread and Zigbee. BDR (GFSK), EDR (π/4-DQPSK, 8DPSK)，Bluetooth Mesh, NFC,Thread and Zigbee has been shielded by the manufacturer using the software. Sincerely Yours, Signature: Michael Choma Snr Designer

Rip Curl Pty Ltd. Address: 101 Surf Coast Hwy Torquay Vic Australia Tel: +61352610000 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2022-12-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We RIP CURL PTY LTD., the undersigned, hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Michael Choma Snr Designer

Rip Curl Pty Ltd. Address: 101 Surf Coast Hwy Torquay Vic Australia Tel: +61352610000 Email: [email protected] FCC Confidential Authorization Date: 2022-12-07 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ABSOA1144V2 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Rip Curl Pty Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description As well as short-term confidential treatment of information accompanying this application for a period of 180 days after grant is issued as outlined below:  Internal Photos  User’s Manual  External Photos  Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Michael Choma Snr Designer

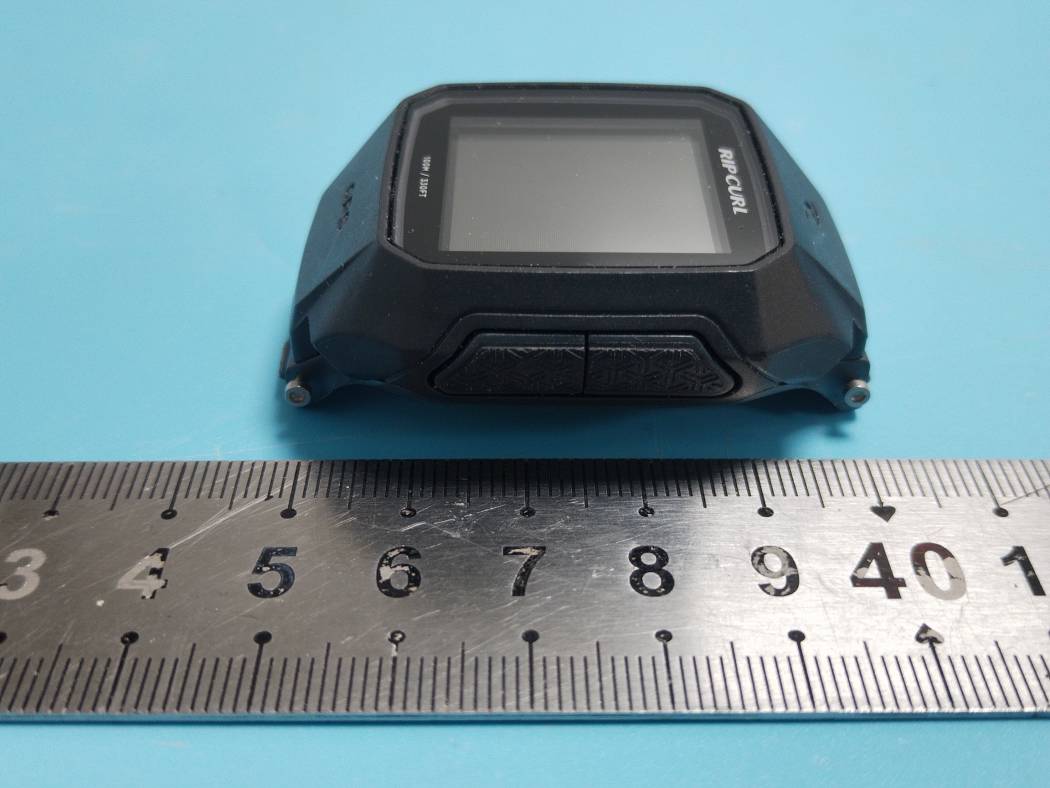

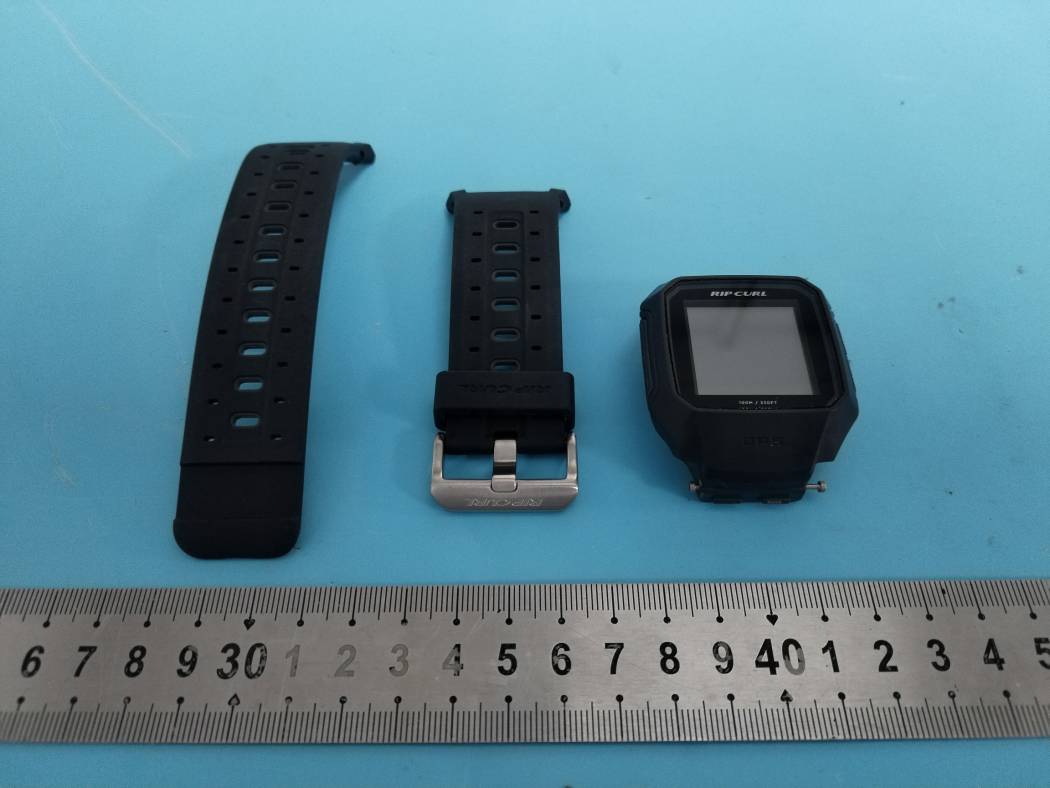

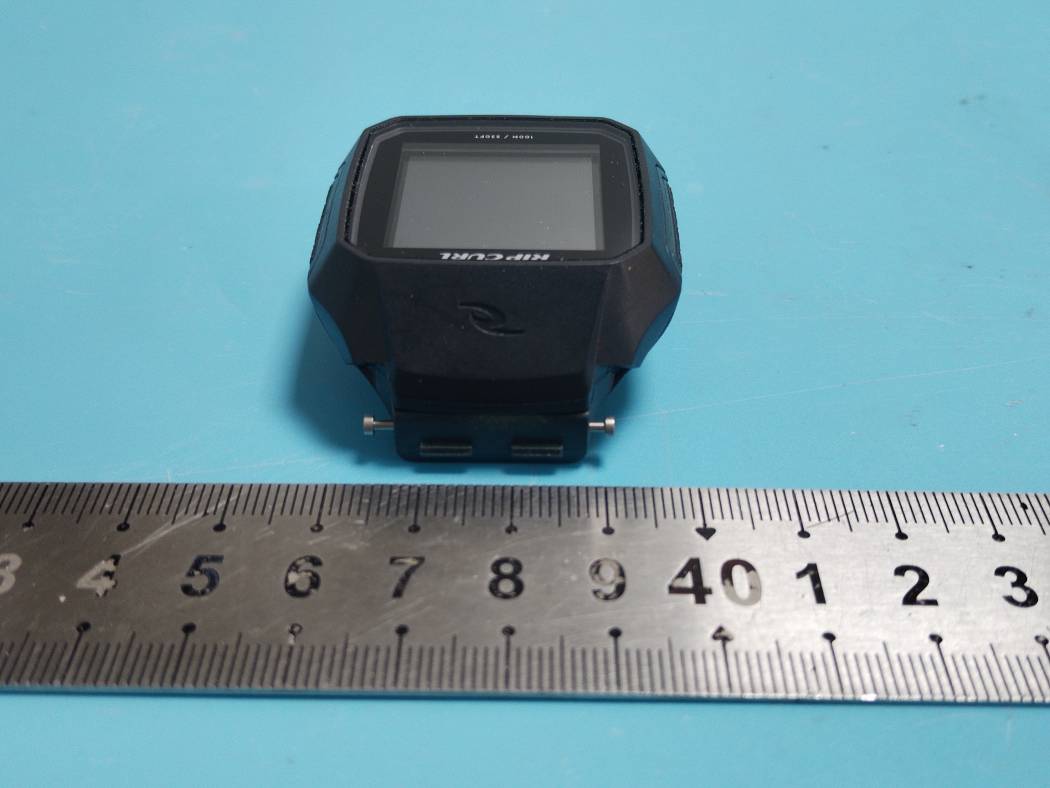

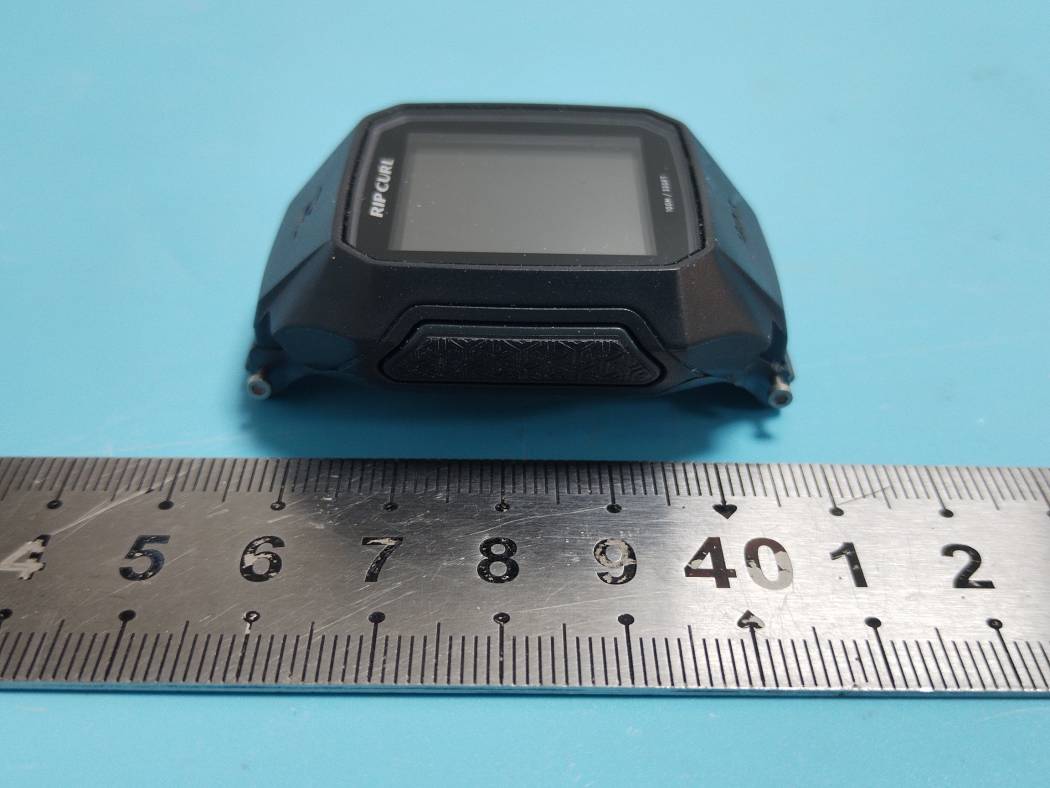

Shenzhen Accurate Technology Co., Ltd. FCC ID: 2ABSOA1144V2 External Photos Page 1 of 6 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2ABSOA1144V2 External Photos Page 2 of 6 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2ABSOA1144V2 External Photos Page 3 of 6 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2ABSOA1144V2 External Photos Page 4 of 6 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2ABSOA1144V2 External Photos Page 5 of 6 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2ABSOA1144V2 External Photos Page 6 of 6

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221124-56686E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Shenzhen Accurate Technology Co., Ltd. FCC ID: 2ABSOA1144V2 Internal Photos Page 1 of 5 Internal photos Shenzhen Accurate Technology Co., Ltd. FCC ID: 2ABSOA1144V2 Internal Photos Page 2 of 5 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2ABSOA1144V2 Internal Photos Page 3 of 5 GPS ANT Shenzhen Accurate Technology Co., Ltd. FCC ID: 2ABSOA1144V2 Internal Photos Page 4 of 5 Shenzhen Accurate Technology Co., Ltd. FCC ID: 2ABSOA1144V2 Internal Photos Page 5 of 5 BLE ANT

Shenzhen Accurate Technology Co., Ltd. Report No.: RA221124-56686E-RF-00 Version 14: 2021-11-09 Page 10 of 39 FCC- BLE FCC§15.247 (i), §1.1307 (b) (3) &§2.1093 – RF EXPOSURE Applicable Standard According to FCC §2.1093 and §1.1307(b) (3), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D04 Interim General RF Exposure Guidance SAR-Based Exemption: SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum timeaveraged power or maximum time-averaged ERP, whichever is greater. Per § 1.1307(b)(3)(i)(B), for single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). P th is given by: Finally, when 10-g extremity SAR applies, SAR test exemption may be considered by applying a factor of 2.5 to the SAR-based exemption thresholds. Shenzhen Accurate Technology Co., Ltd. Report No.: RA221124-56686E-RF-00 Version 14: 2021-11-09 Page 11 of 39 FCC- BLE Result For worst case: Exemption limit: For f=2.480GHz, d=0.5cm, the P th =2.72mW The higher of the available maximum time-averaged power or effective radiated power (ERP): The antenna gain is 0dBi(-2.15dBd), 0dBd=2.15dBi The maximum tune-up conducted average power is 1.5dBm (1.41mW), which less than 2.72mW@2480MHz exemption limit. So the stand-alone SAR test can be exempted.

Note: This report may contain data that are not covered by the A2LA ★ accreditation and are marked with an asterisk “ ”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 14: 2021-11-09 Page 1 of 39 FCC- BLE TEST REPORT Applicant Name : Rip Curl Pty Ltd. Address : 101 Surf Coast Hwy Torquay Vic Australia Report Number : RA221124-56686E-RF-00 FCC ID: 2ABSOA1144V2 Test Standard (s) FCC PART 15.247 Sample Description Product Type: SEARCHGPS 2 (Bluetooth Low Energy Watch with GPS Receiver) Model No.: A1144 Multiple Model(s) No.: N/A Trade Mark: N/A Date Received: 2022/11/24 Report Date: 2022/12/13 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Audy Yu Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA221124-56686E-RF-00 Version 14: 2021-11-09 Page 2 of 39 FCC- BLE TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 DUTY CYCLE ................................................................................................................................................................ 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.247 (I), §1.1307 (B) (3) &§2.1093 – RF EXPOSURE ..................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 RESULT ...................................................................................................................................................................... 11 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.209, §15.205 & §15.247(D) - SPURIOUS EMISSIONS ............................................................................ 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 14 TEST PROCEDURE ...................................................................................................................................................... 14 FACTOR & MARGIN CALCULATION ..............................................................................................................…

Text truncated - open the document above for the full version.

Antenna Specification Model Name: 2.4GHz Model No.: A1144-Ant Manufacture: Shenzhen Tianyutong Address: 701, Building 212, Tairan, Antenna Photo Antenna Gain Frequency 2.400G 2.410G Gain（dBi） -1.29 -0.8 Radiation Pattern Antenna Specification Tianyutong Electronic Technology Co., Ltd Tairan, Chegongmiao Industrial Zone, Shatou, Futian, 2.410G 2.420G 2.430G 2.440G 2.450G 2.460G .82 -0.93 -0.64 -0.98 0.00 0.12 Futian, Shenzhen 2.460G 2.470G 2.480G Max Gain 2 0.16 0.18 0.0

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221124-56686E-RF Test Photos Page 1 of 1 Photo of Radiated Emission Measurement (Below 1G) Photo of Radiated Emission Measurement (Above 1G)
