2ABSPSMART-RW-UNITRFID Module

Integration guide for FUJI MACHINE MFG.CO.,LTD. RFID Module, model Smart-Reader Module Type Automatic Assembly Equipment by FUJI MACHINE MFG.CO.,LTD.. CAUTION — Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. The RFID module which is equipped with Smart-Reader must be labeled with: Contains FCC ID: 2ABSPSMART-RW-UNIT When the Type 1 in the Unit Location of RFID P.W.B Unit

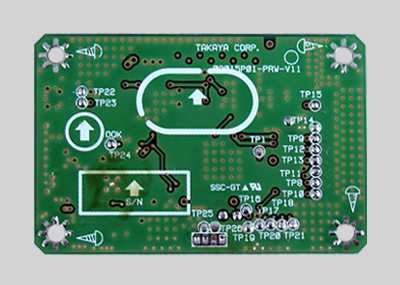

Smart-Reader Module Specification 1 FUJI MACHINE MFG. CO.,LTD. 1.About the Smart-Reader 1.1.Equipment name and model name Model Number : Smart-Reader 1.2.Module specifications 2 FUJI MACHINE MFG. CO.,LTD. 3 FUJI MACHINE MFG. CO.,LTD. ■Connections NamesModelNotes Antenna TR3-CA0381ch TR3-CA038(16)16ch Cable CB-2A26-***-PH-GH *** puts the cable length. 9cm ~ 50cm cable are available. RFID Coaxial Cable10cm ~ 2000cm cable are available. Interface boardTR3-IF-U1AUSB interface 1.3.Label drawing & Label Location Diagram Label drawing Label Location Diagram (Back Side)(Front Side) LABEL

Test instructions for the Radio Law Model Name: Radio-type hand-operated pulse generator 1. Construction YMYA37-1 (hand part): 195 mm x 80 mm x 35 mm Holder part: 208 mm x 95 mm x 63 mm * The length of harness is not include. YMYA39-1 (Antenna part) : 130 mm x 100 mm x 50 mm * The length of harness is not include. Picture 1 2. YMYA37-1 (hand part) testing There is the DIP Switch in a case for the test program is starting. Please remove the case with following instruction. Cover Case (Picture 2) Battery Cover (Picture 3) Rear Case (Picture 4) YMYA37-1 (Hand part) YMYA39-1 (Holder part and Antenna part) Remove a screw. 2-1 DIP Switch set up for testing Please select the DIP Switch of picture 6 before the testing and select ON at the Power Switch of picture 7. Inside (Picture 5) Power SW (Picture 7) 2-2. Test mode set up The test mode is able to select with the following DIP SW set up. (The DIP SW from 5 to 8 is not use.) The reading of DIP SW cans the Power ON only. It can not select while the turn on. Transmitting Power: * Fixed 4.8 dBm of the module maximum setting Modulation system: Fixed DSSS DIP SW 1 2 3 4 Operation mode Transmit stopping function by other communication has detect. OFF OFF OFF OFF FCC/IC measurement mode (Product mode) Available ON OFF OFF OFF Continuous Transmit mode at 7ch (2405 MHz) PRBS9 Unavailable OFF ON OFF OFF Continuous Transmit mode at 0ch (2440 MHz) PRBS9 Unavailable ON ON OFF OFF Continuous Transmit mode at 15ch (2480 MHz) PRBS9 Unavailable OFF OFF ON OFF Continuous Receive mode at 7ch (2405 MHz) --- ON OFF ON OFF Continuous Receive mode at 0ch (2440 MHz) --- OFF ON ON OFF Continuous Receive mode at 15ch (2480 MHz) --- ON ON ON OFF Continuous Receive mode at 0ch (2440 MHz) Available OFF OFF OFF ON Continuous Receive mode at 15ch (2480 MHz) Available DIP SW (Picture 6) Radio Module Battery Connector Timing of a radio wave transmit for the 0ch/15ch continuous transmit mode - The transmit command have per 100ms from micro to radio module. - The radio module transmits a telegraphic message. If the response is not, it perform re-transmits the maximum two times. 2-3 RF Cable testing The radio module of picture 5 has following a chip connector for antenna connection. We provide the extension cable of SMA connector and please testing connection after (Picture 9). Radio module (Picture 8) (Picture 9) 2-4 DC power source testing We provide the 2 m cable with connector for DC connection. 3. YMYA39-1 (Holder part and Antenna part) testing The power source is less than DC 24V / 0.5 A. (We provide the power connector.) Construction (Picture 10) 3-1 DIP Switch set up for testing DIP SW (Picture 11) The test mode is able to select with the following DIP SW set up. (The DIP SW from 5 to 8 is not use.) The reading of DIP SW cans the Power ON only. It can not select while the turn on. Transmitting Power: * Fixed 4.8 dBm of the module maximum setting Modulation system: Fixed DSSS Antenna part Holder part Power cable Extension cable DIP SW 1 2 3 4 Operation mode Transmit stopping function by other communication has detect. OFF OFF OFF OFF FCC/IC measurement mode (Product mode) Available ON OFF OFF OFF Continuous Transmit mode at 7ch (2405 MHz) PRBS9 Unavailable OFF ON OFF OFF Continuous Transmit mode at 0ch (2440 MHz) PRBS9 Unavailable ON ON OFF OFF Continuous Transmit mode at 15ch (2480 MHz) PRBS9 Unavailable OFF OFF ON OFF Continuous Receive mode at 7ch (2405 MHz) --- ON OFF ON OFF Continuous Receive mode at 0ch (2440 MHz) --- OFF ON ON OFF Continuous Receive mode at 15ch (2480 MHz) --- ON ON ON OFF Continuous Receive mode at 0ch (2440 MHz) Available OFF OFF OFF ON Continuous Receive mode at 15ch (2480 MHz) Available Timing of a radio wave transmit for the 0ch/15ch continuous transmit mode - The transmit command have per 100ms from micro to radio module. - The radio module transmits a telegraphic message. If the response is not, it perform re-transmits the maximum two times. 3-3 RF Cable testing Please remove the case of antenna part (Picture 11). The radio module has the following chip connector for antenna connection. We provide the extension cable of SMA connector and please testing connection after. When you perform testing the pattern antenna, please remove the connector. Antenna part (Picture 11) Inside (Picture 12) Remove a screw. Measurements mode for FCC and IC It is mode that radio connect between the YMYA37-1 (Hand part) and the YMYA39-1 (Holder part) The following is the connection procedure. - When the first power ON Please check the canceling the emergency button at the YMYA37-1 (Hand part). Please power ON the YMYA37-1 (Hand part) and YMYA39-1 (Holder part). Please remove the lock of emergency button and the following the icon push more than 1 sec with a half pushing the enable button (Picture 13). Picture 13 When you complete the above procedure, it has change to the display of the Picture 14 You have completed the connection. Picture 14 (Not connecting) Picture 14 (Connecting) Enable button Emergency button Push the icon
