2ABSTPADLOCKBluetooth Padlock

Iphone: -Click on the file named(Quicklock iPone.jpa).It will autopmatilly open iTunes -Plug in your iPhone.The app should automatically be added to your device -If not,then drag the app from iTunes into your phones app folder Android: -Click on the file named(Quicklock Android.apk) from your mobile device -The file will automatically install as an App How to operate using a Bluetooth enabled device -Open App on phone&press button on front-Blue light will flash -Lock connects to phone when blue light on lock remains solid -Enter passcode 12345678 to connect & press"UNLOCK" on phone -Pull upwards on shackle to open How to operate using an RF/NFC key -Press front button-Blue light flashes -Scan NFC key by waving over the "Q" Logo & pull upwards on shackle to open -To conserve power,the lock will turn off after a few seconds How to pair a new RF/NFC Key -Unlock Padlock using RF/NFC key or by unlocking via bluetooth -Immediately press front button again after successful read -Scan new RF/NFC key over the Q once the blue light begins to "BLINK" -The light turns a solld bule to indicate a successfui pairing of a new key N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device meets RF Exposure requirements without any restriction.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 5/22/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ABSTPADLOCK including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature RPH Engineering, LLC Contact person: Robert Simpson Title: VP Operations

May 14, 2015 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2ABSTPADLOCK Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, RPH Engineering, LLC Contact person: Robert Simpson Title: VP Operations

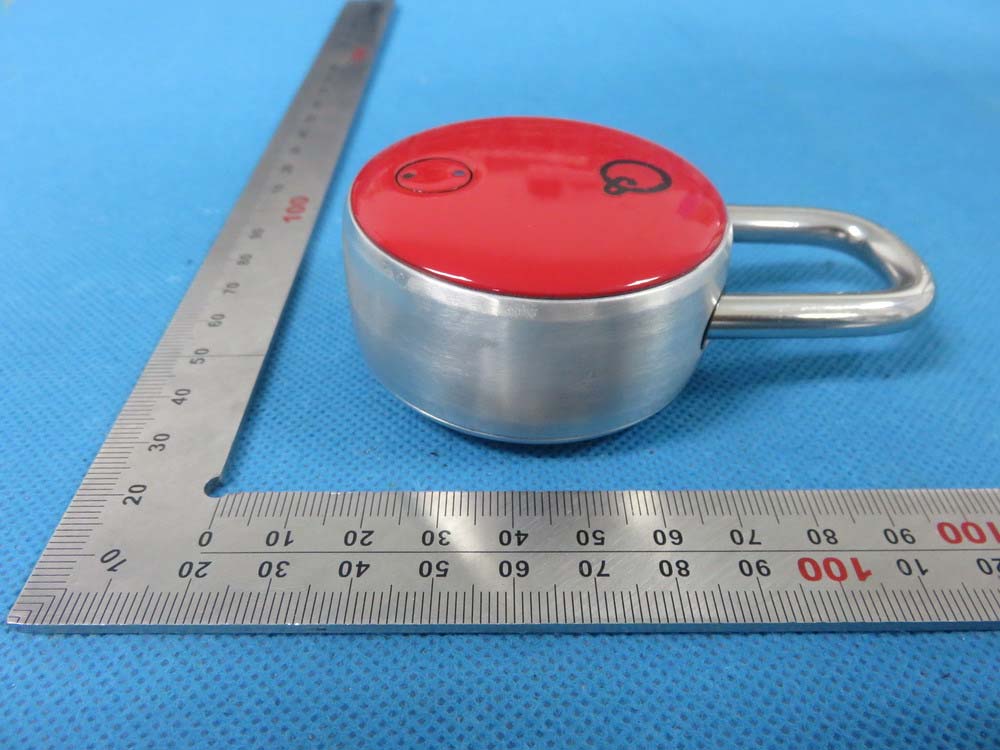

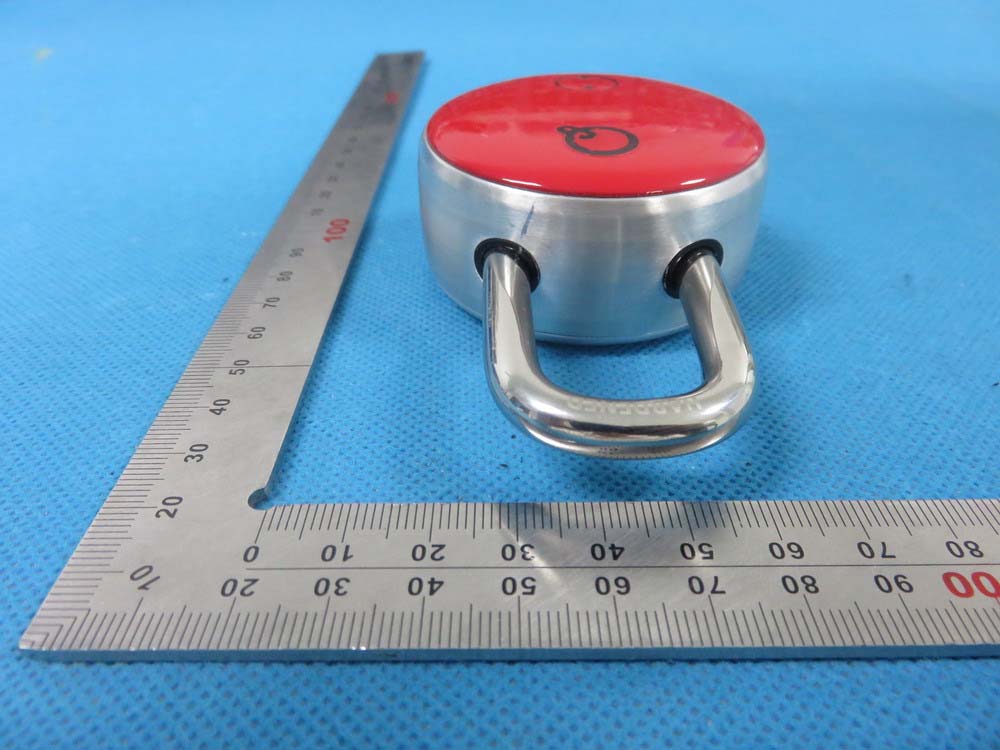

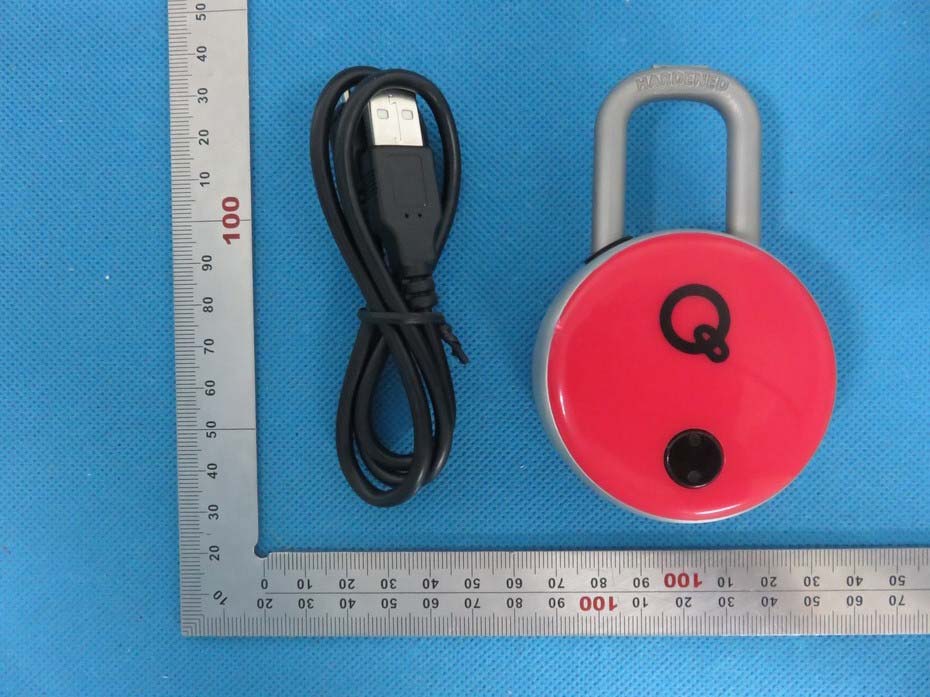

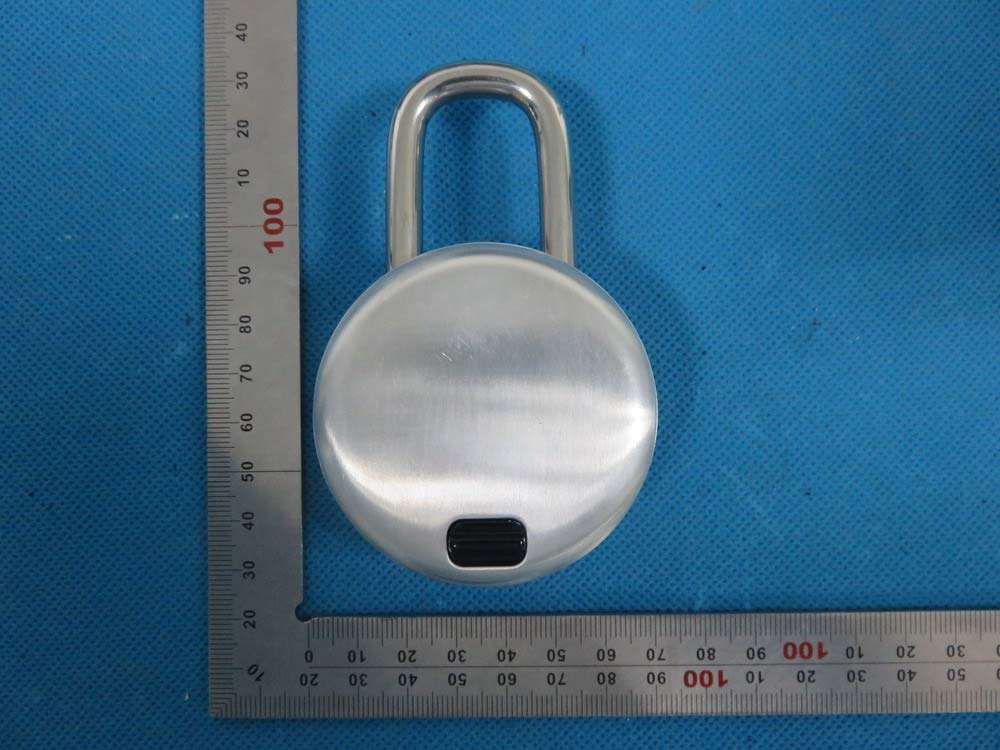

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2ABSTPADLOCK

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

Declaration concerning Antenna Specification It is hereby declared that the product Model No.: Padlock FCC ID: 2ABSTPADLOCK fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 0 dBi Frequency range: 2402-2480 MHz Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 0 dBi Frequency range: 13.56 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Wanchuangbo Industry Development Co., Ltd. Address: FLOOR 3-4, BUILDING 4, NO.7 LIPU STREET,BANTIAN AREA, LONGGANG DISTRICT, City: Shenzhen ZIP / Postal code: N/A Country: China Place: Shenzhen Date: May 15,2015 Signature:

RF Exposure evaluation Product Description:The QuickLock Padlock Model Number: Padlock FCC ID: 2ABSTPADLOCK According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=90.59dBuv/m=0.034V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.034x3) 2 /(30x1)=0.00035W=0.35mW The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz -0.35mW output power] (0.35mW /5mm) .[√2.402(GHz)]= 0.11<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 43 FCC Test Report Report No.: AGC00918150301FE03 FCC ID : 2ABSTPADLOCK APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : The QuickLock Padlock BRAND NAME : QuickLock MODEL NAME : Padlock CLIENT : RPH Engineering, LLC DATE OF ISSUE : Apr.07,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00918150301FE03 Page 2 of 43 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Apr.07,2015 Valid Original Report Report No.: AGC00918150301FE03 Page 3 of 43 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 6 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 6 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 7 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 7 6. TEST FACILITY .................................................................................................................... 8 7 ALL TEST EQUIPMENT LIST ............................................................................................... 8 8. RADIATED EMISSION ......................................................................................................... 9 8.1TEST LIMIT ..................................................................................................................................... 9 8.2. MEASUREMENT PROCEDURE ................................................................................................ 10 8.3. TEST SETUP .............................................................................................................................. 12 8.4. TEST RESULT(Worst modulation:GFSK) ................................................................................... 14 9. BAND EDGE EMISSION .................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ................................................................................................ 27 9.2 TEST SETUP ............................................................................................................................... 27 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ................................................................. 28 10. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 32 10.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 32 10.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................ 32 10.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 33 10.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................ 33 10.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ...................................................... 34 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 36 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 38 Report No.: AGC00918150301FE03 Page 4 of 43 1. VERIFICATION OF CONFORMITY Applicant RPH Engineering, LLC Address 1601 N STATE ST Suite 1A LEHI UT United States Manufacturer Iton Technology Crop. Address Room 1302-1303, Block A, Building 4, Tianan Cyber Park, Huangge Road, Longgang District, Shenzhen, China, Post Code 518172 Product Designation The QuickLock Padlock Brand Name QuickLock Test Model Padlock Date of test Apr.01,2015 to Apr.03,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Shenzhen STS Test Services Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Water Zuo Apr.07,2015 Checked By Forrest Lei Apr.07,2015 Authorized By Solger Zhang Apr.07,2015 Report No.: AGC00918150301FE03 Page 5 of 43 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 2.402 GHz to 2.480GHz RF Output Power -4.61dBm(Max) Bluetooth Version V4.0 Modulation GFSK Number of channels 40 Hardware Version 3.0 Software Version 1.0 Antenna Designation PCB Antenna (Met 15.203 Antenna requirement) Antenna Gain 0dBi Power Supply DC3.7V 2.2. TABLE OF CARRIER FREQUENCYS Frequency Band Channel Number Frequency 2400~2483.5MHZ 0 2402MHZ 1 2404MHZ : : 19 2440 MHZ 20 2442 MHZ : : 38 2478 MHZ 39 2480 MHZ Report No.: AGC00918150301FE03 Pa…

Text truncated - open the document above for the full version.

Report No.:AGC00918150301FE01 Page 1 of 30 FCC Test Report Report No.: AGC00918150301FE01 FCC ID : 2ABSTPADLOCK APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : The QuickLock Padlock BRAND NAME : QuickLock MODEL NAME : Padlock CLIENT : RPH Engineering, LLC DATE OF ISSUE : Apr.02,2015 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.:AGC00918150301FE01 Page 2 of 30 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Apr.02,2015 Valid Original Report Report No.:AGC00918150301FE01 Page 3 of 30 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE......................................................................................................... 4 2. EUT DESCRIPTION ................................................................................................................................ 5 3. DESCRIPTION OF TEST MODES .......................................................................................................... 5 4. TEST FACILITY ....................................................................................................................................... 6 5. SUMMARY OF TEST RESULTS ............................................................................................................. 7 7. DESCRIPTION OF TEST MODES .......................................................................................................... 7 8. ANTENNA REQUIREMENT ................................................................................................................. 8 8.1. STANDARD APPLICABLE .............................................................................................................. 8 8.2. TEST RESULT ................................................................................................................................ 8 9. RADIATED EMISSION ............................................................................................................................ 9 9.1 MEASUREMENT PROCEDURE ...................................................................................................... 9 9.2 TEST SETUP .................................................................................................................................. 10 9.3 LIMITS AND MEASUREMENT RESULT ........................................................................................ 11 9.4 TEST RESULT ............................................................................................................................... 12 10. FCC LINE CONDUCTED EMISSION TEST ....................................................................................... 18 10.1 LIMITS .......................................................................................................................................... 18 10.2 TEST SETUP ................................................................................................................................ 18 10.3 PRELIMINARY PROCEDURE ..................................................................................................... 19 10.4 FINAL TEST PROCEDURE .......................................................................................................... 19 10.5 TEST RESULT OF POWER LINE ................................................................................................ 20 11. Occupied Bandwidth ......................................................................................................................... 22 11.1 LIMITS .......................................................................................................................................... 22 11.2 TEST SPECIFICATION: ..................................................................................................................... 22 11.3 TEST RESULT ............................................................................................................................. 22 12. Frequency Stability Measurement .................................................................................................... 23 12.1 LIMIT .............................................................................................................................................. 23 12.2 TEST METHOD AND TEST PROCEDURE: ........................................................................................... 23 12.3 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ......................................................... 23 12.4 TEST SPECIFICATION: ..................................................................................................................... 23 12.5 TEST RESULT ............................................................................................................................. 24 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ................................................................................. 25 APPENDIX B: PHOTOGRAPHS OF EUT ................................................................................................ 26 Report No.:AGC00918150301FE01 Page 4 of 30 1. VERIFICATION OF COMPLIANCE Applicant RPH Engineering, LLC Address 1601 N STATE ST Suite 1A LEHI UT United States Manufacturer Iton Technology Crop. Address Room 1302-1303, Block A, Building 4, Tianan Cyber Park, Huangge Road, Longgang District, Shenzhen, China, Post Code 518172 Product Designation The QuickLock Padlock Brand Name QuickLock Test Model Padlock Date of test Mar.26, 2015 to Apr.02, 2015 Deviation None Condition of Test Sample Normal WE HEREBY CERTIFY THAT: The above equipment was tested by Shenzhen STS Test Services Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the p…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
