TN4005 Izdaja/Issue: 02/2011-06 T251-0369/14 2 (35) Št. / No. Stran / Page CONTENTS PAGE 1 GENERAL 3 1.1 E QUIPMENT UNDER TEST DESCRIPTION 3 1.2 L IST OF MEASUREMENTS PERFORMED 4 1.3 O CCUPIED BANDWIDTH MEASUREMENT 4 1.4 Q UASI-PEAK DETECTOR 4 1.5 P EAK, RMS, AND AVERAGE DETECTORS 4 2 LIMITS 5 2.1 S UBPART C: INTENTIONAL RADIATORS 5 2.1.1 C ONDUCTED EMISSION LIMITS: 5 2.1.2 R ADIATED EMISSION LIMITS: 5 3 ALL TEST EQUIPMENT AND THEIR DESCRIPTION 6 3.1 G ENERAL INFORMATION 6 4 GENERAL AND SPECIAL CONDITIONS DESCRIPTION 7 4.1 G ENERAL CONDITION DESCRIPTION 7 4.1.1 T EST ARRANGEMENT FOR CONDUCTED EMISSIONS 7 4.1.2 T EST ARRANGEMENT FOR CONDUCTED EMISSIONS- FLOOR-STANDING EQUIPMENT 7 4.1.3 T EST ARRANGEMENT FOR RADIATED EMISSIONS TABLETOP EQUIPMENT 8 4.1.4 T EST ARRANGEMENT FOR RADIATED EMISSIONS FLOOR-STANDING EQUIPMENT 8 4.1.5 T EST ARRANGEMENT FOR FLOOR-STANDING EQUIPMENT 9 4.1.6 T EST ARRANGEMENT FOR FLOOR-STANDING EQUIPMENT 9 4.1.7 P LACEMENT AND MANIPULATION OF INTERCONNECT CABLING (OR WIRING) OF TABLETOP EQUIPMENT 9 4.1.8 T EST CONFIGURATION/ARRANGEMENT FOR COMBINATION FLOOR-STANDING AND TABLETOP EQUIPMENT 10 4.2 S PECIAL CONDITION DESCRIPTION 10 5 TEST SUMMARY 11 5.1 P URPOSE OF THE TEST 11 6 EMISSION TESTS 12 6.1 C ONDUCTED EMISSION MEASUREMENT (INTENTIONAL RADIATOR) 12 6.1.1 T EST INSTRUMENTS 12 6.1.2 T EST PROCEDURE 12 6.1.3 T EST SETUP 13 6.1.4 T EST RESULTS 13 6.2 B ANDWIDTH OF THE EMISSION (INTENTIONAL RADIATOR) 19 6.2.1 T EST INSTRUMENTS 19 6.2.2 T EST PROCEDURE 19 6.2.3 T EST RESULTS 19 6.2.4 S UMMARY OF RESULTS 19 6.3 S PECTRUM MASK (INTENTIONAL RADIATOR) 21 6.3.1 T EST INSTRUMENTS 21 6.3.2 T EST PROCEDURE 21 6.3.3 T EST RESULTS 21 6.3.4 S UMMARY OF RESULTS 21 6.4 R ADIATED EMISSION MEASUREMENT 9 KHZ – 30 MHZ (INTENTIONAL RADIATOR) 24 6.4.1 T EST INSTRUMENTS 24 6.4.2 T EST PROCEDURE 24 6.4.3 T EST RESULTS 24 6.4.4 S UMMARY OF RESULTS 24 6.5 R ADIATED EMISSION MEASUREMENT 30 MHZ – 1 GHZ (INTENTIONAL RADIATOR) 28 6.5.1 T EST INSTRUMENTS 28 6.5.2 T EST PROCEDURE 28 6.5.3 T EST RESULTS 28 6.5.4 S UMMARY OF RESULTS 28 6.6 F REQUENCY TOLERANCE OF THE CARRIER SIGNAL 31 6.6.1 T EST REQUIREMENTS: 31 6.6.2 T EST RESULTS 31 6.6.3 P HOTOS OF THE ACTUAL MEASUREMENT PLACE AND EUT PLACEMENT 33 7 APPENDIX A: MANUFACTURER PRODUCT DESCRIPTION 35 TN4005 Izdaja/Issue: 02/2011-06 Corrected page: 2014-05-08 T251-0369/14 3 (35) Št. / No. Stran / Page LOCKER CONTROLLER DISPLAY COMBO AC/DC ADAPTER (*1) F2 F1 1 GENERAL 1.1 Equipment under test description RFID Reader Type: Display Combo DDIS Power supply: 12 VDC Protective class: II. Frequency range: 13,56 MHz – 13,56 MHz (1 channel) Auxilliary Equipment used during testing: - AC/DC adapter for powering Network Controller: PHIHONG, Type: PSAA30R-120 - Locker Controller ELS with code name LC32ELIS NOTE: Product group Display consists of three different types: Types: Display Combo Display RFID Display Keypad • DDIS (ISO 15693, ISO14443A/B) • DSIS (ISO 15693, ISO14443A/B) • DSKP • DDLF (LF Multitag) • DSLF (LF Multitag) • DDMF (Mifare) • DSMF (Mifare) • DDSD (Skidata) • DSSD (Skidata) NOTE: Tested was Display Combo DDIS which is most complex typle. All other types are also covered by this test report. See Appendix A for Product description. Schematic for testing F1 – Ferrite WE 742 724 6, 2 turns F2 – Ferrite WE 742 711 12, 2 turns AC/DC ADAPTER (*1) – PHIHONG, Model: PSAA30R-120 TN4005 Izdaja/Issue: 02/2011-06 T251-0369/14 4 (35) Št. / No. Stran / Page 1.2 List of measurements performed PART 15 section Test name 15.207 Conducted emission 15.209 Radiated emission 15.215 Bandwidth of the emission 15.225 Frequency tolerance 1.3 Occupied bandwidth measurement Fundamental frequency Minimum resolution bandwidth 9 kHz to 30 MHz 1 kHz 30 to 1000 MHz 10 kHz 1000 MHz to 40 GHz 100 kHz 1.4 Quasi-peak detector Frequency range Bandwidth (-6dB) 10 Hz to 20 kHz Full range (wideband) 10 kHz to 150 kHz 200 Hz 150 kHz to 30 MHz 9 kHz 30 MHz to 1 GHz 120 kHz 1.5 Peak, rms, and average detectors Frequency range Bandwidth (-6dB) 10 Hz to 20 kHz 10, 100, 1000 Hz 10 kHz to 150 kHz 1 and 10 kHz 150 kHz to 30 MHz 1 and 10 kHz 30 MHz to 1 GHz 10 and 100 kHz 1 GHz to 40 GHz 0.1, 1.0 and 10 MHz TN4005 Izdaja/Issue: 02/2011-06 T251-0369/14 5 (35) Št. / No. Stran / Page 2 LIMITS 2.1 Subpart C: Intentional Radiators 2.1.1 Conducted emission limits: Limits (dBμV) Frequency Range (MHz) Quasi-peak Average 0.15 to 0.5 66 – 56* 59 – 46* 0.5 to 5.0 56 46 5.0 to 30.0 60 50 *Decreases with the logarithm of the frequency. The shown limits in table shall not apply to carrier current systems operating as intentional radiators on frequencies below 30 MHz. In lieu thereof, these carrier current systems shall be subject to the following standards: • For carrier current systems containing their fundamental emission within the frequency band 535-1705 kHz and intended to be received using a standard AM broadcast receiver: no limit on conducted emissions. • For all other carrier current systems: 1000 μV within the frequency band 535-1705 kHz, as measured using a 50 μH/50 ohms LISN. • Carrier current systems operating below 30 MHz are also subject to the radiated emission limits as appropriate. 2.1.2 Radiated emission limits: Limits (dBμV/m) Frequency Range (MHz) VERTICAL HORIZONTAL Test distance (m) 0,009 to 0,490 20*log(2400/F(kHz)) 20*log(2400/F(kHz))300 0,490 to 1,705 20*log(2400/F(kHz)) 20*log(2400/F(kHz))30 1,705 to 30,0 30 30 30 30 to 88 40** 40** 3 88 to 216 43,5** 43,5** 3 216 to 960 46** 46** 3 Above 960 54 54 3 ** Except as provided in paragraph below, fundamental emissions from intentional radiators operating under this section shall not be located in the frequency bands 54-72 MHz, 76-88 MHz, 174-216 MHz or 470-806 MHz. Perimeter protection systems may operate in the 54-72 MHz and 76-88 MHz bands under the provisions of this section. The use of such perimeter protection systems is limited to industrial, business and commercial applications. NOTE: For special limits refer to standard TN4005 …

Text truncated - open the document above for the full version.

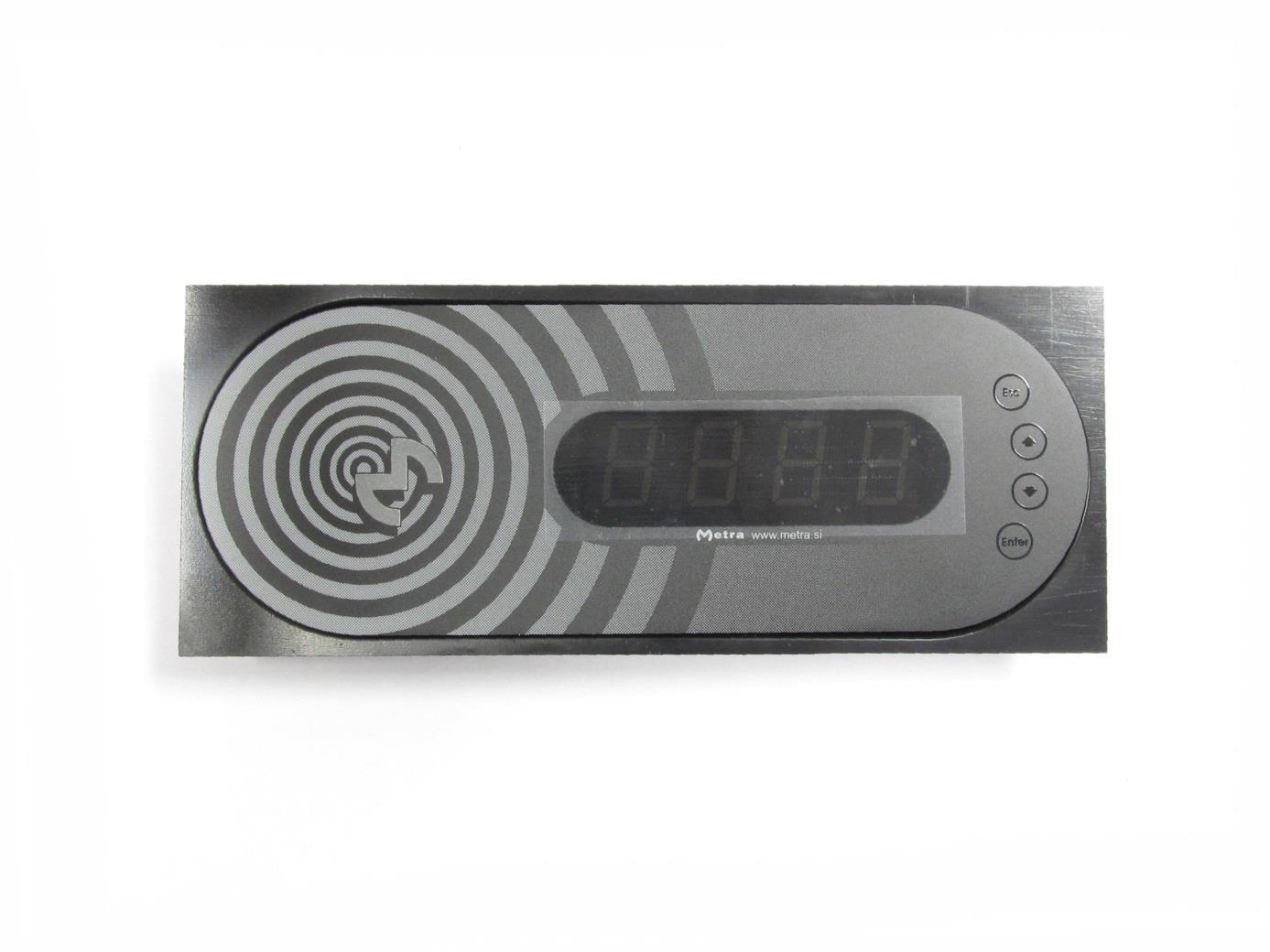

Test Photo_T251-0369/14 1 (4) Št. / No. Stran / Page LOCKER CONTROLLER DISPLAY COMBO AC/DC ADAPTER (*1) F2 F1 1 GENERAL 1.1 Equipment under test description RFID Reader Type: Display Combo DDIS Power supply: 12 VDC Protective class: II. Frequency range: 13,56 MHz – 13,56 MHz (1 channel) Auxilliary Equipment used during testing: - AC/DC adapter for powering Network Controller: PHIHONG, Type: PSAA30R-120 - Locker Controller ELS with code name LC32ELIS NOTE: Product group Display consists of three different types: Types: Display Combo Display RFID Display Keypad • DDIS (ISO 15693, ISO14443A/B) • DSIS (ISO 15693, ISO14443A/B) • DSKP • DDLF (LF Multitag) • DSLF (LF Multitag) • DDMF (Mifare) • DSMF (Mifare) • DDSD (Skidata) • DSSD (Skidata) NOTE: Tested was Display Combo DDIS which is most complex typle. All other types are also covered by this test report. See Appendix A for Product description. Schematic for testing F1 – Ferrite WE 742 724 6, 2 turns F2 – Ferrite WE 742 711 12, 2 turns AC/DC ADAPTER (*1) – PHIHONG, Model: PSAA30R-120 Test Photo_T251-0369/14 2 (4) Št. / No. Stran / Page 2 EMISSION TESTS 2.1 Test setup 2.2 Photos of the actual measurement place Figure 1: Conducted emission test Horizontal Reference Ground Plane Test Receiver Vertical Reference Ground Plane 80 cm 40 cm 80 cm LISN Measured device-EUT Test Photo_T251-0369/14 3 (4) Št. / No. Stran / Page Figure 2: Radiated emission test – 9kHz to 30MHz Figure 3: Radiated emission test – 30MHz to 1GHz Test Photo_T251-0369/14 4 (4) Št. / No. Stran / Page Figure 4: Radiated emission test – 9kHz to 30MHz (retested on a 10 m distance)
