CS20-UM-01 Vehicle Management Device 20 CS20 User Manual For Nissan Leaf (2010/2013MY Left Handle) TECHTOM Ltd. Technical Development Division 2014/04/22 Rev.1.02 Issued by Checked by Approved by History: Release No. Date Notes Rev0.91 Feb. 12, 2014 Draft second version. Rev0.92 Feb. 18, 2014 Draft third version Rev1.00 Feb. 21, 2014 Release version Rev1.01 Mar. 25, 2014 Modified “3. PART COMPONENT”. Added “5. INSTALLATION PREPARATION”. Added “10-1 Activation”. Modifed 11-3, 4, 5, and 6 to US Specification. Rev1.02 Apr. 22, 2014 Page3 PH-04SS->PH-04ASS CS20-UM-01 Copyright©2014 TECHTOM, Ltd. Contents 1. CAUTION ................................................................... 1 2. OUTLINE ................................................................... 2 3. PART COMPONENT ........................................................... 3 4. TOOLS ..................................................................... 5 5. INSTALLATION PREPARATION ................................................. 6 5 – 1 SIM Card Installation .................................................................. 6 6. REMOVAL OF PANEL ......................................................... 7 7. INSTALLTION OF EACH EQUIPMENT ............................................ 8 7 – 1 Main Body .......................................................................... 8 7 – 2 GPS Unit ............................................................................ 9 7 – 3 Card Reader Unit .................................................................... 10 7 – 4 Antenna ............................................................................ 11 8. CABLE CONNECTION METHOD TO VEHICLE ..................................... 12 8 – 1 Method to Cut the Vehicle Cable and Connect the Cable for In-vehicle Device .................... 12 8 – 2 Method to Connect (Branch) to Vehicle Cable ............................................. 13 7 – 3 Length When Connecting to the Vehicle Cable ............................................. 13 9. CONNECTION OF EACH WIRE ................................................. 14 9 – 1 CAN Connection .................................................................... 14 9 – 2 Drive Connection .................................................................... 15 9 – 3 I/O Connection ...................................................................... 16 9 – 4 Power Connection ................................................................... 17 10. OPERATION CHECK ........................................................ 18 10 – 1 Activation ......................................................................... 18 10 – 2 Operation Check .................................................................... 18 11. REFERENCE MATERIALS .................................................... 19 11 – 1 Photos for Panel Removal ............................................................ 19 11 – 2 Photos for Connection of Connectors and Wires ........................................... 20 11 – 3Vehicle Wiring Diagram (Cble Connection Wiring Diagram) ................................. 22 11 – 4 Vehicle Connector Diagram (Cable Connection Connector) .................................. 26 11 – 5 PowerConnection Wiring Diagram ..................................................... 28 11 – 6 Connector Layout Drawing ........................................................... 29 CS20-UM-01 Copyright©2014 TECHTOM, Ltd. 1 1. CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. This equipment complies with radio frequency exposure limits set forth by the FCC for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the device and the user or bystanders. This device must not be co-located or operating in conjunction with any other antenna or transmitter. ・For installation of in-vehicle device, follow the caution of this installation manual. ・Fix the main body, connection cables, and connectors firmly at the place so as not to interfere with drivers. ・Do not use safety related parts concerning safety such as brake and steering and installation parts for installation and wiring. ・Do not disassembe, repair, and modify. ・Avoid to operate with wet hands and to place areas with water droplets such as rain and snow. ・Do not pull and bend strongly the connector with holding connection code. ・When putting this device closer to medical equipments, it may have effect on these equipments; thus, do not use with them. ・This product is operated only for applicable vehicles. This does not operate with non-applicable vehicles. ・Do not use the other than supplied parts for the main body connector, GPS, card reader, antenna, vehicle connection code. ・If there is another GPS antenna which is embedded with dashboard such …

Text truncated - open the document above for the full version.

CS20-UM-01 Copyright©2014 TECHTOM, Ltd. 24 <2013ModelYear> Left Handle CS20-UM-01 Copyright©2014 TECHTOM, Ltd. 25 CS20-UM-01 Copyright©2014 TECHTOM, Ltd. 26 11 – 4 Vehicle Connector Diagram (Cable Connection Connector) <2010ModelYear> Left Handle CS20-UM-01 Copyright©2014 TECHTOM, Ltd. 27 <2013ModelYear> Left Handle CS20-UM-01 Copyright©2014 TECHTOM, Ltd. 28 11 – 5 PowerConnection Wiring Diagram <2010ModelYear> Left Handle <2013ModelYear> Left Handle CS20-UM-01 Copyright©2014 TECHTOM, Ltd. 29 M68
11 – 6 Connector Layout Drawing <2010ModelYear> Left Handle CS20-UM-01 Copyright©2014 TECHTOM, Ltd. 30 <2010ModelYear> Left Handle

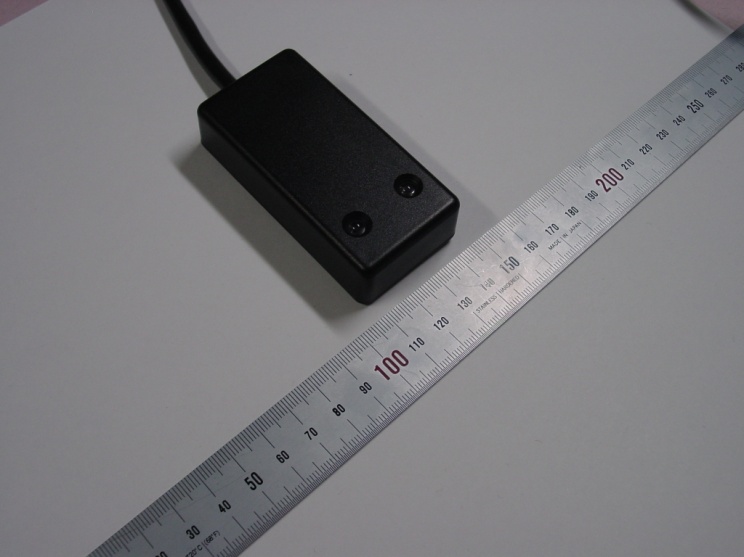

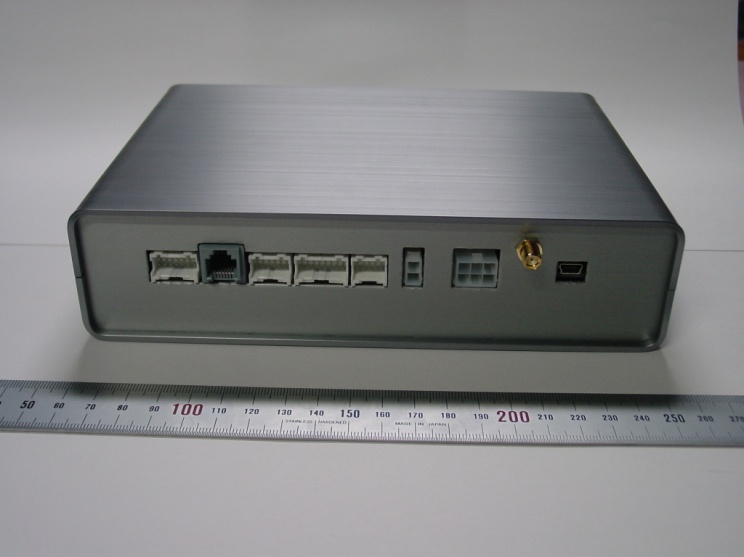

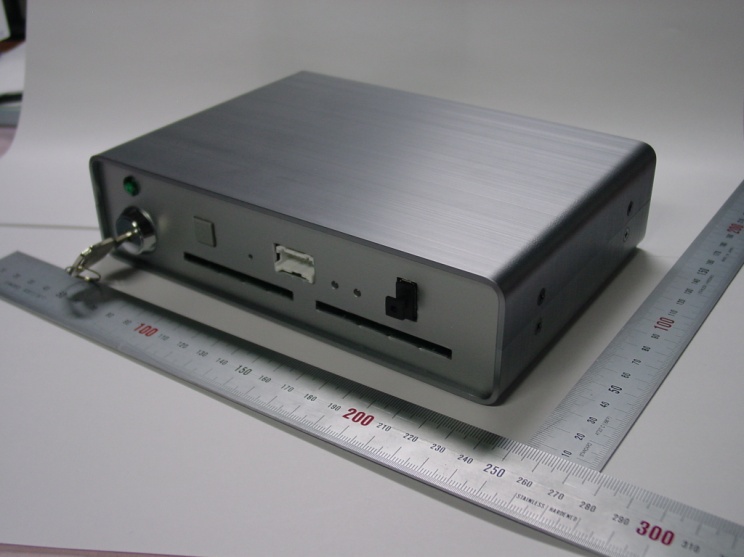

CS20-EP-01 Vehicle Management Device 20 CS20 External pictures TECHTOM Ltd. Technical Development Division 2014/02/21 Rev.100 Issued by Checked by Approved by CS20-EP-01 Main Unit CS20-EP-01 Card Reader(RFID) GPS Unit

CS20-LI-01 Vehicle Management Device 20 CS20 Label Information TECHTOM Ltd. Technical Development Division 2014/02/21 Rev.100 Issued by Checked by Approved by CS20-LI-01 The label location CS20-LI-01 The label Specification 1. Product Name White Coated PET#25 Strong Adhesion PGS 2. Product structure → White Coated PET#25 (Face stock) → Strong Adhesion (Adhesive) → Glassine (Sperator) 3. Materia 4. Physical Specification Type Item Unit Representative value Test method Face stock Thickness μｍ 25 JIS-C-2318 Tensile strength N/㎟ 166 or higher JIS-C-2318 Adhesive Adhesion (against stainless) mN/25mm 9800 Described saparately Retention ｓ NC Described saparately Sparator Thickness μｍ 90 JIS-P-8118 Weighting ｇ/㎡ 94 JIS-P-8124 Tensile strength MD N/15mm 83.0 or higher JIS-P-8113 CD 78.0 or higher NC:Meaning of no difference Face stock White Coated PET#25 Adhesive Aclylic solvent Separator Glassine paper which is laminated with polyethylene on one side of the paper and treated with silicon. CS20-LI-01 Adhesion Test Method Adhesion Leave a sample that is cut into the size of 25mmx100mm and adherent (stainless plate) over 30 minutes in measurement atmosphere, bond them, press it using 2kg roll for 1 stroke, and measure the adhesion after 20 minutes (Initial adhesion). Remove the bonded sample and adherent at the speed of 300mm/min to horizontal direction using a tension testing machine and record the strength. 23°C－65％RH shall be used for the measurement atmosphere if there is no indication. Retention Test Method Retention The sample which is cut into the size of 25mmx100mm is bonded to adherent (stainless plate) Bond a sample which is cut into 25mmx100mm and adherent (stainless plate) to bonding area of 25mmx25mm and press it using 2kg roll for 3 strokes. Leave the bonding sample in 20 minutes in measurement atmosphere (40°C). The load shall be 1kg and the creep condition in few seconds until dropping or in constant time is measured. NC is indicated if there is no difference in 40000 seconds. CS20-LI-01 A drawing of the label

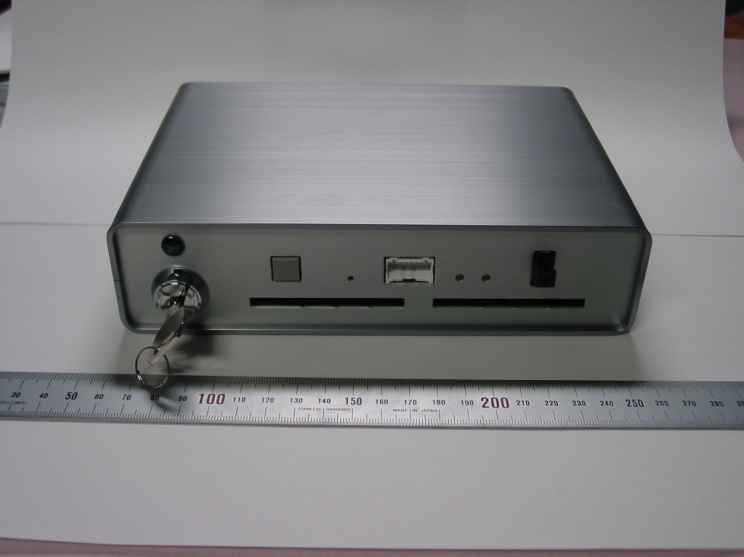

CS20-IP-01 Vehicle Management Device 20 CS20 Internal pictures TECHTOM Ltd. Technical Development Division 2014/02/21 Rev.100 Issued by Checked by Approved by CS20-IP-01 Main Unit CS20-IP-01 CS20-IP-01 CS20-IP-01 Card Reader(RFID) CS20-IP-01 CS20-IP-01 GPS Unit
