2ABTP-NUMY-3GNumy 3G serials-AX1 SPEC

FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits For a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference In a residential installation. This equipment generates, uses and can radiate Radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna.--Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate(SAR) information: This MID meets the government’s requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure information and statement the SAR limit of USA(FCC) is 1.6W/kg averaged over one gram of tissue. Device types: Numy 3G AX1 (FCC ID: 2ABTP-NUMY-3G)has also been testd against this SAR limit.The highest SAR value reported under this standard during product certification for use at the ear is 0.364W/Kg and when properly worn on the body is 0.529W/kg. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be located or operating in conjunction with any other antenna or transmitter. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Feb 21,2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SHENZHEN AINOL ELECTRON CO.,LTD hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product name: Numy 3G serials-AX1 SPEC Model No.: Numy 3G AX1 FCC ID: 2ABTP-NUMY-3G We affirm that between SIEMIC and SHENZHEN AINOL ELECTRON CO.,LTD , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Lu Zhen / General Manager Contact address: Room 606,Bldg B,7 Star Business Plaza, Minzhi Street, Longhua District, Shenzhen, China Contact telephone: 0755-33030080 Email: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] FCC Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 FCC Confidentiality Request Letter Feb 21,2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ABTP-NUMY-3G We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - BOM list - PCB layout - Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Lu Zhen / General Manager Contact address: Room 606,Bldg B,7 Star Business Plaza, Minzhi Street, Longhua District, Shenzhen, China Contact telephone: 0755-33030080 Email: [email protected]

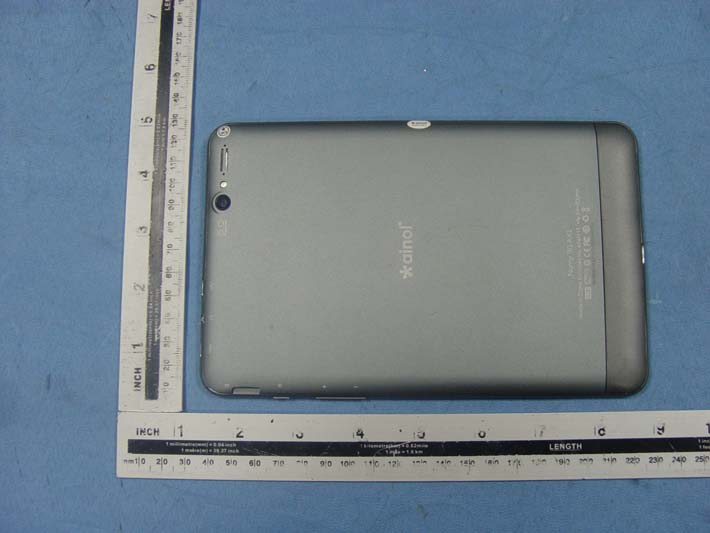

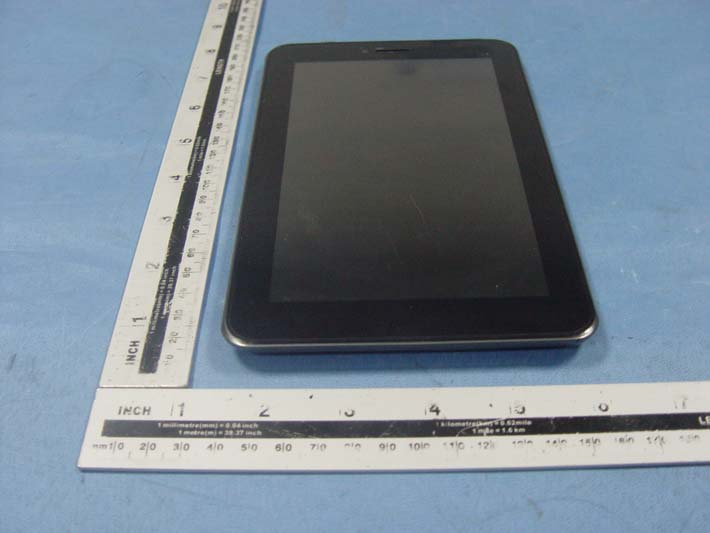

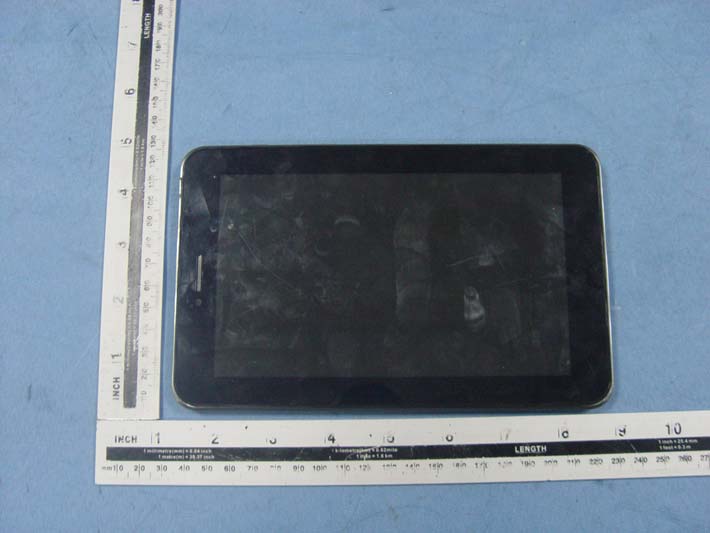

External photos

Label and Label location

Accurate Technology Co., Ltd. Address: F1, Bldg. A&D, Changyuan New Material Port, Keyuan Rd., Science & Industry Park, Nanshan District, Shenzhen 518057 , P. R. China Tel: +86-755-26503290 Fax: +86-755-26503396 E-mail: [email protected] Http://www.atc-lab.com Internal photos Accurate Technology Co., Ltd. Address: F1, Bldg. A&D, Changyuan New Material Port, Keyuan Rd., Science & Industry Park, Nanshan District, Shenzhen 518057 , P. R. China Tel: +86-755-26503290 Fax: +86-755-26503396 E-mail: [email protected] Http://www.atc-lab.com GSM&WCDMA Antenna GPS Antenna Accurate Technology Co., Ltd. Address: F1, Bldg. A&D, Changyuan New Material Port, Keyuan Rd., Science & Industry Park, Nanshan District, Shenzhen 518057 , P. R. China Tel: +86-755-26503290 Fax: +86-755-26503396 E-mail: [email protected] Http://www.atc-lab.com Accurate Technology Co., Ltd. Address: F1, Bldg. A&D, Changyuan New Material Port, Keyuan Rd., Science & Industry Park, Nanshan District, Shenzhen 518057 , P. R. China Tel: +86-755-26503290 Fax: +86-755-26503396 E-mail: [email protected] Http://www.atc-lab.com BT&WIFI Antenna

TEST REPORT Report Reference No. ..................... : FCC ID. ............................................. : TRE13120013 R/C: 55529 2ABTP-NUMY-3G Compiled by ( position+printed name+signature) .. : File administrators Jerome Luo Supervised by ( position+printed name+signature) .. : Test Engineer Yuchao Wang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Feb 15, 2014 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address............................................. : No.149, Gongye 7th Road, Shekou Nanshan, Shenzhen, CHINA Applicant’s name ............................ : SHENZHEN AINOL ELECTRON CO.,LTD Address............................................. : Room 606,Bldg B,7 Star Business Plaza, Minzhi Street, Longhua District, Shenzhen, China Test specification: Standard ........................................... : ANSI C95.1–1999 47CFR §2.1093 KDB 447498 TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Numy 3G serials-AX1 SPEC Trade Mark ....................................... : / Manufacturer .................................... : SHENZHEN AINOL ELECTRON CO.,LTD Model/Type reference ....................... : Numy 3G AX1 Listed Models .................................. : / Operation Frequency ......................... GSM850&DCS1900& WCDMA850&WCDMA1900 Modilation Type ................................. GMSK (GSM),QPSK (WCDMA),CCK&OFDM (WLAN) Rating ............................................... : DC 3.70V/DC 5.0V adapter from AC120V/60Hz Result ................................................ : Positive Report No.: TRE13120013 Page 2 of 92 Issued:2014-02-15 T E S T R E P O R T Test Report No. : TRE13120013 Feb 15, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Numy 3G serials-AX1 SPEC Model /Type : Numy 3G AX1 Listed Models : / Applicant : SHENZHEN AINOL ELECTRON CO.,LTD Address : Room 606,Bldg B,7 Star Business Plaza, Minzhi Street, Longhua District, Shenzhen, China Manufacturer : SHENZHEN AINOL ELECTRON CO.,LTD Address : Room 606,Bldg B,7 Star Business Plaza, Minzhi Street, Longhua District, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE13120013 Page 3 of 92 Issued:2014-02-15 Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Statement of Compliance 5 2.4. Equipment under Test 6 2.5. Short description of the Equipment under Test (EUT) 6 2.6. EUT configuration 6 2.7. Note 7 3. TEST ENVIRONMENT 8 3.1. Address of the test laboratory 8 3.2. Test Facility 8 3.3. Environmental conditions 9 3.4. SAR Limits 9 3.5. Equipments Used during the Test 9 4. SAR MEASUREMENTS SYSTEM CONFIGURATION 10 4.1. SAR Measurement Set-up 10 4.2. DASY5 E-field Probe System 11 4.3. Phantoms 12 4.4. Device Holder 12 4.5. Scanning Procedure 13 4.6. Data Storage and Evaluation 13 4.7. Tissue Dielectric Parameters for Head and Body Phantoms 15 4.8. Tissue equivalent liquid properties 15 4.9. System Check 16 4.10. SAR measurement procedure 17 5. TEST CONDITIONS AND RESULTS 23 5.1. Conducted Power Results 23 5.2. Simultaneous TX SAR Considerations 27 5.3. SAR Measurement Results 31 5.4. SAR Measurement Variability 33 5.5. Measurement Uncertainty (300MHz-3GHz) 33 5.6. System Check Results 35 5.7. SAR Test Graph Results 39 6. CALIBRATION CERTIFICATE 55 6.1. Probe Calibration Ceriticate 55 6.2. D900V2 Dipole Calibration Ceriticate 66 6.3. D1900V2 Dipole Calibration Ceriticate 74 6.4. DAE4 Calibration Ceriticate 82 7. TEST SETUP PHOTOS 87 8. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 92 Report No.: TRE13120013 Page 4 of 92 Issued:2014-02-15 1. TEST STANDARDS The tests were performed according to following standards: IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz. It specifies the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20 cm of the user in the uncontrolled environment. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. KDB 447498 D01 Mobile Portable RF Exposure v05r01: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 616217 D04 SAR for laptop and tablets v01: SAR Evaluation Considerations for Laptop, Notebook, Netbook and Tablet Computers KDB865664 D01 SAR measurement 100 MHz to 6 GHz v01r02: SAR Measurement Requirements for 100 MHz to 6 GHz KDB865664 D02 SAR Reporting v01: RF Exposure Compliance Reporting and Documentation Considerations KDB248227: SAR measurement procedures for 802.112abg transmitters FCC Part 2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices KDB 616217 D04 SAR for laptop and Internet Tablets v01: SAR Evaluation Considerations for Laptop, Notebook, Netbook and Internet Tablet Computers KDB 64…

Text truncated - open the document above for the full version.

Report No.: ATE20132562 Page 1 of 46 FCC ID: 2ABTP-NUMY-3G ACCURATE TECHNOLOGY CO., LTD APPLICATION CERTIFICATION FCC Part 22&24 On Behalf of SHENZHEN AINOL ELECTRON CO.,LTD Numy 3G serials-AX1 SPEC Model No.: Numy 3G AX1 FCC ID: 2ABTP-NUMY-3G Prepared for : SHENZHEN AINOL ELECTRON CO.,LTD Address : Room 606,Bldg B,7 Star Business Plaza, Minzhi Street, Longhua District, Shenzhen, China Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report No. : ATE20132562 Date of Test : Dec 02, 2013-Feb 15, 2014 Date of Report : Feb 15, 2014 Report No.: ATE20132562 Page 2 of 46 FCC ID: 2ABTP-NUMY-3G ACCURATE TECHNOLOGY CO., LTD TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 5 1.1. Description of Device (EUT)....................................................................................................................5 1.2. Carrier Frequency of Channels .................................................................................................................6 1.3. Description of Test Facility ......................................................................................................................7 1.4. Measurement Uncertainty.........................................................................................................................7 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 8 3. SYSTEM TEST CONFIGURATION ............................................................................................. 9 3.1. Justification...............................................................................................................................................9 3.2. Configuration of Test Setup......................................................................................................................9 3.3. Block Diagram of Test Setup....................................................................................................................9 4. TEST PROCEDURES AND RESULTS ....................................................................................... 10 5. POWER LINE CONDUCTED MEASUREMENT ..................................................................... 11 5.1. Block Diagram of Test Setup..................................................................................................................11 5.2. Power Line Conducted Emission Measurement Limits..........................................................................11 5.3. Configuration of EUT on Measurement .................................................................................................11 5.4. Operating Condition of EUT ..................................................................................................................11 5.5. Test Procedure ........................................................................................................................................12 5.6. Power Line Conducted Emission Measurement Results ........................................................................12 6. BANDWIDTH MEASUREMENT ................................................................................................ 16 6.1. Block Diagram of Test Setup..................................................................................................................16 6.2. Applicable Standard................................................................................................................................16 6.3. Operating Condition of EUT ..................................................................................................................16 6.4. Test Procedure ........................................................................................................................................16 6.5. Test Result ..............................................................................................................................................17 7. RF OUTPUT POWER.................................................................................................................... 24 7.1. Block Diagram of Test Setup..................................................................................................................24 7.2. The Requirement For FCC Section §2.1046 and §22.913 (a) & §24.232 (C) ........................................24 7.3. Operating Condition of EUT ..................................................................................................................25 7.4. Test Procedure ........................................................................................................................................25 7.5. Test Result ..............................................................................................................................................26 8. SPURIOUS EMISSIONS AT ANTENNA TERMINALS ........................................................... 32 8.1. Block Diagram of Test Setup..................................................................................................................32 8.2. Applicable Standard................................................................................................................................32 8.3. EUT Configuration on Measurement .....................................................................................................32 8.4. Operating Condition of EUT ..................................................................................................................32 8.5. Test Procedure ...................................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: ATE20132563 Page 1 of 46 FCC ID: 2ABTP-NUMY-3G ACCURATE TECHNOLOGY CO., LTD APPLICATION CERTIFICATION FCC Part 22&24 On Behalf of SHENZHEN AINOL ELECTRON CO.,LTD Numy 3G serials-AX1 SPEC Model No.: Numy 3G AX1 FCC ID: 2ABTP-NUMY-3G Prepared for : SHENZHEN AINOL ELECTRON CO.,LTD Address : Room 606,Bldg B,7 Star Business Plaza, Minzhi Street, Longhua District, Shenzhen, China Prepared by : ACCURATE TECHNOLOGY CO., LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report No. : ATE20132563 Date of Test : Dec 02, 2013-Feb 15, 2014 Date of Report : Feb 15, 2014 Report No.: ATE20132563 Page 2 of 46 FCC ID: 2ABTP-NUMY-3G ACCURATE TECHNOLOGY CO., LTD TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 5 1.1. Description of Device (EUT)....................................................................................................................5 1.2. Description of Test Facility ......................................................................................................................5 1.3. Measurement Uncertainty.........................................................................................................................6 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 7 3. SYSTEM TEST CONFIGURATION ............................................................................................. 8 3.1. Justification...............................................................................................................................................8 3.2. Configuration of Test Setup......................................................................................................................8 3.3. Block Diagram of Test Setup....................................................................................................................8 4. TEST PROCEDURES AND RESULTS ......................................................................................... 9 5. POWER LINE CONDUCTED MEASUREMENT ..................................................................... 10 5.1. Block Diagram of Test Setup..................................................................................................................10 5.2. Power Line Conducted Emission Measurement Limits..........................................................................10 5.3. Configuration of EUT on Measurement .................................................................................................10 5.4. Operating Condition of EUT ..................................................................................................................10 5.5. Test Procedure ........................................................................................................................................11 5.6. Power Line Conducted Emission Measurement Results ........................................................................12 6. BANDWIDTH MEASUREMENT ................................................................................................ 15 6.1. Block Diagram of Test Setup..................................................................................................................15 6.2. Applicable Standard................................................................................................................................15 6.3. Operating Condition of EUT ..................................................................................................................15 6.4. Test Procedure ........................................................................................................................................15 6.5. Test Result ..............................................................................................................................................16 7. RF OUTPUT POWER.................................................................................................................... 23 7.1. Block Diagram of Test Setup..................................................................................................................23 7.2. Applicable Standard................................................................................................................................23 7.3. Operating Condition of EUT ..................................................................................................................24 7.4. Test Procedure ........................................................................................................................................24 7.5. Test Result ..............................................................................................................................................24 8. SPURIOUS EMISSIONS AT ANTENNA TERMINALS ........................................................... 26 8.1. Block Diagram of Test Setup..................................................................................................................26 8.2. Applicable Standard................................................................................................................................26 8.3. EUT Configuration on Measurement .....................................................................................................26 8.4. Operating Condition of EUT ..................................................................................................................26 8.5. Test Procedure ........................................................................................................................................26 8.6. Test Result .......................................................................................…

Text truncated - open the document above for the full version.
