2ABU6-BRR0TAG

BRR0 TAG Datasheet AllRightsReservedbyMinew|minew.com 1 ModelDescription Stickerbeacon,rectangleshape,whitecasing,CE&FCCcertifiedmodule, includes1pcCR2016coinbatteryandgiftpackagebox,RoH BRR0 S BRR0 TAG Datasheet BRR0 TAG Datasheet AllRightsReservedbyMinew|minew.com 2 The sticker Beaconis BRR0 a ultra-thin Bluetooth Beacon with ARM core chipset nRF52 series and leverage BLE4.0 technology. The standard MiniBeacon firmware has been programmed into the device. It is designedforthe commercial advertising, indoor location-based service and personal electronic sticker. Minew Beacons broadcast 2.4GHz radio signals at regular and adjustable intervals. MiniBeacon can be heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps. FEATURES -ProgrammedMiniBeaconstandardfirmware -Included1pcCR2016coinbatteryreplaceable -Themax.50metersadvertisingdistance -Smallsize,user-friendlyandportable -Easytoprintthelogoonthecenteroftopcase; CERTIFICATIONS T A G -iBeaconMFiLicense(iBC-14-00582) -Bluetooth®EPLCertification -FCCRegulation(FCCPart15.) -CERegulations(IncludedEN300328/301489/60950/62479) SPECIFICATION Compatibility -SupportediOS7.0+andAndroid4.3+system; -CompatiblewithAppleiBeacon TM standard; -CompatiblewithallBluetooth®4.0(BLE)devices; ReplaceablebatteryandBatteryLevel -Replaceablecoinbattery; -Easytogetthereal-timebatterylevelnotification; SoftReboot -Rebootthedeviceviacommandwithoutanytools; OTAandJ-Link -SupportedupgradeviaOver-The-Air; -ReservedJ-Linkportontheboardforprogramming; ConnectionMode -Advertisingmode,non-connectable; -Configurationmode,connectable; ConfigurableParameters -UUID,Major,Minor,DeviceName,Passwordetc. -SpecialConfigurationAPP; TransmissionPowerLevels -8adjustablelevels,rangefrom0to7 -Transmissionpowerrange:-30dBmto+4dBm; Security -8characterspassword(Lock/Unlockparameters); -Broadcasttheencrypteddataifneeded; -AESHWencryption Mounting -Double-sidedadhesivefordirectmountingtowall; Shape -Ultra-thin3.3mm; -Batteryreplaceabledesign BRR0 TAG Datasheet AllRightsReservedbyMinew|minew.com ONFIGURABLEPARAMETER TURN ON 3 BRR0 Please DO take out the battery sheet fromBRR0 sticker beacon before using; S CharacteristicItem DefaultSettings 0xFFF1UUID E2C56DB5-DFFB-48D2-B060-D0F5A71096E0(Proximity) 0xFFF2Major 0 0xFFF3Minor 0 0xFFF4MeasuredPower -59(0xC5) 0xFFF5TransmissionPower 6(0dBm) 0xFFF6ChangePassword minew123(8charactersonly) 0xFFF7BroadcastingInterval 9(900mS) 0xFFF8SerialID Random(UniqueserialIDforbeacon) 0xFFF9iBeaconName MiniBeacon_(themaximum12characters) 0xFFFEConnectionMode 0(connectable,configurationmode) 0xFFFFSoftReboot minew123(itissameasthevalueofChangePassword) ELECTRONICPARAMETERS ItemValueRemarks CaseColorwhiteOthercolorscanbecustomized BatteryModel1xCR20161pcCR2016coinbattery,3.0V OperationVoltage1.8-3.6VDC TransmissionCircuit10.5mA(Max.)Testedat0dBmtransmissionpower TransmissionRange50metersMaximum Antenna50ohmOnboard/PCBAntenna Accessories Double-sidedadhesive 1pc,highstrength NetWeight4.0gWithbattery Size32x23x3.3mmNull TECHNICALSUPPORT ItemVersion FileName UpdatedDate DatasheetV1.01MiniBeaconDatasheet_1.01.pdf3 rd June,2019 InstructionV2.06MiniBeaconInstruction_V2.06.pdf25 th May,2017 SDKV5.0BothiOS&Android28 th January,2019 APPToolsV5.3BeaconSET23 rd January,2019 *Minewsalesteamwillsendyouthesedocumentsafterthesamplearrived. All RightsReserved byMinew | minew.com 4 FCC Requirement changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentialinstallation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interferencewill not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that towhich the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. –To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. BRR0 TAG Datasheet BRR0 TAG Datasheet AllRightsReservedbyMinew|minew.com PACKINGINFORMATIO 5 N Gift/StandardPackage: DetailsBoxCarton 30pcsperboQuantityx300pcspercarton NetWeight40.0g2.2Kg GrossWeight130.0g7.0Kg Size32x23x40c44.1*32*4.05mmm APPDENDIX 1.J-LINKProgrammerKit; 2.Over-the-AirFunction; PleasecontactMinewsalesteamtoaskmorerelatedinformationifneeded. DECLARATION Thecontentsofthisdatasheetaresubjecttochangewithoutpriornoticeforfurtherimprovement.Minew teamreservestherighttoexplainallthetermsofthisdatasheet. CONTACT Manufacturer:ShenzhenMinewTechnologiesCo.,Ltd. Phone:+86(755)21038160 Email:[email protected] Address: 3 rd Floor, I Building, Gangzhilong Science Park, QingLong Road, Longhua District, Shenzhen 518109 China https://www.minew.com <END>

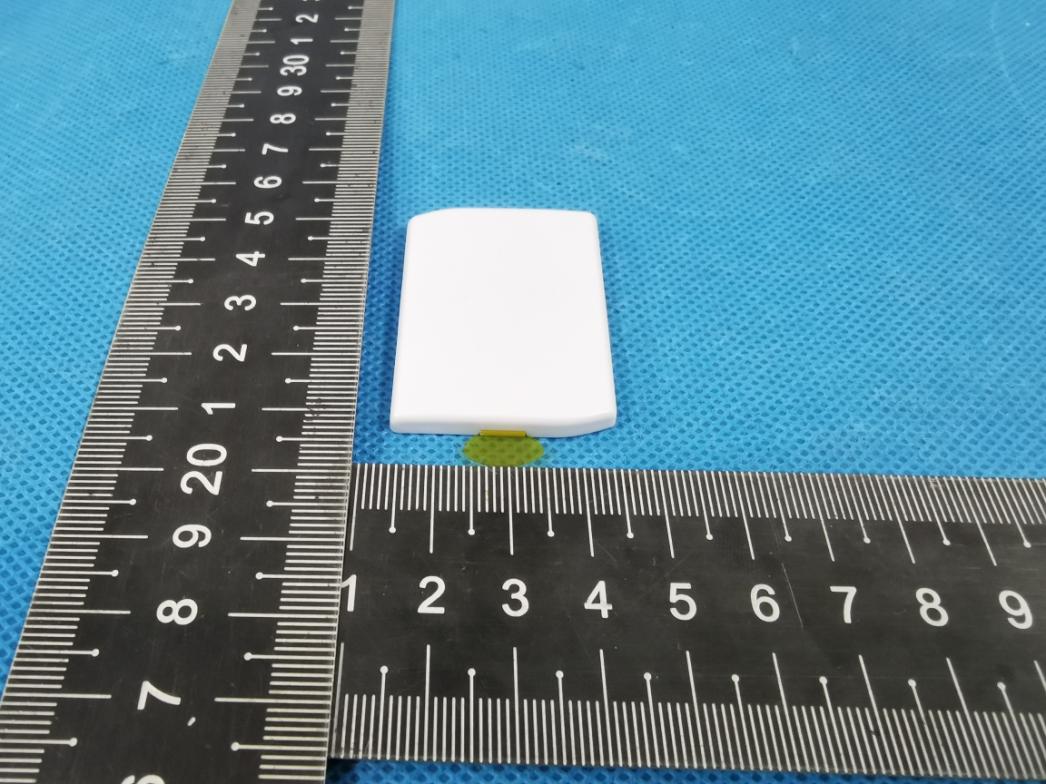

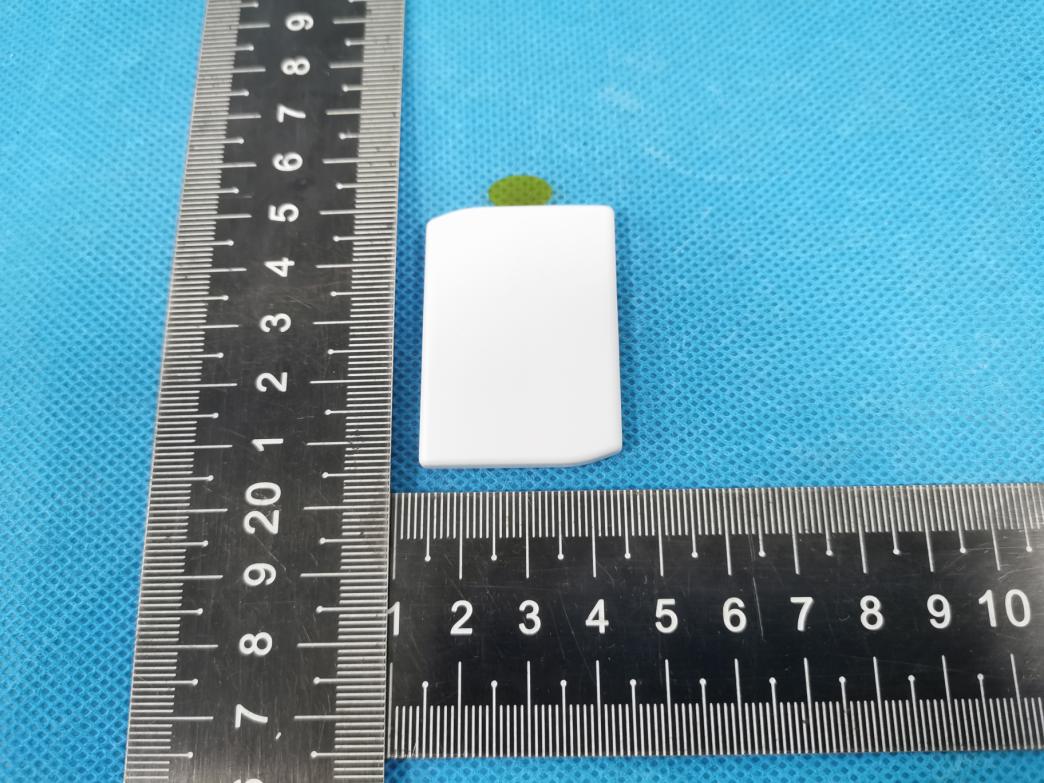

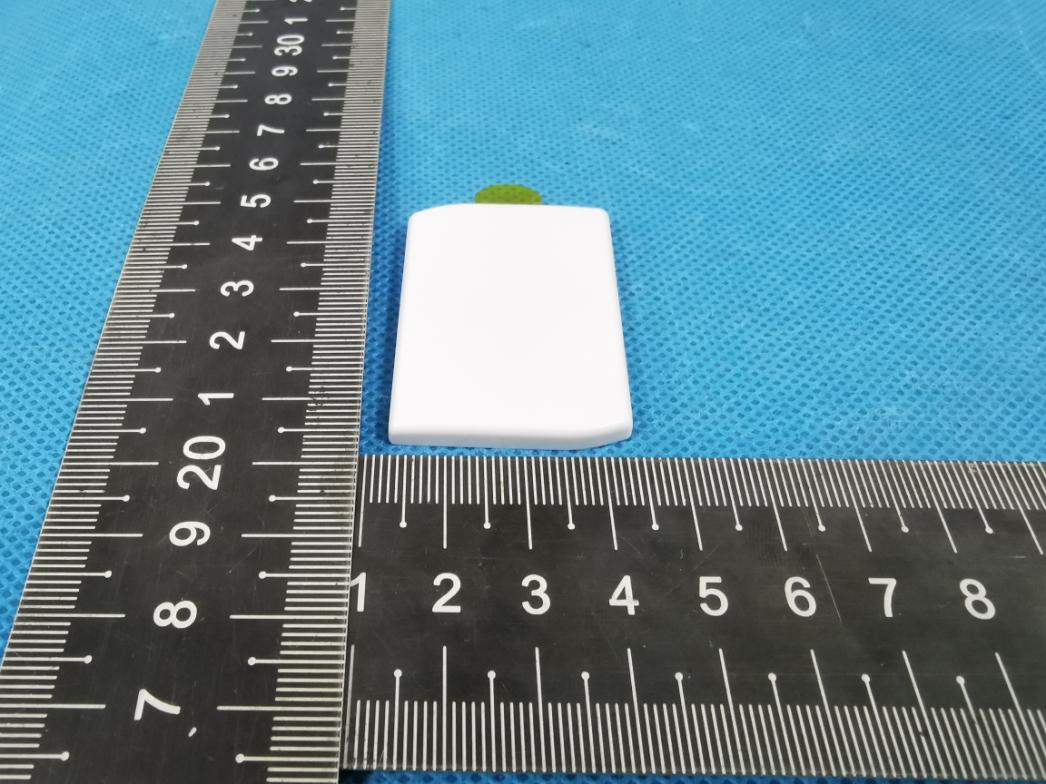

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

TAG Model: BRR0 FCC ID: 2ABU6-BRR0 MAC: AC233FXXXXXX Made in China TAG Model: BRR0 FCC ID: 2ABU6-BRR0 MAC: AC233FXXXXXX Made in China

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 ANT

version01 ShenzhenMinewTechnologiesCo.,Ltd. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:BRR0 FCCID:2ABU6-BRR0 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforPCBAntennaantennatype(s) describedbelow: ModelNo.ofantenna:BRR0 Typeofantenna: PCBAntenna Gainoftheantenna: -0.23dBi Frequencyrange:2402-2480MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:ShenzhenMinewTechnologiesCo.,Ltd. Address:3rdFloor,IBuilding,GangzhilongSciencePark,QinglongRoad,LonghuaDistrict, ShenzhenCity,China City:ShenzhenCity ZIP/Postalcode: Country: China Name:yanyanZhangDate: 18/11/2022 Signature:

深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第1页共6页 AntennaCoding：ANT-BBNCNC20002 AntennaType：PCBonboardAntenna ModeloftheDUT ： BRR0 AntennaManufacturer：ShenzhenMinewTechnologiesCo.,Ltd. 1、TechnicalSpecification ElectricalSpecifications FrequencyRange（MHz） 2402-2480 InputImpedance（Ω） 50 ReturnLoss （ dB ）＜ -10 VSWR ＜ 2 PeakGain（dBi） -0.23 PolarizationTypeLinearpolarization MechanicalSpecifications AntennaSize(mm)10.93*3.23 RadiatorCuprum 2、Theshapeandsizeoftheantenna 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第2页共6页 3、Theresultofthetest 3.1TestEnvironment 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第3页共6页 3.2GainandEfficiency 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第4页共6页 3.33D PolarPlot 2402MHz 2440MHz 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第5页共6页 2480MHz 3.42DRadiationPattern （1）E1，XZPlane，phi=0 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第6页共6页 （2）E2，YZPlane，phi=90° （3）H，XYplane，theta=90°

FCC ID: 2ABU6-BRR0 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result Operation Frequency: BT: 2402-2480MHz Power density limited: 1mW/ cm 2 Antenna Type: PCB Antenna Antenna gain: -0.23 dBi, R=20cm conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 2402 4.195±16 3.981-0.230.950.00081 2440 5.065±16 3.981-0.230.950.00081 2480 3.743±14 2.512-0.230.950.00051 2402 4.225±16 3.981-0.230.950.00081 2440 5.085±16 3.981-0.230.950.00081 2480 3.753±14 2.512-0.230.950.00051 Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) BLE(2M) (mW/cm2 )(mW/cm2) Antenna Gain BLE(1M) Max tune-up power Note: This product does not support multi-source transmission. Conclusion: For the max result : 0.0008≤ 1.0 for Max Power Density, compliance RF exposure.. Signature: Date: 2022-11-21 NAME AND TITLE (Please print or type): Alex Li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S22102900505001 Version.1.3 Page 1 of 54 RADIO TEST REPORT FCC ID: 2ABU6-BRR0 Product: TAG Trade Mark: MINEW Model No.: BRR0 Family Model: N/A Report No.: S22102900505001 Issue Date: Nov 09. 2022 Prepared for Shenzhen Minew Technologies Co., Ltd. 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S22102900505001 Version.1.3 Page 2 of 54 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 15 7.3 6DB BANDWIDTH ....................................................................................................................................... 24 7.4 DUTY CYCLE ............................................................................................................................................... 25 7.5 PEAK OUTPUT POWER .............................................................................................................................. 27 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 28 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 30 7.8 SPURIOUS RF CONDUCTED EMISSIONS................................................................................................ 31 7.9 ANTENNA APPLICATION .......................................................................................................................... 32 8 TEST RESULTS ................................................................................................................................................... 33 1M: ............................................................................................................................................................................. 33 2M: ............................................................................................................................................................................. 44 Report No.: S22102900505001 Version.1.3 Page 3 of 54 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Shenzhen Minew Technologies Co., Ltd. Address ....................................... : 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Manufacturer's Name .................. : Shenzhen Minew Technologies Co., Ltd. Address ....................................... : Building 3, Instrument World Industrial Park, No. 306, Guanlan Guiyue Road, Longhua District, Shenzhen Product description Product name .............................. : TAG Model and/or type reference ...... : BRR0 Family Model ............................... : N/A Test Sample Number ................... : S221029005005 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing Technology Co., Ltd., this document may be altered or revised by Shenzhen NTEK Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. The test results of this report relate only to…
