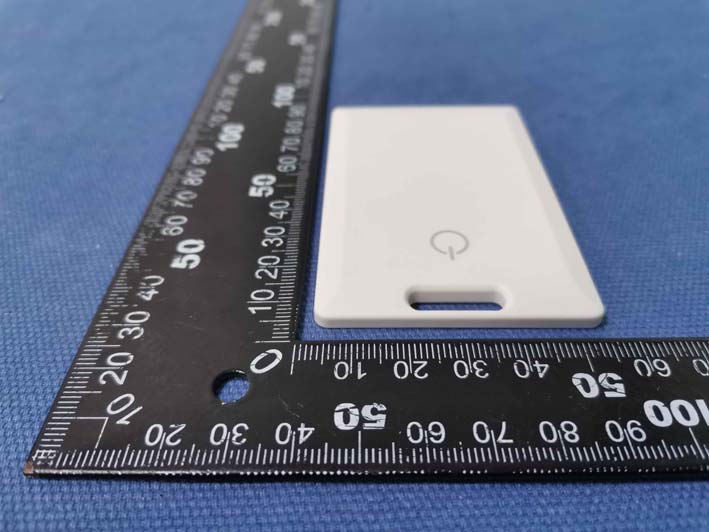

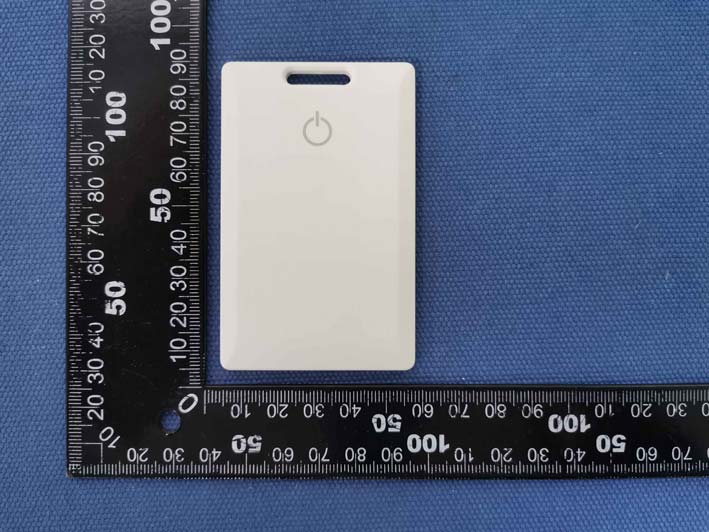

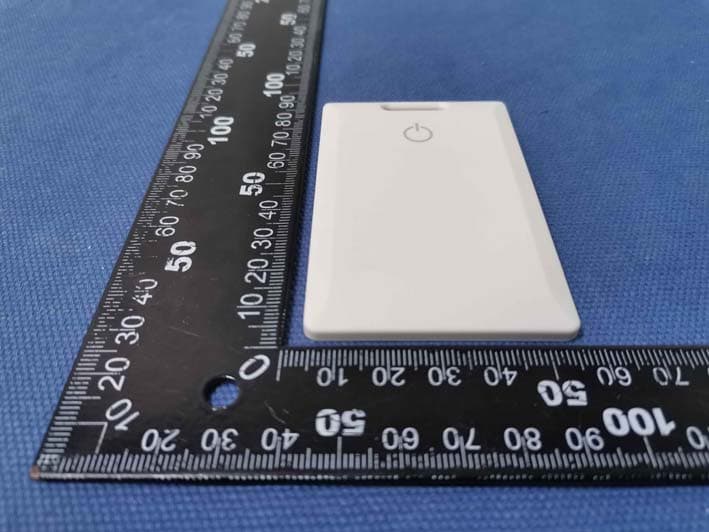

2ABU6-C10Digital Broadcating Device(iBeacon and Eddystone)

TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 1 E8 TagBeacon MiniBeaconPlus Configuration Instruction M M i i n n i i B B e e a a c c o o n n C C o o n n f f i i g g u u r r a a t t i i o o n n I I n n s s t t r r u u c c t t i i o o n n V V 2 2 . . 0 0 N N o o t t e e : : 1 1 . . T T h h e e i i n n s s t t r r u u c c t t i i o o n n a a p p p p l l i i e e d d f f o o r r b b e e a a c c o o n n m m o o d d e e l l s s t t h h a a t t d d o o e e s s n n ’ ’ t t l l o o a a d d a a n n y y s s e e n n s s o o r r s s a a n n d d p p r r e e - - f f l l a a s s h h e e d d M M i i n n i i B B e e a a c c o o n n i i n n t t e e l l l l i i g g e e n n c c e e f f i i r r m m w w a a r r e e . . 2 2 . . M M i i n n i i B B e e a a c c o o n n i i s s o o n n e e o o f f M M i i n n e e w w ’ ’ s s o o f f t t w w a a r r e e p p a a t t e e n n t t . . PREPARATION------------------------------------------------------------------------------------------------------------------------------2 ENTER INTO CONFIGURATION MODE-------------------------------------------------------------------------------------------2,3 CONFIGURATION MODE----------------------------------------------------------------------------------------------------------------4 Settings Definition----------------------------------------------------------------------------------------------------------------------4 SLOT Configuration-----------------------------------------------------------------------------------------------------------------4,5 Advertising Data Format (Info) -----------------------------------------------------------------------------------------------------6 Adv Content-----------------------------------------------------------------------------------------------------------------------------7 Base params---------------------------------------------------------------------------------------------------------------------------7,8 Trigger-----------------------------------------------------------------------------------------------------------------------------------8 DEPOLYMENT NOTICE-----------------------------------------------------------------------------------------------------------------9 END------------------------------------------------------------------------------------------------------------------------------------------9 TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 2 E8 TagBeacon MiniBeaconPlus Configuration Instruction PREPARATION 1. Activate beacon device as the datasheet correctly; 2. An iOS 7.0+ / Android 4.3+ smart device with BLE 4.0; 3. Download BeaconSET+ app from Apple store or Google Paly; ENTER INTO CONFIGURATION MODE 1. Run BeaconSET+, there are total 37 devices detected around smartphone immediately, see image 2; 2. You can click “Edit Filter” to quick search out a beacon device which you want to configure by Name, MAC ID and RSSI value, see image 3; 2 3 TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 3 E8 TagBeacon MiniBeaconPlus Configuration Instruction 3. For example: Slide the RSSI slide bar to set the RSSI value at -33 dBm as the filter, then see image 4; there is only one beacon and its MAC address is ac233f24a933 which we want to configure it. 4 4. The Beacon is connectable only when the ROUND DOT changed to green color, see above image 4; if Beacon has been set to disconnectable, the ROUND DOT keeps in red color; 5. Click the Beacon when it’s connectable, and then input the password as image 5. If it is correct, the Beacon enters into configuration mode, see image 6; 5 6 3.1 The beacon (MAC ID: ac233f24a933) can advertise total 6 different frame types iBeacon, Eddystone (UID, URL, TLM), Acc. and Info simultaneously. But now the beacon advertises only URL, iBeacon and Info frame. 3.2 The data Info includes the battery level and MAC address. It is not allowed to change by user; TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 4 E8 TagBeacon MiniBeaconPlus Configuration Instruction CONFIGURATION MODE 1. Settings Definition SLOT: Each Beacon has 6 configurable SLOTs; it is from SLOT1 to SLOT6. Connectable: Each Beacon has 2 different advertising statuses, connectable and disconnectable. Only when the advertising status is connectable, the Beacon is configurable. But the disconnectable advertising saves about 20% power consumption than connectable advertising’s. After completed the configuration, we strongly recommend setting the Beacon disconnect not only lower battery power consumption but also better security performance. Update firmware (OTA: over-the-air): - It’s not allowed to load unknown firmware into tag beacon; - If there is a bug occurred unfortunately, the manufacturer is responsible to release the latest revised firmware to help users to recover the bug by “Update firmware”; Reset factory: It will recover beacon to factory settings and ignore all changes; Poweroff: The Beacon will stop advertising and enter into sleeping mode after used “Poweroff”. But it can be activated again by push button on the beacon. As Beacon doesn’t have a push button, we are strongly opposed to use “Poweroff”. Modify password: Change to a new password by “Modify password”. Remove password: Removing the password if someone forgot it and then set a new password by “Add password”. Manufacture info & Feature info: It’s not changeable by users. 2. SLOT Configuration Each SLOT is independent and configurable. The following parameters can be configured. The users can configure each SLOT’s Frame Type, Adv. Content, Base params and Trigger by themselves via BeaconSET+. 2.1 Frame Type Actually, the frame type is the format of advertising data packet. Each Beacon has below total 7 different frame types: UID, iBeacon, URL, Acc. Sensor, TLM, Info and NO DATA, see image 8; TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 5 E8 TagBeacon MiniBeaconPlus Configuration Instruct…

Text truncated - open the document above for the full version.
