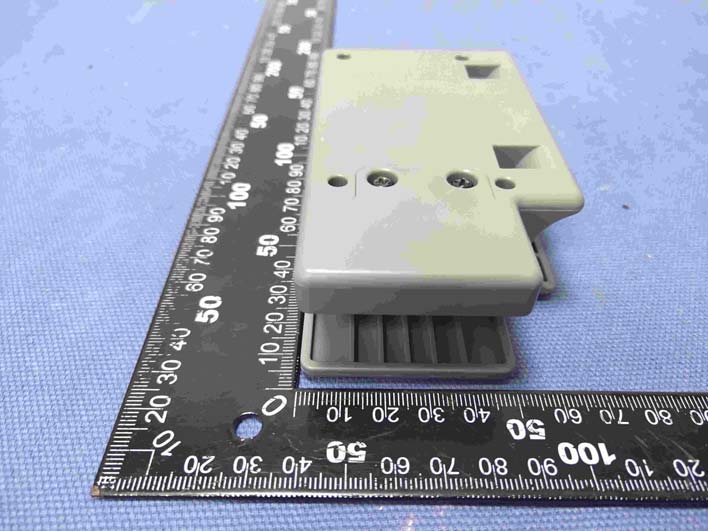

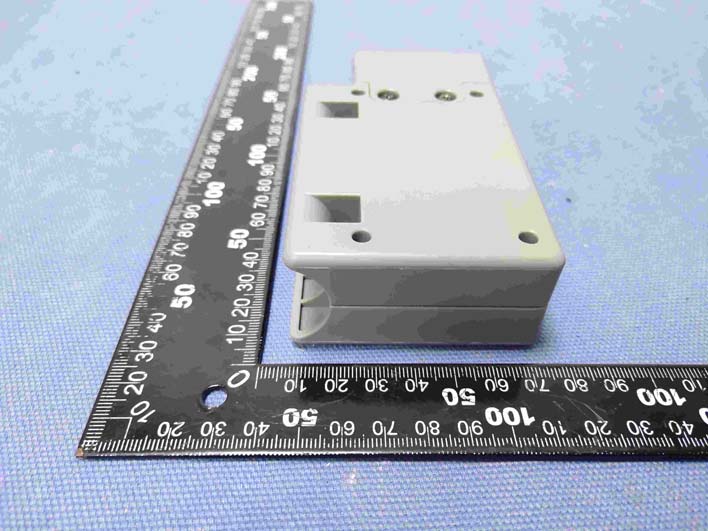

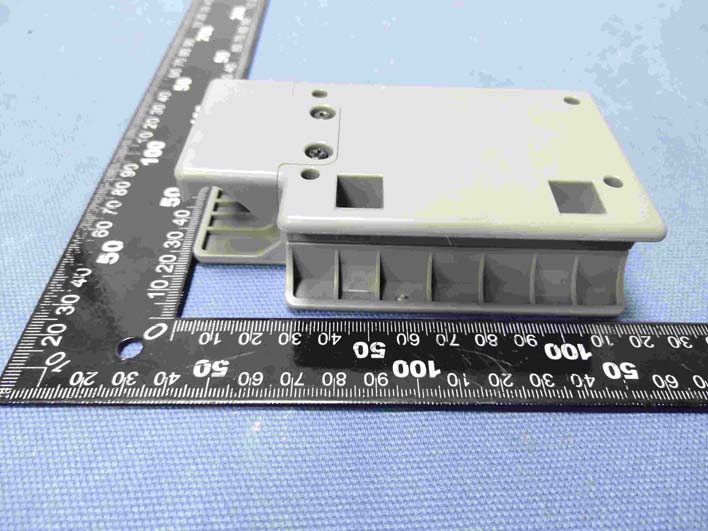

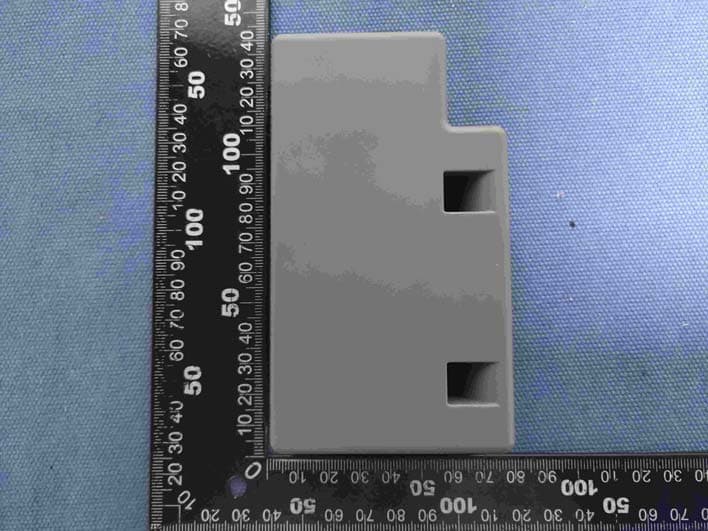

2ABU6-D83Digital Broadcating Device(iBeacon and Eddystone)

TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 1 E8 TagBeacon MiniBeaconPlus Configuration Instruction M M i i n n i i B B e e a a c c o o n n C C o o n n f f i i g g u u r r a a t t i i o o n n I I n n s s t t r r u u c c t t i i o o n n V V 2 2 . . 0 0 N N o o t t e e : : 1 1 . . T T h h e e i i n n s s t t r r u u c c t t i i o o n n a a p p p p l l i i e e d d f f o o r r b b e e a a c c o o n n m m o o d d e e l l s s t t h h a a t t d d o o e e s s n n ’ ’ t t l l o o a a d d a a n n y y s s e e n n s s o o r r s s a a n n d d p p r r e e - - f f l l a a s s h h e e d d M M i i n n i i B B e e a a c c o o n n i i n n t t e e l l l l i i g g e e n n c c e e f f i i r r m m w w a a r r e e . . 2 2 . . M M i i n n i i B B e e a a c c o o n n i i s s o o n n e e o o f f M M i i n n e e w w ’ ’ s s o o f f t t w w a a r r e e p p a a t t e e n n t t . . PREPARATION------------------------------------------------------------------------------------------------------------------------------2 ENTER INTO CONFIGURATION MODE-------------------------------------------------------------------------------------------2,3 CONFIGURATION MODE----------------------------------------------------------------------------------------------------------------4 Settings Definition----------------------------------------------------------------------------------------------------------------------4 SLOT Configuration-----------------------------------------------------------------------------------------------------------------4,5 Advertising Data Format (Info) -----------------------------------------------------------------------------------------------------6 Adv Content-----------------------------------------------------------------------------------------------------------------------------7 Base params---------------------------------------------------------------------------------------------------------------------------7,8 Trigger-----------------------------------------------------------------------------------------------------------------------------------8 DEPOLYMENT NOTICE-----------------------------------------------------------------------------------------------------------------9 END------------------------------------------------------------------------------------------------------------------------------------------9 TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 2 E8 TagBeacon MiniBeaconPlus Configuration Instruction PREPARATION 1. Activate beacon device as the datasheet correctly; 2. An iOS 7.0+ / Android 4.3+ smart device with BLE 4.0; 3. Download BeaconSET+ app from Apple store or Google Paly; ENTER INTO CONFIGURATION MODE 1. Run BeaconSET+, there are total 37 devices detected around smartphone immediately, see image 2; 2. You can click “Edit Filter” to quick search out a beacon device which you want to configure by Name, MAC ID and RSSI value, see image 3; 2 3 TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 3 E8 TagBeacon MiniBeaconPlus Configuration Instruction 3. For example: Slide the RSSI slide bar to set the RSSI value at -33 dBm as the filter, then see image 4; there is only one beacon and its MAC address is ac233f24a933 which we want to configure it. 4 4. The Beacon is connectable only when the ROUND DOT changed to green color, see above image 4; if Beacon has been set to disconnectable, the ROUND DOT keeps in red color; 5. Click the Beacon when it’s connectable, and then input the password as image 5. If it is correct, the Beacon enters into configuration mode, see image 6; 5 6 3.1 The beacon (MAC ID: ac233f24a933) can advertise total 6 different frame types iBeacon, Eddystone (UID, URL, TLM), Acc. and Info simultaneously. But now the beacon advertises only URL, iBeacon and Info frame. 3.2 The data Info includes the battery level and MAC address. It is not allowed to change by user; TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 4 E8 TagBeacon MiniBeaconPlus Configuration Instruction CONFIGURATION MODE 1. Settings Definition SLOT: Each Beacon has 6 configurable SLOTs; it is from SLOT1 to SLOT6. Connectable: Each Beacon has 2 different advertising statuses, connectable and disconnectable. Only when the advertising status is connectable, the Beacon is configurable. But the disconnectable advertising saves about 20% power consumption than connectable advertising’s. After completed the configuration, we strongly recommend setting the Beacon disconnect not only lower battery power consumption but also better security performance. Update firmware (OTA: over-the-air): - It’s not allowed to load unknown firmware into tag beacon; - If there is a bug occurred unfortunately, the manufacturer is responsible to release the latest revised firmware to help users to recover the bug by “Update firmware”; Reset factory: It will recover beacon to factory settings and ignore all changes; Poweroff: The Beacon will stop advertising and enter into sleeping mode after used “Poweroff”. But it can be activated again by push button on the beacon. As Beacon doesn’t have a push button, we are strongly opposed to use “Poweroff”. Modify password: Change to a new password by “Modify password”. Remove password: Removing the password if someone forgot it and then set a new password by “Add password”. Manufacture info & Feature info: It’s not changeable by users. 2. SLOT Configuration Each SLOT is independent and configurable. The following parameters can be configured. The users can configure each SLOT’s Frame Type, Adv. Content, Base params and Trigger by themselves via BeaconSET+. 2.1 Frame Type Actually, the frame type is the format of advertising data packet. Each Beacon has below total 7 different frame types: UID, iBeacon, URL, Acc. Sensor, TLM, Info and NO DATA, see image 8; TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 5 E8 TagBeacon MiniBeaconPlus Configuration Instruct…

Text truncated - open the document above for the full version.

FCC ID:2ABU6-D83 FCC ID:2ABU6-D83 FCC ID:2ABU6-D83

Labelsize:25*20mm）

FCC ID:2ABU6-D83 FCC ID:2ABU6-D83

Shenzhen Huaxia Testing Technology Co., Ltd 1F., Block A of Tongsheng Technology Building,Huahui Road, Dalang Street, Longhua District, Shenzhen, China Telephone: +86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com Report Template Version: V04 Repor tTemplate Revision Date: 2018-07-06 RF Exposure Evaluation Report The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of CQA, this report can’t be reproduced except in full. Report No. : CQASZ20200300126E-02 Applicant: Shenzhen Minew Technologies co., Ltd Address of Applicant:3rd Floor, I Bulding, Gangzhilong Science Park, Qinglong Road, LonghuaDistrict, Shenzhen City, China Equipment Under Test (EUT): EUT Name: Digital Broadcating Device(iBeacon and Eddystone) Mode No.: D83 Brand Name: N/A FCC ID: 2ABU6-D83 Standards: 47 CFR Part 1.1307 47 CFR Part 2.1093 KDB447498D01 General RF Exposure Guidance v06 Date of Receipt:2020-03-09 Date of Test:2020-03-09 to 2020-03-13 Date of Issue:2020-03-13 Test Result :PASS* * In the configuration tested, the EUT complied with the standards specified above. Tested By： (Tom Chen) Reviewed By: (Aaron Ma) Approved By: (Jack Ai) Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20200300126E-02 Page: 2 of 6 1Version Revision History Of Report ReportNo.Version Description Issue Date CQASZ20200300126E- 02 Rev.01 Initial report 2020-03-13 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20200300126E-02 Page: 3 of 6 2 Contents Page 1 VERSION......................................................................................................................................................................2 2CONTENTS..................................................................................................................................................................3 3 GENERAL INFORMATION........................................................................................................................................4 3.1 C LIENTINFORMATION................................................................................................................................................4 3.2 G ENERALDESCRIPTION OFEUT................................................................................................................................4 4 SAR EVALUATION.....................................................................................................................................................5 4.1 RF E XPOSURECOMPLIANCEREQUIREMENT..............................................................................................................5 4.1.1 Standard Requirement..................................................................................................................................5 4.1.2 Limits................................................................................................................................................................5 4.1.3 EUT RF Exposure..........................................................................................................................................6 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20200300126E-02 Page: 4 of 6 3 General Information 3.1 Client Information Applicant: Shenzhen Minew Technolo gies co., Ltd Address of Applicant: 3rd Floor, I Bulding, Gangzhilong Science Park, Qinglong Road, LonghuaDistrict, Shenzhen City, China Manufacturer: Shenzhen Minew Technolo gies co., Ltd Address of Manufacturer: 3rd Floor, I Bulding, Gangzhilong Science Park, Qinglong Road, Lon ghuaDistrict, Shenzhen City,China 3.2 General Description of EUT Product Name: Digital Broadcating Device(iBeacon and Eddystone) Model No.: D83 Trade Mark: N/A Hardware Version: V2.X Software Version: V2.X.X Operation Frequency:2402MHz~2480MHz Bluetooth Version:V5.0 Modulation Type:GFSK Transfer Rate:1Mbps, 2Mbps Number of Channel:40 Product Type:MobilePortableFix Location Test Software of EUT:nRFgo Studio (manufacturer declare ) Antenna Type: PCB antenna Antenna Gain: 1.51dBi EUT Power Supply: 2XAA battery DC3V Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20200300126E-02 Page: 5 of 6 4 SAR Evaluation 4.1 RF Exposure Compliance Requirement 4.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 4.3.1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 4.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)]≤3.0 for 1-g SAR and≤7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is≤50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20200300126E-02 Page: 6 of 6 4.1.3EUT RF Exposure For BLE Measurement Data GFSK(1Mbps) mode Test channelPeak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm)(mW) Lowest(2402MHz)-1.61-2.0±1-10.794 Middle (2440MHz)-2.03-2.0±1-10.794 Highest(2480MHz)-2.06-2.0±1-10.794 GFSK(2Mbps) mode Test channelPeak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (d…

Text truncated - open the document above for the full version.

Shenzhen Huaxia Testing Technology Co., Ltd 1F., Block A of Tongsheng Technology Building,Huahui Road, Dalang Street, Longhua District, Shenzhen, China Telephone: +86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com Report Template Version: V04 Report Template Revision Date: 2018-07-06 TEST REPORT The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of CQA, this report can’t be reproduced except in full. Report No. : CQASZ20200300126E-01 Applicant: Shenzhen Minew Technologies co., Ltd Address of Applicant:3rd Floor, I Bulding, Gangzhilong Science Park, Qinglong Road, LonghuaDistrict, Shenzhen City, China Equipment Under Test (EUT): EUT Name:Digital Broadcating Device(iBeacon and Eddystone) Model No.:D83 Brand Name:N/ A FCC ID:2ABU6-D83 Standards:47 CFR Part 15, Subpart C Date of Receipt:2020-03-09 Date of Test:2020-03-09 to 2020-03-13 Date of Issue:2020-03-13 Test Result :PASS* *In the configuration tested, the EUT complied with the standards specified above Tested By： (Tom Chen) Reviewed By: (Aaron Ma) Approved By: (Jack Ai) Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20200300126E-01 Page: 2 of 43 1Version Revision History Of Report ReportNo.Version Description Issue Date CQASZ20200300126E-01Rev.01 Initial report 2020-03-13 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20200300126E-01 Page: 3 of 43 2 Test Summary Test ItemTest RequirementTest methodResult Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 2013PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 2013N/A Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(3) ANSI C63.10 2013PASS 6dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(2) ANSI C63.10 2013PASS Power Spectral Density 47 CFR Part 15, Subpart C Section 15.247 (e) ANSI C63.10 2013PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 2013PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 2013PASS Radiated Spurious Emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 2013PASS Restricted bands around fundamental frequency (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 2013PASS N/A: The EUT powered by DC, So Not Applicable Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20200300126E-01 Page: 4 of 43 3 Contents Page 1 VERSION....................................................................................................................................................................2 2 TEST SUMMARY......................................................................................................................................................3 3CONTENTS................................................................................................................................................................4 4 GENERAL INFORMATION.....................................................................................................................................5 4.1 C LIENTINFORMATION........................................................................................................................................... 5 4.2 G ENERALDESCRIPTION OFEUT...........................................................................................................................5 4.3 A DDITIONALINSTRUCTIONS..................................................................................................................................7 4.4 T ESTENVIRONMENT..............................................................................................................................................8 4.5 D ESCRIPTION OFSUPPORTUNITS..........................................................................................................................8 4.6 S TATEMENT OF THE MEASUREMENT UNCERTAINTY..............................................................................................9 4.7 T ESTLOCATION...................................................................................................................................................10 4.8 T ESTFACILITY.....................................................................................................................................................10 4.9 D EVIATION FROMSTANDARDS............................................................................................................................10 4.10 O THERINFORMATIONREQUESTED BY THECUSTOMER......................................................................................10 4.11 E QUIPMENTLIST................................................................................................................................................. 11 5 TEST RESULTS AND MEASUREMENT DATA............................................................................................... 12 5.1 A NTENNAREQUIREMENT.................................................................................................................................... 12 5.2 C ONDUCTEDPEAKOUTPUTPOWER....................................................................................................................13 5.3 6 DBOCCUPYBANDWIDTH..................................................................................................................................17 5.4 P OWERSPECTRALDENSITY................................................................................................................................20 5.5 B AND-EDGE FORRF CONDUCTEDEMISSIONS.................................................................................................... 23 5.6 S PURIOUSRF CONDUCTEDEMISSIONS.................................................................................…

Text truncated - open the document above for the full version.

FCC ID:2ABU6-D83 1 Photographs - EUT Test Setup 1.1 Radiated Spurious Emission 9KHz~30MHz: 30MHz~1GHz: FCC ID:2ABU6-D83 Above 1GHz:
