2ABU6-D93Digital Broadcasting Device

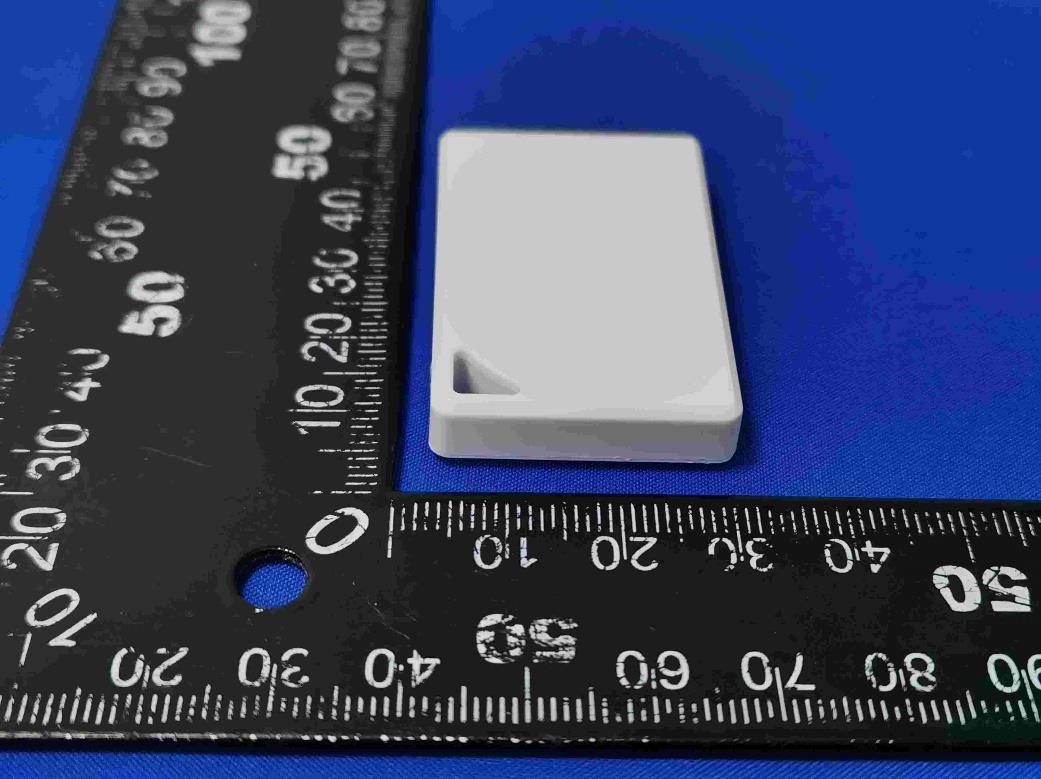

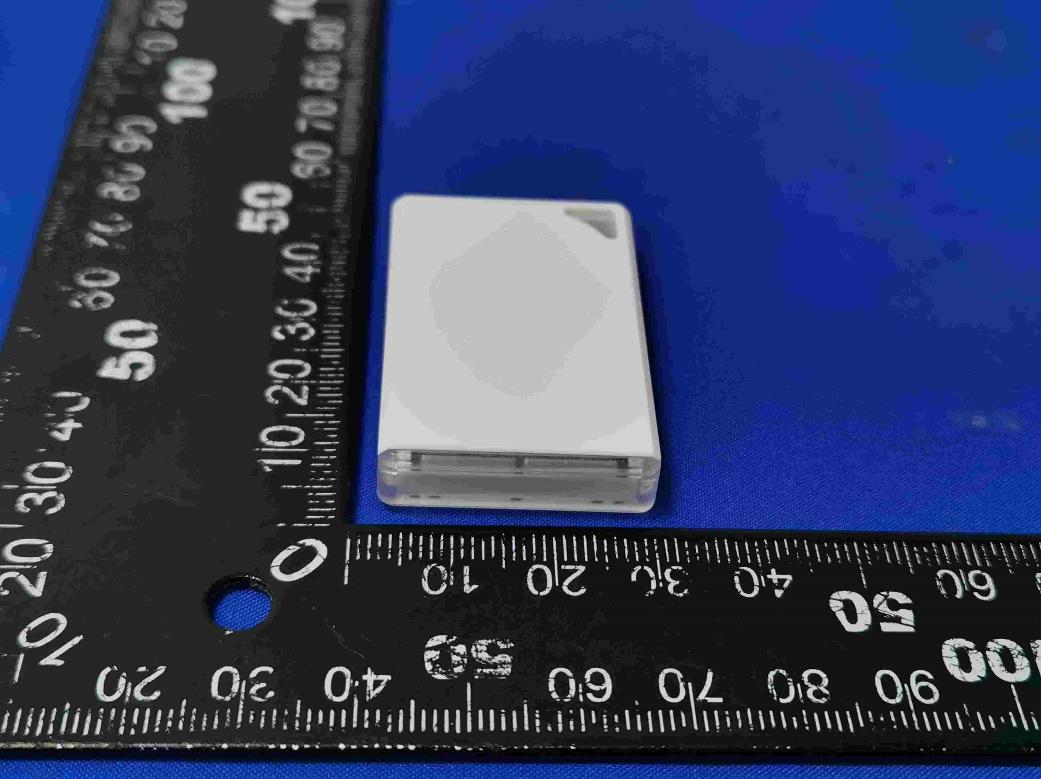

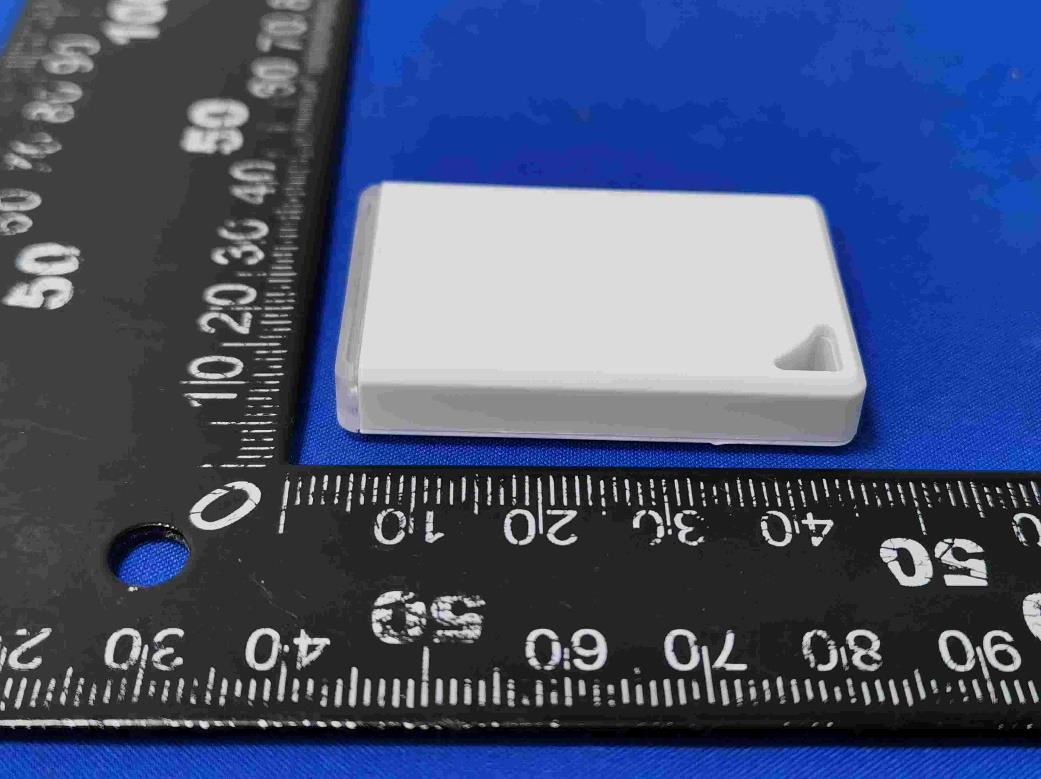

Asset Tag - User Manual 2 Description The asset tag is a long life, cost-effective proximity tag with multiple mounting options. The asset tag is intended to be attached an asset by the methods outlined in this user manual. Safety Recommendations Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage. Do not disassemble, dismantle, open, crush puncture, or shred the product. If the product housing/envelope is weakened, cracked, or broken, stop using it immediately. Do not attempt to short-circuit the battery or make contact with a conductive/metal object. Do not expose the product to heat, fire or flame. Only CR2450 batteries can be used in this product. Keep out of reach of children. Dispose of all batteries in accordance with applications laws and regulations. Failure to follow these instructions can result in personal injury or property damage, and the manufacturer will have no liability whatsoever for any such injury or damage arising from or in connection with any failure to follow these or other instructions provided to the end user. Le non-respect de ces instructions peut entraîner des blessures corporelles ou des dommages matériels, et fabricant décline toute responsabilité en cas de blessure ou de dommage résultant de ou en relation avec le non-respect de ces instructions ou d'autres instructions fournies à l'utilisateur final. Product Description The product is designed to track and locate assets. Asset Tag Features and Sensors: - 2.4 GHz radio - CR2450 battery - (3) LEDs - Attach to equipment using zip tie through eyehole or two-sided adhesive. - Accelerometer and temperature sensors The product has the following exterior dimensions: 44.5 mm x 29 mm x 7 mm. 3 Back Label The sticker on the back of the device provides the main product information. The TAG ID is necessary to provision the device. This information is encoded in the QR code. Do not remove the label or other proprietary notices or logos affixed to the device. Ne retirez pas l'autocollant ou d'autres mentions de propriété ou logos apposés sur l'appareil. Characteristics Listed below are the main performance characteristics: Features Description Use Indoor Only LED Thee (3), Red Usage Continuous Power CR2450 Battery Only Internal supply 3V DC 4 Features Description Relative humidity environment Less than 95% non-condensing humidity Frequency band 2.4GHz ISM Band Max Output power +4Bm conducted Operating temperature From -30°C to + 60°C noncondensing Storage temperature From 0°C to +35°C noncondensing 1 Mechanical dimensions (in millimeters) 44.5 mm x 29 mm x 7 mm Temperature Measurement Range: -30°C to + 60°C Precision: +/- 1°C Humidity Measurement Absolute accuracy tolerance: +/- 3 %RH over 20..80%RH at 25°C Full relative humidity scale temperature range: 0 to 60°C Long Term stability: +/-0,5 %RH/year Accelerometer Configurable range :±2/±4/±8/±16 g Resolution: 1mg Sampling rate: 0, 1.6, 12.5, 26, 52, 104, 208, 416, 833, 1660, 3330, 6660 Hz Installing the Tag The product is designed to have a small footprint and be attatched to customer equipment objects using the provided 3M adhesive or zip tie using the keyhole on the deivce. • Adhesive Before adhering the device to the asset surface, clean it using an 50/50 mixture of isopropyl alcohol and water can remove dust and oils on the surface to prep for good adhesion. Ideal application temperature range for adhesive application is 70°F to 100°F (21°C to 38°C) but as low as 32°F (0°C) is acceptable. The adhesive will bond to a broad range of high surface energy substrates including metals, glass, plastics and easier to bond paints. 1 The indicated storage temperature range is intended to maximize the battery life and avoid unexpected discharge during storage. The product can be exposed to an increased temperature range than the indicated storage temperature range (as long as it stays within operating temperature range), but exposure to more extreme temperatures during storage may reduce battery life. 1 La plage de température de stockage indiquée est destinée à maximiser la durée de vie de la batterie et à éviter une décharge inattendue pendant le stockage. Le produit peut être exposé à une plage de températures plus élevée que la plage de températures de stockage indiquée (tant qu'il reste dans la plage de températures de fonctionnement), mais une exposition à des températures plus extrêmes pendant le stockage peut réduire la durée de vie de la batterie. 5 1. Using included Tag double-sided adhesive, remove one side of the protective film and secure it to the blank side of the Tag a. Avoid obscuring Tag QR code 2. Remove the other of side of the protective film and apply securely to the asset • Zip Tie 1. Separately, procure zip tie 2. Loop zip tie through keyhole on Asset Tag and connect to the asset • Activation 1. Pull the battery tab to turn on Tag 2. Using asset tracking software, a. Scan Tag QR code or manually enter Tag ID b. enter asset information c. Confirm successful pairing by pressing SUBMIT • Button & LED Behavior LED Blink Rate: Fast Blink (0.1 seconds each) Atypical Activity - - - - Slow Blink (1.0 seconds each) Normal Activity ─ ─ ─ ─ LED Actions: Device Action LED Blink Count Powered Off N/A N/A Power On ─ ─ ─ ─ 2 Firmware Update - - - - 10 Regulatory Notices This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operation of this device is restricted to indoor use only. 6 Compliance with 47 CFR Part 15 Regulation Class B Devices changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is sub…

Text truncated - open the document above for the full version.

FCC ID: 2ABU6-D93 FCC ID: 2ABU6-D93 FCC ID: 2ABU6-D93

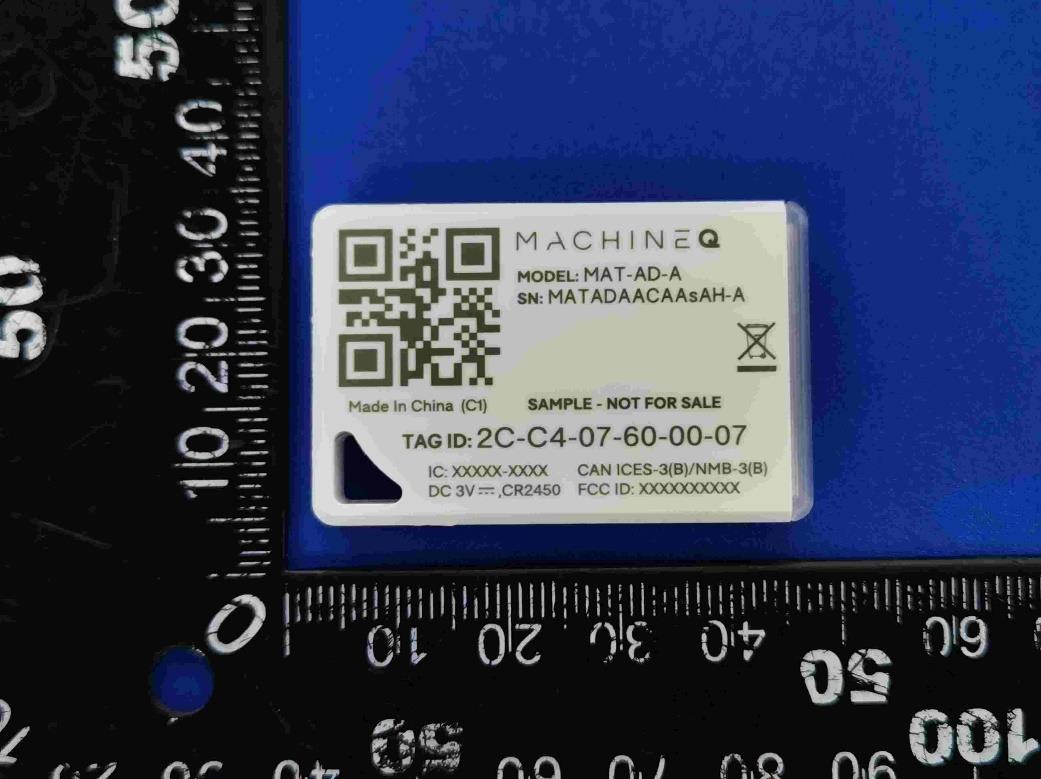

Label尺寸:43.91*28.46mm IC :20896-D93 FCC ID:2ABU6-D93

FCC ID:2ABU6-D93 BT ANT FCC ID:22ABU6-D93

Shenzhen Huaxia Testing Technology Co., Ltd 1F., Block A of Tongsheng Technology Building, Huahui Road, Dalang Street, Longhua District, Shenzhen, China Telephone: +86-755-26648640 Fax: +86-755-26648637 Website: www.cqa-cert.com Report Template Version: V04 Report Template Revision Date: 2018-07-06 RF Exposure Evaluation Report The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of CQA, this report can’t be reproduced except in full. Report No.: CQASZ20201101428E-02 Applicant: Shenzhen Minew Technologies Co., Ltd Address of Applicant: 3rd Floor, I Bulding, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Equipment Under Test (EUT): Product: Digital Broadcasting Device Model No.: D93 Brand Name: MINEW FCC ID: 2ABU6-D93 Standards: 47 CFR Part 1.1307 47 CFR Part 2.1093 KDB447498D01 General RF Exposure Guidance v06 Date of Receipt: 2020-11-30 Date of Test: 2020-11-30 to 2020-12-08 Date of Issue: 2020-12-08 Test Result: PASS* *In the configuration tested, the EUT complied with the standards specified above Tested By： (Tiny You ) Reviewed By: (Sheek Luo) Approved By: (Jack Ai) Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20201101428E-02 Page:2 of 6 1 Version Revision History Of Report Report No. Version Description Issue Date CQASZ20201101428E-02 Rev.01 Initial report 2020-12-08 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20201101428E-02 Page:3 of 6 2 Contents Page 1 VERSION .....................................................................................................................................................................2 2 CONTENTS .................................................................................................................................................................3 3 GENERAL INFORMATION ......................................................................................................................................4 3.1 CLIENT INFORMATION ...............................................................................................................................................4 3.2 GENERAL DESCRIPTION OF EUT ...............................................................................................................................4 4 SAR EVALUATION ....................................................................................................................................................5 4.1 RF EXPOSURE COMPLIANCE REQUIREMENT ..............................................................................................................5 4.1.1 Standard Requirement .................................................................................................................................5 4.1.2 Limits ..............................................................................................................................................................5 4.1.3 EUT RF Exposure.........................................................................................................................................6 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20201101428E-02 Page:4 of 6 3 General Information 3.1 Client Information Applicant: Shenzhen Minew Technologies Co., Ltd Address of Applicant: 3rd Floor, I Bulding, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Manufacturer: Shenzhen Minew Technologies Co., Ltd Address of Manufacturer: 3rd Floor, I Bulding, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Factory: Shenzhen Minew Technologies Co., Ltd Address of Factory: Building 3, Instrument World Industrial Park, No. 306, Guanlan Guiyue Road, Longhua District, Shenzhen 3.2 General Description of EUT Product Name: Digital Broadcasting Device Model No.: D93 Trade Mark: MINEW Hardware Version: V1.X Software Version: V2.X.X Operation Frequency: 2402MHz~2480MHz Bluetooth Version: V5.0 Modulation Type: GFSK Transfer Rate: 1Mbps, 2Mbps Number of Channel: 40 Product Type: Mobile Portable Fix Location Test Software of EUT: Direct Test Mode Tool (manufacturer declare) Antenna Type: PCB antenna Antenna Gain: 1.43dBi EUT Power Supply: Button battery: DC 3V Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20201101428E-02 Page:5 of 6 4 SAR Evaluation 4.1 RF Exposure Compliance Requirement 4.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 4.3.1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 4.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20201101428E-02 Page:6 of 6 4.1.3 EUT RF Exposure 1) For BLE Measurement Data GFSK(1Mbps) mode Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) (mW) Lowest(2402MHz) 2.95 2.5±1 3.5 2.239 …
