2ABU6-G2AoA Gateway

Datasheet AoAGateway LightUpYourMap Model:G2 PoECable SmartRetail ShoppingHabitsAnalyzing IndoorRouteNavigation Anti-thiefTracking ProximityMarketing SmartFactory&Warehouse Work-flowOptimization Asset&DeviceManagement QualityControl&Tracing CollisionSecurityReminding SmartSports SportsAnalyzing InformationPushing Visitor-flowTracking DevicesManagement SmartHealthcare EquipmentTracking PreviousRecordTracing AppointmentNavigation PersonnelSecurity MedicalResourcesAllocation SmartBuilding Visitor-flowManagement OfficeAccessControl IndoorRouteNavigation SpaceUtilization Work-flowOptimization AoATECHNOLOGYOVERVIEW TheAngleofArrival(AoA)positioningtechnologyisa typicalranging-basedalgorithmacrosssomedevicesto sensethearrivaldirectionofthetransmittingnodesignal, andcalculatetherelativepositionoranglebetweenthe unknownnodeandtheanchornode;thenusethetriangu- lationorothermethodstocalculatethelocationofthe unknownnode.Comparedtoothertechnicaltypes,AoA indoorpositioninghasadvantagesofhigherprecision, largercoverage,betterpenetration,andeasiermainte- nanceatalowercost. AoAGATEWAY TheAoAGatewayisthenewest&high-accuracyindoor positioninggatewaykitdesignedbyMinewforenter- prise-levelusers,basedonMinewAoAprotocolandAoA positioningtechnology.Ithasupto2152~4305ft 2 cover-agerangeandprovidesasub-meterpositioning service.Besides,providingfasterandsaferassurancein termsofdatatransmissionevenusingintheharsh environment. KEYFEATURES -High-AccuracyLocation -2152~4305ft 2 CoverageRange -Real-timeDataTransmission -1000+DataPacket/sThroughput -LongServiceLifeThanEver -AWS/Azure/GoogleCloudCompatible APPLICATIONCASES TechnicalAdvantage StableChipSupply High-AccuracyLocation DataTransmissionSecurity UnlimitedFrequencyResources LargeCoverageRange Cost-Effective&Low- Consumption Picture1Bluetooth®LEAoAHigh-AccuracyTechnology MARKETAPPLICATIONS Industry4.0SmartBuilding SmartWarehouseSmartRetail SmartHealthcareSmartSports AoA Transmitter Receiver TECHNICALSPECIFICATIOS Basic Specifications ModelG2 MaterialABS + PC ColorBlack Size (L * W * H)98.6 *27.2 *171mm Weight398 g PowersupplyDC 12V/2A,POE 51V/0.5A Outputpower(Max.) DC：2.5W,POE：3.5W NetworkprotocolHTTP (SSL / TLS )/ MQTT (SSL / TLS & Proxy ) / TCP Operatingenvironment Indoor Installation Lay flat or Hang on with screw Firmwareupgrade OTA available PRECAUTIONS  The G2 supportsPOE cascadingpowersupplyand cannotbe a normaloperationif more than 4 levels of full-loadcascading.  Pleasecontactour sales team if there are other installationrequirements. WiFi Specifications WiFi Protocols IEEE802.11b/g/n WiFi Frequencies 2.412-2.462GHz Data TransferSpeed 802.11n:Upto300Mbps 802.11g:Upto54Mbps 802.11n:Upto11Mbps TransferSpeed 1T1R150Mbps ReceivingSensitivity(typical) 270M:-61dBm@10%PER 135M:-65dBm@10%PER 108M:-68dBm@10%PER 54M:-68dBm@10%PER 11M:-85dBm@10%PER 6M:-88dBm@10%PER 1M:-61dBm@10%PER ModulationMode DBPSK,DQPSK,CCKandOFDM(BPSK/QPSK/16-QAM/64-QAM) NetworkProtocol HTTP(SSL/TLS)/ MQTT(SSL/ TLS&Proxy)/ TCP WirelessEncryption WPA-PSK/ WPA2-PSK,WPA-EAP/WPA2-EAPandTKIP 171mm 98.6mm QUALITYASSURANCE ThefactoryhasalreadyobtainedthecertificationofISO9001QualitySystem.Eachproducthasbeenstrictlytested(testsinclude transmissionpower,sensitivity,powerconsumption,stability,aging,etc.). WarrantyPeriod:12monthsfromthedateofshipping(Batteryandotheraccessoriesexcluded). DECLARATION StatementofRights: ThecontentsofthismanualbelongtotheManufacturerofMinewTechnologiesCo.,LTD,Shenzhen,andareprotectedbyChinese lawsandapplicableinternationalconventionsrelatedtocopyrightlaws.Thecontentscanberevisedbythecompanyaccordingto thetechnologicaldevelopmentwithoutpriornotice.Anyone,companies,ororganizationscannotmodifythecontentsandcitethe contentsofthismanualwithoutMinew'spermission,otherwise,Violatorswillbeheldaccountable accordingtolaw. Disclaimer: Minewteamreservestherighttothefinalexplanationofthedocumentandproductdifferences.TheMinewgroupisnotresponsible forliabilityofpropertyorpersonalinjurywiththewrongoperationifusersdeveloprelatedproductswithoutcheckingthetechnical specificationsofthismanual. FCCRequirement Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperate theequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheF CCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thise quipmentgenerates,uses,andcanradiateradiofrequencyenergy,andifnotinstalledandusedinaccordancewiththeinstructions, maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticu larinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturni ngtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: –Reorientorrelocatethereceivingantenna. –Increasetheseparationbetweentheequipmentandreceiver. –Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. –Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.Thisequipmentshouldbe installedandoperatedwithminimumdistance20cmbetweentheradiator&yourbody. CONTACTINFORMATION SHENZHENMINEWTECHNOLOGIESCO.,LTD. +86(755)21038160 www.minew.com [email protected] www.minewstore.com No.8,QinglongRoad,LonghuaDistrict,Shenzhen,China

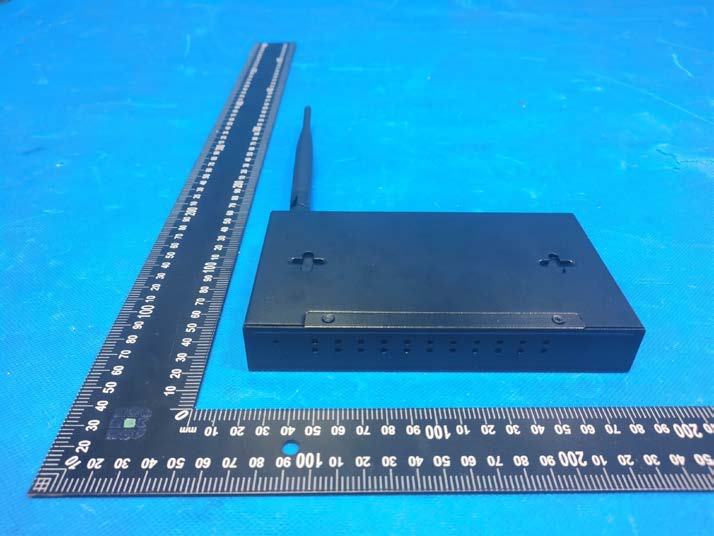

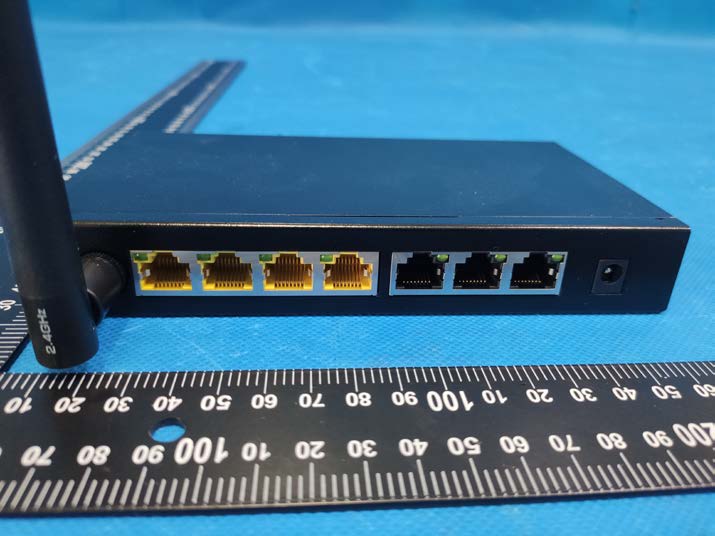

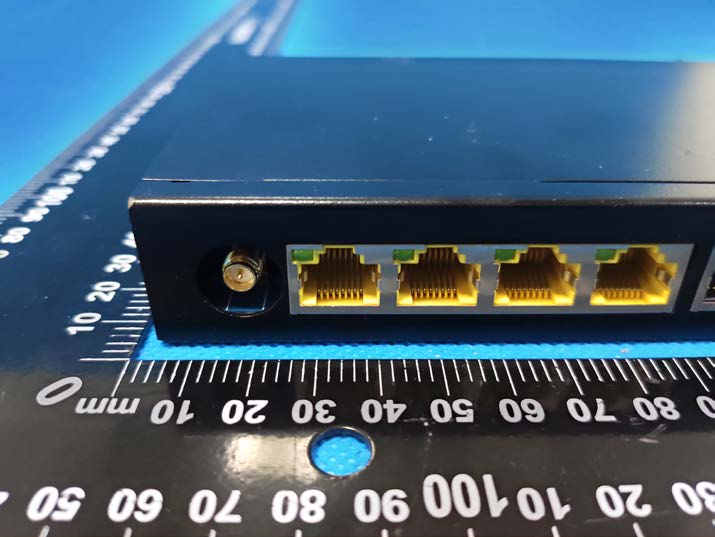

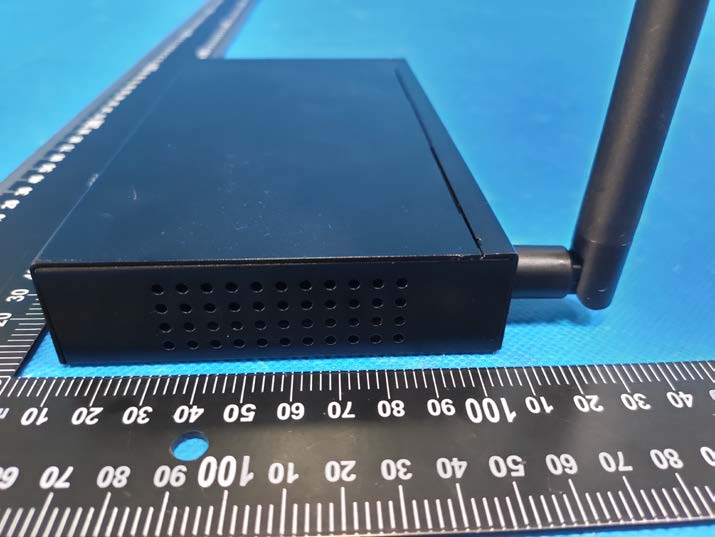

EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 EUT View 3 EUT View 4 EUT View 5 EUT View 6 EUT View 7 EUT View 8 EUT View 9 ----------------The end----------------

EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 EUT Housing and Board View 3 EUT Housing and Board View 4 EUT Housing and Board View 5 EUT Housing and Board View 6 EUT Housing and Board View 7 EUT Housing and Board View 8 EUT Housing and Board View 9 EUT Housing and Board View 10 ----------------The end---------------- Antenna

FCC ID:2ABU6-G2 RF exposure evaluation According to§15.247(i), §1.1307 and KDB447498, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. General frequency and separation-distance dependent MPE-based effective radiated power (ERP) thresholds are in Table B.1 [Table 1 of §1.1307(b)(1)(i)(C)] to support an exemption from further evaluation from 300 kHz through 100 GHz. For mobile devices that are not exempt per Table B.1 [Table 1 of §1.1307(b)(1)(i)(C)] at distances from 20 cm to 40 cm and in 0.3 GHz to 6 GHz, evaluation of compliance with the exposure limits in §1.1310 is necessary if the ERP of the device is greater than ERP20cm in Formula (B.1) [repeated from §2.1091(c)(1); also in §1.1307(b)(1)(i)(B)]. According to FCC Part 2.1091 and § 1.1307(b)(3)(i)(C) , this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 , the simple calculation as below: WIFI Antenna Gain: 3.79dBi Conducted Transmit Power Max: = 16.48 dBm = 44.5 mW EIRP=16.48dBm + 3.79 dBi=20.27dBm ERP= 20.27-2.15dB= 18.12 dBm The maximun output power specified is: 18.12 dBm (65 mW) The MPE limit is 19.2R 2 (768mW) for general population and uncontrolled exposure in the 2.4GHz frequency range according to FCC Part 1.1307(b)(3)(i)(C). As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons.

深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第1页共5页 ElectricalSpecification Antenna Coding：XBY200674 Antenna Type：External Antenna Model：G2 Antenna Manufacturer：Shenzhen Xiangboyi Technology Co., Ltd. 1、Technical Specification s FrequencyRange（MHz） 2402-2480 InputImpedance（Ω） 50 ReturnLoss （ dB ）＜ -12 VSWR ＜ 1.4 PeakGain（dBi） 3.79 PolarizationTypeLinearpolarization MechanicalSpecifications AntennaSize(mm) Length ： 19.6mm RadiatorCuprum 2、Theshapeandsizeoftheantenna 3、Theresultofthetest 3.1TestEnvironment 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第2页共5页 3.2GainandEfficiency 3.32DRadiationPattern （1）E1，XZPlane，phi=0 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第3页共5页 （2）E2，YZPlane，phi=90° 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第4页共5页 （3）H，XYplane，theta=90° 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第5页共5页

No.：BCTC/RF-EMC-005 Page: 1 of 74 Edition：A.4 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2209980467E Applicant: Shenzhen Minew Technologies Co.,Ltd. Product Name: AoA Gateway Model/Type reference: G2 Tested Date: 2022-08-28 to 2022-11-16 Issued Date: 2022-11-23 Report No.: BCTC2209980467E No.：BCTC/RF-EMC-005 Page: 2 of 74 Edition：A.4 FCC ID:2ABU6-G2 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: AoA Gateway Trademark: MINEW Model/Type reference: G2 Prepared For: Shenzhen Minew Technologies Co.,Ltd. Address: 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Manufacturer: Shenzhen Minew Technologies Co.,Ltd. Address: Building 3, Instrument World Industrial Park, No. 306, Guanlan Guiyue Road, Longhua District, Shenzhen Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng , Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2022-08-26 Sample tested Date: 2022-08-28 to 2022-11-16 Report No.: BCTC2209980467E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is WIFI-2.4GHz band radio test report. Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2209980467E No.：BCTC/RF-EMC-005 Page: 3 of 74 Edition：A.4 Table of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information and Test Setup ...................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 11 5. Test Facility and Test Instrument Used ............................................................... 12 5.1 Test Facility ......................................................................................................... 12 5.2 Test Instrument Used .......................................................................................... 12 6. Conducted Emissions .......................................................................................... 14 6.1 Block Diagram Of Test Setup .............................................................................. 14 6.2 Limit .................................................................................................................... 14 6.3 Test procedure .................................................................................................... 14 6.4 EUT operating Conditions ................................................................................... 14 6.5 Test Result .......................................................................................................... 15 7. Radiated Emissions ............................................................................................. 17 7.1 Block Diagram Of Test Setup .............................................................................. 17 7.2 Limit .................................................................................................................... 18 7.3 Test procedure .................................................................................................... 19 7.4 EUT Operating Conditions .................................................................................. 20 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement and Restricted Bands Of Operation ...... 27 8.1 Block Diagram Of Test Setup .............................................................................. 27 8.2 Limit .................................................................................................................... 27 8.3 Test procedure .................................................................................................... 28 8.4 EUT Operating Conditions .................................................................................. 28 8.5 Test Result .......................................................................................................... 29 9. Power Spectral Density Test ............................................................................... 31 9.1 Block Diagram Of Test Setup .............................................................................. 31 9.2 Limit .................................................................................................................... 31 9.3 Test procedure .................................................................................................... 31 9.4 EUT Operating Conditions .................................................................................. 31 9.5 …

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Conducted emissions Photo Radiated Measurement Photos ----------------The end----------------
