2ABU6-I11Digital Broadcasting Device

TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 1 E8 TagBeacon MiniBeaconPlus Configuration Instruction M M i i n n i i B B e e a a c c o o n n C C o o n n f f i i g g u u r r a a t t i i o o n n I I n n s s t t r r u u c c t t i i o o n n V V 2 2 . . 0 0 N N o o t t e e : : 1 1 . . T T h h e e i i n n s s t t r r u u c c t t i i o o n n a a p p p p l l i i e e d d f f o o r r b b e e a a c c o o n n m m o o d d e e l l s s t t h h a a t t d d o o e e s s n n ’ ’ t t l l o o a a d d a a n n y y s s e e n n s s o o r r s s a a n n d d p p r r e e - - f f l l a a s s h h e e d d M M i i n n i i B B e e a a c c o o n n i i n n t t e e l l l l i i g g e e n n c c e e f f i i r r m m w w a a r r e e . . 2 2 . . M M i i n n i i B B e e a a c c o o n n i i s s o o n n e e o o f f M M i i n n e e w w ’ ’ s s o o f f t t w w a a r r e e p p a a t t e e n n t t . . PREPARATION------------------------------------------------------------------------------------------------------------------------------2 ENTER INTO CONFIGURATION MODE-------------------------------------------------------------------------------------------2,3 CONFIGURATION MODE----------------------------------------------------------------------------------------------------------------4 Settings Definition----------------------------------------------------------------------------------------------------------------------4 SLOT Configuration-----------------------------------------------------------------------------------------------------------------4,5 Advertising Data Format (Info) -----------------------------------------------------------------------------------------------------6 Adv Content-----------------------------------------------------------------------------------------------------------------------------7 Base params---------------------------------------------------------------------------------------------------------------------------7,8 Trigger-----------------------------------------------------------------------------------------------------------------------------------8 DEPOLYMENT NOTICE-----------------------------------------------------------------------------------------------------------------9 END------------------------------------------------------------------------------------------------------------------------------------------9 TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 2 E8 TagBeacon MiniBeaconPlus Configuration Instruction PREPARATION 1. Activate beacon device as the datasheet correctly; 2. An iOS 7.0+ / Android 4.3+ smart device with BLE 4.0; 3. Download BeaconSET+ app from Apple store or Google Paly; ENTER INTO CONFIGURATION MODE 1. Run BeaconSET+, there are total 37 devices detected around smartphone immediately, see image 2; 2. You can click “Edit Filter” to quick search out a beacon device which you want to configure by Name, MAC ID and RSSI value, see image 3; 2 3 TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 3 E8 TagBeacon MiniBeaconPlus Configuration Instruction 3. For example: Slide the RSSI slide bar to set the RSSI value at -33 dBm as the filter, then see image 4; there is only one beacon and its MAC address is ac233f24a933 which we want to configure it. 4 4. The Beacon is connectable only when the ROUND DOT changed to green color, see above image 4; if Beacon has been set to disconnectable, the ROUND DOT keeps in red color; 5. Click the Beacon when it’s connectable, and then input the password as image 5. If it is correct, the Beacon enters into configuration mode, see image 6; 5 6 3.1 The beacon (MAC ID: ac233f24a933) can advertise total 6 different frame types iBeacon, Eddystone (UID, URL, TLM), Acc. and Info simultaneously. But now the beacon advertises only URL, iBeacon and Info frame. 3.2 The data Info includes the battery level and MAC address. It is not allowed to change by user; TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 4 E8 TagBeacon MiniBeaconPlus Configuration Instruction CONFIGURATION MODE 1. Settings Definition SLOT: Each Beacon has 6 configurable SLOTs; it is from SLOT1 to SLOT6. Connectable: Each Beacon has 2 different advertising statuses, connectable and disconnectable. Only when the advertising status is connectable, the Beacon is configurable. But the disconnectable advertising saves about 20% power consumption than connectable advertising’s. After completed the configuration, we strongly recommend setting the Beacon disconnect not only lower battery power consumption but also better security performance. Update firmware (OTA: over-the-air): - It’s not allowed to load unknown firmware into tag beacon; - If there is a bug occurred unfortunately, the manufacturer is responsible to release the latest revised firmware to help users to recover the bug by “Update firmware”; Reset factory: It will recover beacon to factory settings and ignore all changes; Poweroff: The Beacon will stop advertising and enter into sleeping mode after used “Poweroff”. But it can be activated again by push button on the beacon. As Beacon doesn’t have a push button, we are strongly opposed to use “Poweroff”. Modify password: Change to a new password by “Modify password”. Remove password: Removing the password if someone forgot it and then set a new password by “Add password”. Manufacture info & Feature info: It’s not changeable by users. 2. SLOT Configuration Each SLOT is independent and configurable. The following parameters can be configured. The users can configure each SLOT’s Frame Type, Adv. Content, Base params and Trigger by themselves via BeaconSET+. 2.1 Frame Type Actually, the frame type is the format of advertising data packet. Each Beacon has below total 7 different frame types: UID, iBeacon, URL, Acc. Sensor, TLM, Info and NO DATA, see image 8; TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 5 E8 TagBeacon MiniBeaconPlus Configuration Instruct…

Text truncated - open the document above for the full version.

(SHENZHEN MINEW TECHNOLOGIES CO., LTD. ) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ABU6-I11 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ( Shain Xiao) Rev 11/20/07

(SHENZHEN MINEW TECHNOLOGIES CO., LTD.) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020/05/28 SUBJECT: FCC Application for FCC ID: 2ABU6-I11 To Whom It May Concern: We, the undersigned, hereby authorize Andy Yuan at Shenzhen BCTC Testing Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Andy Yuan of Shenzhen BCTC Testing Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, ( Shain Xiao)

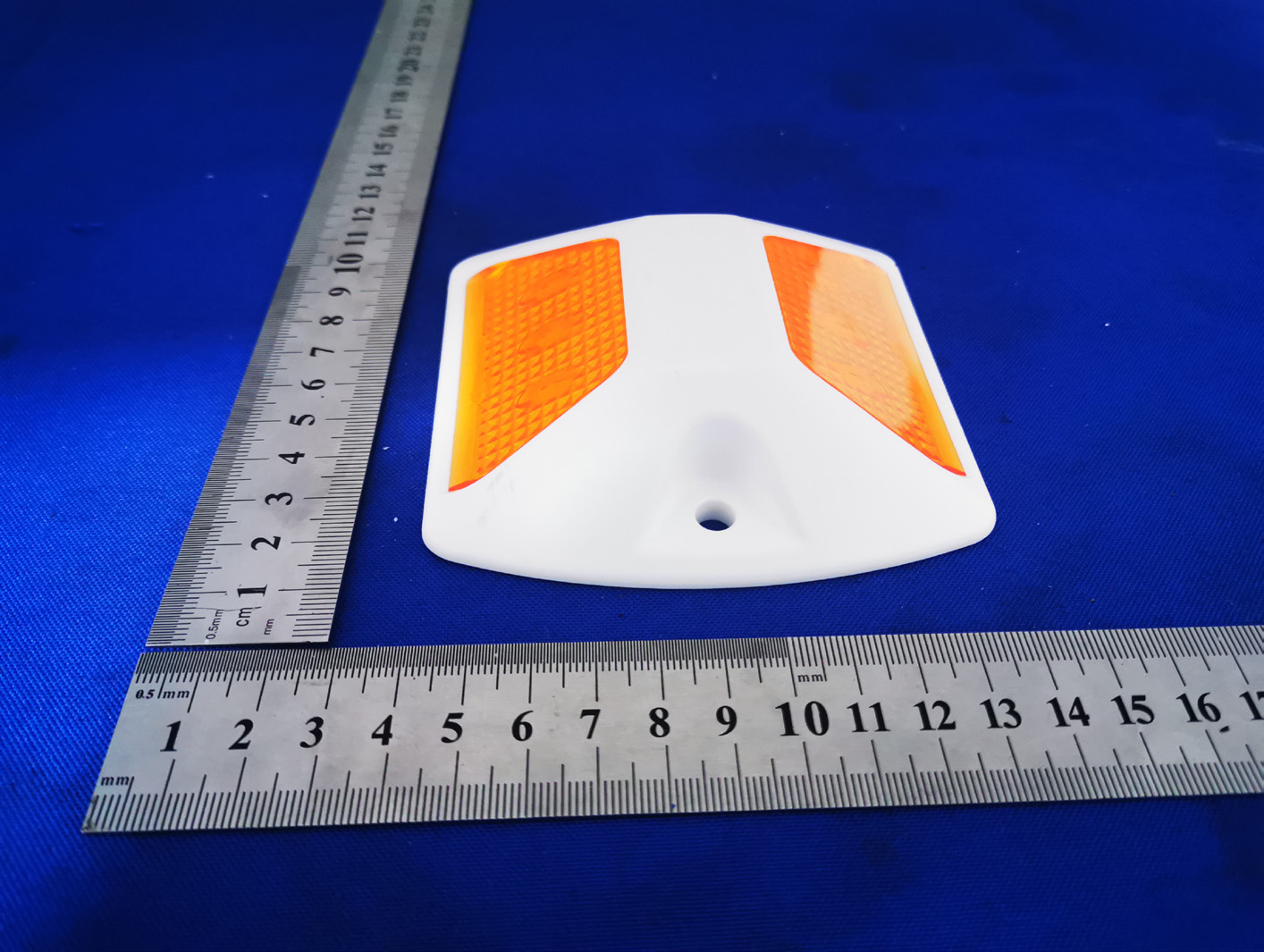

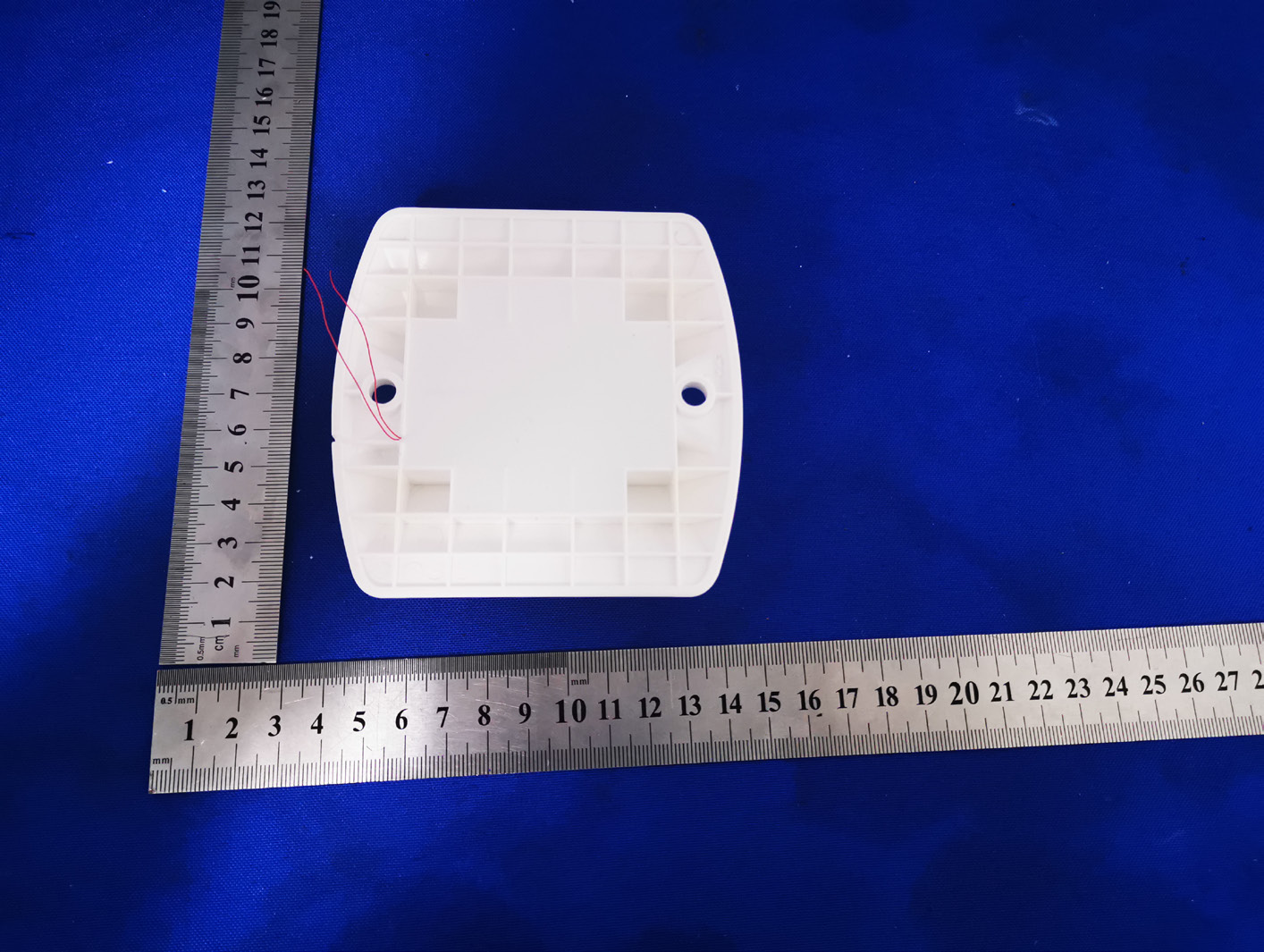

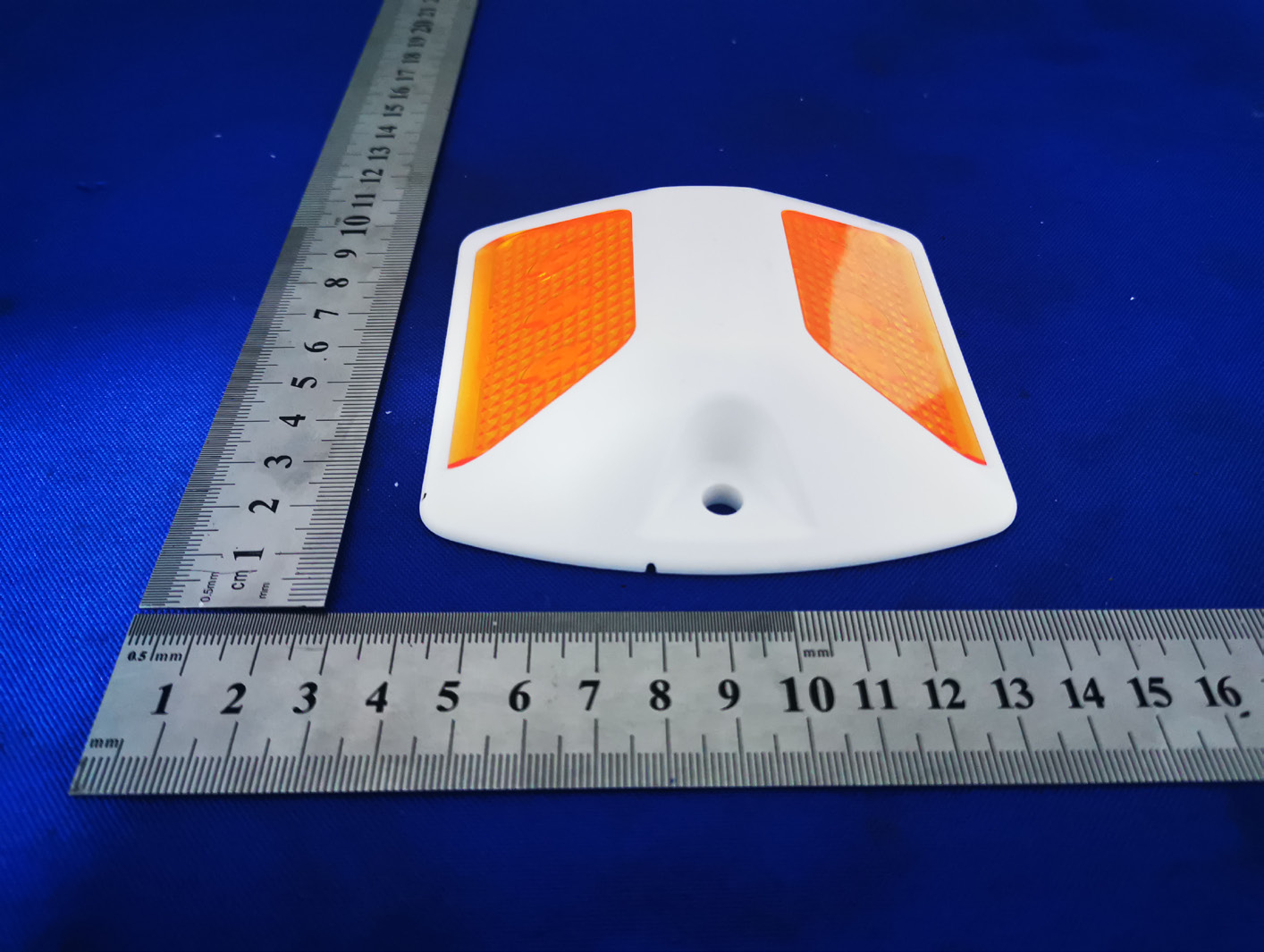

External Photos

Label & label location

Internal Photos ANT

Shenzhen BCTC Testing Co., Ltd. FCC ID:2ABU8-I11 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.4023.462.223±1 4.002.51<50.778603.00YES 2.443.29 2.133±14.002.51<50.784743.00YES 2.4803.542.263±14.002.51<50.791143.00YES GFSK Conclusion: For the max result : 0.79114W/Kg ≤ FCC Limit 3.0 for 1g SAR.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004002196E Test Report FCC: 2ABU6-I 11 Product Name: Digital Broadcasting Device Trademark: MINEW Model Name : i11 Prepared For : SHENZHEN MINEW TECHNOLOGIES CO., LTD. Address : 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Te s t Date: Apr. 29, 2020 - May 06, 2020 Date of Report : May 06, 2020 Report No.: BCTC2004002196E Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 38 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004002196E TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN MINEW TECHNOLOGIES CO., LTD. Address ................................. : 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Manufacture's Name ............ : SHENZHEN MINEW TECHNOLOGIES CO., LTD. Address ................................. : 6/F of Plant H, Gangzhilong Science Park, Qinglong Road, Longhua, District, Shenzhen City, China Product description Product name ........................... : Digital Broadcasting Device Trademark ................................. : MINEW Model and/or type reference : i11 Standards ............................. : FCC Part15.247 ANSI C63.10:2013 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Cai Fangzhong Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 38 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004002196E Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.1.2 TEST PROCEDURE 12 3.1.3 DEVIATION FROM TEST STANDARD 12 3.1.4 TEST SETUP 13 3.1.5 EUT OPERATING CONDITIONS 13 3.1.6 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 14 3.2.1 RADIATED EMISSION LIMITS 14 3.2.2 TEST PROCEDURE 15 3.2.3 DEVIATION FROM TEST STANDARD 15 3.2.4 TEST SETUP 15 3.2.5 EUT OPERATING CONDITIONS 17 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 18 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION 22 3.3.1 TEST REQUIREMENT: 22 3.3.2 TEST PROCEDURE 22 3.3.3 DEVIATION FROM TEST STANDARD 23 3.3.4 TEST SETUP 23 3.3.5 EUT OPERATING CONDITIONS 23 4 . POWER SPECTRAL DENSITY TEST 25 4.1 APPLIED PROCEDURES / LIMIT 25 Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 38 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004002196E Table of Contents Page 4.1.1 TEST PROCEDURE 25 4.1.2 DEVIATION FROM STANDARD 25 4.1.3 TEST SETUP 25 4.1.4 EUT OPERATION CONDITIONS 25 4.1.5 TEST RESULTS 26 5 . BANDWIDTH TEST 28 5.1 APPLIED PROCEDURES / LIMIT 28 5.1.1 TEST PROCEDURE 28 5.1.2 DEVIATION FROM STANDARD 28 5.1.3 TEST SETUP 28 5.1.4 EUT OPERATION CONDITIONS 28 5.1.5 TEST RESULTS 29 6 . PEAK OUTPUT POWER TEST 31 6.1 APPLIED PROCEDURES / LIMIT 31 6.1.1 TEST PROCEDURE 31 6.1.2 DEVIATION FROM STANDARD 31 6.1.3 TEST SETUP 31 6.1.4 EUT OPERATION CONDITIONS 31 6.1.5 TEST RESULTS 32 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 33 7.1 APPLICABLE STANDARD 33 7.2 TEST PROCEDURE 33 7.3 DEVIATION FROM STANDARD 33 7.4 TEST SETUP 33 7.5 EUT OPERATION CONDITIONS 33 8 . ANTENNA REQUIREMENT 36 8.1 STANDARD REQUIREMENT 36 8.2 EUT ANTENNA 36 9 . EUT TEST PHOTO 37 10 . EUT PHOTO 38 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 38 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004002196E 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (d), 15.205 Radiated Spurious Emission PASS 15.247 (e) Power Spectral Density PASS 15.205 Restricted Band of Operation PASS 15.247(d) Band Edge (Out of Band Emissions) PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 5 of 38 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004002196E 1.1 TEST FACILITY Shenzhen BCTC Testing Co., Ltd. Add.: BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China FCC Test Firm Registration Number: 712850 IC Registered No.: 23583 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 3m camber Radiated spurious emission(30MHz-1GHz) U=4.3dB 2 3m chamber Radiated spurious emission(1GHz-18GHz) U=4.5dB 3 3m chamber Radiated spurious emission(18GHz-40GHz) U=3.34dB 4 Conducted Adjacent channel power U…
