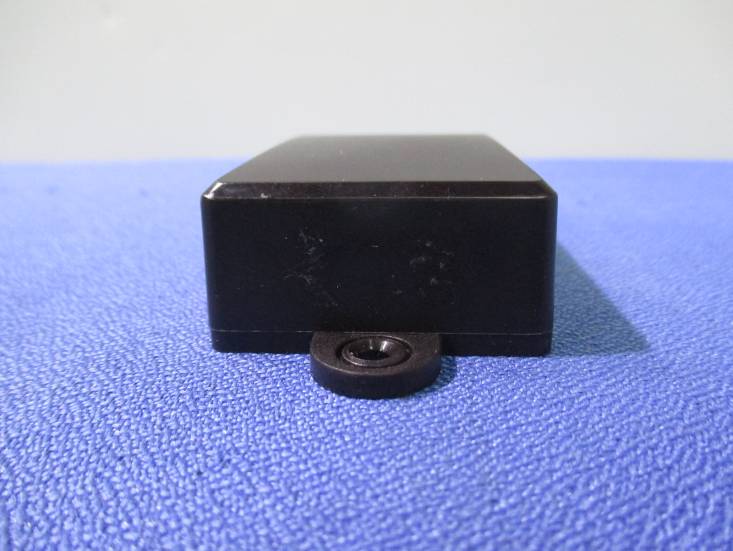

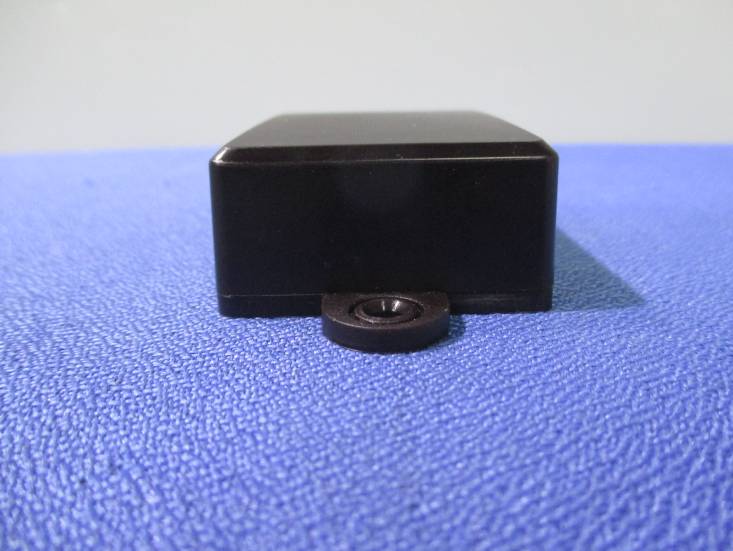

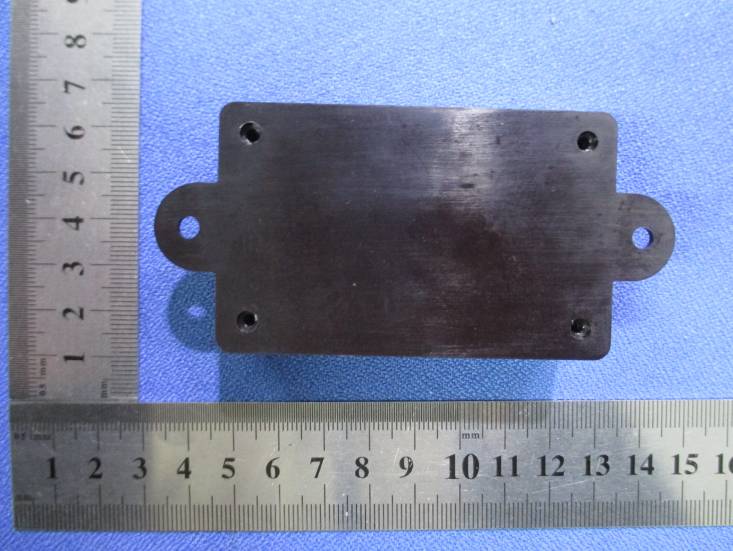

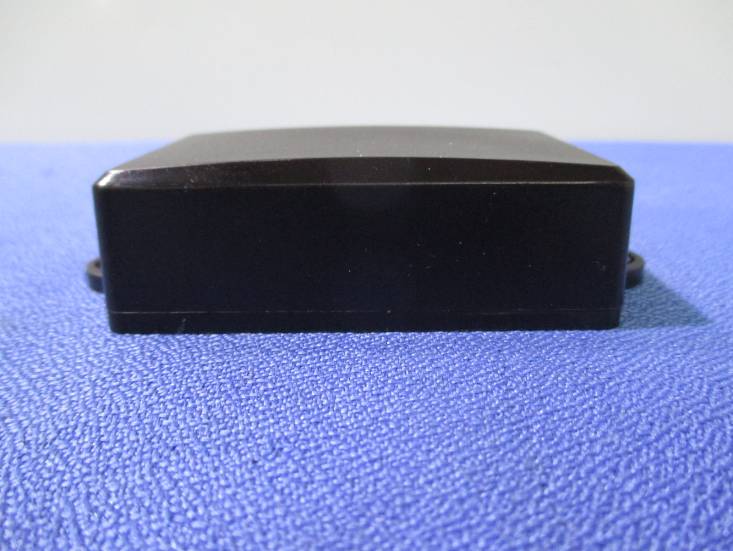

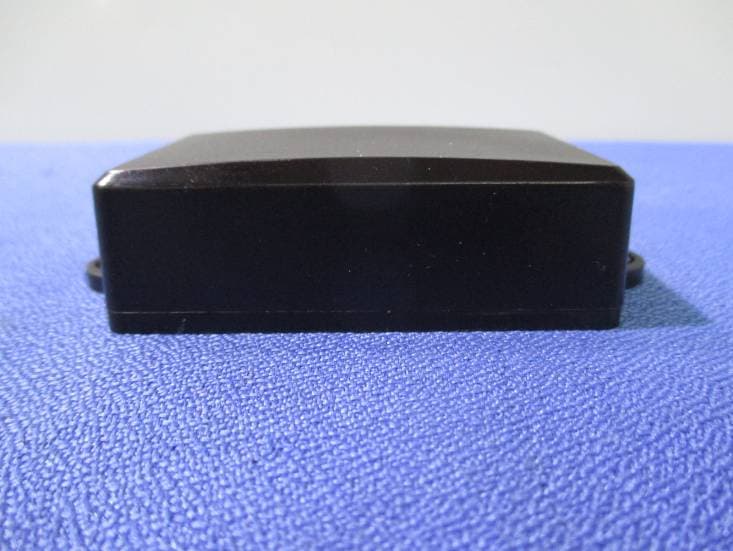

2ABU6-I3Digital Broadcasting Device (iBeacon)

TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: [email protected] URL: www.minewtech.com Page 2 Shenzhen Minew Technologies Co.,Ltd. i3 MiniBeacon Datasheet V1.2 D D e e s s c c r r i i p p t t i i o o n n The MiniBeacon i3 is developed and produced including hardware and firmware all by MINEW Technologies. i3 is designed on CC2540/CC2541 BLE 4.0 core chipset with high performance on board antenna, the max. advertising range is 180 meters in the open space. Moreover, i3 has packed 2pcs AA batteries, the battery lifetime has 5 years. A A b b o o u u t t M M i i n n i i B B e e a a c c o o n n ‐ Built‐in MiniBeacon firmware ‐ Built‐in 2pcs AA batteries, 5 years lifetime ‐ Bluetooth low energy technology compatible ‐ Excellent link budget (up to 97dB) ‐ The max. 180 meters advertising distance ‐ Accurate digital RSSI ‐ High performance and low power 8051 core MCU ‐ AES security coprocessor C C e e r r t t i i f f i i c c a a t t i i o o n n s s ‐ iBeacon License ‐ FCC Regulation (FCC Part 15C) ‐ CE Regulations (Included EN300328, EN301489, EN60950, EN62479) F F e e a a t t u u r r e e & & A A d d v v a a n n t t a a g g e e ‐ Application for advertisement and proximity location ‐ Supports both iOS 7.0+ and Android 4.3+ system ‐ Built‐in pairing password to prevent others changing the settings ‐ MiniBeacon name, UUID, Major, Minor values and broadcasting interval can be changed by customer ‐ Battery capacity intelligent detecting and notification feature ‐ Supports soft reboot function, no longer required to take out the battery to reboot the device ‐ MiniBeacon serial ID can be customized, it will help customer to easily distinguish which one is which ‐ Placed a power button on the board used to activate / shutdown beacon device ‐ Supports the connectable and non ‐connectable broadcasting mode ‐ Supports the OAD function ‐ Publishes the free upgraded firmware regularly ‐ Built‐in JTAG port for other customized application firmware as a standalone system ‐ The customer’s logo can be printed on the housing if required ‐ Customized housing and firmware services will be welcomed Image 1 TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: [email protected] URL: www.minewtech.com Page 3 Shenzhen Minew Technologies Co.,Ltd. i3 MiniBeacon Datasheet V1.2 O O p p e e r r a a t t i i o o n n I I n n s s t t r r u u c c t t i i o o n n s s 1. Activate MiniBeacon as below method before using device 1.1 Use the tool to open the case, take out the module and found out the BUTTON (Image 2); 1.2 Press the BUTTON and keep holding 5 seconds, the Blue LED will Light on 5 seconds and then off; it means that MiniBeacon was wakening up and starts to broadcasting. 2. Shutdown MiniBeacon as below method 2.1 Use the tool to open the case, take out the module; 2.2 Press the BUTTON and keep holding 5 seconds, the Blue LED will flash 5 times and then off; it means that MiniBeacon was on sleeping mode and stop broadcasting. L L o o w w B B a a t t t t e e r r y y I I n n d d i i c c a a t t i i o o n n If the battery level lower than 2.3V, the Red LED will flash a time every 5 seconds; MiniBeacon will stop broadcasting automatically once the battery level lower to 2.1 volts. (Image 3) Image 2 Image 3 D D e e f f a a u u l l t t S S e e t t t t i i n n g g Parameters Item Default Value 0xFFF1 Proximity UUID E2C56DB5‐DFFB‐48D2‐B060‐D0F5A71096E0 0xFFF2 Major 0x0000 0xFFF3 Minor 0x0000 0xFFF4 Measured Power 0xC5 0xFFF5 Transmission Power 0x00 (0dBm) 0xFFF6 Pairing Password 0x0F0FF3 (the corresponding decimal is 987123) 0xFFF7 Broadcasting interval 0x03(300mS) 0xFFF8 Beacon Serial ID Random (Unique serial ID for beacon) 0xFFFE Connection Mode 0x00 (connectable mode) 0xFFFF Soft Reboot 0x0F0FF3 (the corresponding decimal is 987123) 0x180F Battery Service 0x64 (100% full capacity of battery) Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by Shenzhen Minew Technologies Co., Ltd. may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Shenzhen Minew Technologies Co., Ltd. 5 Floor, H Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China TEL: +86-755-88868480 FAX: +86-755-29825342 AGENCY AUTHORIZATION LETTER FCC ID: 2ABU6-I3 Date: Dec. 20, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Shenzhen CTL Testing Technology Co., Ltd.(MR. Tracy Qi) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CTL Testing Technology Co., Ltd. (MR. Tracy Qi) on our behalf shall have the same effect as acts of our own. This authorization expires on Dec. 19, 2015. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Shenzhen Minew Technologies Co., Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Xiao Sheng/Engineer

Shenzhen Minew Technologies Co., Ltd. 5 Floor, H Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China TEL: +86-755-88868480 FAX: +86-755-29825342 Rev 11/20/07 Confidentiality Letter Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ABU6-I3. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operation Description Operation Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Xiao Sheng/Engineer

FCC ID Label Information 1. Label location: 2. FCC ID Label: Model: i3 (MS63PX) FCC ID: 2ABU6-I3

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No......................: CTL14112173046-WF Compiled by ( position+printed name+signature)..: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Tracy Qi Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Dec. 22, 2014 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: Shenzhen Minew Technologies Co.,Ltd. Address.............................................: 5 Floor, H Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description.................... : Digital Broadcasting Device (iBeacon) Trade Mark.......................................: MINEW Models/Type reference.....................: i3 (MS63PX) Modulation .......................................: GFSK Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal FCC ID .............................................: 2ABU6-I3 Result................................................: Positive V1.0 Page 2 of 45 Report No.: CTL1412173046-WF T E S T R E P O R T Test Report No. : CTL1412173046-WF Dec.22, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Digital Broadcasting Device (iBeacon) Model /Type : i3 (MS63PX) Applicant : Shenzhen Minew Technologies Co.,Ltd. Address : 5 Floor, H Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Manufacturer Shenzhen Minew Technologies Co.,Ltd. Address 5 Floor, H Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 45 Report No.: CTL1412173046-WF Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 6 2.5. EUT configuration 6 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1. Conducted Emissions Test 10 4.2. Fundamental Emissions 12 4.3. Transmitter Radiated Unwanted Emissions 13 4.4. Band Edge Measurement 29 4.5. Occupied Bandwidth Measurement 38 5. ANTENNA REQUIREMENT ....................................................... 40 6. TEST SETUP PHOTOS OF THE EUT .......................................... 41 7. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 42 V1.0 Page 4 of 45 Report No.: CTL1412173046-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 45 Report No.: CTL1412173046-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Dec. 17, 2014 Testing commenced on : Dec. 17, 2014 Testing concluded on : Dec. 22, 2014 2.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ● Other (specified in blank below) DC 3.0V from battery(2*AA) 2.3. Short description of the Equipment under Test (EUT) The EUT is a Digital Broadcasting Device (iBeacon) work at 2402~2480 MHz support Bluetooth 4.0. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 20 2442 01 2404 21 2444 02 2406 22 2446 03 2408 23 2448 04 2410 24 2450 05 2412 25 2452 06 2414 26 2454 07 2416 27 2456 08 2418 28 2458 09 2420 29 2460 10 2422 30 2462 11 2424 31 2464 12 2426 32 2466 13 2428 33 2468 14 2430 34 2470 15 2432 35 2472 16 2434 36 2474 17 2436 37 2476 18 2438 38 2478 19 2440 39 2480 Modulation: GFSK(1Mbps) For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 45 Report No.: CTL1412173046-WF 2.4. EUT operation mode Test Mode(TM) Description Remark TM1 Bottom Channel Transmitting / TM2 Middle Channel Transmitting / TM3 Top Channel Transmitting / The field strength of radiation emission was measured in the following position: EUT stand-up position (…
