2ABU6-MBS02Location Beacon

MBS02LocationBeacon Datasheet ProductOverview MBS02,LocationBeacon,isdesignedbyMinewmainlyforindoorinformation pushing,routeguidingandclock-inmanagement.IthassuperiorRFperformance builtwithBluetooth ® LE5.0chip.Also,itcanachieve6.5yearsusingtimeduetoits largecapacitybatteryandreplaceabledesign.Thisdeviceisstronglysuitablefor deployinginscenarioslikeIndoorbuilding,hospital,retailingandshoppingmalls becauseofitsindustrydesign. ProductFeatures 6.5YearsBatteryLife 150mBroadcastRange IP67Waterproof&Dustproof SuperiorRFPerformance MultipleDeploymentOptions Note:Theaveragepowerconsumptionofthisproductis36%lowerthansimilar productsinthemarket. ApplicationScenarios IndoorNavigation PreciseMarketingPromotion Clock-inManagement ProductParameters BasicParameters MaterialABS+PC ColorWhite SizeΦ55.6*23.1mm Weight40.9g BatteryCapacity2400mAh BatteryLife6.5years(defaultsetting) ProtectionIP67 ButtonYes SensorAccelerometersupported LEDBlue/Redlight OTAYes ConfigurationAppBeaconSET+ TechniqueParameters ChipnRF52series BluetoothProtocolSupportedBluetooth®LE5.0 BroadcastInterval100ms-5000ms BroadcastRange150m(openarea） WorkingTemperatureRange-20°C~60°C WorkingHumidityRange0-95%RH, non-condensing Security Supportschangingpasswords,anti-malicious connection BroadcastParameters TypeItemDefaultSetting iBeacon (On） UUID(16bytes)E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (Proximity) Major(2bytes)0 Minor(2bytes)0 MeasuredPower-59dBm TxPower0dBm Interval(ms)900ms UID (On） NameSpace00112233445566778899 Instancerandom MeasuredPower-59dBm TxPower0dBm Interval(ms)900ms URL (On） Linkhttps://www.minew.com/ MeasuredPower-24dBm TxPower0dBm Interval(ms)2000ms TLM (On） TxPower-24dBm Interval(ms)2000ms INFO (On） DevicenameMBS02 MeasuredPower-24dBm TxPower0dBm Interval(ms)2000ms Compatibilities SupportedsystemsSupportedmodels iOS7.0andabove iPhone6/6Plus/6S/6SPlus/7/7Plus/8/8Plus/x/xr /xs/xsmax/SE/SE2/11/11pro/11promax. Android4.3andabove Samsung,Xiaomi,GooglePixel,Honor,OnePlus, OPPO,VIVO,Huawei,etc. DeviceOperations Power-on/off Power-on:pressthebuttoninthemiddleofthedevicefor3.6secondsuntilthe bluelighton. Power-off:thestandardonecanonlybeturnedoffbyBeaconSET+App.Theblue lightwillflash5timeswhenthedeviceisoff. LowBatteryReminding: Theredlightwillflashonetimeevery5secondswhenthebatteryislow. DeviceDeployment Precautions 1.Itisrecommendedtosetlowertransmittingpowerandlongerbroadcastintervalstoachievealongerservice life. 2. It is not recommendedto using the device in a highly humid environmentfor long time even thoughit has a certainwater performance. 3. Avoid being exposedto direct sunlightfor an extendedperiod to mitigateshell aging risk. 4. Do not use the productover the recommendedworkingtemperatureto avoid damage.It is recommendedthat to store the productin a normaltemperatureenvironment(20°C~ 30°C) when not use. 5.Minewwill not be responsiblefor any damageor injury causedby disassembling the main casing without appropriateoperations. 6.If you have any other questions,please contactour sales team or technicalsupportteam. Certifications CE/FCC *Thecertificationcodecanbeprovidedif needed,pleasecontactoursalesteamor technicalsupportteamforrelevantinformation. FCC warning Any Changes or modifications not expressly approved by the party responsible for compliance could void the user' s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipmenthas been tested and found to complywith the limits for a Class B digital device,pursuantto part 15 of the FCC Rules. These limits are designedto providereasonableprotectionagainstharmfulinterferencei n a residentialinstallation.This equipmentgeneratesuses and can radiateradio frequencyenergyand, if not install ed and used in accordancewith the instructions,may cause harmfulinterferenceto radio communications.Howeve r, there is no guaranteethat interferencewill not occur in a particularinstallation.If this equipmentdoes cause har mful interferenceto radio or televisionreception,which can be determinedby turningthe equipmentoff and on, th e user is encouragedto try to correctthe interferenceby one or more of the followingmeasures: -Reorientor relocatethe receivingantenna. -Increasethe separationbetweenthe equipmentand receiver. -Connectthe equipmentinto an outlet on a circuit differentfrom that to which the receiveris connected. -Consultthe dealer or an experiencedradio/TVtechnicianfor help. To maintaincompliancewith FCC ’s RF Exposureguidelines,This equipmentshouldbe installedand operatedwit h minimumdistancebetween20cm the radiatoryour body: Use only the suppliedantenna. PackagingInformation BasicInformationInnercarton(battery included） Outercarton(battery included) Picture Quantity15pcs150pcs Size305*110*72mm32*23.5*40cm Grossweight693g7.4kg Note:theweightofbracketisexcluded. QualityAssurance ThefactoryhasalreadyobtainedthecertificationofISO9001QualitySystem.Eachproducthasbeenstrictly tested(testsincludetransmissionpower,sensitivity,powerconsumption,stability,aging,etc.). WarrantyPeriod:12monthsfromthedateofshipping(batteryandotheraccessoriesexcluded). Declarations StatementofRights: ThecontentsofthismanualbelongtotheManufacturerofMinewTechnologiesCo.,LTD,Shenzhen,andare protectedbyChineselawsandapplicableinternationalconventionsrelatedtocopyrightlaws.Thecontentscanbe revisedbythecompanyaccordingtothetechnologicaldevelopmentwithoutpriornotice.Anyone,companies,or organizationscannotmodifythecontentsandcitethecontentsofthismanualwithoutMinew'spermission, otherwise,Violatorswillbeheldaccountableaccordingtolaw. Disclaimer: Minewteamreservestherighttothefinalexplanationofthedocumentandproductdifferences.TheMinewgroup isnotresponsibleforliabilityofpropertyorpersonalinjurywiththewrongoperationifusersdeveloprelated productswithoutch…

Text truncated - open the document above for the full version.

Sh enzhen Minew Technologies Co., Ltd . The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federa l Communications Commission Authori zation and Evaluation Division Equipment Authori zation Bra nch 7435 Oakland Mills Road Columbia, MD 21046 7/ 4/23 U.S . Agent Designati on [Shenzhen Min ew Technolo gie s Co., Ltd.]acknowledges th eir consent fo r th e following conta ct located in th e Unite d Sta te s to act as th eir agent for service of process for th e equipment for which auth orizati on is sought (FCC ID :2ABU6-MBS02): Name and company of U.S . agent: Sijie Zhang / THREE STONES MEDIA LLC Physical U.S . address of agent: 1200 Broadway St. APT 329, Los Angeles, CA90015 FRN of U.S . agent: 0033401761 Email address of U.S . agent: [email protected] o m [THREE STONES MEDIA LLC]acknowledges th eir obligati on to accept service of process on behalf of[Shenzhen Min ew Technolo gie s Co., Ltd.]. [Shenzhen Min ew Technolo gie s Co., Ltd.]with th e FRN[0023364128]accepts its obligati on to mainta in an agent fo r service of process in th e Unite d Sta te s fo r no less th an one year afte r either th e grante e has permanentl y te rminated all marketi ng and importa tion of th e applicable equipment with in th e U.S ., or th e conclusion of any Co mmission-relate d administr ati ve or judicial proceeding involving th e equipment, whichever is later. By signing th is fo rm, we confirm th e above and th at we are aware of th e applicati on requirements liste d under § 2.9 11(d)(7). Sincerely, Signature [Name] yanyan Zhang [Title] Quality Superv isor [Company] Shenzhen Minew Technologies Co., Ltd. Signature [Name of U.S. agent] Sijie Zhang [Title of U.S. agent] [Company of U.S. agent] THREE STONES MEDIA LLC 48_[model] US_Agent_2.911(d)(7)-U, V04

ShenzhenMinewTechnologiesCo.,Ltd. TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 7/4/23 Towhomitmayconcern: We,[ShenzhenMinewTechnologiesCo.,Ltd.],herebycertifythattheequipmentforwhich authorizationissought(FCCID:2ABU6-MBS02)isnot“covered”equipmentprohibitedfromreceiving anequipmentauthorizationpursuantto§2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,wearenotidentifiedontheCovered List(https://www.fcc.gov/supplychain/coveredlist)asanentityproducing“covered”equipment. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(b)and(d)(5)and(6). Sincerely, Signature [Name]yanyanZhang [Title]QualitySupervisor [Company]ShenzhenMinewTechnologiesCo.,Ltd. 6 2 _ [ m o d e l ] C o v e r e d E q u _ 2 . 9 1 1 ( d ) ( 5 ) ( i ) a n d ( i i ) - U , V 0 2

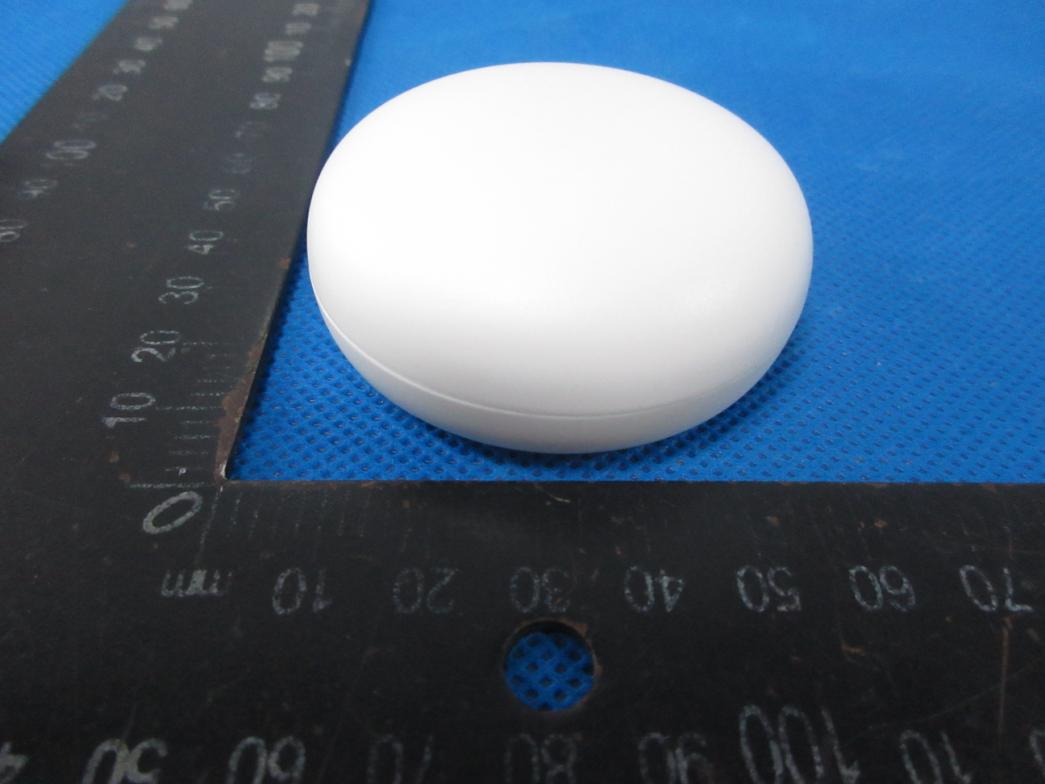

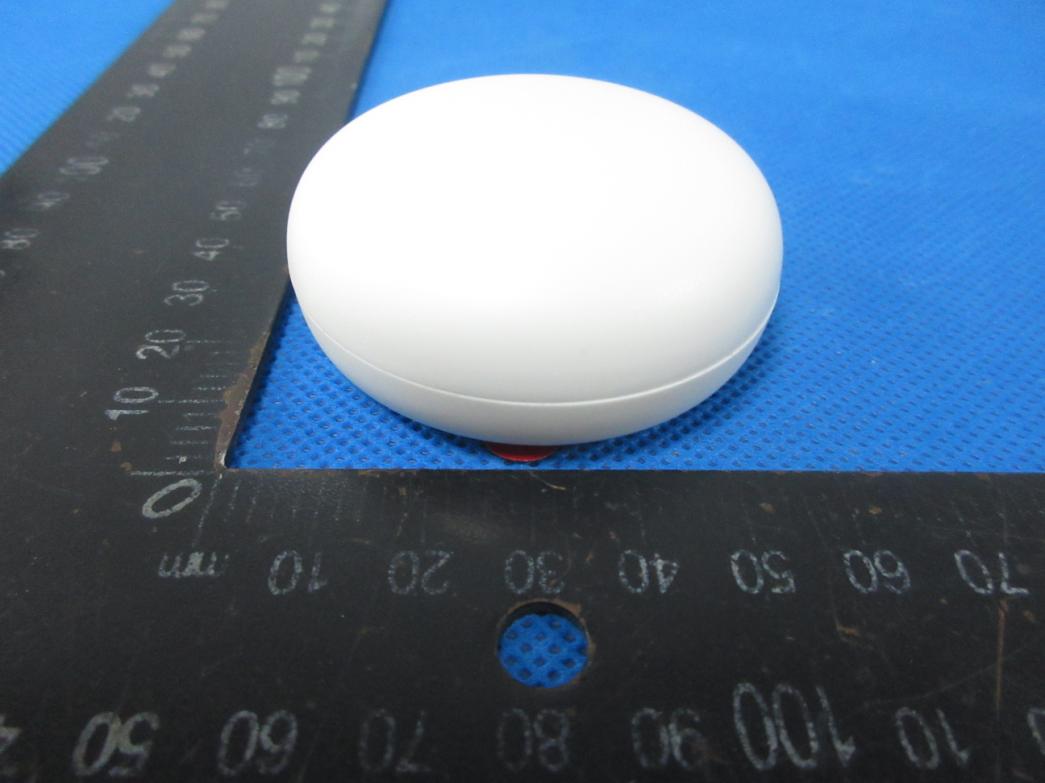

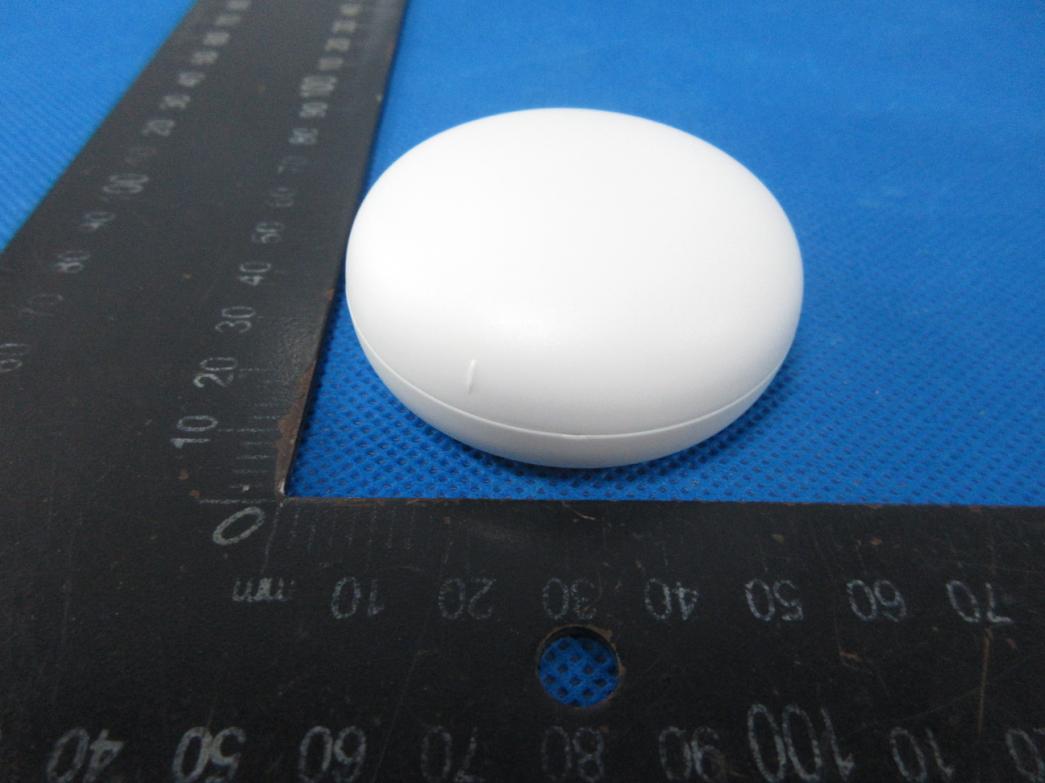

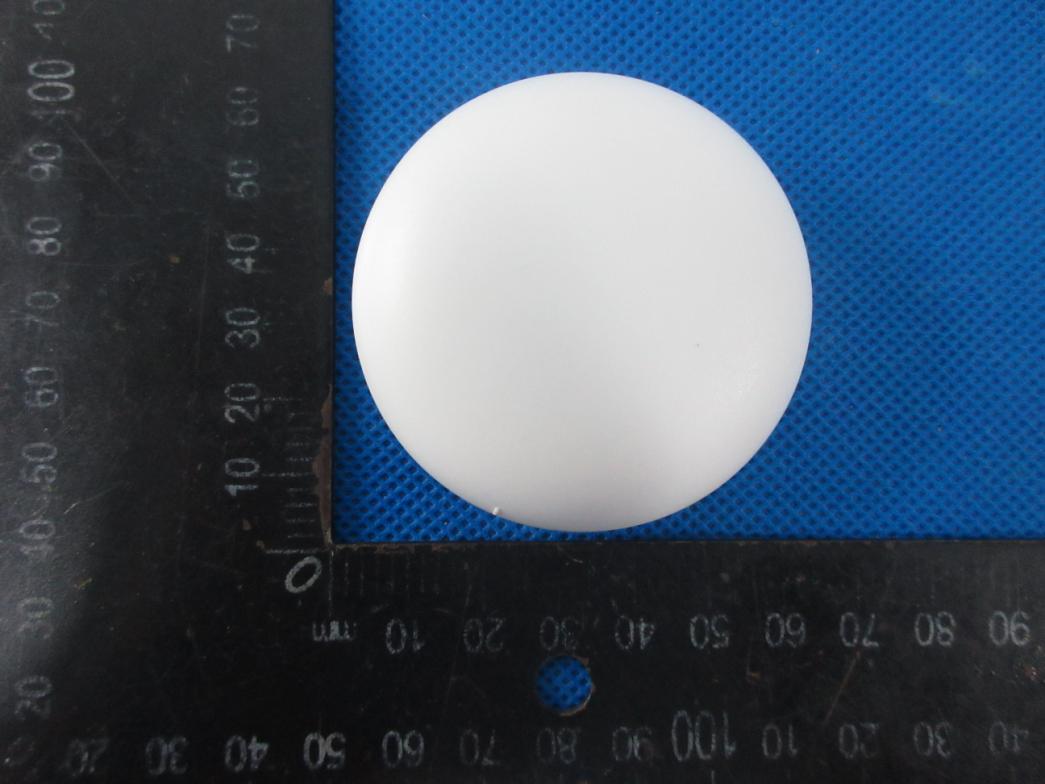

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Location Beacon Model：MBS02 FCC ID：2ABU6-MBS02 Made in China Location Beacon Model：MBS02 FCC ID：2ABU6-MBS02 Made in China

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11

FCC ID: 2ABU6-MBS02 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result Operation Frequency: BLE: 2402-2480MHz Power density limited: 1mW/ cm 2 Antenna Type: PCB Antenna Antenna gain: 2.29dBi, R=20cm conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 24023.43 3±14 2.5122.291.690.00081 24403.26 3±14 2.5122.291.690.00081 24802.89 3±14 2.5122.291.690.00081 24023.45 3±14 2.5122.291.690.00081 24403.26 3±14 2.5122.291.690.00081 24802.89 3±14 2.5122.291.690.00081 Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) BLE(2M) (mW/cm2 )(mW/cm2) Antenna Gain BLE(1M) Max tune-up power Conclusion: For the max result : 0.0008≤ 1.0 for Max Power Density, compliance RF exposure.. Signature: Date: 7/5/2023 NAME AND TITLE (Please print or type): Alex Li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S23061603205001 Version.1.3 Page 1 of 59 RADIO TEST REPORT FCC ID: 2ABU6-MBS02 Product: Location Beacon Trade Mark: MINEW Model No.: MBS02 Family Model: N/A Report No.: S23061603205001 Issue Date: Jun 27, 2023 Prepared for Shenzhen Minew Technologies Co., Ltd. 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S23061603205001 Version.1.3 Page 2 of 59 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 4 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 5 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 6 3.1 FACILITIES..................................................................................................................................................... 6 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 6 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 6 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 7 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 9 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.1.1 Applicable Standard .................................................................................................................................. 14 7.1.2 Conformance Limit ................................................................................................................................... 14 7.1.3 Measuring Instruments ............................................................................................................................. 14 7.1.4 Test Configuration .................................................................................................................................... 14 7.1.5 Test Procedure ........................................................................................................................................... 14 7.1.6 Test Results ................................................................................................................................................ 15 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.2.1 Applicable Standard .................................................................................................................................. 16 7.2.2 Conformance Limit ................................................................................................................................... 16 7.2.3 Measuring Instruments ............................................................................................................................. 17 7.2.4 Test Configuration .................................................................................................................................... 17 7.2.5 Test Procedure ........................................................................................................................................... 18 7.2.6 Test Results ................................................................................................................................................ 19 7.3 6DB BANDWIDTH ....................................................................................................................................... 25 7.3.1 Applicable Standard .................................................................................................................................. 25 7.3.2 Conformance Limit ................................................................................................................................... 25 7.3.3 Measuring Instruments ............................................................................................................................. 25 7.3.4 Test Setup .................................................................................................................................................. 25 7.3.5 Test Procedure ........................................................................................................................................... 25 7.3.6 Test Results ................................................................................................................................................ 25 7.4 DUTY CYCLE ......................................................…

Text truncated - open the document above for the full version.

version01 ShenzhenMinewTechnologiesCo.,Ltd. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:MBS02 FCCID:2ABU6-MBS02 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforPCBAntennaantennatype(s) describedbelow: ModelNo.ofantenna:ANT-BBNCNC23001 Typeofantenna: PCBAntenna Gainoftheantenna:2.29dBi Frequencyrange:2400-2480MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:ShenzhenMinewTechnologiesCo.,Ltd. Address:3rdFloor,IBuilding,GangzhilongSciencePark,QinglongRoad,LonghuaDistrict, ShenzhenCity,China City:ShenzhenCity ZIP/Postalcode: Country: China Name:yanyanZhangDate: 04/07/2023 Signature:

深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第1页共6页 AntennaCoding：ANT-BBNCNC23001 AntennaType：PCBonboardAntenna ModeloftheDUT ： MBS02 AntennaManufacturer：ShenzhenMinewTechnologiesCo.,Ltd. 1、TechnicalSpecification ElectricalSpecifications FrequencyRange（MHz） 2400-2480 InputImpedance（Ω） 50 ReturnLoss（dB）＜-10 VSWR ＜ 2 PeakGain （ dBi ） 2.29 PolarizationTypeLinearpolarization MechanicalSpecifications AntennaSize(mm)27.4*5.7 RadiatorCuprum 2、Theshapeandsizeoftheantenna 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第2页共6页 3、Theresultofthetest 3.1TestEnvironment 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第3页共6页 3.2GainandEfficiency 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第4页共6页 3.33D PolarPlot 2402MHz 2440MHz 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第5页共6页 2480MHz 3.42DRadiationPattern （1）E1，XZPlane，phi=0 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第6页共6页 （2）E2，YZPlane，phi=90° （3）H，XYplane，theta=90°

Radiated Measurement Photos
