2ABU6-MBT02Asset Tag

Assettag Datasheet Model:MBT02 CONTENTS 1.BriefIntroduction............................................................................................................................1 2.KeyFeatures....................................................................................................................................1 3.MarketApplications........................................................................................................................1 4.ApplicationScenarios......................................................................................................................1 5.DeviceSpecifications......................................................................................................................2 6.ProductAppearance.......................................................................................................................3 7.DeviceOperation............................................................................................................................3 8.Installations.....................................................................................................................................3 9.Cautions..........................................................................................................................................4 10.FCCRequirement..........................................................................................................................4 11.QualityAssurance.........................................................................................................................5 12.DECLARATION................................................................................................................................5 13.ContactInformation......................................................................................................................5 1 AssetSafetyManagement MBT02withananti-tamperswitch,whichcanbe deployedonimportantassetssuchasmuseumsand storestorealizeassetprotectionmanagement,soas toreducethelossofassets.Inaddition,combined withtheGeo-fencetechnology,oncetheitemswith MBT02tagleavethespecifiedordamaged maliciously,themanagercanreceivethealarm,and takeactionsquickly. 1.BriefIntroduction MBT02,anewportableassettagdevelopedbyMinew,canlightuporring.Itisequippedwith theimportedBluetooth®5.0chip,anda500mAhbattery,whichcanrealizelow-power informationbroadcastingandatleast2yearsofbatterylife.BycombiningourgatewayandV3 managementplatform,userscanrealizeone-clickcommandoperationsuchasparameter configuration,OTAupgradeandlightorringoperation,whichhelpsuserstorealizetagbatch management.Inaddition,MBT02alsohasthefunctionofringingorlighting,userscanconduct relevantcommandsthroughtheplatform,soastoquicklylocatetheassetsinalargewarehouse andimprovethesearchefficiency. 2.KeyFeatures PortableDesign 2YearsServiceLife 100mBroadcastingDistance SoundorLightReminding BatchManagementPlatform 3.MarketApplications SmartWarehouse SmartLogistic SmartOffice 4.ApplicationScenarios SmartWarehouseManagement MBT02canbedeployedonimportantassetsinthe warehouse,shelves,handlingtools,etc.,withtheG1 gatewayinthecloud,throughthetagmanagement platformtoachievebatchproductoperation instructions.Forexample,theusercansendalightor ringcommandthroughtheplatform,soastoquickly locatethesearchitemsandimprovethesearch efficiency. 2 5.DeviceSpecifications BasicParameters ItemValue MaterialABS ColorWhite（customizable） Dimensions（L*W*H） 56*34.5*7.2mm Weight17g ProtectionIP65 BatteryCRButtonSeries,500mAh BatteryLifetime2years( bydefaultsetting) ChipModelnRF52Series ConfigurationAppBeaconSET+ SensorsAccelerometerOptional OTAYes LEDRed Operating Temperature -20°C~60°C BroadcastParameters(V3Firmware) FrameItemsDefaultSetting iBeacon （On） UUID(16bytes) E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 （customizable） Major(2bytes)0（0-65535，customizable） Minor(2bytes)0（0-65535，customizable） Measuredpower-59dBm(0xC5) Txpower0dBm Interval(ms)2000ms DEVICEINFO （On） DeviceNameMBT02 BatteryLevelBydefault MACAddressFactorySetting Txpower-8dBm 3 6.ProductAppearance 7.DeviceOperation Power-on:pressthebuttonfor3secondsuntiltheredlighton. Power-off:clickthe“shut-down”commandthroughtheplatform,theredlightwillflash5 times. Remark:light-up,parametersupdate,batteryinformation,firmwareverison,etc.,canbe conductedorviewedbyourplatform.Pleasecontactoursalesteamortechniquesupportteam formoreoperationinstructions. 8.Installations Methods:Double-sideadhesivetape Details: Double-sideadhesivenotes: RecommendedInstallationEnvironment:ThematerialsurfaceshouldbeAluminum, galvanizedsteel,enamelsteel,stainlesssteel,ceramic,glass/epoxyresin,acrylic,PBT,ABS, PC,hardPVC,etc. Requirements:Nodustonthematerialsurfaceandcleanitbeforeinstallation.Before Interval(ms)5000ms COMBINATION （On） TxPower0dBm Intervals(ms）5000ms PasswordPasswordminew123(bydefault） ConnectableConnectableornotYes 4 pasting,increasingtheviscositywithahairdryer,orstickingitoverhalf-hoursata reasonabletemperatureandthenpressingforsecondsandrepeatforbetterstability. 9.Cautions Pressbuttonfor3timessequentiallyuntilthebluelightshinestoturniton.Turned-offby theshut-downbuttonontheBeaconSET+APPuntilthebluelightshinestimes. Pleasedonotdisassemblethedeviceoftensothataffecttheperformanceofthe anti-tamperbutton. Decreasingthepowerandincreasingthebroadcastingintervalcanextendthelifetimeof BLEtagsifitisusedinaproperenvironment. Thedevicewillbeshut-downforshipping. Pleaseusethedeviceonthesuggestedworkingtemperatureforsafety. Minewwillnotberesponsibleforthedamagecausedbydisassemblingtheproduct. 10.FCCRequirement Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould voidtheuser’sauthoritytooperatetheequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause undesiredoperation. Note:Thisequi…

Text truncated - open the document above for the full version.

Asset Tag Model: MBT02 FCC ID: 2ABU6-MBT02 Made in China Asset Tag Model: MBT02 FCC ID: 2ABU6-MBT02 Made in China

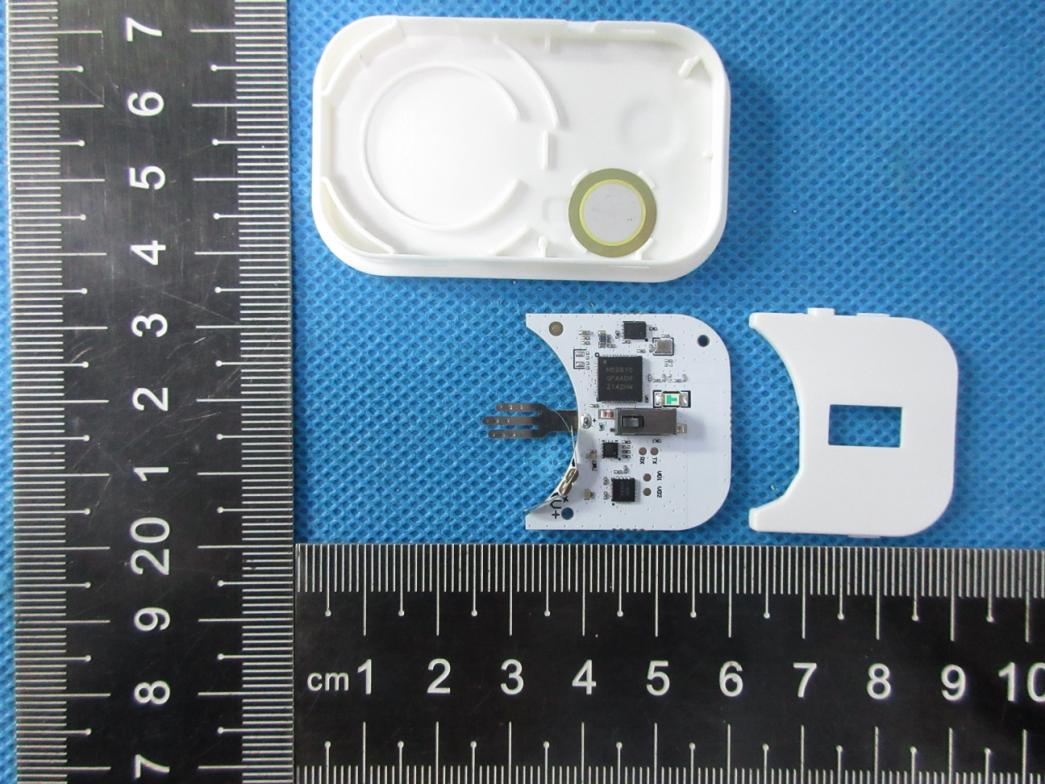

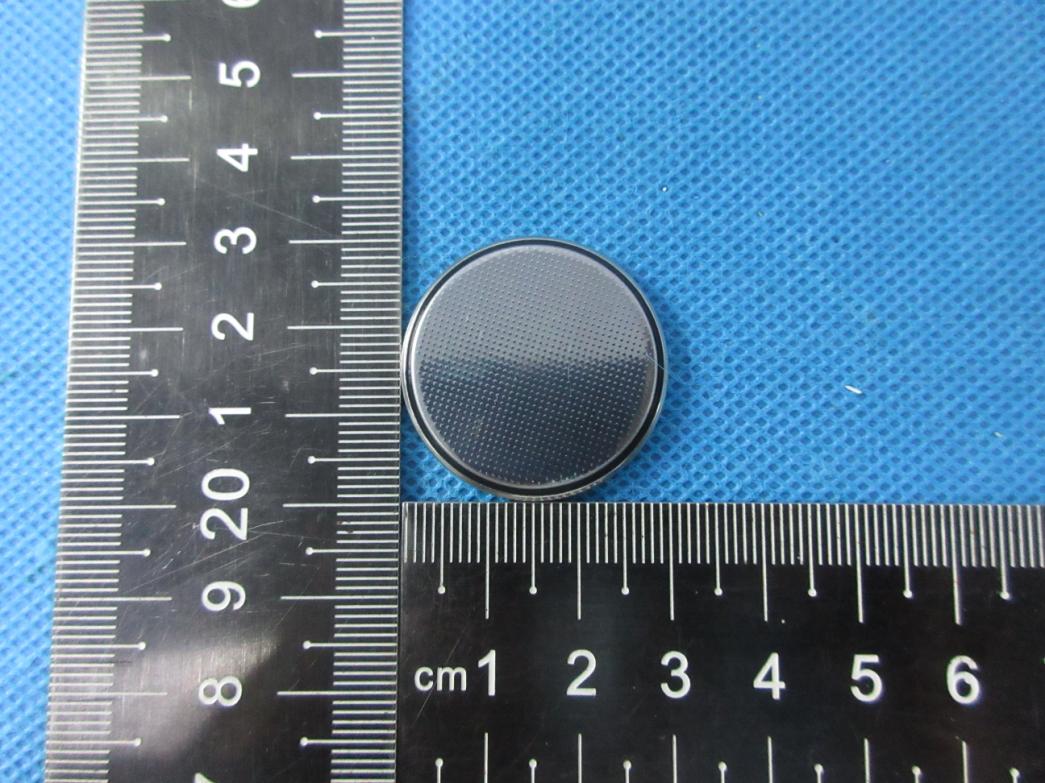

Photo 7 Photo 8 Photo 9 Photo 10 ANT Photo 11 Photo 12 Photo 13

深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第1页共6页 AntennaCoding：ANT-BBNCNC22014 AntennaType：PCBonboardAntenna，PatchAntenna ModeloftheDUT：MBT02 AntennaManufacturer：ShenzhenMinewTechnologiesCo.,Ltd. 1、TechnicalSpecification ElectricalSpecifications FrequencyRange（MHz） 2402-2480 InputImpedance（Ω） 50 ReturnLoss （ dB ）＜ -15dB VSWR ＜ 1.5 PeakGain（dBi） 3.38 PolarizationTypeLinearpolarization MechanicalSpecifications AntennaSize(mm)16.32*5.63 RadiatorCuprum 2、Theshapeandsizeoftheantenna 3、Theresultofthetest 3.1TestEnvironment 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第2页共6页 3.2GainandEfficiency 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第3页共6页 3.33D PolarPlot 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第4页共6页 2402MHz 2440MHz 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第5页共6页 2480MHz 3.42DRadiationPattern （1）E1，XZPlane，phi=0 （2）E2，YZPlane，phi=90° 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第6页共6页 （3）H，XYplane，theta=90°

FCC ID: 2ABU6-MBT02 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result Operation Frequency: BT: 2402-2480MHz Power density limited: 1mW/ cm 2 Antenna Type: PCB Antenna Antenna gain: 3.38 dBi, R=20cm conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 2402 2.55 2±13 1.9953.382.180.00091 2440 2.23 2±13 1.9953.382.180.00091 2480 1.47 2±13 1.9953.382.180.00091 2402 2.58 2±13 1.9953.382.180.00091 2440 2.24 2±13 1.9953.382.180.00091 2480 1.48 2±13 1.9953.382.180.00091 (mW/cm2 )(mW/cm2) Antenna Gain BLE(1M) Max tune-up power Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) BLE(2M) Conclusion: For the max result : 0.0009≤ 1.0 for Max Power Density, compliance RF exposure.. Signature: Date: 2022-12-13 NAME AND TITLE (Please print or type): Alex Li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S22112105510001 Version.1.3 Page 1 of 56 RADIO TEST REPORT FCC ID: 2ABU6-MBT02 Product: Asset Tag Trade Mark: MINEW Model No.: MBT02 Family Model: N/A Report No.: S22112105510001 Issue Date: Dec 06. 2022 Prepared for Shenzhen Minew Technologies Co., Ltd. 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S22112105510001 Version.1.3 Page 2 of 56 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 15 7.3 6DB BANDWIDTH ....................................................................................................................................... 24 7.4 DUTY CYCLE ............................................................................................................................................... 25 7.5 PEAK OUTPUT POWER .............................................................................................................................. 27 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 28 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 30 7.8 SPURIOUS RF CONDUCTED EMISSIONS................................................................................................ 31 7.9 ANTENNA APPLICATION .......................................................................................................................... 32 8 TEST RESULTS ................................................................................................................................................... 33 1M: ............................................................................................................................................................................. 33 2M: ............................................................................................................................................................................. 45 Report No.: S22112105510001 Version.1.3 Page 3 of 56 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Shenzhen Minew Technologies Co., Ltd. Address ....................................... : 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Manufacturer's Name .................. : Shenzhen Minew Technologies Co., Ltd. Address ....................................... : Building 3, Instrument World Industrial Park, No. 306, Guanlan Guiyue Road, Longhua District, Shenzhen Product description Product name .............................. : Asset Tag Model and/or type reference ...... : MBT02 Family Model ............................... : N/A Test Sample Number ................... : S221121055010 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing Te chnology Co., Ltd., this document may be altered or revised by Shenzhen NTEK Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. The test results of this repor…

Text truncated - open the document above for the full version.

Radiated Measurement Photos
