2ABU6-MTB01Portable Tag

PortableTag_MTB01 AllRightsReservedbyMinew 1 PortableTagDatasheet Model:MTB01 PortableTag_MTB01 AllRightsReservedbyMinew 2 MTB01isaBluetooth ® LEtagdevelopedbyMinewforassetmanagementandpersonneltrajectoryanalysis. Ithasahangingholemakingitveryeasytohangonassetsandpeople.Italsohasaflatbackwhichmakes itveryeasytostick.MTB01isequippedwithCR2032batteryandcanbereplaced,theoverallcost performanceishigh. FEATURES Cost-effective  110mbroadcasttransmissiondistance Dual-channelbroadcast Portabletouse  Easyinstallation,replaceablebattery SPECIFICATION BasicSpecifications MaterialABS ColorWhite Size(L*W*H)39.8*25.3*5.4mm Weight 6.2g（batteryincluded） Batterytype1CRbattery Batterycapacity220mAh Batterylife1.4years(defaultsettings) Sensor/ LED1pc Button/ NFC/ OTANotsupported InformationviewappBeaconSETorBeaconSET+ Note:BeaconSETorBeaconSET+canonlybeusedtoviewthebroadcastinformation,nottoconnecttothedevice. PortableTag_MTB01 AllRightsReservedbyMinew 3 TechnicalSpecifications BroadcastSpecifications Note: ①Theproductonlysupports2broadcastframes,whichcanbeselectedfromiBeacon,MBeaconINFO,UID,URL,andTLM,andthe broadcastpowermustbeconsistent. ②Theparametersofthefinishedproductneedtobedeterminedatthetimeofproduction.Onceprogrammedintothechip,the parameterscannotbemodified. Compatibilities Bluetooth®versionBluetooth®LE5.3 Broadcastpower Options:-20,-16,-11,-7,-3,0,3dBm Default0dBm Broadcastinterval 100ms～10s，default2000ms Broadcastdistance110m(openspace) Workingtemperature-20°C~60°C Storingtemperature20°C~35°C(idealtemperatureforstoringbattery) SecurityNon-connectablemode,datacannotbealtered Type/ channel ItemDefaultsettings iBeacon (activated bydefault) UUID(16bytes) E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (configurable) Major(2bytes)0(0-65535,configurable) Minor(2bytes)0(0-65535,configurable) Measuredpower-59dBm(0xC5) Txpower0dBm Interval(ms)2000ms MBeacon INFO (activated bydefault) DevicenameMTB01 Batteryvoltage(mV)Dependsonthestatus MACaddressAssignedbeforeshipment Measuredpower-24dBm(0xE8） Txpower0dBm Interval(ms)4000ms SupportedsystemsSupportedmodels iOS10.0andabove iPhone6/6Plus/6S/6SPlus，iPhone7/7Plus，iPhone8/8Plus， iPhonex/xr/xs/xsmax，iPhoneSE/SE2，iPhone11/11pro/11promax Android4.3and above Samsung,Xiaomi,Huawei,Honor,OnePlus,GooglePixel,etc. PortableTag_MTB01 AllRightsReservedbyMinew 4 INSTRUCTION Poweron:unplugtheinsulatingsheet,andthedevicewillstartwhenitispoweredon. Shutdown:removethebattery. Batterycheck:theproducthasnoindicatorlight,andthebatterypowerinformationcanbejudgedby thevoltageinformationintheMBeaconINFOframe. Broadcastviewing:checkwhetherthedeviceisbroadcastingbyBeaconSETorBeaconSET+App. PRECAUTIONS 1.Aftertheproductispoweredon,itwillbeinbroadcastmodeandcannotbeconnected. 2.Thefinishedproductdoesnotsupportburningfirmwareprovidedbycustomers. 3.Toextendthebatterylifeifneeded,itisrecommendedtochoosealowbroadcastpowerandalong broadcastintervalfirmwareversionatthemanufacturingstage. 4.Iftheoperatingtemperatureisexceeded,therecouldbedamagetotheproduct. 5.Pleaseavoiddirectsunlightforanextendedperiodtoavoidagingoftheshellwheninuse. 6.Minewwillnotberesponsibleforanydamageresultingfromdisassemblingmanually. 7.Thisproductissuitableforuseinscenariosawayfromchildrensuchasinwarehousesandfactories. Package ItemsInternalcartonExternalbox Pictures Units80800 Sizes30.5*11*7.2cm32*23.5*40cm Grossweight628g6750g QUALITYASSURANCE ThefactoryhasalreadyobtainedthecertificationofISO9001QualitySystem.Eachproducthasbeen strictlytested(testsincludetransmissionpower,sensitivity,powerconsumption,stability,aging,etc.). WarrantyPeriod:12monthsfromthedateofshipping(Batteryandotheraccessoriesexcluded). DECLARATION StatementofRights: ThecontentsofthismanualbelongtotheManufacturerofMinewTechnologiesCo.,LTD,Shenzhen, andareprotectedbyChineselawsandapplicableinternationalconventionsrelatedtocopyrightlaws. Thecontentscanberevisedbythecompanyaccordingtothetechnologicaldevelopmentwithoutprior notice.Anyone,companies,ororganizationscannotmodifythecontentsandcitethecontentsofthis manualwithoutMinew'spermission,otherwise,Violatorswillbeheldaccountableaccordingtolaw. PortableTag_ MTB01 All RightsReservedby Minew 5 Disclaimer: Minewteamreservesthe rightto the final explanationof the documentand productdifferences.The Minewgroupis not responsiblefor liabilityof propertyor personalinjurywiththe wrongoperationif usersdeveloprelatedproductswithoutcheckingthe technicalspecificationsof this manual. FCC Warning Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note:This equipmenthas beentestedand foundto complywiththe limitsfor a ClassB digitaldevice, pursuantto part 15 of the FCC Rules.Theselimitsare designedto providereasonableprotectionagainst harmfulinterferencein a residentialinstallation.This equipmentgeneratesusesand can radiateradio frequencyenergyand, if not installedand usedin accordancewiththe instructions,may causeharmful interferenceto radiocommunications.However,thereis no guaranteethat interferencewill not occurin a particularinstallation.If this equipmentdoescauseharmfulinterferenceto radioor televisionreception, whichcan be determinedby turningthe equipmentoff and on, the user is encouragedto try to correctthe interferenceby one or moreof the followingmeasures: -Reorientor relocatethe receivingantenna. -Increasethe separationbetweenthe equipmentand receiver. -Connectthe equipmentinto an outleton a circuitdifferentfromthat to whichthe receiveris connected. -Consultthe dealeror an experiencedradio/TVtechnicianfor help. The devicehas beenevaluatedto meetgeneralRF exposurerequirement.The devicecan be usedin portable exposureconditionwithoutrestriction. CO…

Text truncated - open the document above for the full version.

Sh enzhen Minew Technologies Co., Ltd . The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federa l Communications Commission Authori zation and Evaluation Division Equipment Authori zation Bra nch 7435 Oakland Mills Road Columbia, MD 21046 9/ 19/23 U.S . Agent Designati on [Shenzhen Min ew Technolo gie s Co., Ltd.]acknowledges th eir consent fo r th e following conta ct located in th e Unite d Sta te s to act as th eir agent for service of process for th e equipment for which auth orizati on is sought (FCC ID :2ABU6-MTB01): Name and company of U.S . agent: Sijie Zhang / THREE STONES MEDIA LLC Physical U.S . address of agent: 1200 Broadway St. APT 329, Los Angeles, CA90015 FRN of U.S . agent: 0033401761 Email address of U.S . agent: [email protected] o m [THREE STONES MEDIA LLC]acknowledges th eir obligati on to accept service of process on behalf of[Shenzhen Min ew Technolo gie s Co., Ltd.]. [Shenzhen Min ew Technolo gie s Co., Ltd.]with th e FRN[0023364128]accepts its obligati on to mainta in an agent fo r service of process in th e Unite d Sta te s fo r no less th an one year afte r either th e grante e has permanentl y te rminated all marketi ng and importa tion of th e applicable equipment with in th e U.S ., or th e conclusion of any Co mmission-relate d administr ati ve or judicial proceeding involving th e equipment, whichever is later. By signing th is fo rm, we confirm th e above and th at we are aware of th e applicati on requirements liste d under § 2.9 11(d)(7). Sincerely, Signature [Name] yanyan Zhang [Title] Quality Superv isor [Company] Shenzhen Minew Technologies Co., Ltd. Signature [Name of U.S. agent] Sijie Zhang [Title of U.S. agent] [Company of U.S. agent] THREE STONES MEDIA LLC 48_[model] US_Agent_2.911(d)(7)-U, V04

ShenzhenMinewTechnologiesCo.,Ltd. TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 9/19/23 Towhomitmayconcern: We,[ShenzhenMinewTechnologiesCo.,Ltd.],herebycertifythattheequipmentforwhich authorizationissought(FCCID:2ABU6-MTB01)isnot“covered”equipmentprohibitedfromreceiving anequipmentauthorizationpursuantto§2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,wearenotidentifiedontheCovered List(https://www.fcc.gov/supplychain/coveredlist)asanentityproducing“covered”equipment. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(b)and(d)(5)and(6). Sincerely, Signature [Name]yanyanZhang [Title]QualitySupervisor [Company]ShenzhenMinewTechnologiesCo.,Ltd. 6 2 _ [ m o d e l ] C o v e r e d E q u _ 2 . 9 1 1 ( d ) ( 5 ) ( i ) a n d ( i i ) - U , V 0 2

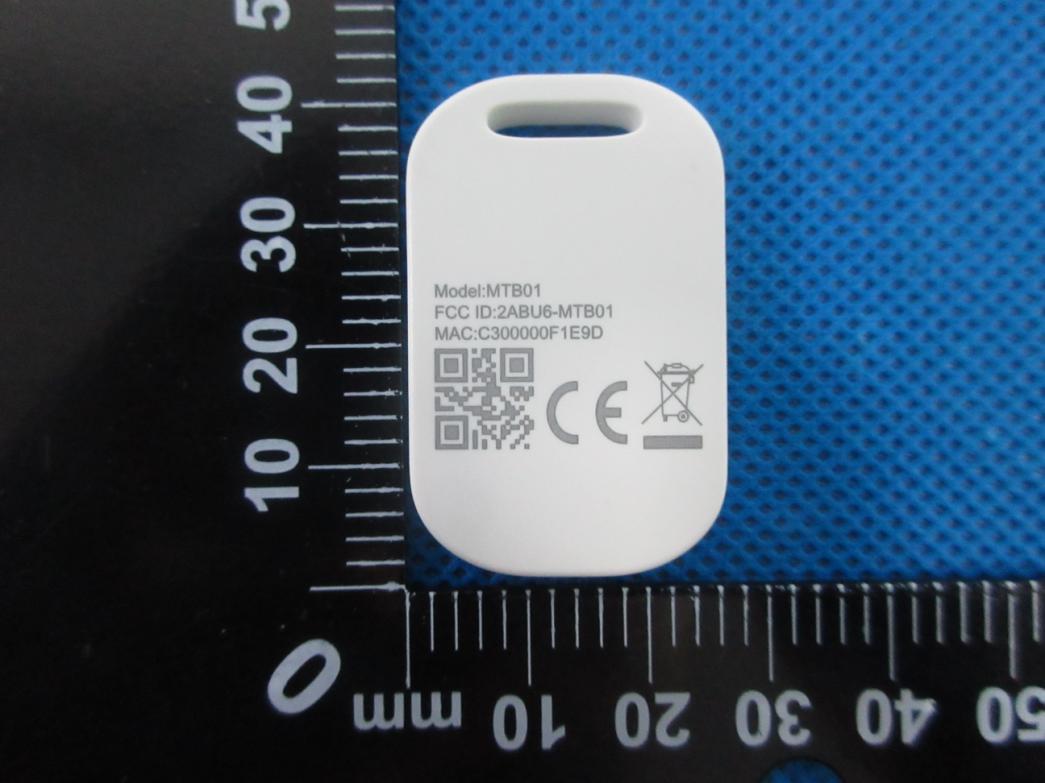

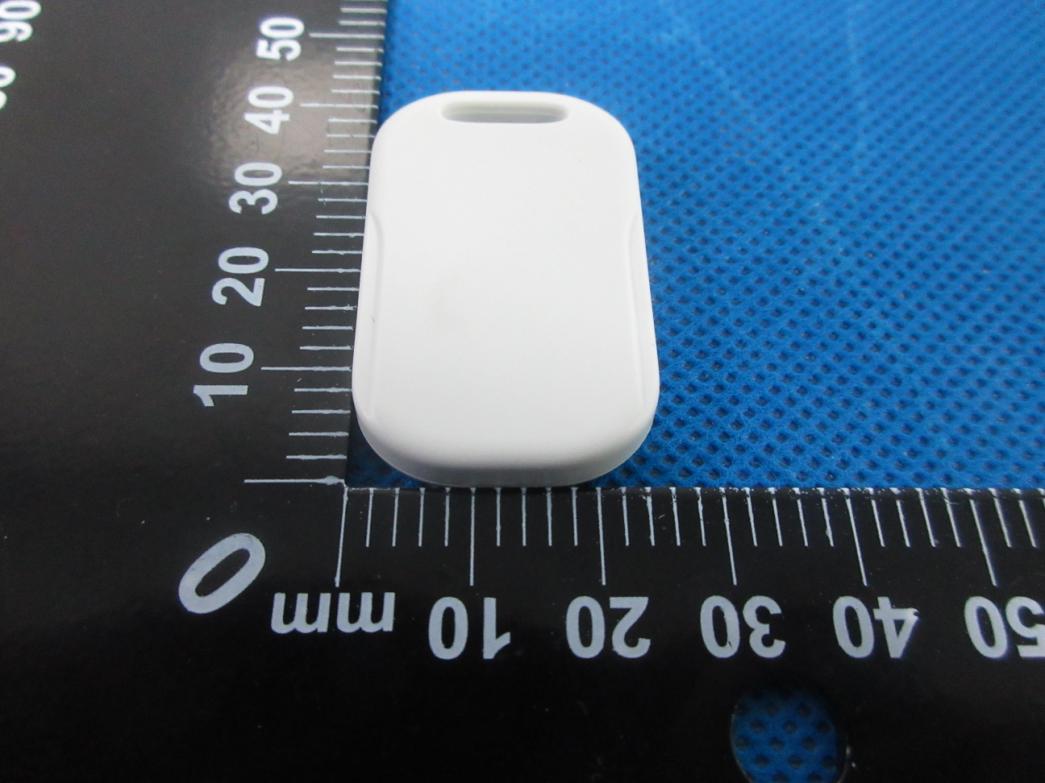

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Portable Tag Model:MTB01 FCC ID:2ABU6-MTB01 Portable Tag Model:MTB01 FCC ID:2ABU6-MTB01 Arial 5pt

Photo 7 Photo 8 Photo 9 Photo 10 ANT Photo 11 Photo 12

FCC ID: 2ABU6-MTB01 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE: Antenna Type: PCB Antenna Antenna Gain: 0.69 dBi Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n 1g SAR Exclusion threshold SAR test exclusion 2.4021.641.4591±12.01.585<50.491273.00YES 2.441.581.4391±12.01.585<50.495143.00YES 2.4801.181.3121±12.01.585<50.499183.00YES BLE(1M) Conclusion: For the max result : 0.49918≤ 3.0 for 1-g SAR, No SAR is required. Signature: Date: 9/20/2023 NAME AND TITLE (Please print or type): Alex /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China

Report No.: S23082601705001 Version.1.3 Page 1 of 43 RADIO TEST REPORT FCC ID: 2ABU6-MTB01 Product: Portable Tag Trade Mark: MINEW Model No.: MTB01 Family Model: N/A Report No.: S23082601705001 Issue Date: Sep 07, 2023 Prepared for Shenzhen Minew Technologies Co., Ltd. 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel:400-800-6106,0755-2320 0050 / 2320 0090 Website: http://www.ntek.org.cn Report No.: S23082601705001 Version.1.3 Page 2 of 43 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION .................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ....................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ........................................................................................................... 5 3.1 FACILITIES................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ............................................................................... 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................. 5 4 GENERAL DESCRIPTION OF EUT ................................................................................................................ 6 5 DESCRIPTION OF TEST MODES ................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 9 6.2 SUPPORT EQUIPMENT............................................................................................................................. 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS ............................................................................................ 11 7 TEST REQUIREMENTS .................................................................................................................................. 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................. 13 7.2 RADIATED SPURIOUS EMISSION .......................................................................................................... 15 7.3 6DB BANDWIDTH ..................................................................................................................................... 24 7.4 DUTY CYCLE ............................................................................................................................................. 25 7.5 PEAK OUTPUT POWER ............................................................................................................................ 27 7.6 POWER SPECTRAL DENSITY ................................................................................................................. 28 7.7 CONDUCTED BAND EDGE MEASUREMENT....................................................................................... 30 7.8 SPURIOUS RF CONDUCTED EMISSIONS.............................................................................................. 31 7.9 ANTENNA APPLICATION ........................................................................................................................ 32 8 TEST RESULTS ................................................................................................................................................. 33 8.1 MAXIMUM CONDUCTED OUTPUT POWER ..................................................................................................... 33 8.2 -6DB BANDWIDTH ........................................................................................................................................ 35 8.3 MAXIMUM POWER SPECTRAL DENSITY LEVEL ............................................................................................. 37 8.4 BAND EDGE .................................................................................................................................................. 39 8.5 CONDUCTED RF SPURIOUS EMISSION ........................................................................................................... 41 Report No.: S23082601705001 Version.1.3 Page 3 of 43 1 TEST RESULT CERTIFICATION Applicant’s name .................... : Shenzhen Minew Technologies Co., Ltd. Address.................................. : 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Manufacturer's Name ............. : Shenzhen Minew Technologies Co., Ltd. Address ................................. : Building 3, Instrument World Industrial Park, No. 306, Guanlan Guiyue Road, Longhua District, Shenzhen Product description Product name ........................ : Portable Tag Model and/or type reference . : MTB01 Family Model ......................... : N/A Test Sample Number.............. : S230826017011 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C KDB 174176 D01 Line Conducted FAQ v01r01 ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identi…

Text truncated - open the document above for the full version.

version01 ShenzhenMinewTechnologiesCo.,Ltd. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:MTB01 FCCID:2ABU6-MTB01 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforPCBAntennaantennatype(s) describedbelow: ModelNo.ofantenna:ANT-BBNCNC23009 Typeofantenna: PCBAntenna Gainoftheantenna:0.69dBi Frequencyrange:2400-2480MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:ShenzhenMinewTechnologiesCo.,Ltd. Address:3rdFloor,IBuilding,GangzhilongSciencePark,QinglongRoad,LonghuaDistrict, ShenzhenCity,China City:ShenzhenCity ZIP/Postalcode: Country: China Name:yanyanZhangDate: 19/09/2023 Signature:

深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第1页共6页 AntennaCoding：ANT-BBNCNC23009 AntennaType：PCBonboardAntenna ModeloftheDUT ： MTB01 AntennaManufacturer：ShenzhenMinewTechnologiesCo.,Ltd. 1、TechnicalSpecification ElectricalSpecifications FrequencyRange（MHz） 2400-2480 InputImpedance（Ω） 50 ReturnLoss （ dB ）＜ -10 VSWR ＜ 2 PeakGain（dBi） 0.69 PolarizationTypeLinearpolarization MechanicalSpecifications AntennaSize(mm)12*3.49 RadiatorCuprum 2、Theshapeandsizeoftheantenna 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第2页共6页 3、Theresultofthetest 3.1TestEnvironment 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第3页共6页 3.2GainandEfficiency 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第4页共6页 3.33D PolarPlot 2402MHz 2440MHz 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第5页共6页 2480MHz 3.42DRadiationPattern （1）E1，XZPlane，phi=0 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第6页共6页 （2）E2，YZPlane，phi=90° （3）H，XYplane，theta=90°
