2ABU6-MWC01Badge

Product Name ： MWC01 Bluetooth® Rechargeable badge Product Pictures: Product Overview MWC01 is a rechargeable badge created by Minew for personnel management, which allows check-in/ out and flow monitoring. The charging port is magnetic that is easy to recharge. It is equipped with an external button and a vibration motor that is friendly to the visually impaired and can be used for first aid or status reports of the wearer. Key Features Smart magnetic charging Visual or auditory disability-friendly with vibration motor Multiple RFID frequencies 492 ft (150 m) broadcast distance MarketApplications Personnel management With a broadcast distance of 492 ft (150 m) and a high level protection, MWC01 can be widely used in museums, aquariums and other large indoor places. Wearers’movement can be tracked so that resources can be efficiently allocated. External buttons are accompanied by vibration feedback. Functions such as first response in hospitals and task completion report in factories can be achieved with further development. Smart office MWC01with built-in RFID can be used for office check-ins, personnel flow monitoring, and employees’ route tracing to human utilization.ts geofencing function allows access control as levels of permissions for different areas can be set. Such visitor management protects company privacy to the greatest extent possible. Product Specifications Basic Specifications Body materialABS + PC ColorWhite Size (L * W * H) 86 * 55 * 6 mm Weight19 g ( without accessories ) Battery1 rechargeable battery, 290 mAh Charging time Approximate 2 h（room temperature，5 V/ 1Apower adapter） Battery life Up to 3 months（less than average amount of clicking） SensorAccelerometer Button1 Vibration motor1 LED 1 RGB light RFID LF/ HF/ UHF optinal OTASupported ConfigurationApp BeaconSET+ [1] [1] Bluetooth related SDKs are available, please contact our sales team for details. Technical Specifications ChipnRF52 series Bluetooth versionBluetooth® LE 5.0 Broadcast frequency100 ms ~ 5 s Broadcast distanceUp to 492 ft / 150 m (open area) Working temperature-20°C ~ 60°C SecurityPassword verification to change settings, restart, non-connectable mode, malicious connecting proof supported Broadcast Specifications Type (channel)ItemsDefault settings iBeacon (on) UUID (16 bytes) E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (configurable) Major (2 bytes) 0 (0 – 65535, configurable) Minor (2 bytes) 0 (0 - 65535, configurable) Measured power -59 dBm (0xC5)@1 m Tx power0 dBm Interval900 ms Compatibilities Supported systemsSupported models iOS 10.0 and above iPhone6 /6 Plus /6S/ 6S Plus /7 /7 Plus /8 /8 Plus /x /xr /xs /xs max /SE /SE2 /11 /11 pro /11 pro max Android 4.3 and aboveLG, Samsung, Xiaomi, Huawei, Honor, OnePlus, Google Pixel, etc UID (off) Instance ID00112233445566778899 (configurable) Namespace ID Random Measured power -24 dBm (0xE8)@0 m Tx power 0 dBm Interval 2000 ms URL (off) URLhttps://www.minew.com/ (configurable ) Measured power -24 dBm (0xE8) @0 m Tx power0 dBm Interval2000 ms TLM (on) Electricity mV System built-in Boot up timeSystem built-in PDU packetsSystem built-in Tx power0 dBm Interval4000 ms INFO (on) Device nameMWC01 Battery levelSystem built-in MAC address Assigned at factory Tx power-8 dBm Interval4000 ms ACC (on) Tx power0 dBm Interval1000 ms Password Passwordminew123 (default) Connectable mode Connectable or not connectable Instruction Boot After hold the button for 3 s, the blue light will be on for 3 s and vibrate once. Shutdown When on, you only can turn it off by the BeaconSET+ App. The blue light flashes 5 times means that it has been powered off. Battery level When the battery is lower than 20%, the red light flashes once every 3 s. When being charged, the red light remains on. When the charging is completed, the green light remains on. App connection and disconnection When connected the blue light will flash twice. When disconnected, the blue light will flash 3 times. Connectable mode MWC01 defaults to connectable mode and can be set to non-connectable mode after connecting theApp. MWC01 can return to connectable mode after re-powering in non-connectable mode. Broadcast: Click the button once can enter the configurable mode in 1 minute. You can set click the button twice or three times to trigger a broadcast.When click the button twice, the blue light flashes twice and the motor vibrates once. When click the button 3 times, the blue light flashes 3 times and the motor vibrates 2 times. Precautions 1. When the power is low, the red-light will flash to give an alarm, and please replace the battery in time. 2. The use time and broadcast distance fluctuate due to the environment, and the specific time is subject to the actual use. 3. The product can only be immersed in water for a short time and does not support use underwater. 4. Do not use the product above the designed working temperature to avoid damage. 5. It is recommended that store the product under -20°Cto 40°Cwhile charge and discharge the product per 3 months during storage when not in use. 6. Avoid being exposed to direct sunlight for an extended period to mitigate shell aging. 7. Minew will not be responsible for any damage resulting from disassembling manually. Certifications FCC Requirement Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate ra…

Text truncated - open the document above for the full version.

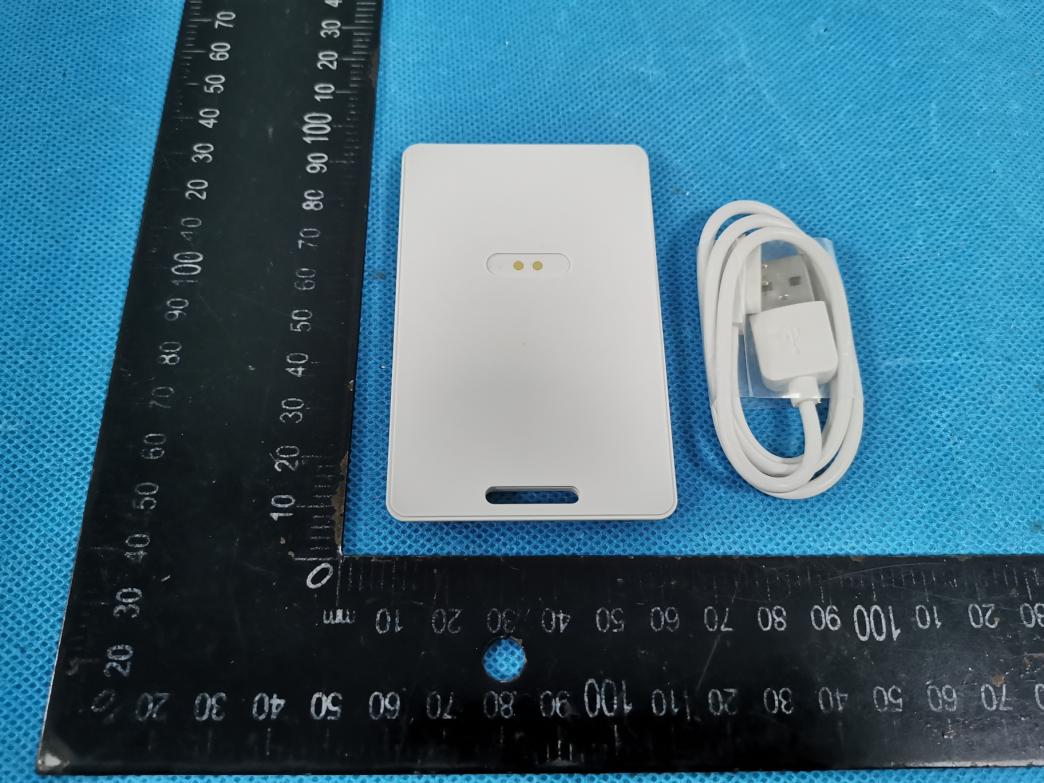

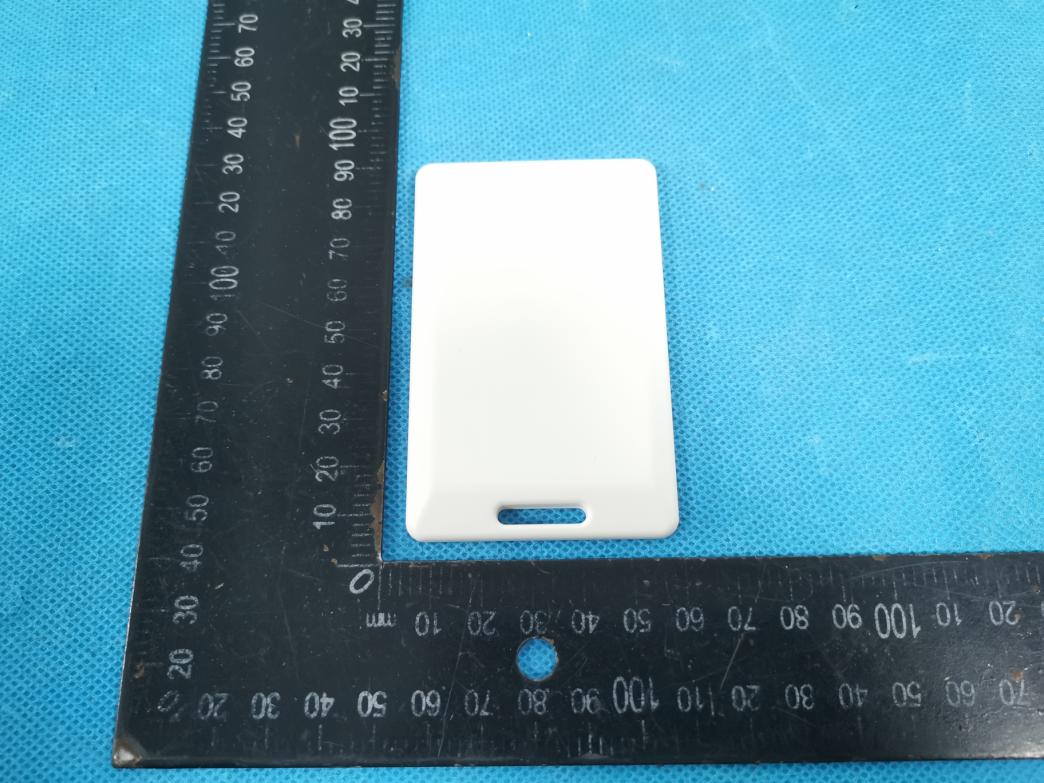

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

AC233F230001 Badge Model:MWC01 FCC ID:2ABU6-MWC01 Input:5V 1A Made in China AC233F230001 Badge Model:MWC01 FCC ID:2ABU6-MWC01 Input:5V 1A Made in China

Photo 7 Photo 8 Photo 9 Photo 10 BT ANT Photo 11 Photo 12 Photo 13

深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第1页共6页 AntennaCoding：ANT-BBNCNC22013 AntennaType：PCBonboardAntenna，PatchAntenna ModeloftheDUT：MWC01 AntennaManufacturer：ShenzhenMinewTechnologiesCo.,Ltd. 1、TechnicalSpecification ElectricalSpecifications FrequencyRange（MHz） 2402-2480 InputImpedance（Ω） 50 ReturnLoss （ dB ）＜ -15 VSWR ＜ 1.5 PeakGain（dBi） 2.54 PolarizationTypeLinearpolarization MechanicalSpecifications AntennaSize(mm)19.3*4.75 RadiatorCuprum 2、Theshapeandsizeoftheantenna 3、Theresultofthetest 3.1TestEnvironment 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第2页共6页 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第3页共6页 3.2GainandEfficiency 3.33D PolarPlot 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第4页共6页 2402MHz 2440MHz 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第5页共6页 2480MHz 3.42DRadiationPattern （1）E1，XZPlane，phi=0 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第6页共6页 （2）E2，YZPlane，phi=90° （3）H，XYplane，theta=90°

FCC ID: 2ABU6-MWC01 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 3.57 2.283±142.51<50.778603.00YES 2.440 3.6 2.293±142.51<50.784743.00YES 2.480 3.33 2.153±142.51<50.791143.00YES 2.402 3.61 2.303±142.51<50.778603.00YES 2.440 3.61 2.303±142.51<50.784743.00YES 2.480 3.32 2.153±142.51<50.791143.00YES BLE(2M) BLE(1M) Conclusion: For the max result : 0.79114 ≤ 3.0 for 1g SAR, SAR is not required. Signature: Date: 2023-02-28 NAME AND TITLE (Please print or type): Alex li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S22112105505001 Version.1.3 Page 1 of 59 RADIO TEST REPORT FCC ID: 2ABU6-MWC01 Product: Badge Trade Mark: MINEW Model No.: MWC01 Family Model: N/A Report No.: S22112105505001 Issue Date: Dec 16. 2022 Prepared for Shenzhen Minew Technologies Co., Ltd. 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S22112105505001 Version.1.3 Page 2 of 59 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 6DB BANDWIDTH ....................................................................................................................................... 25 7.4 DUTY CYCLE ............................................................................................................................................... 26 7.5 PEAK OUTPUT POWER .............................................................................................................................. 28 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 29 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.8 SPURIOUS RF CONDUCTED EMISSIONS................................................................................................ 32 7.9 ANTENNA APPLICATION .......................................................................................................................... 33 8 TEST RESULTS ................................................................................................................................................... 34 1M: ............................................................................................................................................................................. 34 2M: ............................................................................................................................................................................. 46 Report No.: S22112105505001 Version.1.3 Page 3 of 59 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Shenzhen Minew Technologies Co., Ltd. Address ....................................... : 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Manufacturer's Name .................. : Shenzhen Minew Technologies Co., Ltd. Address ....................................... : Building 3, Instrument World Industrial Park, No. 306, Guanlan Guiyue Road, Longhua District, Shenzhen Product description Product name .............................. : Badge Model and/or type reference ...... : MWC01 Family Model ............................... : N/A Test Sample Number ................... : S221121055002 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing Technology Co., Ltd., this document may be altered or revised by Shenzhen NTEK Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. The test results of this report relate …

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photos
