2ABU6-T1Digital Broadcasting Device

TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 1 E8 TagBeacon MiniBeaconPlus Configuration Instruction V 2. . 0 0 N N o o t t e e : : 1 1 . . T T h h e e i i n n s s t t r r u u c c t t i i o o n n a a p p p p l l i i e e d d f f o o r r b b e e a a c c o o n n m m o o d d e e l l s s t t h h a a t t d d o o e e s s n n ’ ’ t t l l o o a a d d a a n n y y s s e e n n s s o o r r s s a a n n d d p p r r e e - - f f l l a a s s h h e e d d M M i i n n i i B B e e a a c c o o n n i i n n t t e e l l l l i i g g e e n n c c e e f f i i r r m m w w a a r r e e . . 2 2 . . M M i i n n i i B B e e a a c c o o n n i i s s o o n n e e o o f f M M i i n n e e w w ’ ’ s s o o f f t t w w a a r r e e p p a a t t e e n n t t . . PREPARATION------------------------------------------------------------------------------------------------------------------------------2 ENTER INTO CONFIGURATION MODE-------------------------------------------------------------------------------------------2,3 CONFIGURATION MODE----------------------------------------------------------------------------------------------------------------4 Settings Definition----------------------------------------------------------------------------------------------------------------------4 SLOT Configuration-----------------------------------------------------------------------------------------------------------------4,5 Advertising Data Format (Info) -----------------------------------------------------------------------------------------------------6 Adv Content-----------------------------------------------------------------------------------------------------------------------------7 Base params---------------------------------------------------------------------------------------------------------------------------7,8 Trigger-----------------------------------------------------------------------------------------------------------------------------------8 DEPOLYMENT NOTICE-----------------------------------------------------------------------------------------------------------------9 END------------------------------------------------------------------------------------------------------------------------------------------9 V 2 Digital Broadcasting Device TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 2 E8 TagBeacon MiniBeaconPlus Configuration Instruction PREPARATION 1. Activate beacon device as the datasheet correctly; 2. An iOS 7.0+ / Android 4.3+ smart device with BLE 4.0; 3. Download BeaconSET+ app from Apple store or Google Paly; ENTER INTO CONFIGURATION MODE 1. Run BeaconSET+, there are total 37 devices detected around smartphone immediately, see image 2; 2. You can click “Edit Filter” to quick search out a beacon device which you want to configure by Name, MAC ID and RSSI value, see image 3; 2 3 TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 3 E8 TagBeacon MiniBeaconPlus Configuration Instruction 3. For example: Slide the RSSI slide bar to set the RSSI value at -33 dBm as the filter, then see image 4; there is only one beacon and its MAC address is ac233f24a933 which we want to configure it. 4 4. The Beacon is connectable only when the ROUND DOT changed to green color, see above image 4; if Beacon has been set to disconnectable, the ROUND DOT keeps in red color; 5. Click the Beacon when it’s connectable, and then input the password as image 5. If it is correct, the Beacon enters into configuration mode, see image 6; 5 6 3.1 The beacon (MAC ID: ac233f24a933) can advertise total 6 different frame types iBeacon, Eddystone (UID, URL, TLM), Acc. and Info simultaneously. But now the beacon advertises only URL, iBeacon and Info frame. 3.2 The data Info includes the battery level and MAC address. It is not allowed to change by user; TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 4 E8 TagBeacon MiniBeaconPlus Configuration Instruction CONFIGURATION MODE 1. Settings Definition SLOT: Each Beacon has 6 configurable SLOTs; it is from SLOT1 to SLOT6. Connectable: Each Beacon has 2 different advertising statuses, connectable and disconnectable. Only when the advertising status is connectable, the Beacon is configurable. But the disconnectable advertising saves about 20% power consumption than connectable advertising’s. After completed the configuration, we strongly recommend setting the Beacon disconnect not only lower battery power consumption but also better security performance. Update firmware (OTA: over-the-air): - It’s not allowed to load unknown firmware into tag beacon; - If there is a bug occurred unfortunately, the manufacturer is responsible to release the latest revised firmware to help users to recover the bug by “Update firmware”; Reset factory: It will recover beacon to factory settings and ignore all changes; Poweroff: The Beacon will stop advertising and enter into sleeping mode after used “Poweroff”. But it can be activated again by push button on the beacon. As Beacon doesn’t have a push button, we are strongly opposed to use “Poweroff”. Modify password: Change to a new password by “Modify password”. Remove password: Removing the password if someone forgot it and then set a new password by “Add password”. Manufacture info & Feature info: It’s not changeable by users. 2. SLOT Configuration Each SLOT is independent and configurable. The following parameters can be configured. The users can configure each SLOT’s Frame Type, Adv. Content, Base params and Trigger by themselves via BeaconSET+. 2.1 Frame Type Actually, the frame type is the format of advertising data packet. Each Beacon has below total 7 different frame types: UID, iBeacon, URL, Acc. Sensor, TLM, Info and NO DATA, see image 8; TEL: +86-755-2103 8160 EMAIL: [email protected] URL: www.minewtech.com 5 E8 TagBeacon MiniBeaconPlus Configuration Instruction 8 2.1.1 NO DATA If setting a SLOT’s frame type to NO DATA, It means that SLOT no data to be advertised. T…

Text truncated - open the document above for the full version.

SHENZHEN MINEW TECHNOLOGIES CO., LTD. Agent Authorization Company: SHENZHEN MINEW TECHNOLOGIES CO., LTD. Address: 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Product Name: Digital Broadcasting Device Model Number(s): T1 Trademark: MINEW We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/08/05 Name: Shain Xiao Title: Manager Company: SHENZHEN MINEW TECHNOLOGIES CO., LTD.

SHENZHEN MINEW TECHNOLOGIES CO., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/8/05 Subject; Request for Confidentiality FCC ID: 2ABU6-T1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Shain Xiao Title: Manager

External Photos

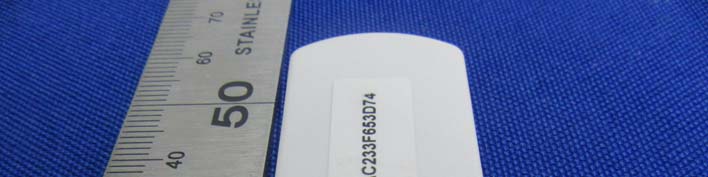

10*5mm Label Location FCC ID: 2ABU6-T1

Internal Photos Antenna

Shenzhen BCTC Testing Co., Ltd. FCC ID: 2ABU6-T1 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK2.4404.052.544±15.003.16<50.987933.00YES Conclusion: For the max result : 0.98793＜3.0, the SAR testing is not required.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2007000374E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 46 Test Report FCC: 2ABU6-T1 Product Name: Digital Broadcasting Device Trademark: MINEW Model Name : T1 Prepared For : SHENZHEN MINEW TECHNOLOGIES CO., LTD. Address : 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: Jul. 08, 2020 – Jul. 28, 2020 Date of Report : Jul. 29, 2020 Report No.: BCTC2007000374E Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2007000374E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 46 TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN MINEW TECHNOLOGIES CO., LTD. Address ................................. : 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Manufacture's Name ............ : SHENZHEN MINEW TECHNOLOGIES CO., LTD Address ................................. : Floor 2-4, Building 3, Instrument World Industrial Park, No. 306, Guanlan Guiyue Road, Longhua District, Shenzhen, China Product description Product name ........................... : Digital Broadcasting Device Trademark ................................. : MINEW Model and/or type reference : T1 Standards ............................. : FCC Part15.247 ANSI C63.10:2013 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Willem Wang Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2007000374E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 46 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.1.2 TEST PROCEDURE 12 3.1.3 DEVIATION FROM TEST STANDARD 12 3.1.4 TEST SETUP 13 3.1.5 EUT OPERATING CONDITIONS 13 3.1.6 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 14 3.2.1 RADIATED EMISSION LIMITS 14 3.2.2 TEST PROCEDURE 15 3.2.3 DEVIATION FROM TEST STANDARD 15 3.2.4 TEST SETUP 15 3.2.5 EUT OPERATING CONDITIONS 17 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 18 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION 23 3.3.1 TEST REQUIREMENT: 23 3.3.2 TEST PROCEDURE 23 3.3.3 DEVIATION FROM TEST STANDARD 24 3.3.4 TEST SETUP 24 3.3.5 EUT OPERATING CONDITIONS 24 4 . POWER SPECTRAL DENSITY TEST 26 4.1 APPLIED PROCEDURES / LIMIT 26 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2007000374E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 46 Table of Contents Page 4.1.1 TEST PROCEDURE 26 4.1.2 DEVIATION FROM STANDARD 26 4.1.3 TEST SETUP 26 4.1.4 EUT OPERATION CONDITIONS 26 4.1.5 TEST RESULTS 27 5 . BANDWIDTH TEST 31 5.1 APPLIED PROCEDURES / LIMIT 31 5.1.1 TEST PROCEDURE 31 5.1.2 DEVIATION FROM STANDARD 31 5.1.3 TEST SETUP 31 5.1.4 EUT OPERATION CONDITIONS 31 5.1.5 TEST RESULTS 32 6 . PEAK OUTPUT POWER TEST 36 6.1 APPLIED PROCEDURES / LIMIT 36 6.1.1 TEST PROCEDURE 36 6.1.2 DEVIATION FROM STANDARD 36 6.1.3 TEST SETUP 36 6.1.4 EUT OPERATION CONDITIONS 36 6.1.5 TEST RESULTS 37 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 38 7.1 APPLICABLE STANDARD 38 7.2 TEST PROCEDURE 38 7.3 DEVIATION FROM STANDARD 38 7.4 TEST SETUP 38 7.5 EUT OPERATION CONDITIONS 38 7.6 TEST RESULTS 38 8 . ANTENNA REQUIREMENT 43 8.1 STANDARD REQUIREMENT 43 8.2 EUT ANTENNA 43 9 . EUT TEST PHOTO 44 10 . EUT PHOTO 46 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2007000374E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 5 of 46 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (d), 15.205 Radiated Spurious Emission PASS 15.247 (e) Power Spectral Density PASS 15.205 Restricted Band of Operation PASS 15.247(d) Band Edge (Out of Band Emissions) PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2007000374E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 6 of 46 1.1 TEST FACILITY Shenzhen BCTC Testing Co., Ltd. Add.: BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China FCC Test Firm Registration Number: 712850 IC Registered No.: 23583 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 3m camber Radiated spurious emission(30MHz-1GHz) U=4.3dB 2 3m chamber Radiated spurious em…
