2ABU6MBM01Ultra-Long Range Beacon

Ultra-Long Range Beacon (High-precision Version) Datasheet 01 Version: 001 PRODUCT OVERVIEW MBM01 adopts an ultra-low-power nRF52833 chip, supports Bluetooth 5.3 standard nRF 52 series chip Mbps/125 Kbps low-energy mode, and adopts a DW3120 chip with ultra-wide band technology, which DW 31 series chip deployed in public places such as airports, railway stations, or warehouses and helps users realize asset positioning and tracking or indoor precision navigation. KEY FEATURES APPLICATION SCENARIOS MBM01 can be deployed in warehouses to help users track the exact location of tools, shelves, or equip- ment. Warehouse Asset Tracking Through the reasonable installation of MBM01 in airports and combining relevant algorithm solution platforms, this device can help users realize precision route guidance indoors. Indoor Precision Navigation Remark: The scenarios mentioned above are only a reference; users should deploy the MBM01 based on their own scenario solutions. High Precision Positioning Long Range Supported IP65 Dust & Waterproof Large Capacity Battery External Operation Button Fashionable Design 02 Version: 001 PRODUCT SPECIFICATIONS BASIC PARAMETERS Model Material Color Dimensions(L*W*H mm) Weight Protection MBM01 Plastic PC+ABS White 72 x 72 x 23 mm 153.4 g IP65 / / Customizable / Alkaline Battery Included / TECHNICAL PARAMETERS Chip Sensor Battery UWB Frequency Min. UWB Frequency Max. UWB Maximum Output Power Bluetooth Broadcasting Range UWB Broadcasting Range Operating Temperature Range nRF52 & DW31 Series No Alkaline battery CH5, 6.5GHz CH9, 8GHz -31 dBm 600 m (open area) Up to 50 m -18~50 / Accelerator Optional Total capacity: 5800 mAh / / / For Reference Only For Reference Only / 03 Version: 001 INSTALLATION INSTRUCTION The surface should be smooth and drysuch as ceramics, glass/epoxy resin, acrylic acid, PBT, ABS, PC, hard PVC. Due to the material difference of double-sided tapes, it is recommended using installation on surface such as cement, plasterboard to be installed using double-sided tapes and glue for a better stability. 10 or above. Recommended Deployment Surface Beacons deployment should avoid the metal, glass shield or other obstruc- tions, and avoiding the corner. Common Deployment Scenarios: surface to be installed such as office walls, glass window & door, desk, wood, tile, etc. Recommended Deployment Temperature Double-sided Tapes Step Detail Before deployment, the surface to be installed should be clean and have no dust. When pasting, press beacon with the double-sided tapes for 5 seconds and repeat. Double-sided Tapes Deployment Screw Bracket Deployment Step Detail The surface to be installed should not be the ceramic, glass, fragile plastic materials, crack-prone partitions or walls, etc. to avoid the risk of dislodging and the risk of falling. 10 or above. Recommended Deployment Surface Devices deployment should avoid the metal, glass shield or other obstructions, and avoiding the corner. Recommended Deployment Temperature Common Deployment Scenarios: office walls, tile, plasterboard walls, etc. 1 Drill screw holes on the surface of a hard surface to be installed. 2 Put the green expansion plug into the screw holes on the hard surface to be installed. 3 Put the screws into the green expan- sion plug, and install the device in the direction of screw holes. 4 Put screws into the screw hole of the devices(for screw deployment ); or put the device into the installation bracket (for screw bracket deployment ). 04 Version: 001 CERTIFICATIONS About the Bluetooth and UWB broadcasting range information is for reference only; we suggest that it be tested again when used in a practical application. Decreasing the power and increasing the broadcasting interval can extend the lifetime of Bluetooth beacons if they are used in a proper environment. The device will be shut down for shipping. Please use the device at the suggested working temperature for safety. Minew will not be responsible for the damage caused by disassembling the product. This equipment may only be operated indoors.Operation outdoors is in viol ation of 47 U.S.C. 301 and could subject the operator to serious legal penal ties. Please contact our sales team if you have any questions. UWB devices may not be employed for the operation of toys. Operation onboard an aircraft, a ship or a satellite is prohibited. FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. BLE & UWB Part: Beacon broadcasts via BLE. Tag detects the broadcast and responds (via BLE) to the request for range measurement. Beacon confirms the request (also over BLE).Tag and Beaco…

Text truncated - open the document above for the full version.

1/1 USAgentforServiceofProcessLETTEROFATTESTATION TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USAgentforServiceofProcess: CompanyName:THREESTONESMEDIALLC FRN:0033401761 ContactName:SijieZhang Address:1200BroadwaySt.APT329,LosAngeles,CA90015 TelephoneNo:+12679093692 Email:[email protected] Applicant: Companyname:ShenzhenMinewTechnologiesCo.,Ltd. ProductDescription:Ultra-LongRangeBeacon Granteecode:2ABU6 FCCID:2ABU6MBM01 ContactName:yanyanZhang Address:3rdFloor,IBuilding,GangzhilongSciencePark,QinglongRoad,Longhua District,ShenzhenCity,China TelephoneNo:86-755-88868480 Email:[email protected] [ShenzhenMinewTechnologiesCo.,Ltd.]certifiesthat,asofthedateofthis filingoftheapplicationwiththeTCB,[THREESTONESMEDIALLC]isour designatedUSagentforserviceofprocessfortheabovereferencedFCCID. [ShenzhenMinewTechnologiesCo.,Ltd.]acceptstomaintainanagentforno lessthanoneyearafterthegranteehasterminatedallmarketingand importationortheconclusionofanycommissionrelatedproceedinginvolving equipment.[THREESTONESMEDIALLC]accepts,asofthedateofthefilingof theapplication,theobligationofthedesignatedUSagentforserviceofprocess fortheabovereferenceFCCID. TheUSAgentforServiceofProcessisawareofandagreestocomplywiththerequirements outlinedintheFCCEquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause §2.911. TheApplicantisawareofandagreestocomplywiththerequirementsoutlinedintheFCC EquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause§2.911. 1/1 Date: 09/08/2023 Applicant’s Name : yanyan ZhangUS Agent’s Name :Sijie Zhang Title: Quality SupervisorTitle: President SignatureSignature

C5266091_X24_Ed.2 1/1 “AttestationStatements” TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 TheCommissionadoptedrulesthatprohibitequipmentauthorizationfor“covered” telecommunicationsequipmentandvideosurveillanceequipmentproducedbyentitiesidentified ontheCommission’sCoveredList 1 ,whichisperiodicallyupdated.SeetheCoveredListformore details.ThisAttestationStatementistoconfirmthatwefollowtheSection2.911(d)(5)(i)-(ii) Applicant Companyname:ShenzhenMinewTechnologiesCo.,Ltd. Granteecode:2ABU6 FCCID:2ABU6MBM01 ContactName:yanyanZhang Address:3rdFloor,IBuilding,GangzhilongSciencePark,QinglongRoad,Longhua District,ShenzhenCity,China TelephoneNo:86-755-88868480 FaxNo:86-755-29825342 Email:[email protected] i.[ShenzhenMinewTechnologiesCo.,Ltd.](“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipment prohibitedfromreceivinganequipmentauthorizationpursuanttosection 2.903oftheFCCrules.Theapplicantmustsignthiscertification. ii.[ShenzhenMinewTechnologiesCo.,Ltd.](“theapplicant”)certifiesthat,asof thedateofthefilingoftheapplication,theapplicantisnot(asaspecifically namedentityoranyofitssubsidiariesoraffiliates)identifiedontheCovered Listasanentityproducing“covered”equipment. Theapplicantmustsignthiscertification. ShenzhenMinewTechnologiesCo.,Ltd.certifiesthat,asofthedateofthefilingof theapplication,theapplicantisnotidentifiedontheCoveredListasanentity producing“covered”equipment. Date:09/05/2023 Applicant’sName:yanyanZhang Title:QualitySupervisor Signature 1 TheCommission’sCoveredListispublishedbythePublicSafetyandHomelandSecurityBureauandpostedonthe Commission’swebsite.ThisCoveredList,whichisperiodicallyupdated,identifiesparticularequipment,producedby particularentities,thatconstitutes“covered”equipment.https://www.fcc.gov/supplychain/coveredlist

C5266091_X8_Ed.1 1/1 LetterofAuthorization <ShenzhenMinewTechnologiesCo.,Ltd.> Company:ShenzhenMinewTechnologiesCo.,Ltd. Address:3rdFloor,IBuilding,GangzhilongSciencePark,Qinglong Road,LonghuaDistrict,ShenzhenCity,China ProductName:Ultra-LongRangeBeacon ModelNumber:MBM01 FCCIdentifier:2ABU6MBM01 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:yanyanZhangDate:09/08/2023 Title:QualitySupervisor Signatureofapplicant:

C5266091_X10_Ed.2 1/1 < ShenzhenMinewTechnologiesCo., Ltd. > Officeof EngineeringTechnology FederalCommunicationsCommission 7435 OaklandMills Road Columbia,MD 21046Date:09/08/2023 Subject:Requestfor Confidentiality FCC ID:2ABU6MBM01 To WhomIt May Concern, Pursuantto the provisionsof Sections0.457and 0.459of Commission'srules (47CFR0.457,0.459),we are requestingthe Commissionto withholdthe following attachment(s)as confidentialdocumentfrom publicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE2 ID Label/Location AttestationStatement ExternalPhotos Block Diagram Schematics Test Report Test SetupPhotos User’ s Manual NOTE 1 InternalPhotos NOTE 1 Parts List / Tune Up / BOM List RF ExposureInfo OperationalDescription CoverLetter(s) FCC SoftwareSecurity Requirementsfor UNII devices NOTE1: Long-TermConfidentialitymay be permittedunderspecialconditions(SeeII. LONG-TERMCONFIDENTIALITY,Section3 of KDB 726920,use last in force) NOTE2: Short-TermConfidentialitycan be requestedfor a maximumof 180 daysfromthe dateof the grant. Abovementioneddocumentcontainsdetailedsystemand equipmentdescriptionare consideredas proprietaryinformationin operationof the equipment.The public disclosureof abovedocumentsmightbe harmfulto our companyand wouldgive competitoran unfairadvantagein the market. In case of short-termConfidentiality,the applicantrequeststhe exhibitsselected aboveare withheldfrom publicview for a periodof _180 _ days from the date of the Grantof EquipmentAuthorizationand prior to marketing. C5266091_X10_Ed.2 1/1 Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Signature: Name:yanyanZhang Title:QualitySupervisor

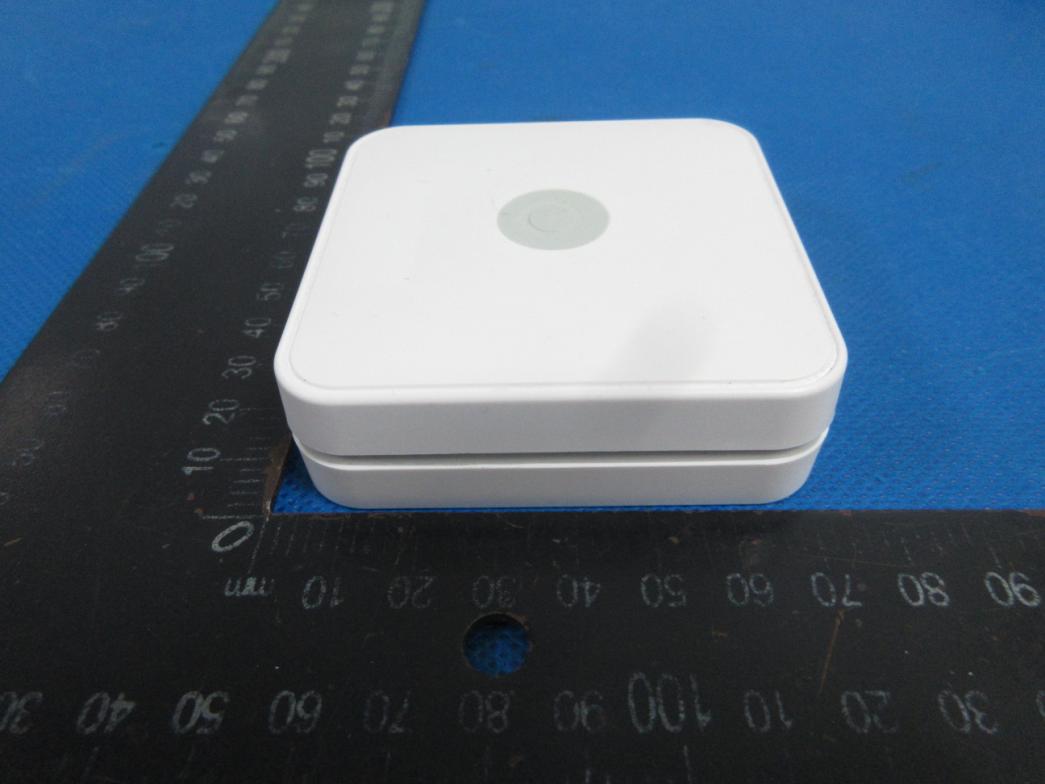

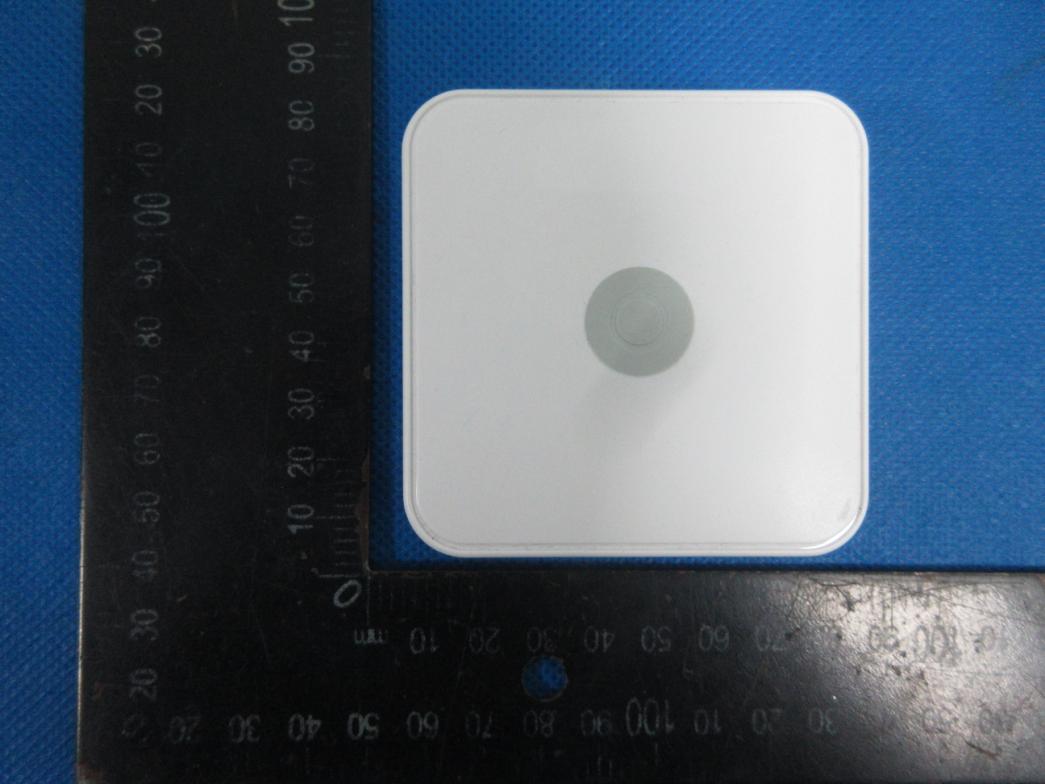

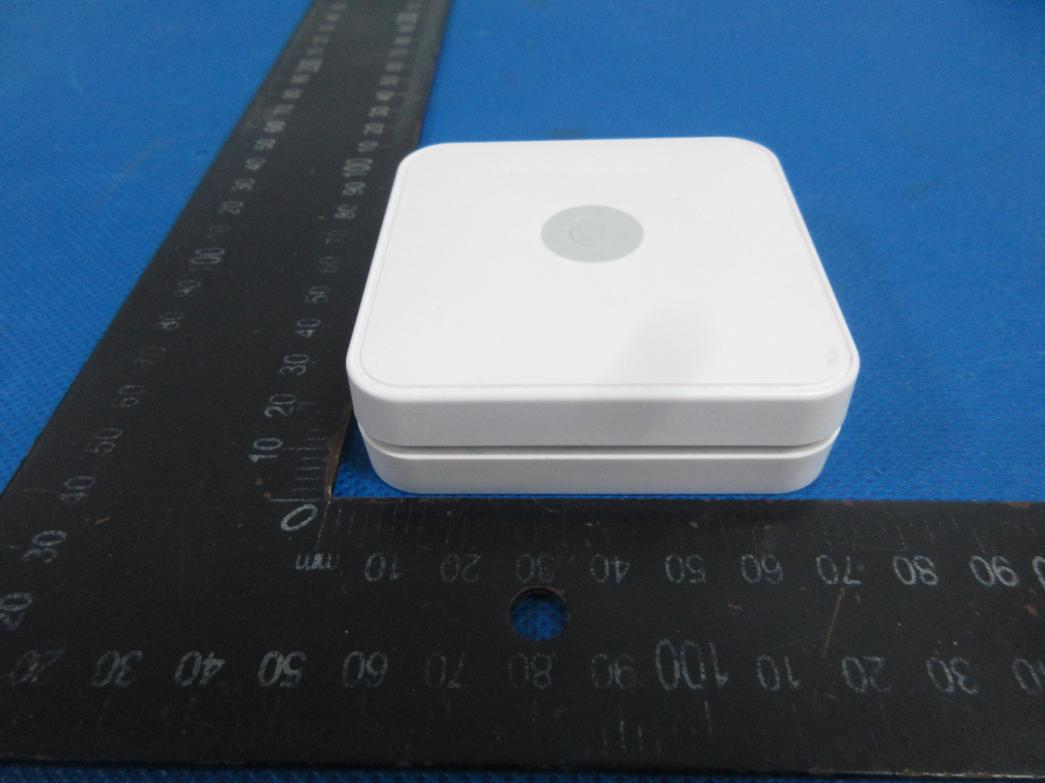

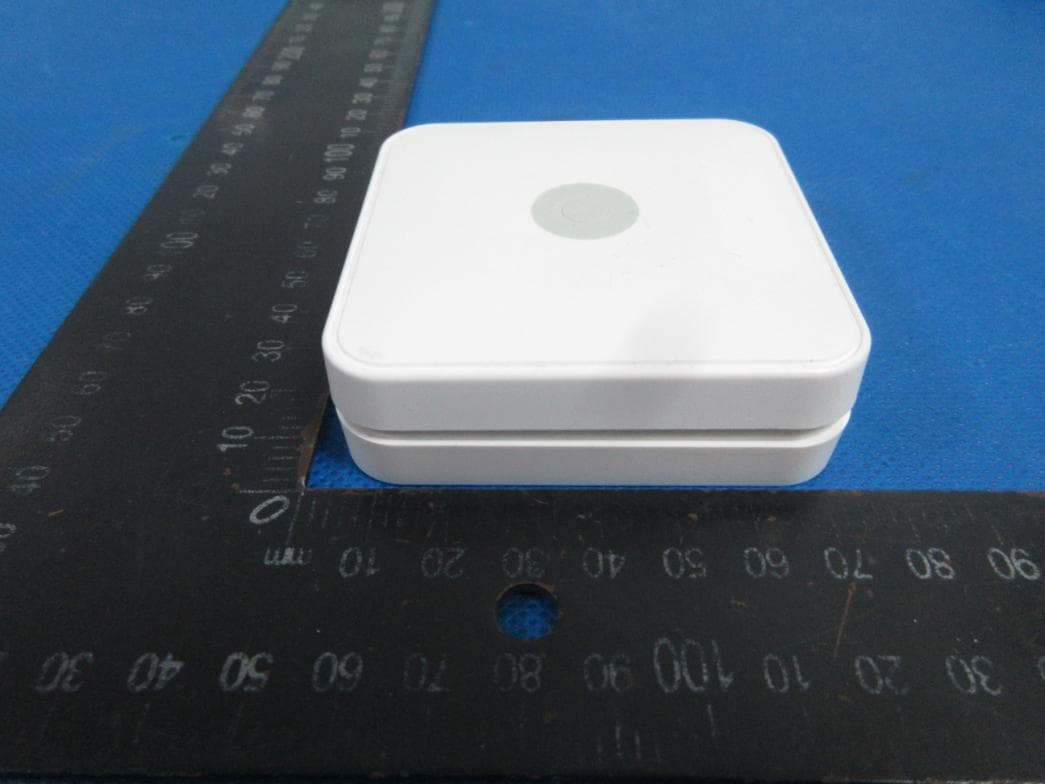

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

AC233FXXXXXX Model: MBM01 FCC ID: 2ABU6MBM01 Ultra-Long Range Beacon Made in China IP67 AC233FXXXXXX Model: MBM01 FCC ID: 2ABU6MBM01 Ultra-Long Range Beacon Made in China IP67

Photo 7 Photo 8 Photo 9 Photo 10 UWB Antenna Photo 11 BT Antenna

FCC ID:2ABU6MBM01 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm(20cm) Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. mW=10^(dBm/10) 11.2 Measurement Result Operation Frequency: 2402MHz~2480MHz Power density limited: 1mW/ cm 2 Antenna Type: PCB Antenna Antenna gain: 1.72dBi Operation Frequency: 6500MHz, 8000MHz Power density limited: 1mW/ cm 2 Antenna Type: PCB Antenna Antenna gain: 6.5GHz:2.3dbi;8GHz:5.5dBi R=20cm mW=10^(dBm/10) Maximum Single sources BLE conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 2402 6.01 6±17 5.0121.721.490.00151 2440 6.83 6±17 5.0121.721.490.00151 2480 6.92 6±17 5.0121.721.490.00151 2402 6.01 6±17 5.0121.721.490.00151 2441 6.82 6±17 5.0121.721.490.00151 2480 6.93 6±17 5.0121.721.490.00151 (mW/cm2 )(mW/cm2) Antenna Gain BLE(1M) Max tune-up power Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) BLE(2M) UWB conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 6500Pulse -41.591 -41±1-40 0.000102.301.700.0000000341 8000Pulse -40.271 -41±1-40 0.000105.503.550.0000000711 (mW/cm2 )(mW/cm2) Antenna Gain Max tune-up power Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) Multiple Evaluation resul= Evaluation result1/ Power density Limits+ Evaluation result2/ Power density Limits Maximum Multiple sources MAX Evaluation result Multiple Evaluation resul Power density Limits (mW/cm2) (mW/cm2) (mW/cm2) BLE 0.0015 0.001500071 1 UWB 0.000000071 Conclusion: For the max result : 0.001500071≤ 1mW/ cm 2 for Power density, compliance with RF exposure. Signature: Date: 2023-08-24 NAME AND TITLE (Please print or type): Alex li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第1页共6页 AntennaCoding：ANT-BBNCNC21010 AntennaType：PCBonboardAntenna ModeloftheDUT ： MBM01 AntennaManufacturer：ShenzhenMinewTechnologiesCo.,Ltd. 1、TechnicalSpecification ElectricalSpecifications FrequencyRange（MHz） 2400-2480 InputImpedance（Ω） 50 ReturnLoss （ dB ）＜ -10 VSWR ＜ 2 PeakGain（dBi） 1.72 PolarizationTypeLinearpolarization MechanicalSpecifications AntennaSize(mm)16.07mm*7.36mm RadiatorCuprum 2、Theshapeandsizeoftheantenna 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第2页共6页 3、Theresultofthetest 3.1TestEnvironment X Z Y X Z Y 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第3页共6页 3.2GainandEfficiency 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第4页共6页 3.33D PolarPlot 2402MHz 2440MHz 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第5页共6页 2480MHz 3.42DRadiationPattern （1）E1，XZPlane，phi=0 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第6页共6页 （2）E2，YZPlane，phi=90° （3）H，XYplane，theta=90°

Report No.: S23051201705001 Version.1.3 Page 1 of 59 RADIO TEST REPORT FCC ID: 2ABU6MBM01 Product: Ultra-Long Range Beacon Trade Mark: MINEW Model No.: MBM01 Family Model: N/A Report No.: S23051201705001 Issue Date: Jul 17. 2023 Prepared for Shenzhen Minew Technologies Co., Ltd. 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S23051201705001 Version.1.3 Page 2 of 59 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 4 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 5 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 6 3.1 FACILITIES..................................................................................................................................................... 6 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 6 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 6 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 7 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 9 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.1.1 Applicable Standard .................................................................................................................................. 14 7.1.2 Conformance Limit ................................................................................................................................... 14 7.1.3 Measuring Instruments............................................................................................................................. 14 7.1.4 Test Configuration .................................................................................................................................... 14 7.1.5 Test Procedure ........................................................................................................................................... 14 7.1.6 Test Results ................................................................................................................................................ 15 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.2.1 Applicable Standard .................................................................................................................................. 16 7.2.2 Conformance Limit ................................................................................................................................... 16 7.2.3 Measuring Instruments............................................................................................................................. 17 7.2.4 Test Configuration .................................................................................................................................... 17 7.2.5 Test Procedure ........................................................................................................................................... 18 7.2.6 Test Results ................................................................................................................................................ 19 7.3 6DB BANDWIDTH ....................................................................................................................................... 25 7.3.1 Applicable Standard .................................................................................................................................. 25 7.3.2 Conformance Limit ................................................................................................................................... 25 7.3.3 Measuring Instruments............................................................................................................................. 25 7.3.4 Test Setup .................................................................................................................................................. 25 7.3.5 Test Procedure ........................................................................................................................................... 25 7.3.6 Test Results ................................................................................................................................................ 25 7.4 DUTY CYCLE ...................................................…

Text truncated - open the document above for the full version.

Radiated Measurement Photos
