2ABU6T3Disposable Tag

DisposableTag_T3 AllRightsReservedbyMinew 1 DisposableTagDatasheet Model:T3 DisposableTag_T3 AllRightsReservedbyMinew 2 TheDisposableTagT3isaBluetooth ® LEdigitalbroadcastingdevice,itisdesignedforthecommercial advertising,indoorlocation-basedservice,eventmonitor,assettrackingetc. TheT3broadcastsstandardiBeacondataatregularintervals,itcanbeheardandinterpretedbyiOSand AndroidBluetooth ® LE-enableddevicesthatareequippedwithmanymobileapps. FEATURES -Cost-effective -100mbroadcasttransmissiondistance -Dual-channelbroadcast -Smallsize,user-friendlyandportable -Easyinstallation,replaceablebattery T3 MarketApplications PersonnelManagement TheT3isasmall,lightweightandcost-effectivewearablebeaconthatcanbeusedinawiderangeofapplicationssuch asexhibitionsandconcertswherethereisalargeflowofpeopleforashortperiod.T3combinedwithrelevanttechnology canbeusedtorealizeflowmonitoringandlocatingpeopleinsuchscenariostoimproveefficiencyandachieveintelligent statistics. ContentPush TheT3canbedeployedinsupermarkets,aquariums,andcommercialcomplexes.Withthecustomer'sapp,T3canprovide userswithcorrespondinginformationaccordingtotheirlocations.Therefore,contentpush,onlineexposition,andretail promotioncanbeachievedwhileuserexperienceandworkingefficiencycanbeimproved. SPECIFICATION BasicSpecifications MaterialABS ColorWhite Size(L*W*H)31.1*30*5.5mm Weight 4.8g（batteryincluded） Batterytype1CRbattery Batterycapacity90mAh Batterylife3.5months(defaultsettings) Sensor/ LED/ Button/ NFC/ OTANotsupported InformationviewappBeaconSETorBeaconSET+ Note:BeaconSETorBeaconSET+canonlybeusedtoviewthebroadcastinformation,nottoconnecttothedevice. DisposableTag_T3 AllRightsReservedbyMinew 3 TechnicalSpecifications Bluetooth®versionBluetooth®LE5.3 Broadcastpower Options:-20,-16,-11,-7,-3,0,3dBm Default0dBm Broadcastinterval 100ms～10s，default900ms Broadcastdistance100m(openspace) Workingtemperature-20°C~60°C Storingtemperature20°C~35°C(idealtemperatureforstoringbattery) SecurityNon-connectablemode,datacannotbealtered DisposableTag_T3 AllRightsReservedbyMinew 4 BroadcastSpecifications Note: ①Theproductonlysupports2broadcastframes,whichcanbeselectedfromiBeacon,MBeaconINFO,UID,URL,andTLM,andthe broadcastpowermustbeconsistent. ②Theparametersofthefinishedproductneedtobedeterminedatthetimeofproduction.Onceprogrammedintothechip,the parameterscannotbemodified. Compatibilities INSTRUCTION Poweron:unplugtheinsulatingsheet,andthedevicewillstartwhenitispoweredon. Shutdown:removethebattery. Batterycheck:theproducthasnoindicatorlight,andthebatterypowerinformationcanbejudgedby thevoltageinformationintheMBeaconINFOframe. Broadcastviewing:checkwhetherthedeviceisbroadcastingbyBeaconSETorBeaconSET+App. Type/ channel ItemDefaultsettings iBeacon (activated bydefault) UUID(16bytes) E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (configurable) Major(2bytes)0(0-65535,configurable) Minor(2bytes)0(0-65535,configurable) Measuredpower-59dBm(0xC5) Txpower0dBm Interval(ms)900ms MBeacon INFO (activated bydefault) DevicenameT3 Batteryvoltage(mV)Dependsonthestatus MACaddressAssignedbeforeshipment Measuredpower -24dBm(0xE8 ） Txpower0dBm Interval(ms)4000ms SupportedsystemsSupportedmodels iOS10.0andabove iPhone6/6Plus/6S/6SPlus.,iPhone7/7Plus，iPhone8/8Plus，iPhonex/ xr/xs/xsmax，iPhoneSE/SE2，iPhone11/11pro/11pro,etc. Android4.3and above LG,Samsung,Xiaomi,Huawei,Honor,OnePlus,GooglePixel,etc. DisposableTag_T3 AllRightsReservedbyMinew 5 PRECAUTIONS 1.Aftertheproductispoweredon,itwillbeinbroadcastmodeandcannotbeconnected. 2.Thefinishedproductdoesnotsupportburningfirmwareprovidedbycustomers. 3.Toextendthebatterylifeifneeded,itisrecommendedtochoosealowbroadcastpowerandalong broadcastintervalfirmwareversionatthemanufacturingstage. 4.Iftheoperatingtemperatureisexceeded,therecouldbedamagetotheproduct. 5.Pleaseavoiddirectsunlightforanextendedperiodtoavoidagingoftheshellwheninuse. 6.Minewwillnotberesponsibleforanydamageresultingfromdisassemblingmanually. Package ItemsInternalcartonExternalbox Pictures Units1121120 Sizes30.5*11*7.2cm32*23.5*40cm Grossweight618g6.64kg QUALITYASSURANCE ThefactoryhasalreadyobtainedthecertificationofISO9001QualitySystem.Eachproducthasbeen strictlytested(testsincludetransmissionpower,sensitivity,powerconsumption,stability,aging,etc.). WarrantyPeriod:12monthsfromthedateofshipping(Batteryandotheraccessoriesexcluded). DECLARATION StatementofRights: ThecontentsofthismanualbelongtotheManufacturerofMinewTechnologiesCo.,LTD,Shenzhen, andareprotectedbyChineselawsandapplicableinternationalconventionsrelatedtocopyrightlaws. Thecontentscanberevisedbythecompanyaccordingtothetechnologicaldevelopmentwithoutprior notice.Anyone,companies,ororganizationscannotmodifythecontentsandcitethecontentsofthis manualwithoutMinew'spermission,otherwise,Violatorswillbeheldaccountableaccordingtolaw. Disclaimer: Minewteamreservestherighttothefinalexplanationofthedocumentandproductdifferences.The Minewgroupisnotresponsibleforliabilityofpropertyorpersonalinjurywiththewrongoperationif usersdeveloprelatedproductswithoutcheckingthetechnicalspecificationsofthismanual. FCCWarning AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould voidtheuser'sauthoritytooperatetheequipment. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: DisposableTag_T3 AllRightsReservedbyMinew 6 (1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference received,includinginterferencethatmaycauseundesiredoperation. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiate radiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycause harmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewill notoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionrecept…

Text truncated - open the document above for the full version.

Shenzhen Minew Technologies Co., Ltd. The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 9/6/23 U. S. Agent Designation [Shenzhen Minew Technologies Co., Ltd.] acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2ABU6T3): Name and company of U.S. agent: Sijie Zhang / THREE STONES MEDIA LLC Physical U.S. address of agent: 1200 Broadway St. APT 329, Los Angeles, CA90015 FRN of U.S. agent: 0033401761 Email address of U.S. agent: [email protected] [T HREE STONES MEDIA LLC]acknowledges their obligation to accept service of process on behalf of[Shenzhen Minew Technologies Co., Ltd.]. [Shenzhen Minew Technologies Co., Ltd.]with the FRN[0023364128]accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commi ssion-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature [Name] yanyan Zhang [Title] Quality Supervisor [Company] Shenzhen Minew Technologies Co., Ltd. Signature [Name of U.S. agent] Sijie Zhang [Title of U.S. agent] [Company of U.S. agent] THREE STONES MEDIA LLC 48_[model] US_Agent_2.911(d)(7)-U, V04

Sh enzhen Minew Technologies Co., Ltd . The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Federal Communica tions Commissi on Authorization and Evaluation Divi si on Equipment Authoriza tion Branch 7435 Oakl and Mills Road Columbia, MD 21046 9/6/23 To whom it may concern: We, [Shenzhen Minew Technologies Co., Ltd.], hereby certify that the equipment for which authorization is sought (FCC ID: 2ABU6T3) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certi fy th at, as of th e date of th e filing of th e applicati on, we are not identi fied on th e Covered List (http s://w ww.fcc.g ov/s upplychain/coveredlist ) as an enti ty producing “covered” equipment. By signing th is fo rm, we confirm th e above and th at we are aware of th e applicati on requirements liste d under § 2.9 11(b) and (d)(5) and (6). Sincerely, Signature [Name] yanya n Zhang [Title] Quality Superviso r [Company] Shenzhen Minew Tech nologies Co., Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii)-U, V02

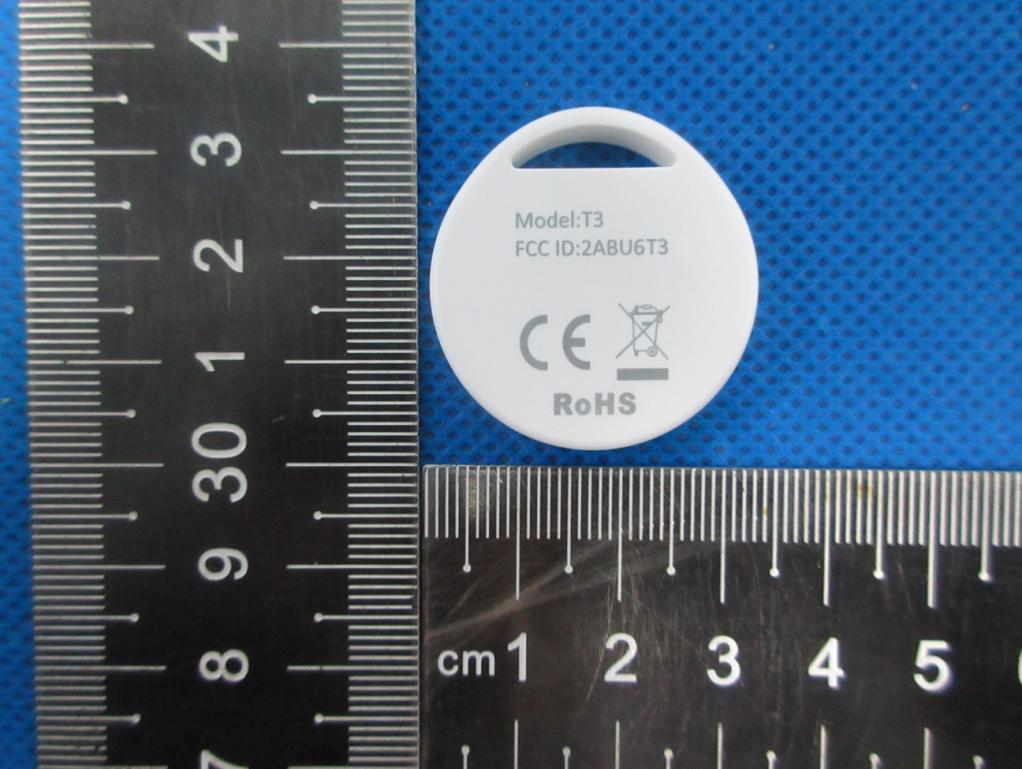

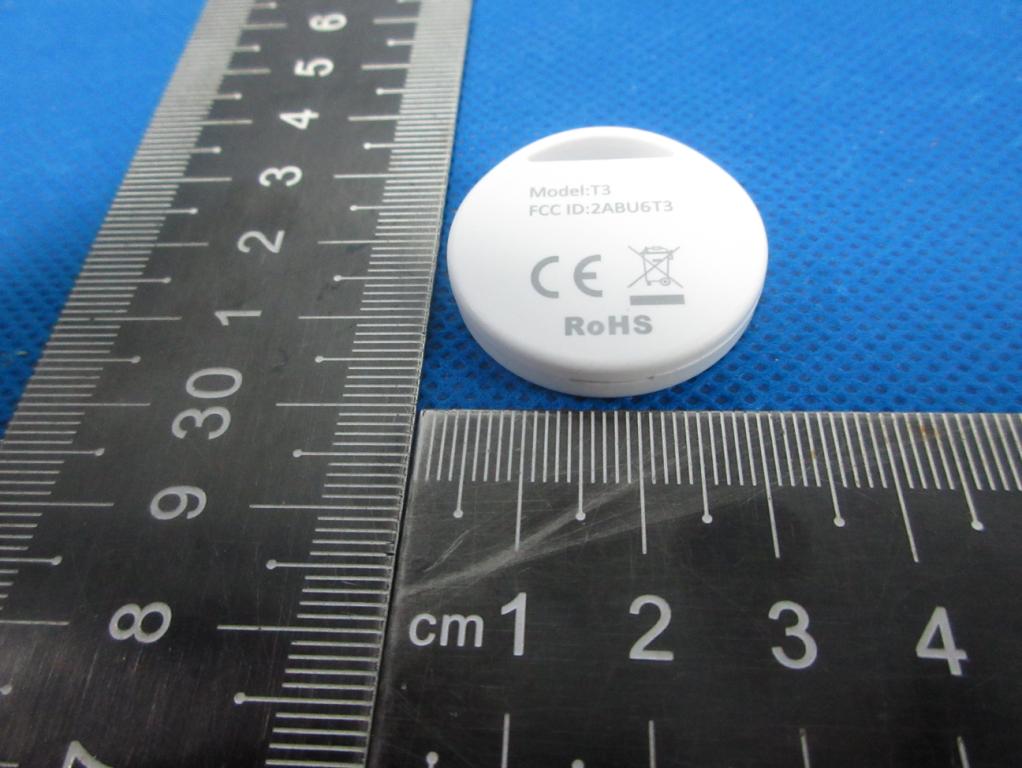

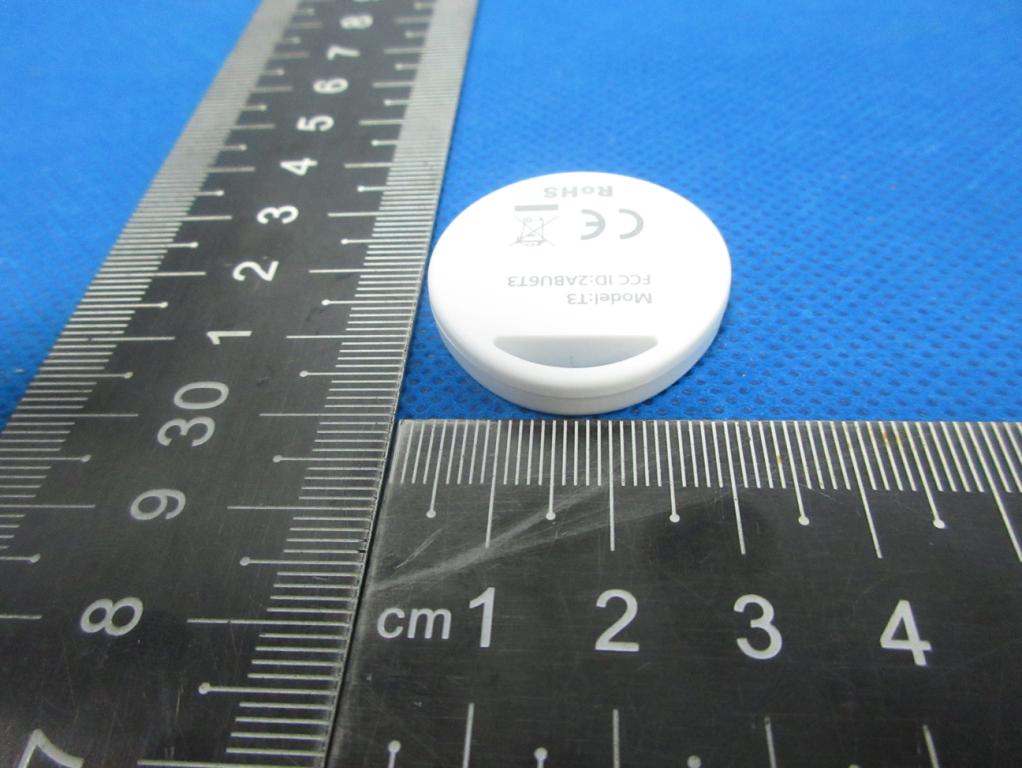

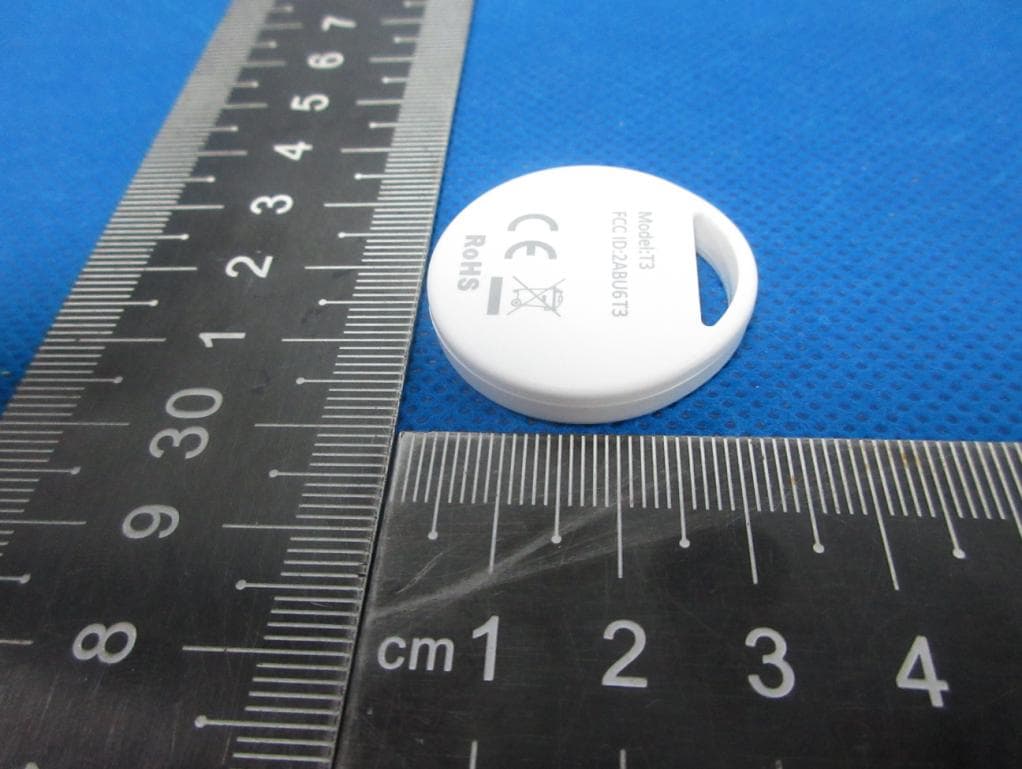

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Disposable Tag Model:T3 FCC ID:2ABU6T3 Disposable Tag Model:T3 FCC ID:2ABU6T3

Photo 7 Photo 8 Photo 9 Photo 10 ANT Photo 11 Photo 12

Component list Serial number Sub item nameSub part specificationDesignatorQuantityCompanyRemarks 1PCBMS98FD_V1.01 PCS 2ICDFN8 ， IN100-D1-R-RC0IU11 PCS 3Capacitor0201，100nFC3，C62 PCS 4Capacitor0603 ， 10uFC51 PCS 5Capacitor0201 ， 1.5pFC11 PCS 6Inductor0201 ， 1nHR11 PCS 7Resister0201 ， 10KR21 PCS 8CrystalSMD，3225，26MHzY11 PCS 9negative8.5*5*1.35mm ， 0.15mm1 PCS

FCC ID:2ABU6T3 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE: Antenna Type: PCB Antenna Antenna Gain: -2.32 dBi Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n 1g SAR Exclusion threshold SAR test exclusion 2.4021.431.3901±12.01.585<50.491273.00YES 2.441.391.3771±12.01.585<50.495143.00YES 2.4801.011.2621±12.01.585<50.499183.00YES BLE(1M) Conclusion: For the max result : 0.49918≤ 3.0 for 1-g SAR, No SAR is required. Signature: Date: 9/15/2023 NAME AND TITLE (Please print or type): Alex /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China

Report No.: S23081606105001 Version.1.3 Page 1 of 43 RADIO TEST REPORT FCC ID: 2ABU6T3 Product: Disposable Tag Trade Mark: MINEW Model No.: T3 Family Model: N/A Report No.: S23081606105001 Issue Date: Aug 30, 2023 Prepared for Shenzhen Minew Technologies Co., Ltd. 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel:400-800-6106,0755-2320 0050 / 2320 0090 Website: http://www.ntek.org.cn Report No.: S23081606105001 Version.1.3 Page 2 of 43 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 15 7.3 6DB BANDWIDTH ....................................................................................................................................... 24 7.4 DUTY CYCLE ............................................................................................................................................... 25 7.5 PEAK OUTPUT POWER .............................................................................................................................. 27 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 28 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 30 7.8 SPURIOUS RF CONDUCTED EMISSIONS ................................................................................................ 31 7.9 ANTENNA APPLICATION .......................................................................................................................... 32 8 TEST RESULTS ................................................................................................................................................... 33 8.1 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 33 8.2 -6DB BANDWIDTH .......................................................................................................................................... 35 8.3 MAXIMUM POWER SPECTRAL DENSITY LEVEL ............................................................................................... 37 8.4 BAND EDGE .................................................................................................................................................... 39 8.5 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 41 Report No.: S23081606105001 Version.1.3 Page 3 of 43 1 TEST RESULT CERTIFICATION Applicant’s name .................... : Shenzhen Minew Technologies Co., Ltd. Address .................................. : 3rd Floor, I Building, Gangzhilong Science Park, Qinglong Road, Longhua District, Shenzhen City, China Manufacturer's Name ............. : Shenzhen Minew Technologies Co., Ltd. Address .................................. : Building 3, Instrument World Industrial Park, No. 306, Guanlan Guiyue Road, Longhua District, Shenzhen Product description Product name ......................... : Disposable Tag Model and/or type reference : T3 Family Model .......................... : N/A Test Sample Number .............. : S230816061001 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C KDB 174176 D01 Line Conducted FAQ v01r01 ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements…

Text truncated - open the document above for the full version.

versio n01 Shenzhen Min ew Technolo gie s Co., Ltd. Decl aration co nce rning Antenna Speci fica tion It is hereby declared th at th e product Model No.: T3 FCC ID: 2ABU6T3 fu lfills th e requirement in FCC te st relati ng to th e ante nna ty pe. The device specified above confirms to th e FCC recommendati ons forPCB Antennaante nna ty pe(s) described below: Model No. of ante nna:ANT-BBNCNC22029 Type of ante nna: PCB Antenna Gain of th e ante nna:-2 .32 dBi Frequency range:2400-2 480MHz The mounti ng of th e ante nna is fixed to th e radio module and no oth er ante nna should be used. Company name:Shenzhen Min ew Technolo gie s Co., Ltd. Address:3rd Flo or, I Build in g, Gangzhilo ng Scie nce Park, Qin glo ng Road, Longhua Dis tr ic t, Shenzhen City , Chin a City:Shenzhen City ZIP / Posta l code: Countr y: China Name:yanyan ZhangDate : 06/09/2023 Signature:

深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第1页共6页 AntennaCoding：ANT-BBNCNC22029 AntennaType：PCBonboardAntenna ModeloftheDUT ： T3 AntennaManufacturer：ShenzhenMinewTechnologiesCo.,Ltd. 1、TechnicalSpecification ElectricalSpecifications FrequencyRange（MHz） 2400-2480 InputImpedance（Ω） 50 ReturnLoss（dB）＜-10 VSWR ＜ 2 PeakGain （ dBi ） -2.32 PolarizationTypeLinearpolarization MechanicalSpecifications AntennaSize(mm)12*3.25 RadiatorCuprum 2、Theshapeandsizeoftheantenna 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第2页共6页 3、Theresultofthetest 3.1TestEnvironment 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第3页共6页 3.2GainandEfficiency 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第4页共6页 3.33D PolarPlot 2402MHz 2440MHz 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第5页共6页 2480MHz 3.42DRadiationPattern （1）E1，XZPlane，phi=0 深圳云里物里科技股份有限公司 产品天线测试报告（TheAntennaTestReport） Y-YB-CR-115V001密级：绝密/confidentiality 第6页共6页 （2）E2，YZPlane，phi=90° （3）H，XYplane，theta=90°
