CONTENTS • MSI Bluetooth Mouse • USB dongle • User manual • BLE Compatibility Windows8, 10 or later Mac OSX 10.5 or later Android 4.3 or later SYSTEM REQUIREMENTS INSTALLING HARDWARE LED Indicator on Mouse: StatusDescription PairingFlashing (3-8 seconds) To indicate the pairing process when the mouse is ON MOUSE TROUBLE SHOOTING GUIDE Malfunctions may be caused by reasons such as a dead battery, incorrect battery installation, or an unsuccessful pairing. Try the following troubleshooting methods: • Check that the ON/OFF switch at the bottom of mouse is set to ON. • Check that the batteries are installed in the correct orientation(+/-). • Restart your Laptop and re-pair your mouse as per instructions above. • Switch your mouse to OFF and back to ON. The LED status lights should illuminate briefly - if they do not, please change batteries. • Is the USB dongle securely plugged into a USB port? Try moving the dongle to a port closer to the mouse. • Remove any metal objects between the USB dongle and the mouse that may interfere with reception. • Try using the mouse on a different surface. General Installation: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.4GHz Mode: (White LED is in 2.4GHz mode) Step 1: Remove the back cover and insert two AAA batteries. Step 2:Remove the USB dongle from the mouse and plug directly into your notebook’s USB port. Step 3: Switch the mouse’s ON/OFF button to ON. The mouse will automatically connect to the Laptop. 2.4GHz Mode connection repair (White LED is in 2.4GHz mode) If the mouse experiences connection issues, follow this simple procedure: Step 1: Switch the mouse’s ON/OFF switch to ON. Step 2: Hold the Mode Switch Button until white LED flashes Step 3: Plug the dongle into the notebook USB port, the LED indicator will be off once pair is successful. Bluetooth Mode: (Blue LED is in Bluetooth mode) Step 1: Remove the back cover and insert two AAA batteries. Step 2: Switch the mouse’s ON/OFF button to ON. Press mode switch button and blue LED indicator, it means Bluetooth mode. Step 3: Then hold the mode switch button until blue LED flashes, then search for “MSI Bluetooth Mouse” in your notebook and connect to pair. The LED indicator will be off once pair is successful. Sleep Mode: The mouse will enter sleep mode when unused for 8 minutes. Move the mouse to end sleep mode. DPI: Adjustment (Default 2000): Press the middle & left buttons simultaneously to adjust DPI (1000 / 1500 / 2000). • 2.4G Compatibility Windows7, 8, 10 or later Mac OSX 10.5 or later 无线蓝牙鼠标 / 無線藍芽滑鼠 MSI Bluetooth Mouse Mode Switch Button BLE / 2.4GHz Model:M98 Product Name: MSI Bluetooth Mouse FCC ID: 2ABVN-M98 IC: 24513-M98 Rating: DC 3V 6mA Operating Temperature:-25~55 Radio Frequency: Bluetooth Frequency Band: 2402 MHz-2480 MHz Max. RF Power: 1.93 dBm Radio Frequency: 2.4GHz SRD Frequency Band: 2402 MHz-2480 MHz Max. RF Power: -2.18 dBm Model:M98D Product Name: 2.4G Wireless Dongle Radio Frequency: 2.4GHz SRD Frequency Band: 2405 MHz-2470 MHz Max. RF Power: -23.51 dBm 商品名称及型号: 无线蓝牙鼠标/M98 功能规格或相容性/使用方法/警语/注意事项...等详细资料请参阅产品包装说明 委制商: 微星科技股份有限公司 制造国别: 中国 制造年份/序号: 2020/生产序号请参阅产品包装贴纸 地址: 新北市中和区立德街69号 电话: +886-2-32345599 商品名稱及型號: 無線藍芽滑鼠/M98 功能規格或相容性/使用方法/警語/注意事項...等詳細資料請參閱產品包裝說明 委製商: 微星科技股份有限公司 製造國別: 中國 製造年份/序號: 2020/生產序號請參閱產品包裝貼紙 地址: 新北市中和區立德街69號 電話: +886-2-32345599 无线蓝牙鼠标 / 無線藍芽滑鼠 MSI Bluetooth Mouse FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no-collocation statement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Canada Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conf…

Text truncated - open the document above for the full version.

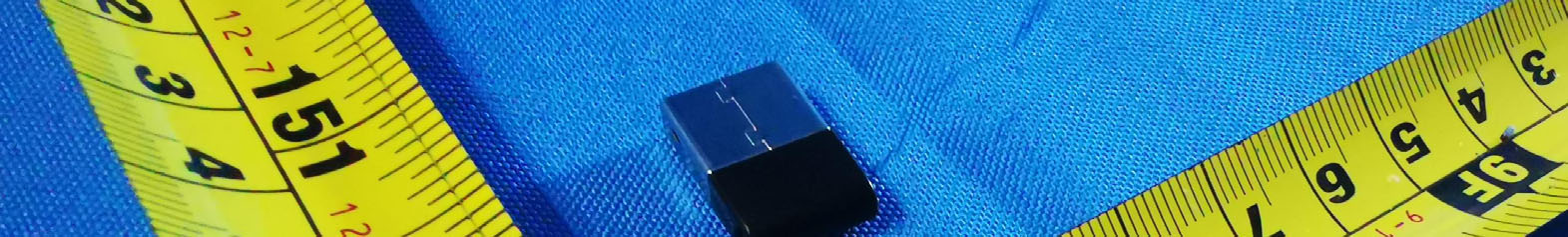

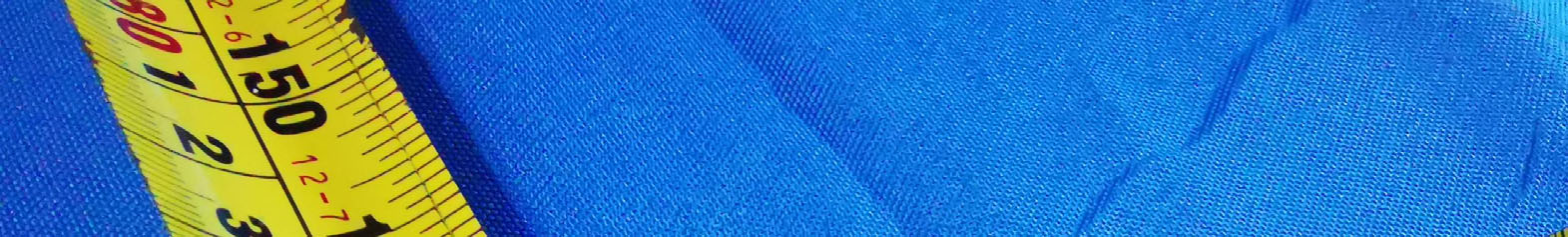

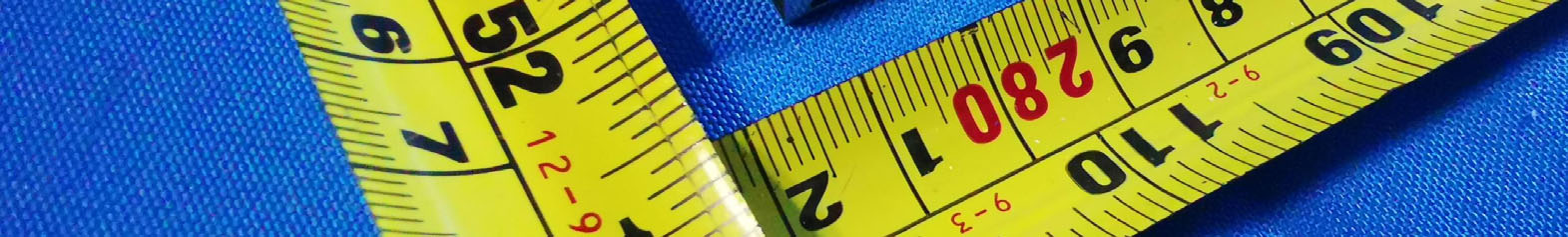

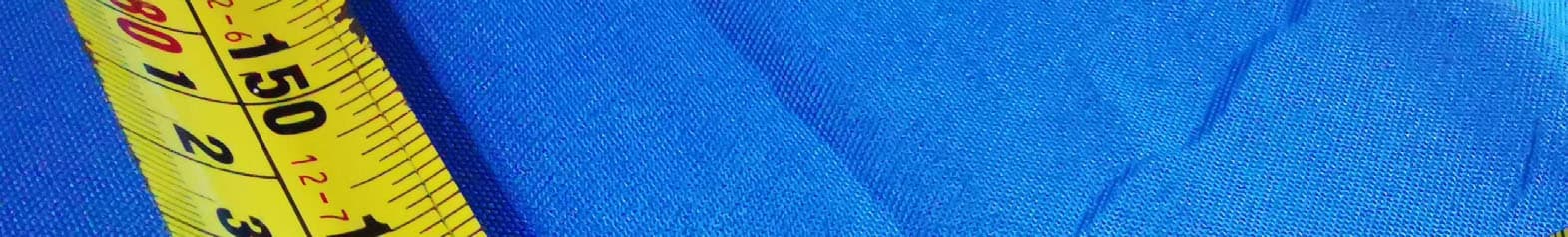

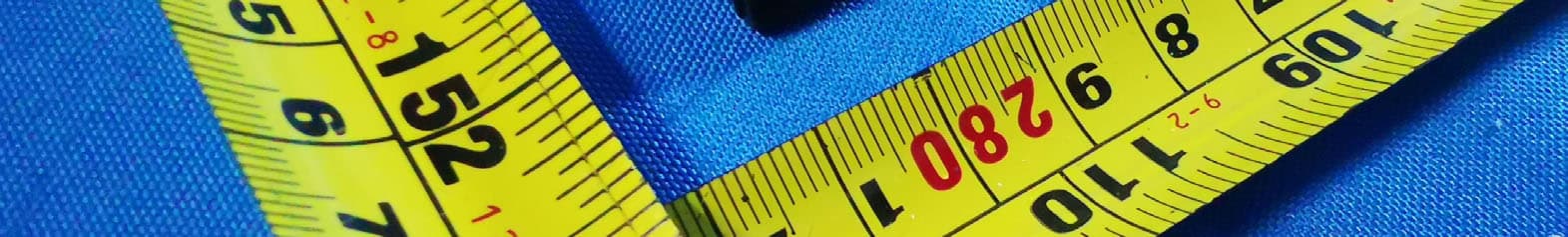

Project No.: 2008C014 Page 1 of 4 ATTACHMENT PHOTOGRAPHS OF EUT Project No.: 2008C014 Page 2 of 4

2.4G Wireless Dongle 10.00 mm 5 . 0 0 m m Made in China / 中国制造 FCC ID: 2ABVN-M98D IC ID: 24513-M98D Rating:DC 5V Model / 型號 / 型号: M98D Made in China / 中国制造 FCC ID: 2ABVN-M98D IC ID: 24513-M98D Rating: DC 5V Model / 型號 / 型号: M98D

Project No.: 2008C014 Page 3 of 4 Project No.: 2008C014 Page 4 of 4 Ant.

Report No.: BTL-FCCP-2-2008C014 Page 1 of 5 FCC RF EXPOSURE REPORT FCC ID: 2ABVN-M98D Project No. : 2008C014 Equipment : 2.4G Wireless Dongle Brand Name : MSI Test Model : M98D Series Model : N/A Applicant : Verico International Co., Ltd Address : 12F-6., No.872, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) Manufacturer : Verico International Co., Ltd Address : 12F-6., No.872, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) Factory : Dongguan You Hong Plastic Electronics Co.,Ltd. Address : Zhen Hua Road, Tie Lu Keng Village, Qi Shi Town, Dong Guan City, Guang Dong Province, China Date of Receipt : Aug. 14, 2020 Date of Test : Aug. 14, 2020 ~ Sep. 03, 2020 Issued Date : Sep. 22, 2020 Report Version : R01 Test Sample : Engineering Sample No.: DG2020081734 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & KDB447498 D01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Nick Chen Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2008C014 Page 2 of 5 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Sep. 15, 2020 R01 Modified the comments of telefication. Sep. 22, 2020 Report No.: BTL-FCCP-2-2008C014 Page 3 of 5 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF EUT Equipment 2.4G Wireless Dongle Brand Name MSI Test Model M98D Series Model N/A Model Difference(s) N/A Software Version V01 Hardware Version V1.1 Power Source Supplied from PC USB port. Power Rating DC 5V Product Description Operation Frequency 2405 MHz ~ 2470 MHz Modulation Technology GFSK Bit Rate of Transmitter 2 Mbps Field Strength 61.59 dBuV/m(AVG) 64.49 dBuV/m(Peak) Max. Output Power -33.71 dBm(0.0004 W)(Peak) -30.81 dBm(0.0008 W)(AVG) Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the user's manual. 2. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) 00 2405 01 2413 02 2422 03 2430 04 2440 05 2450 06 2460 07 2470 3. Table for Filed Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A PCB N/A -1.66 Report No.: BTL-FCCP-2-2008C014 Page 4 of 5 2. GENERAL CONCULUSION According to FCC KDB447498 D01, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Appendix A - SAR Test Exclusion Thresholds for 100 MHz - 6 GHz and < 50 mm MHz 5 10 15 20 25 30 35 40 45 50 mm 150 39 77 116 155 194 232 271 310 349 387 SAR Test Exclusion Thresholds (mW) 300 27 55 82 110 137 164 192 219 246 274 450 22 45 67 89 112 134 157 179 201 224 835 16 33 49 66 82 98 115 131 148 164 900 16 32 47 63 79 95 111 126 142 158 1500 12 24 37 49 61 73 86 98 110 122 1900 11 22 33 44 54 65 76 87 98 109 2450 10 19 29 38 48 57 67 77 86 96 3600 8 16 24 32 40 47 55 63 71 79 5200 7 13 20 26 33 39 46 53 59 66 5400 6 13 19 26 32 39 45 52 58 65 5800 6 12 19 25 31 37 44 50 56 62 Report No.: BTL-FCCP-2-2008C014 Page 5 of 5 3. TEST RESULTS Max. Output Power (dBm) Max. Output Power (mW) Limit (mW) -30.81 0.0008 10 Note: (1) The maximum measured output peak power of this EUT is 0.0008mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold. End of Test Report

Report No.: BTL-FCCP-1-2008C014 Page 1 of 46 FCC Radio Test Report FCC ID: 2ABVN-M98D This report concerns: Original Grant Project No. : 2008C014 Equipment : 2.4G Wireless Dongle Brand Name : MSI Test Model : M98D Series Model : N/A Applicant : Verico International Co., Ltd Address : 12F-6., No.872, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) Manufacturer : Verico International Co., Ltd Address : 12F-6., No.872, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) Factory : Dongguan You Hong Plastic Electronics Co.,Ltd. Address : Zhen Hua Road, Tie Lu Keng Village, Qi Shi Town, Dong Guan City, Guang Dong Province, China Date of Receipt : Aug. 14, 2020 Date of Test : Aug. 14, 2020 ~ Sep. 03, 2020 Issued Date : Sep. 15, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG2020081734 Standard(s) : FCC Part15, Subpart C ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Nick Chen Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2008C014 Page 2 of 46 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/o r national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2008C014 Page 3 of 46 Table of Contents Page REPORT ISSUED HISTORY 5 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 9 2.3 PARAMETERS OF TEST SOFTWARE 9 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 SUPPORT UNITS 10 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 11 3.1 LIMIT 11 3.2 TEST PROCEDURE 11 3.3 DEVIATION FROM TEST STANDARD 11 3.4 TEST SETUP 12 3.5 EUT OPERATING CONDITIONS 12 3.6 TEST RESULTS 12 4 . RADIATED EMISSION TEST 13 4.1 LIMIT 13 4.2 TEST PROCEDURE 14 4.3 DEVIATION FROM TEST STANDARD 14 4.4 TEST SETUP 15 4.5 EUT OPERATING CONDITIONS 16 4.6 TEST RESULT - 9 KHZ TO 30 MHZ 16 4.7 TEST RESULT - 30 MHZ TO 1000 MHZ 16 4.8 TEST RESULT - ABOVE 1000 MHZ 16 5 . MEASUREMENT INSTRUMENTS LIST 17 6 . EUT TEST PHOTO 19 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 23 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 26 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 31 Report No.: BTL-FCCP-1-2008C014 Page 4 of 46 Table of Contents Page APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 34 Report No.: BTL-FCCP-1-2008C014 Page 5 of 46 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Sep. 15, 2020 Report No.: BTL-FCCP-1-2008C014 Page 6 of 46 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ Note: (1) “N/A” denotes test is not applicable to this device. Report No.: BTL-FCCP-1-2008C014 Page 7 of 46 1.1 TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 1.2 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)) The BTL measurement uncertainty as below table: A. AC power line conducted emissions Measurement: Test Site Method Measurement Frequency Range U, (dB) DG-C02 CISPR 150 kHz ~ 30 MHz 2.68 B. Radiated emissions Measurement: Test Site Method Measurement Frequency Range Ant. H / V U, (dB) DG-CB03 CISPR 9KHz ~ 30MHz V 3.79 9KHz ~ 30MHz H 3.57 30MHz ~ 200MHz V 4.26 30MHz ~ 200MHz H 3.38 200MHz ~ 1,000MHz V 3.98 200MHz ~ 1,000MHz H 3.94 1GHz ~ 6GHz - 3.96 6GHz ~…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2008C014 Page 19 of 46 6. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2008C014 Page 20 of 46 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2008C014 Page 21 of 46 30 MHz to 1000 MHz Report No.: BTL-FCCP-1-2008C014 Page 22 of 46 Above 1 GHz
