BT-1001 User Manual Packing list * Bluetooth hands-free speaker x 1 * USB cable x 1 * Audio cable x 1 * User Manual x 1 About your speaker BLUMAN Bluetooth hands-free speaker features intelligent voice prompt function and searches for and pairs with Bluetooth devices automatically after startup. It enables heads-free calls function together with the mobile phone, very convenient and easy to use. Before use, let’s get to know the components of the speaker and their usage. I Power switch and buttons Bottom view Top view 1. Power switch Press and hold power switch for 2 seconds to switch the device on/off. 2. Set button Press this button to display time, and press it again to enter time setting. 3. Previous / 5. Next Press or to select previous or next track in the playlist of the Bluetooth device. 4. Volume + / 7. Volume - Press or press and hold Volume + to increase volume level, and press or press and hold Volume – to reduce volume level 6. Play and Answer When playing music, press this button to interrupt/resume the playback. When there is an incoming call, press this button to answer the call, and press it again to end the call. If you don’t want to answer the call, press and hold this button to reject it. 8. Screen 9. Microphone II. Interfaces 1. Audio input Connect the speaker to audio players via audio cable, such as PC. 2. Charging interfaces Connect the speaker to the charger (output voltage 5V) or USB port of a PC via USB cable for charging. Connecting your speaker 1. When you switch on the device for the first time, it will search for nearby Bluetooth devices automatically and enter standby mode. Please enable the Bluetooth function of your Bluetooth device. When the speaker is found by your Bluetooth device, click the speaker (device name “BLUEMAN”) to complete the paring. Now enter the music player of your device and play the music. Note: you may be required to enter the password while paring the Bluetooth device and the speaker, the default password is 0000. 2. When you switch on the device next time, the speaker will search for and pair with the last connected Bluetooth device automatically. If no device is found, the speaker will enter standby mode waiting for other Bluetooth devices to find it and connect to it. FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

DongGuan Blueman Electrioncs Tochnology co.,LTD Model Difference FCC ID: 2ABVSBT1001 Model : BT1001, BT1XX1（"X"=“a-z"、“A-Z”、“0-9”） All the models are the same circuit and RF module, except the model names. Regards, Client’s signature Signature Client’s name / title : Zhang Junbo / Manager Contact information / address : Bulding B, No.5, Shunxing Four Road, Dajingtou Community, Dalang Town, Dongguan,China

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 DongGuan Blueman Electrioncs Tochnology co.,LTD SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2014/02/18 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, DongGuan Blueman Electrioncs Tochnology co.,LTD __ hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： Bluetooth speaker Trade Name： N/A Model Name： BT1001 Serial Model：BT1XX1（"X"=“a-z"、“A-Z”、“0-9”） FCC ID： 2ABVSBT1001 We affirm that between SIEMIC and ___ DongGuan Blueman Electrioncs Tochnology co.,LTD _, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Signature Name: Zhang Junbo Title: Manager

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 DongGuan Blueman Electrioncs Tochnology co.,LTD 2014/02/18 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ABVSBT1001 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Client’s name / title : Zhang Junbo / Manager Contact information / address : Bulding B, No.5, Shunxing Four Road, Dajingtou Community, Dalang Town, Dongguan,China

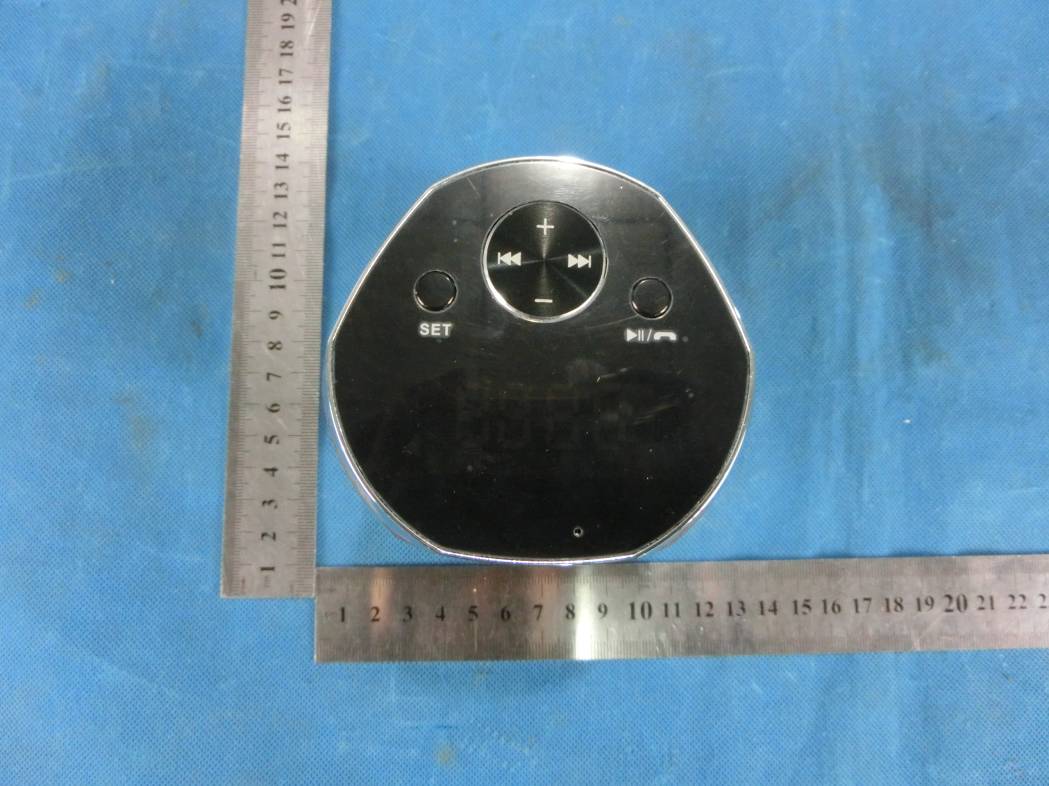

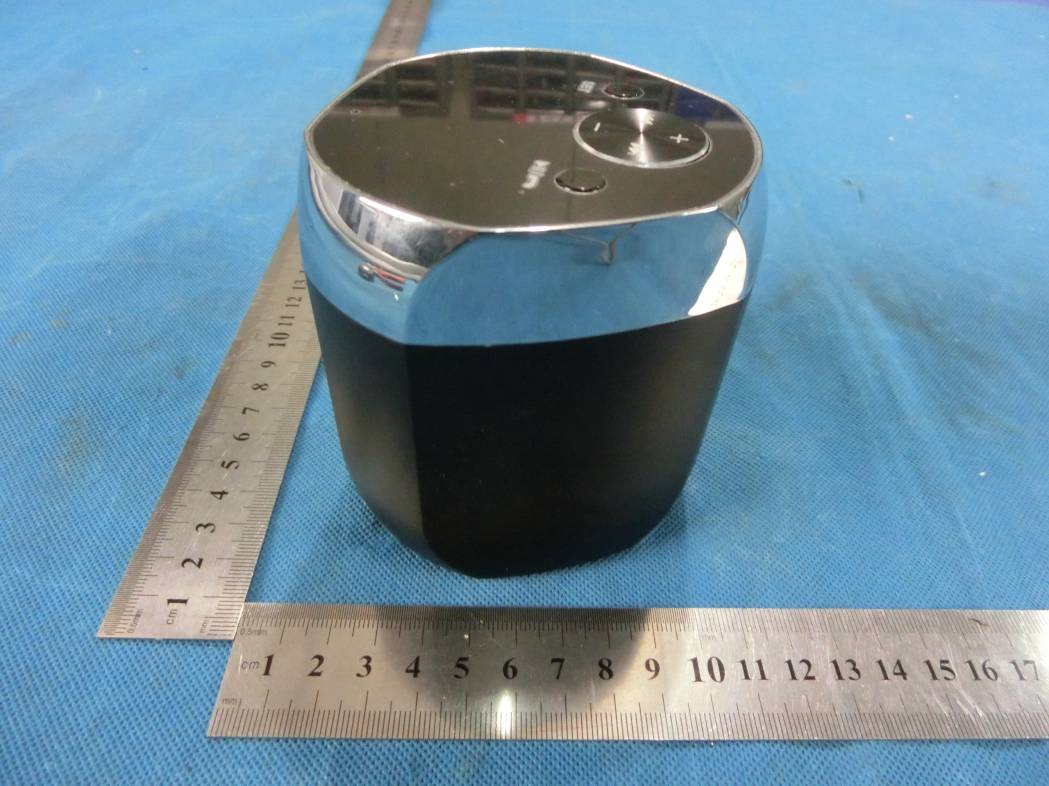

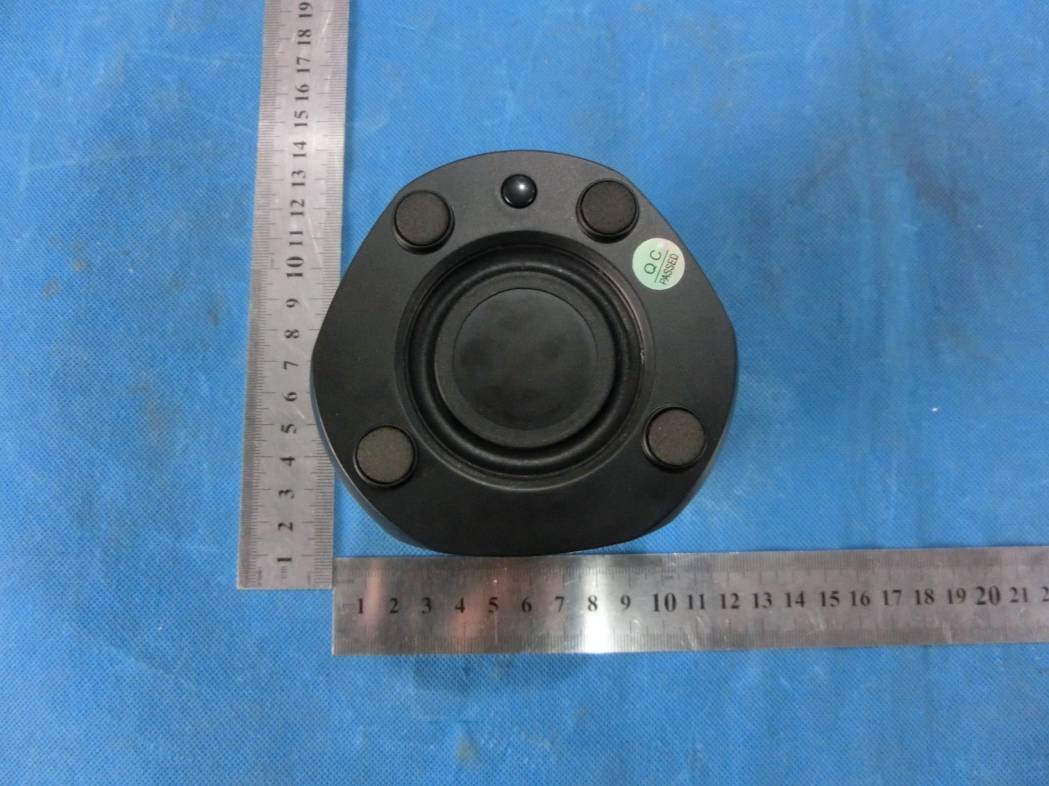

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID LABELING AND LOCATION FCC ID Label Bluetooth speaker Model NO.: BT1001 Input Rating: DC 5V FCC ID: 2ABVSBT1001 DongGuan Blueman Electrioncs Tochnology co.,LTD Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 ANT Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

FCC ID: 2ABVSBT1001 FCC §15.247 (i), §2.1091 – RF Exposure Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density FCC ID: 2ABVSBT1001 MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna TEST RESULTS Mode Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 1Mbps 0.345 1.083 1(0dBi) 0.0002 1 Pass 2Mbps -0.667 0.858 1(0dBi) 0.0002 1 Pass 3Mbps -0.191 0.957 1(0dBi) 0.0002 1 Pass

FCC RADIO TEST REPORT FCC ID: 2ABVSBT1001 Product： Bluetooth speaker Trade Name： N/A Model Name： BT1001 Serial Model： BT1XX1（"X"=“a-z"、“A-Z”、“0-9”） Report No.： NTEK-2013NT0103917F1 Prepared for DongGuan Blueman Electrioncs Tochnology co.,LTD Bulding B, No.5, Shunxing Four Road, Dajingtou Community, Dalang Town, Dongguan, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 74 Report No.: NTEK-2014NT0103917F1 TEST RESULT CERTIFICATION Applicant’s name............. DongGuan Blueman Electrioncs Tochnology co.,LTD Address ............................. Bulding B, No.5, Shunxing Four Road, Dajingtou Community, Dalang Town, Dongguan, China Manufacture's Name........ DongGuan Blueman Electrioncs Tochnology co.,LTD Address ............................. Bulding B, No.5, Shunxing Four Road, Dajingtou Community, Dalang Town, Dongguan, China Product description Product name ......................Bluetooth speaker Model and/or type reference .......................... BT1001 Serial Model： BT1XX1（"X"=“a-z"、“A-Z”、“0-9”） Standards......................... FCC Part15.247 Test procedure ..................... ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test........................................ Date (s) of performance of tests ......... 03 Jan. 2014 ~23 Jan. 2014 Date of Issue....................................... 23 Jan. 2014 Test Result........................................... Pass Testing Engineer : (Polo Cha) Technical Manager : (Brown Lu) Authorized Signatory : (Bovey Yang) Page 3 of 74 Report No.: NTEK-2014NT0103917F1 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 4 . NUMBER OF HOPPING CHANNEL 33 4.1 APPLIED PROCEDURES / LIMIT 33 4.1.1 TEST PROCEDURE 33 4.1.2 DEVIATION FROM STANDARD 33 4.1.3 TEST SETUP 33 4.1.4 EUT OPERATION CONDITIONS 33 4.1.5 TEST RESULTS 34 5 . AVERAGE TIME OF OCCUPANCY 35 5.1 APPLIED PROCEDURES / LIMIT 35 Page 4 of 74 Report No.: NTEK-2014NT0103917F1 Table of Contents Page 5.1.1 TEST PROCEDURE 35 5.1.2 DEVIATION FROM STANDARD 35 5.1.3 TEST SETUP 36 5.1.4 EUT OPERATION CONDITIONS 36 5.1.5 TEST RESULTS 37 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 43 6.1 APPLIED PROCEDURES / LIMIT 43 6.1.1 TEST PROCEDURE 43 6.1.2 DEVIATION FROM STANDARD 43 6.1.3 TEST SETUP 43 6.1.4 EUT OPERATION CONDITIONS 43 6.1.5 TEST RESULTS 44 7 . BANDWIDTH TEST 50 7.1 APPLIED PROCEDURES / LIMIT 50 7.1.1 TEST PROCEDURE 50 7.1.2 DEVIATION FROM STANDARD 50 7.1.3 TEST SETUP 50 7.1.4 EUT OPERATION CONDITIONS 50 7.1.5 TEST RESULTS 51 8 . PEAK OUTPUT POWER TEST 57 8.1 APPLIED PROCEDURES / LIMIT 57 8.1.1 TEST PROCEDURE 57 8.1.2 DEVIATION FROM STANDARD 57 8.1.3 TEST SETUP 57 8.1.4 EUT OPERATION CONDITIONS 57 8.1.5 TEST RESULTS 58 9 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 64 9.1 DEVIATION FROM STANDARD 64 9.2 TEST SETUP 64 9.3 EUT OPERATION CONDITIONS 64 9.4 TEST RESULTS 65 10 . ANTENNA REQUIREMENT 72 10.1 STANDARD REQUIREMENT 72 10.2 EUT ANTENNA 72 11 . EUT TEST PHOTO 73 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 74 Report No.: NTEK-2014NT0103917F1 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 74 Report No.: NTEK-2014NT0103917F1 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 74 Report No.: NTEK-2014NT0103917F1 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Bluetooth speaker Trade Name N/A Model Name BT1001 Seria…

Text truncated - open the document above for the full version.

Page 74 of 75 Report No.: NTEK-2014NT0103917F1 11. EUT TEST PHOTO Radiated Measurement Photos Page 75 of 75 Report No.: NTEK-2014NT0103917F1 CONDUCTED EMISSION Photo
