2ABWIT8806GPS Tracker

http://www.topflytech.com T8806 Vehicle GPS Tracker (GSM +GPS+SMS/GPRS) User Manual & Operation Command (SMS) V1.4 This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved. Any unauthorized copy or transmission of the document wholly or partially shall be held liable. TOPFLYTECH CONFIDENTIAL http://www.topflytech.com This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved. Any unauthorized copy or transmission of the document wholly or partially shall be held liable. Thanks for your purchase of the high quality GPS trackers from TOPFLYTECH c ompany. Please read this user manual and operation command carefully to obtain guidance on installation and operation. The following describes this device. We will not publish notification should there be cosmetic or color change, actual product prevails. This vehicle GPS tracker product rides on GPRS communication technology, GPS satellite positioning and internet technology. It can realize the real time remote monitoring and control of the vehicle though a powerful service platform ( http://tracker.topflytech.com ). It provides customers with cost reduction, efficiency increased, safety guarantee and transparency management. Currently, it has been widely used in commercial transportation, corporate vehicle fleet, intelligent transportation, logistics distribution, car rental, engineering machinery, marine transportation and other fields. - 2 - TOPFLYTECH CONFIDENTIAL http://www.topflytech.com This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved. Any unauthorized copy or transmission of the document wholly or partially shall be held liable. Table of Content Quick Reference of Connection Diagram.......................................................................5 1. Product Functions..................................................................................................6 2. Accessories Introduction..........................................................................................6 3. Usage Environment................................................................................................6 4. Key Technical Parameters.......................................................................................7 4.1 Basic Parameters............................................................................................7 4.2 Indicator Lights Status.....................................................................................7 5. Installation Manual ................................................................................................7 5.1 S IM Card Pre-installation Note...........................................................................7 5.2 Installation.....................................................................................................8 5.3 Relay Wiring Method.......................................................................................8 6. Cautions of Device Wiring......................................................................................8 6.1 Power Supply Line..........................................................................................8 6.2 Microphone Line............................................................................................9 6.3 SOS Alarm Line.............................................................................................9 6.4 Microphone & SOS Line..................................................................................9 6. 5 Speaker Line..................................................................................................9 7. Device Configuration..............................................................................................9 8. Operation of Device...............................................................................................9 8.1 Power On and Power Off...................................................................................9 8.2 Indicator Lights...............................................................................................9 8.3 Location Search............................................................................................10 8.4 SOS Alarm...................................................................................................10 8.5 Monitoring....................................................................................................10 8.6 Fuel Cut.......................................................................................................10 8.7 R estore Fuel Supply.......................................................................................11 9. Trouble Shooting..................................................................................................11 9.1 Unable to Connect.........................................................................................11 9.2 Backstage Shows Offline................................................................................11 9.3 Prolong Inability to Locate...............................................................................11 9.4 Severe Drifting in Location..............................................................................12 9.5 Abnormal Command Reception........................................................................12 - 3 - TOPFLYTECH CONFIDENTIAL http://www.topflytech.com This document is copyrighted by Shenzhen Topflytech Communication Technology Co.,Ltd. All rights reserved. Any unauthorized copy or transmission of the document wholly or partially shall be held liable. 10. Warranty Details.................................................................................................12 10.1 Special Statement........................................................................................12 10.2 Warranty Period........................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2014/2/22 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ Shenzhen TOPFLYTECH Communication Technology Co.,LTD _____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： GPS Tracker Trade Name： N/A Model Name： T8806 Serial Model： T8805,T8808,T8603,T8803,T 8608,T8503,T8502,T8903,T8 905 FCC ID 2ABWIT8806 We affirm that between SIEMIC and ___ Shenzhen TOPFLYTECH Communication Technology Co.,LTD ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, ----------------------------- Client’s signature Client’s name / title : Tony cheng/ General Manager Contact information / address : Rm532,5th Floor,Building 1,Zhongxing Industrial Town,Nanshan District,Shenzhen,China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2014/2/22 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ABWIT8806 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Bom and tune up The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------- Client’s signature Client’s name / title : Tony cheng/ General Manager Contact information / address : Rm532,5th Floor,Building 1,Zhongxing Industrial Town,Nanshan District,Shenzhen,China Contact information / address : No.601, 6/F, Bldg. 8, Zhiheng Industries Park, Guankou 2nd Road, Nantou, Nanshan District, Shenzhen, Guangdong,China

Differences Description We Shenzhen TOPFLYTECH Communication Technology Co.,LTD state: Product： GPS Tracker Trade Name： N/A Model Name： T8806 Serial Model： T8805,T8808,T8603,T8803,T860 8,T8503,T8502,T8903,T8905 FCC ID 2ABWIT8806 All the model are the same circuit and RF module, except the model name. Signatory ----------------------------- Client’s signature Client’s name / title : Tony cheng/ General Manager Contact information / address : Rm532,5th Floor,Building 1,Zhongxing Industrial Town,Nanshan District,Shenzhen,China

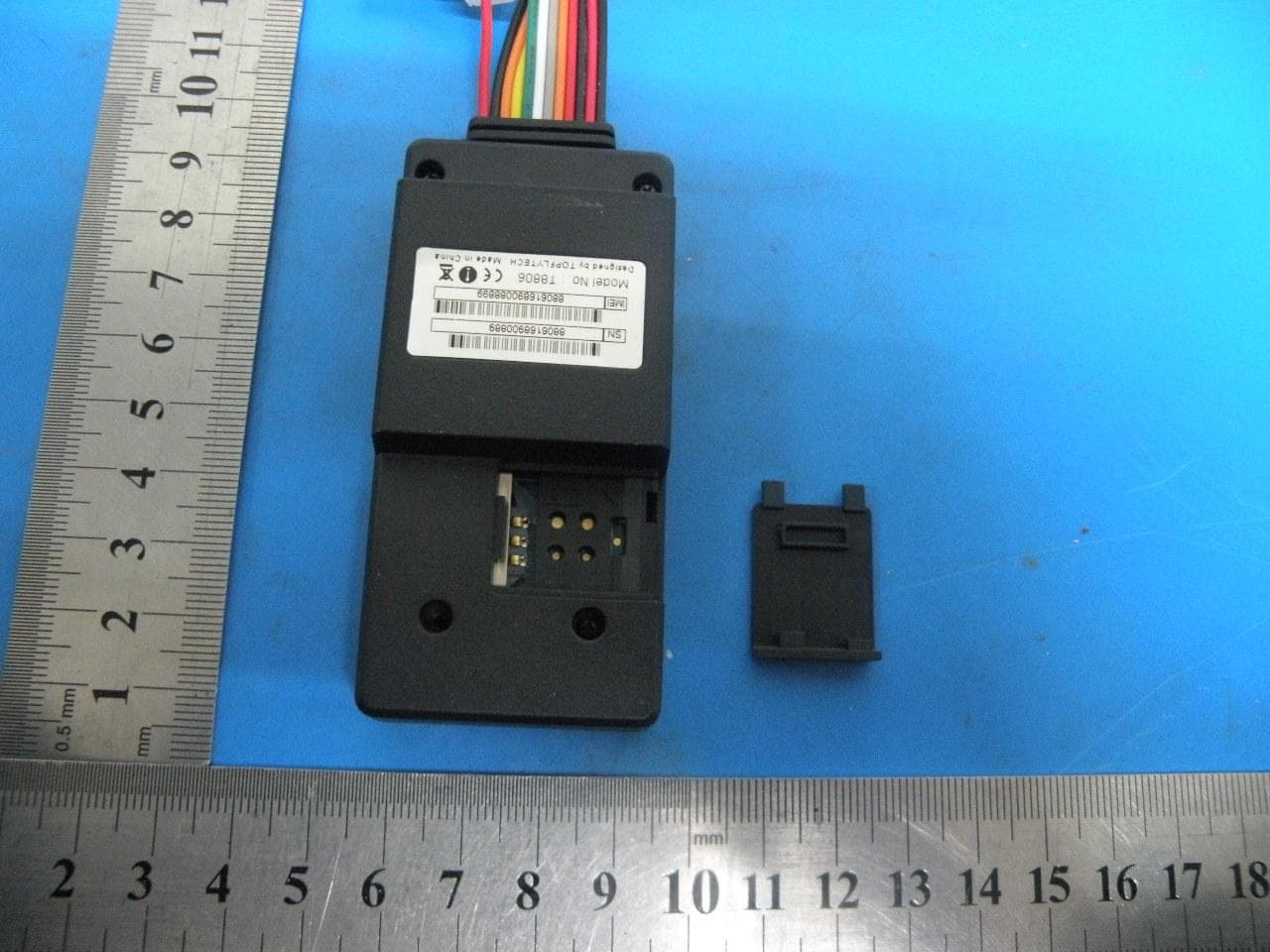

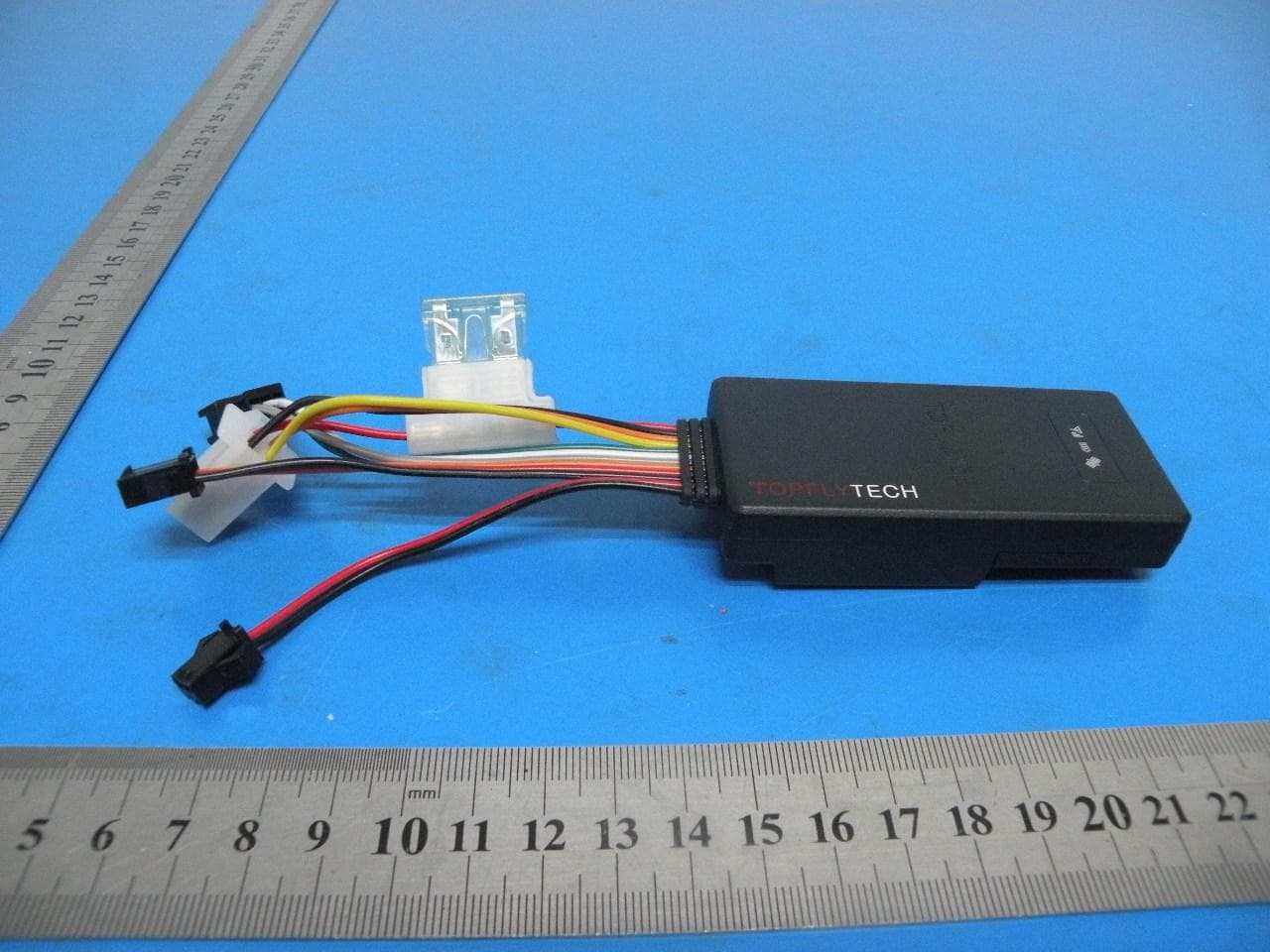

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

GPS Tracker Model: T8806 FCC ID: 2ABWIT8806 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label

Photo 9 Photo 10 Photo 11 Photo 12

FCC ID: 2ABWIT8806 RF EXPOSURE TEST Applied procedures / limit These devices are not exempted from compliance does not exceed the Commission’s RF exposure guidelines.Unless a device operates at substantially low power levels,with a low gain antenna(s),supporting information is generally needed to establish the various potential operating configurations and exposure conditions of a transmitter and its antenna(s) in order to determine compliance with the RF exposure guidelines. In order to demonstrate compliance with MPE requirement(see Section 2.1091),the following information is typically needed: Calculation that estimates the minimum separation distance(20 cm or more)between an antenna and persons required to satisfy power density limits defined for free space. Antenna installation and device operating instructions for installers(professional/unskilled users),and the parties responsible for ensuring compliance with the RF exposure requirement Any caution statements and/or warming labels that are necessary in order to comply with the exposure limits Any other RF exposure related issues that may affect MPE compliance. FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in 1.1307(b). (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density FCC ID: 2ABWIT8806 MPE CALCULATION METHOD Calculation Method of RF Safety Distance: P :power input to the antenna in Mw EIRP :Equivalent(effective) isotropic radiated power. S :power density mW/ cm 2 G ;numeric gain of antenna relative to isotropic radiator R :distance to centre of radiation in cm FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device EIRP=10 ( Antenna Gain+Peak Output Power/10) Note: 1. s=1.0 mW /cm 2 for limits for General Population/Uncontrolled Exposures. 2. The time averaged power over 30 minutes will be equaled Output Power. 3. The Power Density at a distance of 20cm calculated from the formula is far below the limit of 1MW/ cm 2 FCC ID: 2ABWIT8806 TEST RESULTS Mode Max Tune up power, dBm Max time average power, dBm GSM 850 (1 up) 31 24 GPRS850 Class 8 , GMSK (1up) 31 24 GPRS850 Class 10 , GMSK (2up) 29 25 GPRS850 Class 12 , GMSK (4up) 26 24 GSM 1900 (1 up) 29 22 GPRS1900 Class 8 , GMSK (1up) 29 22 GPRS1900 Class 10 , GMSK (2up) 27 23 GPRS1900 Class 12 , GMSK (4up) 24 20 Based on above table , GPRS 850 Class 10 and GPRS 1900 Class 10 has highest time average power output power (MAX) (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 30.31 (GSM 850) 1073.99 1.58(2dbi) 0.338 0.549 Pass 28.22 (PCS 1900) 663.75 1.58(2dbi) 0.209 1 Pass

RADIO TEST REPORT FCC ID: 2ABWIT8806 Product： GPS Tracker Trade Name： N/A Model Name： T8806 Serial Model： T8805,T8808,T8603,T8803,T8608,T8503, T8502,T8903,T8905 Report No.： BZT140122057 Prepared for Shenzhen TOPFLYTECH Communication Technology Co.,LTD Rm532,5th Floor,Building 1,Zhongxing Industrial Town,Nanshan District,Shenzhen,China Prepared by BZT Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. Page 2 of 56 Report No.: BZT140122057 ` TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen TOPFLYTECH Communication Technology Co.,LTD Address ................................. : Rm532,5th Floor,Building 1,Zhongxing Industrial Town,Nanshan District,Shenzhen,China Manufacture's Name ............ : Shenzhen TOPFLYTECH Communication Technology Co.,LTD Address ................................. : Rm532,5th Floor,Building 1,Zhongxing Industrial Town,Nanshan District,Shenzhen,China Product description Product name ........................... : GPS Tracker Model and/or type reference .............................................. : T8806 Serial Model ............................. : T8805,T8808,T8603,T8803,T8608,T8503,T8502,T8903,T8905 Standards ............................. : FCC Part 22H and 24E Test procedure .............................. : ANSI C63.4-2003, RSS-Gen Issue 3 This device described above has been tested by BZT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BZT, this document may be altered or revised by BZT, personal only, and shall be noted in the revision of the document. Date of Test .......................................... : Date (s) of performance of tests ............. : 10 Feb 2014 ~19 Feb 2014 Date of Issue ........................................ : 20 Feb 2014 Test Result ............................................ : Pass Page 3 of 56 Report No.: BZT140122057 ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3 . TEST RESULT 12 3.1 ANTENNA REQUIREMENT 12 3.1.1 STANDARD REQUIREMENT 12 3.1.2 EUT ANTENNA 12 3.2 OUTPUT POWER 13 3.2.1 CONDUCTED OUTPUT POWER 13 3.2.2 RADIATED OUTPUT POWER 14 3.3 SPURIOUS EMISSION 17 3.3.1 CONDUCTED SPURIOUS EMISSION 17 3.3.2 RADIATED SPURIOUS EMISSION 19 3.4 FREQUENCY STABILITY 22 3.4.1 MEASUREMENT METHOD 22 3.4.2 PROVISIONS APPLICABLE 22 3.5 OCCUPIED BANDWIDTH 25 3.5.1 MEASUREMENT METHOD 25 3.5.2 PROVISIONS APPLICABLE 25 3.5.3 MEASUREMENT RESULT 25 3.6 EMISSION BANDWIDTH 26 3.6.1 MEASUREMENT METHOD 26 3.6.2 PROVISIONS APPLICABLE 26 3.6.3 MEASUREMENT RESULT 26 3.7 BAND EDGE 27 3.7.1 MEASUREMENT METHOD 27 3.7.2 PROVISIONS APPLICABLE 27 3.7.3 MEASUREMENT RESULT 27 APPENDIX I 28 APPENDIX II 46 APPENDIX III 52 Page 4 of 56 Report No.: BZT140122057 ` Table of Contents Page 4 . EUT TEST PHOTO 56 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 56 Report No.: BZT140122057 ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: Item Number Item Description Rules Result 1 Output Power Conducted Output Power 22.913(a) / 24.232 (b) RSS-132(5.4) SRSP-503(5.1.3) Pass Radiated Output Power 2 Spurious Emission Conducted Spurious Emission 2.1051 / 22.917 / 24.238 RSS-132(5.5) RSS-133 (6.5) Pass Radiated Spurious Emission 3 Frequency Stability 2.1055 /24.235 RSS-132(5.3) RSS-133(6.3) Pass 4 Occupied Bandwidth 2.1049 (h)(i) Pass 5 Emission Bandwidth 22.917(b) / 24.238 (b) RSS-132(5.5.1) RSS-133(6.5.1) Pass 6 Band Edge 22.917(b) / 24.238 (b) RSS-132(5.5.1) RSS-133(6.5.1) Pass Page 6 of 56 Report No.: BZT140122057 ` 1.1 TEST FACILITY BZT Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.: 701733 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 Radiated Emission Test ±3.17dB 3 RF power,conducted ±0.16dB 4 Spurious emissions,conducted ±0.21dB 5 All emissions,radiated(<1G) ±4.68dB 6 All emissions,radiated(>1G) ±4.89dB Page 7 of 56 Report No.: BZT140122057 ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment GPS Tracker Trade Name N/A Model Name T8806 OEM Brand/Model Name T8805,T8808,T8603,T8803,T8608,T8503,T8502,T8903,T890 5 Model Difference All the model are the same circuit and RF module, except the model name. Frequency: GSM 850 MHz;:824.2-848.4MHz PCS 1900 MHz: 1850.2-1909.8MHz Output Power: GSM850(Class 4) : 1.074 W (30.31dBm) GPRS850(Multislot Class 8) : 1.069 W (30.29 dBm) GSM1900 (Class 1) : 0.548 W (27.39dBm) GPRS1900 (Multislot Class 8) : 0.664 W (28.22 dBm) Type of Modulation GMSK Antenna Type Wire Antenna Power Source DC Voltage supplied from battery Power Rating DC 3.7V from battery Charge by 12 V battery Connecting I/O Port(s) Please refer to the User's Manual Products Covered N/A EUT Modification(s) N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 8 of 56 Report No.: BZT140122057 ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission le…

Text truncated - open the document above for the full version.

Page 57 of 57 Report No.: BZT140122057 ` 4. EUT TEST PHOTO Radiated Measurement Photos
