2ABXMSF-360453010REMOTE CONTROLLER

1. REMOTE CONTROLLER You will be KILLED or SERIOUSLY HURT if you do not follow the Operator's Manual instructions. Risk of Fire. Do not add fuel while the product is operating. Generator is potential source of electric shock. Do not expose to moisture, rain or snow. Do not operate with wet hands or feet. Failure to properly ground generator can result in electrocution, especially if the generator is equipped with a wheel kit. Do not expose to rain or use in damp locations. Exhaust contains poisonous carbon monoxide gas that can cause unconsciousness or DEATH. Operate in well ventilated, outdoor areas away from open windows or doors. DANGER Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you can not see or smell. Never use inside a home or garage. EVEN IF doors and windows are open. Only use OUTSIDE and far away from windows, doors, and vents. Avoid other generator hazards. READ MANUAL BEFORE USE. DANGER 3. HOW TO START THE GENERATOR WITH REMOTE CONTROLLER (a) Turn fuel valve under tank to the “ON” position (see Figure 6). (b) Turn the engine switch to the “ON” position (see Figure 7). (c) Connect the electric appliance(see Figure 8). (d) Turn the AC breaker to the “ON” position(see Figure 9). (f) Make the remote controller to aim at the generator receiving antenna, and then press the “START” button about 2-3s,the generator will start immediately. The generator will supply the output power about 20s later.(see Figure 10). Figure 7 Figure 10 Figure 8 OPEN 4. STOPPING AND STORAGE PROCEDURES (a) Press the “OFF” button and the output power will shut down immediately. The engine will stop about 10s later. Figure 12 Figure 11 Figure 6 Remote Control Generator Quick Start Manual 1 2 3 4 1,Remote controller 2,START button 3,OFF button 4,Key ring 5,Remote controller learn lamp on control panel 6,Learn button 7,Receiving antenna Pilot lamp When you use a new remote control, you need to learn operation. After that ,the remote controller can used for start the generator. 2. HOW TO LEARN a) Make the electric start key to the "ON" position. b) Press the learn button on control panel until the remote control learn lamp on control panel lights up. c) Press the “START” button at remote controller until the generator startup, the learning is complete. Press the “OFF” button to close the generator. . The max remote control distance of the controller for startup is about 50m at the open place. For shutdown is about 40m distance. If there is obstacles between the remote controller and the generator, the remote control distance will be shortened. Note: Note: (b) Turn the engine switch to the “OFF” position(see Figure 11). (c) Turn fuel valve to “OFF” position(see Figure 12). (d) If generator is to be stored for longer than 30 days, refer to the operator's manual for further instructions. You can use the remote controller to control the generator (start and stop).After you use the generator, you need follow the next steps to storage the generator. Note: 5 6 7 Figure 1 Figure 2 Figure 3 Figure 4 You can not press the “START” button immediately in 10 seconds. Figure 5 Figure 9 All rights reserved. Any reprinting or unauthorized use without the written permission is expressly prohibited. P/N:360743030 Rev 00 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 SUMEC MACHINERY & ELECTRIC Co., Ltd. 2014.04.23 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ SUMEC MACHINERY & ELECTRIC Co., Ltd.____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: REMOTE CONTROLLER Model name: RC-1 FCC ID: 2ABXMSF-360453010 We affirm that between SIEMIC and ____ SUMEC MACHINERY & ELECTRIC Co., Ltd.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature ： Client’s name / title : Yue Wu/ Engineer Contact information / address : SUMEC MACHINERY & ELECTRIC Co., Ltd. CHANGJIANG ROAD 198

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 SUMEC MACHINERY & ELECTRIC Co., Ltd. 2014.04.23 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ABXMSF-360453010 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - .Schematics - .Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Yue Wu/ Engineer Contact information / address: SUMEC MACHINERY & ELECTRIC Co., Ltd. CHANGJIANG ROAD 198

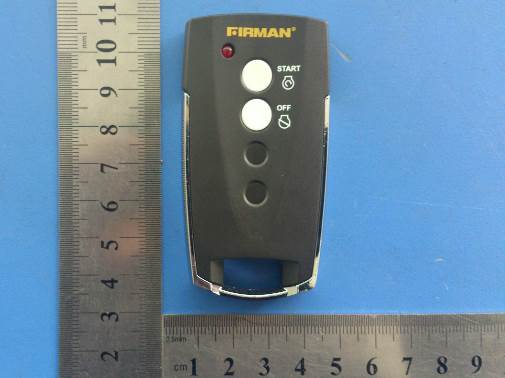

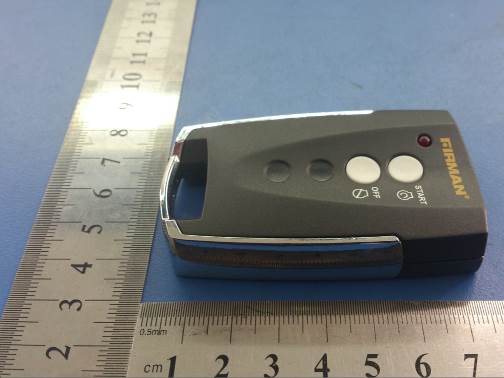

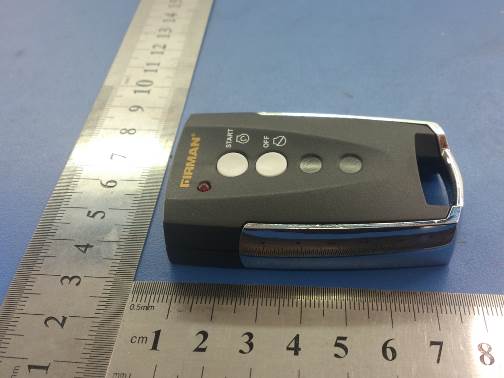

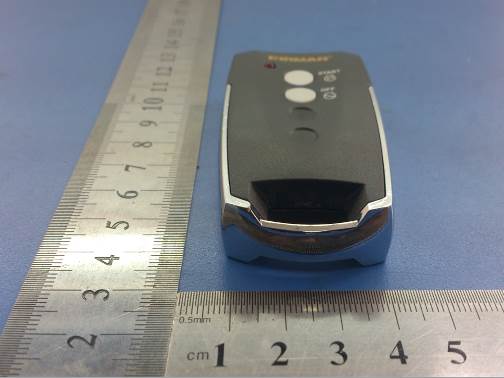

Title: RF Test Report for REMOTE CONTROLLER Main Model: RC-1 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020140-FCC-R1 Issue Date: April 18, 2014 Page: 21 of 32 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph : EUT External Photo Front View of EUT Rear View of EUT Title: RF Test Report for REMOTE CONTROLLER Main Model: RC-1 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020140-FCC-R1 Issue Date: April 18, 2014 Page: 22 of 32 www.siemic.com.cn Top View of EUT Bottom View of EUT Title: RF Test Report for REMOTE CONTROLLER Main Model: RC-1 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020140-FCC-R1 Issue Date: April 18, 2014 Page: 23 of 32 www.siemic.com.cn Left View of EUT Right View of EUT

Label location

技术要求: 1.图中蓝色线条为标贴的裁切线； 2.标贴尺寸未注公差为：±0.2mm； 3.被贴零件以及表面状况为：塑料 平面； 4.标贴的使用环境温度为：-20°C～80°C； 5.标贴有害物质含量要求符合ROHS的相关要求； 6.标贴的耐汽油、耐机油、耐水以及耐候性要求符合ANSI/UL 969-2001的相关规定； 7.标贴印刷内容要求与图纸文稿一致，正确清晰，并且手指用约18N的压力在标贴表面来回搓或挤压10次后，印刷内容必须仍然清晰可读； 8.标贴的耐磨性要求：用厚度为2mm、边倒角为0.4mm钢刀片的25.4mm圆弧部分，以约9N压力在跨越标贴的印刷及边缘部位来回刮擦10次， 并且刀片与被试验的表面要求成右倾角度，试验后要求标贴以及标贴表面的覆膜（如果有）应保持在原位置，不应被撕裂或受到其他的损伤； 9.标贴粘结到被贴零件表面后，应无裂纹、裂缝或收缩，如表面有覆盖层，其不应出现分离，并且标贴周边应无任何明显的卷曲、 360733015 松脱或其他粘结力不足的迹象（例如：起皱纹或起泡），标贴按照ANSI/UL 969-2001的相关规定进行粘结试验后应符合相应的要求。 360733015 邓岗 360000049 2012/11/16 50#白色PVC+光膜 R 30mm 遥控器贴花 FCC ID:2ABXMSF-360453010 RC-1 18mm 433.92MHz 433.92MHz

Title: RF Test Report for REMOTE CONTROLLER Main Model: RC-1 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020140-FCC-R1 Issue Date: April 18, 2014 Page: 24 of 32 www.siemic.com.cn Annex B.ii. Photograph : EUT Internal Photo EUT – Uncover Front View EUT –PCB Front View Antenna Title: RF Test Report for REMOTE CONTROLLER Main Model: RC-1 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020140-FCC-R1 Issue Date: April 18, 2014 Page: 25 of 32 www.siemic.com.cn EUT –PCB Rear View

SUMEC MACHINERY & ELECTRIC CO.,LTD REMOTE CONTROLLER Main Model: RC-1 Serial Model: N/A April 18, 2014 Report No.: 14020140-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: William Long Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for REMOTE CONTROLLER Main Model: RC-1 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020140-FCC-R1 Issue Date: April 18, 2014 Page: 2 of 32 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: RF Test Report for REMOTE CONTROLLER Main Model: RC-1 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020140-FCC-R1 Issue Date: April 18, 2014 Page: 3 of 32 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for REMOTE CONTROLLER Main Model: RC-1 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020140-FCC-R1 Issue Date: April 18, 2014 Page: 4 of 32 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS ......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................. 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 18 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 21 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 27 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 31 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 32 Title: RF Test Report for REMOTE CONTROLLER Main Model: RC-1 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020140-FCC-R1 Issue Date: April 18, 2014 Page: 5 of 32 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programmed was to demonstrate compliance of the SUMEC MACHINERY & ELECTRIC CO.,LTD. The REMOTE CONTROLLER and model: RC-1 against the current Stipulated Standards. The REMOTE CONTROLLER has demonstrated compliance with the FCC 15.231:2013, ANSI C63.4:2009. EUT Information EUT Description REMOTE CONTROLLER Main Model RC-1 Serial Model N/A Antenna Gain 1 dBi Input Power 12V DC battery of power supply Classification Per Stipulated Test Standard FCC 15.231:2013, ANSI C63.4:2009 Title: RF Test Report for REMOTE CONTROLLER Main Model: RC-1 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020140-FCC-R1 Issue Date: April 18, 2014 Page: 6 of 32 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of REMOTE CONTROLLER with stipulated standard Applicant / Client SUMEC MACHINERY & ELECTRIC CO.,LTD CHANGJIANG ROAD 198,NANJING ,CHINA Manufacturer SUMEC MACHINERY & ELECTRIC CO.,LTD CHANGJIANG ROAD 198,NANJING ,CHINA Laboratory performing the tests SIEMIC (Nanjing-China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email: [email protected] Test report reference number 14020140-FCC-R1 Date EUT received February 25, 2014 Standard applied FCC 15.231:2013, ANSI C63.4:2009 Dates of test April 11, 2014 No of Units: 1# Equipment Category: DSC Trade Name : FIRMAN RF Operating Frequency (ies) Tx: 433.988MHz Number of Channels : 1 CH Modulation : OKK FCC ID: 2ABXMSF-360453010 Title: RF Test Report for REMOTE CONTROLLER Main Model: RC-1 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020140-FCC-R1 Issue Date: April 18, 2014 Page: 7 of 32 www.siemic.com.cn 3 MODIFICATION NONE Title: RF Test Report for REMOTE CONTROLLER Main Model: RC-1 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020140-FCC-R1 Issue Date: April 18, 2014 Page: 8 of 32 www.siemic.com.cn 4 TEST SUMMARY The product was tested in accordance with the following specifications. All testing has been performed according to below product classification: Test Results Summary Test Standard Description Pass / Fail CFR 47 Part 15.231: 2013 15.203 Antenna Requirement Pass 15.207 Conducted …

Text truncated - open the document above for the full version.

Title: RF Test Report for REMOTE CONTROLLER Main Model: RC-1 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020140-FCC-R1 Issue Date: April 18, 2014 Page: 26 of 32 www.siemic.com.cn Annex B.iii. Photograph : Test Setup Photo Radiated Emission Test Setup Rear View Below 1GHz Radiated Emission Test Setup Front View Above 1GHz
