2ABXRBM5284CBluetooth Low Energy Module

Braveridge Co., Ltd. User Manual Rev 1.0E BVMCN52840CFSLR Bluetooth Low Energy MODULE DESIGNED BY Braveridge Co., Ltd. Braveridge Co., Ltd. 2 Contents 1 Product Details..................................................................................................................................... 3 1-1 Basic Specifications ...................................................................................................................... 3 1-2 Features ......................................................................................................................................... 3 2 Electrical Specifications ..................................................................................................................... 4 2-1 Ratings ........................................................................................................................................... 4 2-8 Block Diagram .............................................................................................................................. 5 3 OEM Design Considerations .............................................................................................................. 6 3-1 RF-OUTPUT AND ANTENNA REQUIREMENTS ..................................................................... 6 3-1-1 RF-OUTPUT Layout Recommendations ................................................................................ 6 3-1-2 RF Routing Guidelines ............................................................................................................. 6 3-1-3 Antenna Design Guidelines ..................................................................................................... 7 3-1-4 Antenna Design Recommendations ...................................................................................... 8 3-5 Ensuring Trace Quality ............................................................................................................. 9 4 RF Exposure Statement .................................................................................................................... 10 5 Notice ..................................................................................................................................................... 12 6 Revision Management ..................................................................................................................... 14 7 Sales Agent .......................................................................................................................................... 15 8 Product Support ................................................................................................................................. 15 Braveridge Co., Ltd. 3 1 Product Details ・A Bluetooth 5.0 long-range compatible module featuring the Nordic nRF52840-CKAA. 1-1 Basic Specifications ・Frequency Range: 2402MHz to 2480MHz ・Transmission Power (Terminal Output): -40dBm to +8dBm ・Operating Voltage: 1.7V to 5.5V (Typ:3.0V) ・Main Clock: 32MHz Built-in ・Sub Clock: 32.768kHz Built-in ・Antenna: External Antenna （Various antennas certified by the Japanese Radio Law are available. For details, please contact us.） ・Interface: 49pins (UART,SPI,I2C,ADC,GPIO,NFC,USB controller) SEGGER Port: 2pins, total 78pins ・Size: W: 11.0mmx D: 7.5mmx H: 1.85mm (For tolerances, see P16. Mechanical Drawing) ・Weight: 0.24g ・Lead-Free Process 1-2 Features <Main Body> ・Certified by Japanese Radio Law and Bluetooth, ready for immediate use as a Bluetooth LE module. ・Capable of communication with apps via smartphone or PC and supports OTA (Over the Air) firmware updates. <Firmware> ・The SoftDevice is pre-installed before shipment. (The SoftDevice is certified by the Japanese Radio Law and Bluetooth SIG with the version specified in “3-1 Soft Device”. Do not change to a version not listed in the table.) ・The application layer is programmed with a port test program and all ports are verified before shipment. (When writing to the application layer, please perform Erase first.) ・We offer a service to program the customer's application. (Programming after implementation is also possible.) Please contact us for details. < Quality Control System> ・We store individual manufacturing inspection information for all modules. Braveridge Co., Ltd. 4 2 Electrical Specifications 2-1 Ratings Categories Ratings Notes Voltage Range (Vdd(N)) V 1.7 to 3.6 Voltage Range (Vdd(H)) V 2.5 to 5.5 Current Consumption Based on the specification of nRF52840-CKAA Please obtain the latest information from Nordic's website. Operating Temperature Range °C -20 to 80 Storage Temperature Range °C -20 to 80 Braveridge Co., Ltd. 5 2-8 Block Diagram Block Description Description Nordic nRF52840-CKAA Nordic’s Bluetooth Low Energy SOC XTAL 32MHz 32MHz oscillator XTAL 32.768kHz 32.768kHz oscillator This device includes an NFC (Near Field Communication) function that operates passively. The NFC tag is passive component that does not emit RF energy by itself and is powered by the NFC reader’s electromagnetic field. As such, it is not subject to FCC Part 15 intentional or unintentional radiator requirements. Braveridge Co., Ltd. 6 3 OEM Design Considerations This section covers OEM design considerations. Design guidance’s presented below needs to be followed to guarantee a proper operation of the Module. 3-1 RF-OUTPUT AND ANTENNA REQUIREMENTS The RF output impedance level is 50Ω so the trace leaving from the RF pad shall be kept in that same impedance level to avoid reflections and mismatch of the RF signal. From the module’s point of view, it is important that the used antenna has a low VSWR value. The VSWR shall be better than 2:1 to avoid decrease in the sensitivity performance of the receiver. 3-1-1 RF-OUTPUT Layout Recommendations Because the Module is a wireless device, the RF section must be the top priority in terms of layout. It is very important that layout is made by following the proper RF design guidelines to get the op…

Text truncated - open the document above for the full version.

Certification designating a U.S. Agent for service of process: As required by section 2.911(d)(7), the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. In either scenario, the designation of the U.S. agent for service of process should be provided as an attachment to the equipment authorization application. The applicant must provide a written certification, which must: i. Be signed by both the applicant and designated agent for service of process, if the agent is different from the applicant. ii. Acknowledge the applicant’s consent and the designated agent’s obligation to accept service of process. iii. Provide a physical U.S. address and email for the designated agent. iv. Acknowledge the applicant’s acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Unofficial information provided by FCC personnel on February 14, 2023, via the monthly call with the TCB Council: The Agent for Process of Service: • cannot be a TCB or affiliated with a TCB (e.g. could not be a person who works for a TCB or a company that owns or is owned by the TCB) • cannot be a [FCC recognised] Lab or affiliated with a test lab (e.g. could not be a person who works for a Lab or a company that owns or is owned by the Lab) • Agent can be Individual Entity or a Company Entity • Agent Entity must be located in US, US address/phone • Entity acting as Agent must have FRN (best practice, put FRN on Agent Letter) • Agent letter does not have to be FCC ID specific, can be general Agent for Grantee For devices being marketed or for which marketing has ceased for less than 1 year, if the Agent for Process of Service changes, then for every TC Number the TCB must request the FCC to put application into Audit Mode and Agent Letter needs to be updated (superseded). NOTE: The U.S. Agent for Service of Process should not be confused with the authorized agent used for signing the 731 form, other cover letters within the application, and/or the agent who may interface with the TCB. Braveridge Co., Ltd. U.S. Agent Designation for Service of Process ATTENTION: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA REGARDING: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Approve-IT, Inc. Contact Name: Nathan Grinager Street Address: 8011 34 th Ave South, Suite 342 City/Province/Zip: Bloomington, MN 55425 Telephone No: 651-247-1678 Email: [email protected] FRN #: 0027533835 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: March 5, 2026 Signed by (Printed Name/Title): Nathan Grinager / Co-President The Applicant confirms its explicit consent and acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Braveridge Co., Ltd. Grantee FRN: 0023175896 Grantee Code: 2ABXR FCC ID: 2ABXRBM5284C Contact Name: Yasunari Kohashi Street Address: 3-27-2 Susenji Nishi-Ku City/Province/Zip: Fukuoka City, Fukuoka Prefecture, 819-0373 Telephone No: +81 92 834 5789 Email: [email protected] Applicant Signature: Date: March Signed by (Printed Name/Title): Yasunari Kohashi / C.E.O

Form: RFT-AMER-TCB-OP-19n Revision: 1 Page 1 of 1 Date: 1/25/2023 Attention: Application Examiner Re: Covered List, located at https://www.fcc.gov/supplychain/coveredlist and 47 CFR parts §2.903 and §2.911(d)(5)(ii) of the FCC rules Applicant: Braveridge Co., Ltd. FCC ID: 2ABXRBM5284C To whom it may concern, Braveridge Co., Ltd. (“Applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to 47 CFR part §2.903 of the FCC rules and does not originate directly or indirectly from any company named on the covered list located in the link above or any subsidiary or affiliate thereof. Applicant further certifies that, as of the date of the filing of the application, the Applicant [is / is not] identified on the Covered List as an entity producing “covered” equipment and is not a subsidiary or affiliate of any such entity pursuant to 47 CFR part §1.50002 and required by 47 CFR part §2.911(d)(5)(ii) of the FCC rules. Applicant further certifies that no Cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software is installed in the equipment being certified. I HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Applicant and agree to immediately notify Intertek if there is any change in the status identified above. [Yasunari Kohashi] [CEO] [Braveridge Co., Ltd.] [2026.03.06]

3-27-2 Shusenji, Nishi-ku, Fukuoka City, Fukuoka Prefecture, Japan 819-0373 TEL: 81-92-834-5789 Request for confidentiality Applicant: Braveridge Co., Ltd. FCC ID: 2ABXRBM5284C To whom it may concern, Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request is hereby submitted by Braveridge Co., Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] • Schematics • Block diagrams • Operational Description Rationale for request for confidentiality: Braveridge Co., Ltd. has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.][Short term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] Sincerely, [Signature] Yasunari Kohashi [CEO] Braveridge Co., Ltd.

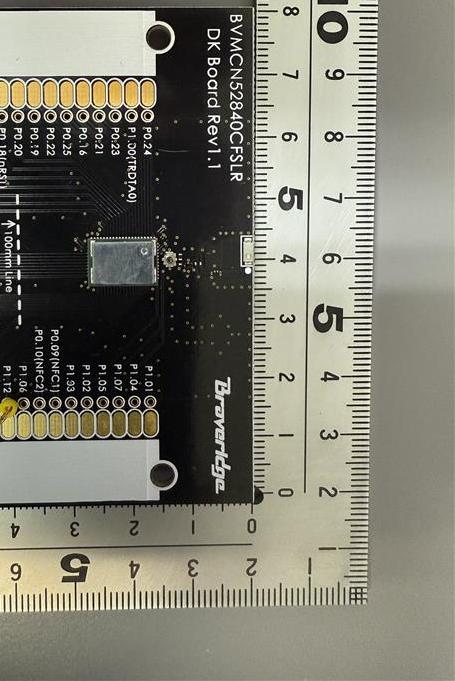

FCC ID: 2ABXRBM5284C Antenna trace Antenna trace and Antenna(host) TSA5NA2K2G45NS001T /AH316M245001 Antenna trace, coaxial cable and Antenna(host) GW.29.A153 ※Glue the antenna connector and the antenna together to prevent them from being detached. FCC ID: 2ABXRBM5284C FCC ID: 2ABXRBM5284C

FCC ID: 2ABXRBM5284C Antenna trace Antenna trace and Antenna(host) TSA5NA2K2G45NS001T /AH316M245001 Antenna trace, coaxial cable and Antenna(host) GW.29.A153 ※Glue the antenna connector and the antenna together to prevent them from being detached. FCC ID: 2ABXRBM5284C FCC ID: 2ABXRBM5284C

Intertek ETL SEMKO Korea Ltd. Intertek Building, 3, Gongdan-ro 160beon-gil, Gunpo-si, Gyeonggi-do, 15845 Korea Tel +82 2 567 7474 Fax +82 2 567 8482 intertek.com RF EXPOSURE Except where explicitly agreed in writing, all work and services performed by Intertek is subject to our standard Terms and Conditions which can be obtained at our website: http://www.intertek.com/terms/. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. This report is made solely on the basis of your instructions and / or information and materials supplied by you and provide no warranty on the tested sample(s) be truly representative of the sample source. The report is not intended to be a recommendation for any particular course of action, you are responsible for acting as you see fit on the basis of the report results. Intertek is under no obligation to refer to or report upon any facts or circumstances which are outside the specific instructions received and accepts no responsibility to any parties whatsoever, following the issue of the report, for any matters arising outside the agreed scope of the works. This report does not discharge or release you from your legal obligations and duties to any other person. You are the only one authorized to permit copying or distribution of this report (and then only in its entirety). Any such third parties to whom this report may be circulated rely on the content of the report solely at their own risk. This report shall not be reproduced, except in full. Copyright © 2017 Intertek Page 1 of 4 TRF No. FCC15C_A / Version: 24 Apr 2017 Applicant Name / Address Braveridge Co., Ltd. 3-27-2 Susenji Nishi-Ku, Fukuoka City, Fukuoka Prefecture, 819-0373 Test Sample Description - Product name ............................... Bluetooth Low Energy Module - Model and/or Brand name .......... BVMCN52840CFSLR - FCC ID ............................................. 2ABXRBM5284C - IC .................................................... N/A - Manufacturer Name .................... Braveridge Co., Ltd. - Manufacturer Address ................ 3-27-2 Susenji Nishi-Ku, Fukuoka City, Fukuoka Prefecture, 819-0373 - Variant model Name ...................... N/A Date of receipt of sample(s) 19 July. 2025 Date of Test 19 Aug. 2025 - 12 Sep. 2025 Test standard(s) CFR 47 Part2 Section 1.1310 CFR 47 Part2 Section 2.1093 KDB 447498 D01 Test Results & uncertainty See Summary Issue date 11 Nov. 2025 Note 1. The results shown in this test report refer only to the sample(s) tested. Note 2: This report shall not be reproduced except in full, without the written approval of Intertek. Intertek ETL SEMKO Korea Ltd. Report No.: 250700022SEL-TEL2 Copyright © 2017 Intertek Page 2 of 4 TRF No. General (eng) / Version: 19 Apr 2017 SECTION 1 CONTENTS SECTION NAMES PAGE 1. Contents 2 2. General Description 3 3. Test Result 4 Report No.: 250700022SEL-TEL2 Copyright © 2017 Intertek Page 3 of 4 TRF No. General (eng) / Version: 19 Apr 2017 SECTION 2 GENERAL DESCRIPTION 1. Laboratory Information Name Intertek ETL SEMKO Korea Ltd. Address Intertek building, 3, Gongdan-ro 160beon-gil, Gunpo-si, Gyeonggi-do, 15845, Korea Phone No. +82 2 567 7474 Fax No. +82 2 567 8482 Accreditations FCC/IC Site Designation No : KR0163 Industry Company Number: 21965 2. Applicant Information Name Braveridge Co., Ltd. Address 3-27-2 Susenji Nishi-Ku, Fukuoka City, Fukuoka Prefecture, 819-0373 Contact Person Yuki Okawa Phone No. +81 70 4331 6821 3. Description of EUT Product name Bluetooth Low Energy Module Model name BVMCN52840CFSLR Serial No. N/A Manufacturer Braveridge Co., Ltd. Country of Manufacture Japan Rated Voltage DC 3.0 V Approved RF Module N/A Approved Module FCC ID N/A Frequency Range 2 402 MHz ~ 2 480 MHz (BT LE) Modulation Technique GFSK (1 Mbps / 2 Mbps) Number of Channel 40 CH Antenna Type Main : Dipole Antenna, Sub : Chip Antenna Antenna Gain 5.03 dBi, 1.90 dBi Transmit Power 7.79 dBm (Peak) HVIN(Hardware Version Identification Number) 1.0 FVIN(Firmware Version Identification Number) 7.0.1 RF Power Setting Parameter Power Level: 8 Report No.: 250700022SEL-TEL2 Copyright © 2017 Intertek Page 4 of 4 TRF No. General (eng) / Version: 19 Apr 2017 SECTION 3 TEST RESULT 1. MPE Evaluation 1.1 Rule According to 1.1310 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 1.2 Measurement Procedure According to KDB Publication 447498 D01, section 4.3.1, per the calculations of item 1 (Power(mW)/separation (mm)*sqrt(f(GHz)≤3.0), SAR is required as shown in the table below where calculated values are greater than 3.0: 1.3 Test Results – Complied Mode Frequency (MHz) Measured Average Power (dBm) Average Power (dBm) EIRP (dBm) Power Density (mW/cm^2) Limit (mW/cm^2) GFSK 1 Mbps 2 402 5.48 7.54 12.57 0.011 436 1.00 2 440 5.54 7.60 12.63 0.011 595 1.00 2 480 5.53 7.59 12.62 0.011 568 1.00 GFSK 2 Mbps 2 402 2.63 7.50 12.53 0.011 343 1.00 2 440 2.72 7.59 12.62 0.011 580 1.00 2 480 2.73 7.60 12.63 0.011 607 1.00 Note 1): Average Power(dBm) = Measured Average Power(dBm) + D.C.C.F(dB) Note 2): Measured Average Power was tested by Power meter & sensor(VBW = 50 MHz) Note 3): EIRP(dBm) = Average Power(dBm) + Antenna Gain(5.03 dBi) Note 4): Distance(cm) = 20 cm 1.4 RF Exposure Compliance Issue Therefore, EUT is not required the SAR Evaluation. - End -

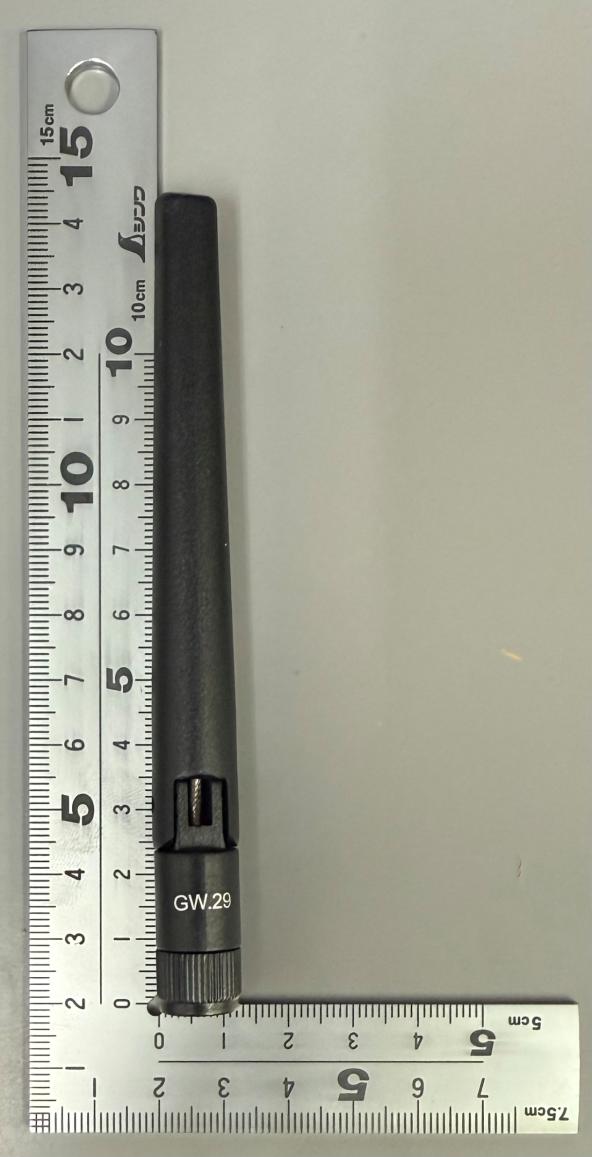

SPE-23-8-275-B Taoglas IP67 Wi-Fi® 2.4GHz Terminal Antenna Part No: GW.29.A153 Description IP67 Wi-Fi® 2.4GHz Dipole Antenna RP-SMA(M) Hinged Features: 2.4GHz Band Operation Waterproof Outdoor Use - IP67 Rating 5dBi Gain High Efficiency Hinged RP-SMA (M) Connector Height: 123.7mm Diameter: 13mm RoHS & Reach Compliant 1 www.taoglas.com SPE-23-8-275-B 1. Introduction 2 2. Specification 3 3. Antenna Characteristics 4 4. Radiation Patterns 6 5. Mechanical Drawing 10 6. Packaging 11 Changelog 12 Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. 2 www.taoglas.com SPE-23-8-275-B 1. Introduction The Taoglas GW.29 is a IP67, 2.4GHz Wi-Fi® terminal mount dipole antenna. At just 127.3mm in height and 13mm in diameter, the robust IP67 PC+PBT enclosure can be mounted indoor or outdoor straight or at right angle to the device with its hinged RP-SMA(M) connector. It is ideal for applications such as Bluetooth®, BLE, and Wireless LAN. The GW.29, designed for superior performance and reliability, has an omnidirectional radiation pattern and extremely high efficiency and gain on all Wi-Fi® bands. Typical applications include: - Smart Home - Gateways/Routers - Connected Agriculture The GW.29 has optimized Peak Gain making it a cost-effective, high-performing choice for any indoor or outdoor application. Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module. Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna tested in free-space can degrade by at least 1 or 2dBi when installed. So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect. This great product has an RP-SMA (M) connector as standard and is an ideal solution for any device requiring reliable performance in a slim form factor. The innovative hinge design not only provides flexibility when mounting the antenna, but its weatherproof, IP67 rating, means it be used in outdoor locations where potential water ingress would prevent other terminal mount antennas from being used. For further information, or support to test and integrate this product please contact your regional Taoglas customer support team. 3 www.taoglas.com SPE-23-8-275-B 2. Specification Electrical Frequency (MHz) 2400~2500 Efficiency (%) Free space 83.5 15X9cm Ground plane 75.9 9X15cm Ground plane 75.0 Average Gain (dB) Free space -0.78 15X9cm Ground plane -1.20 9X15cm Ground plane -1.25 Peak Gain (dBi) Free space 2.32 15X9cm Ground plane 2.92 9X15cm Ground plane 5.03 Impedance 50Ω Polarization Linear Radiation Pattern Omni Mechanical Height 123.7 ±2mm Planner Dimension Ø13 x 123.7mm Casing PC+PBT Connector RP-SMA(M) Environmental Temperature Range -40°C to 85°C Waterproof Rating IP67 Humidity Non-condensing 65°C 95% RH 4 www.taoglas.com SPE-23-8-275-B 3. Antenna Characteristics 3.1 Return Loss 3.2 Efficiency 5 www.taoglas.com SPE-23-8-275-B 3.3 Average Gain 3.4 Peak Gain 6 www.taoglas.com SPE-23-8-275-B 4. Radiation Patterns 4.1 Test Setup 7 www.taoglas.com SPE-23-8-275-B 4.2 Free space 3D and 2D Radiation Patterns at 2450 MHz XY Plane XZ Plane YZ Plane 8 www.taoglas.com SPE-23-8-275-B 4.3 15x9cm Ground 3D and 2D Radiation Patterns at 2450 MHz XY Plane XZ Plane YZ Plane 9 www.taoglas.com SPE-23-8-275-B 4.4 9x15cm Ground 3D and 2D Radiation Patterns at 2450 MHz XY Plane XZ Plane YZ Plane 10 www.taoglas.com SPE-23-8-275-B 5. Mechanical Drawing 11 www.taoglas.com SPE-23-8-275-B 6. Packaging 12 www.taoglas.com SPE-23-8-275-B Changelog for the datasheet SPE-23-8-275 – GW.29.A153 Revision: B (Current Version) Date: 2025-06-03 Notes: Updated packaging information Author: Paul Liu Previous Revisions Revision: A (Original First Release) Date: 2023-09-27 Notes: Initial Release Author: Cesar Sousa 13 www.taoglas.com SPE-23-8-275-B

BVMCN52840CFSLR Antenna Data sheet 1 Taiyo Yuden Co., Ltd. TSA5NA2K2G45NS001T /AH316M2450012.4GHz1.9dBiSMT No.CompanyParts No.FrequencyPeak GainConnection Address: yobashi, Chuo-ku, ,2-7-19 Tokyo 104-0031, Japan

Report No.: 250700022SEL-TEL1 Copyright © 2017 Intertek Page 2 of 56 TRF No. General (eng) / Version: 19 Apr 2017 SECTION 1 CONTENTS SECTION NAMES PAGE 1. Contents 2 2. General Description 3 3. Summary 7 4. Test Result 8 5. Revision History 56 Report No.: 250700022SEL-TEL1 Copyright © 2017 Intertek Page 3 of 56 TRF No. General (eng) / Version: 19 Apr 2017 SECTION 2 GENERAL DESCRIPTION 1. Laboratory Information Name Intertek ETL SEMKO Korea Ltd. Address Intertek building, 3, Gongdan-ro 160beon-gil, Gunpo-si, Gyeonggi-do, 15845, Korea Phone No. +82 2 567 7474 Fax No. +82 2 567 8482 Accreditations FCC/IC Site Designation No : KR0163 Industry Company Number: 21965 2. Applicant Information Name Braveridge Co., Ltd. Address 3-27-2 Susenji Nishi-Ku, Fukuoka City, Fukuoka Prefecture, 819-0373 Contact Person Yuki Okawa Phone No. +81928345789 3. Description of EUT Product name Bluetooth Low Energy Module Model name BVMCN52840CFSLR Serial No. N/A Manufacturer Braveridge Co., Ltd. Country of Manufacture Japan Rated Voltage DC 3.0 V Approved RF Module N/A Approved Module FCC ID N/A Frequency Range 2 402 MHz ~ 2 480 MHz (BT LE) Modulation Technique GFSK (1 Mbps / 2 Mbps) Number of Channel 40 CH Antenna Type Main : Dipole Antenna, Sub : Chip Antenna Antenna Gain 5.03 dBi, 1.90 dBi Peak Conducted Power 7.79 dBm (Peak) HVIN(Hardware Version Identification Number) 1.0 FVIN(Firmware Version Identification Number) 7.0.1 RF Power Setting Parameter Power Level: 8 Report No.: 250700022SEL-TEL1 Copyright © 2017 Intertek Page 4 of 56 TRF No. General (eng) / Version: 19 Apr 2017 4. Test Instrument Control No. Equipment Manufacturer Model Serial No. Cal. Due. EMC001 EMI Test Receiver Rohde & Schwarz ESU40 100478 2026/1/2 EMC002 EMI Test Receiver Rohde & Schwarz ESU26 100590 2026/1/2 EMC003 Open Switch and Control Platform Rohde & Schwarz OSP130 101467 N/A EMC004 EMI Test Receiver Rohde & Schwarz ESR7 101560 2026/1/2 EMC009 Loop Antenna Rohde & Schwarz HFH2-Z2 100465 2027/2/6 EMC025 Biconilog (Type7) ETS-Lindgren 3142E 00203547 2025/12/19 EMC028 DRG Horn (Medium) ETS-Lindgren 3117 00201915 2026/10/2 EMC031 Standard Gain Horn ETS-Lindgren 3160-09 LM9860 2026/5/12 EMC074 AMP Rohde & Schwarz SCU-01D 1904843 2026/6/27 EMC079 AMP Rohde & Schwarz SCU-26D 1879069 2026/6/26 EMC169 Two-Line V-Network Rohde & Schwarz ENV216 3560.6550.12- 102228-hQ 2026/4/3 EMC215 Preamplifier Agilent HP 8449B 3008A01832 2026/2/4 RF003 VECTOR SIGNAL GENERATOR Rohde & Schwarz SMBV100A 261569 2026/6/25 RF004 SIGNAL GENERATOR Rohde & Schwarz SMB100A 178493 2026/6/25 RF005 SPECTRUM ANALYZER Rohde & Schwarz FSW43 103893 2026/6/12 RF022 System DC Power Supply KEYSIGHT N5747A US16D4132P 2026/6/25 RF024 RF Meter ANRITSU ML2495A 1648009 2026/7/7 RF025 RF Sensor ANRITSU MA2411B 1531208 2026/7/7 41 Softwarer Rohde & Schwarz EMC32 Ver10.30.00 N/A 5. Support Equipment Description Manufacturer Model Serial No. Note-PC HP HP EliteBook 830 G6 JPH0051WSW Report No.: 250700022SEL-TEL1 Copyright © 2017 Intertek Page 5 of 56 TRF No. General (eng) / Version: 19 Apr 2017 6. Channel List Channel No. Frequency(MHz) Channel No. Frequency(MHz) 0 2 402 20 2 442 1 2 404 21 2 444 2 2 406 22 2 446 3 2 408 23 2 448 4 2 410 24 2 450 5 2 412 25 2 452 6 2 414 26 2 454 7 2 416 27 2 456 8 2 418 28 2 458 9 2 420 29 2 460 10 2 422 30 2 462 11 2 424 31 2 464 12 2 426 32 2 466 13 2 428 33 2 468 14 2 430 34 2 470 15 2 432 35 2 472 16 2 434 36 2 474 17 2 436 37 2 476 18 2 438 38 2 478 19 2 440 39 2 480 7. Test Condition Mode Test Frequency(MHz) Lowest Middle Highest GFSK_1 Mbps 2 402 2 440 2 480 GFSK_2 Mbps 2 402 2 440 2 480 Report No.: 250700022SEL-TEL1 Copyright © 2017 Intertek Page 6 of 56 TRF No. General (eng) / Version: 19 Apr 2017 8. Duty Cycle Correction Factor Test Mode – GFSK 1 Mbps – Lowest Channel - 2 402 MHz Note 1) Period : 0.627 0 ms, On time : 0.390 6 ms (Packet Transmission) Note 2) DCCF = 10log(1/x) = 10log(1/0.623) = 2.055 dB, x = 0.627 0 / 0.390 6 = 0.623 Note 3) D = 62.3 % (duty cycle < 98 %) Test Mode – GFSK 2 Mbps – Lowest Channel - 2 402 MHz Note 1) Period : 0.625 5 ms, On time : 0.207 ms (Packet Transmission) Note 2) DCCF = 10log(1/x) = 10log(1/0.331) = 4.803 dB, x = 0.207/0.625 5 = 0.331 Note 3) D = 33.1 % (duty cycle < 98 %) Report No.: 250700022SEL-TEL1 Copyright © 2017 Intertek Page 7 of 56 TRF No. General (eng) / Version: 19 Apr 2017 SECTION 3 SUMMARY 1. Summary of test results Requirements FCC Rule IC Rule Compliance Antenna Requirement 15.203 15.247(b)(4) RSS-Gen 6.8 Complied Maximum Output Power 15.247(b)(4) RSS-247 5.4(d) Complied Power Spectral Density 15.247(e) RSS-247 5.2(b) Complied 6 dB Channel Bandwidth 15.247(a)(2) RSS-247 5.2(a) Complied Occupied Bandwidth N/A RSS-Gen 6.7 Complied Radiated Spurious Emissions & Restricted Band, Conducted Spurious Emissions & Band Edge 15.247(d) 15.205(a) 15.209(a) RSS-Gen 8.9 RSS-Gen 8.10 Complied Conducted Emissions 15.207(a) RSS-Gen 8.8 Complied Test method: According to ANSI C63.10-2020+Cor1-2023, KDB 558074 D01 15.247 Meas Guidance v05r02 2. Measurement Uncertainty Parameters Uncertainty (k = 2) Maximum Peak Conducted Output Power 2.71 dB Power Spectral Density 2.42 dB Channel Bandwidth 3.41 kHz Spurious Emissions (Conducted) 2.43 dB Conducted Emissions 9 kHz to 150 kHz 3.30 dB 150 kHz to 30 MHz 3.70 dB Spurious Emissions (Radiated) 9 kHz to 30 MHz 3.23 dB 30 MHz to 1 GHz 4.97 dB 1 GHz to 6 GHz 6.60 dB 6 GHz to 18 GHz 6.90 dB 18 GHz to 26.5 GHz 5.42 dB Report No.: 250700022SEL-TEL1 Copyright © 2017 Intertek Page 8 of 56 TRF No. General (eng) / Version: 19 Apr 2017 SECTION 4 TEST RESULT 1. Antenna Requirement 1.1 Rule According to §15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the …

Text truncated - open the document above for the full version.

Setup Photos Radiated Emissionss(9kHz ~ 30MHz) Radiated Emissionss(30MHz ~ 1GHz) Radiated Emissionss(1GHz ~ 18GHz) Radiated Emissionss(18GHz ~ 26.5GHz) Conducted Emissions
