2ABYNRC-A5Remote Control

BEFORE USING YOUR NEW PRODUCT, PLEASE READ THESE INSTRUCTIONS TO PREVENT ANY DAMAGE. USER GUIDE On-Camera Video LED Light - LED Dual Color PT-DVL308C2 USER GUIDE PT-DVL308C2 15-0205_MAN_V2_ENG.fm Page 1 Thursday, April 23, 2015 9:42 AM 2 PT-DVL308C2 On-Camera Video LED Light - LED Dual Color Contents Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . .3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Package contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Back view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 LCD panel (video light and remote control) . . . . . . . . . 8 Setting up your ash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Providing power to your video light . . . . . . . . . . . . . . . . 9 Understanding the remote control . . . . . . . . . . . . . . . 11 Using your video light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Mounting your video light . . . . . . . . . . . . . . . . . . . . . . . 12 Turning your video light on and o . . . . . . . . . . . . . . 13 Selecting the brightness and color temperature . . 13 Setting the channel and group . . . . . . . . . . . . . . . . . . . 14 Specications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Legal statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 One-year limited warranty - Platinum. . . . . . . . . . . . . . . 17 PT-DVL308C2 15-0205_MAN_V2_ENG.fm Page 2 Thursday, April 23, 2015 9:42 AM PT-DVL308C2 On-Camera Video LED Light - LED Dual Color 3 Welcome Congratulations on your purchase of a high-quality Platinum product. Your PT-DVL308C2 on-camera video light represents the state-of-the-art in video light design and is designed for reliable and trouble-free performance. Important safety instructions 1Read these instructions. 2Keep these instructions. 3Heed all warnings. 4Follow all instructions. 5Do not use this apparatus in the water. 6Clean only with a dry cloth. 7In stall in accordance with the manufacturer's instructions. 8Do not store near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat. 9Only use attachments/accessories specied by the manufacturer. 10Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 11To reduce the risk of re or electric shock, do not expose this device to rain, moisture, dripping, or splashing, and no objects lled with liquids, such as vases, shall be placed on it. PT-DVL308C2 15-0205_MAN_V2_ENG.fm Page 3 Thursday, April 23, 2015 9:42 AM 4 Features Package contents •LED video light •Remote control •Diusion lter •Rechargable Lithium Ion battery •Battery charger •AC adapter •Mini stand •Handle •User Guide •Quick Start Guide PT-DVL308C2 15-0205_MAN_V2_ENG.fm Page 4 Thursday, April 23, 2015 9:42 AM PT-DVL308C2 On-Camera Video LED Light - LED Dual Color 5 Front view #ItemDescription 1LEDs (308)Provide the light. 2Diusion lterHelps to diuse the light to provide a more uniform and softer illumination. 3Upper angle adjusting knob Sets the vertical angle of the video light. Use in conjunction with the lower angle adjusting knob to obtain the desired light angle. 4Lower angle adjusting knob Sets the vertical angle of the video light. Use in conjunction with the upper angle adjusting knob to obtain the desired light angle. 5Camera h ot shoe connector Slid es into your camera’s hot shoe to mount the video light to your camera. 6Locking ringSecures the video light to your camera’s hot shoe. PT-DVL308C2 15-0205_MAN_V2_ENG.fm Page 5 Thursday, April 23, 2015 9:42 AM 6 Back view #ItemDescription 1Battery compartment Install the included NP-550/570 rechargeable battery into this compartment to power the video light. 2LCD panelDisplays setting and status information. 3DC IN power jack Connect an AC adapter (6.5~12VDC - provided) to this jack to power your video light using external power. 4Mounting hole 1/4-in mounting hole to mount your video light on the handle or a tripod. 5CH/GRP button Enables the Select dial to set the channel and group. Press once for gro up and twice for channel. PT-DVL308C2 15-0205_MAN_V2_ENG.fm Page 6 Thursday, April 23, 2015 9:42 AM PT-DVL308C2 On-Camera Video LED Light - LED Dual Color 7 Remote control 6Select dial/ SET button Turn the Select dial to set the brightness of your video light. Press the SET button, then turn the Select dial to adjust the color temperature of your video light. Turn to select the channel or group when enabled by pressing the CH/ GRP button. 7Power buttonPress to turn your video light on or o. #ItemDescription 1LCD panelDisplays information and video light settings. 2 (power) buttonPress to activate or deactivate the LED groups. 3– buttonPress to adjust the light brightness and color temperature. 4CH/GRP buttonEnables the + button to select the channel and group. #ItemDescription PT-DVL308C2 15-0205_MAN_V2_ENG.fm Page 7 Thursday, April 23, 2015 9:42 AM 8 LCD panel (video light and remote control) 5+ buttonPress to adjust the light brightness and color temperature. Press to select the channel or group when enabled by pressing the CH/GRP button. 6SET buttonPress to enable the + button to set the color temperature (changeable version only). #ItemDescription 1Battery charge indicator Shows the current level of battery charge when using batte…

Text truncated - open the document above for the full version.

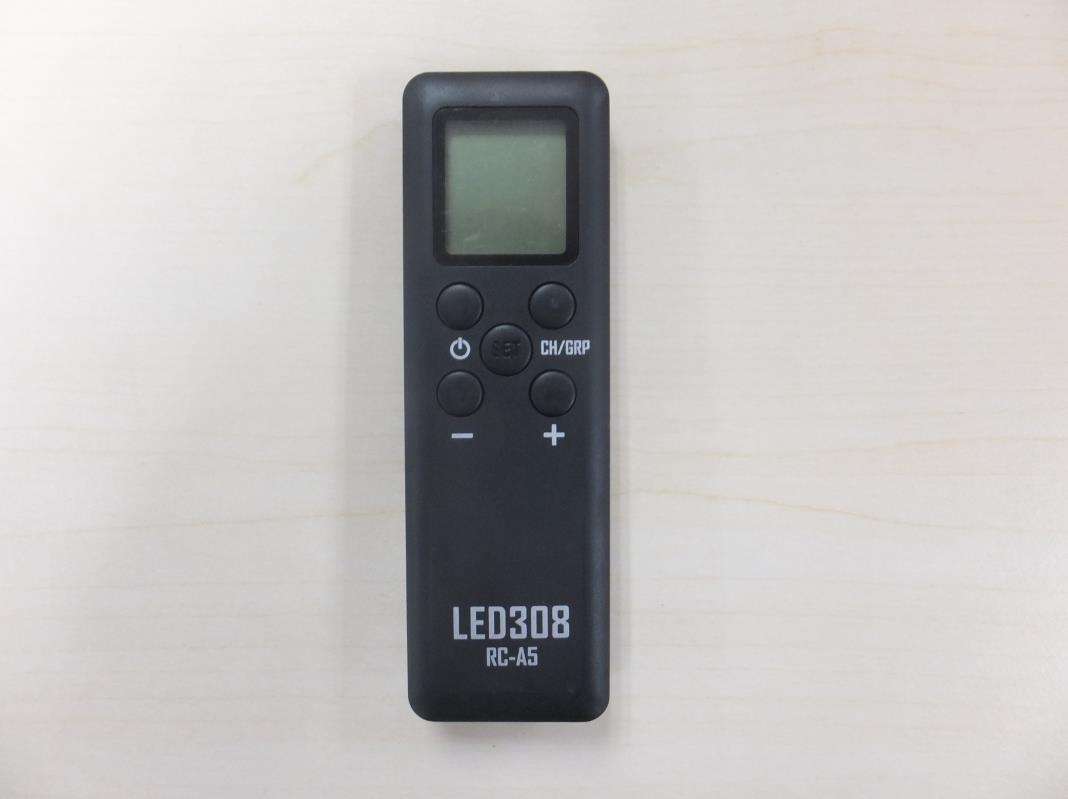

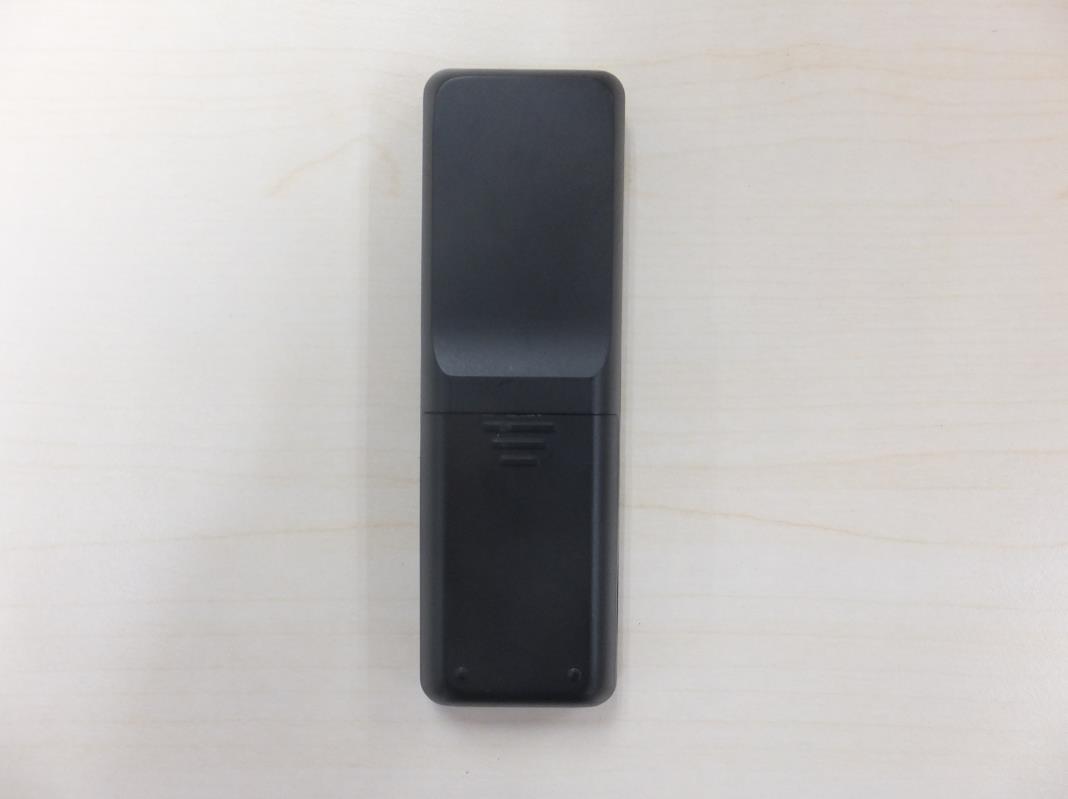

Page 1 of 2 Type Designation: RM-DVL308C2 External Photos Report Number: 17047317 001 Page 2 of 2 Type Designation: RM-DVL308C2 External Photos Report Number: 17047317 001

29×5mm

Page 1 of 2 Type Designation: RM-DVL308C2 Internal Photos Report Number: 17047317 001 Page 2 of 2 Type Designation: RM-DVL308C2 Internal Photos Report Number: 17047317 001

Produkte Products Prüfbericht - Nr.: Test Report No. 17047317 001 Seite 27 von 30 Page 27 of 30 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Pass Test standard : RSS-102 Issue 5 March 2015 FCC KDB Publication 447498 v05r02 The maximum peak output power of the transmitter is 0.00063mW (63.21dBμV/m) only, which less than 52mW. Hence the EUT is exempted from routine evaluation limits (SAR Evaluation) according to clause 2.5.1 of RSS-102 Issue 5. Since maximum peak output power of the transmitter is 0.00063mW<22mW, and the distance from EUT to human is 5mm, hence the EUT is exclueded from SAR evaluation according to FCC KDB publication 447498 D01 General RF Exposure Guidance v05r02.

Produkte Products Prüfbericht - Nr.: Test Report No. 17047317 001 Seite 2 von 30 Page 2 of 30 TEST SUMMARY 5.1.1 TYPES OF MOMENTARY SIGNALS RESULT: Pass 5.1.2 FIELD STRENGTH OF EMISSION RESULT: Pass 5.1.3 20DB BANDWIDTH AND 99% BANDWIDTH RESULT: Pass 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 17047317 001 Seite 3 von 30 Page 3 of 30 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 TEST FACILITIES ............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 TRACEABILITY .................................................................................................................. 5 2.4 CALIBRATION ................................................................................................................... 5 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 6 3. GENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 INDEPENDENT OPERATION MODES .................................................................................... 7 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 7 3.5 SUBMITTED DOCUMENTS .................................................................................................. 7 4. TEST SET-UP AND OPERATION MODES .............................................................................. 8 4.1 PRINCIPLE OF CONFIGURATION SELECTION ........................................................................ 8 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................ 8 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT .......................................................... 8 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ......................................................... 8 4.5 TEST SETUP DIAGRAM ...................................................................................................... 9 5. TEST RESULTS ............................................................................................................... 10 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .................................................................. 10 5.1.1 Types of Momentary Signals...................................................................................................... 10 5.1.2 Field Strength of Emission ......................................................................................................... 12 5.1.3 20dB Bandwidth and 99% Bandwidth ........................................................................................ 25 6. SAFETY HUMAN EXPOSURE ............................................................................................. 27 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ................................................................... 27 6.1.1 Electromagnetic Fields ............................................................................................................... 27 7. PHOTOGRAPHS OF THE TEST SET-UP .............................................................................. 28 8. LIST OF TABLES ............................................................................................................. 30 9. LIST OF PHOTOGRAPHS .................................................................................................. 30 Produkte Products Prüfbericht - Nr.: Test Report No. 17047317 001 Seite 4 von 30 Page 4 of 30 1. General Remarks 1.1 Complementary Materials None. 2. Test Sites 2.1 Test Facilities Audix Technology (Shenzhen) Co., Ltd. (FCC Registration No.: 90454) (Test site Industry Canada No.: 5183A-1) No. 6, Ke Feng Road, Block 52, Shenzhen Science & Industry Park Nantou, Shenzhen, Guangdong, P.R. China The tests at the test site have been conducted under the supervision of a TÜV engineer. Produkte Products Prüfbericht - Nr.: Test Report No. 17047317 001 Seite 5 von 30 Page 5 of 30 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Calibrated until Transmitter spurious emissions (30MHz – 1GHz) 3#Chamber AUDIX N/A N/A 2015-11-22 EMI Spectrum Agilent E4407B MY41440292 2015-04-27 Test Receiver Rohde & Schwarz ESVS10 834468/011 2015-04-27 Amplifier HP 8447D 2648A04738 2015-04-27 Bilog Antenna TESEQ CBL6112D 35375 2015-06-17 RF Cable MIYAZAKI CFD400-NL 3# Chamber No.1 2015-04-27 Coaxial Switch Anritsu MP59B 6200313662 2015-04-27 Test Software AUDIX E3 6.2009-5-21a(n) N/A Transmitter spurious emissions (1 – 5GHz) 3#Chamber AUDIX N/A N/A 2015-11-01 Spectrum Analyzer Agilent E4407B MY41440292 2015-04-27 Horn Antenna ETS 3115 9607-4877 2015-09-19 Amplifier Agilent 8449B 3008A00863 2015-04-27 RF Cable Hubersuhner SUCOFLEX106 77977/6 2015-04-27 RF Cable Hubersuhner SUCOFLEX106 28616/2 2015-04-27 MPEG2 Measurement Generator Rohde & Schwarz DVG 100319 2015-10-28 T…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17047317 001 Seite 28 von 30 Page 28 of 30 7. Photographs of the Test Set-Up Photograph 1: Set-up for Radiated Emission below 1000MHz Photograph 2: Set-up for Radiated Emission of 1 – 5GHz Produkte Products Prüfbericht - Nr.: Test Report No. 17047317 001 Seite 29 von 30 Page 29 of 30 Photograph 3: Set-up for Radiated Emission of 1 – 5GHz for IC
