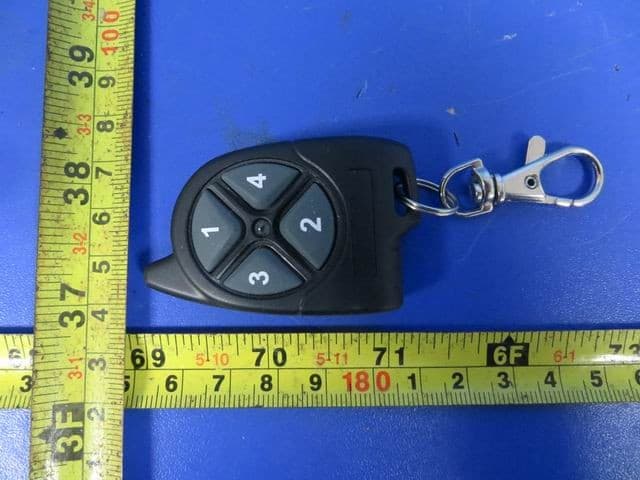

2ABYXPLRCC1RF Remote Control

JJ-RC-C1 User Guide z Frequency：433.92MHz z Indicator light：Blue LED z Buttons：1st—1000 2nd—0001 3rd—0010 4th—0100 z Working Voltage：12V(NEW LEADER 27A 12V) Noted：Please take battery out when no use。 z Working current：7ma±0.5ma z Picture This remote control is used to work with receiver. Remote control is to transmit signal and receiver is to receive signal. No other usage. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference rece received, including interference that may cause undesired operation. device must accept any in

S Platinum Access Systems Inc. Add: 1725 E. Grevillea CT, Ontario, CALIFORNIA Tel: 909 923 5916 Fax: 909 923 7890 2014-02-26 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2ABYXPLRCC1 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : AYLA Wu / sales Contact information / address : 1725 E. Grevillea CT, Ontario, CALIFORNIA Tel: 909 923 5916 Fax: 909 923 7890 E-Mail: [email protected]

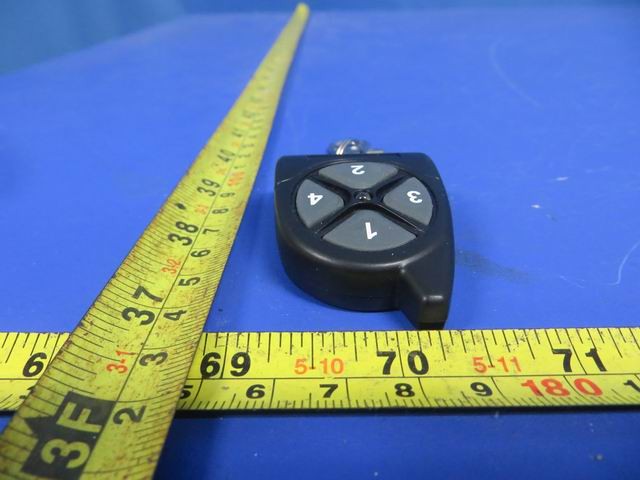

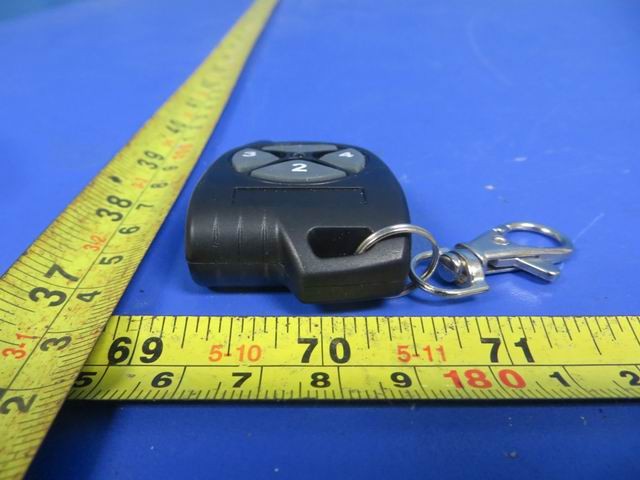

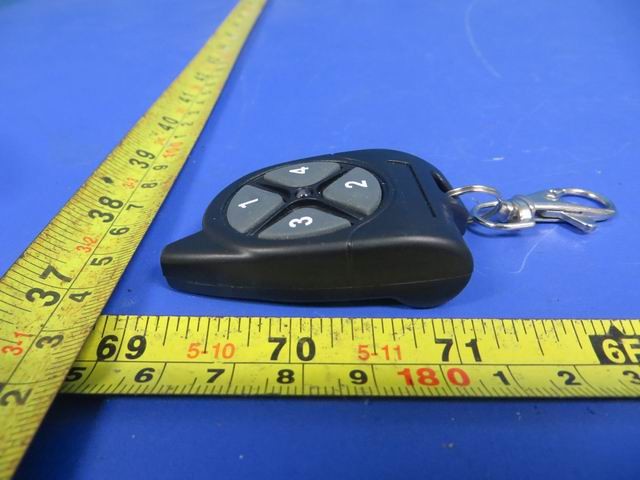

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABYXPLRCC1 Report No.: LCS140117329TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABYXPLRCC1 Report No.: LCS140117329TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABYXPLRCC1 Report No.: LCS140117329TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2ABYXPLRCC1 Report No.: LCS140117329TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L2.0cm*W1.2cm Material: Tagboard Glue: adhesive sticker Font color: Black Label color: White FCC ID: 2ABYXPLRCC1 Made in china Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABYXPLRCC1 Report No.: LCS140117329TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABYXPLRCC1 Report No.: LCS140117329TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABYXPLRCC1 Report No.: LCS140117329TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 24 FCC TEST REPORT For Platinum Access Systems Inc. RF Remote Control Model No.: JJ-RC-C1 Prepared for : Platinum Access Systems Inc. Address : 1725 E. Grevillea CT.Ontario, CA 91761 USA Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : January 17, 2014 Number of tested samples : 1 Serial number : Prototype Date of Test : January 17, 2014– February 25, 2014 Date of Report : February 25, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABYXPLRCC1 Report No.: LCS140117329TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 24 FCC TEST REPORT FCC CFR 47 PART 15 C(15.231): 2012 Report Reference No. .............. : LCS140117329TF Date of Issue ................................ : February 25, 2014 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Platinum Access Systems Inc. Address ........................................ : 1725 E. Grevillea CT.Ontario, CA 91761 USA Test Specification Standard ....................................... : FCC CFR 47 PART 15 Subpart C : 2012, ANSI C63.4-2003 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : RF Remote Control Trade Mark .................................. : N/A Model/ Type reference ................. : JJ-RC-C1 Ratings ......................................... : DC 12V by Battery Result ......................................... : Positive Compiled by: Supervised by: Approved by: Tree Zhan/ File administrators Fox Zhang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABYXPLRCC1 Report No.: LCS140117329TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 24 FCC--TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS140117329TF February 25, 2014 Date of issue Type / Model........................... : JJ-RC-C1 EUT......................................... : RF Remote Control Applicant............................... : Platinum Access Systems Inc. Address.................................. : 1725 E. Grevillea CT.Ontario, CA 91761 USA Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Giant Alarm System Co., Ltd. Address................................... : No.37 Yangguang Road, Optoelectronic Information Industrial park, DAXIAMEI , Nanan, Fujian, China Telephone............................... : / Fax.......................................... : / Factory................................... : Giant Alarm System Co., Ltd. Address................................... : No.37 Yangguang Road, Optoelectronic Information Industrial park, DAXIAMEI , Nanan, Fujian, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ABYXPLRCC1 Report No.: LCS140117329TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 24 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 5 1.2. OBJECTIVE ............................................................................................................................................................ 5 1.3. ENVIRONMENTAL CONDITIONS............................................................................................................................. 5 1.4. HOST SYSTEM CONFIGURATION LIST AND DETAILS ............................................................................................. 6 1.5. EXTERNAL I/O PORT ............................................................................................................................................. 6 1.6. EUT OPERATION .................................................................................................................................................. 6 1.7. ANTENNA SYSTEM .................................................................................…
