2ABZ40001Wireless Transmitter

FCC ID: 2ABZ40001 IC: 11883A-0001 Page 1/2 USER’S MANUAL FCC/IC STAMENTS FCC ID: 2ABZ40001 IC: 11883A-0001 Page 2/2

OPERATIONS MANUAL Vest + Laser laser gun- Battery-Charger Control box (CmdBox) This document is the property of LASER GAME EQUIPEMENT Any disclosure, copying, even partial, is prohibited without the prior written consent of the owner Table des matières .....................................................................................................................................................3 I. Introduction and contacts:........................................................................................................4 II. Materials and Equipment V2..................................................................................................5 II.1 Vocabulary:....................................................................................................................5 II.1.1 Turning on vests:.................................................................................................5 II.1.2 Vest set-up:..........................................................................................................5 II.1.3 Starting vests:......................................................................................................5 II.1.4 Action Code:........................................................................................................5 II.1.5 LGE Vest:............................................................................................................5 LASER GUN:........................................................................................................6 VEST:.....................................................................................................................6 BATTERY:.............................................................................................................7 II.1.6 Control box:.........................................................................................................7 II.1.7 Charger:...............................................................................................................7 POWER CORD:...................................................................................................7 CHARGER:...........................................................................................................8 CHARGER PLUG.................................................................................................8 II.1.8 maintenance battery charge Adapter:..................................................................8 II.1.9 charger Tester:.....................................................................................................9 II.2 V2 equipment in use :....................................................................................................9 II.2.1 Turning the unit on, powering the vest..............................................................10 II.2.2 Sensors N°1, N°2 and N°3 functions:...............................................................11 II.2.3 Starting vests in DEMONSTRATION mode:...................................................12 II.2.4Starting the vest in REPROGRAMMING mode:..............................................13 II.2.5 Switch off vests:................................................................................................13 II.2.6 Control box (CmdBox) :...................................................................................14 II.2.7 Charging the battery :........................................................................................15 II.3 Cleaning:.....................................................................................................................15 III. Procedures and Diagram Assembly:...................................................................................16 III.1 Control Box (CmdBox):.............................................................................................16 III.1.1 Direct connection:............................................................................................16 III.1.2 Connection with RJ 45 wall mount box:..........................................................17 III.2 Tools:..........................................................................................................................17 IV. Maintenance :......................................................................................................................18 IV.1 Limits on Maintenance:..............................................................................................18 IV.2 Useful maintenance tools:..........................................................................................18 IV.2.1 Automatic sending files:...................................................................................18 IV.2.1.1 TblErreurGilet.FIC file:.........................................................................19 IV.2.1.2 TblBat2.FIC file:....................................................................................19 IV.2.1.3 Trace,log file :........................................................................................19 IV.2.2 Automatic assignment of Vest numbers:..........................................................19 IV.2.3 Voltage test of Batteries:...................................................................................19 IV.3 Vest Tests:...................................................................................................................20 IV.3.1 Demonstration mode procedure:......................................................................20 IV.3.1.1 Checking LCD screens:..........................................................................20 This document is the property of LASER GAME EQUIPEMENT Any disclosure, copying, even partial, is prohibited without the prior written consent of the owner Page 2/46 IV.3.1.2 Vest Test 1:.............................................................................................20 IV.3.1.3 Test the rest of your equipment flee…

Text truncated - open the document above for the full version.

C C E E - - M M e e s s u u r r e e s s SAS au capital de 50 000 € / RC Grenoble B534 796 453 / SIRET 534 796 453 00015 / code APE 7490B / n° TVA : FR 59 534 796 453 SMEE ZI des Blanchisseries – Rue de Taille 38500 VOIRON Tél. 04 76 65 76 50 - FAX. 04 76 66 18 30 Email: [email protected] – Web: www.smee.fr FCC Registration Number: 0020356952 (FRN) Test Firm Registration Number: 171131 April 18 th , 2014 CONFIDENTIALITY REQUEST To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC TCB One Distribution Center Circle, #1 Littleton, MA 02702 Re: Confidentiality request for a Low Power Communication Device FCC ID: 2ABZ40001 Gentlemen, LASER GAME EQUIPEMENT requests, pursuant to 47CFR 0.459, post grant confidentiality for portions of the material contained in this application. The following document regarding this submission for FCC ID: 2ABZ40001 shall be kept confidential: 1. Block Diagram description (file: Block Diagram-2ABZ40001.pdf) 2. Operational description (file: Oper_Descr-2ABZ40001.pdf) 3. Schematics description (file: Schematics-2ABZ40001.pdf) Specifically, these exhibits contain information relating to circuit function and complexity that could be of benefit to competitors. The material contains trade secrets and confidential information that MUZIK LLC does not customarily release to the public and which is otherwise not generally available to the public. Regards, Certified By Laurent CHAPUS (Agent for this device) SMEE – CE Mesures Rue de Taille ZI des Blanchisseries 38500 Voiron - France [email protected] Applicant for this device: LASER GAME EQUIPEMENT Mr. Xavier POUILLAT 21 rue Colonel Dumont 38000 Grenoble – France [email protected] Ph : +33 (0) 4.76.12.92.66 Fax : +33 (0) 4.76.12.92.67 FRN : 0023432784 / IC Company Number : 11833A

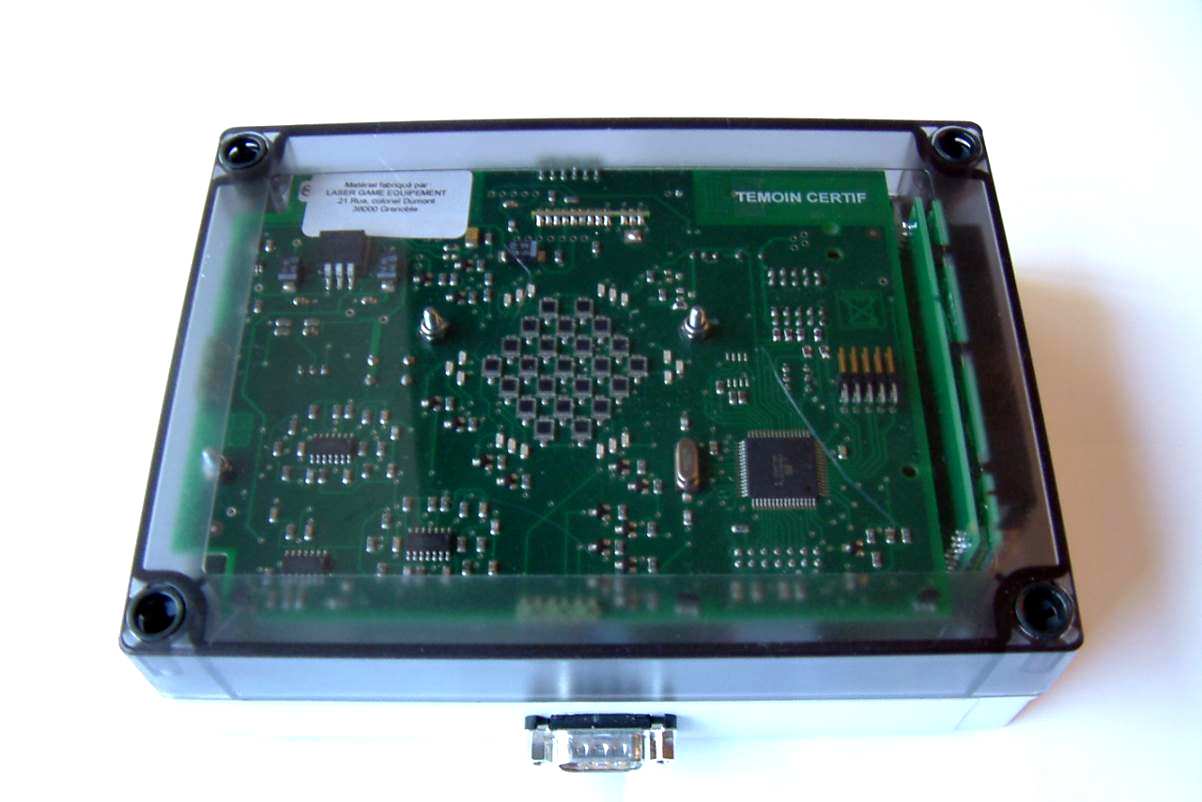

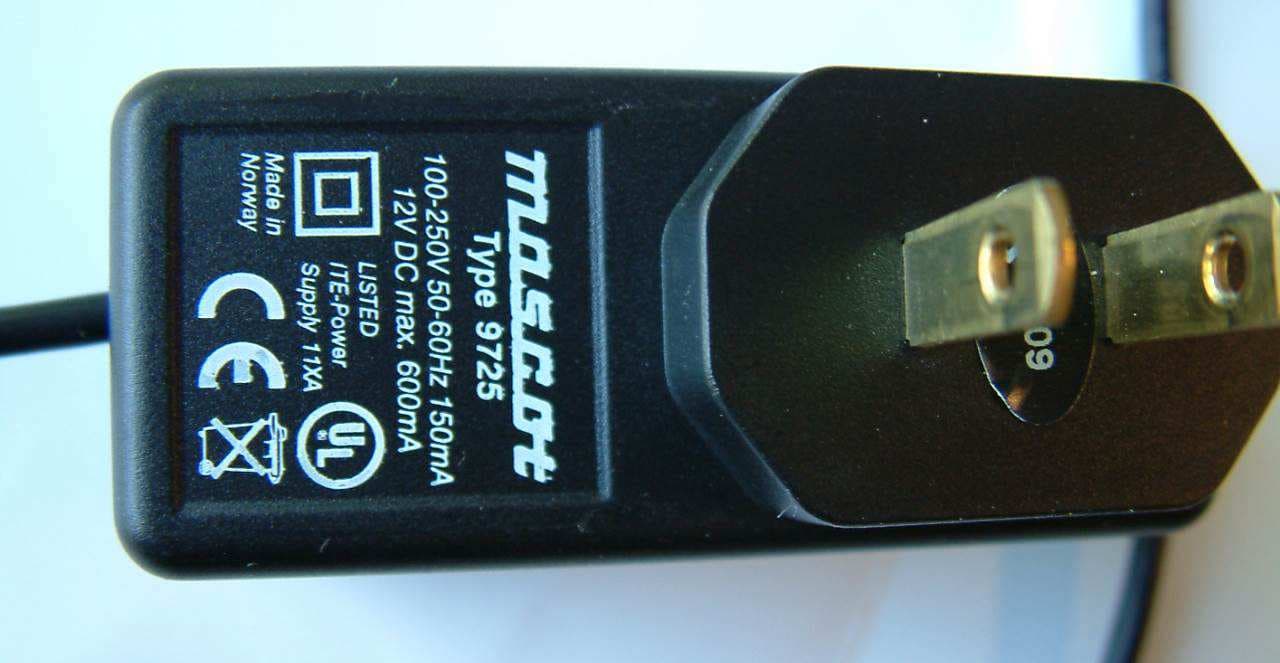

FCC ID: 2ABZ40001 IC: 11833A-0001 Page 1/4 EXTERNAL PHOTOS OF TESTED EUT General view FCC ID: 2ABZ40001 IC: 11833A-0001 Page 2/4 RS232/Power supply Connector Configuration buttons FCC ID: 2ABZ40001 IC: 11833A-0001 Page 3/4 LCD display Rear side FCC ID: 2ABZ40001 IC: 11833A-0001 Page 4/4 RS232/Power supply Cables Power supply unit

FCC ID: 2ABZ40001 IC: 11833A-0001 Page 1/1 PRODUCT LABELING FCC ID / IC number label: This is the copy of the label stuck on the product. Labels dimension: 38.1x21.2mm

FCC ID: 2ABZ40001 IC: 11833A-0001 INTERNAL PHOTOS OF TESTED EUT Internal view (PCB removed) Display FCC ID: 2ABZ40001 IC: 11833A-0001 Main PCB (Upper side) Main PCB (Rear side) FCC ID: 2ABZ40001 IC: 11833A-0001 Antenna detail LCD PCB LCD PCB (Rear side) FCC ID: 2ABZ40001 IC: 11833A-0001 Connection PCB Connection PCB (Rear side) FCC ID: 2ABZ40001 IC: 11833A-0001 RF Module Detailed view of RF module Detailed view of RF module FCC ID: 2ABZ40001 IC: 11833A-0001 RF module without cover shield

C C E E - - M M e e s s u u r r e e s s SAS au capital de 50 000 € / RC Grenoble B534 796 453 / SIRET 534 796 453 00015 / code APE 7490B / n° TVA : FR 59 534 796 453 SMEE ZI des Blanchisseries – Rue de Taille 38500 VOIRON - France Tél. 04 76 65 76 50 - FAX. 04 76 66 18 30 Email: [email protected] – Web: www.smee.fr FCC Registration Number: 0020356952 (FRN) Test Firm Registration Number: 171131 IC Company Number: 9545A Apparatus: CMDBOX LV2 FCC ID: 2ABZ40001 RF Exposure Considerations for FCC ID: 2ABZ40001 Per FCC KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by (Eq.1) below: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] If result of Eq.1 is less than or equal to the exemption limits below, then corresponding SAR test is not required. SAR Test Configuration Exemption limit 1-g SAR Result of Eq.1 ≤ 3.0 10-g extremity SAR Result of Eq.1 ≤ 7.5 where; f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation. The result is rounded to one decimal place for comparison. The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. For our device, the parameters for consideration are as follows: Channel Frequency (GHz) Maximum source- based time averaged conducted output power including tune- up tolerance (mW) Minimum separation distance (mm) Result of Eq. 1 Limit for 1-g SAR Limit for 10-g extremity SAR Verdict 1 0.4339 0.41mW 5mm 0.054 3.0 7.5 Exempt from SAR Conclusion: Therefore the device complies with FCC’s RF radiation exposure limits for general population without SAR evaluation. Certified By Laurent CHAPUS (Agent for this device) SMEE – CE Mesures Rue de Taille ZI des Blanchisseries 38500 Voiron - France [email protected] Applicant for this device: LASER GAME EQUIPEMENT Mr. Xavier POUILLAT 21 rue Colonel Dumont 38000 Grenoble – France [email protected] Ph : +33 (0) 4.76.12.92.66 Fax : +33 (0) 4.76.12.92.67 FRN : 002343278

C C E E - - M M e e s s u u r r e e s s SAS au capital de 50 000 € / RC Grenoble B534 796 453 / SIRET 534 796 453 00015 / code APE 7490B / n° TVA : FR 59 534 796 453 Rapport d’essais / Test Report N° : 20933-FCC/IC-1 Page 1 / 22 SMEE ZI des Blanchisseries – Rue de Taille 38500 VOIRON - France Tél. 04 76 65 76 50 - FAX. 04 76 66 18 30 Email: [email protected] – Web: www.smee.fr FCC Registration Number: 0020356952 (FRN) Test Firm Registration Number: 171131 IC Company Number: 9545A Matériel testé : Equipment under test: CMBBOX LV2 (Command BOX V2) Constructeur: Manufacturer: LASER GAME EQUIPEMENT 21, rue Colonel Dumont 3800 Grenoble Rapport délivré à : Issued to: LASER GAME EQUIPEMENT 21, rue Colonel Dumont 3800 Grenoble Référence de la proposition : Proposal number: 022014-20933 Date de l’essai : Date of test: March 3 rd to 18 th , 2014 Objectif des essais : Test purpose: Qualification FCC suivant les normes : FCC qualification according to standards: CFR 47, Part 15C (chapter 15.231) Industry Canada RSS-210, Issue 1 (Annex 1.1) FCC ID: IC: 2ABZ40001 11833A-0001 Lieu du test: Test location: SMEE CE-Mesures 38 VOIRON - France Test réalisé par : Test realized by: Laurent CHAPUS – Jérémy BLANCHER Conclusion : Conclusion: L’équipement satisfait aux prescriptions des normes citées en référence. The appliance complies with requirements of above mentioned standards. Ed. Date Modifications / Pages Written by: Visa Approved by: Visa 1 April 25 th , 2014 Initial Edition Jérémy Blancher Laurent Chapus La copie de ce document n'est permise que sous sa forme intégrale. Ce document est le résultat d’essais effectués sur un échantillon. Il ne préjuge pas de la conformité de l’ensemble des produits fabriqués à l’objet essayé. This document shall not be reproduced, except in full. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested. Page 2 / 22 Rapport d’essais / Test Report N° : 20933-FCC/IC-1 SUMMARY 1. TEST PROGRAM ............................................................................................................................... 3 2. EQUIPMENT UNDER TEST (EUT) .................................................................................................... 4 3. TEST CONDITIONS ........................................................................................................................... 4 4. MODIFICATIONS OF THE EQUIPMENT UNDER TEST .................................................................... 4 5. CONDUCTED EMISSION MEASUREMENT ...................................................................................... 5 6. DE-ACTIVATION TIME / PERIODIC OPERATIONS AT REGULAR INTERVALS .............................. 8 7. FIELD STRENGTH OF FUNDAMENTAL ......................................................................................... 10 8. SPURIOUS EMISSIONS .................................................................................................................. 13 9. OCCUPIED BANDWIDTH ................................................................................................................ 21 Page 3 / 22 Rapport d’essais / Test Report N° : 20933-FCC/IC-1 1. Test program • References FCC CFR 47, PART 15, Subpart B and C ANSI C63.4 (2009). American National Standard for Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Chapter 15.231 of Subpart C (Periodic operation in the band 40.66–40.70 MHz and above 70 MHz.). Industry Canada RSS-GEN (Issue 3/2010) - General Requirements and Information for the Certification of Radio Apparatus Industry Canada RSS-210 (Issue 8/2010) - Momentarily Operated Devices and Remote Control • Test Results TEST Paragraph number (FCC Part 15.231 / IC RSS-210) Spec. (FCC Part 15.231 / IC RSS-210) RESULTS (comments) Conducted emissions test 15.107 / 15.207 (a) RSS GEN 7.2.4 Table 15.207 (a) Table 4 PASS De-activation time 15.231 (a) 1) RSS-210 A1.1.1 (a) Automatically deactivate the transmitter within not more than 5 seconds of being released. PASS Periodic operations at regular intervals 15.231 (a) 3) RSS-210 A1.1.2 (c) Maximum duration allowed 2s per hour N/A (No such operation) Field strength of fundamental 15.231 (b) RSS-210 A1.1.2 (1) 10964μV/m max at 433MHz (80.8dBμV/m, Average) (100.8dBμV/m, Peak) PASS Spurious emissions 15.231 (b) RSS-210 A1.1.2 (3) 1096.4μV/m max for fundamental at 433MHz (60.8dBμV/m, Average) (80.8dBμV/m, Peak) PASS Unintentional radiations 15.205 / 15.209 RSS-Gen 4.10 / RSS-210 A1.1.2 (3) Measure at 300m 9-490kHz: 2400μV/m/F(kHz) Measure at 30m 0.490-1.705: 24000μV/m/F(kHz) 1.705-30MHz: 30μV/m Measure at 3m 30MHz-88MHz : 40 dBμV/m 88MHz-216MHz : 43.5 dBμV/m 216MHz-960MHz : 46.0 dBμV/m Above 960MHz : 54.0 dBμV/m PASS Maximum bandwidth 15.231 (c) RSS-210 A1.1.3 Shall be lower than 0.25% of center frequency (-20dB bandwidth for FCC section / 99% bandwidth for RSS section) PASS PASS: EUT complies with standard’s requirement FAIL: EUT does not comply with standard’s requirement • General conclusion: Measures and tests performed on the sample of the product CommandBox (CMDBOX LV2), in configuration and description presented in this test report, show compliance with standards FCC CFR 47, PART 15, Subpart C and Industry Canada RSS-Gen & RSS-210. Page 4 / 22 Rapport d’essais / Test Report N° : 20933-FCC/IC-1 2. Equipment Under Test (EUT) Nom / Identification CMBBOX LV2 (Command BOX V2) Ref N°: 0000 CdBox00 Auxiliaires / Auxiliaries Plastron V2 (LGE equipment, radio communication) Pc Eee PC 900 ASUS (Windows XP) Entrées-Sorties / Input / Output Câbles pour essai / Cables for test Blindé / Shielded Prévu pour >3m / Intended for >3m Serial port DB9 with DC input 2.50m, 4wires No No Version programme / Firmware version CMDBox 3.01m Alimentation / Power supply - 12V DC from power adapter (MASCOTT, type 9725, 100-250 50-60Hz / 12V DC - 600mA) Mode de fonc…

Text truncated - open the document above for the full version.

FCC ID: 2ABZ40001 IC: 11883A-0001 Page 1/2 MEASUREMENT PHOTO 1. Radiated emissions (Open area test site) Horizontal position FCC ID: 2ABZ40001 IC: 11883A-0001 Page 2/2 2. Conducted emissions
