FCC ID:2ABZQWT1 ON OFF USB • • • • ON OFF USB • • • • • • • • • • • • • • • • • not expressly approved by the party responsible This chapter contains the regulatory Warning: Changes or modifications to this device equipment. Note: . information for the FCC (USA) FCC Information for compliance could void the user’s authority to operate the This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: of 20cm (8 in) is mai This equipment complies with FCC radia expo- sure limits set forth for an uncontrolled environ-ment. This transmi er must not be co-located or opera in c with any other antenna or transmi er. In accordance with FCC require- ments of human exposure to radio frequencyĮĞůĚƐ͕ the radia element (antenna) shall be installed such that a minimum separa distance ntained from all persons. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. —Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.
Mar.11, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2ABZQWT1 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description 5. Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Iclosion Contact person: Ruud Riem-Vis Title: CEO

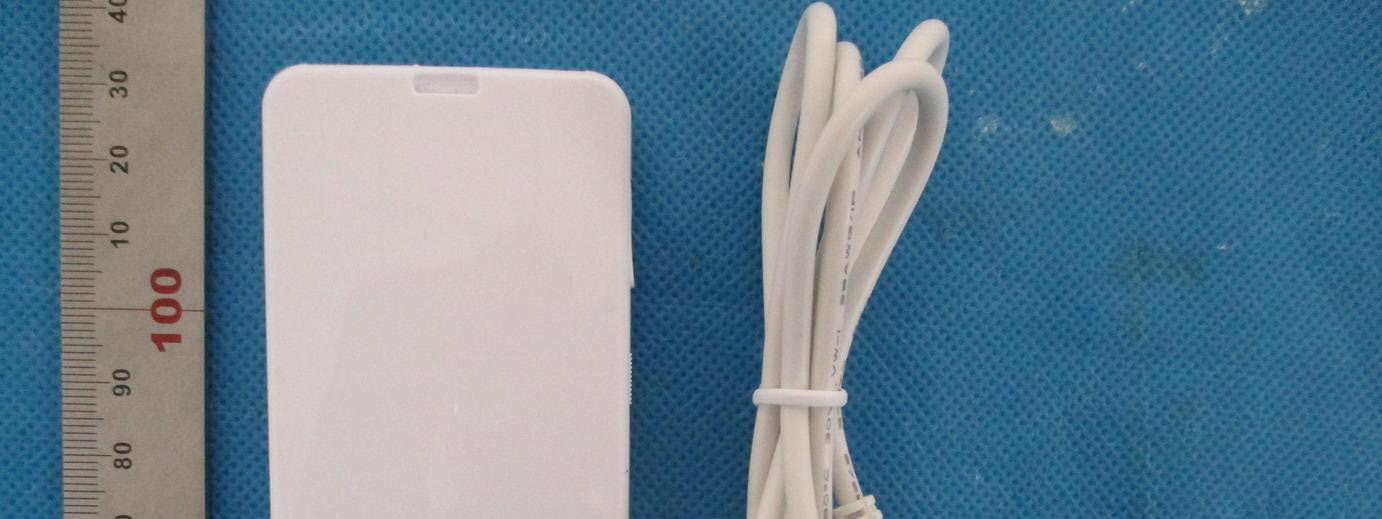

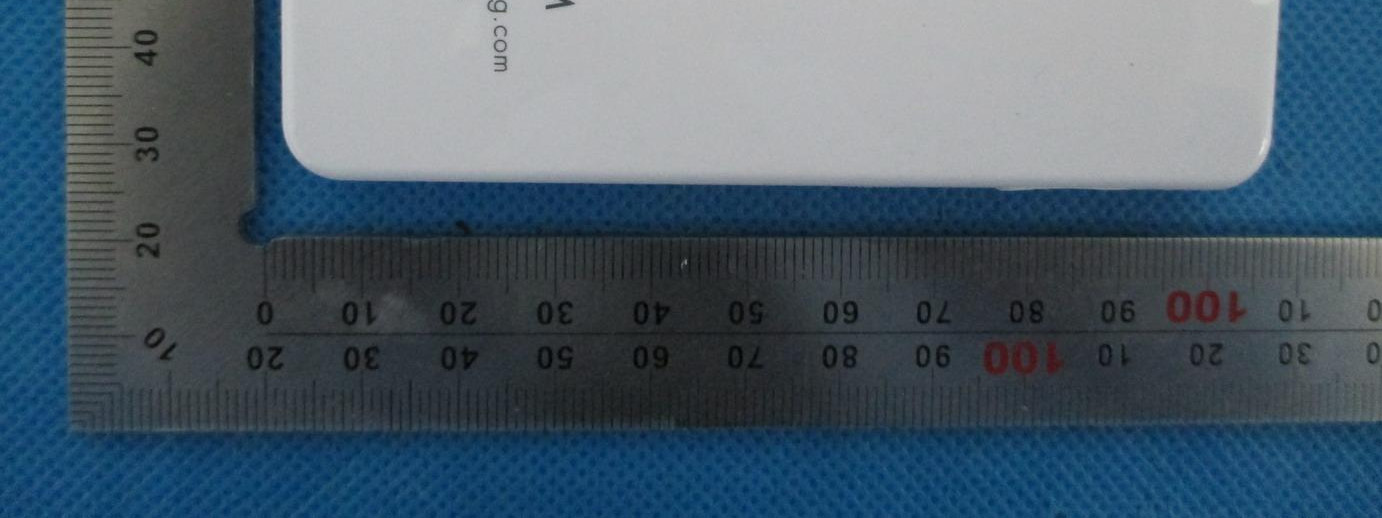

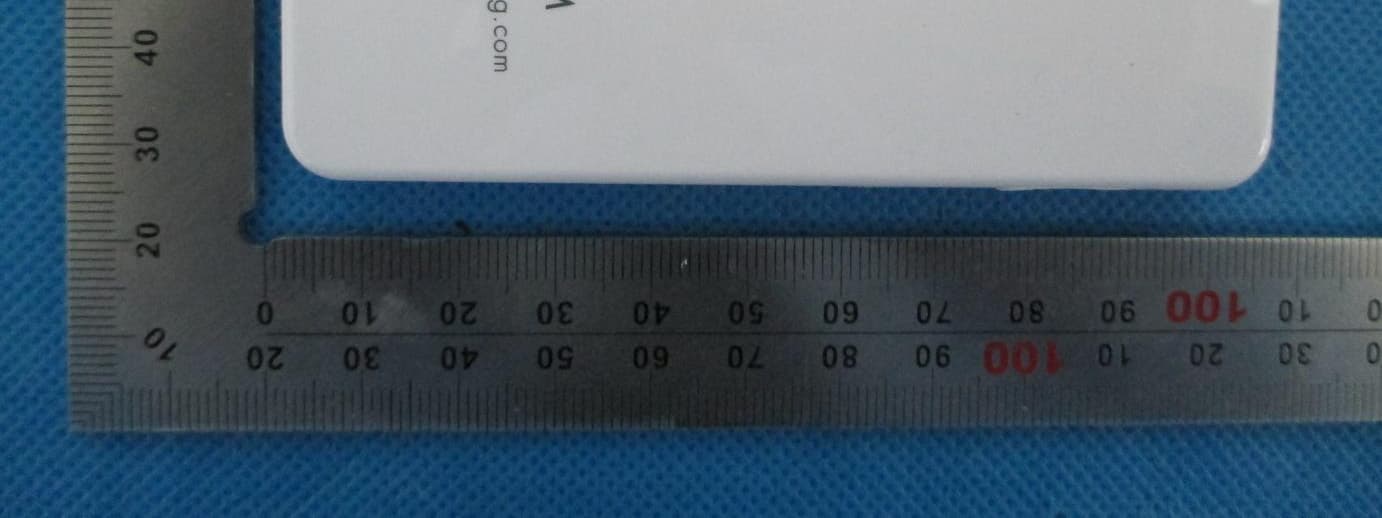

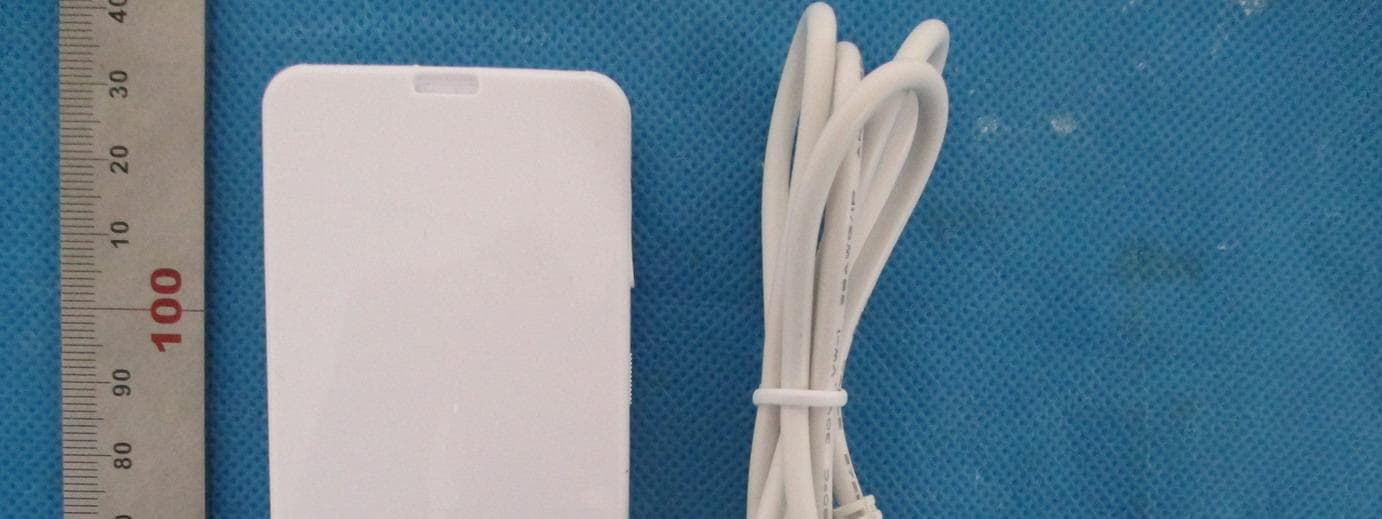

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT
FCC ID Label Location GSM Wireless Tracker Model: K-1 GSM Brand: Kizy FCC ID: 2ABZQWT1
Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 GSM Antenna INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2
Report No.:AGC01361140201FE07 Page 1 of 9 OET Bulletin 65 (MPE) Test Report Report No.: AGC01361140201FE07 FCC ID : 2ABZQWT1 APPLICATION PURPOSE Original Equipment PRODUCT DESIGNATION : GSM Wireless Tracker BRAND NAME : Kizy TEST MODEL : K‐1 GSM CLIENT : Iclosion DATE OF ISSUE : Mar. 06, 2014 STANDARD(S) : OET Bulletin 65 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.:AGC01361140201FE07 Page 2 of 9 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Mar. 06, 2014Valid Original Report Report No.:AGC01361140201FE07 Page 3 of 9 TABALE OF CONTENTS TABALE OF CONTENTS .................................................................................................................................. 2 1. TEST RESULT CERTIFICATION ................................................................................................................... 4 2. TECHNICAL INFORMATION ......................................................................................................................... 5 3. RF EXPOSURE MEASUREMENT ................................................................................................................. 6 3.1 INTRODUCTION ...................................................................................................................................... 6 3.2 FCC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) .......................................................... 7 4. CLASSIFICATION OF THE ASSESSMENT METHODS ............................................................................... 8 5. EUT OPERATION CONDITION ..................................................................................................................... 8 6. TEST RESULTS ............................................................................................................................................. 9 Report No.:AGC01361140201FE07 Page 4 of 9 1. TEST RESULT CERTIFICATION Applicant Name: Iclosion Address: Avenue de Bellevaux 3, 2000 Neuchatel, Switzerland Manufacturer Name: SHENZHEN LEAGUER TELECOM CO., LTD. Address: 1F,block Tsinghua information North Zone of Hi-tech industrial Nanshan District Shenzhen, P.R.C P.C.:518057 Product Designation GSM Wireless Tracker Brand Name Kizy Test Model K-1 GSM Hardware Version: WT1_MB_P3_V02_1230 Software Version: WT1_V05 Test Standard OET Bulletin 65 Date of Test: Feb.25,2014 to Mar. 01,2014 We (AGC), Attestation of Global Compliance (Shenzhen) Co., Ltd. for compliance with the requirements set forth in the FCC Standard OET Bulletin 65 (Edition 97-01) Supplement C (Edition 01-01). The results of testing in this report apply to the product/system which was tested only. Tested by Bart Xie Mar. 06, 2014 Checked By Kidd Yang Mar. 06, 2014 Authorized By Solger Zhang Mar. 06, 2014 Report No.:AGC01361140201FE07 Page 5 of 9 2. TECHNICAL INFORMATION Note: the following data is based on the information by the applicant. EUT DESCRIPTION A major technical description of EUT is described as following: Product Designation: GSM Wireless Tracker Hardware version: WT1_MB_P3_V02_1230 Software version: WT1_V05 Frequency Bands: GSM 850 PCS 1900 (U.S. Bands) GSM 900 DCS 1800 (Non-U.S. Bands) Antenna: PIFA Antenna Antenna gain: 1.2dBi Battery parameter: DC3.7V/1200mAh Output Power: 31.58 dBm Maximum Average Burst Power for GSM 850 28.49 dBm Maximum Average Burst Power for PCS 1900 Extreme Temp. Tolerance -10°C to +50°C ** Note: Products only for parcels to be tracked. The High Voltage DC 4.2V and Low Voltage DC 3.4V were declared by manufacturer, The EUT could not operate normally with higher or lower voltage. Report No.:AGC01361140201FE07 Page 6 of 9 3. RF EXPOSURE MEASUREMENT 3.1 INTRODUCTION Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. The 1992 ANSI/IEEE standard (See Listed limit table) specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. Report No.:AGC01361140201FE07 Page 7 of 9 3.2 FCC LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. Report No.:AGC01361140201FE07 Page 8 of 9 4. CLASSIFICATION OF THE ASSESSMENT METHODS According to user manual, The antenna of the product, under normal use condition is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm separation distance and the prohibition of operating to a person has been printed on the user’s m…
Text truncated - open the document above for the full version.
Report No.: AGC01361140201FE02 Page 1 of 58 FCC Test Report Report No.: AGC01361140201FE02 FCC ID : 2ABZQWT1 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : GSM Wireless Tracker BRAND NAME : Kizy MODEL NAME : K‐1 GSM CLIENT : Iclosion DATE OF ISSUE : Mar. 06, 2014 STANDARD(S) : FCC Part 22H & 24E Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01361140201FE02 Page 2 of 58 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Mar. 06, 2014Valid Original Report Report No.: AGC01361140201FE02 Page 3 of 58 TABLE OF CONTENTS 1. GENERAL INFORMATION ..................................................................................................................... 7 1.1 PRODUCT DESCRIPTION ............................................................................................................................................ 7 1.2 RELATED SUBMITTAL(S) / GRANT (S) ...................................................................................................................... 8 1.3 TEST METHODOLOGY ................................................................................................................................................. 9 1.4 TEST FACILITY................................................................................................................................................................ 9 1.5 MEASUREMENT INSTRUMENTS ............................................................................................................................... 9 1.6 SPECIAL ACCESSORIES .............................................................................................................................................. 9 1.7 EQUIPMENT MODIFICATIONS .................................................................................................................................... 9 2. SYSTEM TEST CONFIGURATION ....................................................................................................... 10 2.1 EUT CONFIGURATION ................................................................................................................................................ 10 2.2 EUT EXERCISE ............................................................................................................................................................. 10 2.3 GENERAL TECHNICAL REQUIREMENTS ............................................................................................................... 10 2.4 CONFIGURATION OF EUT SYSTEM ........................................................................................................................ 11 3. SUMMARY OF TEST RESULTS ........................................................................................................... 12 4. DESCRIPTION OF TEST MODES ........................................................................................................ 12 5. OUTPUT POWER ................................................................................................................................. 13 5.1 CONDUCTED OUTPUT POWER ............................................................................................................................... 13 5.2 RADIATED OUTPUT POWER ..................................................................................................................................... 15 6. PEAK-TO-AVERAGE RATIO ................................................................................................................ 17 6.1 MEASUREMENT METHOD ......................................................................................................................................... 17 6.2 PROVISIONS APPLICABLE ........................................................................................................................................ 17 6.3 MEASUREMENT RESULT ........................................................................................................................................... 17 7. SPURIOUS EMISSION ......................................................................................................................... 18 7.1 CONDUCTED SPURIOUS EMISSION ...................................................................................................................... 18 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................................ 20 Report No.: AGC01361140201FE02 Page 4 of 58 8. MAINS CONDUCTED EMISSION ......................................................................................................... 24 8.1 MEASUREMENT METHOD ......................................................................................................................................... 24 8.2 PROVISIONS APPLICABLE ........................................................................................................................................ 24 8.3 MEASUREMENT RESULT ........................................................................................................................................... 25 9. FREQUENCY STABILITY ..................................................................................................................... 27 9.1 MEASUREMENT METHOD ......................................................................................................................................... 27 9.2 PROVISIONS APPLICABLE ........................................................................................................................................ 27 9.3 MEASUREMENT RESULT (WORST TEST) ...................................................................................................…
Text truncated - open the document above for the full version.
APPENDIX IV PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION RADIATED SPURIOUS EMISSION
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 2 | 24E | 1.85 GHz - 1.91 GHz | 570.20 mW | 245KGXW | 0.02 ppm |
