2AC23-WKCT1HWIFI+BT Module

Hui Zhou Gaoshengda Technology Co., LTD WKCT1HR2501 PAGE 1 Version 1.0 WIFI+BT Module IEEE 802.11 a/b/g/n/ac 2T/2R Model Number: WKCT1HR2501 Product Descrition The WKCT1HR2501 is a complete dual-band(2.4GHz and 5GHz)WIFI 2×2 MIMO module. This module provides a high level of integration with a dual-stream IEEE 802.11ac MAC/ base band /radio and Bluetooth 5.4.The WLAN operation supports 20MHz,40MHz and 80MHz channels for data rates up to 866.7Mbps. It fully complies with IEEE 802.11 a/b/g/n/ac feature rich wireless connectivity at high standards,delivers reliable,cost-effective, throughput from an extended distance. Product Features ◆Complies with IEEE 802.11b/g/n for 2.4GHz and IEEE 802.11a/n/ac 5GHz Wireless LAN. ◆Bluetooth v5.4 ◆Two transmit and Two receive path(2T2R) ◆Works with all existing network nfrastructure. ◆Capable of up to 128-Bit WEP Encryption. ◆Freedom to roam while staying connected. ◆UP to 866.7 Mbps High-Speed Transfer Rate in 802.11ac mode of operation. ◆Operating Systems：Linux,Windows ◆Low power consumption. ◆Easy to install and configure. ◆High speed USB 2.0 interface ◆ROHS compliant Product Specification Model WKCT1HR2501 Product Name WIFI+BT Module Standard 802.11 a/b/g/n/ac Interface USB Data Transfer Rate Up to 866.7Mbps Modulation Method GFSK,π/4-DQPSK,8DPSK(bluetooth) DQPSK,DBPSK,CCK(802.11b) QPSK,BPSK,16QAM,64QAM with OFDM (802.11g) QPSK,BPSK,16QAM,64QAM with OFDM (802.11n) QPSK,BPSK,16QAM,64QAM with OFDM (802.11a) QPSK,BPSK,16QAM,64QAM,256QAM with OFDM (802.11ac) Frequency Band BLUETOOTH 2402~2480 MHz WIFI 2.4G: 2412~2462 MHz 5G: 5150~5350MHz,5470~5725MHz,5725~5850MHz Operation Mode Infrastructure Security WEP, TKIP, AES, WPA, WPA2 Operating Voltage 3.3V±10% Current Consumption ＜1000mA Antenna Type WIFI:PCB,BT:PIFA Operating Temperature 0 ~ 70°C ambient temperature Storage Temperature -40 ~ 80°C ambient temperature Humidity 5 to 95 % maximum (non-condensing) Hui Zhou Gaoshengda Technology Co., LTD WKCT1HR2501 PAGE 2 Version 1.0 NOTICE: ◆please keep this product and accessories attached to the places which children can't touch; ◆do not splash water or other liquid onto this product, otherwise it may cause damage; ◆do not put this product near the heat source or direct sunlight, otherwise it may cause deformation or malfunction; ◆please keep this product away from flammable or naked flame; ◆please do not repair this product by yourself. Only qualified personnel can be repaired. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2.2 This module has been assessed against the following FCC rule parts: CFR 47 FCC Part 15 C (15.247, DTS and DSS) and CFR 47 FCC Part 15 E (NII). It is applicable to the modular transmitter 2.3 This radio transmitter 2AC23-WKCT1H has been approved by Federal Communications Commission to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. The concrete contents to check are the following three points. １) Maximum antenna gains are shown in item 2.8 below. ２) Should be installed so that the end user cannot modify the antenna ３) Feed line should be designed in 50ohm Fine-tuning of return loss etc. can be performed using a matching network. The antenna shall not be accessible for modification or change by the end user. Hui Zhou Gaoshengda Technology Co., LTD WKCT1HR2501 PAGE 3 Version 1.0 2.4 The module complies with FCC Part 15.247 / Part 15.407 and apply for Single module approval. 2.5 Trace antenna designs: Not applicable, the antenna conector for this module are integrated into the module. Use of external antennas or antennas integrated into the host circuit board are not an option. 2.6 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.7 The following antennas have been certified for use with this module. Only antennas of the same type with equal or lower gain may also be used with this module. Other types of antennas and/or higher gain antennas may require the additional authorization for operation. The installer should use unique antenna connector and Antenna types not included in this list that have a gain greater than the maximum gai…

Text truncated - open the document above for the full version.

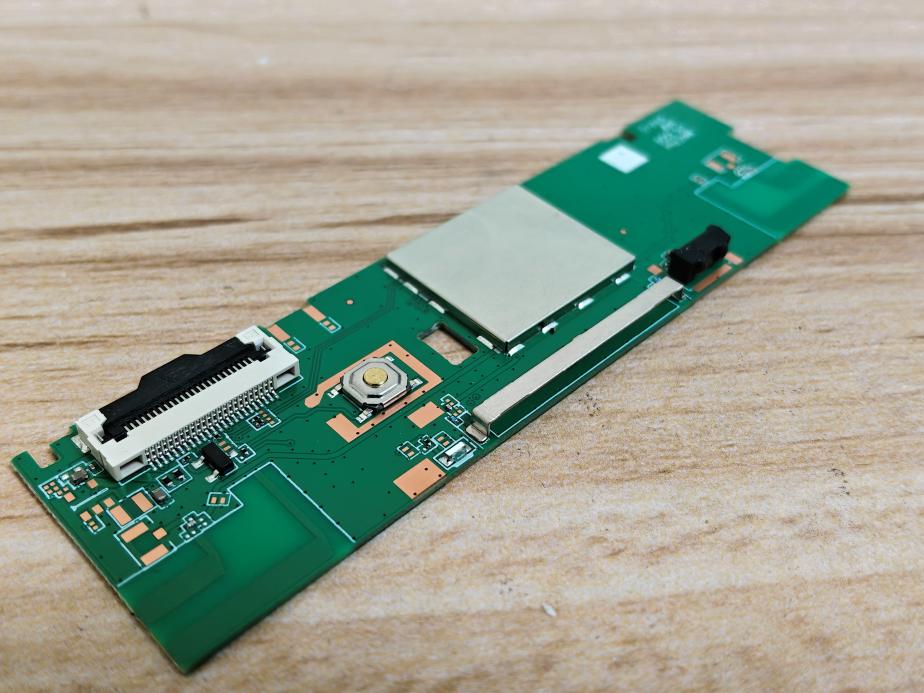

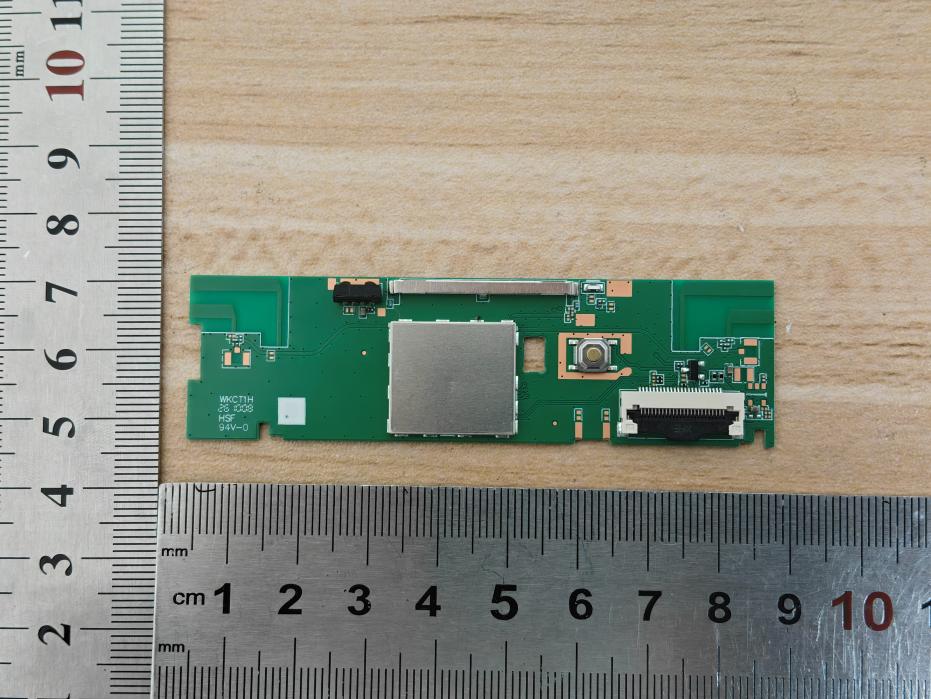

Internal Photographs Page 2 of 2 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-1 Internal View of EUT-2

Appendix II Setup Photographs RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) MEASUREMENT POSITION MEASUREMENT POSITION (X axis) MEASUREMENT POSITION (Y axis) MEASUREMENT POSITION (Z axis) RADIATED RF MEASUREMENT SETUP (30MHz~1GHz) RADIATED RF MEASUREMENT SETUP (Below 30MHz) POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP

V1.0 1/13 AntennaTestReport ProductName:WirelessTransceiverModule ProductModel: Frequency:2.4GHz+5GHz TestDate:2025.09.02 TestObjective:AntennaPerformanceTest Preparedby:BaoHaibin Reviewedby:HouDewei Approvedby:GaoZhao WKCT1HR2501 V1.0 2/13 Revisionhistory VersionDateStatus V1.02025-09-02FirstVersion V1.0 3/13 Contents 1、AntennaPosition.........................................................................................................................4 1.1ModulePlacementRequirements........................................................................................4 1.1.1、WIFI:PCBAntenna;BT:MetalAntenna,FreeSpaceTest......................................4 2、TestEnvironment........................................................................................................................4 3、AntennaMatching........................................................................................................................6 4、AntennaVSWR...........................................................................................................................7 4.1WF0....................................................................................................................................7 4.2WF1....................................................................................................................................7 4.3BT.......................................................................................................................................7 5、AntennaIsolation..........................................................................................................................8 5.1IsolationRequirement.......................................................................................................8 5.2WF0&WF1........................................................................................................................8 5.3WF0&BT............................................................................................................................8 5.4WF1&BT...........................................................................................................................8 6、RadiationPattern..........................................................................................................................9 6.1WF0RadiationPattern....................................................................................................9 6.2WF1RadiationPattern....................................................................................................9 6.3BTRadiationPattern........................................................................................................9 7、3DEtotal......................................................................................................................................10 7.1WF03DPattern..................................................................................................................10 7.2WF13DPattern..................................................................................................................10 7.3BT3DPattern.....................................................................................................................10 8、AntennaEfficiencyandGain.....................................................................................................11 8.1WF0&WF1AntennaEfficiencyandGain............................................................................11 8.2BTEfficiencyandGain.....................................................................................................13 V1.0 4/13 1、AntennaPosition 1.1ModulePlacementRequirements 1.1.1、WIFI:PCBAntenna;BT:MetalAntenna,FreeSpaceTest 2 、 TestEnvironment V1.0 5/13 Manufacturer：Huizhou Gaoshengda Technology Co., Ltd. Antenna manufacturer address：Chenjiang Street, Zhongkai High Guangdong Province, China Test laboratory:SHENZHEN HANYANGANTENNA DESIGN CO. LTD. Test laboratory address:Shenzhen Baoan District Qianjin 2 Road BaoYunda logistics information building 12A11 Commercial test software: GTS_MAX SIGN Libra1.2.7 Calibration equipment:April 1, 2026 Test standard: General standard Testsetup: V1.0 3 、 AntennaMatching WFMatchingCircuitBTMatchingCircuit MatchingNoteWF0WF1BT E110pF10pF10pF E2/// E3/// E42.2nH E55.1nH 6/13 V1.0 4、AntennaVSWR 4.1WF0 4.2WF1 4.3BT 7/13 V1.0 5、AntennaIsolation 5.1IsolationRequirement 5.2WF0&WF1 5.3WF0&BT 5.4WF1&BT 8/13 V1.0 6、RadiationPattern 6.1WF0RadiationPattern Phi02DPhi902DTheta90 6.2WF1RadiationPattern Phi02DPhi902DTheta90 6.3BTRadiationPattern Phi02DPhi902DTheta90 9/13 V1.0 7、3DEtotal 7.1WF03DPattern 7.2WF13DPattern 7.3BT3DPattern 10/13 V1.0 8、AntennaEfficiencyandGain 8.1WF0&WF1AntennaEfficiencyandGain WIFI0WIFI1 Frequency/MhzMaxGain/dBiEfficiency/%Frequency/MhzMaxGain/dBiEfficiency/% 24000.7136.1424000.0938.28 2410-0.0631.772410-0.5534.28 24200.4935.5624200.1439.54 2430-0.0332.662430-0.337.33 24400.536.3124400.2842.46 2450-0.0632.282450-0.2338.37 24600.5436.0624600.4443.15 2470-0.2531.622470-0.3537.58 2480-0.5230.132480-0.6335.89 2490-1.5252490-1.6529.85 2500-1.0927.732500-1.1833.34 51500.6146.6751500.357.81 51600.3845.2951600.1456.62 51700.647.151700.458.88 51800.3946.7751800.458.75 51900.6949.8951900.762.23 52000.4148.5352000.4959.98 52100.548.4252100.5160.39 52200.3845.2952200.4157.81 52300.8648.8752300.762.37 52400.7147.4252400.5959.84 52501.0650.8252500.7663.1 5260149.5552600.6760.95 5270151.0552700.8463.24 52801.0550.8252800.8962.95 52901.0152.8452901.0563.97 53001.1453.2153001.0363.24 53101.0253.3353101.1563.53 53200.935253201.0162.52 53300.8651.8853301.1163.24 53401.0352.8453401.0263.53 53501.2354.4553501.1163.39 53601.3254.4553601.0962.66 11/13 V1.0 53701.3754.253701.2463.24 53801.4155.3453801.4364.71 53901.5957.0253901.5866.37 54001.4857.6854001.4465.77 54101.5258.6154101.3265.61 54201.2356.4954201.1563.39 54301.4557.9454301.4266.68 54401.3357.4154401.2565.61 54501.5558.6154501.2765.77 54601.5457.5454601.2663.68 54701.8759.2954…

Text truncated - open the document above for the full version.

REPORT NO.: 4792265514-1-RF-2 Page 299 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant1_5550 11N40MIMO_Ant2_5550 11N40MIMO_Ant1_5670 REPORT NO.: 4792265514-1-RF-2 Page 300 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant2_5670 11N40MIMO_Ant1_5710_UNII-2C 11N40MIMO_Ant2_5710_UNII-2C REPORT NO.: 4792265514-1-RF-2 Page 301 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant1_5710_UNII-3 11N40MIMO_Ant2_5710_UNII-3 11N40MIMO_Ant1_5755 REPORT NO.: 4792265514-1-RF-2 Page 302 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant2_5755 11N40MIMO_Ant1_5795 11N40MIMO_Ant2_5795 REPORT NO.: 4792265514-1-RF-2 Page 303 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AC80MIMO_Ant1_5210 11AC80MIMO_Ant2_5210 11AC80MIMO_Ant1_5290 REPORT NO.: 4792265514-1-RF-2 Page 304 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AC80MIMO_Ant2_5290 11AC80MIMO_Ant1_5530 11AC80MIMO_Ant2_5530 REPORT NO.: 4792265514-1-RF-2 Page 305 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AC80MIMO_Ant1_5610 11AC80MIMO_Ant2_5610 11AC80MIMO_Ant1_5690_UNII-2C REPORT NO.: 4792265514-1-RF-2 Page 306 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AC80MIMO_Ant2_5690_UNII-2C 11AC80MIMO_Ant1_5690_UNII-3 11AC80MIMO_Ant2_5690_UNII-3 REPORT NO.: 4792265514-1-RF-2 Page 307 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AC80MIMO_Ant1_5775 11AC80MIMO_Ant2_5775 Note: 1. For all modes, RBW setting to 1MHz is used on PSD measurement in UNII-1/UNII-2A/UNII-2C. 2. For all modes, RBW setting to 500kHz is used on PSD measurement in UNII-3. REPORT NO.: 4792265514-1-RF-2 Page 308 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11.6. APPENDIX F: FREQUENCY STABILITY 11.6.1. Test Result Frequency Error vs. Voltage 802.11a:5200MHz Temp . Volt . 0 Minute 2 Minute 5 Minute 10 Minute Freq.Error (MHz) Toleran ce (ppm) Freq.Error (MHz) Toleranc e (ppm) Freq.Error (MHz) Toleranc e (ppm) Freq.Error (MHz) Toleran ce (ppm) TN VL 5200.0093 1.79 5200.0217 4.18 5200.0009 0.17 5200.0233 4.49 TN VN 5199.9848 -2.92 5199.9787 -4.10 5200.0028 0.54 5199.9917 -1.60 TN VH 5200.0008 0.15 5200.0031 0.59 5200.0151 2.90 5200.0094 1.80 Frequency Error vs. Temperature 802.11a:5200MHz Temp . Volt . 0 Minute 2 Minute 5 Minute 10 Minute Freq.Error (MHz) Toleran ce (ppm) Freq.Error (MHz) Toleranc e (ppm) Freq.Error (MHz) Toleran ce (ppm) Freq.Error (MHz) Toleran ce (ppm) 70 VN 5199.9777 -4.29 5199.9799 -3.86 5200.0103 1.98 5199.9974 -0.51 60 VN 5200.0208 4.00 5199.9813 -3.59 5200.0188 3.62 5200.0234 4.50 50 VN 5200.0183 3.53 5199.9842 -3.04 5199.9925 -1.44 5200.0107 2.06 40 VN 5200.0094 1.80 5199.9980 -0.39 5200.0177 3.41 5200.0061 1.17 30 VN 5200.0228 4.38 5200.0206 3.96 5199.9958 -0.80 5200.0131 2.51 20 VN 5200.0033 0.64 5199.9833 -3.22 5200.0204 3.93 5199.9845 -2.98 10 VN 5200.0217 4.17 5200.0158 3.04 5200.0186 3.58 5199.9827 -3.32 0 VN 5200.0020 0.38 5199.9813 -3.60 5199.9833 -3.21 5199.9999 -0.01 Note: 1. All antennas, test modes and test channels have been tested, only the worst data record in the report. 2. For the detail Test Conditions, please refer to section 7.5 TEST ENVIRONMENT. REPORT NO.: 4792265514-1-RF-2 Page 309 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11.7. APPENDIX G: DUTY CYCLE 11.7.1. Test Result Test Mode On Time Period Duty Cycle Duty Cycle Duty Cycle 1/T Final setting (msec) (msec) x (%) Correction Factor Minimum VBW For VBW (Linear) (dB) (kHz) (kHz) 11A 1.35 1.85 0.7297 72.97 1.37 0.74 1 11N20MIMO 1.26 1.76 0.7159 71.59 1.45 0.79 1 11N40MIMO 0.63 1.13 0.5575 55.75 2.54 1.59 2 11AC80MIMO 0.32 0.82 0.3902 39.02 4.09 3.13 4 Note: Duty Cycle Correction Factor=10log (1/x). Where: x is Duty Cycle (Linear) Where: T is On Time If that calculated VBW is not available on the analyzer then the next higher value should be used…

Text truncated - open the document above for the full version.

REPORT NO.: 4792265514-1-RF-2 Page 251 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AC80MIMO_Ant1_5210 11AC80MIMO_Ant2_5210 11AC80MIMO_Ant1_5290 REPORT NO.: 4792265514-1-RF-2 Page 252 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AC80MIMO_Ant2_5290 11AC80MIMO_Ant1_5530 11AC80MIMO_Ant2_5530 REPORT NO.: 4792265514-1-RF-2 Page 253 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AC80MIMO_Ant1_5610 11AC80MIMO_Ant2_5610 11AC80MIMO_Ant1_5690 REPORT NO.: 4792265514-1-RF-2 Page 254 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AC80MIMO_Ant2_5690 11AC80MIMO_Ant1_5775 11AC80MIMO_Ant2_5775 Note: 1. RBW setting to 300kHz is used in 802.11a/n HT20 modes. 2. RBW setting to 500kHz is used in 802.11n HT40 mode. 3. RBW setting to 1MHz is used in 802.11ac VHT80 mode. REPORT NO.: 4792265514-1-RF-2 Page 255 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11.3. APPENDIX C: MIN EMISSION BANDWIDTH 11.3.1. Test Result Test Mode Antenna Frequency[MHz] 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5720 16.28 5711.84 5728.12 --- --- Ant2 5720 16.28 5711.84 5728.12 --- --- Ant1 5720_UNII-2C 13.16 5711.84 5725 --- --- Ant2 5720_UNII-2C 13.16 5711.84 5725 --- --- Ant1 5720_UNII-3 3.12 5725 5728.12 ≥0.5 PASS Ant2 5720_UNII-3 3.12 5725 5728.12 ≥0.5 PASS Ant1 5745 16.36 5736.80 5753.16 ≥0.5 PASS Ant2 5745 16.36 5736.80 5753.16 ≥0.5 PASS Ant1 5785 15.96 5777.16 5793.12 ≥0.5 PASS Ant2 5785 16.36 5776.80 5793.16 ≥0.5 PASS Ant1 5825 16.28 5816.84 5833.12 ≥0.5 PASS Ant2 5825 16.28 5816.84 5833.12 ≥0.5 PASS 11N20MIMO Ant1 5720 15.80 5712.32 5728.12 --- --- Ant2 5720 17.28 5711.20 5728.48 --- --- Ant1 5720_UNII-2C 12.68 5712.32 5725 --- --- Ant2 5720_UNII-2C 13.8 5711.20 5725 --- --- Ant1 5720_UNII-3 3.12 5725 5728.12 ≥0.5 PASS Ant2 5720_UNII-3 3.48 5725 5728.48 ≥0.5 PASS Ant1 5745 17.56 5736.20 5753.76 ≥0.5 PASS Ant2 5745 15.44 5737.32 5752.76 ≥0.5 PASS Ant1 5785 15.08 5777.44 5792.52 ≥0.5 PASS Ant2 5785 17.56 5776.20 5793.76 ≥0.5 PASS Ant1 5825 16.52 5816.84 5833.36 ≥0.5 PASS Ant2 5825 16.80 5816.56 5833.36 ≥0.5 PASS 11N40MIMO Ant1 5710 35.20 5692.40 5727.60 --- --- Ant2 5710 35.20 5692.40 5727.60 --- --- Ant1 5710_UNII-2C 32.6 5692.40 5725 --- --- Ant2 5710_UNII-2C 32.6 5692.40 5725 --- --- Ant1 5710_UNII-3 2.6 5725 5727.60 ≥0.5 PASS Ant2 5710_UNII-3 2.6 5725 5727.60 ≥0.5 PASS Ant1 5755 35.12 5737.40 5772.52 ≥0.5 PASS Ant2 5755 35.12 5737.40 5772.52 ≥0.5 PASS Ant1 5795 35.12 5777.48 5812.60 ≥0.5 PASS Ant2 5795 35.12 5777.48 5812.60 ≥0.5 PASS 11AC80MIMO Ant1 5690 72.64 5654.96 5727.60 --- --- Ant2 5690 70.08 5654.96 5725.04 --- --- Ant1 5690_UNII-2C 70.04 5654.96 5725 --- --- Ant2 5690_UNII-2C 70.04 5654.96 5725 --- --- Ant1 5690_UNII-3 2.6 5725 5727.60 ≥0.5 PASS Ant2 5690_UNII-3 0.04 5725 5725.04 ≥0.5 PASS Ant1 5775 70.08 5739.96 5810.04 ≥0.5 PASS Ant2 5775 67.68 5742.36 5810.04 ≥0.5 PASS REPORT NO.: 4792265514-1-RF-2 Page 256 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11.3.2. Test Graphs 11A_Ant1_5720 11A_Ant2_5720 11A_Ant1_5745 REPORT NO.: 4792265514-1-RF-2 Page 257 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant2_5745 11A_Ant1_5785 11A_Ant2_5785 REPORT NO.: 4792265514-1-RF-2 Page 258 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant1_5825 11A_Ant2_5825 11N20MIMO_Ant1_5720 REPORT NO.: 4792265514-1-RF-2 Page 259 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant2_5720 11N20MIMO_Ant1_5745 11N20MIMO_Ant2_5745 REPORT NO.: 4792265514-1-RF-2 Page 260 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_5785 11N20MIMO_Ant2_5785 11N20MIMO_Ant1_5825 REPORT NO.: 4792265514-1-RF-2 Page 261 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant2_5825 11N40MIMO_Ant1_5710 11N40MIMO_Ant2_5710 REPORT NO.: 4792265514-1-RF-2 Page 262 of 315 UL Verification Services (Guangzhou) C…

Text truncated - open the document above for the full version.

REPORT NO.: 4792265514-1-RF-2 Page 216 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant2_5270 11N40MIMO_Ant1_5310 11N40MIMO_Ant2_5310 REPORT NO.: 4792265514-1-RF-2 Page 217 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant1_5510 11N40MIMO_Ant2_5510 11N40MIMO_Ant1_5550 REPORT NO.: 4792265514-1-RF-2 Page 218 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant2_5550 11N40MIMO_Ant1_5670 11N40MIMO_Ant2_5670 REPORT NO.: 4792265514-1-RF-2 Page 219 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant1_5710 11N40MIMO_Ant2_5710 11N40MIMO_Ant1_5755 REPORT NO.: 4792265514-1-RF-2 Page 220 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant2_5755 11N40MIMO_Ant1_5795 11N40MIMO_Ant2_5795 REPORT NO.: 4792265514-1-RF-2 Page 221 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AC80MIMO_Ant1_5210 11AC80MIMO_Ant2_5210 11AC80MIMO_Ant1_5290 REPORT NO.: 4792265514-1-RF-2 Page 222 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AC80MIMO_Ant2_5290 11AC80MIMO_Ant1_5530 11AC80MIMO_Ant2_5530 REPORT NO.: 4792265514-1-RF-2 Page 223 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AC80MIMO_Ant1_5610 11AC80MIMO_Ant2_5610 11AC80MIMO_Ant1_5690 REPORT NO.: 4792265514-1-RF-2 Page 224 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AC80MIMO_Ant2_5690 11AC80MIMO_Ant1_5775 11AC80MIMO_Ant2_5775 Note: 1. RBW setting to 300kHz is used in 802.11a/n HT20 modes. 2. RBW setting to 500kHz is used in 802.11n HT40 mode. 3. RBW setting to 1MHz is used in 802.11ac VHT80 mode. REPORT NO.: 4792265514-1-RF-2 Page 225 of 315 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11.2. APPENDIX B: OCCUPIED CHANNEL BANDWIDTH 11.2.1. Test Result Test Mode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Verdict 11A Ant1 5180 16.583 5171.7283 5188.3117 PASS Ant2 5180 16.464 5171.7682 5188.2318 PASS Ant1 5200 16.503 5191.7682 5208.2717 PASS Ant2 5200 16.464 5191.7682 5208.2318 PASS Ant1 5240 16.464 5231.7682 5248.2318 PASS Ant2 5240 16.503 5231.7682 5248.2717 PASS Ant1 5260 16.503 5251.7682 5268.2717 PASS Ant2 5260 16.464 5251.7682 5268.2318 PASS Ant1 5280 16.503 5271.7682 5288.2717 PASS Ant2 5280 16.464 5271.7682 5288.2318 PASS Ant1 5320 16.503 5311.7682 5328.2717 PASS Ant2 5320 16.464 5311.7682 5328.2318 PASS Ant1 5500 16.464 5491.7682 5508.2318 PASS Ant2 5500 16.464 5491.7682 5508.2318 PASS Ant1 5580 16.464 5571.7682 5588.2318 PASS Ant2 5580 16.464 5571.7682 5588.2318 PASS Ant1 5700 16.464 5691.7682 5708.2318 PASS Ant2 5700 16.464 5691.7682 5708.2318 PASS Ant1 5720 16.464 5711.7682 5728.2318 PASS Ant2 5720 16.464 5711.7682 5728.2318 PASS Ant1 5720_UNII-2C 13.232 5711.7682 5725 PASS Ant2 5720_UNII-2C 13.232 5711.7682 5725 PASS Ant1 5720_UNII-3 3.232 5725 5728.2318 PASS Ant2 5720_UNII-3 3.232 5725 5728.2318 PASS Ant1 5745 16.503 5736.7682 5753.2717 PASS Ant2 5745 16.464 5736.7682 5753.2318 PASS Ant1 5785 16.503 5776.7682 5793.2717 PASS Ant2 5785 16.503 5776.7682 5793.2717 PASS Ant1 5825 16.464 5816.7682 5833.2318 PASS Ant2 5825 16.503 5816.7682 5833.2717 PASS 11N20MIMO Ant1 5180 17.622 5171.1688 5188.7912 PASS Ant2 5180 17.622 5171.1688 5188.7912 PASS Ant1 5200 17.582 5191.2088 5208.7912 PASS Ant2 5200 17.582 5191.2088 5208.7912 PASS Ant1 5240 17.582 5231.2088 5248.7912 PASS Ant2 5240 17.622 5231.2088 5248.8312 PASS Ant1 5260 17.622 5251.1688 5268.7912 PASS Ant2 5260 17.622 5251.1688 5268.7912 PASS An…

Text truncated - open the document above for the full version.
