2AC2S-X8Rugged smart phone

Rock X8 QUICK GUIDE Started to use your phone: Power on: Press and hold the power key button for 3 seconds Power off: Press and hold the power key button for 3 seconds, select ‘switch off’ in the menu option. picture: 1) Volume buttons 2) power button 3) menu key 4)home key 5)Back key 6) Earpiece 7) Earphone jack 8) micro USB port 9) Reset key 10)Rear camera 11) Flash 12) speaker 13) 14)Front camera Menu Key: Select to show the available menu in current screen. Home Key: Return to home screen. To view recent application, press and hold the home key. Back Key: Return to previous screen. Volume Key: Adjust the volume of ringtone. Reset Key: Restart the phone. Insert the SIM Card and T-Flash card: 1. Remove the battery cover: Loosen the screws on the back side – to rotate both the screws anti-clockwise until open the bake cover as shown in IMAGE 1 Attn.: your phone's battery is fixed and non-removable battery inside. 3. Put the SIM Card in the SIM holder: Put the SIM card into the slot touching the SIM contacts of the phone as shown in IMAGE-3: upper SIM slot is for WCDMA 3G SIM: Underneath SIM slot for GSM: Note: When inserting the SIM card, ensure that the golden contacts faces right position. 4. Insert T-Flash card: insert T-Flash card into the slot as shown in iMAGE4. 5.Insert the battery cover: Insert the back cover and rotate two screws clockwise to lock the back cover. ATTN: Please power off the phone before plug in or pull out the SIM card and T-Flash card. Charging the Battery Before charging the battery, ensure that it has been properly inserted into your phone. T-Flash card: Please setup T-flash card before using your phone, otherwise the applications cannot be installed and some functions are not available, for example, camera, recorder, etc. 1. Use the T-Flash card in the phone as USB storage. Connect the phone with computer by using USB cable. The computer will pop up the windows to let you install the phone USB driver. If you only wish to use the the T-Flash card in the phone as a USB storage, you can ignore those windows and click Cancel always. Slide Message Board as shown in the screen below. And then click USB connected->Turn on USB storage to use the T-Flash as USB storage. You must setup the phone USB driver in your computer if you wish to use the PC Suite to synchronize phonebook, Message, Calendar and others with your computer. The phone USB driver can be downloaded from SD-card. 2. Remove the T-Flash card safely Please enter Settings -> SD card & phone storage -> unmount SD card to remove the T-Flash card safely. Using of touch screen: Single Click: To select an icon. For example, click dial to open the keypad which will be displayed on the screen. Double Click: To zoom-in or zoom-out. For example, to zoom-in or out of a photo, click twice when viewing a photo or browsing on the internet. Hold: Click and hold the screen, Icon or input box to get more operation options. 1) When clicking on a contact from the contact list for a long time, an operation menu will appear according to the contact list. 2) To rearrange/move an icon to the home screen, click and hold an icon within the menu list. 3)Long-Time Click the blanks of home screen to add home screen shortcut. Drag the screen: You can drag the screen to view more applications which is not be displayed in one screen. Home screen: You can use all the functions by touch screen. Click the icons to open the applications. Check all the applications so it is functioning properly. In total, there are 5 home screens in the phone, when you slide to the left or to the right this will move the screen from one to another. To create shortcuts and widgets, tap and hold at blank area on any of the screens. You can return to the home screen by pressing the Home key in any screen you are on. Create shortcuts and widgets: Press and hold the APPS, and drag on the desk. Select create shortcuts or widgets. Delete the shortcuts and widgets To delete an object, tap and hold the object, then drag it towards the bottom of the screen . When the object turns red let go of it and the selected object will be deleted. Lock the screen Lock the phone in order to avoid useless operation and to save the battery by press the power key. The phone will automatically lock when it is not being used for some time. Unlock the phone Press either the power key,menu key, home screen key or back key to enter the unlock interface ,and then slide any direction to unlock. Message board Slide Message board bar in any screen to open message board where you are able to check for unread notifications Manage applications Install applications: You can install .apk application among File Manager and set it up step by step Uninstall application: Enter Settings->Applications->Manage applications, then will be able manage and remove installed applications. Recently used applications Press and hold the home key, the screen will display a window which shows your recently used applications. Click the icon to open the application. Extend the battery life: Some functions may use up more power, which eventually shorten the battery life. You could: Close all the wireless connection when not in use i.e. bluetooth, Wi-Fi or GPS Reduce the brightness and shorten the screen timeout to save battery, or press power key to shut down the screen when the phone is not in use. Close any automatically synchronized applications such as Email, calendar, contacts and other. Some applications which are downloaded could also shorten the battery life. Technical Support This product is designed as shockproof phone, however, please don’t hit the phone intentionally. The brutal manipulation may bring damages to the performance of your phone, and it will be no longer under warranty. Locked the back cover after put the T-flash card and SIM cards. PPT button will be supported the digital two ways radio, but this phone can not support analog walkie-talkie. FCC Statement Changes or modifications not express…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Wm Wireless & Mobile Ltda. 2014-09-23 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Wm Wireless& Mobile Ltda._____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Rugged smart phone, Rock X8) FCC ID: 2AC2S-X8 Sincerely, Client’s signature Client’s name / title Jorge Monsalve / Product Specialist Contact information / address Calle 84#28-12 Bogota-Colombia

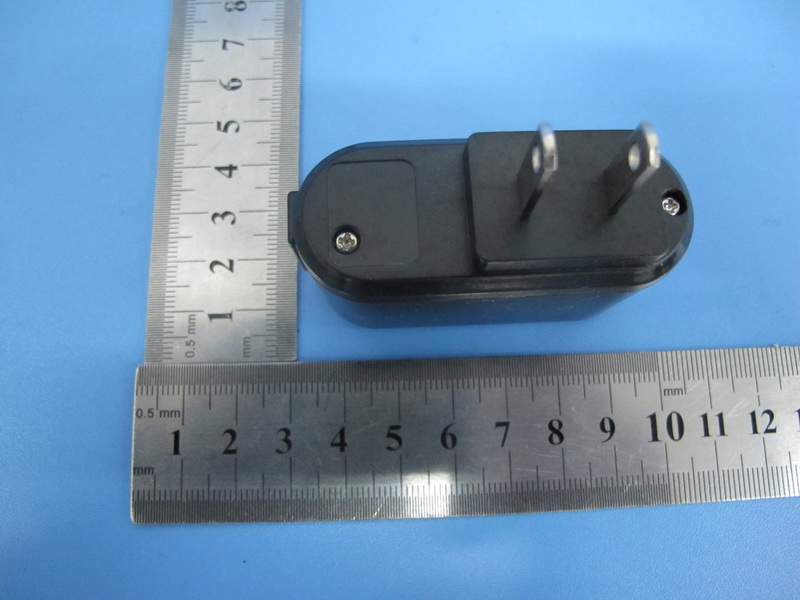

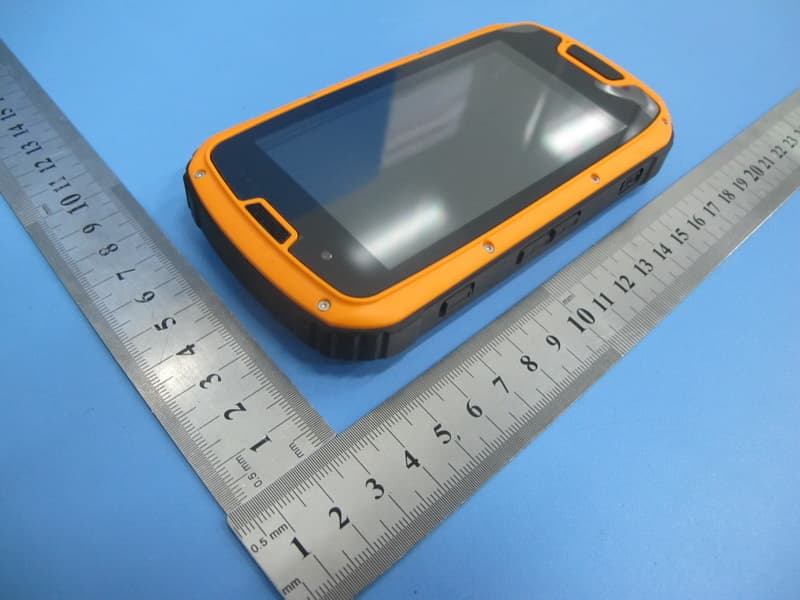

Report No.: TB-FCC141907 Page: 3 of 13 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of Adapter Report No.: TB-FCC141907 Page: 4 of 13 TB-RF-075-1.0 Photo 3 Appearance of Adapter Photo 4 Appearance of EUT Report No.: TB-FCC141907 Page: 5 of 13 TB-RF-075-1.0 Photo 5 Appearance of EUT

Report No.: TB-FCC141907 Page: 1 of 13 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID: 2AC2S–X8 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Wm Wireless& Mobile Ltda. Model: Rock X8 Made in China

Report No.: TB-FCC141907 Page: 2 of 13 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

CERPASS TECHNOLOGY CORP. Report No.: SESF1408161 Cerpass Technology Corp. Issued Date : September 04th,2014 Te l :+86-512-6917-5888 Fax:+86-512-6917-5666 Page No. : 1 of 156 Report No.:SEF1408161 Client : Wm Wireless& Mobile Ltda. Product : Rugged smart phone Trade Brand : Extrem Model : Rock X8 Manufacturer/ supplier : Shenzhen Ematic Technology Co.,Ltd Date test campaign completed : September 01st,2014 Date of issue : September 04th,2014 Test Result : █Compliance □Not Compliance Statement of Compliance: The SAR values measured for the test sample are below the maximum recommended level of 1.6 W/kg averaged over any 1g tissue according to FCC KDBs and IEEE Std.1528-2013. The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 156pages The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. Test Engineer: Approved by: ___________________ __________________ Leo Chen Miro Chueh SAR Evaluation Report for IEEE Std1528-2013, FCC KDB Publication 648474 D04 Handset SAR v01r02 and 47CFR § 2.1093 CERPASS TECHNOLOGY CORP. Report No.: SESF1408161 Cerpass Technology Corp. Issued Date : September 04th,2014 Te l :+86-512-6917-5888 Fax:+86-512-6917-5666 Page No. : 2 of 156 Applicant Information Client : Wm Wireless& Mobile Ltda. Address : Calle 84#28-12 Bogota-Colombia Manufacturer : Shenzhen Ematic Technology Co.,Ltd Address : Hua lun Industrial Zone Phoenix Street Fu yong Town Bao an district Shen zhen City. EUT : Rugged smart phone Model No. : Rock X8 Standard Applied : IEEE Std1528-2013 and 47CFR § 2.1093 FCC KDB Publication 648474 D04 Handset SAR v01r02 FCC KDB Publication 447498 D01v05r02 FCC KDB Publication 865664 D01v01r03 Laboratory : CERPASS TECHNOLOGY CORP. No.66,Tangzhuang Road, Suzhou Industrial Park, Jiangsu 215006, China. Max. Average : GSM850: 32.40dBm Output Power GSM1900: 30.46dBm WCDMA Band V: 23.54dBm Max. Reported SAR Value : Head GSM850: 0.339W/kg(1g) PCS1900: 0.116 W/kg(1g) WCDMA Band V: 0.177 W/kg(1g) 802.11b: 0.114 W/kg(1g) Body GSM850: 0.985W/kg(1g) PCS1900: 0.500 W/kg(1g) WCDMA Band V: 0.319 W/kg(1g) 802.11b: 0.204 W/kg(1g) Max. Simultaneous SAR Value : Head GSM850+802.11b: 0.438 W/kg(1g) Body GPRS850+802.11b: 1.151 W/kg(1g) CERPASS TECHNOLOGY CORP. Report No.: SESF1408161 Cerpass Technology Corp. Issued Date : September 04th,2014 Te l :+86-512-6917-5888 Fax:+86-512-6917-5666 Page No. : 3 of 156 Contents 1. General Information ..................................................................................................................................4 1.1. Executive Summary ..........................................................................................................................4 1.2. Description of Equipment under Test ................................................................................................4 1.3. Antenna Location ..............................................................................................................................6 1.4. Simultaneous Transmission Configurations......................................................................................6 1.5. SAR Test Exclusions Applied ............................................................................................................8 1.6. Power Reduction for SAR .................................................................................................................8 1.7. Environment Condition......................................................................................................................8 1.8. Test Standards ..................................................................................................................................9 1.9. RF Exposure Limits ...........................................................................................................................9 2. The SAR Measurement Procedure ....................................................................................................... 10 2.1. System Performance Check .......................................................................................................... 10 2.2. Te s t Requirements ......................................................................................................................... 14 3. DASY5 Measurement System ............................................................................................................... 18 3.1. Uncertainty of Inter-/Extrapolation and Averaging ......................................................................... 19 3.2. DASY5 E-Field Probe .................................................................................................................... 19 3.3. Data Acquisition Electronics (DAE) ............................................................................................... 20 3.4. Robot.............................................................................................................................................. 20 3.5. Light Beam Unit ............................................................................................................................. 20 3.6. Measurement Server ..................................................................................................................... 21 3.7. SAM Phantom ................................................................................................................................ 21 3.8. Device Holder ................................................................................................................................ 22 3.9. Test Equipment List ................................................…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC141909 Page: 1 of 50 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AC2S-X8 Original Grant Report No. : TB-FCC141909 Applicant : Wm Wireless& Mobile Ltda. Equipment Under Test (EUT) EUT Name : Rugged smart phone Model No. : Rock X8 Serial No. : N/A Brand Name : Extrem Receipt Date : 2014-08-11 Test Date : 2014-08-11 to 2014-09-23 Issue Date : 2014-09-23 Standards : FCC Part 2 FCC Part 22 Subpart H FCC Part 24 Subpart E Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC141909 Page: 2 of 50 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 5 1.5 Description of Test Mode .................................................................................................... 5 1.6 Test Facility ........................................................................................................................... 6 2. TEST SUMMARY ....................................................................................................................... 7 3. FREQUENCY STABILITY ........................................................................................................ 8 3.1 Test Standard and Requirement ....................................................................................... 8 3.2 Test Setup ............................................................................................................................. 8 3.3 Test Procedure ..................................................................................................................... 9 3.4 EUT Operating Condition ................................................................................................... 9 3.5 Test Equipment .................................................................................................................... 9 4. CONDUCTED RF OUTPUT POWER ................................................................................... 12 4.1 Test Standard and Limit .................................................................................................... 12 4.2 Test Setup ........................................................................................................................... 12 4.3 Test Procedure ................................................................................................................... 12 4.4 EUT Operating Condition ................................................................................................. 12 4.5 Test Equipment .................................................................................................................. 13 5. RADIATED OUTPUT POWER .............................................................................................. 17 5.1 Test Standard and Limit .................................................................................................... 17 5.2 Test Setup ........................................................................................................................... 17 5.3 Test Procedure ................................................................................................................... 17 5.4 EUT Operating Condition ................................................................................................. 18 5.5 Test Equipment .................................................................................................................. 18 5.6 Test Data ............................................................................................................................. 19 6. OCCUPIED BANDWIDTH ...................................................................................................... 20 6.1 Test Standard and Limit .................................................................................................... 20 6.2 Test Setup ........................................................................................................................... 20 6.3 Test Procedure ................................................................................................................... 20 6.4 EUT Operating Condition ................................................................................................. 21 6.5 Test Equipment .................................................................................................................. 21 7. CONDUCTED OUT OF BAND EMISSIONS ....................................................................... 32 7.1 Test Standard and Limit .................................................................................................... 32 7.2 Test Setup ................................…

Text truncated - open the document above for the full version.

Report No.: TB-FCC141907 Page: 12 of 13 TB-RF-075-1.0 Appendix V EUT Test Photographs FCC 15C&22H&24E Test Setup Photo of Setup for Radiated Emission (Below 1 GHz) Photo of Setup for Radiated Emission (Above 1 GHz) Report No.: TB-FCC141907 Page: 13 of 13 TB-RF-075-1.0 Photo of Setup for Conducted Emission

Band850, Band1900, WCDMA Band V and WIFI Test Setup Touch-Left Tilt-Left Touch-Right Tilt-Right Back with gap 10mm Front with gap 10mm Left side with gap 10mm Right side with gap 10mm Top with gap 10mm Bottom with gap 10mm
