2AC36S101Bluetooth speaker

S101 USER MANUAL Ver si on：V1 .0 2 Button and Function： 1．Power on/off button 2．Call button 3．Volume + 4．Volume - 5．Micro USB charge interface 6． Aux in 7． reset 8． LED Button&Interface function define： 1、Power on/off: By press button for 2 seconds, the machine will be turn on or off. when the machine in working state, you can enter bluetooth pair mode by short-press button 2、Micro USB interface ：use for charge。 3、AUX(Audio input interface☺：By use 3.5mm audio transfer wire ,you can connect the mp3 player ,Ipad, mobile phone and PC etc .And play music in these machine 4、Volume -：decrease the volume by press the button long time ,and play the prev song short-press button 5、volume increase：Increase the volume by press the button long time and play the next song short-press button 6、Call Button：when the speaker connect the mobile-phone by bluetooth , you can select handfree mode or reject call mode by short press button 3 7、Reset button：Try use the pin to press the button ,when the machine dead halt. Operate Guide： a.Bluetooth connect(Example foe connect mobile phone)： 1、Press the power on/off button for 2 seconds ，the machine will be power on and then the indicate blue led will be flash。 2、the mobile-phone that the first pair with machine ，please open the Bluetooth function and search the machine，find the machine (s101) and connect., If connect successfully the indicate led will be stop flashing and light 3、If the mobile-phone paired successfully before ,the machine will be auto connect with mobile –phone when the machine turn on 4、when the machine connect the mobile-phone successfully，you can play the music in the mobile-phone，and then if you mobile phone have call in, you can answer by short- press the power on/off button or reject the call by press the power on/off button for 2 seconds. If you want to end this call when you in answer state ,you also can by short-press power on/off button again . Attention ：The blue transmission distances is :10m , b. AUX input ： By use 3.5mm audio transfer wire ,you can connect the mp3 player ,Ipad, mobile phone and PC etc .And play music in these machine，in any mode if you plug the audio connect cable ，the audio input will be work. c. charge for machine： use the usb cable connnet the adaptor or other usb power(such as computer usb interface) and product. when the product in charging ,the led will flash blue and ted in turn . when the batter y full charge ,the led will stop flash 4 Product spec Product descripe Outdoors Bluetooth speaker Battery spec Recharge Lion battery （3.7V，800mAh） DC IN 5V /1000mA Battery charger time About 3-4hours。 Battery use time about 5hours under 70% volume play music frequency（speaker） 100Hz-20KHz THD（speaker） 160±20%HZ S/N:（Spearker） ≥75dB Speaker 4Ω3W Product size(L × W × H) 91*91*48mm Operate temperature 0°C ～ 40°C Storage temperature -10°C ～ 45°C Storage Humidity 75% Bluetooth version BLUETOOTH V2.1+EDR 5 FCC WARNING This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help

Easystar Industrial(HK) Co., Ltd. April 01, 2015 Federal Communications Commission Authorization and Evaluation Division FCC ID：2AC36S101 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram CONF APPENDIX 2AC36S101 _Block Diagram.pdf 2. Circuit Diagram CONF APPENDIX 2AC36S101_Schematics.pdf 3. Operational Description CONF APPENDIX 2AC36S101 _Operational description.pdf 4. BOM List CONF 2AC36S101 _BOM List.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Signature Name/Title: Jack Xie / Manager Applicant: Easystar Industrial(HK) Co., Ltd. ADDRESS: Room 813, Donghuayuan Building 5, Nanguang Road, Nanshan District Shenzhen, Shenzhen, Guangdong, China TEL: 86-755-86701600 FAX: 86-755-26552360 Email: [email protected]

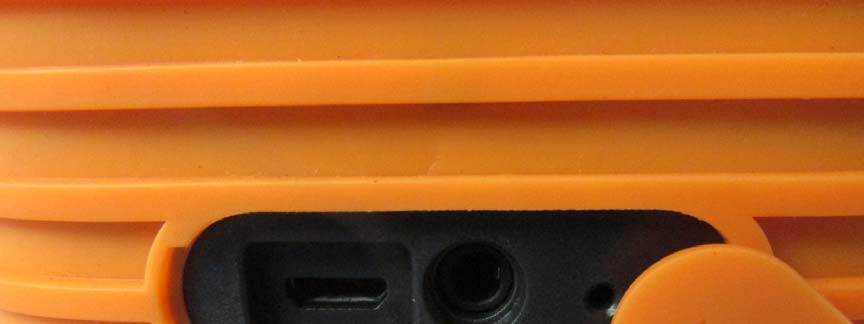

External Photo

Internal Photos

Report No.: SET2015-04373 Page 1 of 75 RF TEST REPORT Report No.: SET2015-04373 Product Name: Bluetooth speaker FCC ID: 2AC36S101 Model No. : S101 Applicant: Easystar Industrial(HK) Co., ltd Address： Room 813,Donghuayuan Building 5,Nanguang Road, Nanshan District, Shenzhen, China Issued by: CCIC-SET Lab Location: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 75 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 20 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2015-04373 Page 2 of 75 Test Report Product Name ....................... : Bluetooth speaker Brand Name .......................... : N/A Trade Name ........................... : N/A Applicant ............................... : Easystar Industrial(HK) Co., ltd Applicant Address ................ : Room 813,Donghuayuan Building 5,Nanguang Road, Nanshan District, Shenzhen, China Manufacturer ........................ : Easystar Industrial(HK) Co., ltd Manufacturer Address ......... : Room 813,Donghuayuan Building 5,Nanguang Road, Nanshan District, Shenzhen, China Test Standards ...................... : 47 CFR Part 15 Subpart C 2013：Radio Frequency Devices ANSI C63.10:2014：American National Standard for Testing Unlicensed Wireless Devices DA 00-705: Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems Test Result ............................ : PASS Tested by ............................. : 2015.04.03 Haigang He， Test Engineer Reviewed by ......................... : 2015.04.03 Zhu Qi, Senior Engineer Approved by ......................... : 2015.04.03 Wu Li’an, Manager Report No.: SET2015-04373 Page 3 of 75 Table of contents 1. GENERAL INFORMATION .................................................................................................... 4 1.1. EUT Description ....................................................................................................................... 4 1.2. Support Equipment ................................................................................................................... 5 1.3. Test Standards and Results ........................................................................................................ 5 1.4. Facilities and Accreditations ..................................................................................................... 6 2. 47 CFR PART 15C REQUIREMENTS .................................................................................... 7 2.1. Antenna requirement ................................................................................................................. 7 2.2. Number of Hopping Frequency ................................................................................................ 8 2.3. Peak Output Power.................................................................................................................. 11 2.4. 20dB Bandwidth ..................................................................................................................... 18 2.5. Carried Frequency Separation ................................................................................................. 25 2.6. Time of Occupancy (Dwell time) ........................................................................................... 28 2.7. Conducted Spurious Emissions ............................................................................................... 35 2.8. Band Edge ............................................................................................................................... 47 2.9. Conducted Emission ............................................................................................................... 59 2.10. Radiated Emission................................................................................................................... 63 2.11. RF exposure evaluation ........................................................................................................... 75 Change History Issue Date Reason for change 1.0 2015.04.03 First edition Report No.: SET2015-04373 Page 4 of 75 1. General Information 1.1. EUT Description EUT Type ............................. : Bluetooth speaker Hardware Version ................. : V0.1 Software Version .................. : N/A Frequency Range .................. : The frequency range used is 2402MHz - 2480MHz (79 channels, at intervals of 1MHz); The frequency block is 2400MHz to 2483.5MHz. Modulation Type .................. : Bluetooth version ................. : Bluetooth: FHSS (GFSK(1Mbps), π/4-DQPSK(EDR 2Mbps), 8-DPSK(EDR 3Mbps)) V2.1+EDR Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : 0dBi Note 1: The EUT is a Bluetooth speaker, it contains Bluetooth Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth Module is F(MHz)=2402+1*n (0<=n<=78). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 39 (2441MHz) and 78 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 3: a. When power on, the EUT will scan the whole frequency until a Connection command from the other BT devices. b. When receiving the signal from the other BT devices, The EUT transmit are sponse signal. c. The other devices re…

Text truncated - open the document above for the full version.

Conducted Emission Test setup photos Radiated Emission Test setup photos Below 1GHz Above 1GHz Conducted Test setup photo
