2.4G Wireless DMX512 transmitter MODEL：AMT-8041B Brief： AMT-8041B transmit standard DMX512 protocol data (generated by console) by wireless way, which solves lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on, It get rid of connecting cable limited completely. And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliably. This product adopt 2.4G ISM frequency section (global opening section) without permission limited, High effective GFSK modulate communication design. Application: Stage lighting、Disco hall、Large literature performance、Gymnasium lighting、Temporary stage performance 、City lighting system 、TV station 、Conference center 、 professional showplace、Topic park 、Bar lighting and so on. 1：XLR 2：Input voltage 3：Tricolor LED indicator 4：ID key 5：RF antenna Product Feature: 1. Transmitting/receiving standard DMX512 protocol data of console，and the master-slaver on line signal of the same kind of lighting each other. 2. Single key to operate，tricolor LED indicator. The LED indicator bright：No DMX or wireless signal. Red LED flash：Transmitting. Green LED flash：Receiving 3. frequency-hopping synchronization automatically. 4. 7 groups ID code to set these different wireless nets without any interfere each other in the same place. 5 Input voltage：VDC 500mA min. Establishing Communication： 1. Power on wireless received board and transmitted board. 2. Press “Key” button to set same ID value of transmitted board and received board. To set up different ID value if you need use more than 1 group wireless net at the same time at the same place, the group wireless net is working for the same ID code. a) ID Code- - - -“1-7” groups ID code, press “KEY” for setting, press again to set ID, then ID value adding 1 each time by press. ID code and LED color corresponding relationship： ID code Tricolor LED 1 red 2 green 3 red + green 4 blue 5 red + blue 6 green + blue 7 red + green + blue FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

GUANGZHOU AI MIN TE LIGHTING LIMITED 5F/A Building,Chaoyang dayatang industrial park,Shijing Town,Baiyun District,Guangzhou,China Confidentiality Request Letter Page 1 of 1 Rev 2.0 August 26, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID: 2AC3C8041B We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Alan Chai/ Manager Contact information / address: 5F/A Building,Chaoyang dayatang industrial park,Shijing Town,Baiyun District,Guangzhou,China TEL: +86-20-36719243 FAX: +86-20-36719243 E-mail: [email protected]

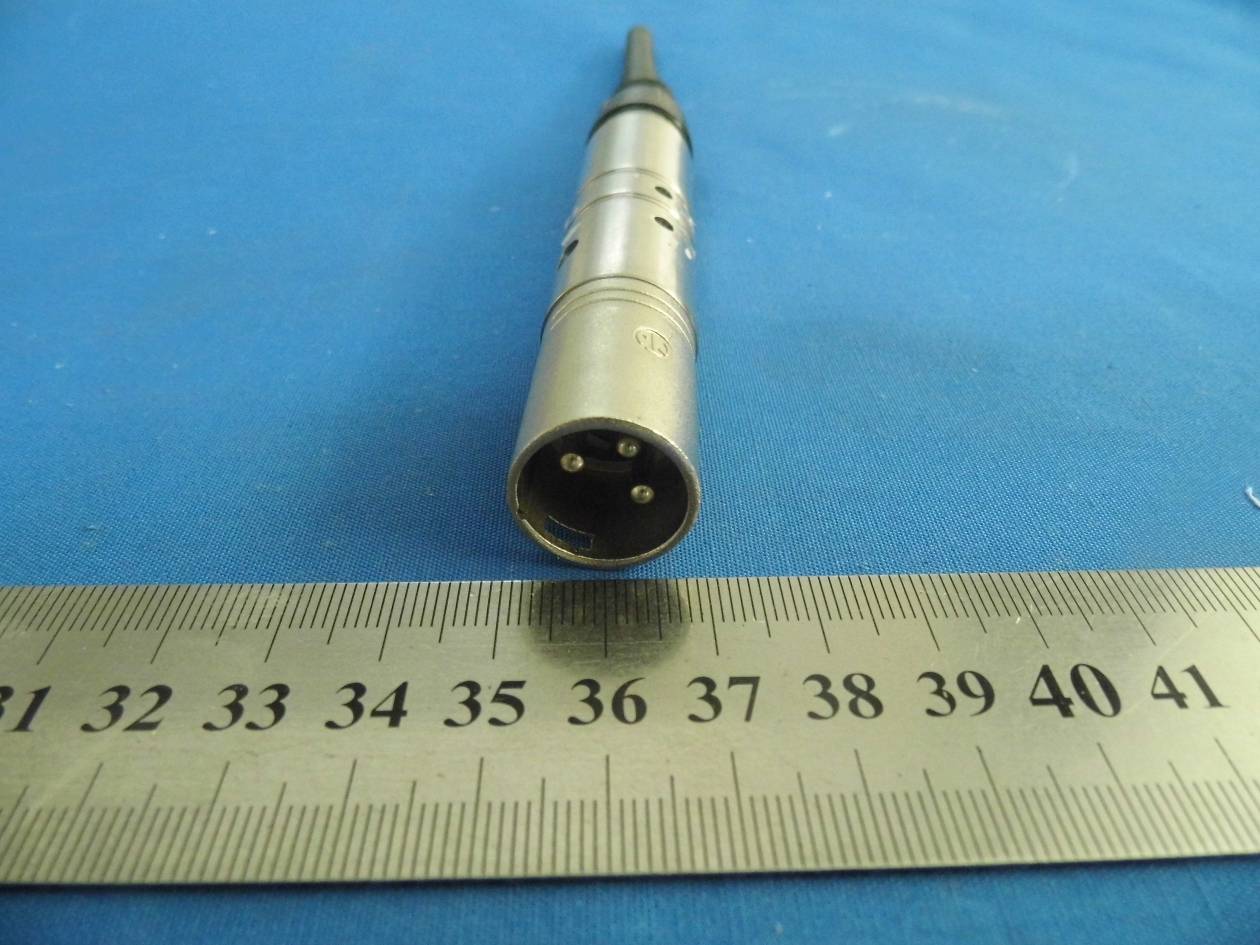

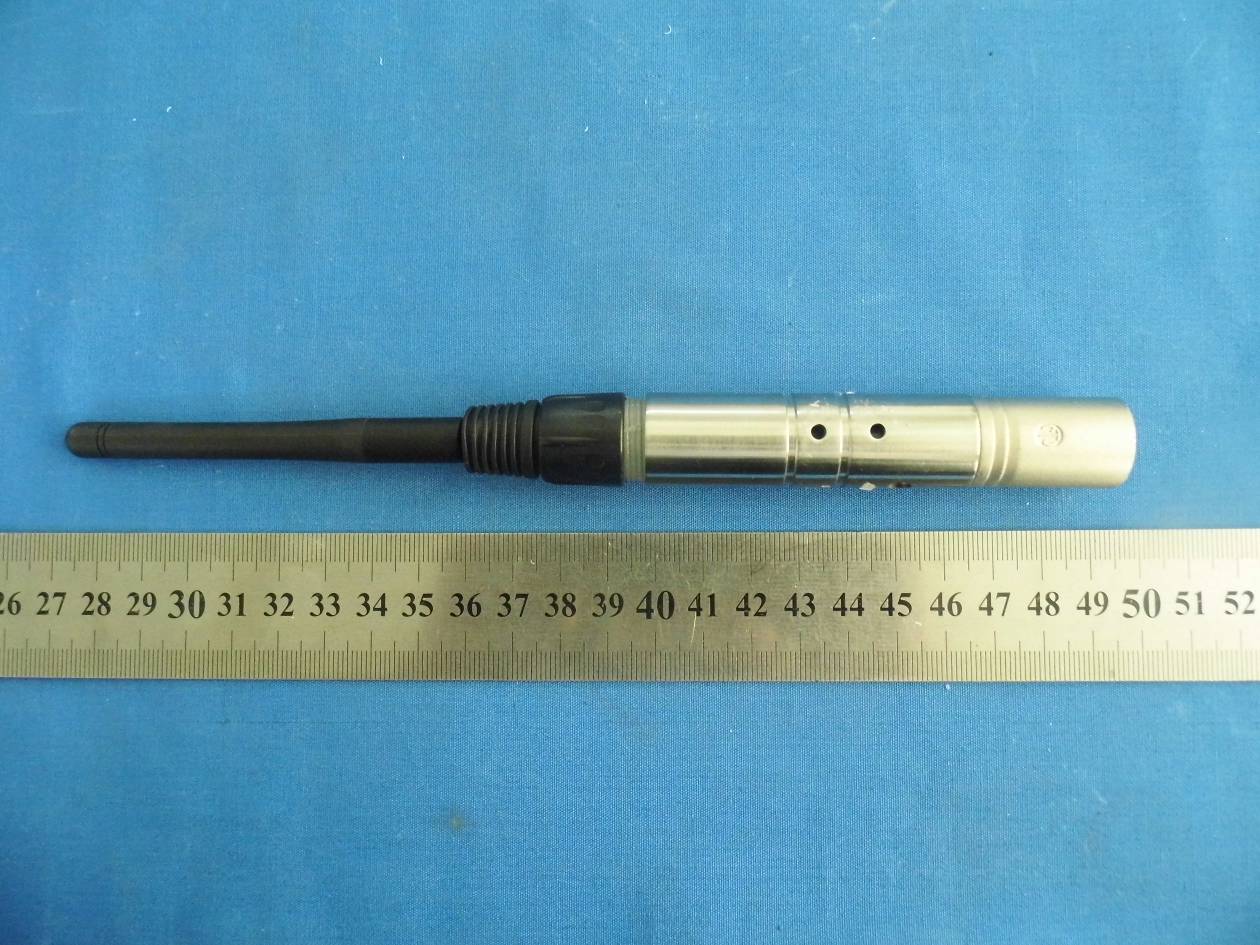

External Photo

FCC Certification Label FCC ID: 2AC3C8041B Label Location on EUT EUT Bottom View/ FCC ID Label Location label size:high:0.5cm,Wide:2.0cm

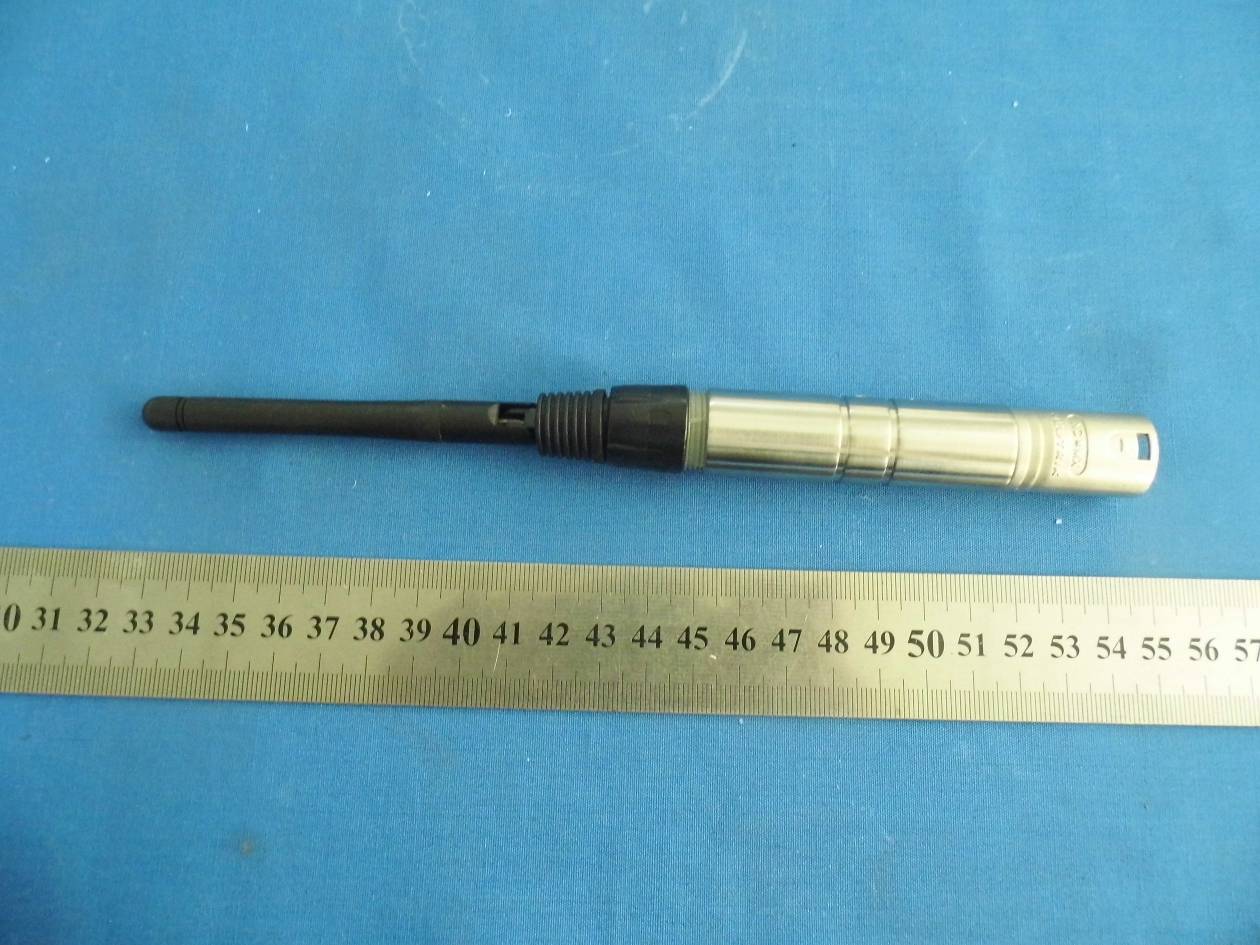

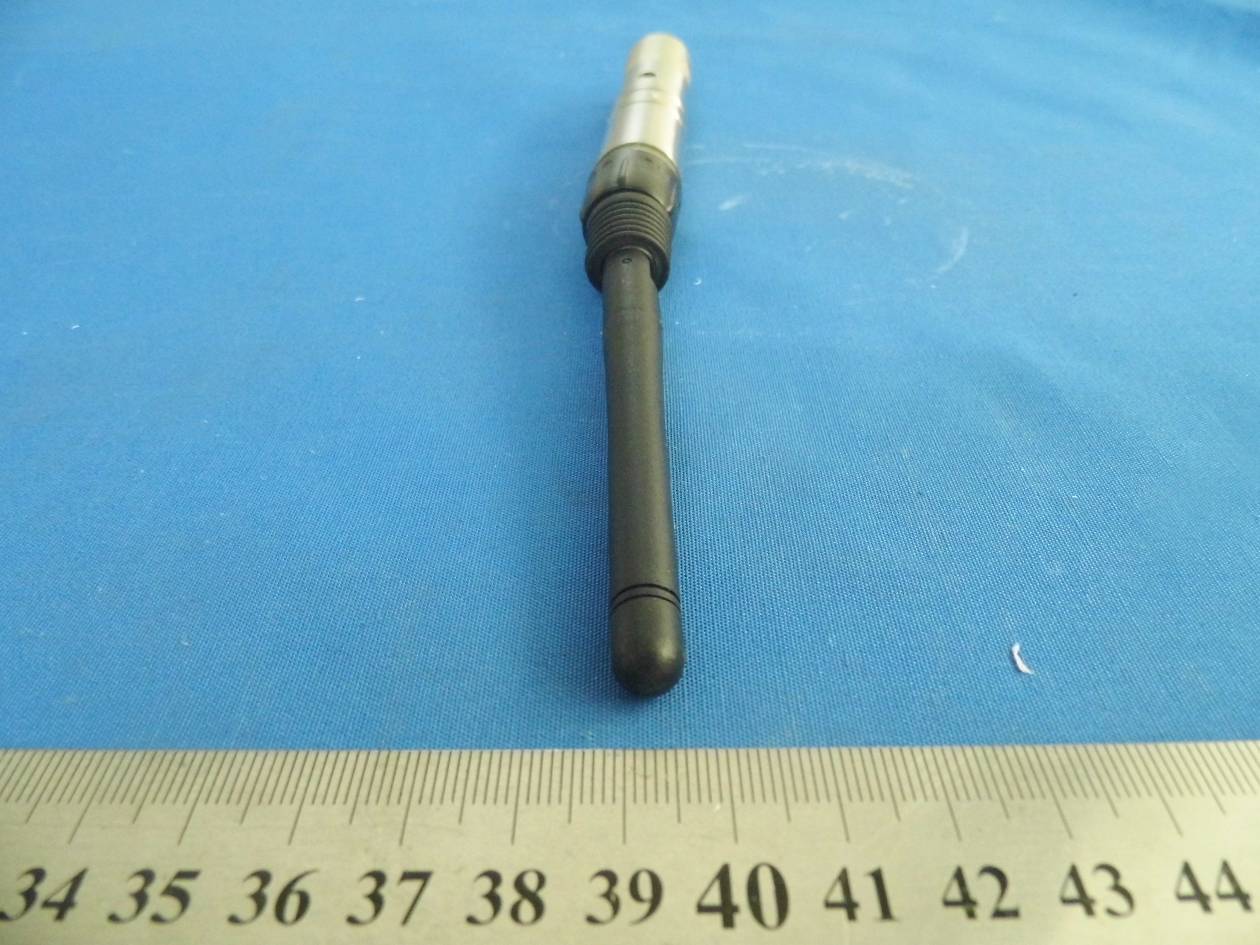

Internal Photo Antenna

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For GUANGZHOU AI MIN TE LIGHTING LIMITED 5F/A Building,Chaoyang dayatang industrial park,Shijing Town, Baiyun District,Guangzhou,China FCC ID: 2AC3C8041B August 26, 2014 This Report Concerns: Original Report Equipment Type: 2.4G Wireless DMX512 transmitter Test Engineer: Lisa Chen Report No.: BSL14060133A Receive EUT Date/Test Date: August 16, 2014 / August 16-26, 2014 Reviewed By: Sky Zhang Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of BSL Testing Co.,LTD. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. FCC ID: 2AC3C8041B Page 2/25 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................12 7.1. Test Equipment ...............................................................................................................12 7.2. Test Procedure ................................................................................................................12 7.3. Radiated Test Setup ........................................................................................................12 7.4. Radiated Emission Limit.................................................................................................14 7.5. Radiated Emission Test Result .......................................................................................15 8. BAND EDGE .............................................................................................................................20 8.1. Test Equipment ...............................................................................................................20 8.2. Test Procedure ................................................................................................................20 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................20 8.4. Band Edge Test Result ....................................................................................................21 9. 20-DB BANDWIDTH ...............................................................................................................22 9.1. Test Equipment ...............................................................................................................22 9.2. Test Procedure ................................................................................................................22 9.3. Limit................................................................................................................................22 9.4. Test Result /Plots ............................................................................................................22 FCC ID: 2AC3C8041B Page 3/25 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testin…
