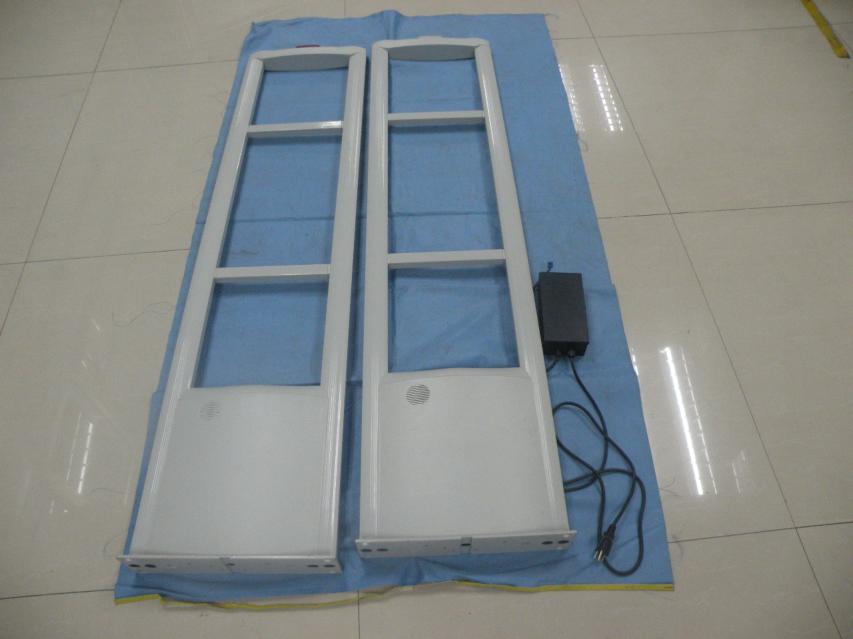

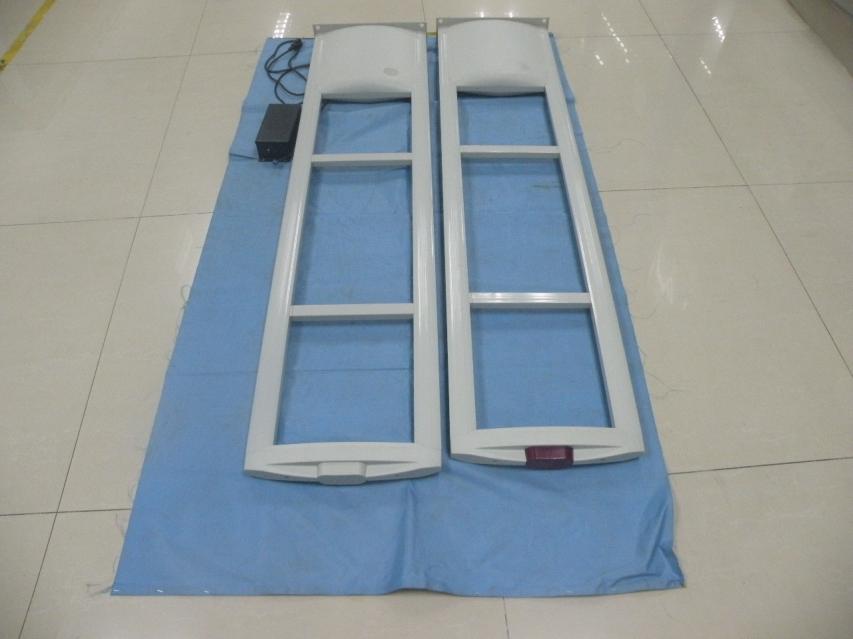

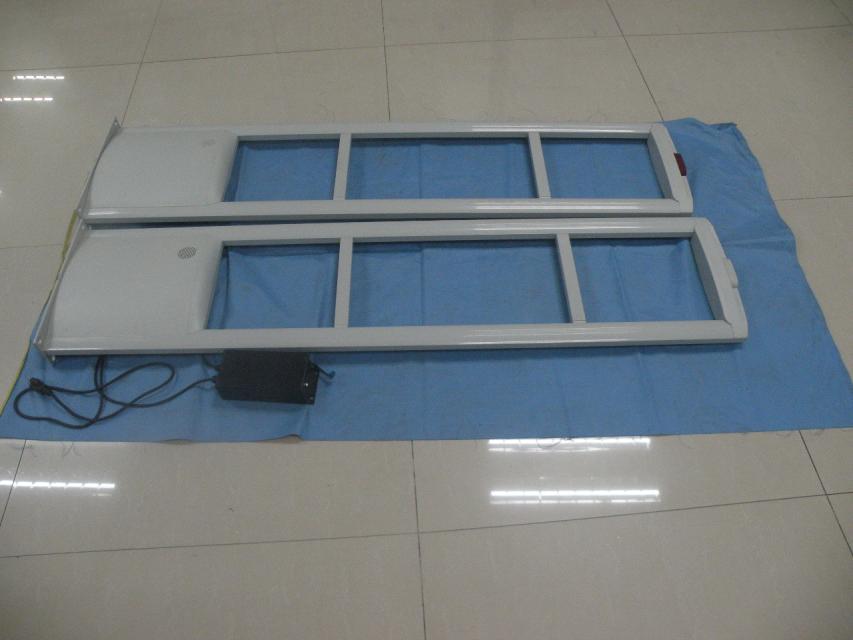

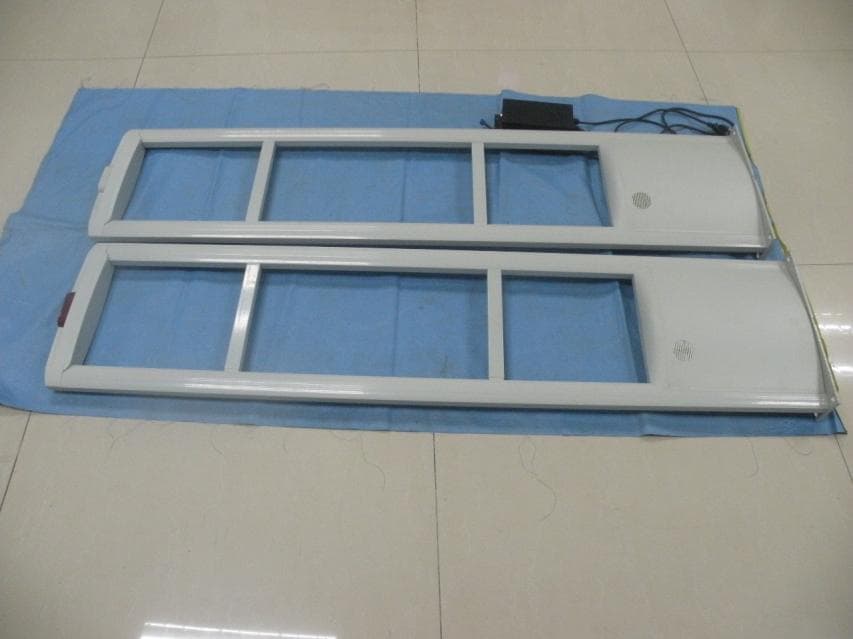

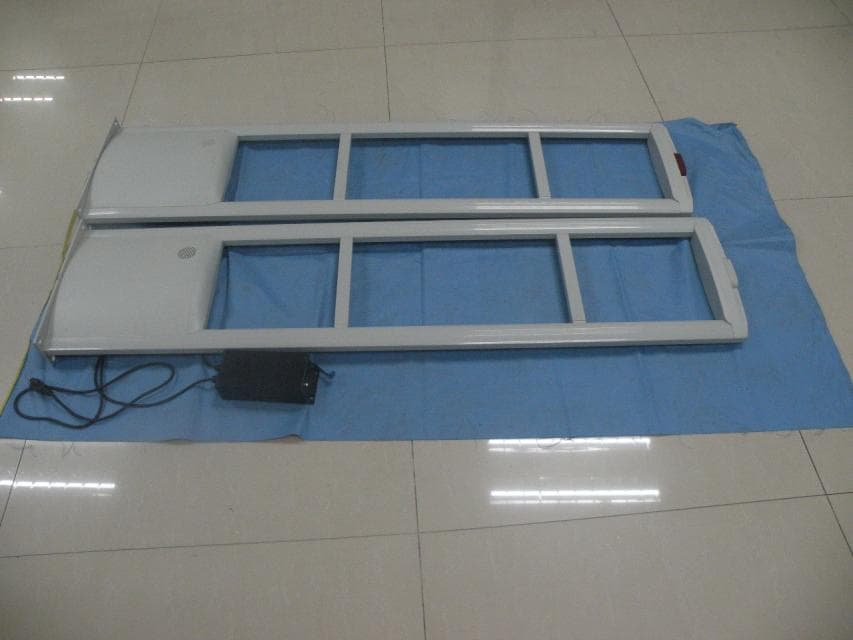

2AC3Q-HTAE05Electronic Article Surveillance

Electronic Article Surveillance （FOCUS series digital EAS） User’s Guide 2 PREFACE Thanks for your choosing EAS system series products of “hongtaian” at first. We do hope it can provide the convenience and efficiency for your work and management when you use our advanced EAS system. The EAS of “hongtaian”, which is designed and produced specially according to more and more serious phenomenon of shoplifting today in supermarket and bookstores, etc., it will prevent the commodity from being stolen and increase your sales, because the shopper also feel free shopping space since you have installed the EAS. The EAS of “hongtaian”, like as the other same products, is not the only standard to judge commodity stolen or not. It can only be regarded as a kind of the best electronic Anti shoplifting tool and reduce the stolen commodity. Here we write the user’s Guide in order to help you use it more conveniently. As you know, whether EAS is fully used depends on how to install and adjust it. This User’s Guide has six parts: basic working principle & use illustration、 installation、adjustment、system maintenance& common trouble, etc. You should read this User’s Guide carefully and make training plan for clerk according to the system and supermarket character. We keep the right of revising this book at anytime without notice. All rights reserved, we keep every right for this book. We don’t allow this book copied by anyone without our company’s literal agreement. Chapter 1：Basic working principal 1.1 RF EAS basic working principle The basic working principle of Radio Frequency EAS System is: transmitter sends out the swept-band, there will be a scan area between the transmitter and receiver, and then the receiver receives it. Based on the principle of electromagnetic wave resonance to search the labels in special frequency range. It will be alert if any effectual labels exist in the range. “hongtaian” Electronic Article Surveillance system would give you the solution for shoplifting. The effectual labels are sticked to the commodity and the sensors are installed in passage or gate, the label will be lapse by deactivator or detacher. The receiver will alarm when the non-payment and unchained commodity goes through the sensors. Picture 1 Commodity Take it away Payment Deactivate Non-payment Commodity Label or tag is stick to the commodity Leave System alarms 3 1.2 EAS configuration Electronic Article Surveillance System is consisted with Sensor(transmitter、receiver & special power supply), electronic labels (soft label and hard tags), instrument for deactivating(Deactivator/detacher). 1.2.1 Sensor There will be a scan area between transmitter and receiver, it will scan the commodity passing through the sensors, and alert if the label with the commodity undetached. 1.2.2 ELECTRONIC LABELS There are two kinds of electronic labels: RF Soft Labels: used for one time and can be attached to all kinds of nonmetal commodity. Hard Tags: repetition used and can be attached to clothes and bags and shoes. 1.2.3 Instruments for deactivating A. Deactivator: deactivate over 15cm high. The 8.2MHz RF paper labels is deactivated when it is passed through the deactivating area. That is contactless deactivation. B. Detacher: Can detach the hard tags from commodity quickly, safely and conveniently. Chapter 2 : Installation Guidance Ι Main technical parameters Transmitter: Power supply DC 24V DC source ＜300mA Output current 180mA＜JP1＜240mA Center frequency 8.2MHZ Scan rate 180HZ ± 1HZ Antenna Output Power Adjustments max. 70dbuv/m Frequency Adjustments 8.170~8.190 MHz Bandwidth Adjustments ±50 kHz Sweep Frequency Setting 150~180 Master/Slave Master/Slave Receiver: Power supply DC 24V DC source ______ in guard status ＜380mA in alarm status ＜380mA sensitivity 5μA II Mounting tools instruments and meters Name Quantities 1、earth groove cutter 1 2、bumping electric hammer 1 3、hand electrical drill 1 4、adjustable wrench 1 5、iron hammer 1 6、clipper 1 4 7、bevel pliers 1 8、crosshead screwdriver 1 9、screwdriver for adjustment 1 10、universal meter 1 Installation notice points （1） EAS sensor must be upright with installation ground （2） Prohibit putting label and tag to the 30cm surrounding of power supply cable and synchronization cable （3） It is unfit to pile up a lot of metal things such as handcraft, metal door surround the EAS sensor，metal wall reinforcements, goods shelves, metal showcases, hand purchasing carts, etc. （4） EAS sensor must be kept away from these things at least 1.5 meters, such as POS system, the money machines, ID devices for credit cards, telephones, computers, data cables, neon lamps, air conditioners, heaters, etc. and deactivator （5） EAS sensor should keep 30cm distance away form metal counterpoint （6） The power supply wire must be used independently and fix hardly, prohibit using bad quality plug （7） When using linearity power supply, the linearity power supply must keep away from switch power supply, or it will cause disturbance （8） Power supply should use special line independently, don’t share a power supply line together with light and high-power machine. （9） There shouldn’t have strong disturbance resource around EAS sensor, especially 7.3~8.7MHz disturbance signal, or the system can’t work normally (10) Please regulate the surrounding electronic equipment, which will cause disturbance, such as low quality energy saving light (11) When existing many TX antennas, only permit one TX as Master, the other can be set as slaver, the Master and Slaver can be connected with synchronization wire; (12) It will cause false alarm under strong electromagnetic disturbance, such as light from metal bounce, switch on light and so on, when disturbance eliminated, the system will return to normal. III Environmental Conditions 1、Mounting position of EAS detector EAS detector cannot be set up in the distance of 0.5m from a metal door or 1m from any metal objects inducing the metal wall reinforcements, goods shelves, metal showca…
