GATEKEEPER USER MANUAL VER. 1.0JULY 20141 GateKeeper Gatekeeper User Manual Ver. 1.0 Table of Contents I. ....................................................................................................................................................................... T able of Contents.......................................................................................................... 1 II. ...................................................................................................................................................................... G ateKeeper System....................................................................................................... 2 Keyfob.............................................................................................................................................. 2 USB Lock......................................................................................................................................... 2 Package Contents..............................................................................................................................2 III. .................................................................................................................................................................... P roduct Overview......................................................................................................... 3 Description........................................................................................................................................3 GateKeeper Key Fob........................................................................................................................ 3 GateKeeper USB Lock..................................................................................................................... 3 GateKeeper Software........................................................................................................................3 GateKeeper App............................................................................................................................... 3 IV. ..................................................................................................................................................................... F CC Statement..............................................................................................................3 V. ...................................................................................................................................................................... I nstallation and Setup..................................................................................................4 Download Software.......................................................................................................................... 4 Install GateKeeper software..............................................................................................................4 5000CollegeAve,Suite2103 CollegeParkMD,20740 [email protected] coolcadelectronics.com GATEKEEPER USER MANUAL VER. 1.0JULY 20142 Running the software........................................................................................................................4 Key enrollment................................................................................................................................. 4 EnablingLogon/offfunctionality.................................................................................................... 4 Adjustingthelock/unlockrange.......................................................................................................4 Deletingakey................................................................................................................................... 4 Feedback...........................................................................................................................................4 Software is ready to use....................................................................................................................4 VI. ..................................................................................................................................................................... G ateKeeper Smartphone App......................................................................................5 Requirements:...................................................................................................................................5 Installation........................................................................................................................................ 5 Adding a Key....................................................................................................................................5 Deleting a Key.................................................................................................................................. 5 Renaming a Key................................................................................................................................5 Locate Function................................................................................................................................ 6 Alert Mode........................................................................................................................................6 Battery Level Indicator.....................................................................................................................6 VII. ................................................................................................................................................................... R eplacing the Battery....................................................................................................6 VIII. .....................................................................................…

Text truncated - open the document above for the full version.

Glory Star Technology Limited FCC Confidentiality Request Number:CF303 Version:V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameGlory Star Technology Limited AddressRm E, 6/F, Block 15, Tai Po Centre, Tai Po, CityN.T., CountryHongKong request for this certification filing under: Grantee CodeProduct Number FCC ID:2AC4K-GK01 to maintainpermanent confidentialityfor the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) ExhibitFile NameDescription √ Operational DescriptionOperational Descriptionexplaining the functioning of the block diagram √ Block DiagramsBlock Diagramsshowing the systematic building blocks of the EUT √ Schematics DiagramsSchematicsshowing components, their values and interconnection Bill of MaterialsList of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) N.T., HongKong2014-09-26 Gordon HoSale Director

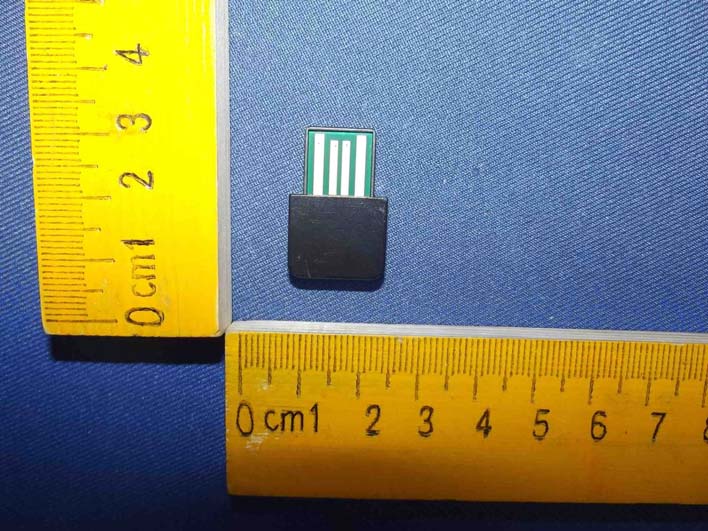

Figure 1 The EUT-Top View Figure 2 The EUT-Bottom View Figure 3 The EUT-Front View Figure 4 The EUT-Back View Figure 5 The EUT-Right View Figure 6 The EUT-Left View

Model Name: Gatekeeper-lock Model No.: Gatekeeper 01 FCC ID: 2AC4K-GL01

Label Location On EUT

Figure 7 TheEUT-InsideView Figure 8 PCB of the EUT-Front View Figure 9 PCB of the EUT-Back View Figure 10 PCB of the EUT-Front View Figure 11 PCB of the EUT-Back View

FCC RF Exposure FCC ID: 2AC4K-GL01 Frequency: 2402-2480 MHz (40 channels) Mid-Channel or Highest Peak Power, Conducted: 1.89 dBm == 1.55 mW Antenna Gain: G = 4 dBi Peak, Radiated = 1.89 dBm + 4 dBi = 5.89 dBm = 3.88 mW SAR Test Exclusion Thresholds specified in KDB447498 Appendix A: Evaluation: The Calculated Radiated Peak output power is taken as worst case, and this emission level appears to be far under the maximum allowed emission level at even the closest distance for 2.4G device specified in this table. Conclusion: The emitted power appears to be (far) below the required limit, so PASS.

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AC4K-GK01 Page 1 of 49 Report No.: R011409080E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for Glory Star Technology Limited Gatekeeper-key Model No.: Gatekeeper 01 Report Number : R011409080E Date of Test : Aug. 25~ Sept. 22, 2014 Date of Report : Sept. 26, 2014 Prepared for : Glory Star Technology Limited Address : Rm E, 6/F, Block 15, Tai Po Centre, Tai Po, N.T., HongKong Prepared By : Shenzhen Anbotek Compliance Laboratory Limited Address : 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AC4K-GK01 Page 2 of 49 Report No.: R011409080E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION ..................................................................................................... 4 1.1. Description of Device (EUT) ............................................................................................................... 4 1.2. Auxiliary Equipment Used during Test ............................................................................................... 5 1.3. Description of Test Facility ................................................................................................................. 6 1.4. Measurement Uncertainty .................................................................................................................... 6 2. TEST METHODOLOGY ........................................................................................................... 7 2.1. Summary of Test Results ..................................................................................................................... 7 2.2. Description of Test Modes ................................................................................................................... 7 3. CONDUCTED EMISSION TEST.............................................................................................. 8 3.1. Block Diagram of Test Setup .............................................................................................................. 8 3.2. Power Line Conducted Emission Measurement Limits (15.207) ........................................................ 8 3.3. Configuration of EUT on Measurement .............................................................................................. 8 3.4. Operating Condition of EUT ............................................................................................................... 8 3.5. Test Procedure ..................................................................................................................................... 9 3.6. Test equipment .................................................................................................................................... 9 3.7. Power Line Conducted Emission Measurement Results ..................................................................... 9 4. FCC PART 15.247 REQUIREMENTS FOR DSSS & OFDM MODULATION ................. 12 4.1 Test Setup ........................................................................................................................................... 12 4.2 6dB Bandwidth ................................................................................................................................... 12 4.3. Maximum Peak output power test ..................................................................................................... 15 4.4. Band Edges Measurement ................................................................................................................. 18 4.5. Peak Power Spectral Density ............................................................................................................. 28 4.6. Radiated Emissions ............................................................................................................................ 31 5. PHOTOGRAPH ......................................................................................................................... 42 5.1. Photo of Conducted Emission Measurement ..................................................................................... 42 5.2. Photo of Radiation Emission Test ..................................................................................................... 43 APPENDIX I (EXTERNAL PHOTOS) ....................................................................................... 44 APPENDIX II(INTERNAL PHOTOS) ..................................................................................... 47 Appendix I (3 Pages) Appendix II (3 Pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AC4K-GK01 Page 3 of 49 Report No.: R011409080E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant : Glory Star Technology Limited Manufacturer : Glory Star Technology Limited EUT : Gatekeeper-key Model No. : Gatekeeper 01 Serial No. : N.A. Trade Mark : N.A. Rating : DC 3V Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.247 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Shenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and s…

Text truncated - open the document above for the full version.

1. Photo of Conducted Emission Measurement 2. Photo of Radiation Emission Test
